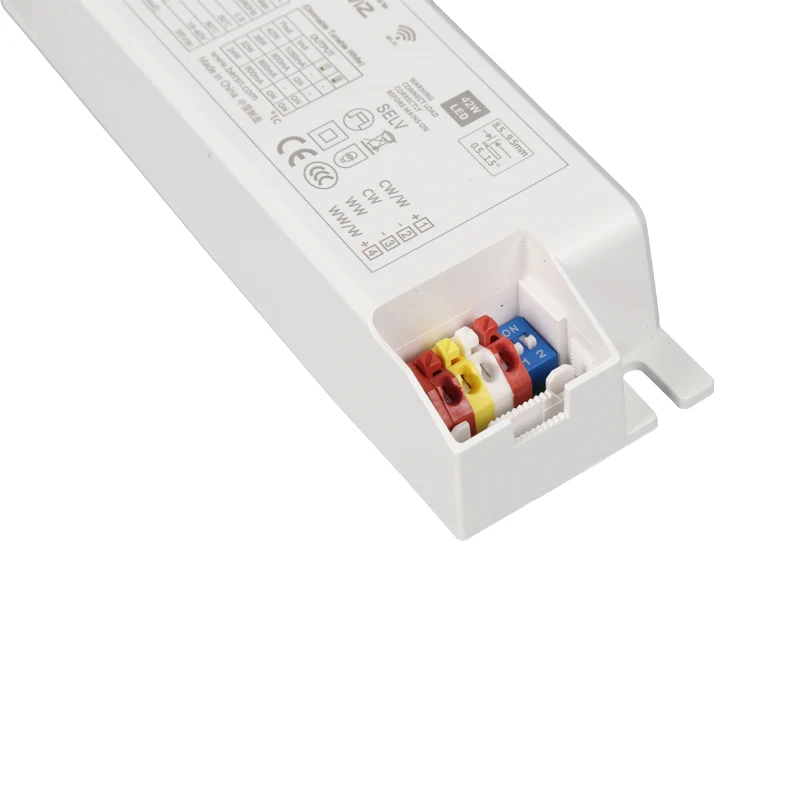

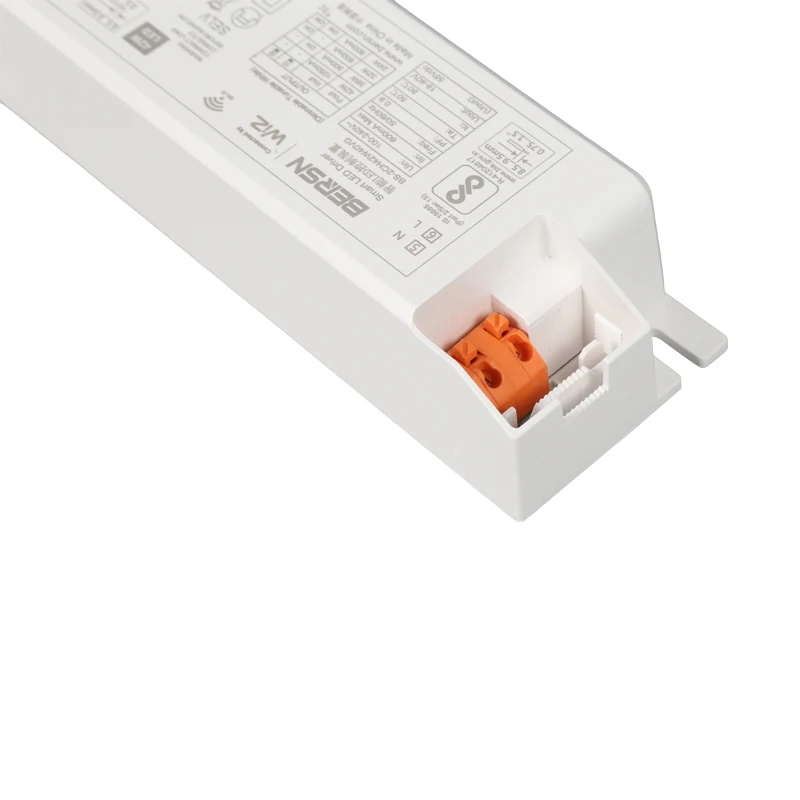

Customization SmartDriver 20W 500mA RGBCW Multiple color 100 277V Smart Led Power Supply for Indoor Light
- Category: >>>
- Supplier: Shenzhen Bersn Opto-Electronics Co. Ltd.
Share on (1600719683113):
Product Overview
Description
Product Description
Smart Led Driver
BERSN RGBTW smart LED driver connected by WiZ can work with RGBCW LED to enable color and tunable white control features. It enables simple, cost effective wireless lighting system for energy saving and comfort. Advanced design of the smart LED driver helps to build a reliable and standardized connected lighting system with diferent functionalities fromsimple wireless dimming to cloud based operations
Input electrical parameters | ||||||
Specification item | SmartDriver 20W 500mA 40V WiZ RGBTW 100-277V CC | unit | condition | |||
Model No. | BS-5CH20W40VG | Vac | ||||
Rated Power | 20W | Vac | safe working range | |||
Output Current (Io1;Io2) | WW/CW:500 mA: RGB: 120mA | Hz | ||||
Output Voltage (Vo1;Vo2) | 18-40Vdc | Hz | maximum allowable range | |||
Input Voltage Range | 100-277VAC | mA | 230V at full load | |||
Nominal Input Frequency | 50-60Hz | |||||
Power Factor | 0.9 @ full output power | Vdc | ||||
Total Harmonic Distortion | ≤20% @ rated output power | Vdc | Open circuit peak voltage | |||
Output Voltage Max | 50Vdc | mA | fully loaded | |||
Output current tolerance | ±5 | % | Maximum output current, Ta = 25 °C (cold start) | |||
Output current ripple LF | 5 | % | Ripple = peak / average, <1kHz | |||
Mains Surge Capability | L-N 1kV; L/N-GND 2kV | W | fully loaded | |||
Ambient Temperature | -20…+50°C | KHZ | ||||
Tcase Maximum | 80°C | Basic ; 2U+1000V | ||||
Humidity | 10~90% | |||||
Lifetime | 50,000 hrs | °C | ||||
Control Mode | Wireless protocol = Wi-Fi, BLE | Hour | At ambient temperature 40°C ; survival rate = 90 % | |||
Standby Power | 0.5W | |||||
Dimming range | 10...100% Dimming Via WIZ App | SCP | Overload protection | |||
Isolation controls input to output | SELV (acc. IEC61347-1) | |||||
Approval Marks | BIS / CE-RED / CCC; ENEC (PENDING) | |||||
FAQ
Q1. What about the lead time ? A. Sample needs 3-5days, mass production time needs 1-2 weeks for order quantity more than.
Q2. Do you have any MOQ limit for order ?
A. Low MOQ, 1pc for sample checkjing is available
Q3. How do you ship the goods and how long does it take to arrive ?
A. We usually ship by DHL, UPS, Fedex or TNT takes 3-5days to arrive. Airline and sea shipping also optional.
Q4. Is it OK to print my logo on product ?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Do you offer guarantee for the products ?
A. Yes, we offer 5 years warranty to led street light.
Q2. Do you have any MOQ limit for order ?
A. Low MOQ, 1pc for sample checkjing is available
Q3. How do you ship the goods and how long does it take to arrive ?
A. We usually ship by DHL, UPS, Fedex or TNT takes 3-5days to arrive. Airline and sea shipping also optional.
Q4. Is it OK to print my logo on product ?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Do you offer guarantee for the products ?
A. Yes, we offer 5 years warranty to led street light.
