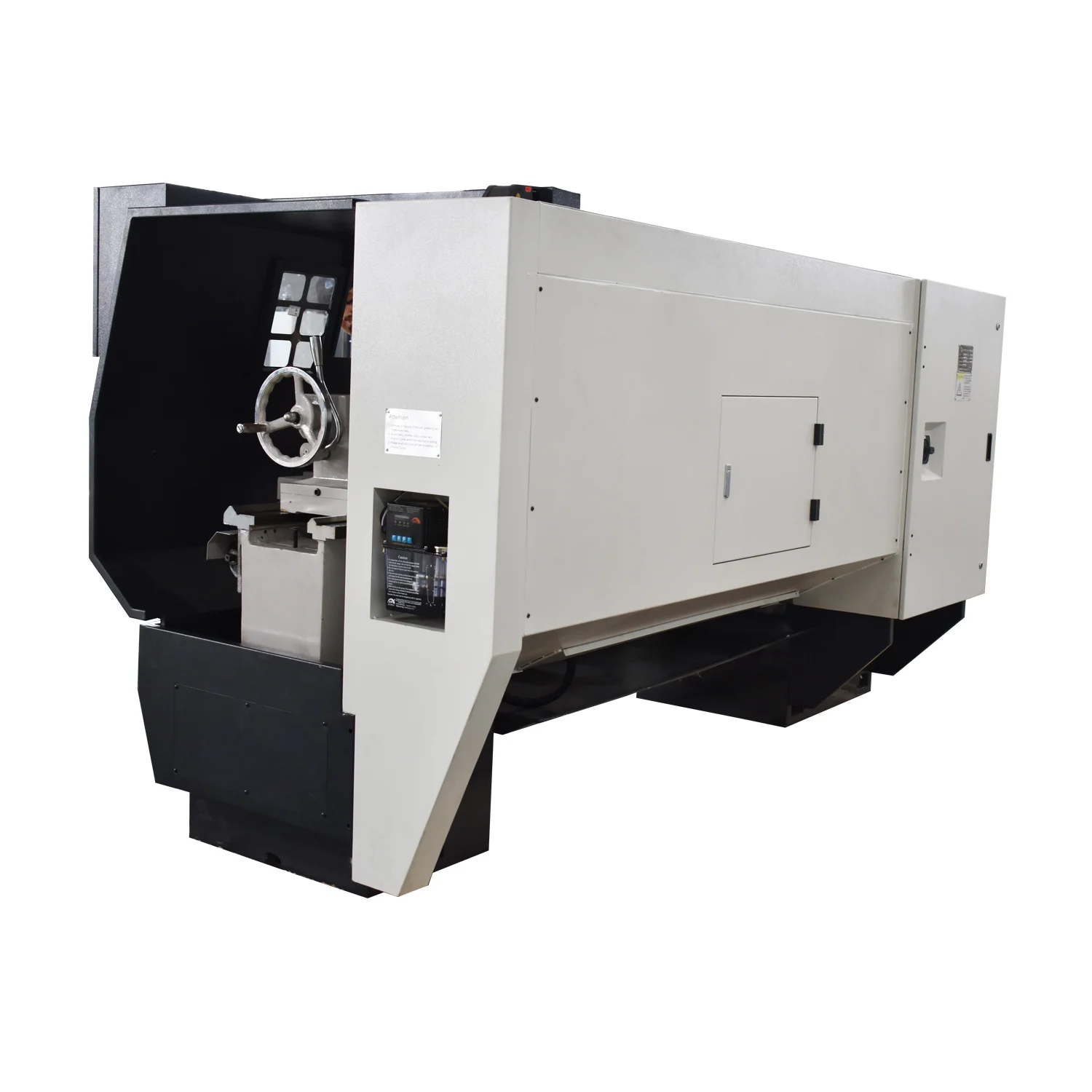

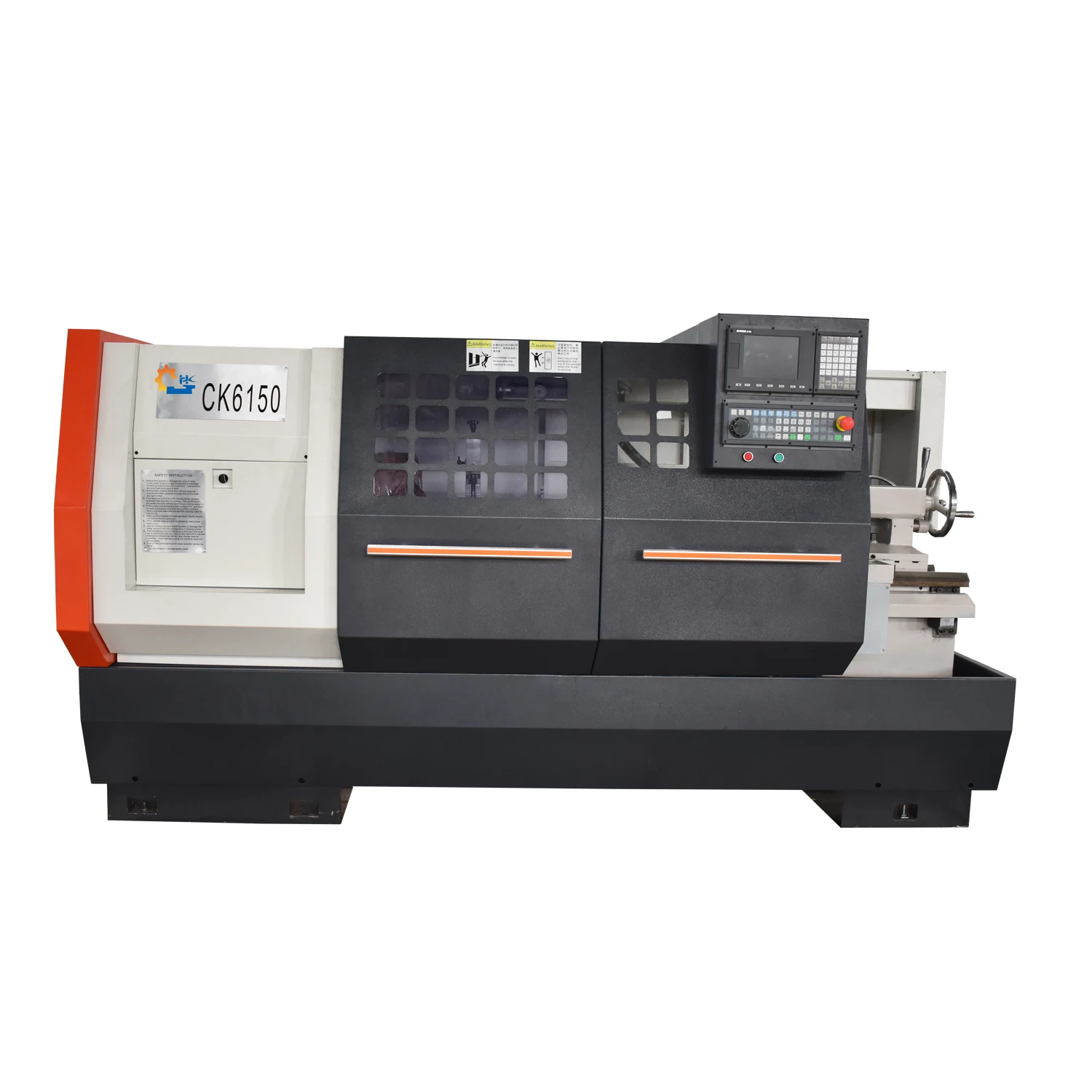

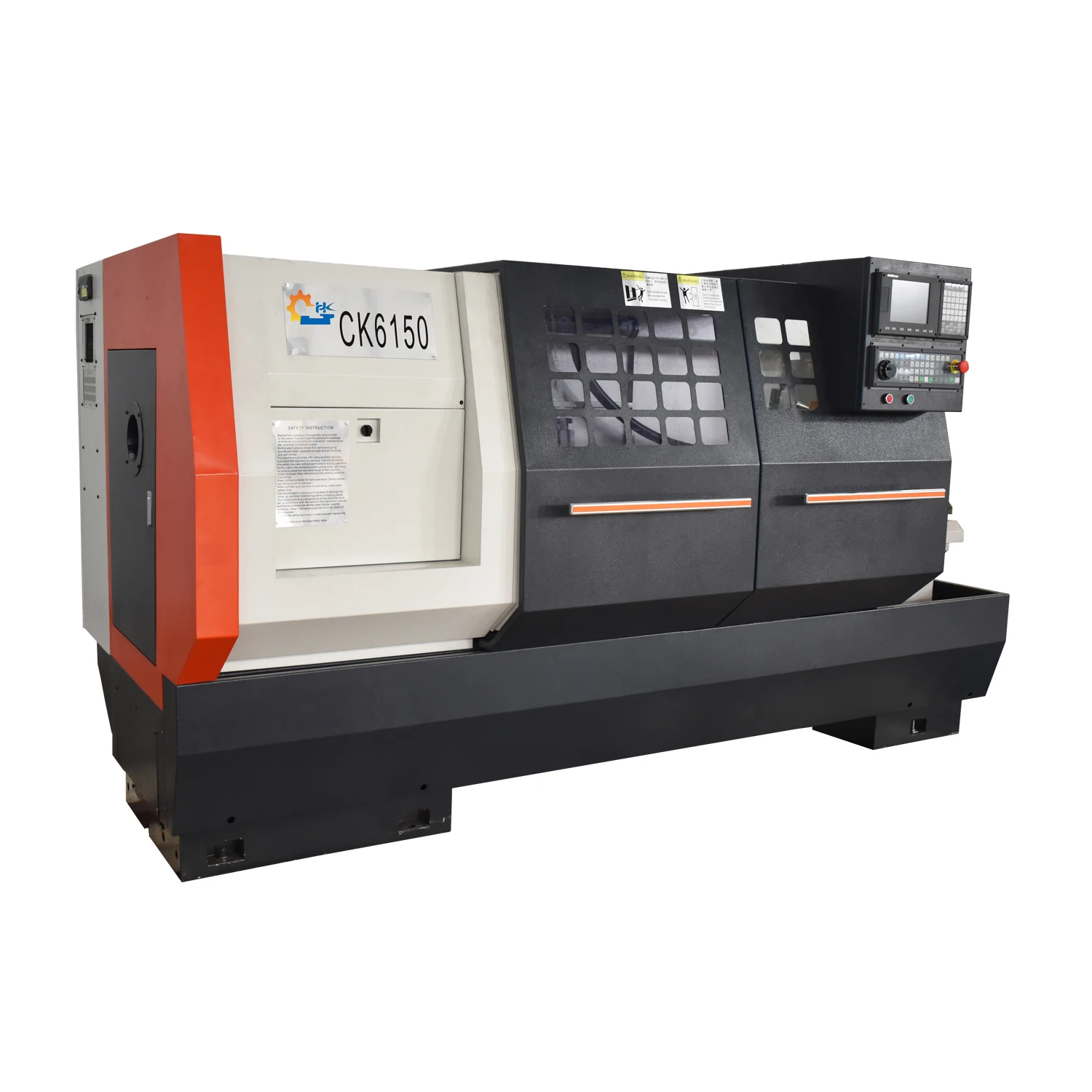

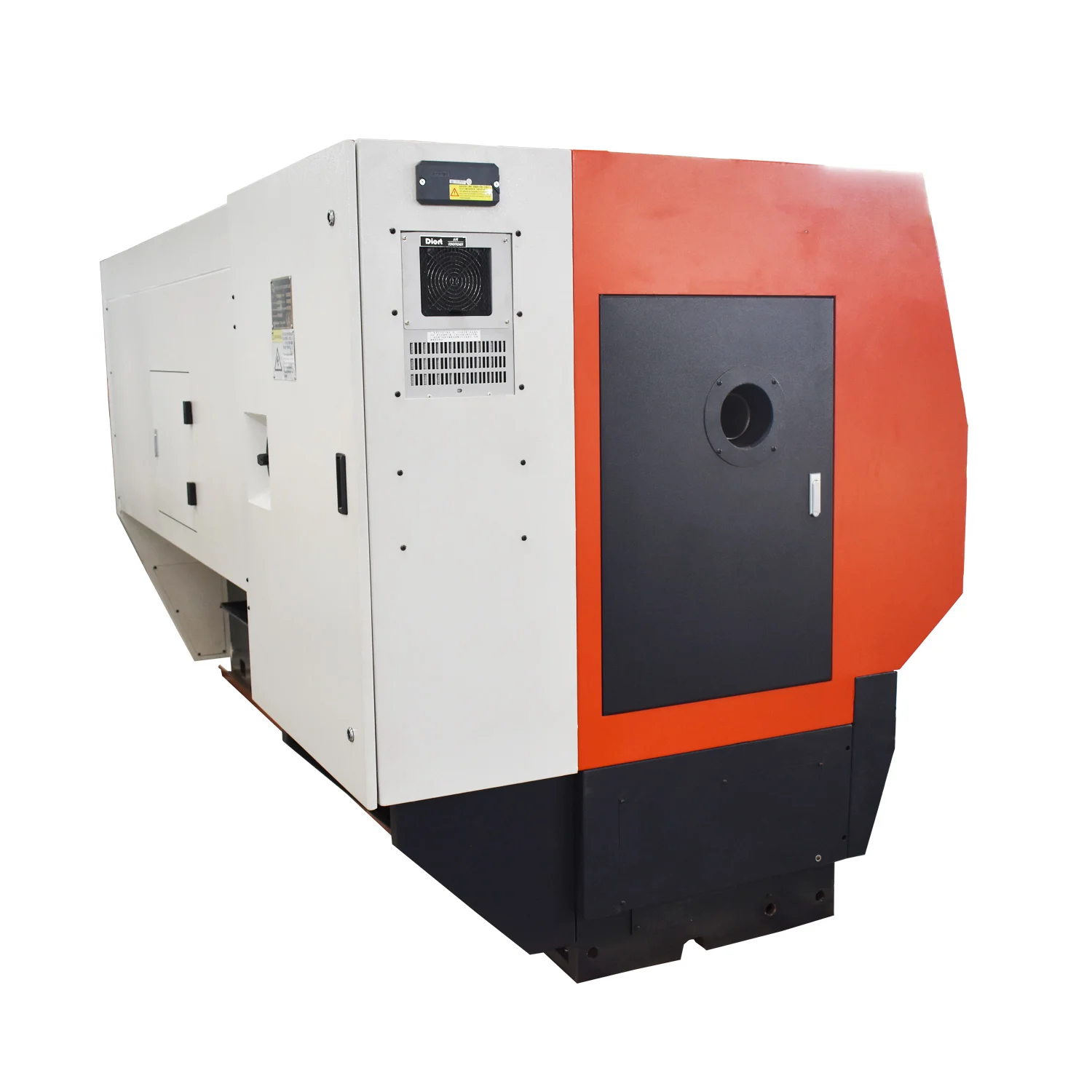

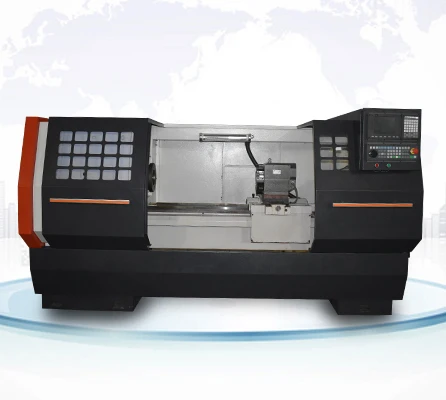

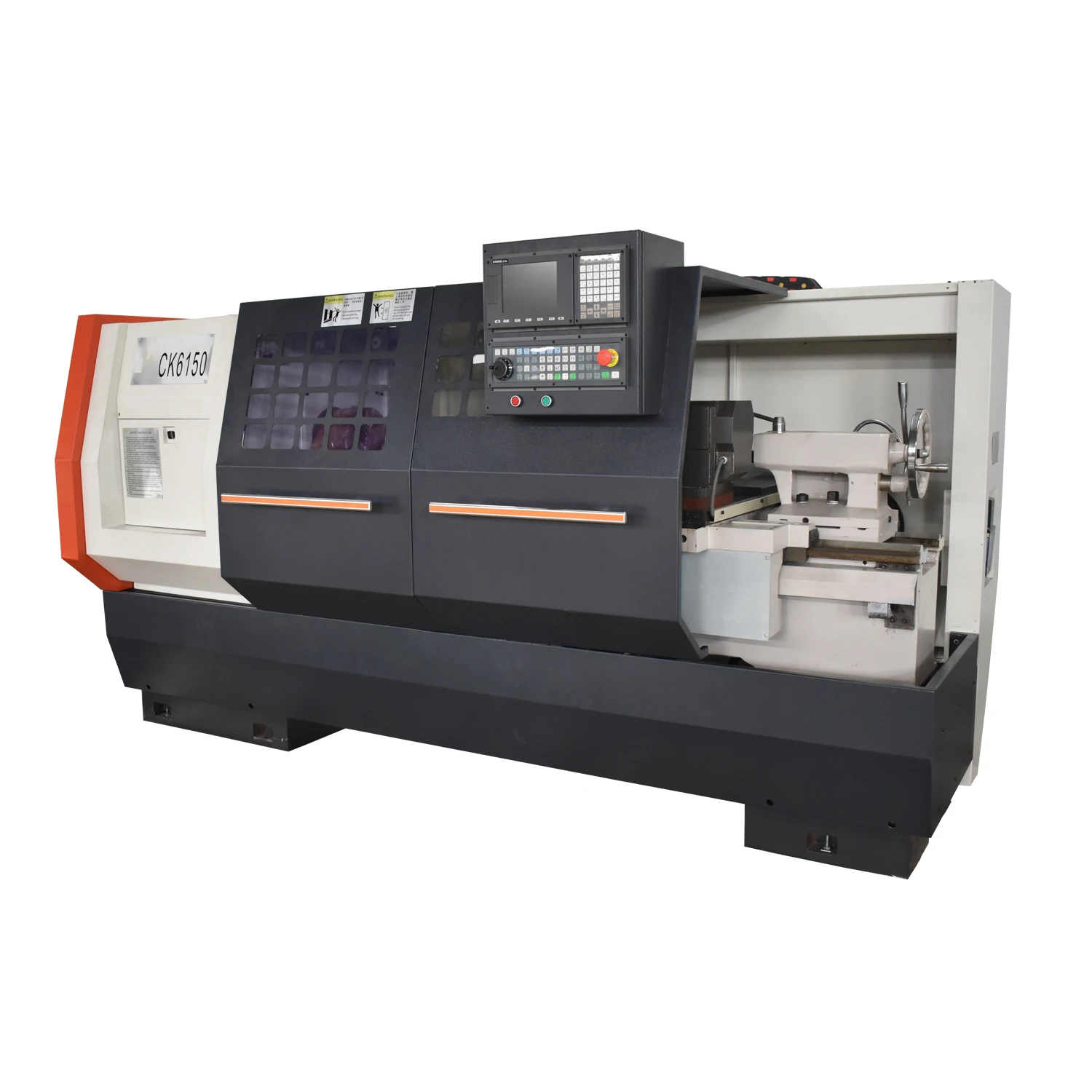

CK6150L Full Function personal benchtop cnc machine shop
- Category: >>>
- Supplier: Jinan Shangneng CNC Equipment Co. Ltd.
Share on (1600719690722):
Product Overview
Description
Application
It can complete the processing of vehicles, groove, inner (outer) hole, spherical, R cone angle, curved shape, cone shape, face shape, male thread single head, thread single head and multiple thread processing. It is applicable for multi and mass production, and can meet the processing demands for complex and high precision parts.
Products Description
Standard configuration:
1) 7.5kw motor,
2)Max spinlde speed 1600RPM,thrid steps frequency conversion;
3)Dia of Spindle Thru-hole 82mm;

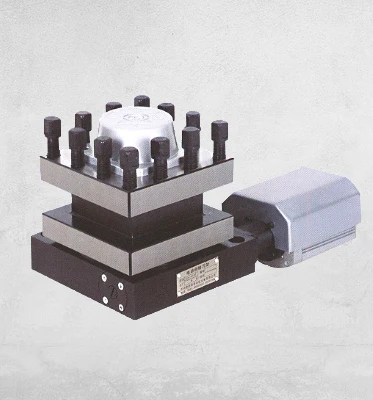

4)4 station electric tool rest;

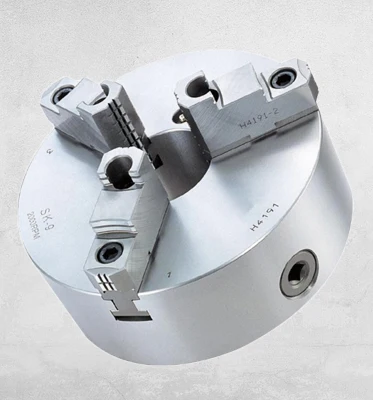

5)Manual chuck(diameter:250mm),and with taikstock;
2)Max spinlde speed 1600RPM,thrid steps frequency conversion;
3)Dia of Spindle Thru-hole 82mm;
4)4 station electric tool rest;
5)Manual chuck(diameter:250mm),and with taikstock;
Optional configuration:
1) Hollow 10 inch hydraulic chuck；
2) Solid 10 inch hydraulic chuck；

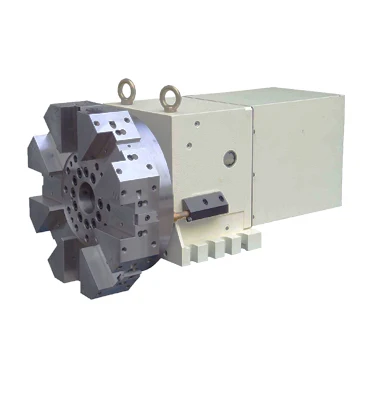

3) 6 station electric tool rest;
4) Servo spindle motor;
5) Max processing length 1500mm;
6) Max processing length 2000mm;
7) Hydraulic tailstock；
Technical parameter

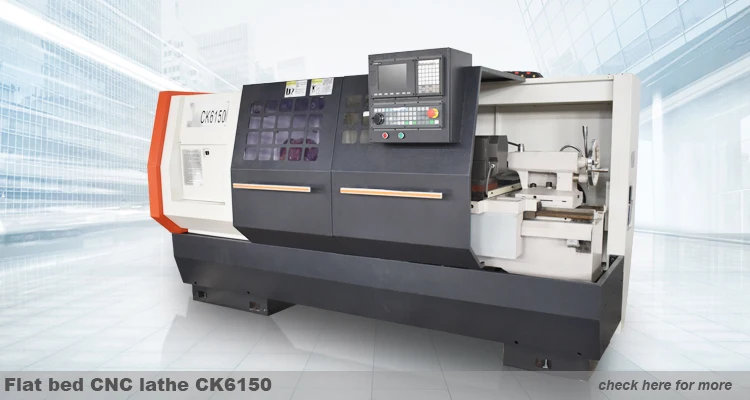

Item | CK6150 |
Max.Swing over bed | 500mm |
Max.Swing over slide | 300mm |
Max.processing Length | 1000/1500/2000mm |
Guideway width of bed | 390mm |
X axis travel | 250+10mm |
Z axis travel | 1000/1500/2000mm |
X/Z axis lead screw | 2505/4010 |
X/Z axis Rapid speed | 6/8m/min |
X/Z axis positioning precision | 0.02/0.03mm |
X/Z axis repositioning precision | 0.012/0.016mm |
Processing precision | IT6-IT7 |
Ellipticity | 0.01 |
Surface Rouhness | Ra≤1.6 |
Spindle Speed Range | 60-200.200-650.650-1600 |
Spindle head type | C-5,C-8,D-8 |
Dia.of Spindle Thru-hole | 82(105) |
Spindle Hole Tapper | 105mm,1:20 |
Chuck | 250mm |
Spindle Motor power | 7.5(three steps frequency) |
Tool Holder Type | Vertical 4 stations |
Turning tool size | 25*25mm |
Tailstock Sleeve travel | 150mm |
Tailstock Sleeve Dia. | 75mm |
Tailstock Sleeve Taper | MT5 |
N.W | 2600kgs |
