SS Tube Mill Line Stainless Steel Tube Making Machine
- Category: >>>
- Supplier: Hebei Tubo Machinery Co. Ltd.
Share on (1600719699654):
Product Overview
Description
Product Description

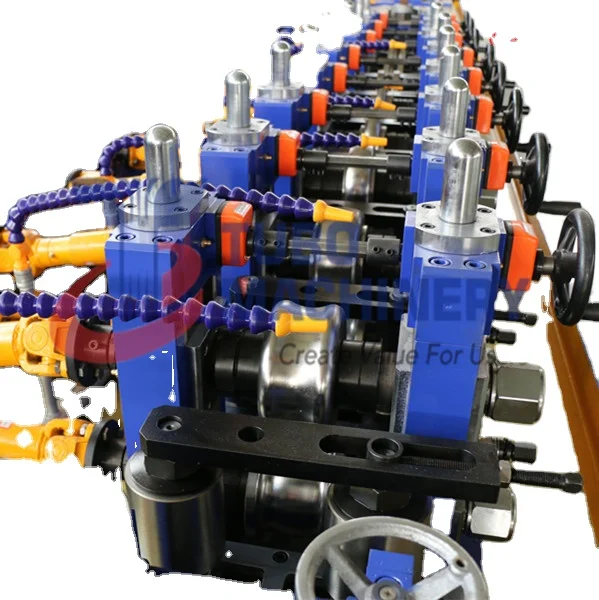

SS Tube Mill Line Stainless Steel Tube Making Machine

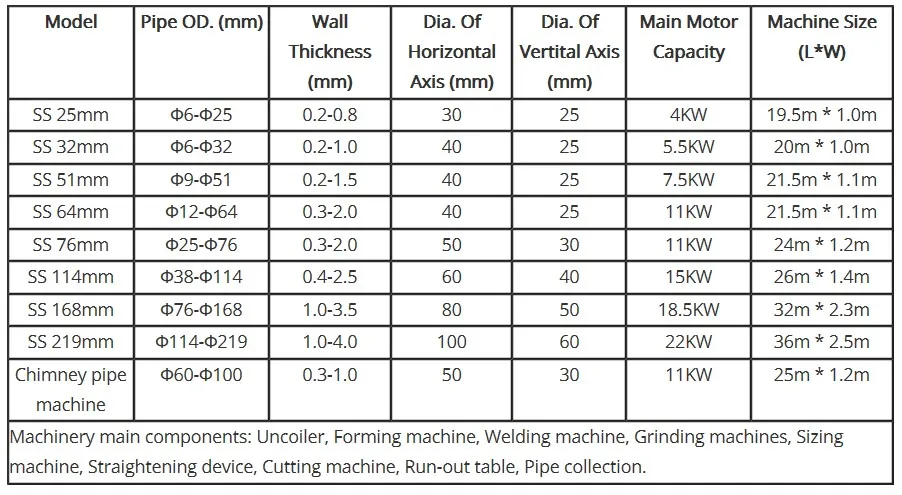

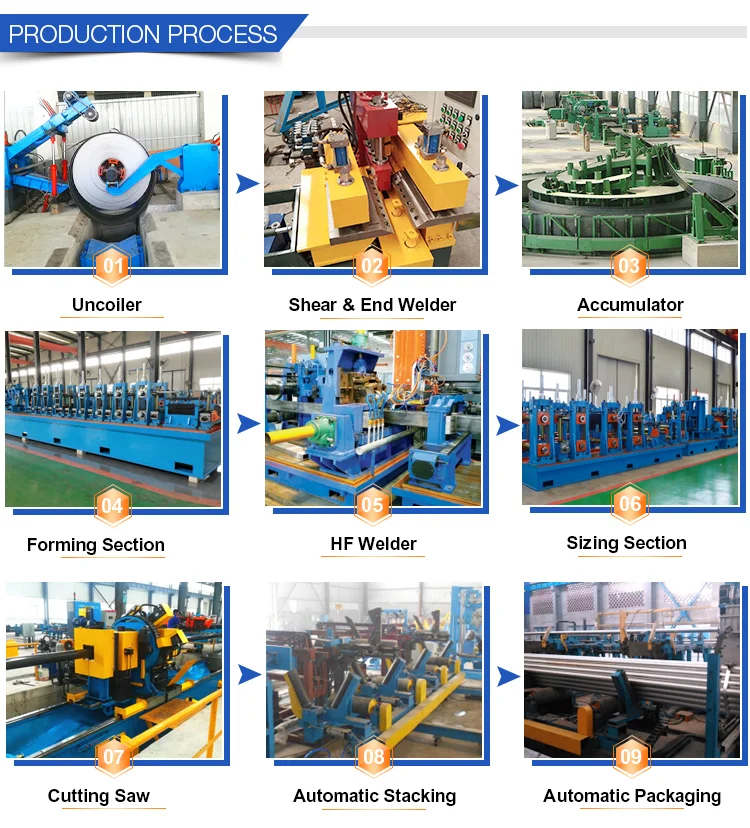

Specification

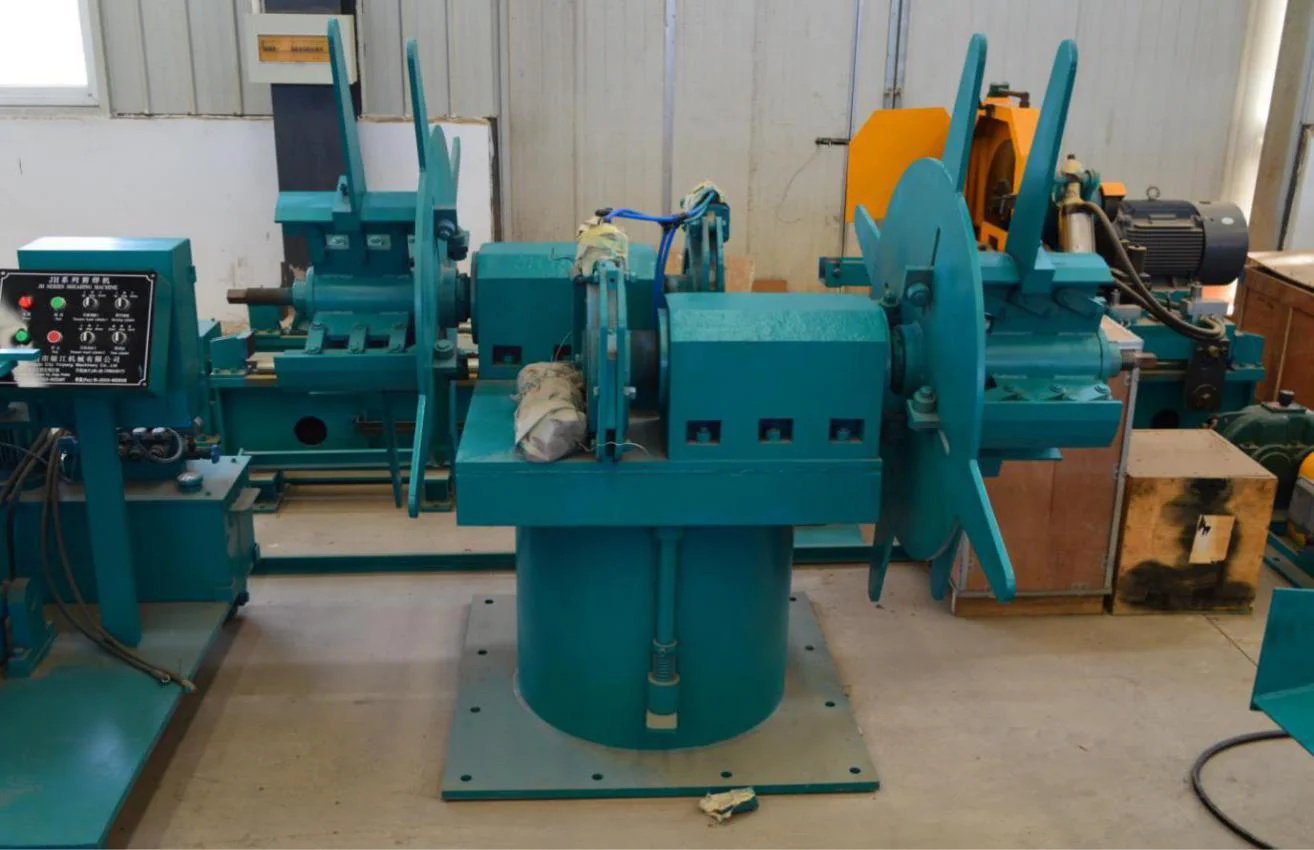

UN-COILER :
Manual operation with adjustable brake
Two sides, coil adapting cone with loading weight: ≤ 3 tons

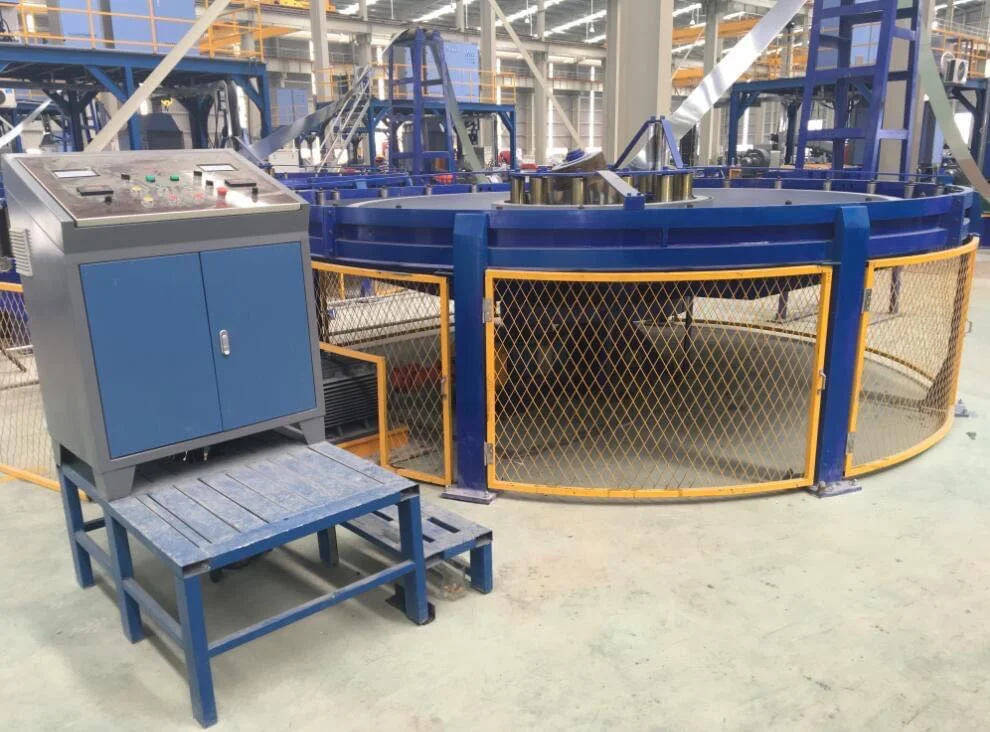

ACCUMULATOR
Accumulator is used to store the steel strip material before it is delivered to pipe forming section to ensuring the continuous of
production .
1 Strip width: 60 ~ 200mm
2 Strip thickness: 0.7 ~ 2.5mm
3 Storage capacity: Max.1000m
4 Outside Diameter: 4.2m
5 Feeding speed: Max.160m/min
production .
1 Strip width: 60 ~ 200mm
2 Strip thickness: 0.7 ~ 2.5mm
3 Storage capacity: Max.1000m
4 Outside Diameter: 4.2m
5 Feeding speed: Max.160m/min

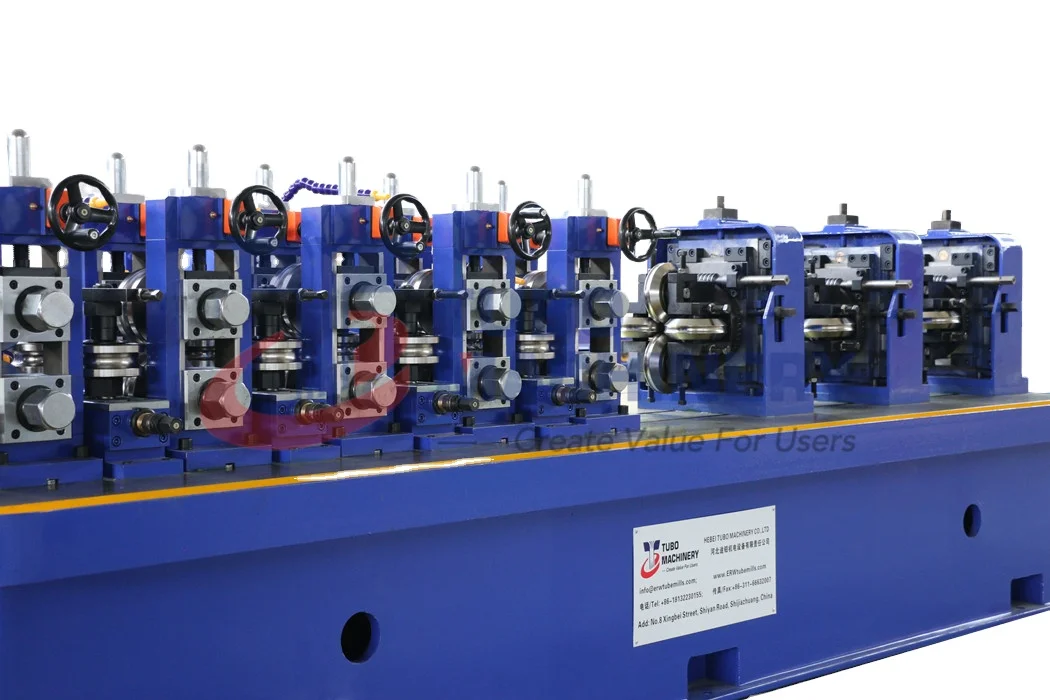

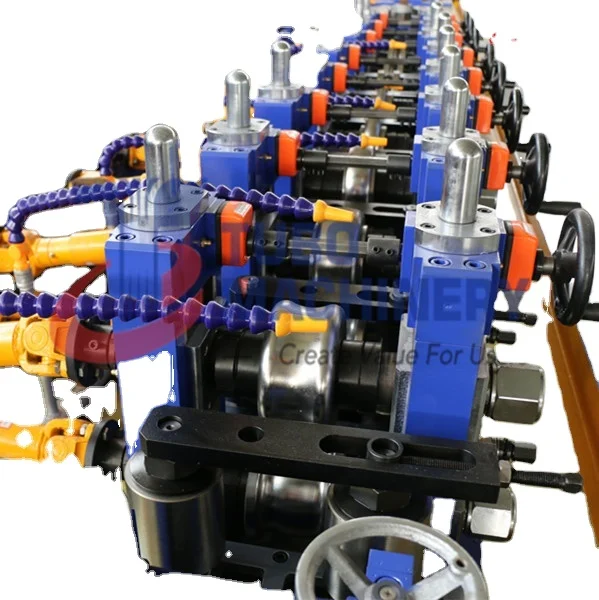

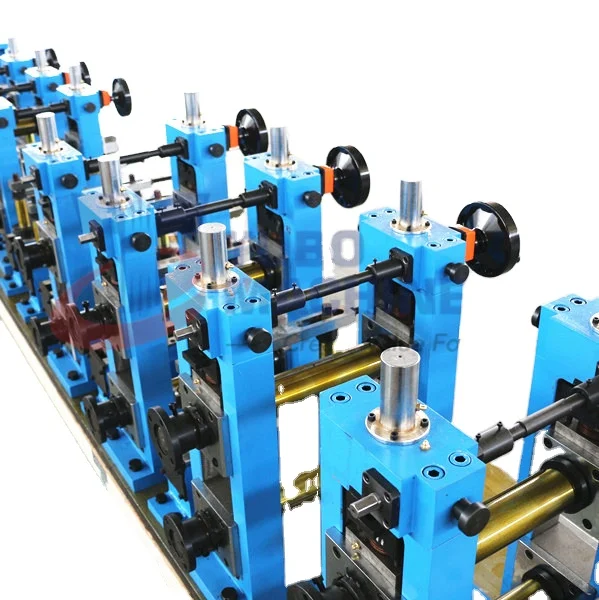

FEEDING FORMING AND WELDING
High precision: ovality of pipe can be reached to ±0.03mm, which is used to produce high precision pipe, such as cylinder
tube,transmission shaft tube etc.
High speed : running speed can be reach 150 m/min
Quick change system : small diameter tube mill adopts complete fast structure, greatly reduce the time of roller changing . large
diameter pipe mill adopts exclusive quick change system .
Roller common use system : “FFX” froming &direct forming to square , can save 60-80% roller cost for user .
Special tube mill for: large diameter with thin wall thickness ,small diameter with large wall thickness , high strength section
steel , “9” shape pipe etc.
tube,transmission shaft tube etc.
High speed : running speed can be reach 150 m/min
Quick change system : small diameter tube mill adopts complete fast structure, greatly reduce the time of roller changing . large
diameter pipe mill adopts exclusive quick change system .
Roller common use system : “FFX” froming &direct forming to square , can save 60-80% roller cost for user .
Special tube mill for: large diameter with thin wall thickness ,small diameter with large wall thickness , high strength section
steel , “9” shape pipe etc.

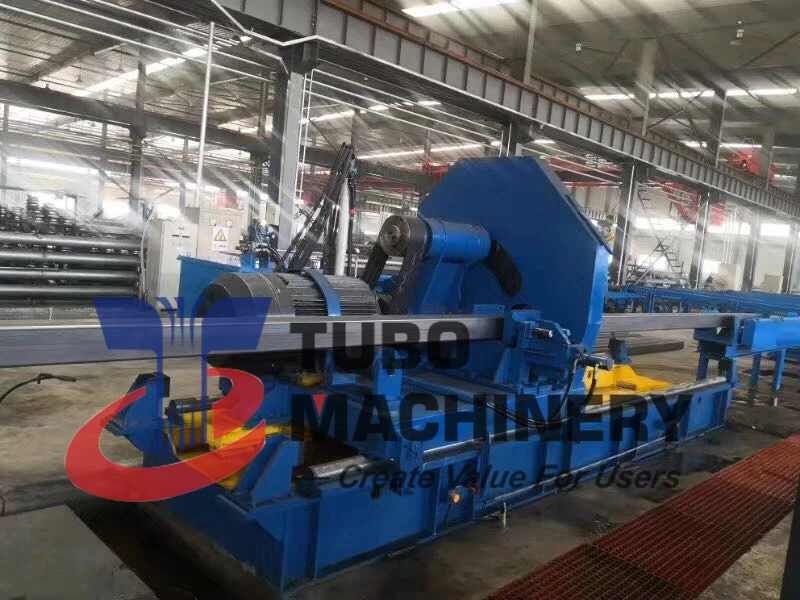

COLD FLYING SAW CUTTING
Cold cutting saw can reach high precision
even with ±1.0mm and the pipe end is smooth without burr
even with ±1.0mm and the pipe end is smooth without burr
OUT PUT AND BUNDLING
automatic out put and bundling
Packing & Delivery
Company Profile
FAQ
1. Q : Are you manufacturer ?
A: Yes, We are manufacturer . More than 15 years R&D and Manufacturing Experience. We use more than 130 CNC machining
equipment to guarantee our products perfect.
2. Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details.
3. Q:What information do you need to supply a quotation?
A: 1.Maximum Yield Strength of the material
2.All pipe sizes needed (in mm)
3.Wall thickness (min-max)
4. Q: What is your advantages?
A: 1.Advanced mould share-use technology (FFX, Direct Forming Square). It saves a lot of invest amount.
2. Latest quick change technology to increase the output and reduce labor intensity.
3.130 CNC machining equipments to guarantee our products perfect.
4.More than 15 years R&D and Manufacturing Experience. 5. Customized According to Customer Requirements.
5. Q: Do you have after sales support?
A: Yes,we have. We have a 10-person -professional and strong installation team.
6.Q: How about your service?
A: 1.One year’s warranty.
2.Providing spare parts for life time at cost price.
3. Providing Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.
4.Provide technical service for facility reforming, refurbishment.
A: Yes, We are manufacturer . More than 15 years R&D and Manufacturing Experience. We use more than 130 CNC machining
equipment to guarantee our products perfect.
2. Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details.
3. Q:What information do you need to supply a quotation?
A: 1.Maximum Yield Strength of the material
2.All pipe sizes needed (in mm)
3.Wall thickness (min-max)
4. Q: What is your advantages?
A: 1.Advanced mould share-use technology (FFX, Direct Forming Square). It saves a lot of invest amount.
2. Latest quick change technology to increase the output and reduce labor intensity.
3.130 CNC machining equipments to guarantee our products perfect.
4.More than 15 years R&D and Manufacturing Experience. 5. Customized According to Customer Requirements.
5. Q: Do you have after sales support?
A: Yes,we have. We have a 10-person -professional and strong installation team.
6.Q: How about your service?
A: 1.One year’s warranty.
2.Providing spare parts for life time at cost price.
3. Providing Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.
4.Provide technical service for facility reforming, refurbishment.
