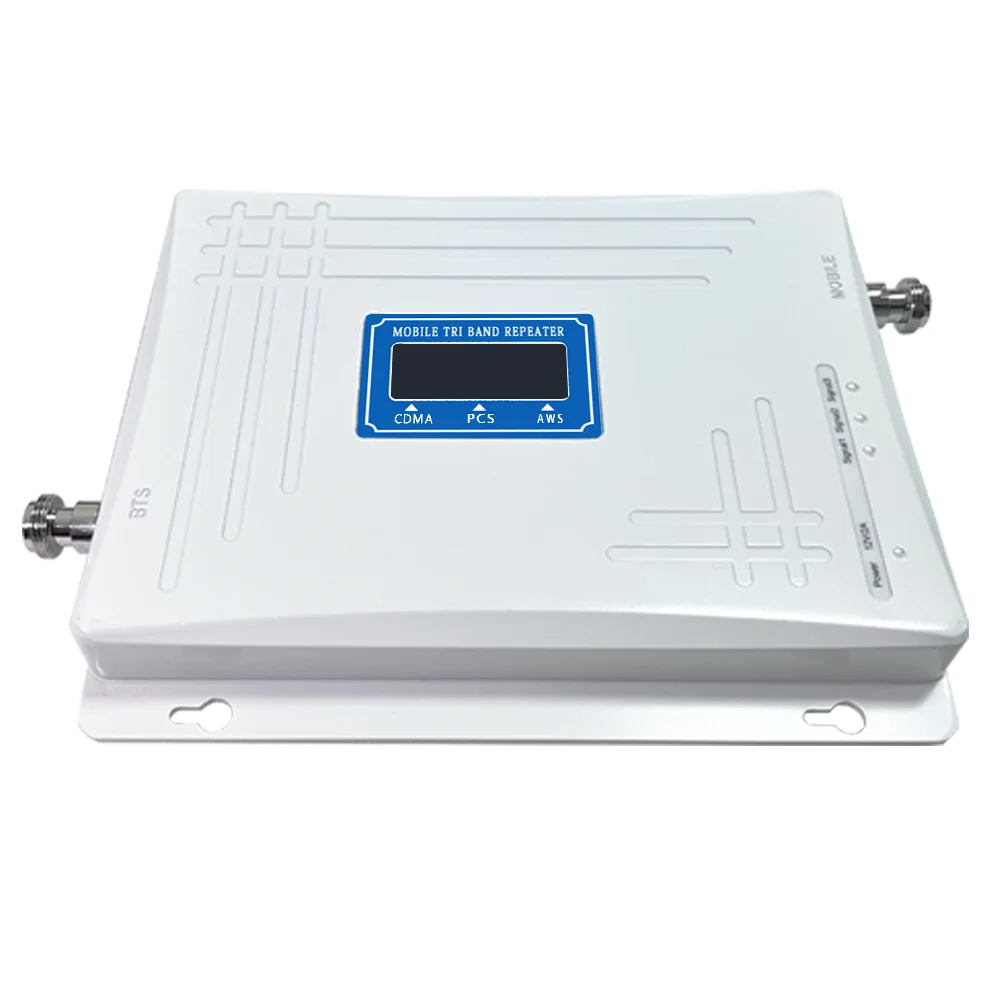

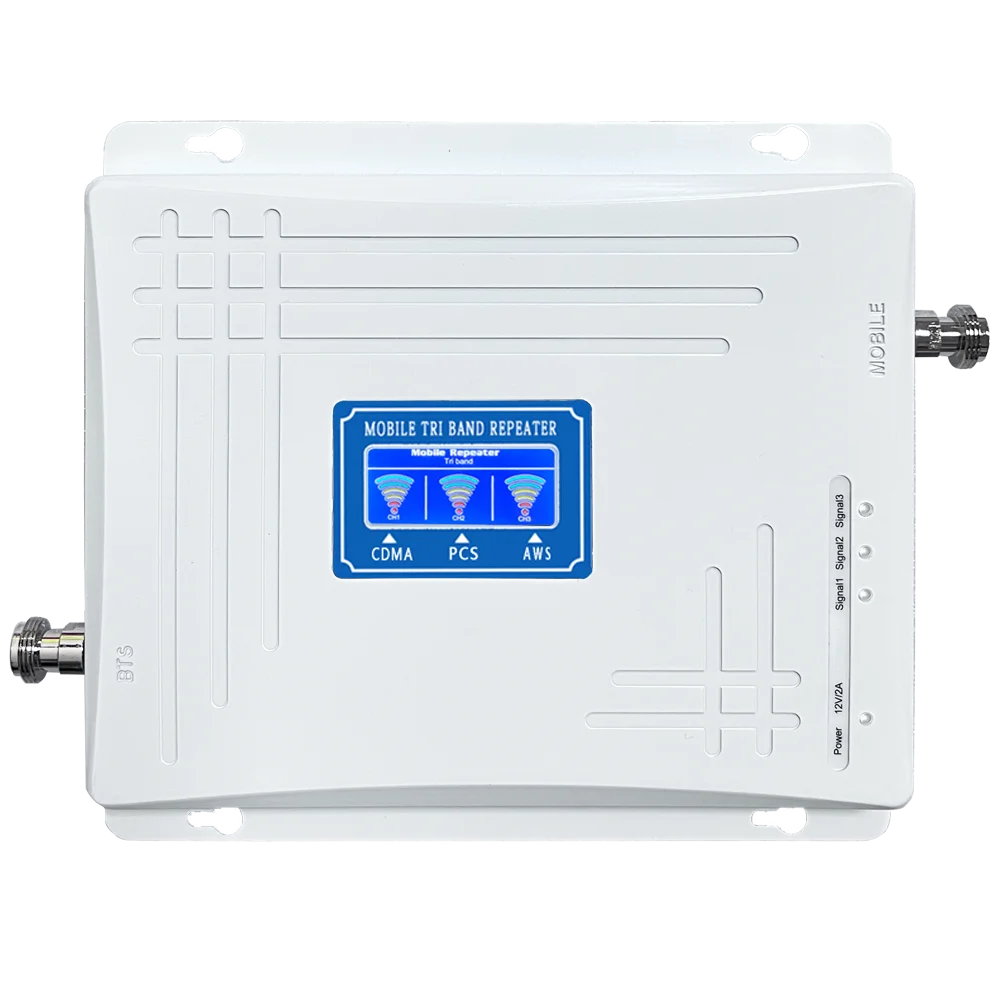

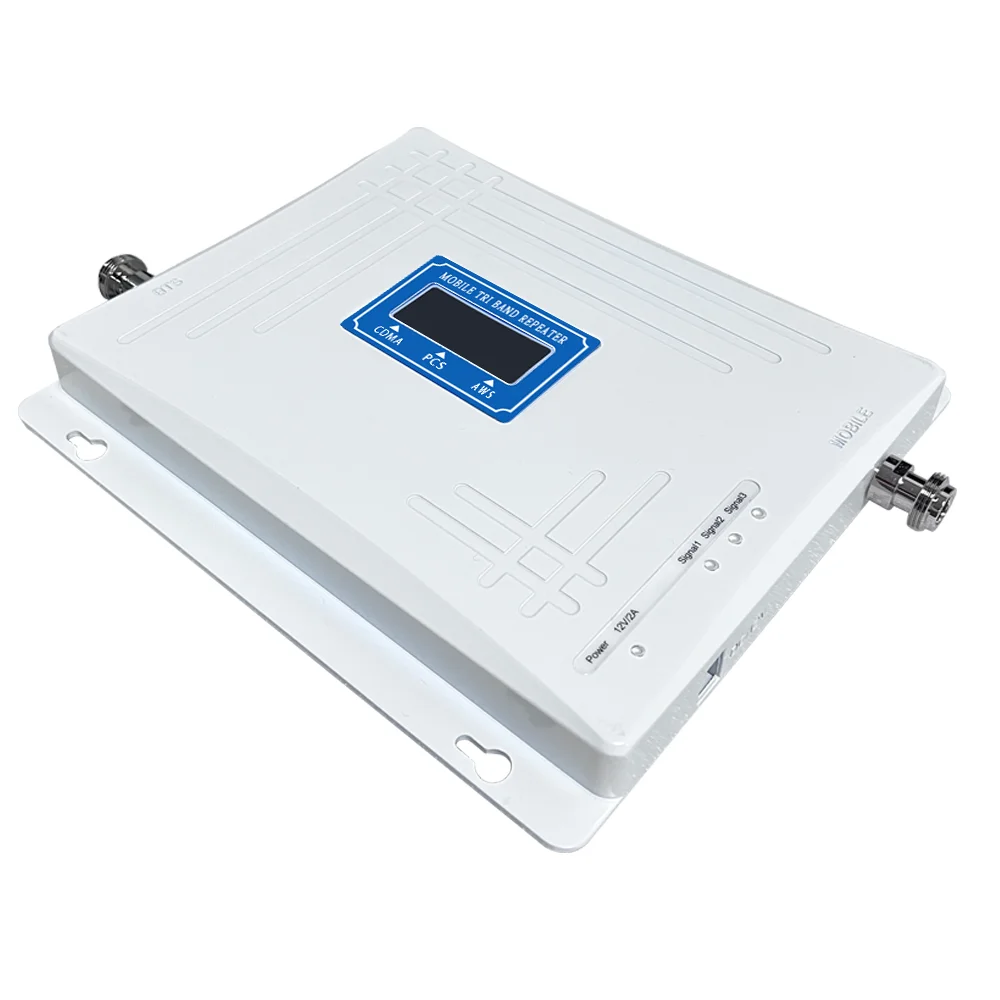

CDMA PCS AWS 850 1700 1900MHz tri band mobile repeater network signal amplifier booster
- Category: >>>
- Supplier: Shenzhen Jiangxin Communication Technology Co. Ltd.
Share on (1600719733893):
Product Overview
Description
Product Paramenters
Technique Specification | ||||||
Model No | SS91-CPA | |||||
Parameter data | Uplink | Downlink | ||||
Frequency Range | CDMA | 824~849 MHz | 869~894 MHz | |||
PCS | 1850~1910 MHz | 1930~1990 MHz | ||||
AWS | 1710~1755 MHz | 2110~2155 MHz | ||||
Output Power | 20 ±2dBm | 20 ±2dBm | ||||
Gain | 65±2 dB | 70±2dB | ||||
Ripple in Band | ≤3dB | |||||
Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | ||||
1GHz~12.75GHz | ≤ -30 dBm | |||||
Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | ||||
1GHz~12.75GHz | ≤ -30 dBm | |||||
Noise Figure | ≤ 6 dB | |||||
VSWR | ≤2 | |||||
Power Supply | AC:100~240V, 50/ 60Hz;DC:12V 2A | |||||
Power Comsumption | < 24W | |||||
Impedance | 50 ohm | |||||
Mechanical Specification | ||||||
RF Connector | N-Female | |||||
Dimensions (D x W xH ) | 235*182*21(mm) | |||||
Weight | ≤ 1.2Kg | |||||
Operating Temperature | -10℃ ~ 55℃ | |||||
Products Description
Application&Note

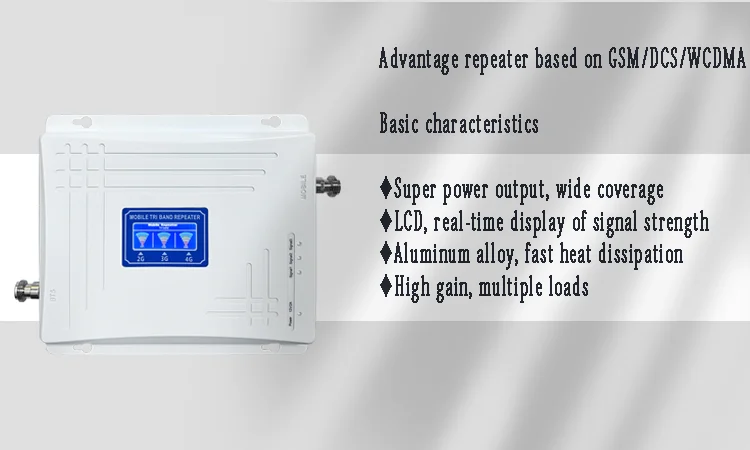

Product Introduction of mobile phone signal amplifier:
The product can be used in mountain areas, urban areas, towns, villages in the city,undergroundwarehouse, basement, underground parking lot without signal area.The function is to draw (absorb) the stable signals outside to the room and then amplify and diffuse the signals to cover the wholeeffective area, so as to provide stable and high-quality signals to the equipment in need of signals.
Please note before purchasing
（1）.Please confim that the operator base station frequency band of your SlM card is suitable for the effectiverequency of this device
（2）.Make sure you get a good signal outside your house that you want to amplify.3-5 bar signal can be displayed onyour phone (at least -70dB-90dB is captured).Otherwise. the sianal amplifier will not improve your signal
（2）.Make sure you get a good signal outside your house that you want to amplify.3-5 bar signal can be displayed onyour phone (at least -70dB-90dB is captured).Otherwise. the sianal amplifier will not improve your signal
Reasons for purchasing mobile phone signal repeater:
1. Signal repeater can improve signal in weak signal environment.
2. The signal booster does not need additional wires to connect to your phone, nor does it need any additional accessories.
3. Practical, portable, beautiful and easy to install. You don't need to hire anyone to install the equipment. Install according to the instructions.
4. All mobile phones within the coverage range and suitable for the booster frequency can get signal improvement, and there is no limit on the number of mobile phones
5. The signal repeater can cover different coverage ranges: from small to large. In this case, you can use the corresponding repeater according to your environment
6. Our equipment is safe. The signal repeater will not generate any radiation.
7. Factory direct sales, all mobile phone signal problems can be solved
1. Signal repeater can improve signal in weak signal environment.
2. The signal booster does not need additional wires to connect to your phone, nor does it need any additional accessories.
3. Practical, portable, beautiful and easy to install. You don't need to hire anyone to install the equipment. Install according to the instructions.
4. All mobile phones within the coverage range and suitable for the booster frequency can get signal improvement, and there is no limit on the number of mobile phones
5. The signal repeater can cover different coverage ranges: from small to large. In this case, you can use the corresponding repeater according to your environment
6. Our equipment is safe. The signal repeater will not generate any radiation.
7. Factory direct sales, all mobile phone signal problems can be solved

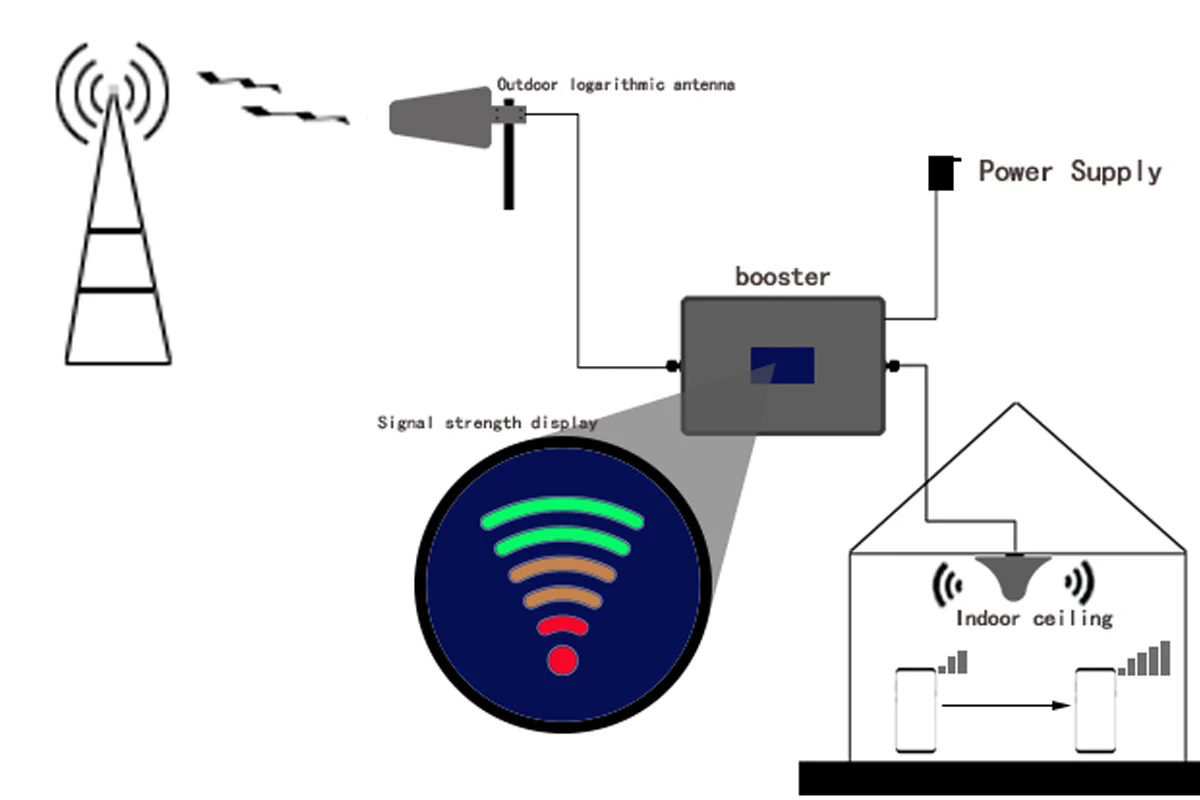

Product Usage
Install the outdoor antenna in an open and signaled position, aiming at the direction of the base station.
Step2：
Use the outdoor antenna cable to connect the outdoor antenna to the BTS (outdoor) port of the host.
Step3：
Install the indoor antenna within the range of signals to be covered and connect it with the MS (Interior) port of the host.
Step4：
Plug in the power adapter and the host can work normally. (adjust the direction, position and height of the outdoor antenna to make the signal grid on the LCD screen display in the best state)
Attention!
The indoor and outdoor antennas and other accessories involved in the installation method are only for installation instructions and are not included in the product. The product only contains the signal repeater host and power adapter.If you need other accessories, you can contact us or enter other links in the store to purchase.
Other accessories
This link does not include any accessories shown in the above figure. If necessary, you can contact us to purchase
Other frequencies
Single band
700Mhz、800Mhz、850Mhz、900Mhz、1800mhz、1900mhz、2100mhz、1700mhz、2600mhz.
Dual band
900/1800MHz、900/2100MHz、850/1800MHz、850/1900MHz、850/900MHz、1800/2100MHz、1800/2600MHZ、2100/2600MHz、1900/1700MHz.
900/1800MHz、900/2100MHz、850/1800MHz、850/1900MHz、850/900MHz、1800/2100MHz、1800/2600MHZ、2100/2600MHz、1900/1700MHz.
Tri band
900/1800/2100MHz、900/2100/2600MHz、850/1800/2100MHz、900/1800/2600MHz.、850/1700-2100/1900MHz、800/1800/2100MHz，800/2100/2600MHz.
900/1800/2100MHz、900/2100/2600MHz、850/1800/2100MHz、900/1800/2600MHz.、850/1700-2100/1900MHz、800/1800/2100MHz，800/2100/2600MHz.
Quad band
B12(700)/850/1700/1900MHz、850/1700/1900/2600MHz、B28(700)/850/1700/1900MHz、900/1800/2100/2600MHz、800/900/1800/2100MHz、850/900/1800/2100MHz.
B12(700)/850/1700/1900MHz、850/1700/1900/2600MHz、B28(700)/850/1700/1900MHz、900/1800/2100/2600MHz、800/900/1800/2100MHz、850/900/1800/2100MHz.
Five band.
800/900/1800/2100/2600MHz、850/900/1800/2100/2600MHz、700/850/1700/1900/2600MHz
800/900/1800/2100/2600MHz、850/900/1800/2100/2600MHz、700/850/1700/1900/2600MHz
Note: Frequency band can be customized
Packing&Shipping
Packaging details: Each signal booster is packaged separately, and neutral carton is used to completely protect the product from damage. 20 boosters are packed into a carton with a size of 64 * 43 * 31cm and a weight of 24kg
Delivery details: within 7 working days after all confirmation.
Mode of transportation: air, land, sea or express.
Delivery details: within 7 working days after all confirmation.
Mode of transportation: air, land, sea or express.
Company Introduction
The company was founded in 2016 and is located in Shenzhen, China. It is committed to the research and development of mobile phone signal amplification, working hard for the national and even global signal coverage, and reducing the trouble caused by signal blind areas. The company has always adhered to the "credit and people-oriented" business Philosophy, "Science and Technology Innovation, Quality First" management belief, relying on professional technology to quickly lay a solid foundation at home and abroad, and become a well-known brand in the industry.
We are sincerely willing to cooperate with you. let’s win the future together!
contact us
Q：Are you a manufacturer？
A：Yes, we have our own factory in Shenzhen, China. We are a factory specializing in the production and sales of repeaters
Q：Can you accept customization?
A：Yes, we accept customized repeater appearance, frequency, logo pattern, etc...
A：Yes, we have our own factory in Shenzhen, China. We are a factory specializing in the production and sales of repeaters
Q：Can you accept customization?
A：Yes, we accept customized repeater appearance, frequency, logo pattern, etc...
