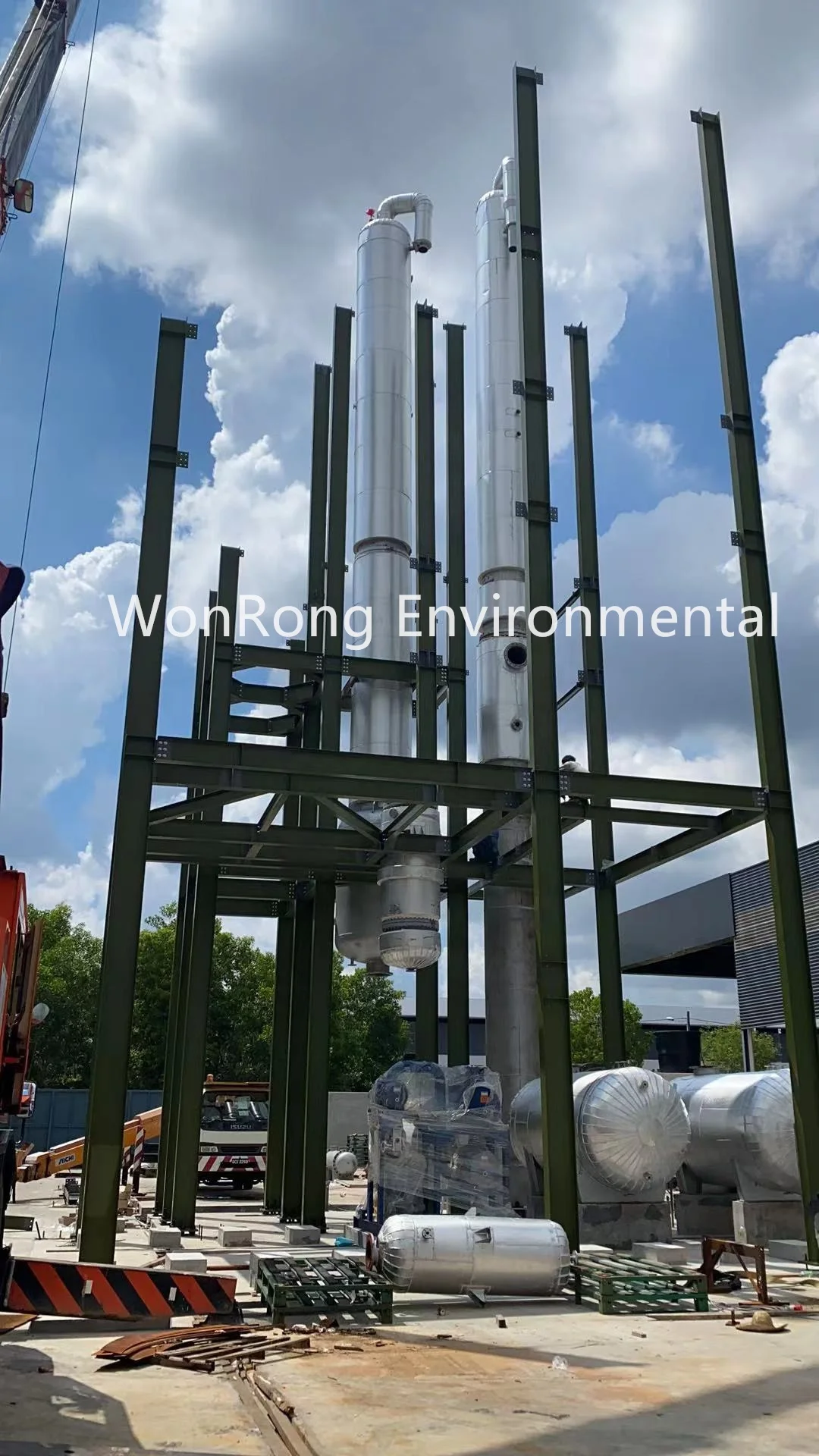

2023 Lasted Technology Petrol Waste Engine Oil Recycling To Diesel Oil Distillation Plant
- Category: >>>
- Supplier: Shangqiu Wanrong Environmental Protection Tecnology Co. Ltd.
Share on (1600719748569):
Product Overview
Description
Product Description
Specification
item | value |
Applicable Industries | Energy & Mining |
Showroom Location | United States, Thailand, Bangladesh, South Africa, Ukraine, Nigeria, Malaysia |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2023 |
Warranty of core components | 2 years |
Core Components | PLC, Pressure vessel |
Condition | New |
Flow | 20 tons/day |
Place of Origin | China |
Henan | |
Brand Name | wonrong |
Voltage | 220v/380v(3 phase) can customize |
Power | 40kw |
Weight | 50000kg |
Warranty | 2 years |

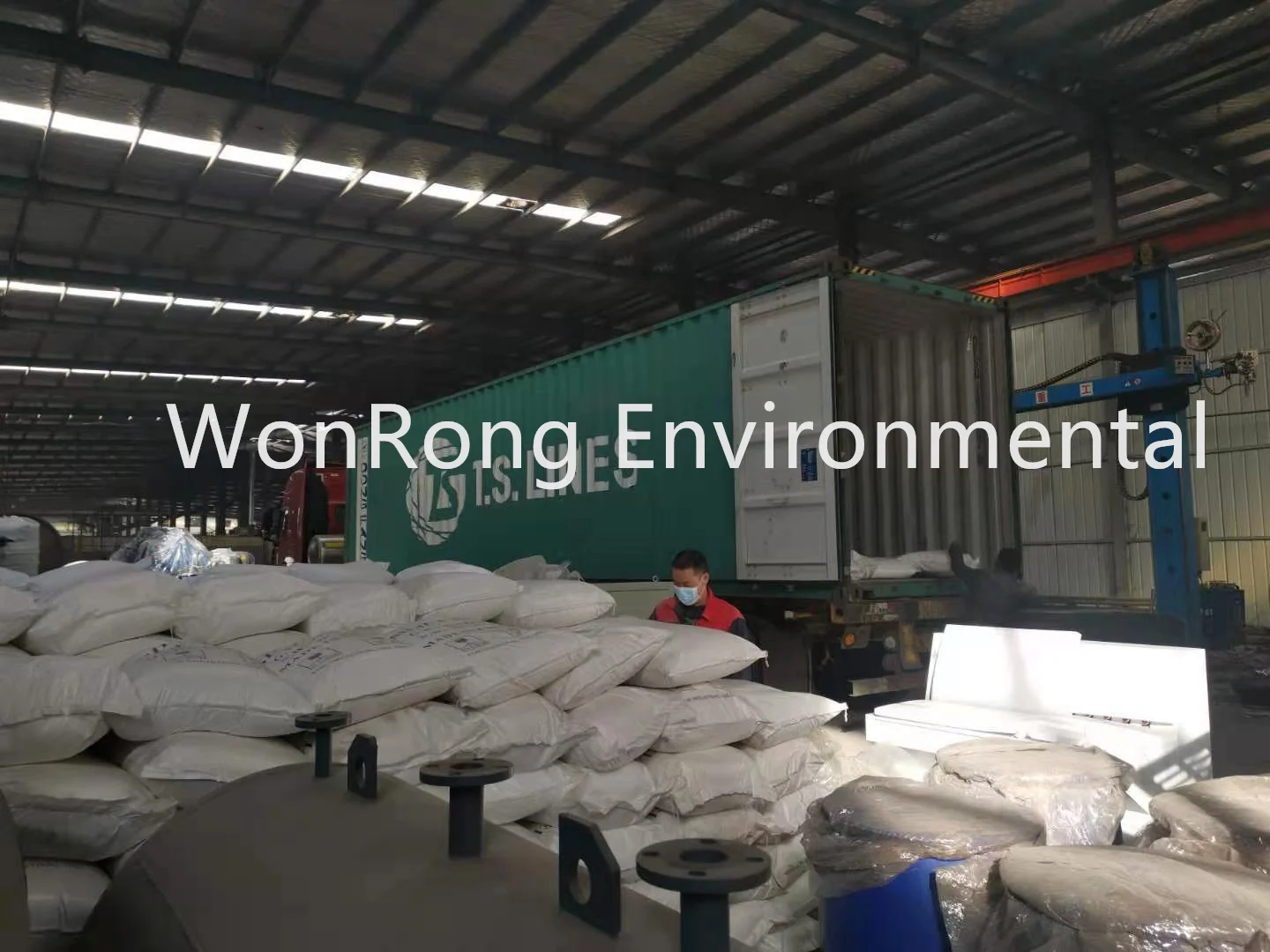

Packing & Delivery
1, Entire packing with waterproof film for all parts of waste oil to diesel distillation machine.
2, Wooden case to protect controller, instruments and apparatus.
3, Full container for shipping
2, Wooden case to protect controller, instruments and apparatus.
3, Full container for shipping
Company Profile
What’s app: 008618639753968
Mail: sqwonrong@163.com
Description of waste oil to produce diesel equipment projectMail: sqwonrong@163.com
1, At present many waste oil process exist problems
1, pretreatment difficulty, the raw materials entering the equipment are big amount of solid particulate impurities. It is very
harmful to the equipment.
2, The waste oil is a heat-sensitive substance, the polymerization and the decomposition reaction begin to occur, when the
temperature exceeds 300 degree, and it is easy to be coking.
3, Cause of the structural characteristics of the waste oil, it requires higher produce temperature. Which makes the waste oil
clogging the equipment.
4, there are many kinds of impurities in the waste oil, the products produced are easy discoloration.
5, The low utilization efficiency of heat exchanger network, the energy saving is not obvious.
Above problems are exists in the most of producing process, the entirety problem are seriously, the frequent stopping, The
product has poor oxidation resistance, the discoloration, severe equipment blockage, severe coking. Many equipment have to stop to
dredge the facility and the pipes at the starting stage.
2, the newly techniques
Aiming at the problems encountered in waste oil production, We have undergone technological innovation and equipment improvement.
After the actual production running, a completely new process for waste oil production has been provided---High vacuum
distillation and gas phase catalysis process, has the following characteristic.
1, Adopt new agitating dehydration technology, The removal of water impurity is completely controlled at this stage of removal.
2, Adopt high vacuum system, reduce produce temperature, prevent coking and the blocking cause by the high temperature.
3, Adopt combination of the thin-film evaporation system and the rectifying column system process. Shedding the weight at the same
time ensure the production color and the purity.
4, At the diesel produce stage, adopt the directed gas phase catalysis (pyrolysis) technology, that is the material is in the gas
phase state, it breaks C22-C40 chain into C14-C18, To maximize the product is the ideal component of diesel. The diesel produced
has high cetane value and high calorific value in addition to meeting the requirements of national standard diesel.
5, Optimize the heart exchange network, reduce 20% heating load. Reduced the costs of the operation.
6, Adopt the newly DCS system, realize operate fining, intelligentize, A higher degree of accuracy, Minimize the manual purpose.
7, Matched Tail gas treatment equipment and waste water treatment equipment, reached the standard of state discharge, It has
really achieved the goal and requirement of 0 pollution and 0 emission.
3, Production yield
Proportion of terminal products (varies according to the proportion of different raw materials)
No.
Name
Oil yield purpose

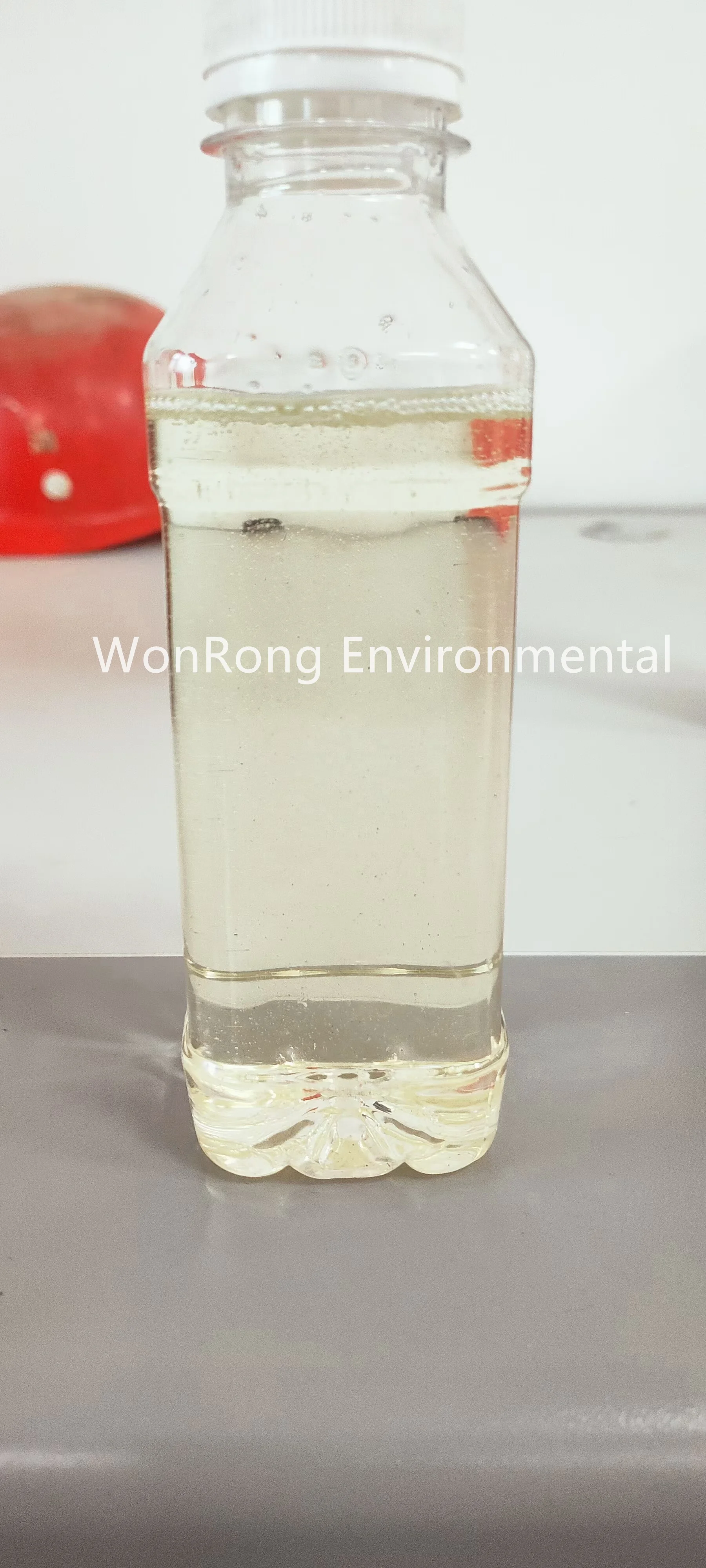

1 diesel 85%
* gas station blending
* diesel car use
2 Residual oil 12%
* cracking material pyrolysis materials
* water-proof materials
3 Non-condensable oil 3%
* It can be used as fuel by gas spray gun.
* Excess waste gas can be stored through a storage system.
4, Product index：
Pyrolysis diesel comparise：
project
Petroleum oil
Gas phase assay result
density（20℃）
0.81-0.85
0.830mg/ml
Flash point
Gas phase pyrolysis distillation data：
Distillate mass/%
Detection of distillate temperature of meteorological cracking oil/℃
Initial boiling point
End boiling point 342
5.2, energy consumption illustrate
Utilities include fresh water circulating hydrothermal oil furnace tubular furnace/molten salt furnace
Estimated daily consumption：
Fresh water： ≈0.1T（public works use）
Recycle water ≈10T (the lost of circulating water is the addition of fresh water) heat ≈4×106Kcal/T
power consumption ≈20KW
FAQ
1.
Q: What's the material the machine can be processed?
A: Crude oil, HFO
2.
Q: What's the capacity the machine can do ?
A: 20Tons-500Tons
3
Q: What's the output ?
A: Gasoline
Diesel
Heavy oil
4
Q: how many days for manufacturing ?
A: 45-60days after deposit
5
Q: what's the main technology?
A: Continous running
Tube furnace and Thermal oil heating system
PLC control system DCS Auto control system
By using catalyst
Q1: How can we use the distillated diesel from the waste tyre and plastics oil?
A1: Pyrolysis oil can be used as fuel directly, or you can use them in the low speed and heavy duty
generator, like boat and ship.
Q2: How can we deal with the heavy oil from the distillation plant?
A2: The heavy oil can be sold as the asphalt to local market, or you can put them to the pyrolysis plant to refine it again.
Q3: How many distillation oil we can get from the distillation plant?
A3: The oil yield is at 80%-92%.
Q: What's the material the machine can be processed?
A: Crude oil, HFO
2.
Q: What's the capacity the machine can do ?
A: 20Tons-500Tons
3
Q: What's the output ?
A: Gasoline
Diesel
Heavy oil
4
Q: how many days for manufacturing ?
A: 45-60days after deposit
5
Q: what's the main technology?
A: Continous running
Tube furnace and Thermal oil heating system
PLC control system DCS Auto control system
By using catalyst
Q1: How can we use the distillated diesel from the waste tyre and plastics oil?
A1: Pyrolysis oil can be used as fuel directly, or you can use them in the low speed and heavy duty
generator, like boat and ship.
Q2: How can we deal with the heavy oil from the distillation plant?
A2: The heavy oil can be sold as the asphalt to local market, or you can put them to the pyrolysis plant to refine it again.
Q3: How many distillation oil we can get from the distillation plant?
A3: The oil yield is at 80%-92%.
