item | value |

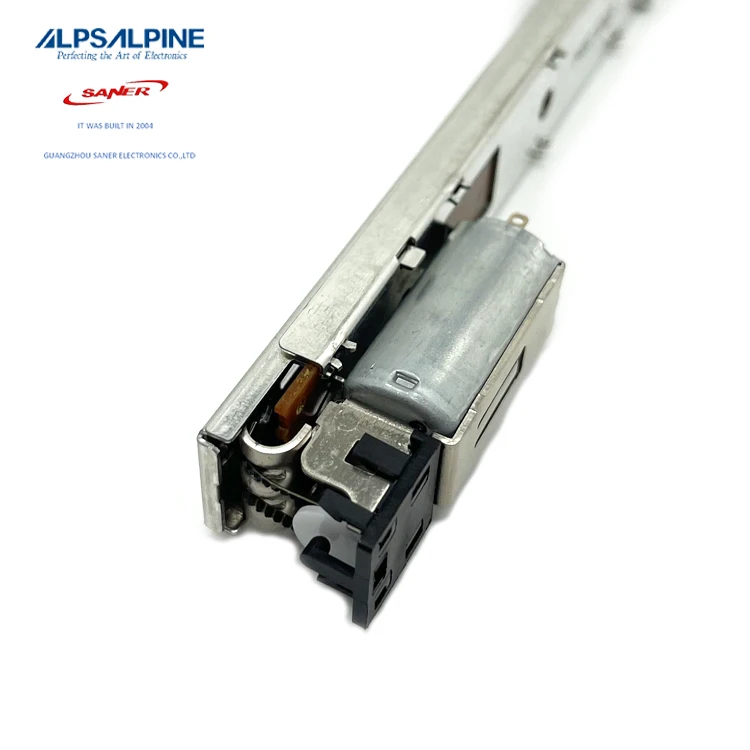

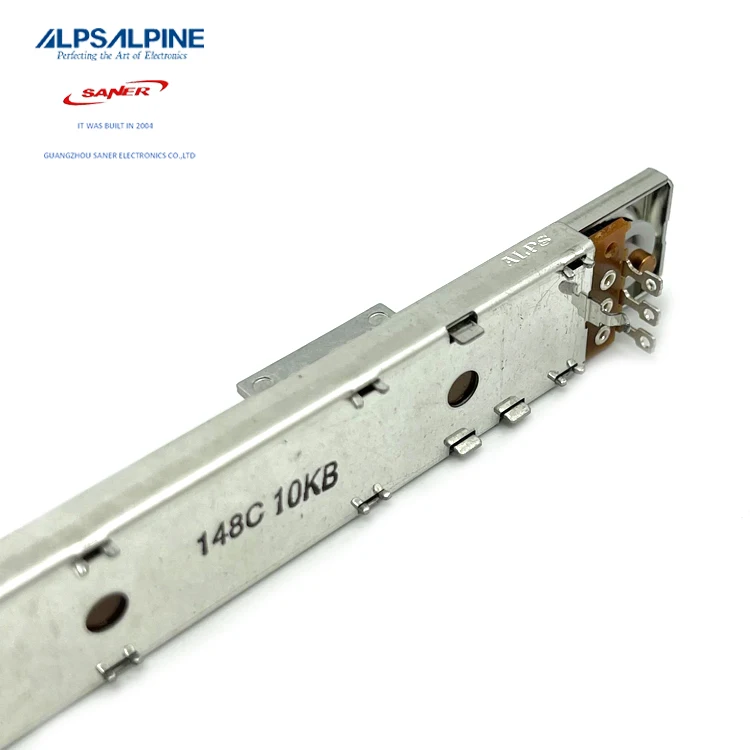

Model Number | RSA0N11M9A0K |
Type | Slide Potentiometer |
Place of Origin | Japan |
Brand Name | ALPS |
D/C | 10V DC |
Technology | Metal Alloy |
Resistance | 10KΩ |
Resistance Tolerance | ±20% |
Max. Operating Voltage | 500V AC |
Operating Temperature | -10°C to + 60°C |
Brand | Slide potentiometers |
Tolerance | ±20% |
Adjustment Type | Slide |
Diameter | 120mm |
Operating force | 0.15 to 0.65N |
Operating life | 300000 cycles |
Maximum current of motor | 800mA or less (at 10V DC) |
Lever type | 9--T |
Length of lever | 8.2mm |
Resistance taper | 1B |
Terminal style | For PC board |
Touch sense track | With |
Travel | 100mm |
Number of resistor elements | Single-unit |
