Customized inner city bus digital route number signage LED board destination sign screen display
- Category: >>>
- Supplier: Shenzhen Zhongzhigu Electronics Technology Co. Ltd.
Share on (1600719807835):
Product Overview
Description
Detailed Images

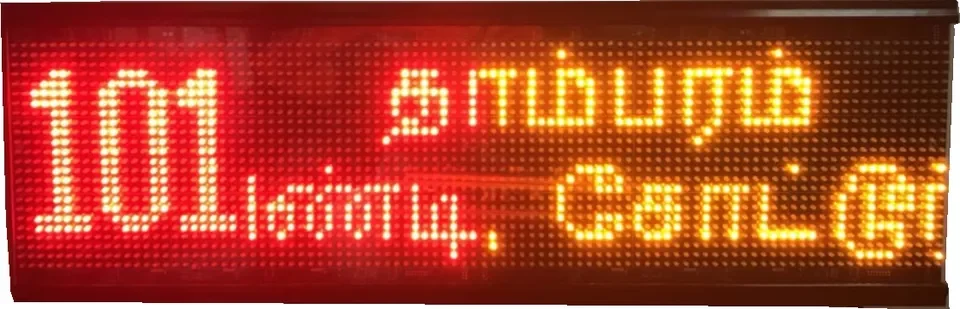

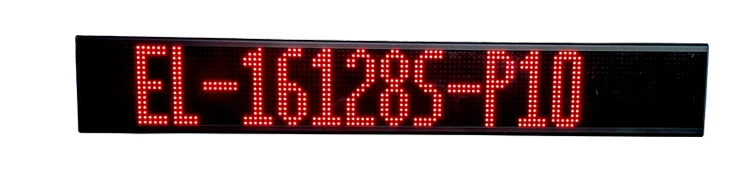

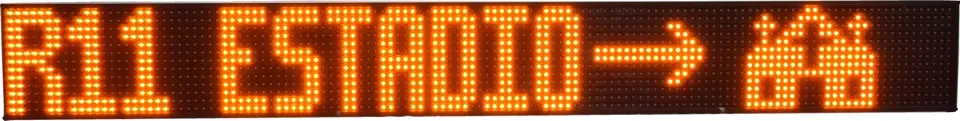

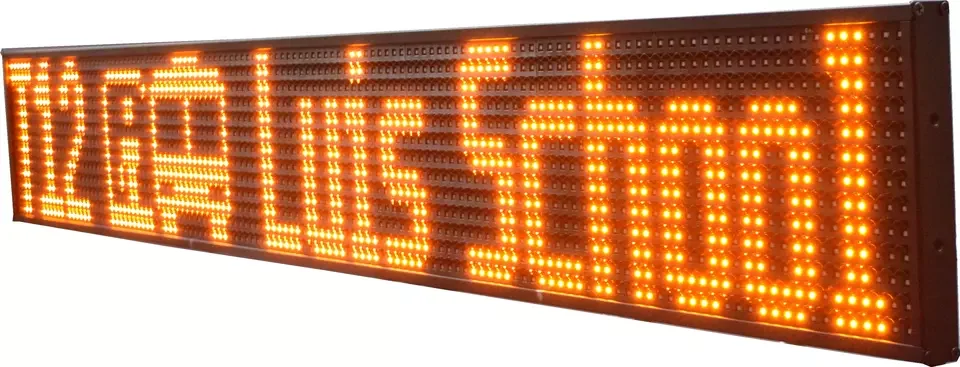

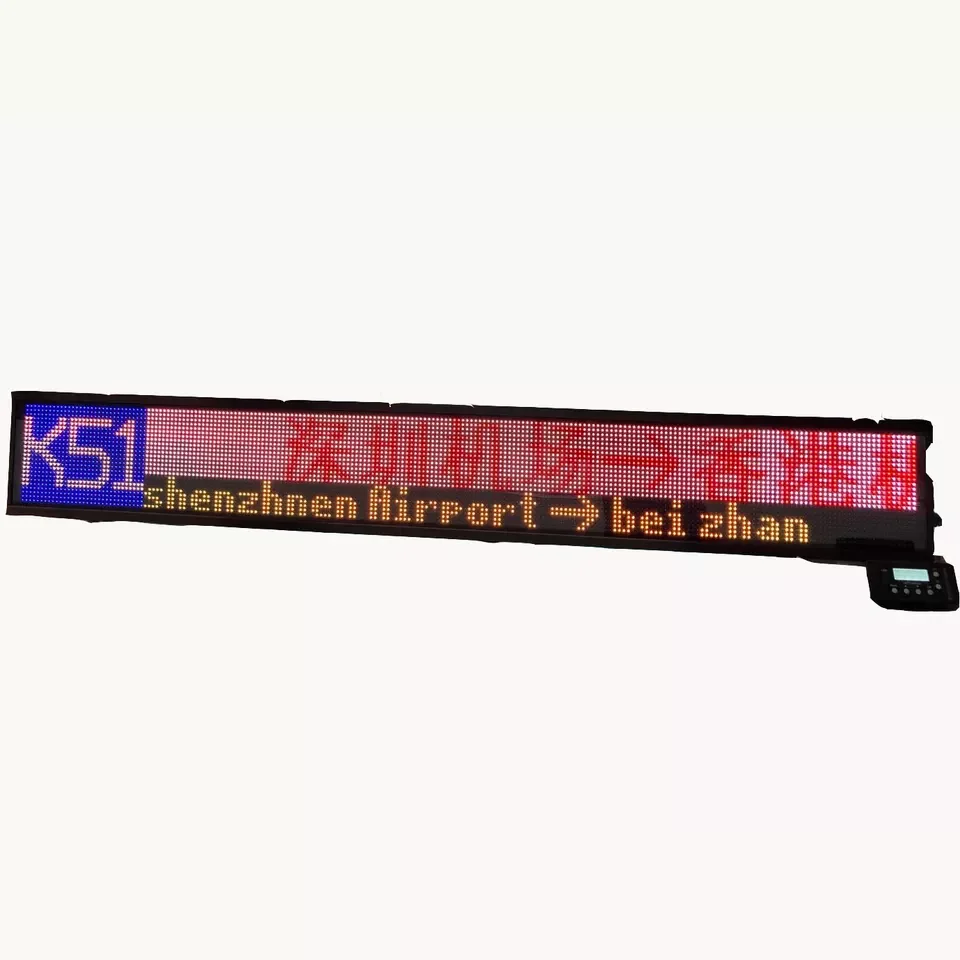

Features of SMD LED Sign 16x128 dots Indoor RGB Full Color LED Scrolling Display Message Board Perfect Solution for Bus
1. Easy to operate. The message can be updated via U flash drive. The drivers can select the stored routes via some buttons.
2. Self-defined English, Spanish fonts, specially designed for Africa and South America.
3. Adopt Taiwan Epistar 12mil LED chip with high brightness, little heat and long life time.
4. The brightness is automatically controlled, it will save more energy and make the life time longer.
5. Constant current driver with reliable quality.
6. The software and hardware are both developed by ourself, so we can make the price competitive.
Specification of SMD LED Sign 16x128 Indoor RGB Full Color LED Scrolling Display Message Board Perfect Solution for Bus
| NO. | Item | Specification |
| 1 | Type of Media | SMD 3528 |
| 2 | LED color | Amber/White |
| 3 | Wavelength | 592 to 595 |
| 4 | Pitch | 10mm horizontal,11.3mm vertical |
| 5 | Line Resolution | 16*128 dots |
| 6 | Character Height | 182 mm |
| 7 | Display Area Dimensions | 1280mm(H)*182mm(W) approx. |
| 8 | Visibility | 60-100meters |
| 9 | Viewing Angle | 120oH/60oV |
| 10 | Languages Supported | English/Spanish/Portuguese(complete font), Regional language |
| 11 | Brightness | Inbuilt light sensor,automatically adjusted. Also 4class set,25%,50%,75%,100% |
| 12 | Data Interface | RS232/485 |
| 13 | Inbuilt Controller | 999routes/1000 stations per route. |
| 14 | UV Resistant | yes |
| 15 | Operating Voltage Range | DC12V~36V |
| 16 | Ingress protection | If need IP65,will add a organic glass |
| 17 | Ambient Operating Temperature | -40℃ to +80℃ |
| 18 | LED Chip | Taiwan Epistar 14mil |
| 19 | Cabinet material | Aluminium |
| 20 | Lifetime | >100,000hrs |
