Factory direct price acsr cable High Tension Overhead ACSR Bare Electric cable 120/25 mm2
- Category: Power Cables >>>
- Supplier: Zhengzhou,Sanhe,Cable,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

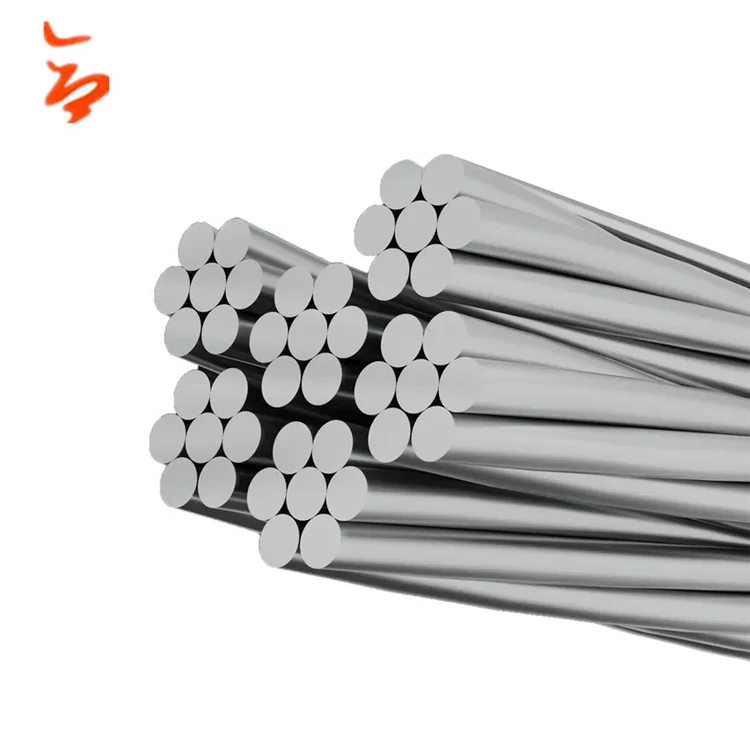

ACAR
Application
Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR Offers optimal strength for line design. Variable steel core stranding enables desired strength to be Achieved without sacrificing ampacity.

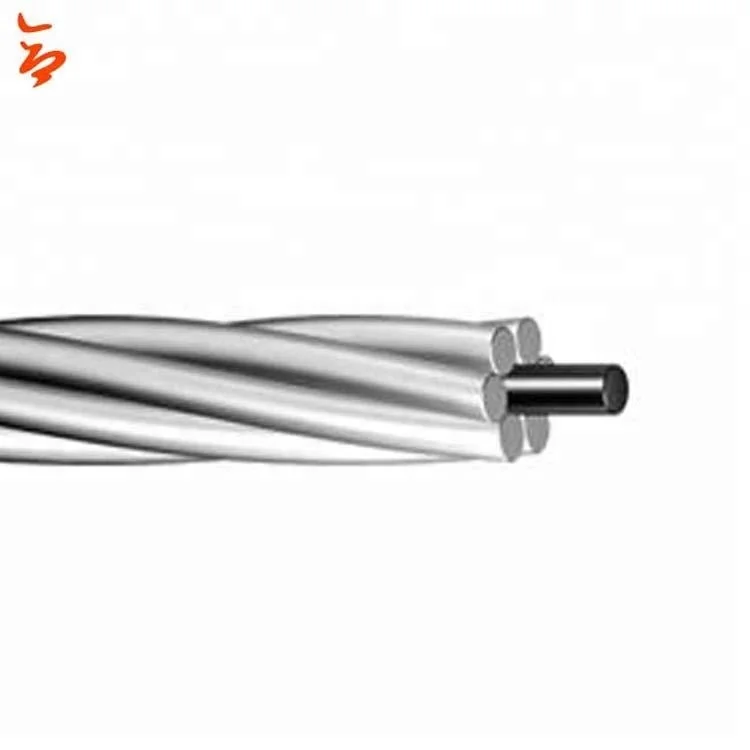

Construction
ACAR has aluminium 1350 H-19 wires concentrically stranded around a 6201-T81 aluminium
Alloy core. Typically, the 6201-T81 is the conductor core, but in certain designs, the 1350 H-19 And the 6201-T81 wires may be stranded in the same layer.
Standards:
Moseroth ACAR meets or exceeds the following ASTM specifications:
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
B-398 Aluminum-Alloy 6201-T81 for Electrical Purposes.
B-524 Concentric-Lay-Stranded Aluminum Conductors, Aluminum Alloy Reinforced ACAR, 1350/6201.
Installation
ACAR cable can be installed in air. It is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed, so that the safeguarding of persons and the integrity of the product will not be affected by deciencies in the installation.
| Size (KCMIL) | Stranding (EC/6201) | Diameter (inches) | Weight Per 1000 Ft (lbs.) | Rated Strength (lbs.) | Resistance | Allowable Ampacity+ (Amps) | |||
|---|---|---|---|---|---|---|---|---|---|
| Individual Wires | Complete Cable | DC @ 20°C | AC @ 75°C | ||||||
| 6201 | 1350 | ||||||||
| 355.0 | 12/7 | .1367 | .1367 | .6830 | 332.1 | 8500 | .0514 | .0624 | 519 |
| 465.9 | 12/7 | .1566 | .1566 | .7830 | 435.8 | 11000 | .0392 | .0477 | 616 |
| 503.6 | 12/7 | .1628 | .1628 | .8140 | 471.1 | 11900 | .0362 | .0441 | 646 |
| 653.1 | 12/7 | .1854 | .1854 | .9270 | 611.0 | 15400 | .0279 | .0342 | 760 |
| 739.8 | 30/7 | .1414 | .1414 | .9900 | 692.7 | 15300 | .0240 | .0296 | 831 |
| 739.8 | 18/19 | .1414 | .1414 | .9900 | 691.6 | 18800 | .0252 | .0308 | 814 |
| 853.7 | 30/7 | .1519 | .1519 | 1.0630 | 799.3 | 17500 | .0208 | .0257 | 907 |
| 853.7 | 18/19 | .1519 | .1519 | 1.0630 | 798.0 | 21500 | .0218 | .0268 | 890 |
| 927.2 | 30/7 | .1583 | .1583 | 1.1080 | 868.2 | 19000 | .0192 | .0238 | 955 |
| 927.2 | 18/19 | .1583 | .1583 | 1.1080 | 866.7 | 23400 | .0201 | .0247 | 936 |
| 1024.5 | 30/7 | .1664 | .1664 | 1.1650 | 959.3 | 20900 | .0173 | .0216 | 1015 |
| 1024.5 | 18/19 | .1664 | .1664 | 1.1650 | 957.7 | 25800 | .0182 | .0225 | 995 |
| 1081.0 | 30/7 | .1709 | .1709 | 1.1960 | 1012.1 | 22100 | .0164 | .0205 | 1048 |
| 1081.0 | 18/19 | .1709 | .1709 | 1.1960 | 1010.5 | 27200 | .0172 | .0213 | 1028 |
| 1109.0 | 30/7 | .1731 | .1731 | 1.2120 | 1038.4 | 22700 | .0160 | .0200 | 1065 |
| 1109.0 | 18/19 | .1731 | .1731 | 1.2120 | 1036.6 | 27900 | .0168 | .0208 | 1044 |
| 1172.0 | 30/7 | .1780 | .1780 | 1.2460 | 1097.3 | 24000 | .0152 | .0190 | 1101 |
| 1172.0 | 18/19 | .1780 | .1780 | 1.2460 | 1095.5 | 29500 | .0159 | .0198 | 1080 |
| 1197.0 | 30/7 | .1799 | .1799 | 1.2590 | 1120.8 | 24500 | .0148 | .0187 | 1115 |
| 1197.0 | 18/19 | .1799 | .1799 | 1.2590 | 1118.9 | 30200 | .0156 | .0194 | 1094 |
| 1280.0 | 30/7 | .1860 | .1860 | 1.3020 | 1198.5 | 26200 | .0139 | .0175 | 1160 |
| 1280.0 | 18/19 | .1860 | .1860 | 1.3020 | 1196.5 | 32200 | .0146 | .0182 | 1139 |
| 1361.0 | 42/19 | .1494 | .1494 | 1.3440 | 1273.6 | 30300 | .0133 | .0168 | 1196 |
| 1527.0 | 42/19 | .1582 | .1582 | 1.4240 | 1428.8 | 33600 | .0118 | .0151 | 1314 |
| 1703.0 | 42/19 | .1671 | .1671 | 1.5040 | 1593.5 | 37500 | .0106 | .0137 | 1363 |
| 1933.0 | 42/19 | .1780 | .1780 | 1.6020 | 1808.8 | 42500 | .00936 | .0123 | 1465 |
| 2267.0 | 42/19 | .1928 | .1928 | 1.7350 | 2142.0 | 49900 | .00806 | .0108 | 1594 |
| 2493.0 | 72/19 | .1655 | .1655 | 1.8210 | 2356.9 | 50400 | .00722 | .0099 | 1687 |
| 2493.0 | 54/37 | .1655 | .1655 | 1.8210 | 2354.5 | 57600 | .00743 | .0101 | 1670 |
