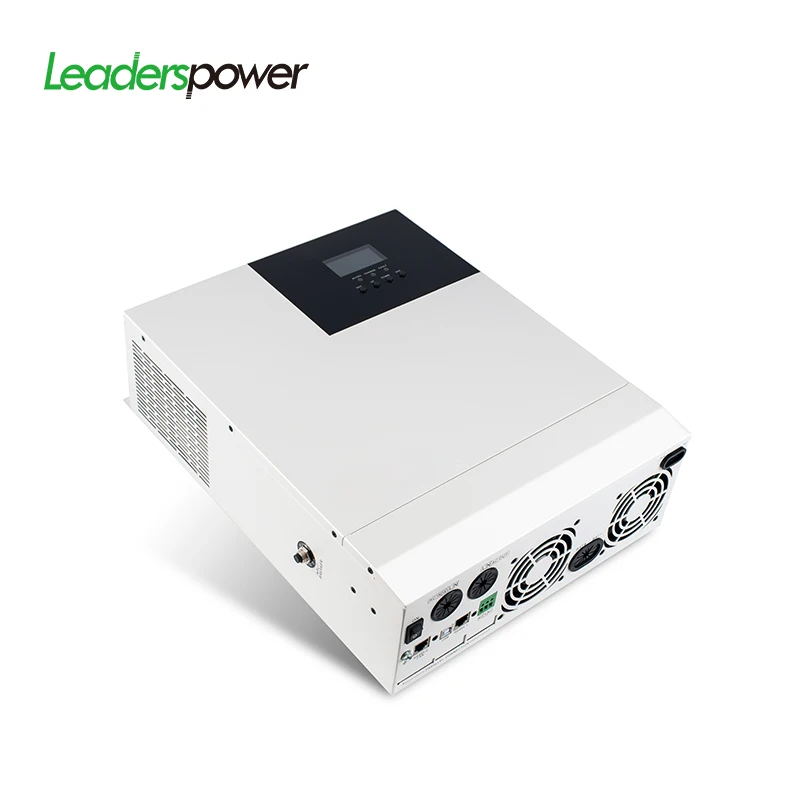

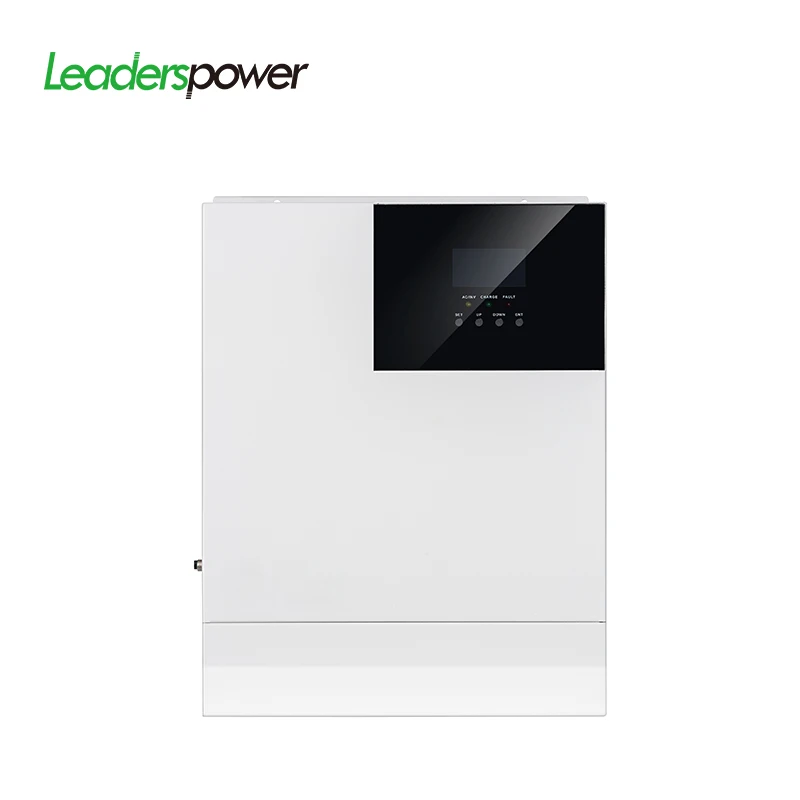

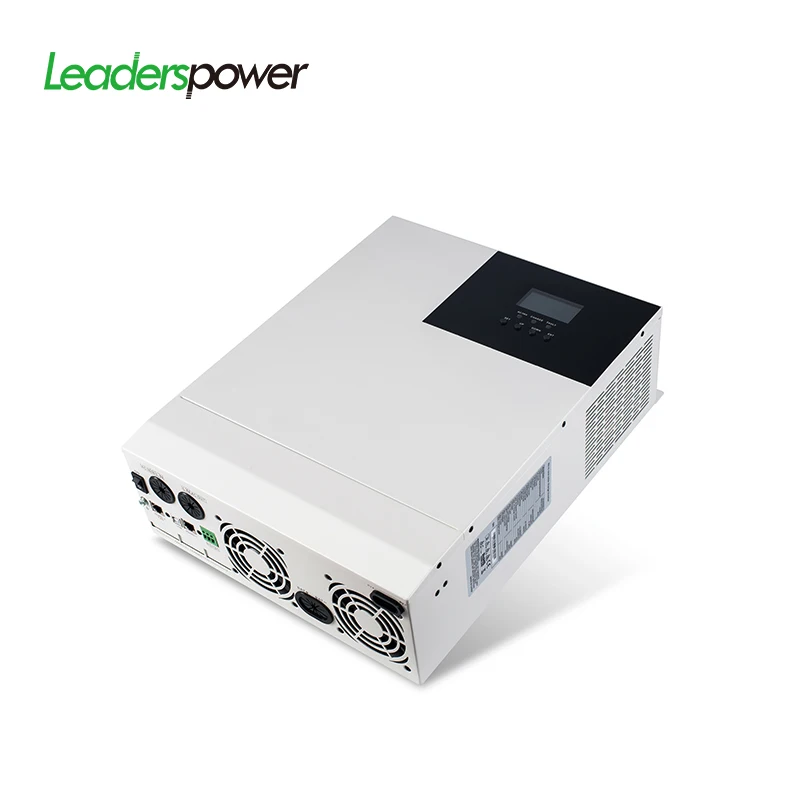

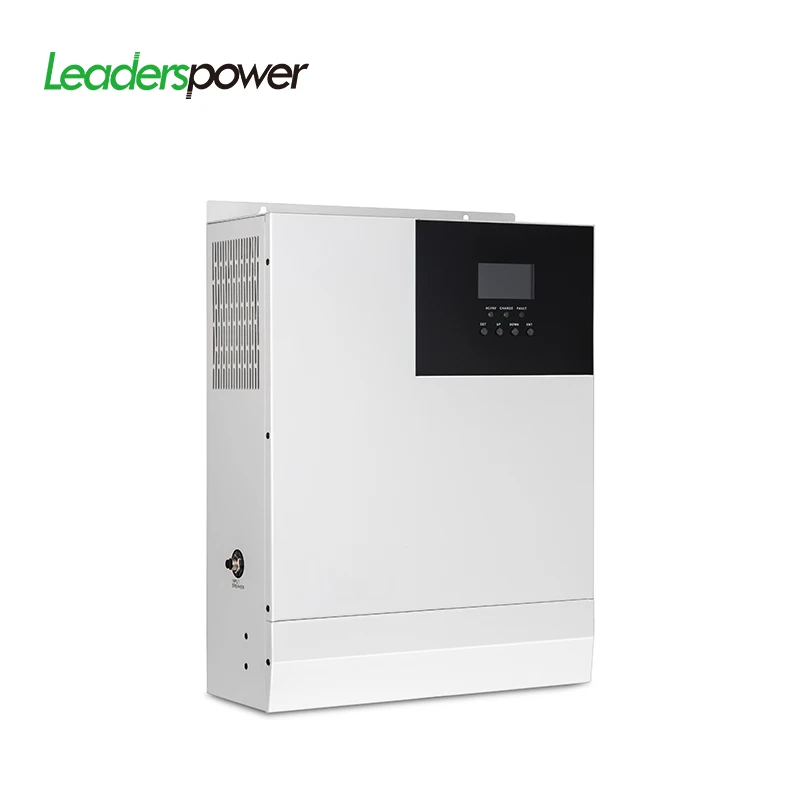

Solar Hybrid Inverter 5KW 220V 80A High Frequency Sine Wave Inverter And Converter For Home 5KW Solar Power System
- Category: >>>
- Supplier: Shenzhen Leaderspower Technology Co. Ltd.
Share on (1600719834734):
Product Overview
Description

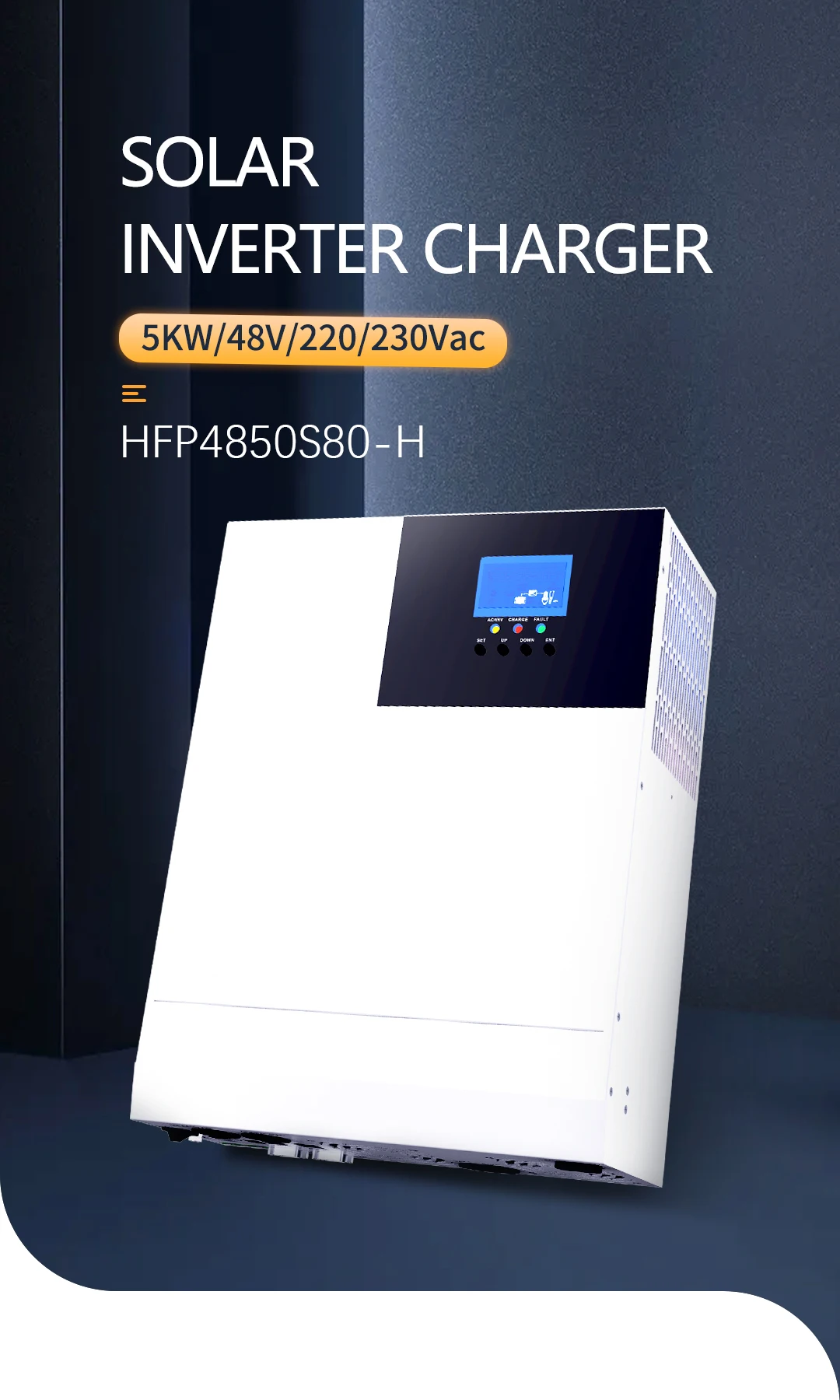

5000W 48V Hybrid Inversor Built-in 80A MPPT Solar Charger 220-230Vac PV 500VDC 50Hz/ 60Hz 40A Battey Charger Support WIFI Module HFP4850S80-H
Note: The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult online customer service.
Introduction：
1、HF series is a new hybrid solar charge inverter, which integrates solar energy storage &means charging energy storage and AC
sine wave output. Thanks to DSP control and advanced control algorithm, it has high response speed, high reliability and high
industrialstandard. Four charging modes are optional,i.e. Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid
charging; and two output modes are available,i.e. Inverter and Mains, to meet different application requirements. The solar
charging module applies the latest optimized MPPT technology to quickly track the maximum power point of the PV array in any
environment and obtain the maximum energy of the solar panel in real time.
2、Through a state of the art control algorithm, the AC-DC charging module realizes fully digitalvoltage and current double closed
loop control, with high control precision in a small volume.
3、Wide AC voltage input range and complete input/output protections are designed for stable and reliable battery charging and
protection.
4、Based on full-digital intelligent design, the DC-AC inverter module employs advanced SPWM technology and outputs pure sine wave
to convert DC into AC. It is ideal for AC loads such as household appliances, power tools, industrial equipment, and electronic
audio and video equipment. The product comes with a segment LCD display design whichlallows real-time display of the operating
data and status of the system. Comprehensive electronic protections keep the entire system safer and more stable.
Feature：
1.Full digital voltage and current double closed loop control, advanced SPWM technology,
output of pure sine wave.
2.Two output modes: mains bypass and inverter output; uninterrupted power supply.
3. Available in 4 charging modes: Only Solar, Utility Priority, PV Priority, Utility & Solar hybrid
charging.
4. Advanced MPPT technology with an efficiency of 99.9%.

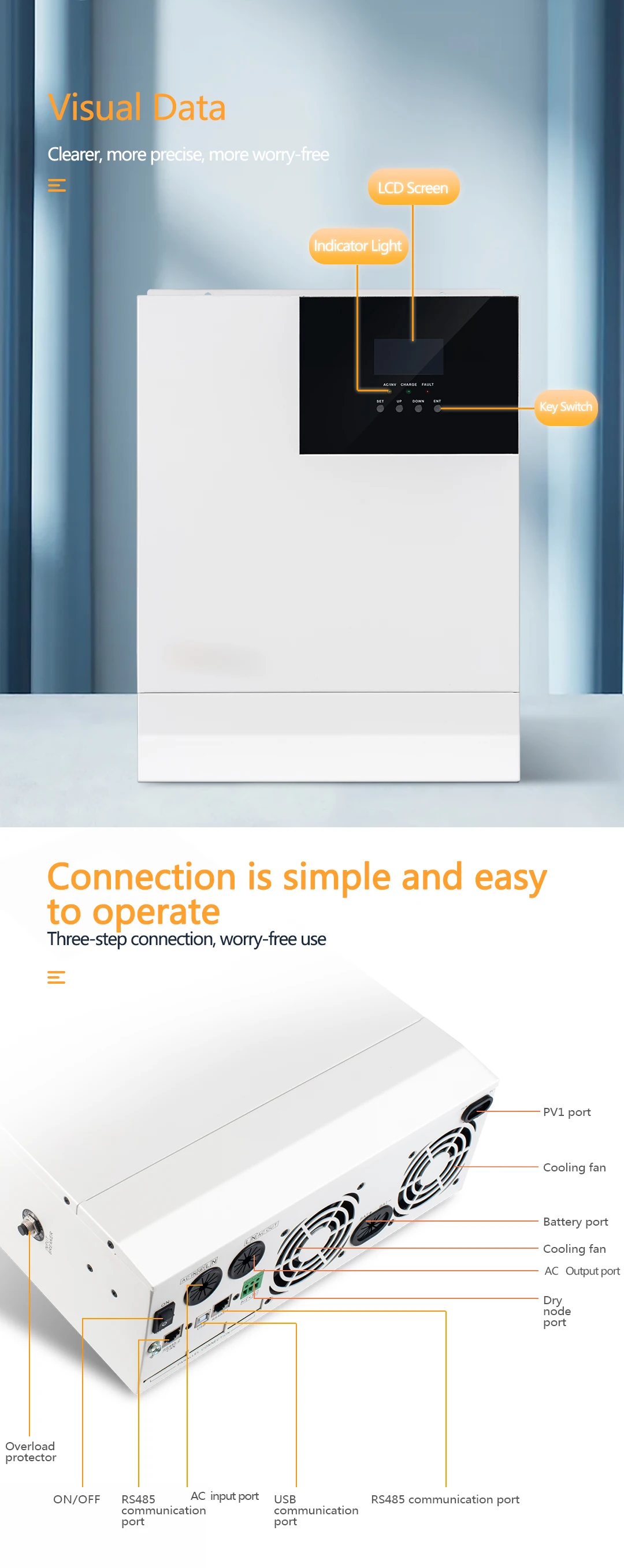

5.Designed with a LCD screen and 3 LED indicators for dynamic display of system data and
operating status.
6. Manual ON/OFF switch controlling AC output.
7.Power saving mode available to reduce empty load loss.

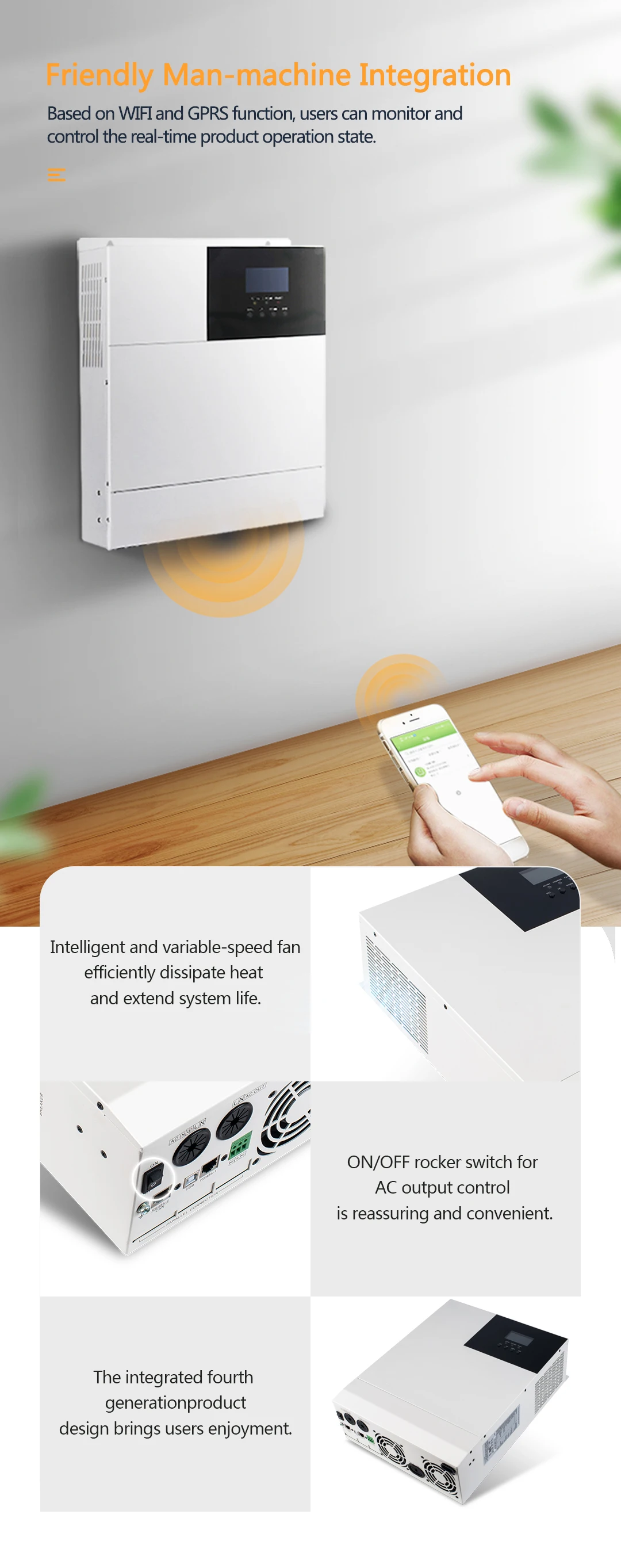

8. Intelligent variable speed fan to efficiently dissipate heat and extend system life.
9. Lithium battery activation by PV solar or mains, allowing access of lead-acid battery and
lithium battery.
10.Complete protections, including short circuit protection, over voltage and under voltage
protection, overload protection, reverse protection, etc.
1、HF series is a new hybrid solar charge inverter, which integrates solar energy storage &means charging energy storage and AC
sine wave output. Thanks to DSP control and advanced control algorithm, it has high response speed, high reliability and high
industrialstandard. Four charging modes are optional,i.e. Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid
charging; and two output modes are available,i.e. Inverter and Mains, to meet different application requirements. The solar
charging module applies the latest optimized MPPT technology to quickly track the maximum power point of the PV array in any
environment and obtain the maximum energy of the solar panel in real time.
2、Through a state of the art control algorithm, the AC-DC charging module realizes fully digitalvoltage and current double closed
loop control, with high control precision in a small volume.
3、Wide AC voltage input range and complete input/output protections are designed for stable and reliable battery charging and
protection.
4、Based on full-digital intelligent design, the DC-AC inverter module employs advanced SPWM technology and outputs pure sine wave
to convert DC into AC. It is ideal for AC loads such as household appliances, power tools, industrial equipment, and electronic
audio and video equipment. The product comes with a segment LCD display design whichlallows real-time display of the operating
data and status of the system. Comprehensive electronic protections keep the entire system safer and more stable.
Feature：
1.Full digital voltage and current double closed loop control, advanced SPWM technology,
output of pure sine wave.
2.Two output modes: mains bypass and inverter output; uninterrupted power supply.
3. Available in 4 charging modes: Only Solar, Utility Priority, PV Priority, Utility & Solar hybrid
charging.
4. Advanced MPPT technology with an efficiency of 99.9%.
5.Designed with a LCD screen and 3 LED indicators for dynamic display of system data and
operating status.
6. Manual ON/OFF switch controlling AC output.
7.Power saving mode available to reduce empty load loss.
8. Intelligent variable speed fan to efficiently dissipate heat and extend system life.
9. Lithium battery activation by PV solar or mains, allowing access of lead-acid battery and
lithium battery.
10.Complete protections, including short circuit protection, over voltage and under voltage
protection, overload protection, reverse protection, etc.
Sepecification | ||
Model | HFP4850S80-H | |
Rated input voltage | 220Vac/230Vac | |
Input voltage range | (170Vac~280Vac) ±2%；(90Vac-280Vac) ±2% | |
Maximum bypass overload current | 40A | |
Output voltage waveform | pure sine wave | |
Rated output power(VA) | 5000(4350/4500/4800/5000) | |
Rated output power(W) | 5000(4350/4500/4800/5000) | |
Power factor | 1 | |
Rated output voltage (Vac) | 230Vac(200/208/220/240Vac can be set) | |
Peak power | 10000VA | |
Loaded motor capacity | 4HP | |
Rated battery input voltage | 48V(Minimum starting voltage 44V) | |
Battery type | Lead acid or lithium battery | |
Maximum charge current | 60A | |
Charge voltage range | 40-60Vdc | |
Circuit breaker specifications | 40A | |
PV operation voltage range | 120-500Vdc | |
Battery voltage range | 40-60Vdc | |
Maximum output power | 5000W | |
PV charging current range（can be set） | 0-80A | |
Certification | CE(EN62109-1)、RoHS | |
EMC certification level | En61000 | |

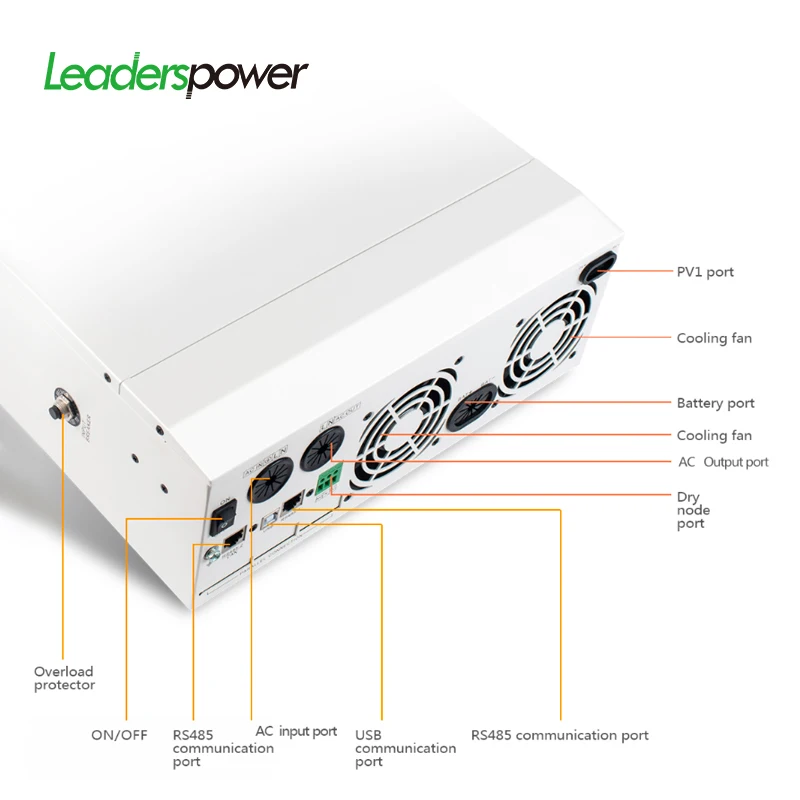

Communication interface | USB/RS485(WiFi/GPRS)/Dry node control | |
Dimension (L*W*D) | 426*322*126mm | |
Weight (kg) | 10.9 | |

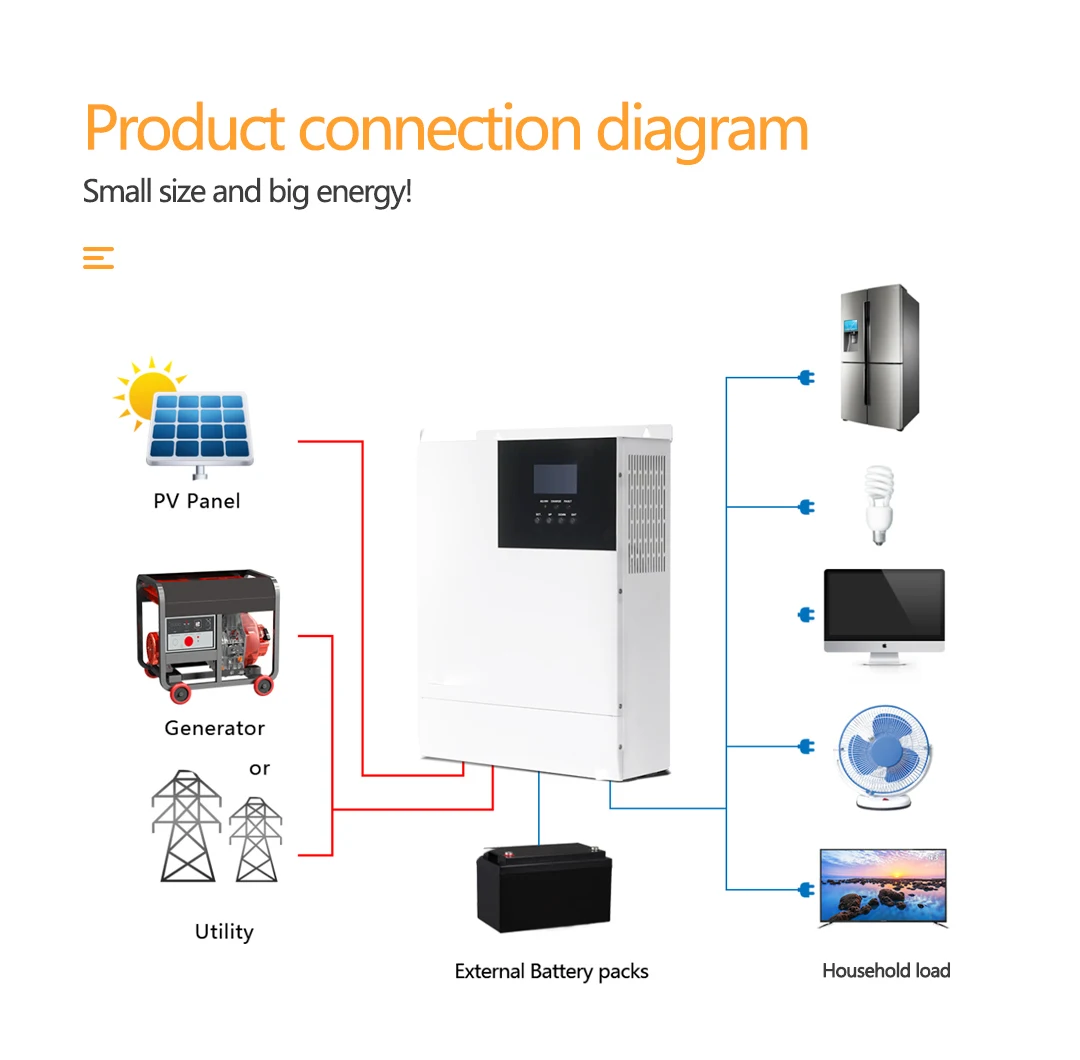

Household Power System
It is used in household photovoltaic power system,satisfying the power demand when here is no electricity power or the power is unstable.
It is used in household photovoltaic power system,satisfying the power demand when here is no electricity power or the power is unstable.
Power Station System
Power Station System is specialized for remote area and power shortage area ,whose power is up to several hundreds of kilowatts
Power Station System is specialized for remote area and power shortage area ,whose power is up to several hundreds of kilowatts
RV or Ship System
Solar RV / ship system generates electricity by absorbing solar power ,which not only saves the electricity bills of RV / ship, but also assists the operation of gasoline engine generator( diesel generator ) of RV / ship
Solar RV / ship system generates electricity by absorbing solar power ,which not only saves the electricity bills of RV / ship, but also assists the operation of gasoline engine generator( diesel generator ) of RV / ship
Off-grid Monitoring
Power System Solar off-grid monitoring power system is applied to remote mountainous area no-electricity area and islands
Power System Solar off-grid monitoring power system is applied to remote mountainous area no-electricity area and islands
Base Station System
It can be applied to telecommunication base station system ,contributing in transferring information between mobile terminals and keeping steady communication signal in the wireless coverage area .
It can be applied to telecommunication base station system ,contributing in transferring information between mobile terminals and keeping steady communication signal in the wireless coverage area .

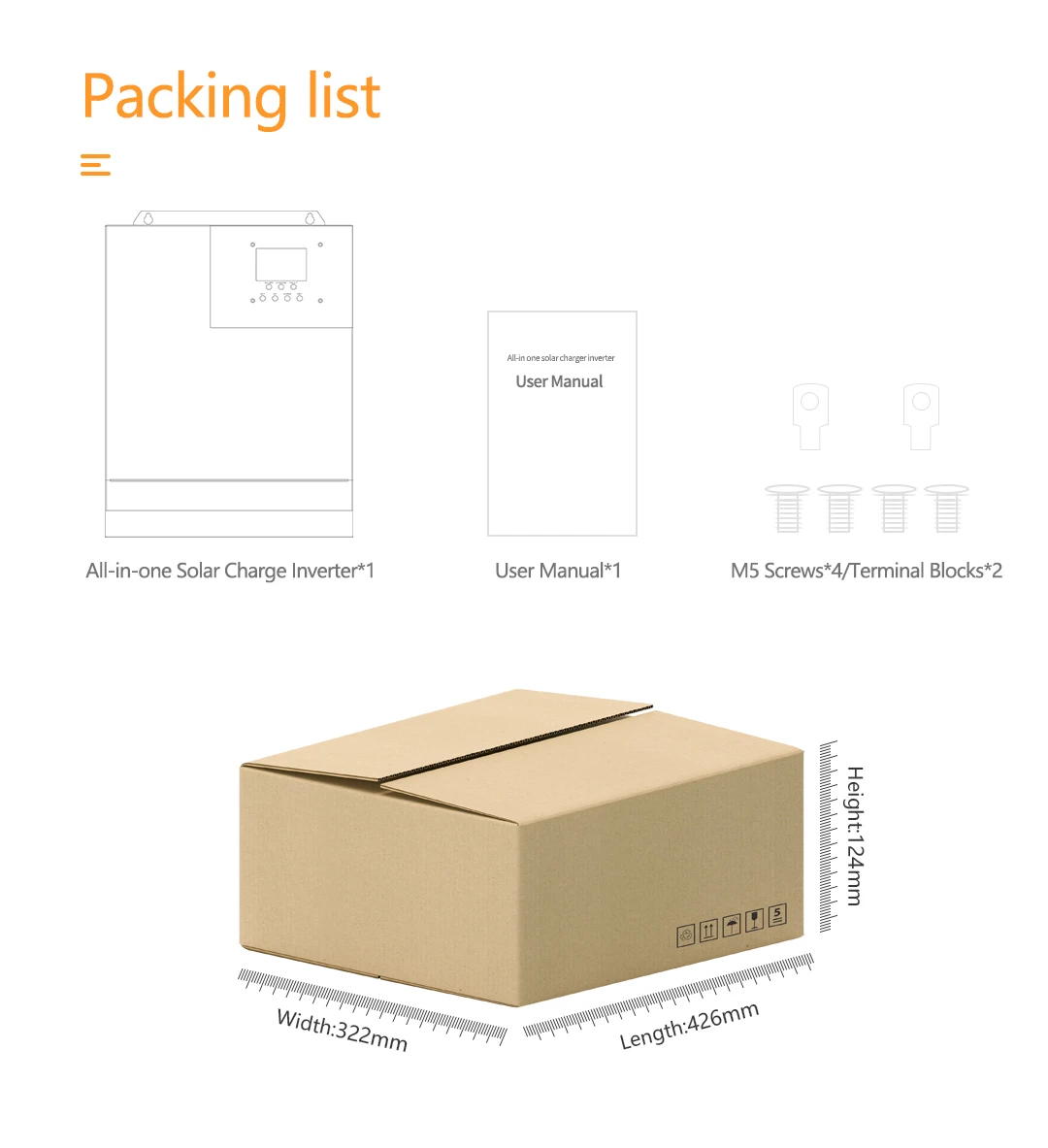

· All-in-one Solar Charge Inverter*1
· User Manual *1
· M5 Screws *4
· Terminal Blocks *2
· User Manual *1
· M5 Screws *4
· Terminal Blocks *2
