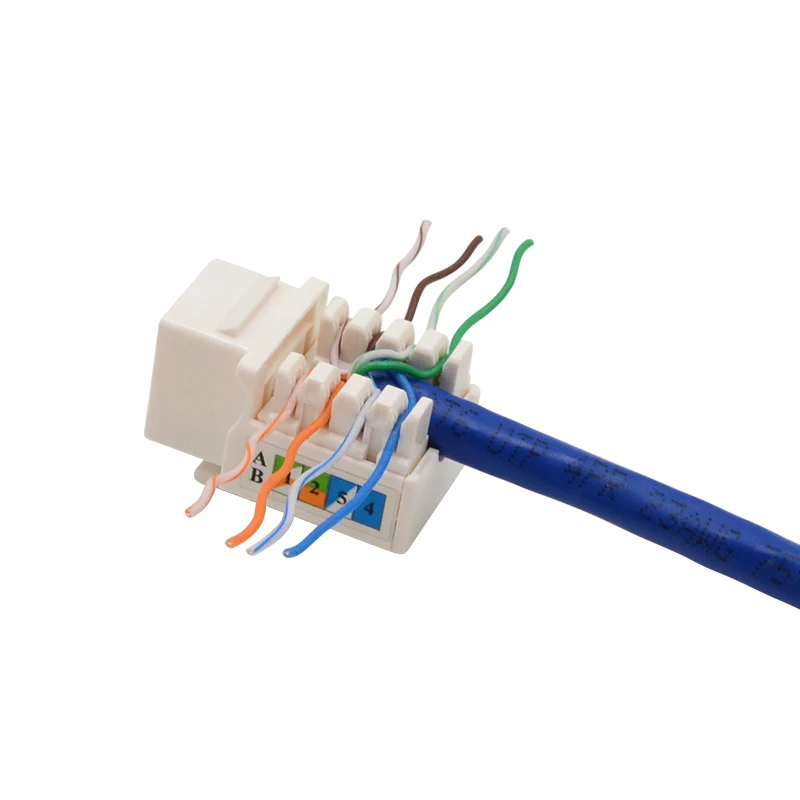

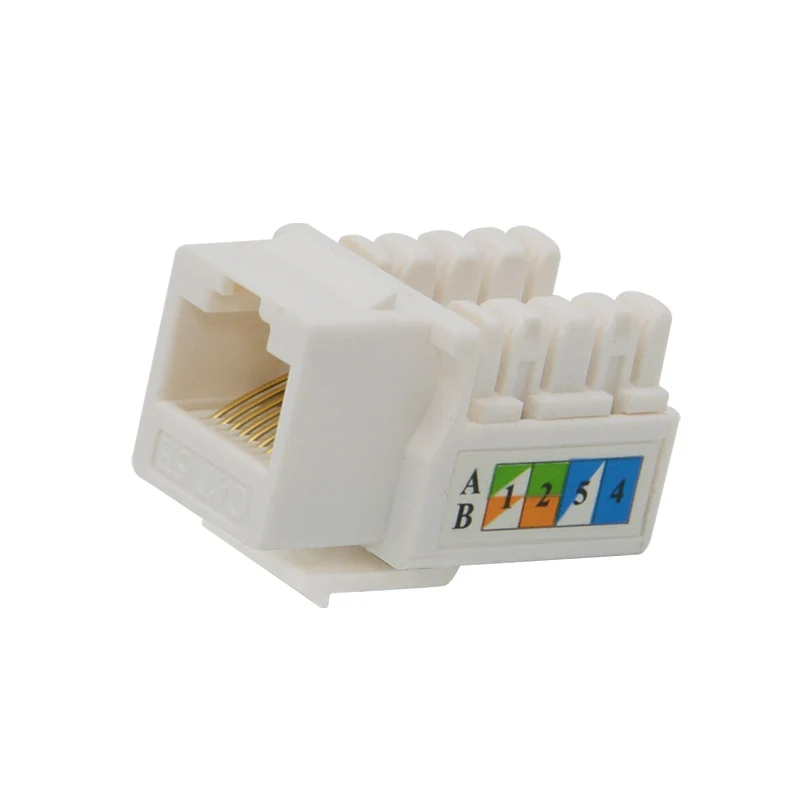

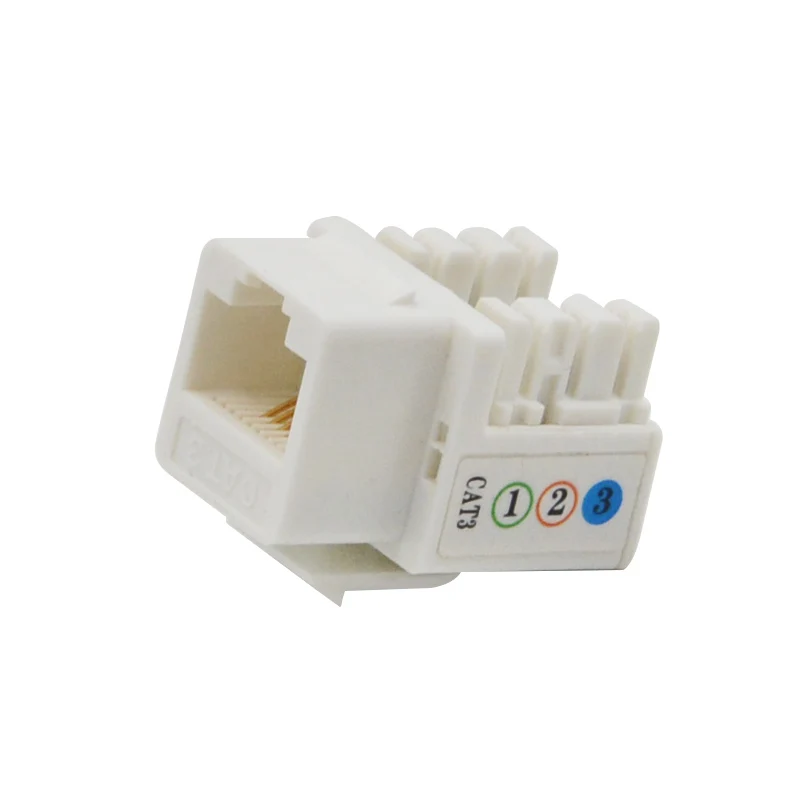

Good selling Cat3 Cat5e Cat6 UTP RJ45 Keystone Jack modular jack 90 degree
- Category: >>>
- Supplier: Ningbo Hyconnect Communication Technology Co. Ltd.
Share on (1600719844008):
Product Overview
Description
Product Name | Cabling Network RJ45 UTP Cat.6 keystone jack, 90 degree |
Material | PC |
Place of Origin | CHINA |
Brand Name | HY-CONNECT |
Model Number | HKJ-902-C6 |
Color | white |
Usage | Data center, working area, managing room, equipment room, etc |
1. Technique Characteristics
Material of plastic parts: PC UL94V-0

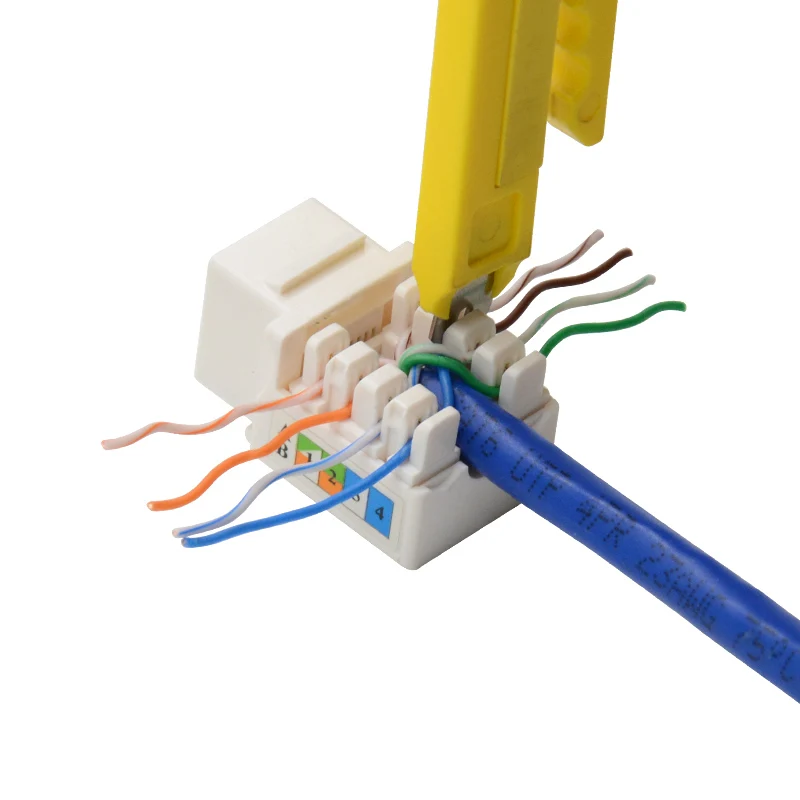

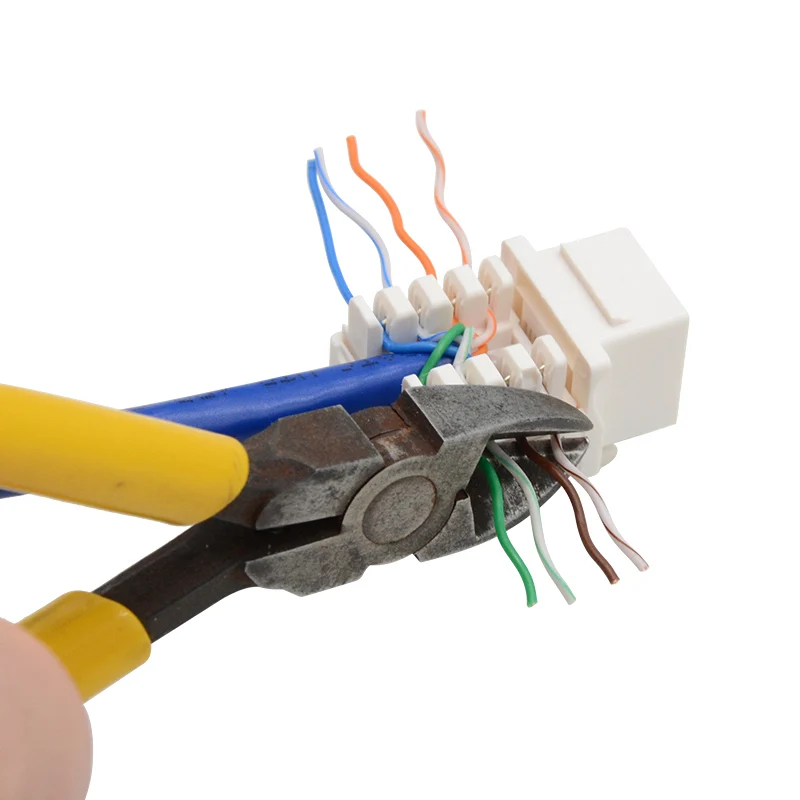

Standard 110 and LSA dual use punching tool make operation more convenient
According to the standard of ISO/IEC 11801 & TIA/EIA 568-B.2 Cat.6
IDC clips: Tinned phosphor bronze nickel plated with dependability 250 times
2. Electrical Characteristics
DC Resistance: ≤300mΩ
Contact Resistance: ≤20mΩ
Dielectric strength: 1000V(AC750V)1min no break down and flashover
Insulation Resistance: ≥1000MΩ
3. Physical Characteristics
Phosphor bronze with nickel plated , connector pins with golden plated 3μ
IDC clip: Tinned phosphor bronze pins with nickel plated, fitting for 22-26AWG cables
Inserting Duration: ≥750 times
Punching Duration: ≥250 times
Jack housing plastic part: UL 94V-2,RED,YELLOW,BLUE,GREEN,BLACK and other colors available
Termination caps material UL94V -2
Working temperature: -25℃~60℃
4. Standards
ISO/IEC11801
TIA/EIA-568B.2-1;
EN50173;
5. Application
Structured cabling transmitting data ,voice, video
Applied for Cat.6and E Classes
Suitable for working area, central room, managing room, equipment room and subsystem applications
Material of plastic parts: PC UL94V-0
Standard 110 and LSA dual use punching tool make operation more convenient
According to the standard of ISO/IEC 11801 & TIA/EIA 568-B.2 Cat.6
IDC clips: Tinned phosphor bronze nickel plated with dependability 250 times
2. Electrical Characteristics
DC Resistance: ≤300mΩ
Contact Resistance: ≤20mΩ
Dielectric strength: 1000V(AC750V)1min no break down and flashover
Insulation Resistance: ≥1000MΩ
3. Physical Characteristics
Phosphor bronze with nickel plated , connector pins with golden plated 3μ
IDC clip: Tinned phosphor bronze pins with nickel plated, fitting for 22-26AWG cables
Inserting Duration: ≥750 times
Punching Duration: ≥250 times
Jack housing plastic part: UL 94V-2,RED,YELLOW,BLUE,GREEN,BLACK and other colors available
Termination caps material UL94V -2
Working temperature: -25℃~60℃
4. Standards
ISO/IEC11801
TIA/EIA-568B.2-1;
EN50173;
5. Application
Structured cabling transmitting data ,voice, video
Applied for Cat.6and E Classes
Suitable for working area, central room, managing room, equipment room and subsystem applications
