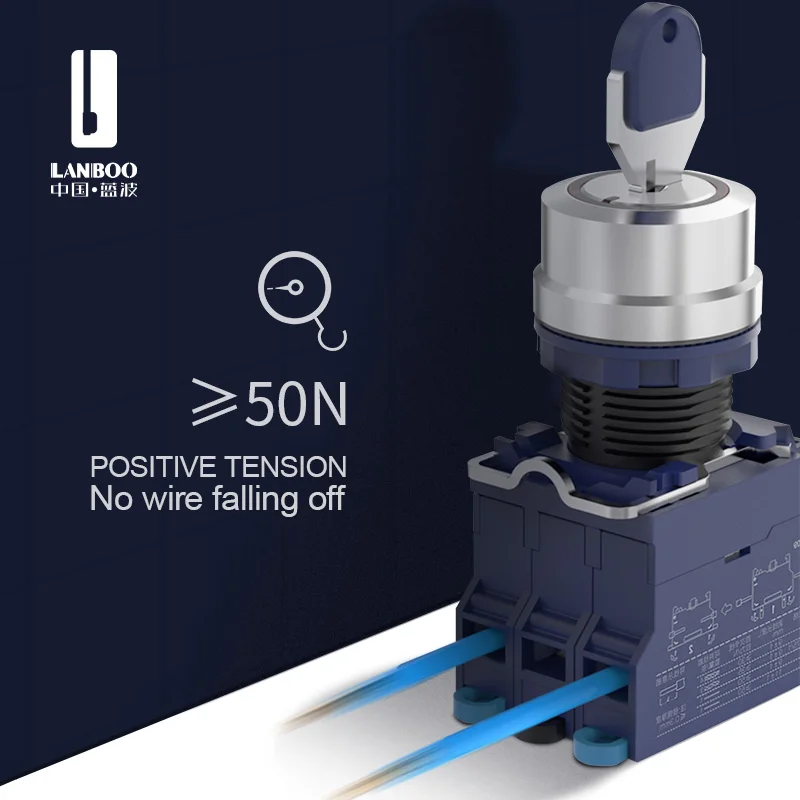

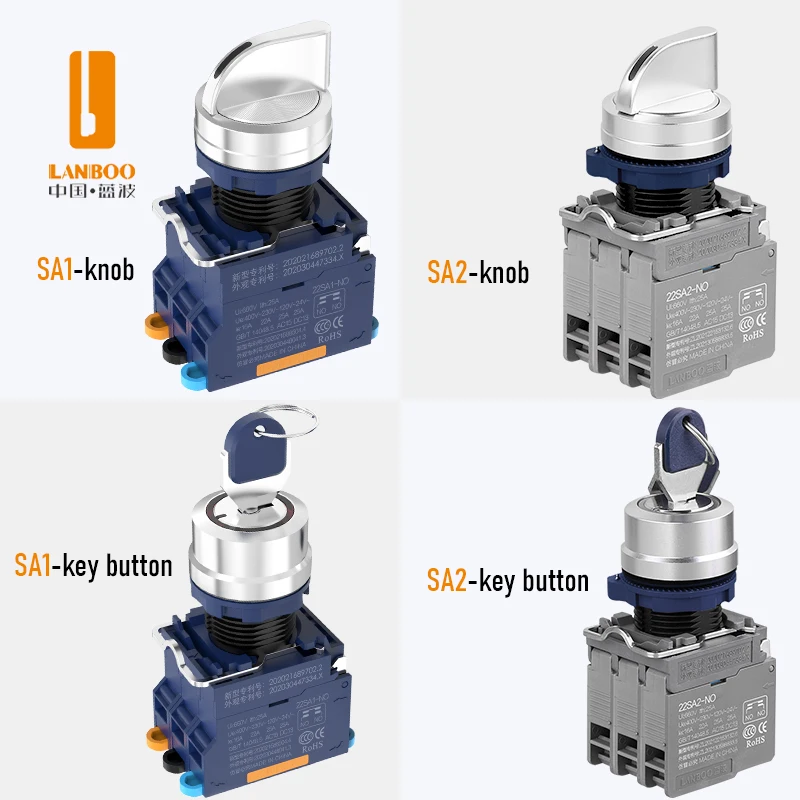

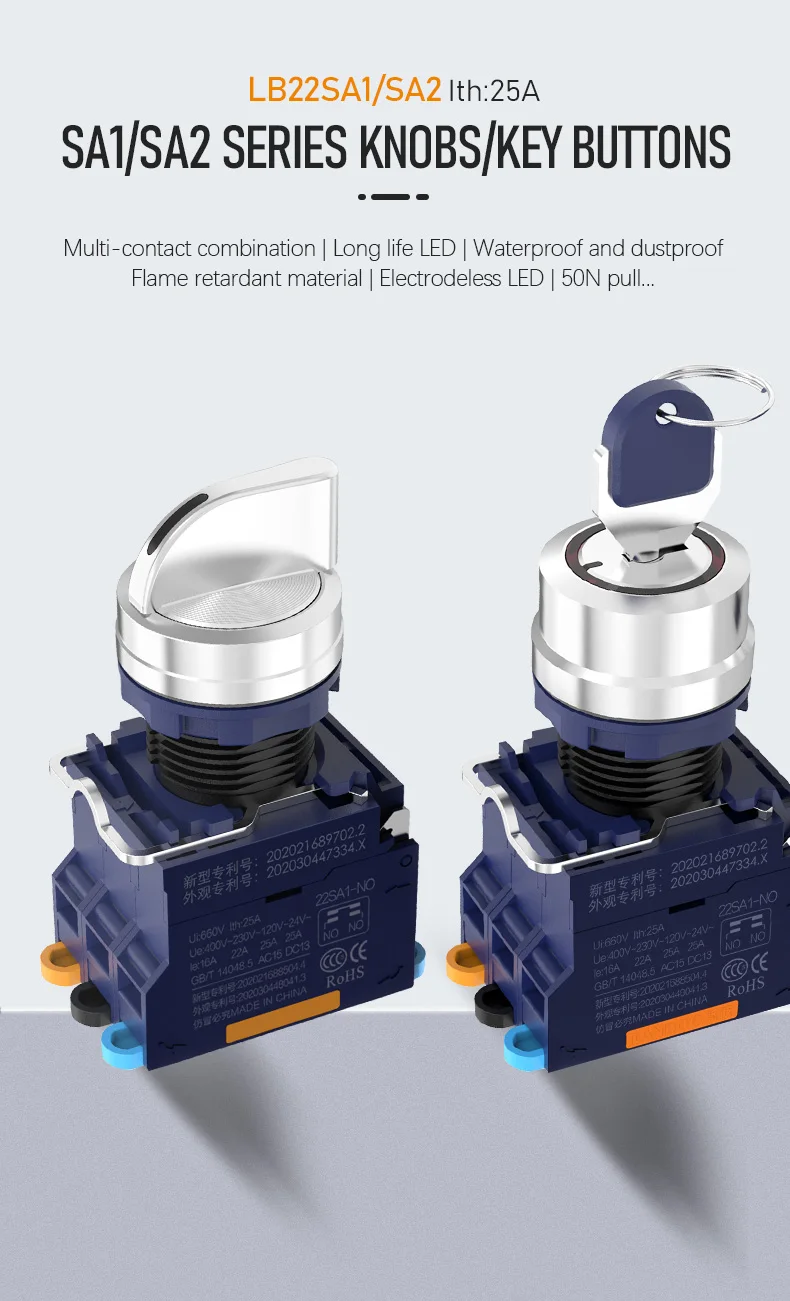

LANBOO SA1/SA2 Knob Switch Key Button Switch 25A Safety High Current Metal Head
- Category: >>>
- Supplier: Guangdong LANBOO Button Manufacturing Co. LTD. Yueqing branch
Share on (1600719849075):
Product Overview
Description

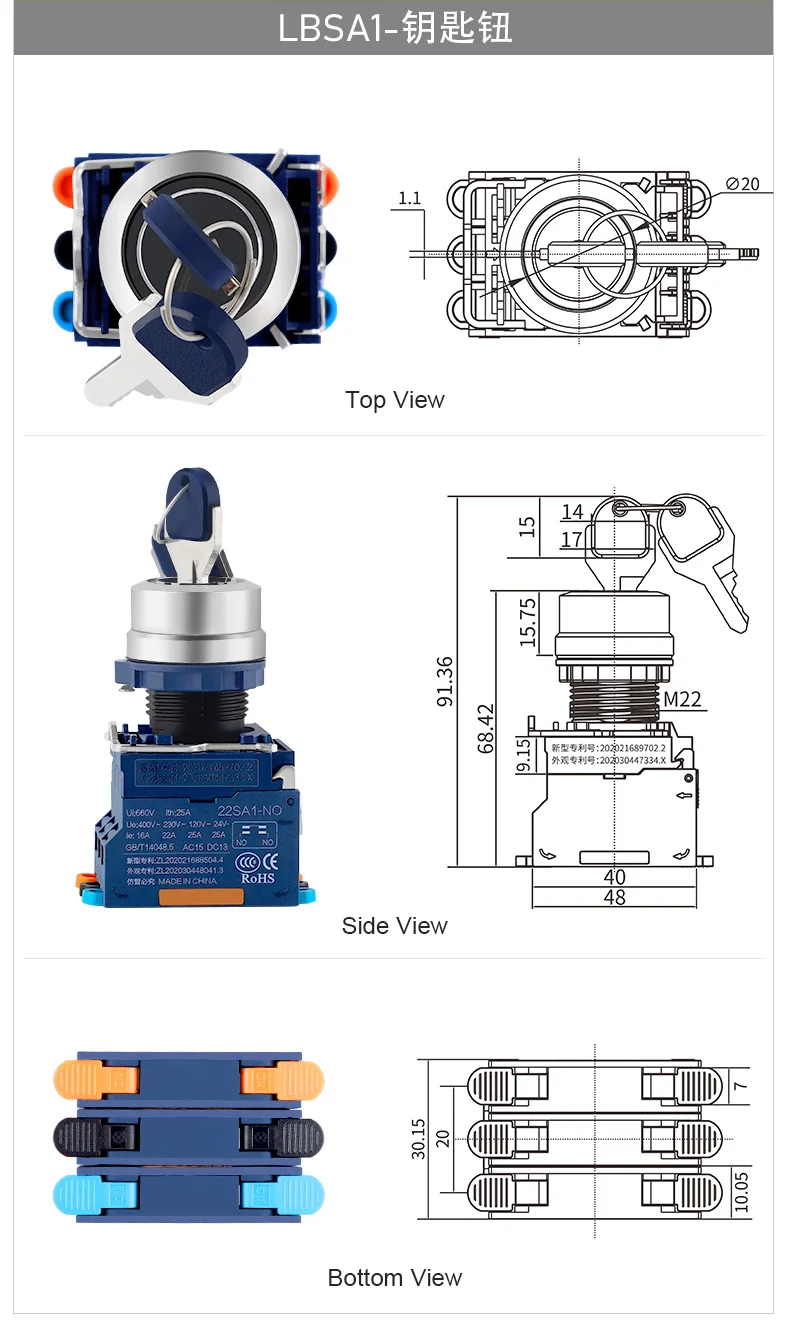

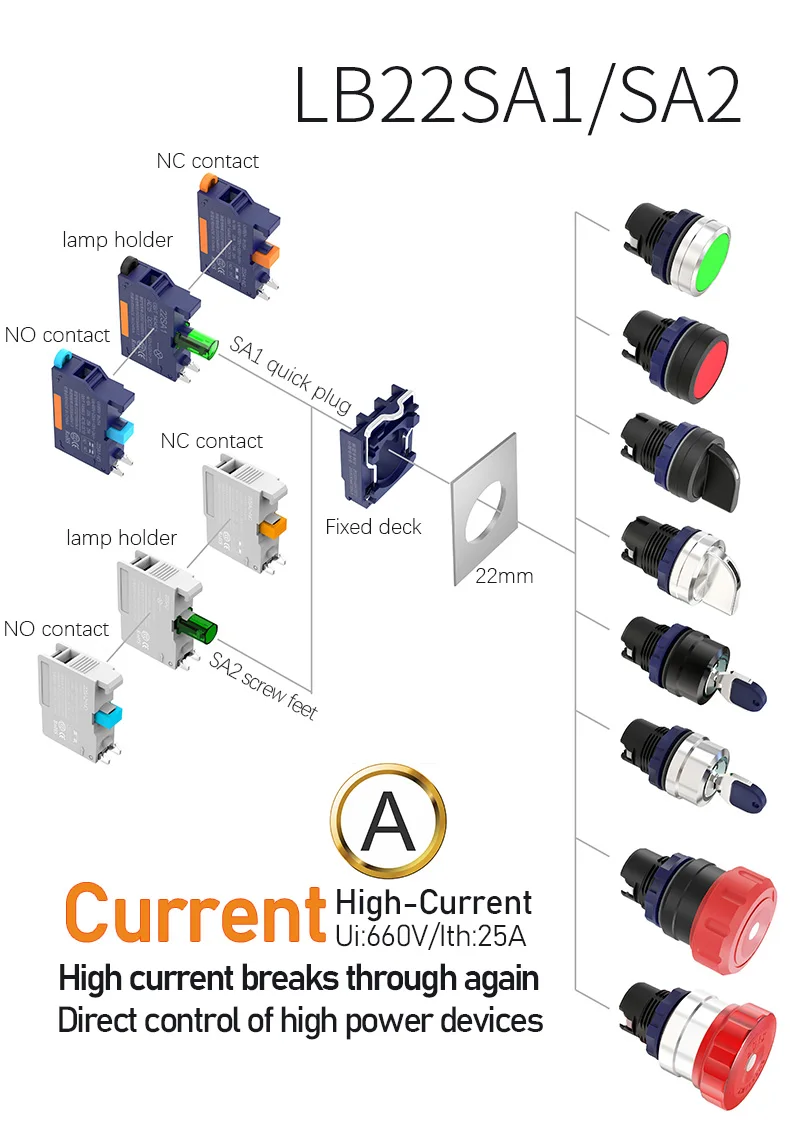

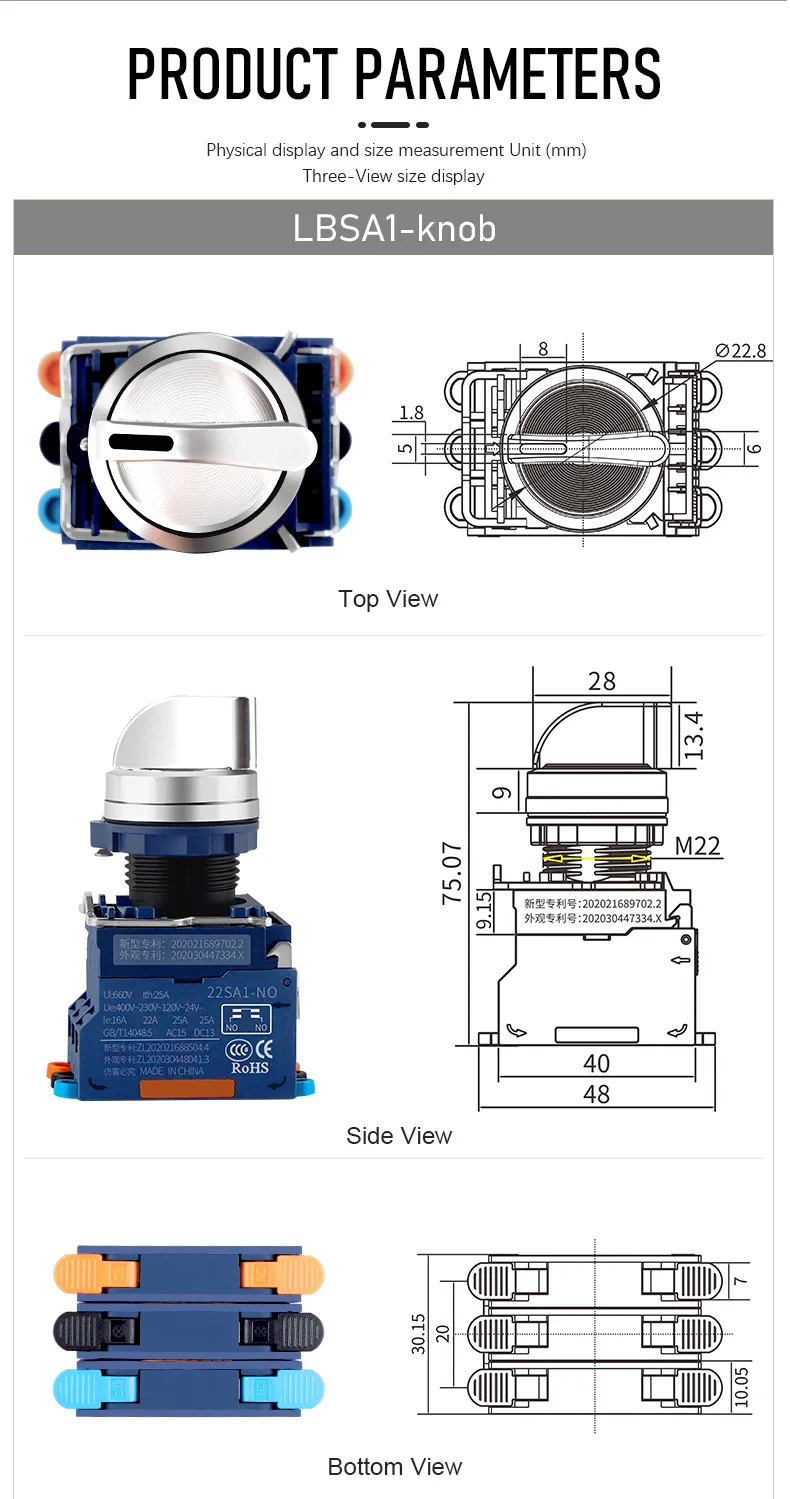

| Mounting Aperture | 22mm |

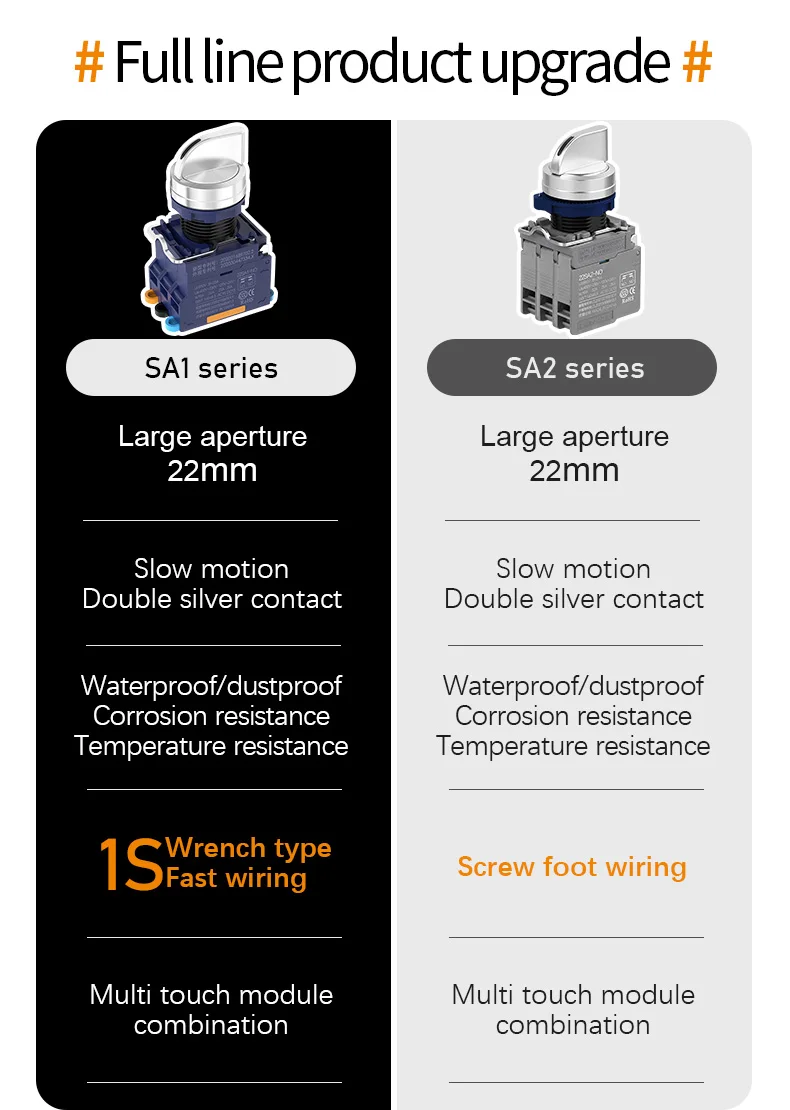

| Serial Number | Type SA1/SA2 Waterproof With Light Knob High Current Series Type SA1/SA2 Waterproof With Light Key Knob High Current Series
|

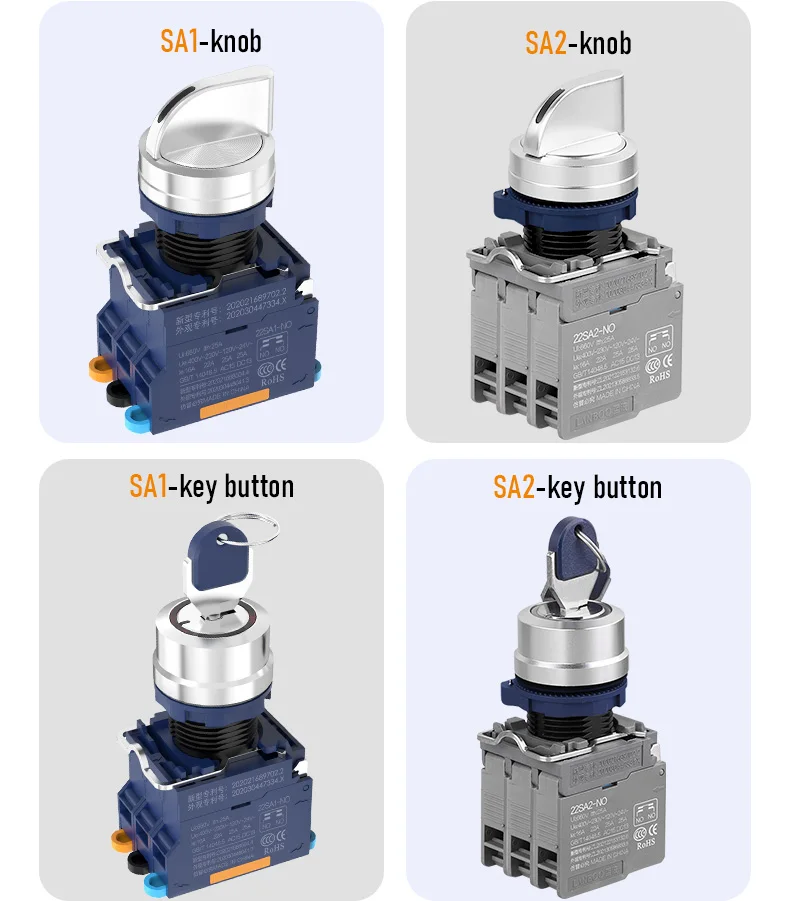

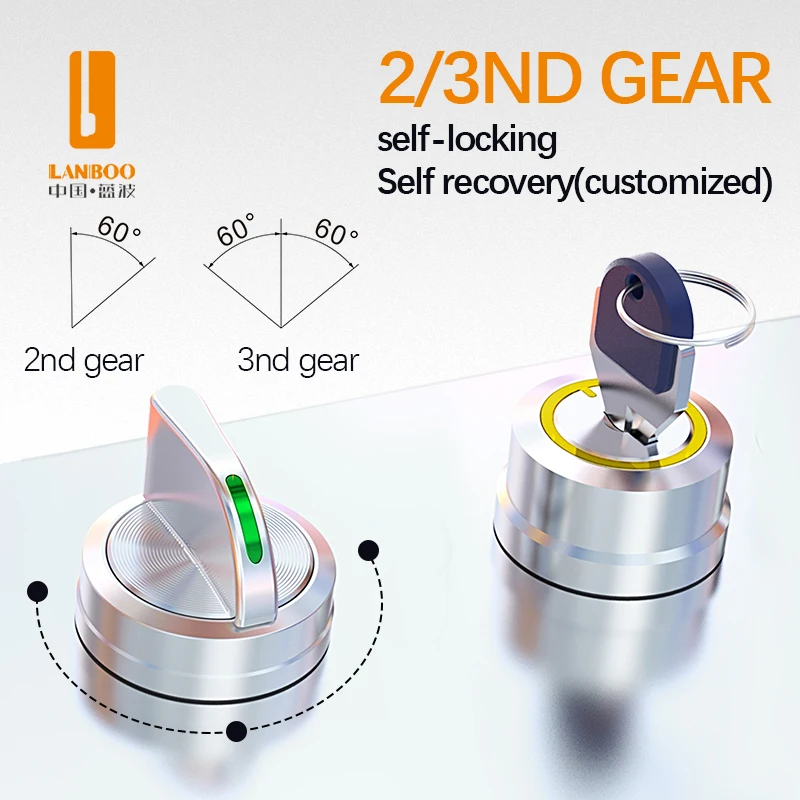

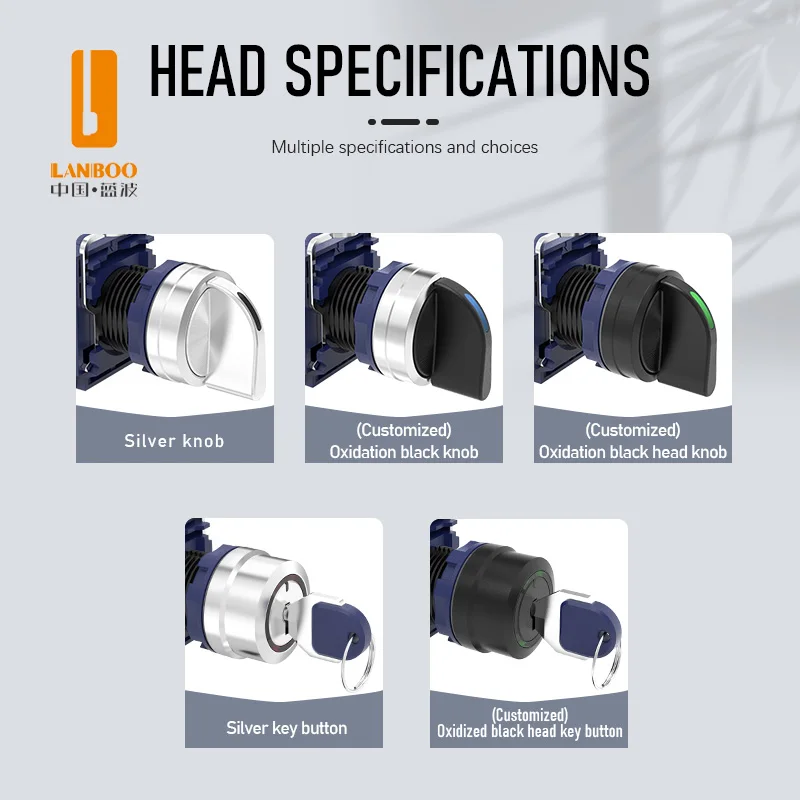

| Head shape | Rotary Handle Head / Key Handle Head |

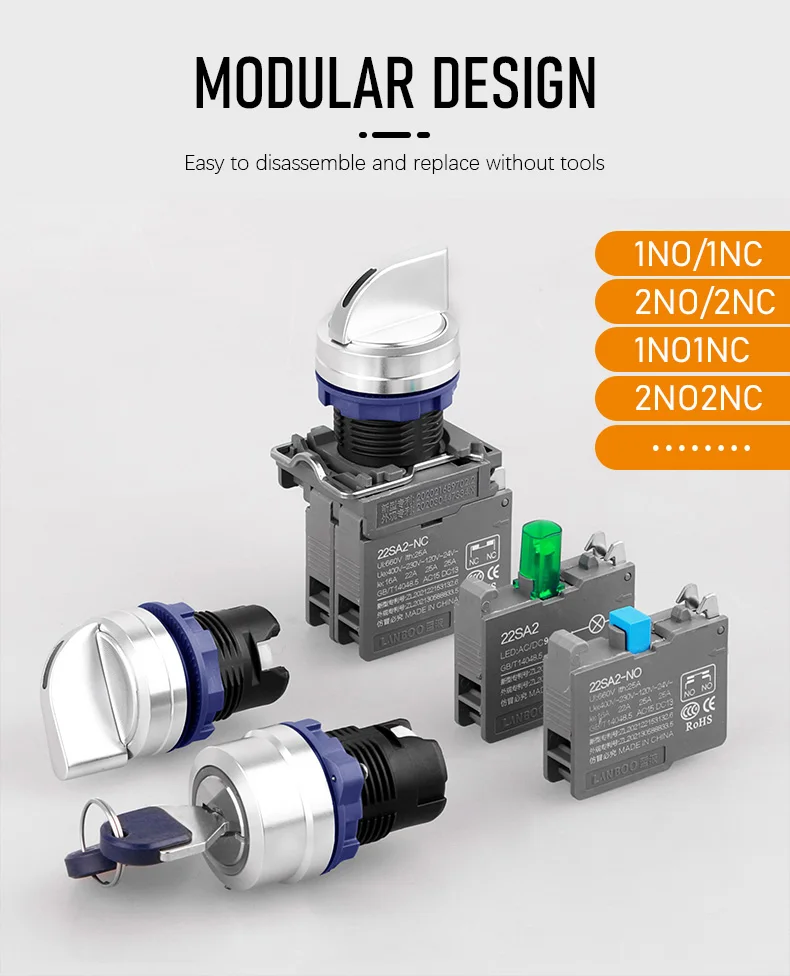

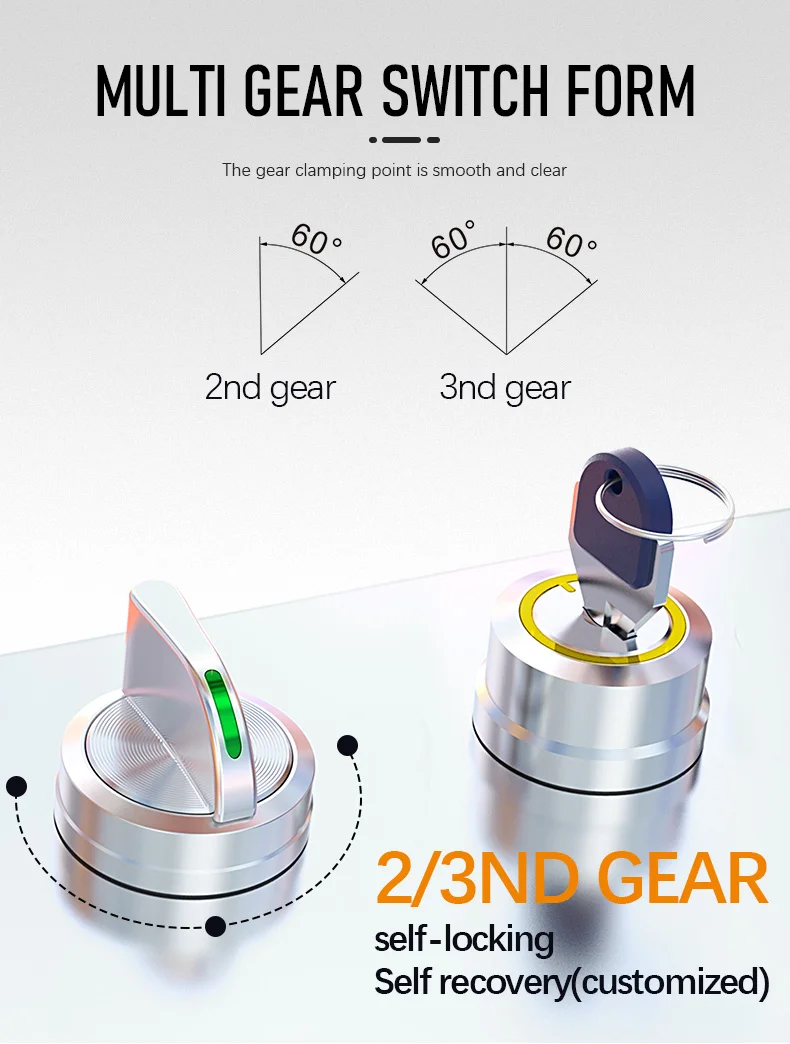

| Switch combination | Self-Locking (Form of Holding) Self-Recovering (Point Moving Form) |

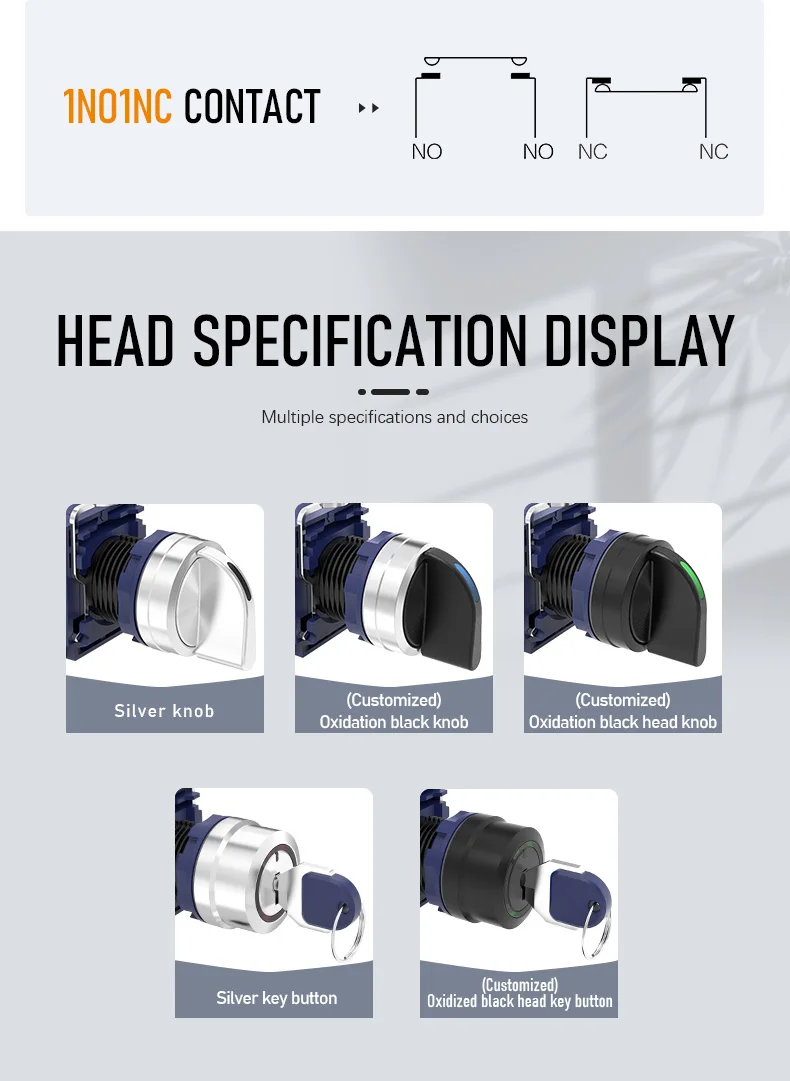

| Action form | 1NO Normally Open Contact, Slow Acting Double Contact 2NO Normally Open Contact, Slow Acting Double Contact 1NC Normally Closed Contact, Slow Acting Double Contact 2NC Normally Closed Contact, Slow Acting Double Contact 1NO1NC Normally Open Normally Closed, Slow Action Double Contact (customized) |

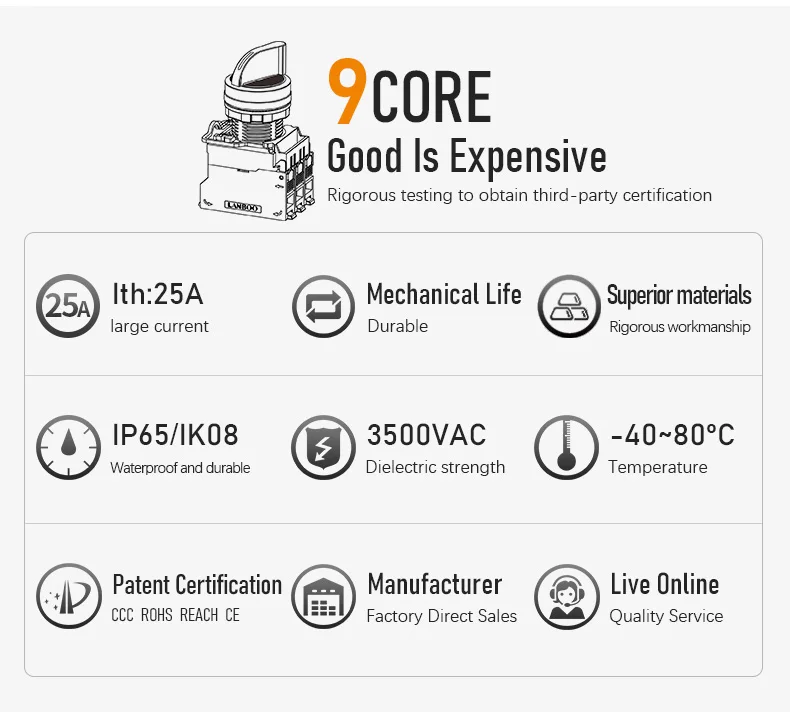

| Waterproof level | IP65, Anti-Collision IK10 (Refer to GB/T 20138) |
| Heating current | Ith: 25A(Ui660VAC,Ue:400VAC) |
| Working environment | -40°C~+80°C (non-vacuum state, without freezing) |
| Insulation resistance | ≥1000MΩ |

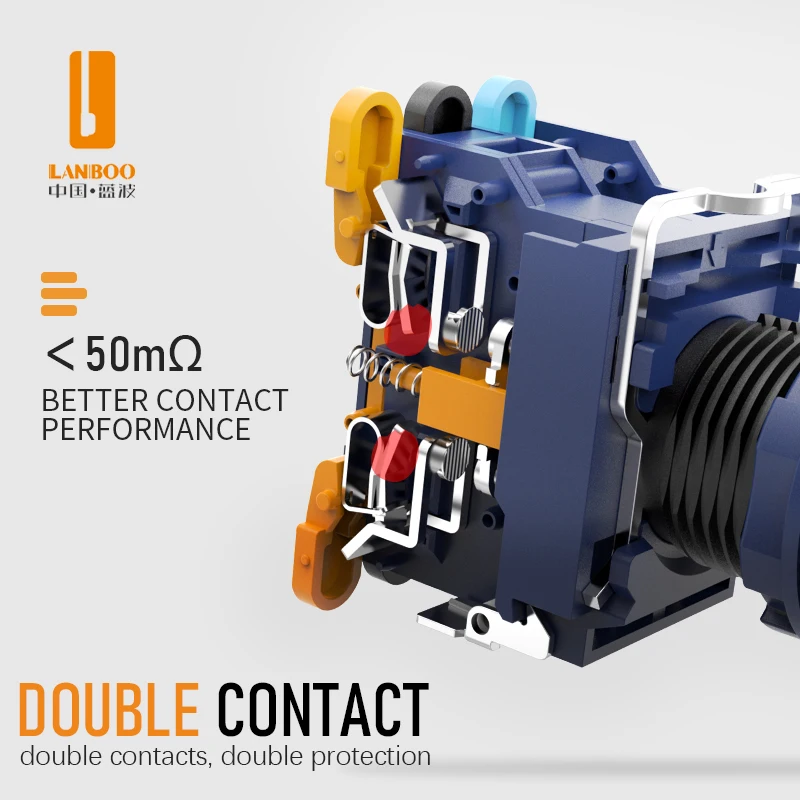

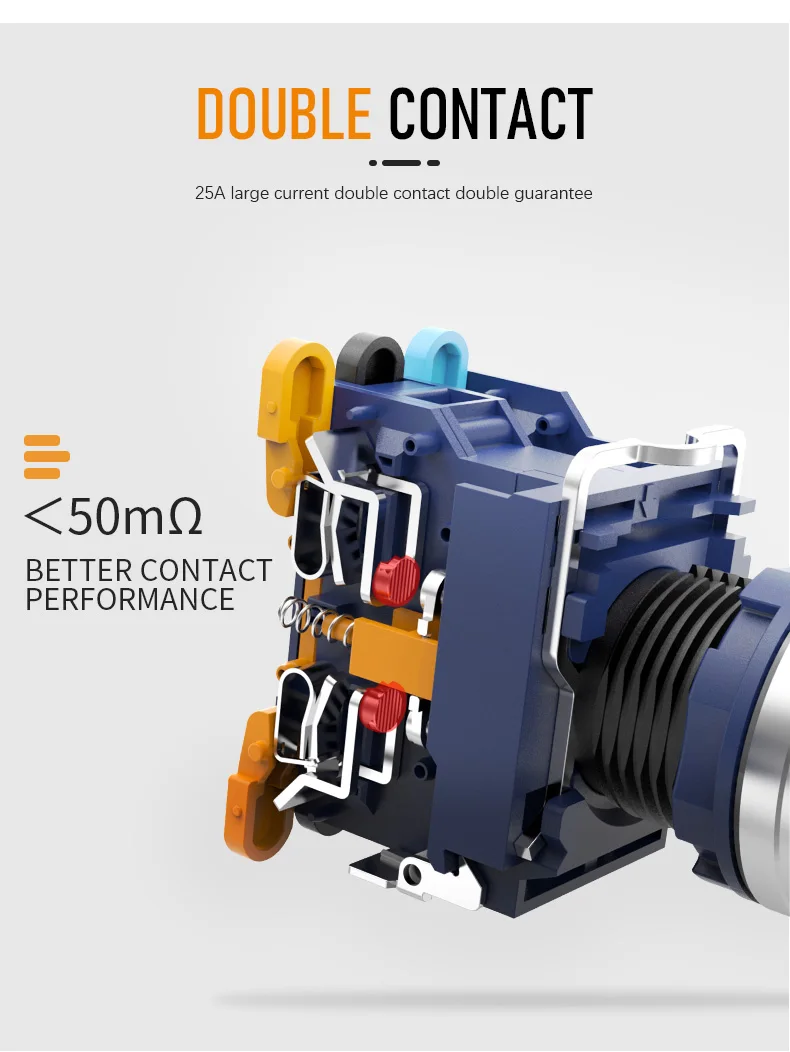

| Contact resistance | ≤50mΩ |
| LED voltage | 9-24V, 220V / Customized: 25-48V, 110V, AC/DC( UNIVERSAL ) |
| Resistive load | AC-15: 400V:16A, 230V: 22A, 120V:25A DC-13: 24V:25A |
| Inductive load | AC-15: 400V:2A, 230V/120V: 5A DC-13: 24V:6A |
| Glowing shape | Ring/Point Light Source |

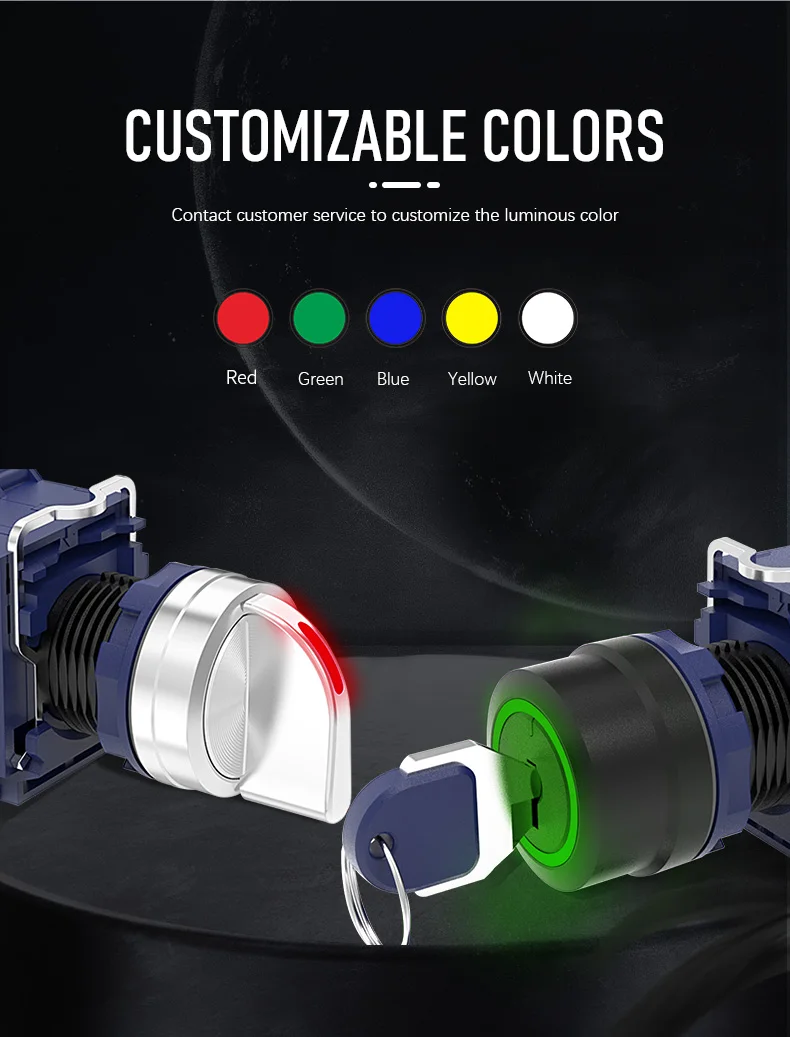

| Glow color | Red, Green, / Customized: Blue, Yellow, White |
