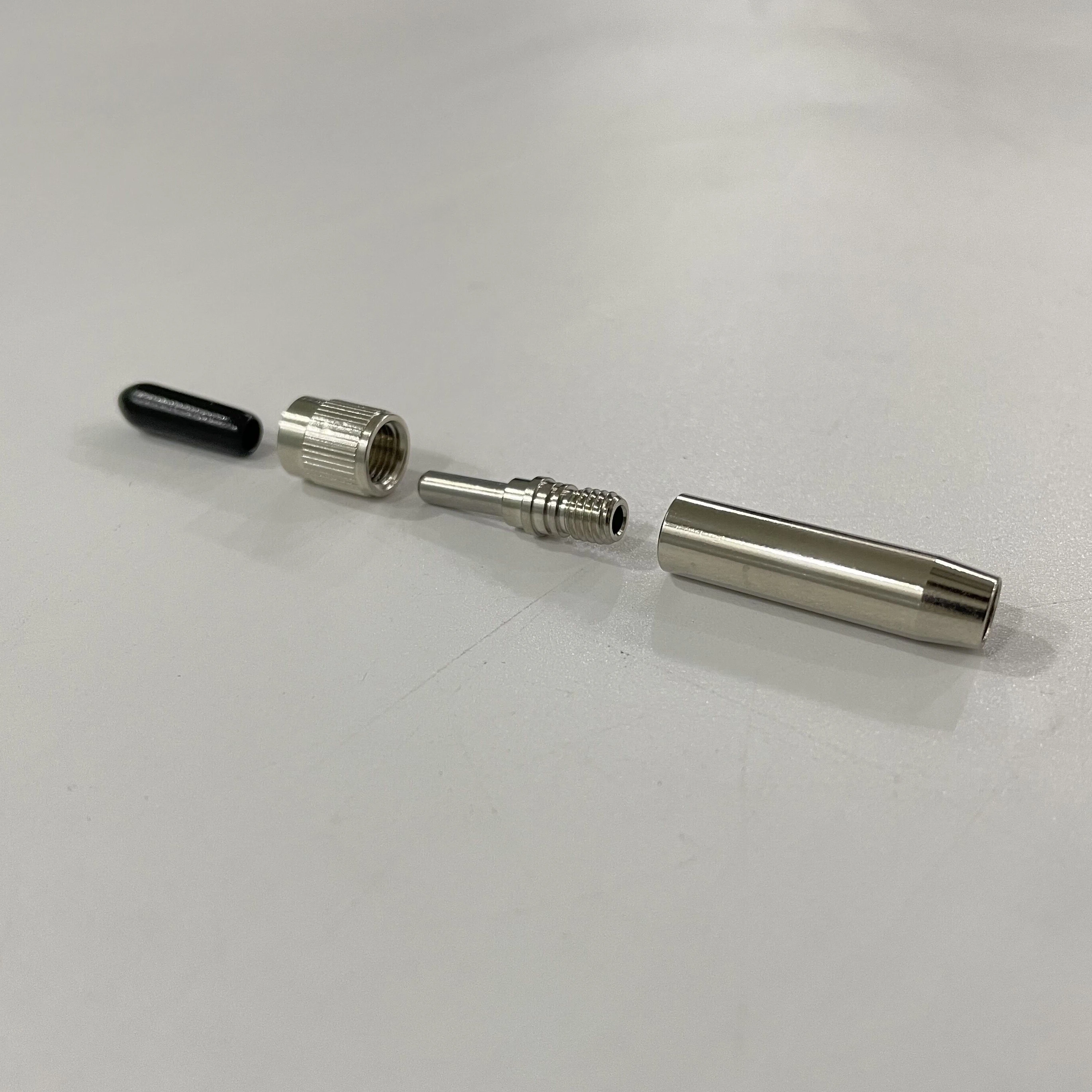

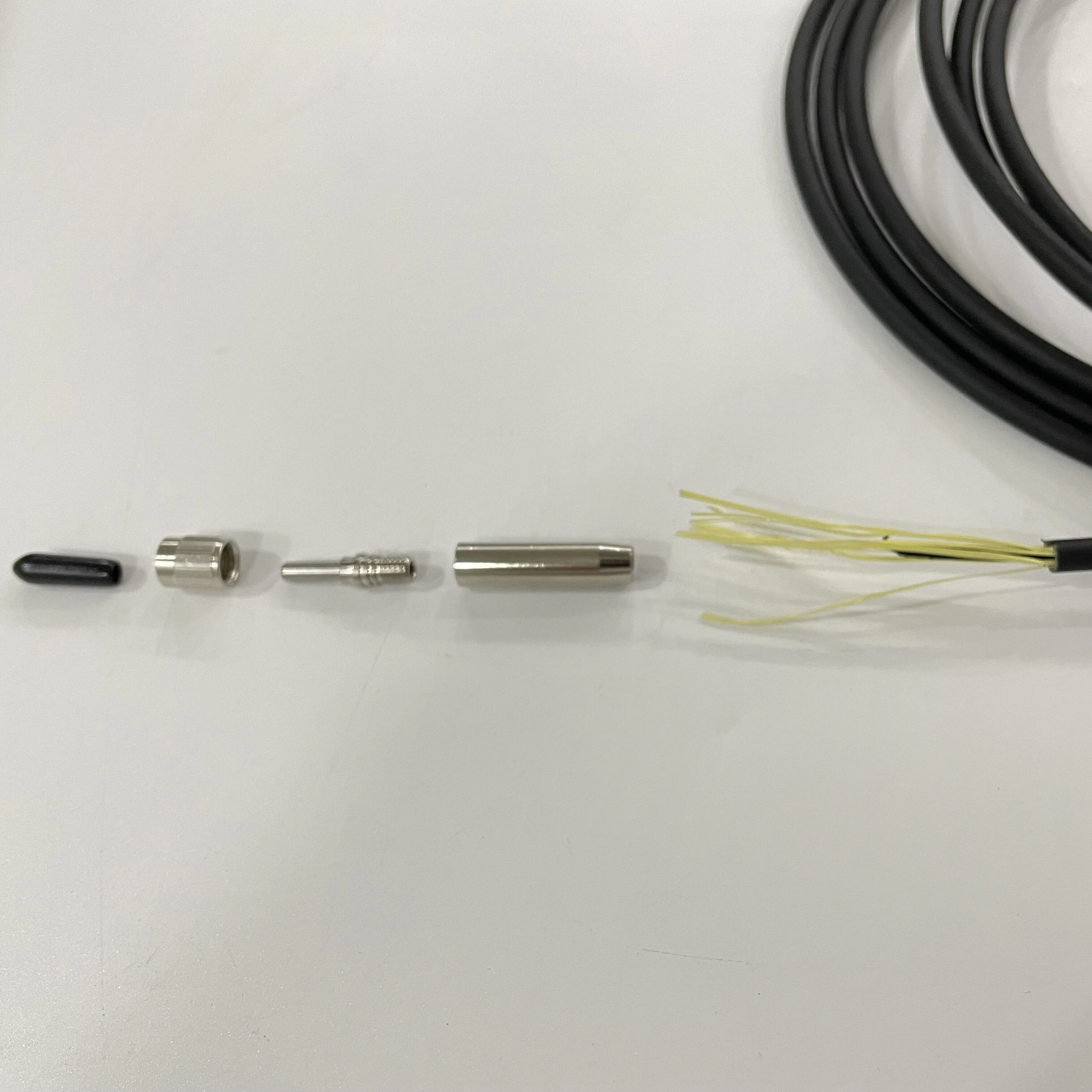

SMA905 Connectors with Stainless Steel Ferrules Ideally Suited for Large Core Fibers
- Category: >>>
- Supplier: Shenzhen Wirenet Telecom Technology Co. Ltd.
Share on (1600719917338):
Product Overview
Description
SMA905 Connectors with Stainless Steel Ferrules Ideally Suited for Large Core Fibers
Features
* SMA905 Connectors with Stainless Steel Ferrules Ideally Suited for Large Core Fibers
* Standard or Hex Nut Connectors Include Strain Relief Boot, Crimp Sleeve for Ø3 mm Tubing, and Connector Cap
* 304 Stainless Steel Connectors for Continuous Use in Extreme Environments
* Standard or Hex Nut Connectors Include Strain Relief Boot, Crimp Sleeve for Ø3 mm Tubing, and Connector Cap
* 304 Stainless Steel Connectors for Continuous Use in Extreme Environments
* Operating Temperatures up to 250 °C
* Vacuum Compatible Down to 10-10 Torr
* Additional Accessories Available for Purchase Separately
* Vacuum Compatible Down to 10-10 Torr
* Additional Accessories Available for Purchase Separately
* Stainless Steel Sleeve for High-Temperature, Vacuum-Compatible Connectors
* Additional Protective Caps
* Custom Bore Sizes Available;
* Additional Protective Caps
* Custom Bore Sizes Available;
Application
SMA905 connectors, which are most commonly used with multimode fibers, have a stainless steel ferrule design that is ideally suited for large core fibers. Thorlabs stocks a complete selection of SMA905 connector sizes to accommodate our full line of large core fibers, ranging from Ø125 µm to Ø1580 µm. We also offer stainless steel furcation tubing and sleeves that are designed to provide a high degree of fiber protection.

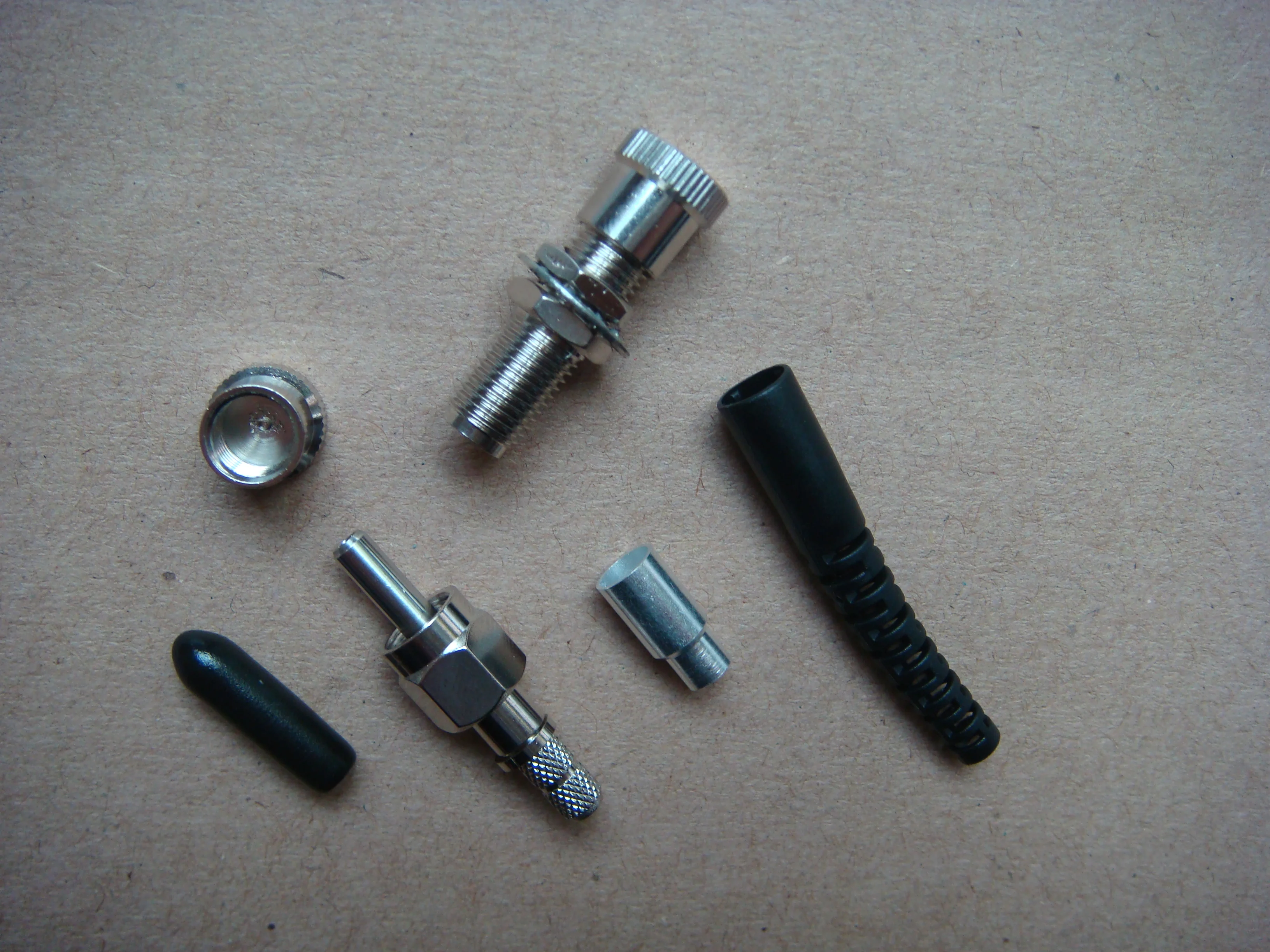

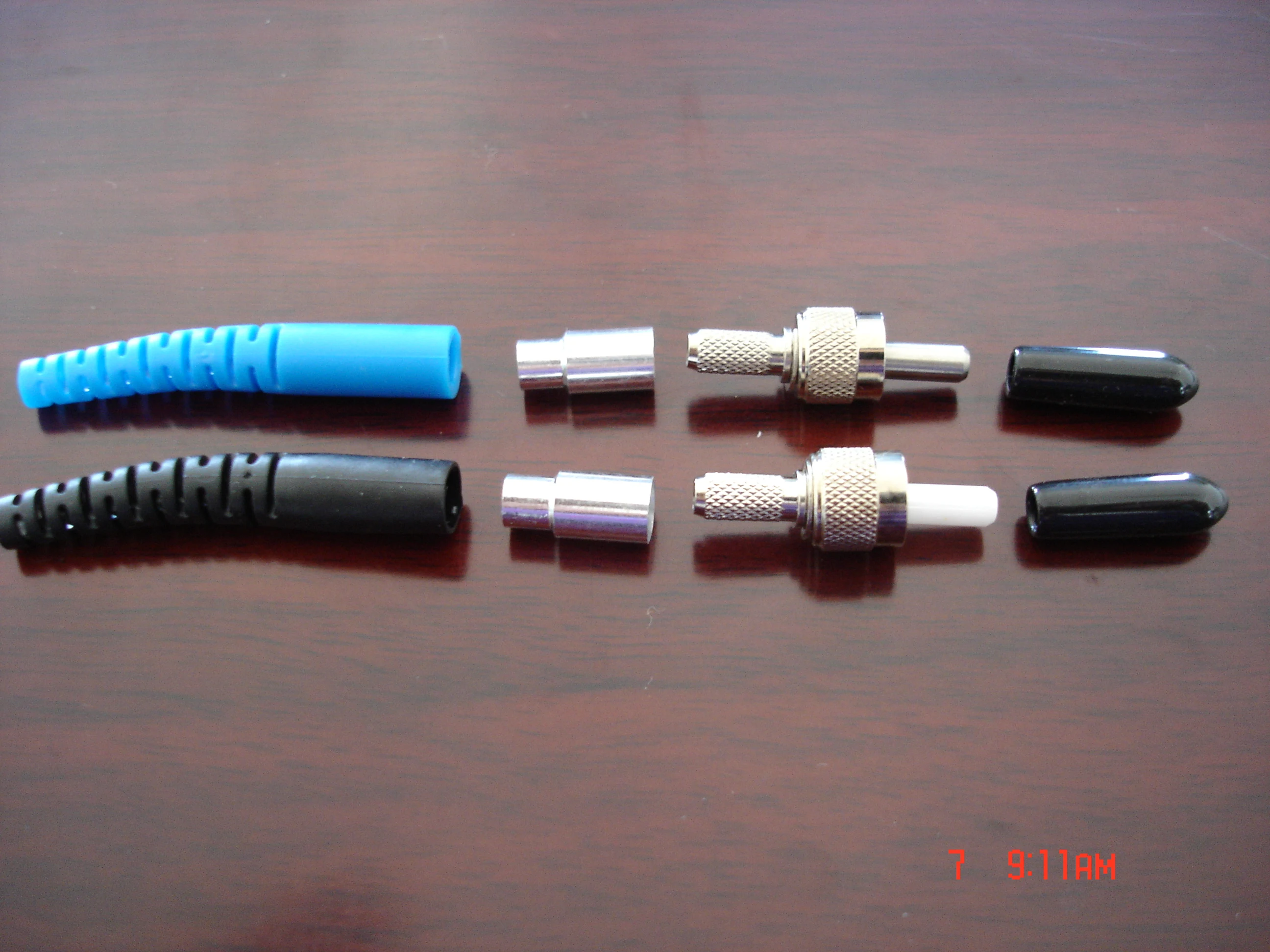

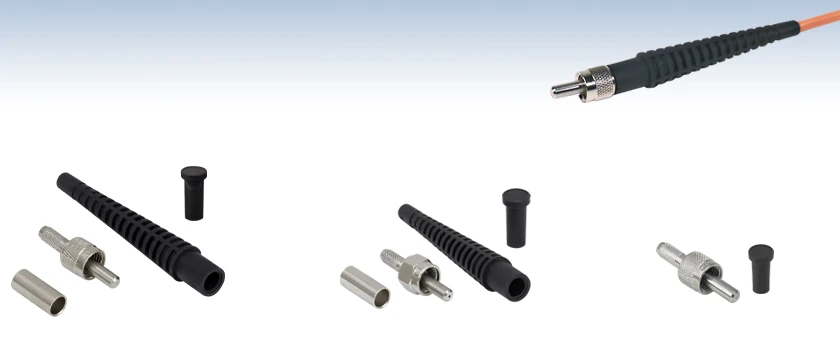

Our standard and hex nut connectors come in a package that includes a fiber connector cap, crimp sleeve, and strain relief boot compatible with Ø3 mm furcation tubing. Both types of connectors have ferrules made out of 303 stainless steel. The hex nut connectors are compatible with any 5/16" wrench and are designed to be used in harsh vibration environments. We recommend tightening the hex nut connector to a torque of approximately 8 in-lbs.
High-temperature connectors manufactured using 304 stainless steel are designed for continuous operation in high-temperature environments up to 250 °C or vacuum down to 10-10 Torr when used with the FTSB1 Stainless Steel Sleeve and 353NDPK Epoxy. These high-temperature connectors are ideal for use with polyimide-coated fiber.
Our standard and hex nut connectors come in a package that includes a fiber connector cap, crimp sleeve, and strain relief boot compatible with Ø3 mm furcation tubing. Both types of connectors have ferrules made out of 303 stainless steel. The hex nut connectors are compatible with any 5/16" wrench and are designed to be used in harsh vibration environments. We recommend tightening the hex nut connector to a torque of approximately 8 in-lbs.
High-temperature connectors manufactured using 304 stainless steel are designed for continuous operation in high-temperature environments up to 250 °C or vacuum down to 10-10 Torr when used with the FTSB1 Stainless Steel Sleeve and 353NDPK Epoxy. These high-temperature connectors are ideal for use with polyimide-coated fiber.

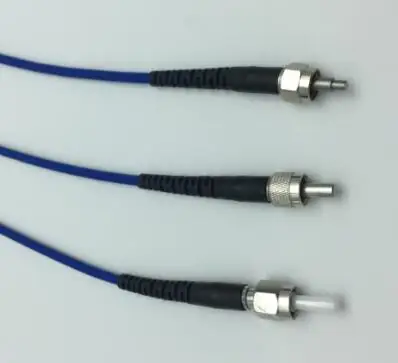

Fiber Type | Patch Cable Type | Connectors | Fiber Wavelength Range | Fiber Core Sizes |
Multimode | Standard SMA | SMA905 to SMA905 | 250 - 2400 nma | Ø10 - Ø1500 µmb |
Hybrid Connectors | FC/PC to SMA905 | 250 - 2400 nma | Ø10 - Ø600 µmb | |
Solarization-Resistant SMA | SMA905 to SMA905 | 180 - 1200 nm | Ø105 - Ø600 µm | |
AR-Coated | SMA905 to SMA905 | 250 - 1100 nma | Ø50 - Ø200 µmb | |
High-Power | SMA905 to SMA905 | 400 - 2200 nm | Ø200 - Ø910 µmb | |
Armored | SMA905 to SMA905 | 400 - 2400 nm | Ø50 µm, Ø105 µm | |
Articulated (Rotating) | SMA905 to SMA905 or FC/PC to FC/PC | 400 - 2200 nm | Ø200 µm, Ø400 µm | |
Lightweight (Optogenetics) | SMA905 to Ferrule | 250 - 2400 nma | Ø150 - Ø400 µmb | |
Standard Bundle | SMA905 to SMA905 | 250 - 2200 nma | N/A | |
Bifurcated Bundle | SMA905 to SMA905 | 250 - 2400 nma | N/A | |
Single Mode | Single Mode | Hybrid Connectors | FC/PC to FC/APC or FC/PC to SMA905 | 320 - 2300 nma |
