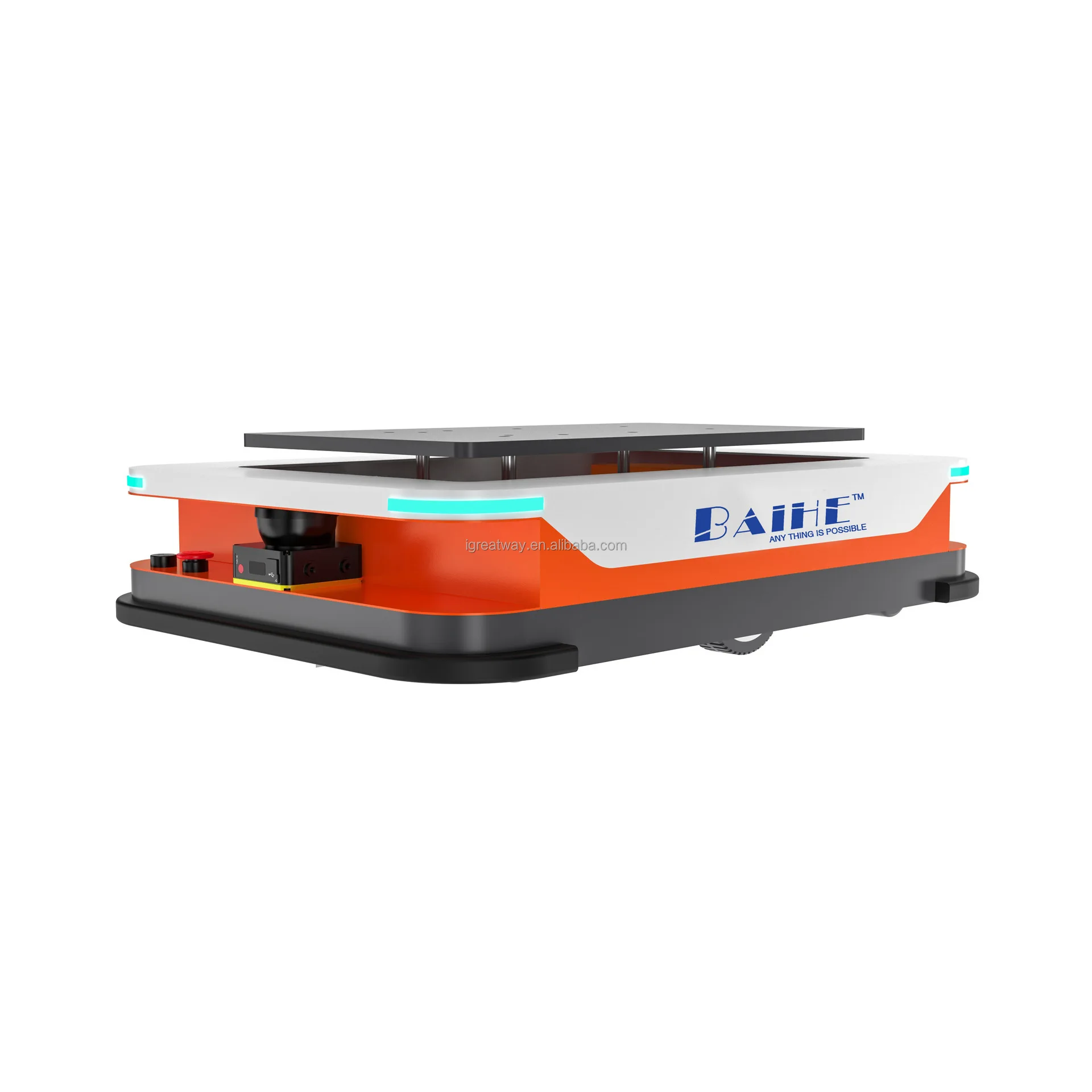

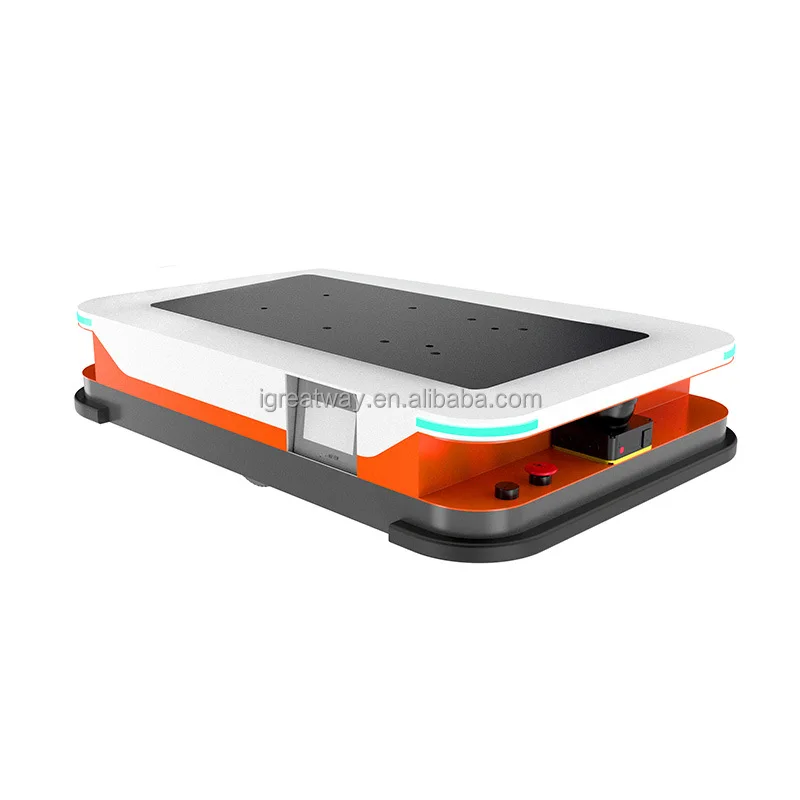

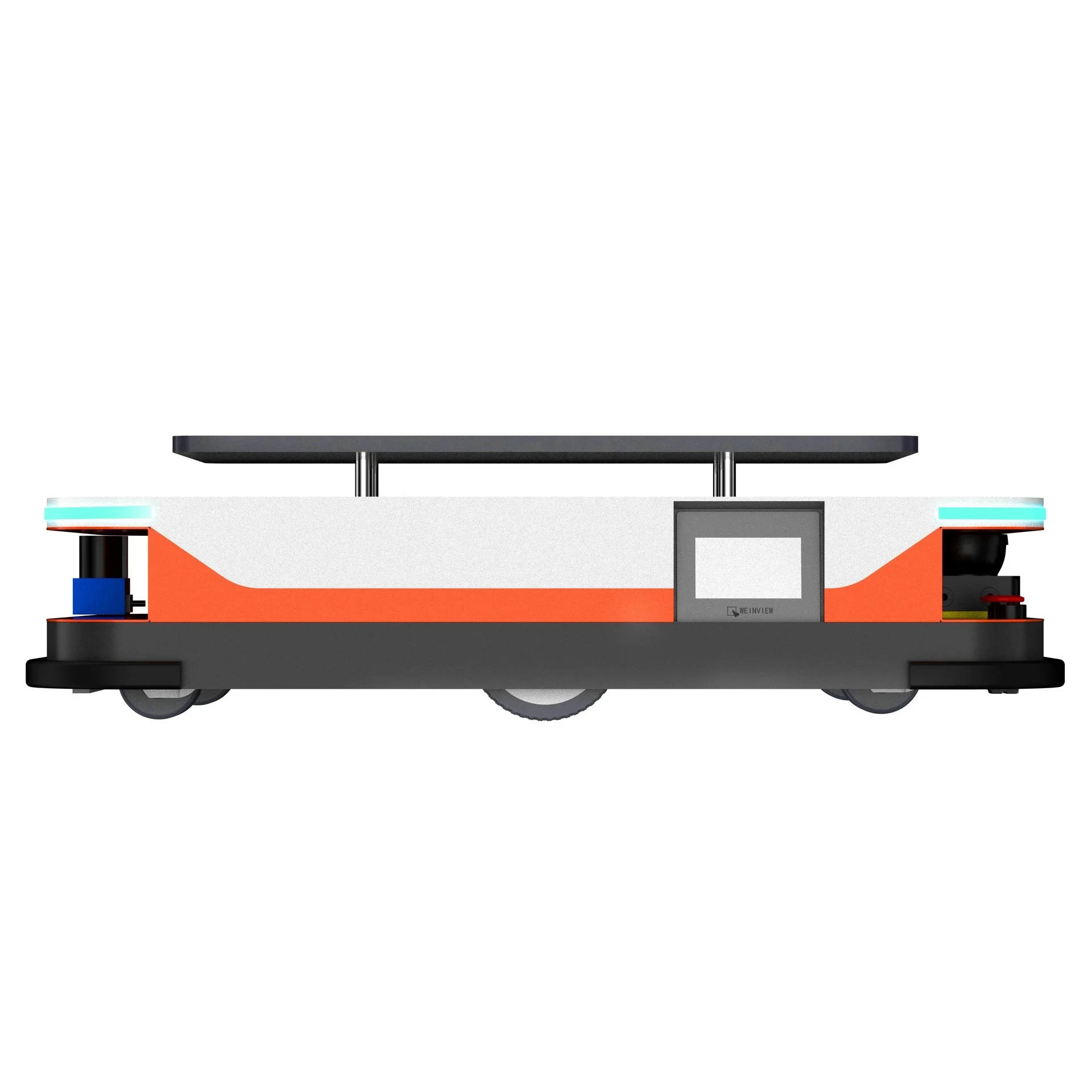

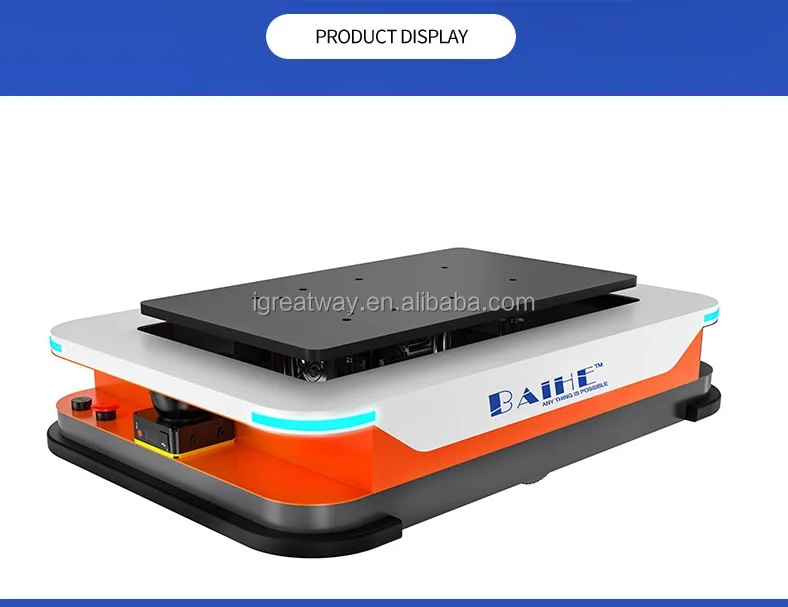

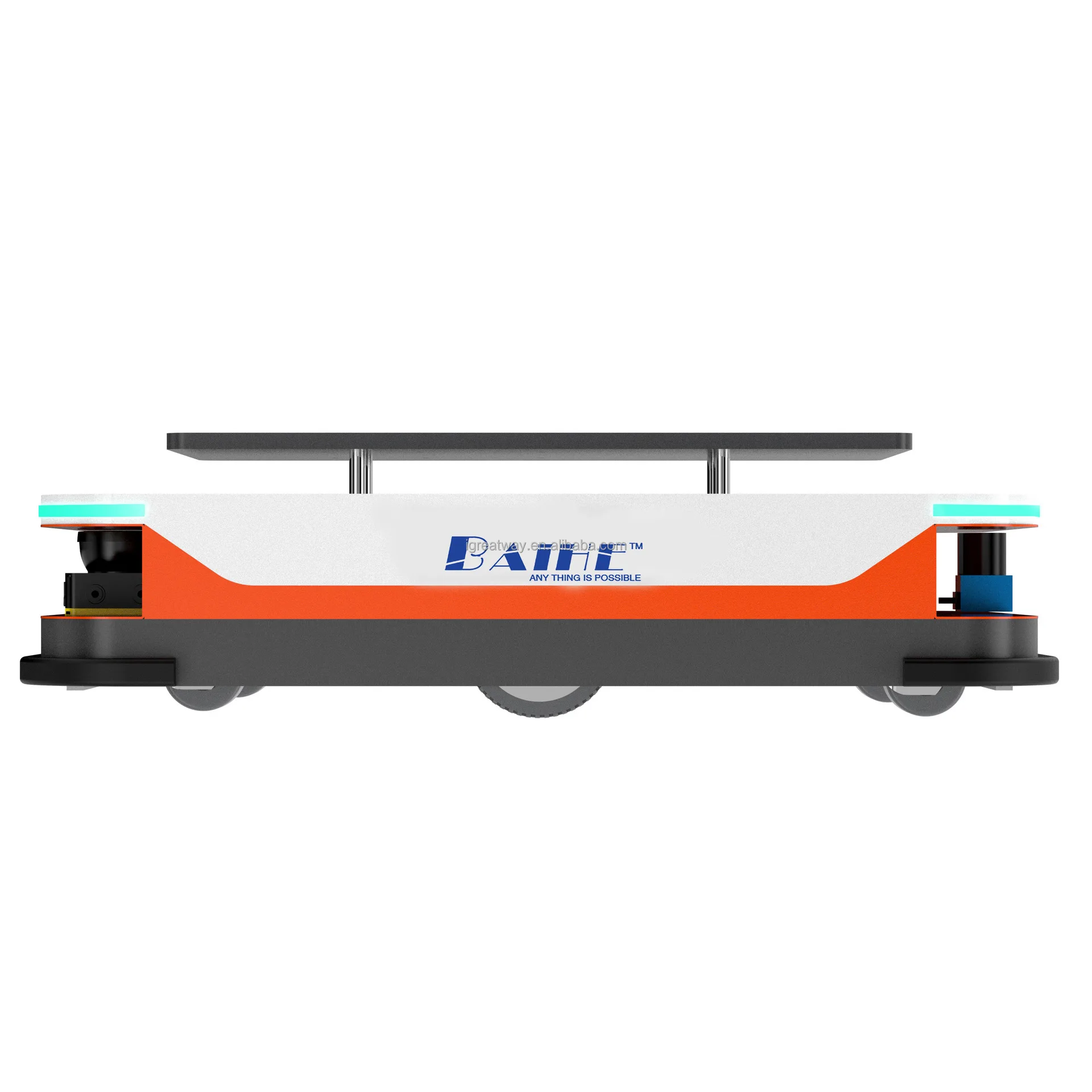

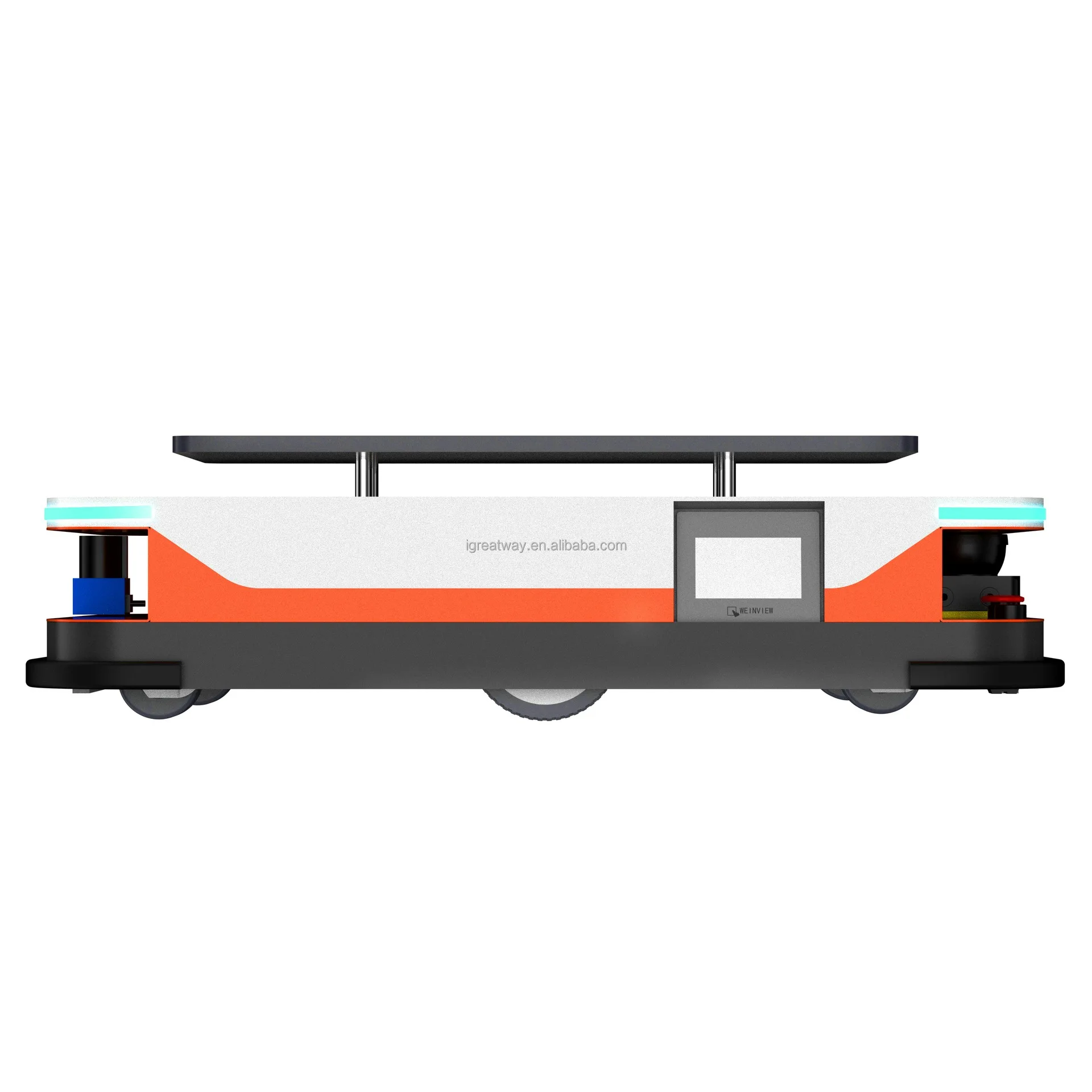

laser navigation load 300kg ultra thin AGV carrier robot
- Category: >>>
- Supplier: Qingdao Greatway Technology Co. Ltd.
Share on (1600719921024):
Product Overview
Description
This AGV laser navigation lifting AGV, with a load of 300KG, uses SLA M Sun Fa to complete the map building and the positioning machine navigation function in the process of the robot using the data obtained from the laser radar sensor. It is applicable to all kinds of scenes. It can also shuttle freely in narrow channels. It can realize 360 ° rotation in situ. The body can be installed with laser obstacle avoidance, collision avoidance and other safety devices.
Parameter specification:
Product parame ters: | BH300D-BF | BH300D-JS |
Navigation mode | Laser SLAM | Laser SLAM |
Maximum load lease | 300Kg Customizable | 300Kg Customizable |
long × wide × high | 906×516×202mm | 906×516×202mm |
Body weight (including battery) | 150kg |
150kg |
Lifting Height | 0 | 5~10cm |
Width of driving passage | 1000mm | 1000mm |
Width of idling passage | 1000mm | 1000mm |
positioning accuracy | ±10mm | ±10mm |
running speed | 10m/min 45mfmin | 10mJmin 45m/min |
Minimum turning radius | 500mm | 500mm |
Continuation time | 6-8h | 6~8h |
Charging mode | Auto/Manual | Auto/Manual |
Driving mode | Two way driving | Two way driving |
Laser configuration | Two-way obstacle avoidance | Two-way obstacle avoidance |
Drive mode | Servo motor double wheel differential drive | Servo motor double wheel differential drive |
Battery specifications | 48V/30A | 48V/30A |
Charging duration | 4h | 4h |
Battery life | >600 Cycles | >600 Cycles |
Control mode | singlechip | singlechip |
Safety performance | Two way laser obstacle avoidance/mechanical anti-collision/audible and visual alarm | Two way laser obstacle avoidance/mechanical anti-collision/audible and visual alarm |
Operating environment | indoor | indoor |
working temperature | 0-40℃ | 0-40℃ |
Working slope |
≤3* | 3* |
