Automatic Servo Motor M16 Electric Tapping Machine CNC New Product 2020 32 Provided Restaurant Bench Head 1 Years 1 312 R.p.m
- Category: >>>
- Supplier: Dezhou Borui Precision Co. ltd
Share on (1600719933293):
Product Overview
Description
Product Description

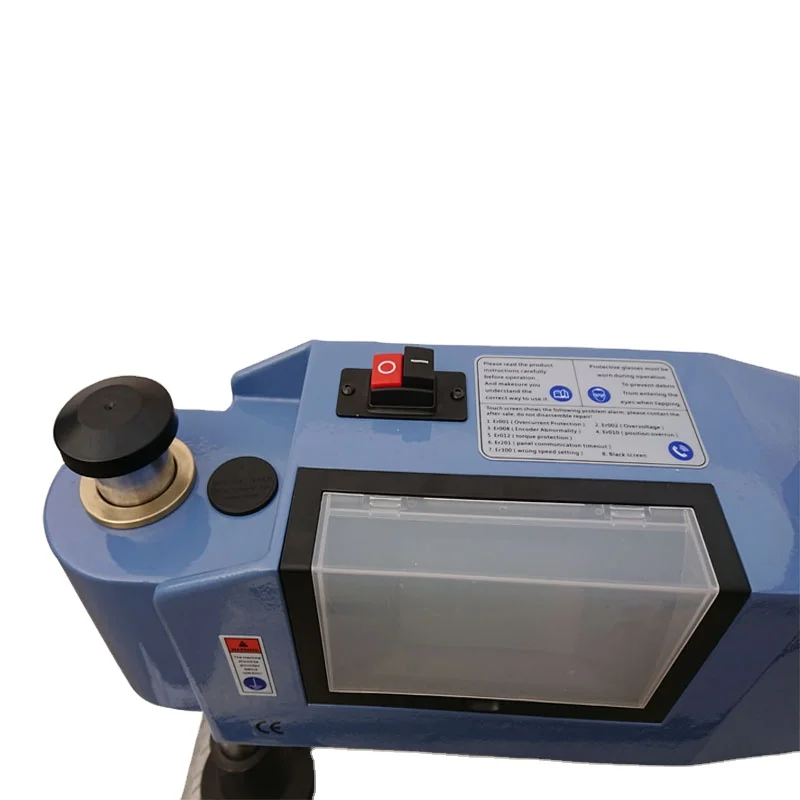

Automatic Universal Servo Motor Electric Tapping Machine With Touch Screen
1.Adopts servo drive control,with only the torque protection
2.HD Touch Screen ,simple and flexible to operate.
3.Three working modes (Manual mode, Automatic mode, Linkage mode) are available for your choice.
4.Automatic mode can control tapping depth, The depth is automatically controlled by the controller.
5.The arm can be rotate 360 degrees, move up and down, back and forth easily.
6.Repetitive positioning rapid, tapping speed, high production efficiency.
7. Clamshell installation dustproof and anti-collision.
8. Each joint is fitted with a copper sleeve and bearing for greater.
2.HD Touch Screen ,simple and flexible to operate.
3.Three working modes (Manual mode, Automatic mode, Linkage mode) are available for your choice.
4.Automatic mode can control tapping depth, The depth is automatically controlled by the controller.
5.The arm can be rotate 360 degrees, move up and down, back and forth easily.
6.Repetitive positioning rapid, tapping speed, high production efficiency.
7. Clamshell installation dustproof and anti-collision.
8. Each joint is fitted with a copper sleeve and bearing for greater.
Model | M3-M12 | M3-M16 | M6-M24 | M6-M36 | M12-M48 | ||||
Voltage | 220v/50HZ | ||||||||
Power | 600w | 1200w | 1200w | 1200W | 1200W | ||||
Tapping range | M3-M16 | M6-M30 | M6-M36 | M6-M36 | M12-M48 | ||||
Quick Change tapping Chuck | 8PCS | 9PSC | 10PCS | 14PCS | 16PCS | ||||
Work way | vertical/universal | ||||||||
Radius | 1100mm | 1100mm | 1250mm | 1250mm | 1250mm | ||||
Max speed(r/min) | 320r/min | 300r/min | 200r/min | 150r/min | 250r/min | ||||
Weight | 34kg | 34kg | 54kg | 54kg | |||||
Control model | touch screen/Button | ||||||||
Details

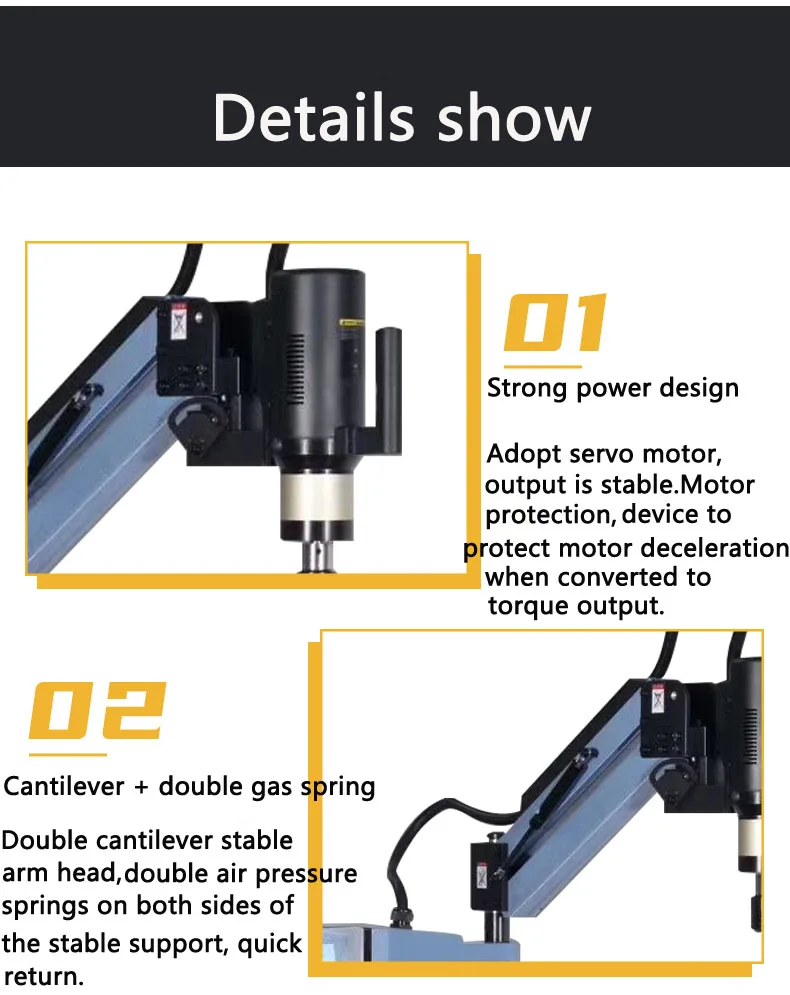

01 Strong Servo power design
the motor protection device protects the motor reduce to convert the motor into torque output,the tapping is strong and powerful.
the head can rotate 360° to realize vertical and side tapping.
the head can rotate 360° to realize vertical and side tapping.

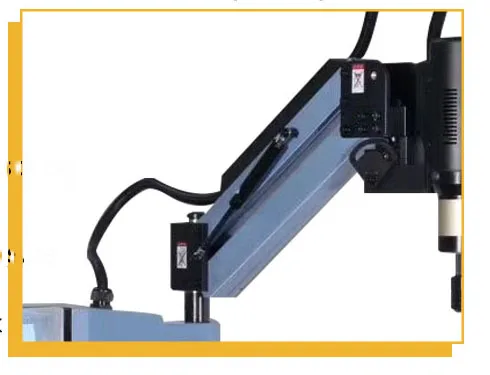

02 Cantilever+Double Air Spring
1.The machine head is supported by Double Cantilever ,so the machine head is more stable
2.,Flexible central axis rotation naturally

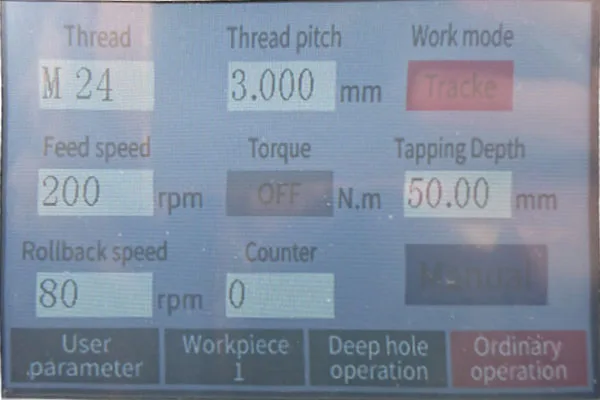

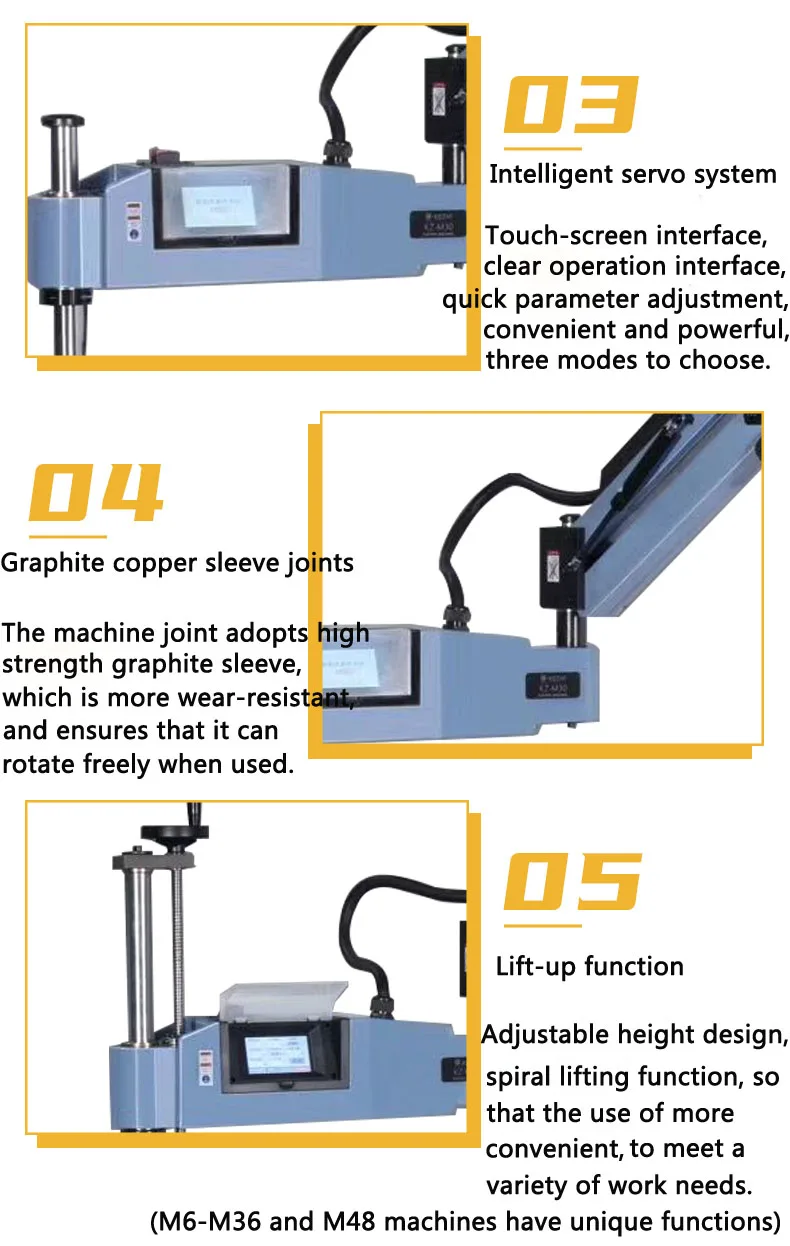

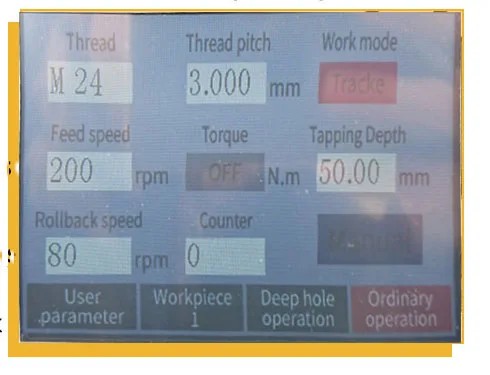

Smart Touch Screen interface,clear operation interface,quick parameter adjustment，convenient and powerful，three models to
choose(deep hole operation,Ordinary operation,
automatic operation).
Customized control's panel language,such as English,
Russian,Korean,Spanish
Russian,Korean,Spanish
suitable for M24/M36/M48 machine.

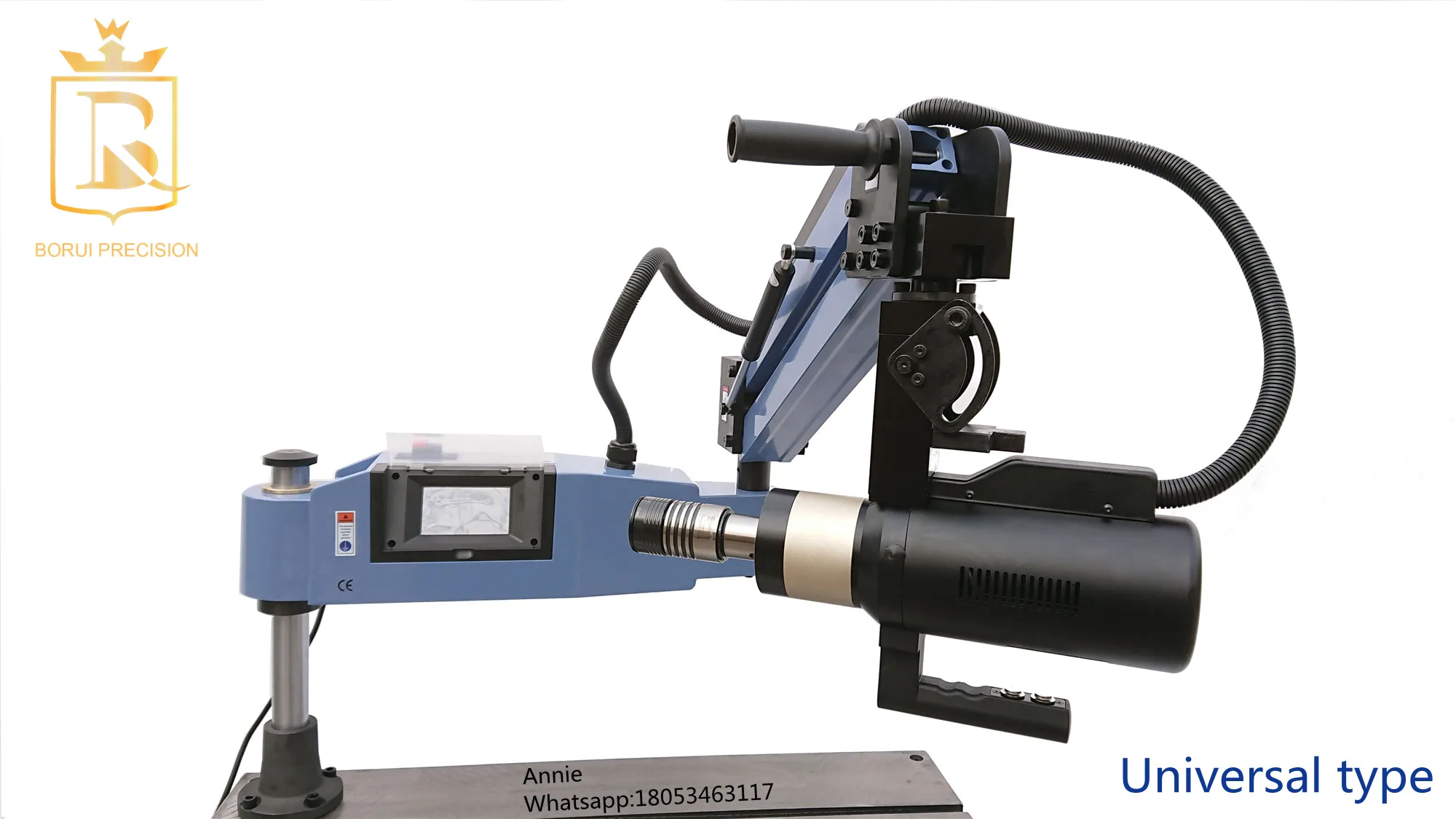

Universal Tapping Machine
The machine head is rotated from 0° to 360°，it could tap vertical 90°，horizontal 45°
Vertical Tapping Machine
The machine head can't be rotary,fixed angle
it is only tapped one surface.
it is only tapped one surface.
Clients Feedback
Application industry
The New type tapping machine can be easy to tap in lead, copper, steel, cast iron, pig iron, 45# steel, die steel, other metal materials or non-metal material.
Applicable to all machinery manufacturing industry, machine tools, mold machinery, printing machinery, packaging machinery manufacturing plants, construction machinery, rolling stock, aircraft engines, plastic machinery and general machinery and other industries.
Applicable to all machinery manufacturing industry, machine tools, mold machinery, printing machinery, packaging machinery manufacturing plants, construction machinery, rolling stock, aircraft engines, plastic machinery and general machinery and other industries.
Packing
Product Name | M6-M36 electric tapping machine |
MOQ | 1 Piece |
Inside cartons | Plastic bag, Air cushion film. |
Outside package | Wooden cases+Pallets, Stretch film+Packing belt. |
Package size | 810*770*220 |
Weight | 53kg |
Deliver Time | Within 10 set -7 working days |
