Spo2 Sensor Cable for Pulse Oximeter Compatible with NELCOR Oximaxs DB9 Type of Monitor Probe Reusable Blood Oxygen Connector
- Category: >>>
- Supplier: Shenzhen Life Discover Medical System Co. Limited
Share on (1600719970193):
Product Overview
Description
PRODUCTS DESCRIPTION
Spo2 Sensor Cable for Pulse Oximeter Monitor, Compatible with NELCOR with Oximaxs.DB9 Type of Monitor Spo2 Probe Sensor, Reusable Adult and Child Blood Oxygen Connector
Product Name | Spo2 Sensor Cable for Pulse Oximeter Monitor, Compatible with NELCOR with Oximaxs.DB9 Type of Monitor Spo2 Probe Sensor, Reusable Adult and Child Blood Oxygen Connector |
keyword | Blood Oxygen Probe Sensor |
Length | 1.1 Meters |
Material | TPU Shell |
Brand | EMS Life |

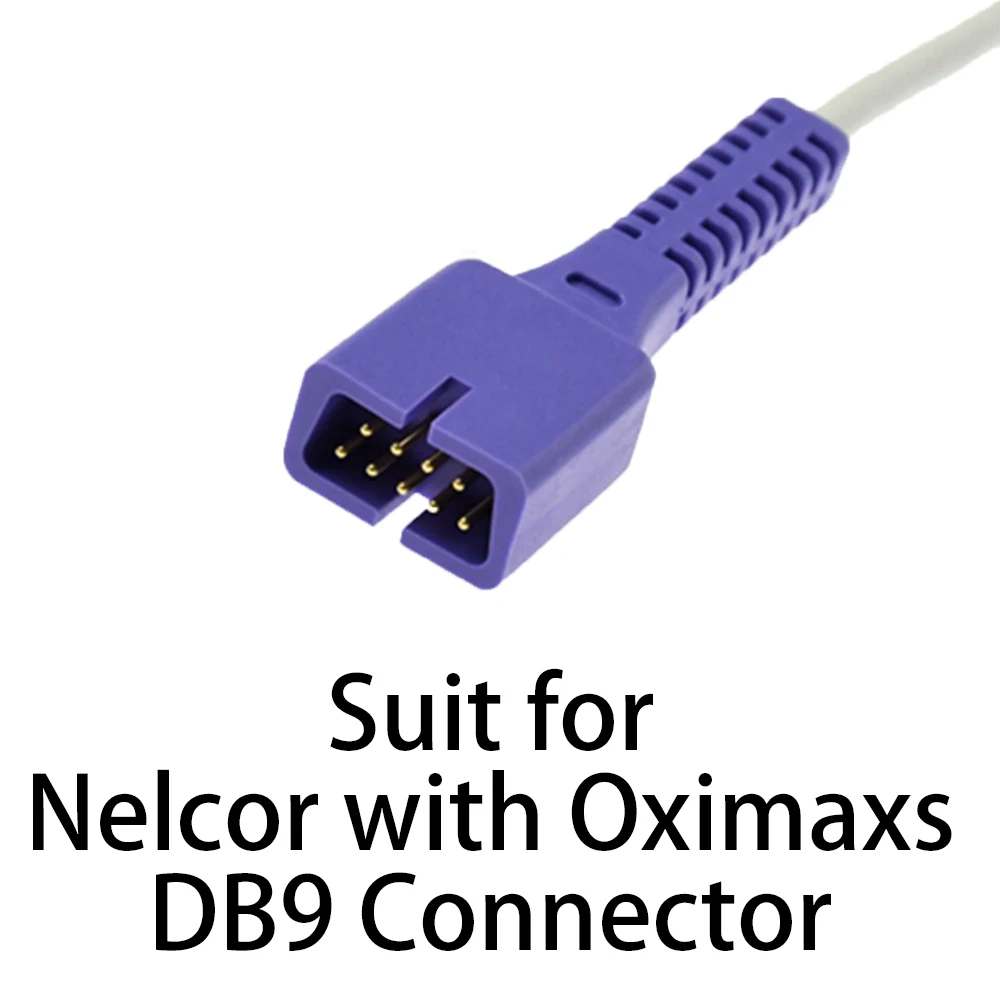

NELCOR with Oximaxs.DB9

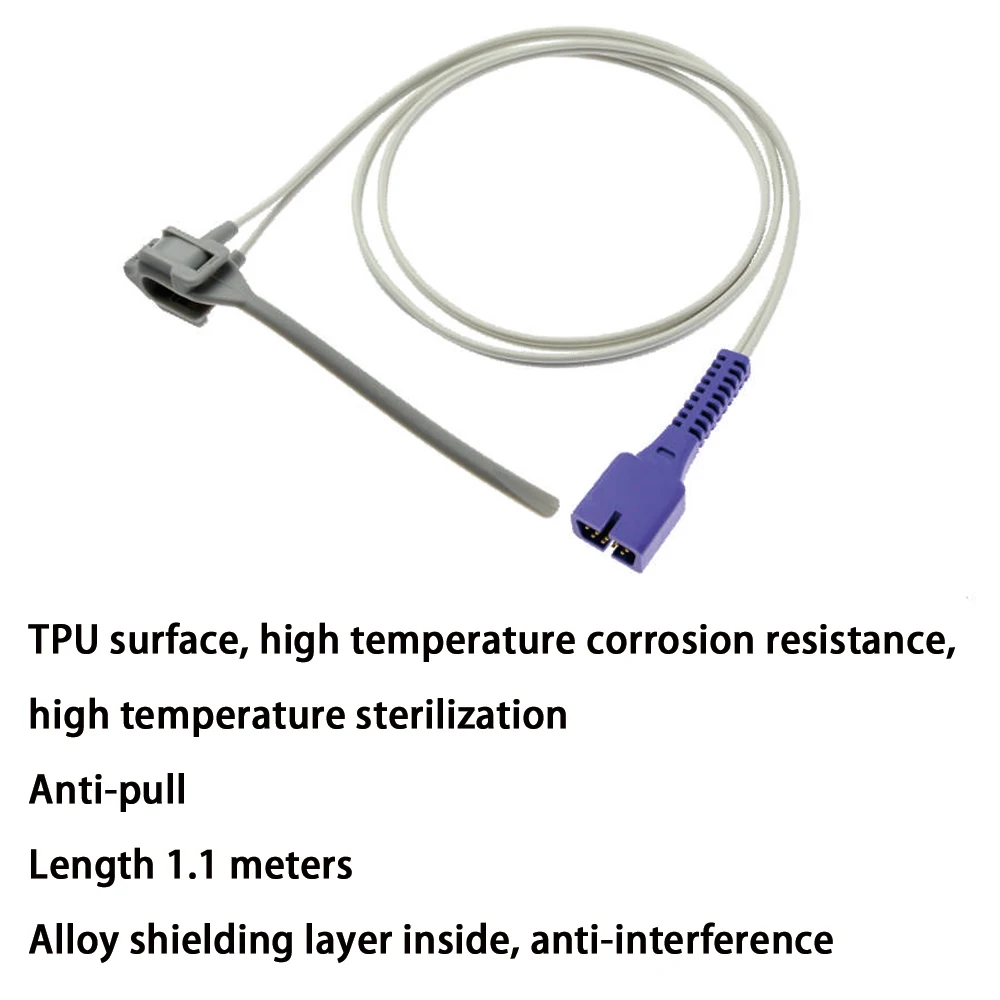

1. TPU polymer wire skin, high temperature tolerance, corrosion-resistant, convenient for high temperature and alcohol
disinfection. 2. Tight compaction of the outer alloy shield to prevent the physiological signals From disturbing.
3. Quality LED chip to ensure the long-time use and accuraccy.
Length:1.1 Meters
"【Reminder】
when you select the spo2 sensor, please check carefully the below point:
1) if the connector is really compatible to your paitent monitor,such as 5pin or 6pin.
2) if there's different spo2 moudle for one same type patient monitor, such as the popular spo2 moudle like nellcor, massimo, and so on.
3)if the sensor is used for the right people, such as for adult or neonate.
4）when you select the short cable spo2 sensor, please check if you have the adapter cable in hand, if you have not, you can select it in our store. They need connecting together to work.
5) if you have special purpose, please let me know, we will try to offer you the professional servies and instruction.
【Feature】
1. TPU polymer wire skin, high temperature tolerance, corrosion-resistant, convenient for high temperature and alcohol disinfection.

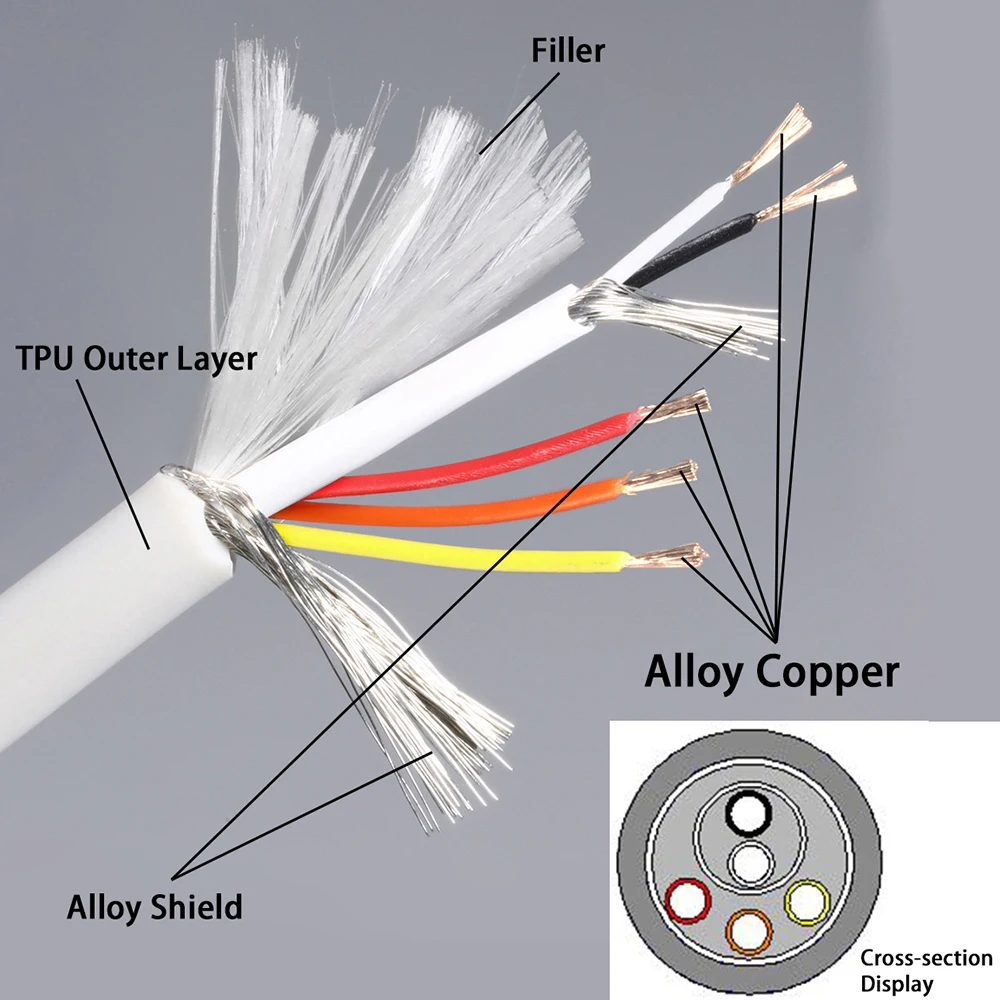

2. Tight compaction of the outer alloy shield to prevent the physiological signals From disturbing.
3. Quality LED chip to ensure the long-time use and accuraccy.
4. Compliance with: ISO EN9919-2005,ISO10993-1,5,10:2003E
【Key technical parameter】
Range of pulse rate(30～245)bpm:±3bpm.
90%-100%SpO2:±2digits;
Range of wavelength for LED of red light: 660nm(±3nm).
Range of wavelength for LED of infrared light:905nm(±3nm).
【Working environment】
Operation temperature: +5℃～+40℃
Storage/transportation temperature: -20℃-+70℃
Humidity: 10%～80%(no condensation)
Atmospheric pressure: 86kPa～106kPa
【More selection】

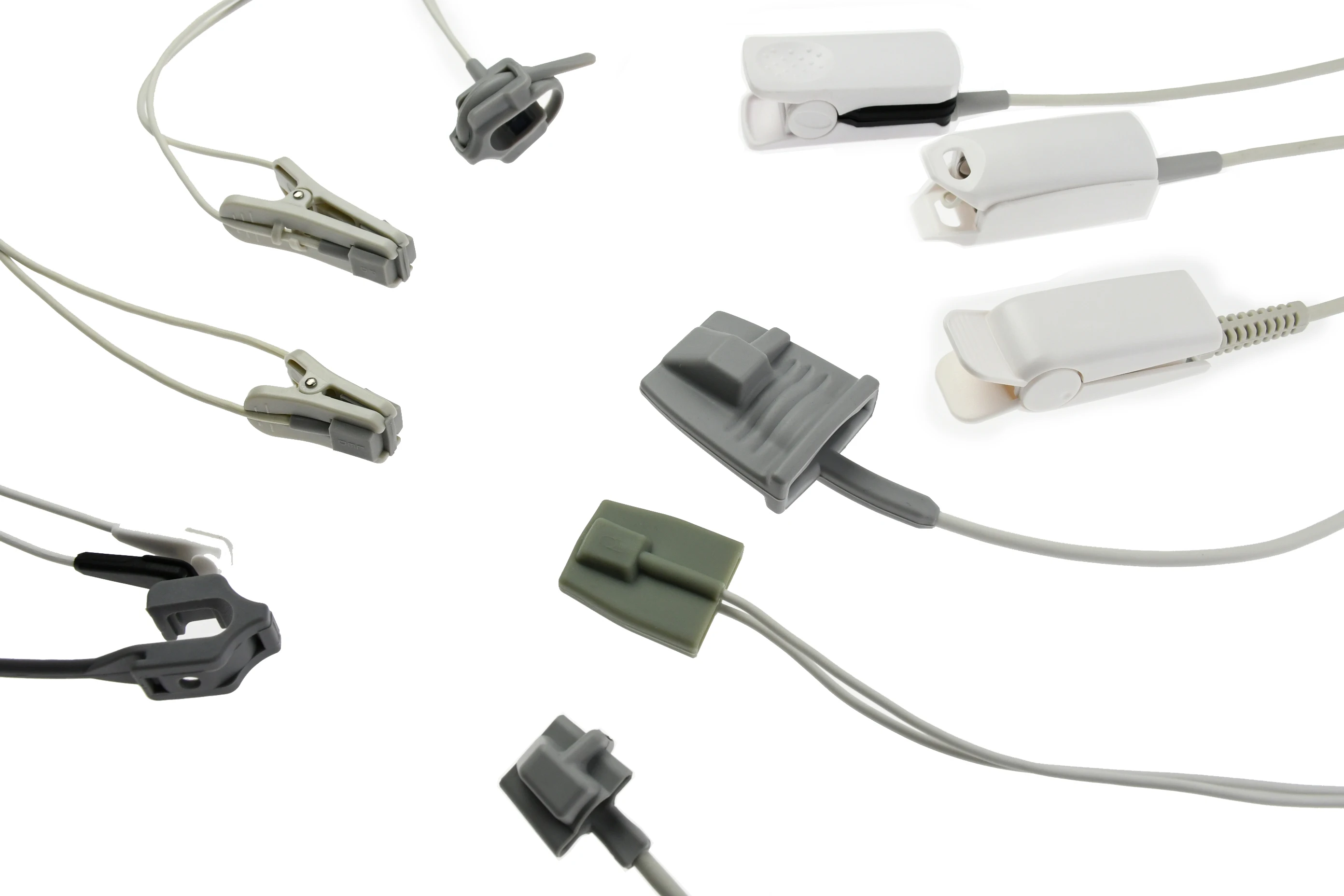

For different patient and different body part:
High quality products are trustworthy,
Factory direct selling products are more affordable,
Digital signals are more accurate,
There are better services and more products waiting for your choice！
"【Reminder】
when you select the spo2 sensor, please check carefully the below point:
1) if the connector is really compatible to your paitent monitor,such as 5pin or 6pin.
2) if there's different spo2 moudle for one same type patient monitor, such as the popular spo2 moudle like nellcor, massimo, and so on.
3)if the sensor is used for the right people, such as for adult or neonate.
4）when you select the short cable spo2 sensor, please check if you have the adapter cable in hand, if you have not, you can select it in our store. They need connecting together to work.
5) if you have special purpose, please let me know, we will try to offer you the professional servies and instruction.
【Feature】
1. TPU polymer wire skin, high temperature tolerance, corrosion-resistant, convenient for high temperature and alcohol disinfection.
2. Tight compaction of the outer alloy shield to prevent the physiological signals From disturbing.
3. Quality LED chip to ensure the long-time use and accuraccy.
4. Compliance with: ISO EN9919-2005,ISO10993-1,5,10:2003E
【Key technical parameter】
Range of pulse rate(30～245)bpm:±3bpm.
90%-100%SpO2:±2digits;
Range of wavelength for LED of red light: 660nm(±3nm).
Range of wavelength for LED of infrared light:905nm(±3nm).
【Working environment】
Operation temperature: +5℃～+40℃
Storage/transportation temperature: -20℃-+70℃
Humidity: 10%～80%(no condensation)
Atmospheric pressure: 86kPa～106kPa
【More selection】
For different patient and different body part:
High quality products are trustworthy,
Factory direct selling products are more affordable,
Digital signals are more accurate,
There are better services and more products waiting for your choice！
