Product Overview

Description





Products Description




The TP series single output linear DC power supply is available with 300W and 600W output low noise power supply. There are coarse and fine rotary knobs for variable voltage and current output.

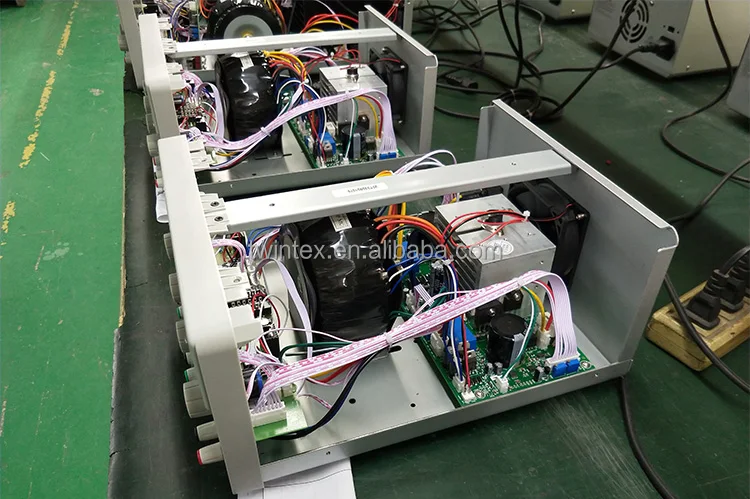

 The bench type DC power supply linear mode uses toroidal transformer, giving low noise DC voltage and current source. DC adjustable power supply 30V 10A, 30V 20A, 60V 5A and 60V 10A are available.

Features

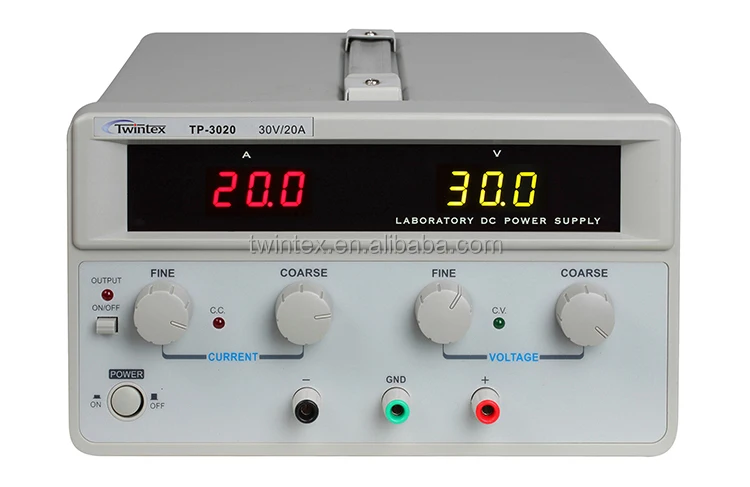

>>> TP-3020 rated output 0-30V 20A
>>> TP-6010 rated output 0-60V 10A
>>> High quality toroidal transformer
>>> High efficiency, light and compact design
>>> High power density
>>> Constant voltage and constant current operations
>>> Auto CV and CC switch
>>> Output ON/OFF control
>>> Preset function, setting of voltage and current with output open circuit
>>> Over load and reverse polarity protections
>>> Dual-color two digital panel meters


Specifications
Model

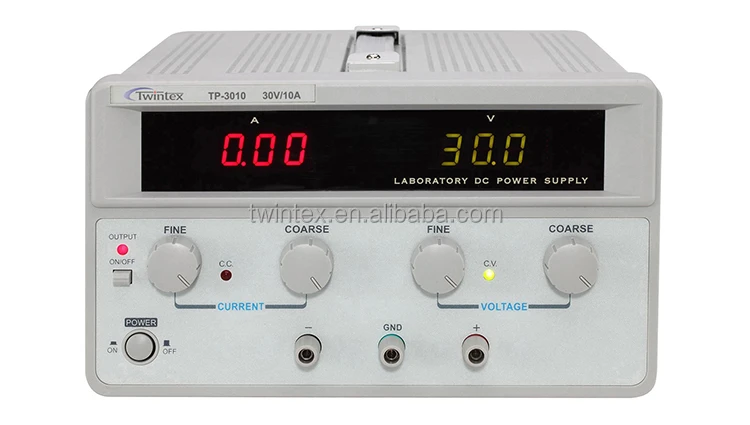

TP-3010
TP-6005
TP-3020
TP-6010
Constant voltage operation
Line regulation
≤0.01%+5mV
≤0.01%+5mV
≤0.01%+10mV
≤0.01%+5mV
Load regulation
≤0.02%+5mV
≤0.02%+5mV
≤0.02%+10mV
≤0.02%+5mV
Ripple & Noise (5Hz~1MHz)
≤3mVrms
Constant current operation
Line regulation
≤0.2%+3mA
Load regulation
≤0.2%+3mA (I≤3A), ≤0.2%+5mA (I>3A), ≤0.2%+15mA (I≥10A)
Ripple & Noise (5Hz~1MHz)
≤3mArms (I≤3A), ≤10mArms (I>3A)
Display
Output accuracy
±(1% reading+2 digits)
Preset accuracy
±(1% reading+8 digits)
General
Operating environment
0℃~40℃, ≤80%RH
Storage environment
-10℃~70℃, ≤70%RH
Power source
AC110V/220V±10%, 50/60Hz
Accessories
Power cord x1, Operation manual x1


Selection Guide
Model
TP-3010
TP-6005
TP-3020
TP-6010
Output voltage
≤0.01%+5mV
≤0.01%+5mV
≤0.01%+10mV
≤0.01%+5mV
Output current
≤0.02%+5mV
≤0.02%+5mV
≤0.02%+10mV
≤0.02%+5mV
Voltmeter
3 digits LED
Ammeter
3 digits LED
Resolution
100mV/10mA
Fixed output
Preset voltage & current
Output ON/OFF switch
Dimension (WxHxD)
255x155x370mm
255x155x330mm
Weight
10kg
10kg
14kg
14kg
