2023s Best selling 7T FOTON AUMARK LHD dump tipper truck for sale China manufactured new wastes collection dump truck price
- Category: >>>
- Supplier: Hubei Shengda Automobile Co. Ltd.
Share on (1600720174731):
Product Overview
Description
specification

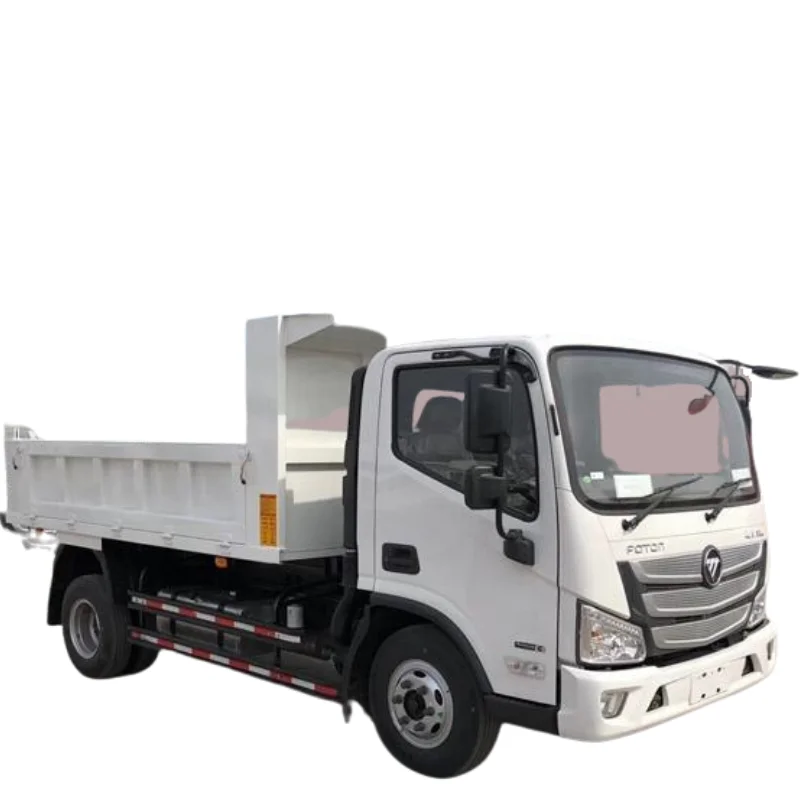

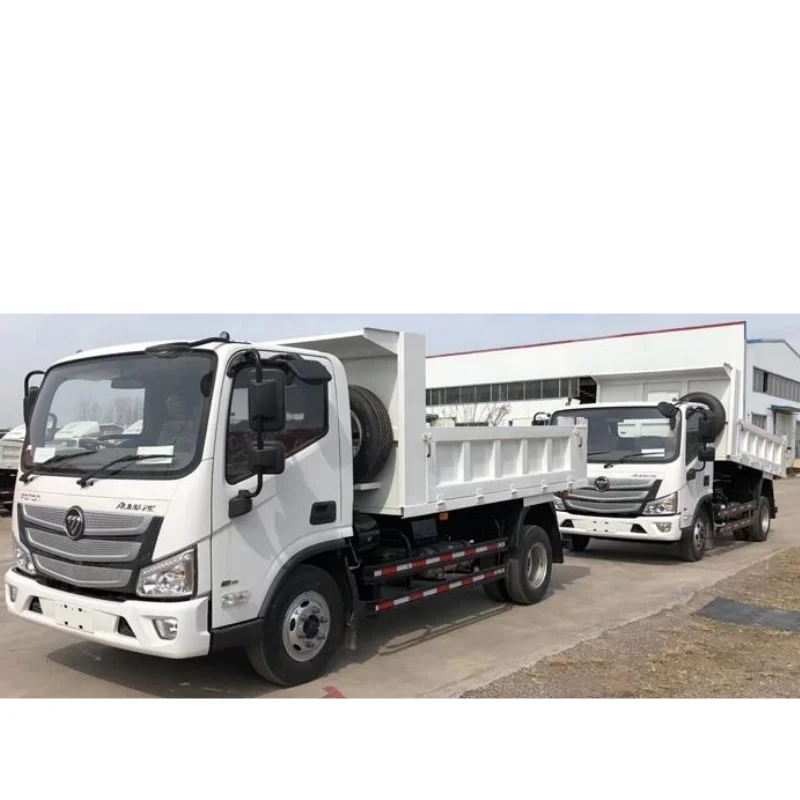

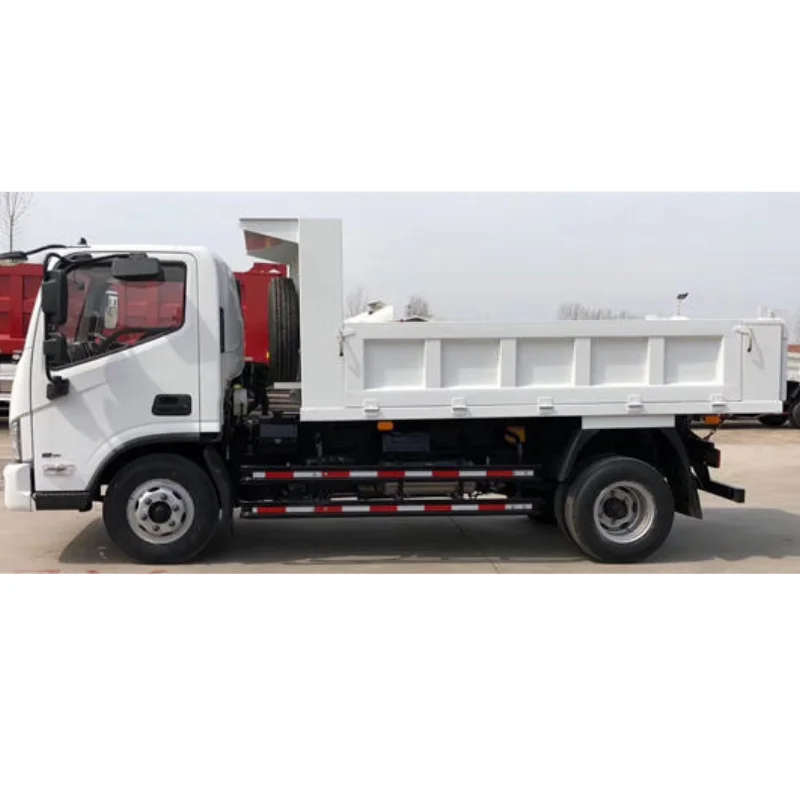

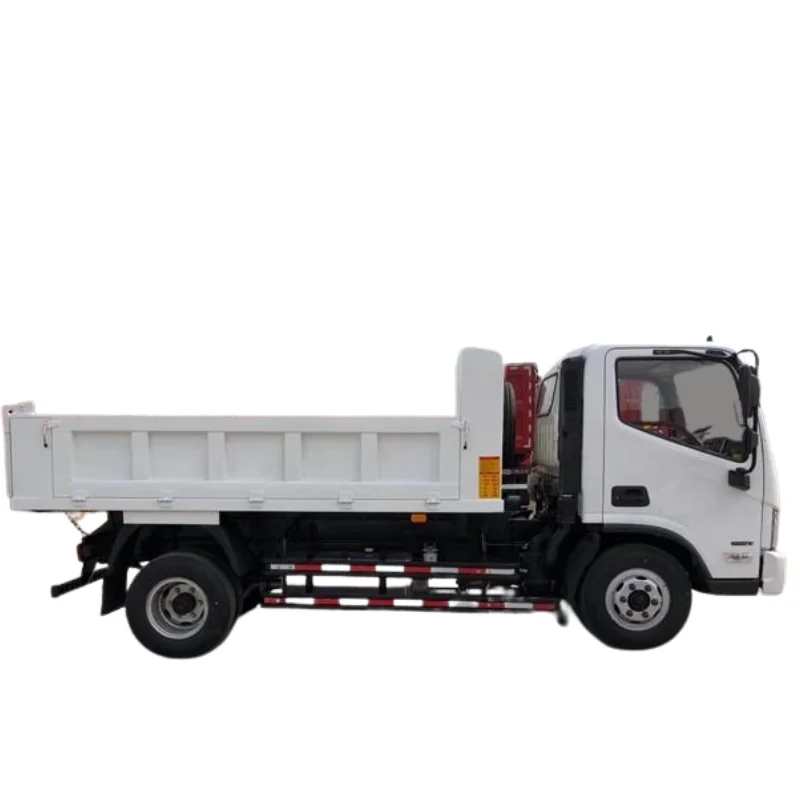

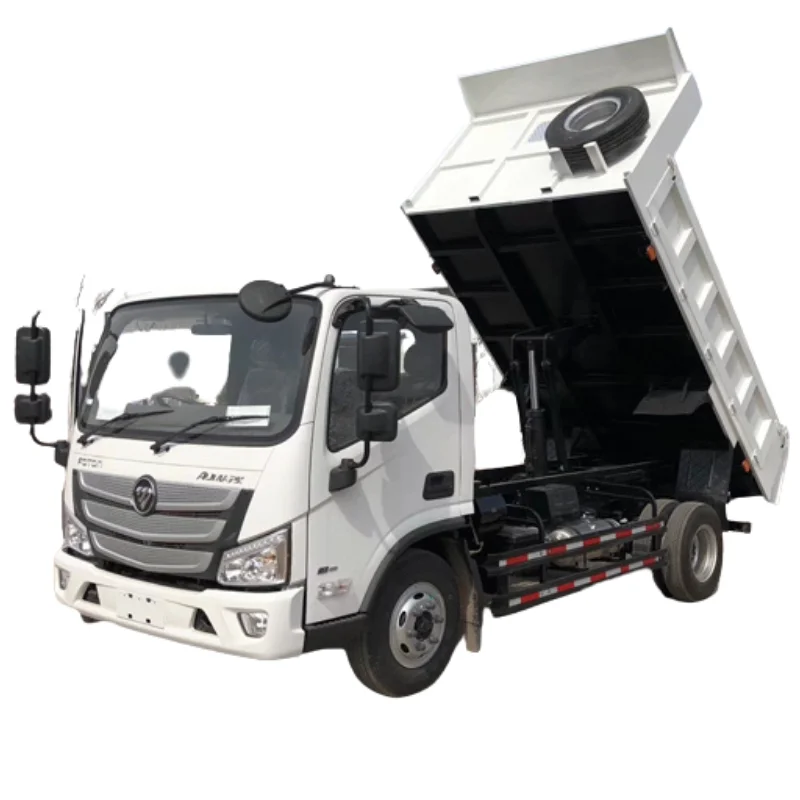

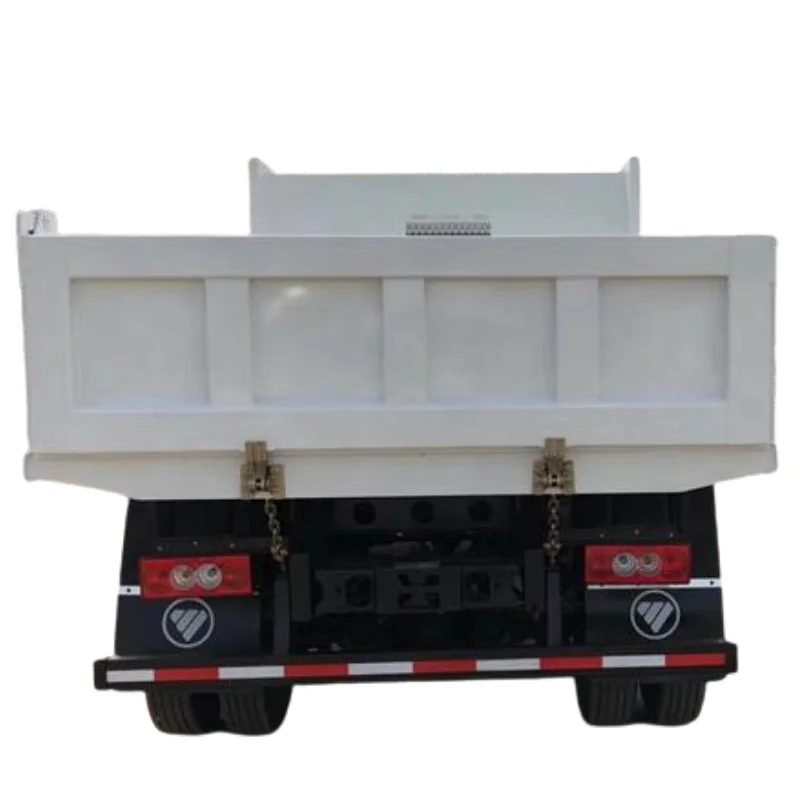

7T FOTON AUMARK S Cummins 141hp diesel dump tipper truck for wastes collection for sale
Dump truck is also called tipper, dump tipping vehicle, sand and stone transporting vehicle, etc. Dump truck is mainly used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with an open-box
bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front, allowing the material in the bed to be deposited dumped on the ground behind the truck at the site of delivery.
bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front, allowing the material in the bed to be deposited dumped on the ground behind the truck at the site of delivery.
More information, please feel free to contact with Ms. Anita.
Whatsapp/Wechat/Mob.: 0086 13329899995.
Product Paramenters
HOT SALE! FOTON AUMARK S 4*2 LHD dump truck for sale
HOT SALE! FOTON AUMARK S 4*2 LHD dump truck for sale
FOTON AUMARK S 2060mm single row driver cab,
4*2 LHD, RHD optional
F3.8s3141 Cummins 105KW/141hp diesel engine, Euro 3 emission standard
3.6T front axle/6T rear axle
6S558 6+1 gears, manual type
L8.25R1614L tires*6+1 spare
80L oil tanker+manual doors and windows +rear view mirror+MP3+Fabric luxury seats
Overall dimension(L*W*H): 6800×2260×2540mm
Dump tipper box dimension(L*W*H): 4500×2100×800mm
Total mass: 11990kgs
Curb mass: 5595kgs
Rated mass: 6200kgs
The real loading capacity is up 6T-7T.
FOTON AUMARK S 2060mm single row driver cab,
4*2 LHD, RHD optional
F3.8s3141 Cummins 105KW/141hp diesel engine, Euro 3 emission standard
3.6T front axle/6T rear axle
6S558 6+1 gears, manual type
L8.25R1614L tires*6+1 spare
80L oil tanker+manual doors and windows +rear view mirror+MP3+Fabric luxury seats
Overall dimension(L*W*H): 6800×2260×2540mm
Dump tipper box dimension(L*W*H): 4500×2100×800mm
Total mass: 11990kgs
Curb mass: 5595kgs
Rated mass: 6200kgs
The real loading capacity is up 6T-7T.
Main technical parameters FOTON AUMARK 4*2 LHD dump truck is as below.
Items | Nos. | Descriptions | Specifications and Types | |
General | 1 | Truck Name | FOTON AUMARK dump truck for sale | |
2 | Drive Type | 4*2 LHD, RHD optional | ||
3 | Loading capacity | 6,000kgs-7,000kgs | ||
4 | Gross Vehicle Weight(kg) | 11990kgs | ||
5 | Rated weight(kgs) | 6200kgs | ||
6 | CurbWeight (kg) | 5595kgs | ||
7 | Overall Dimensions L*W*H(mm) | 6800×2260×2540mm | ||
8 | Dump tipper box dimension(L*W*H)(mm) | 4500×2100×800mm | ||
Engine | 9 | Engine Model | F3.8s3141 | |
10 | Fuel Type | Diesel | ||
11 | Power | 105kw/141HP | ||
12 | Emission Standard | Euro III | ||
13 | Displacement(ml) | 3800 | ||
14 | Engine Type | 4 cylinders in line turbo-intercooling, diesel | ||
Chassis | 15 | Chassis Brand | FOTON AUMARK | |
16 | Front/Rear Axle Load(KG) | 4200/7790 | ||
17 | Tire No. | 6 | ||
18 | Tire Specification | L8.25R1614L*6+1 | ||
19 | Wheelbase (mm) | 3800 | ||
20 | Axle No. | 2 | ||
21 | Gear Box | 6S558 6+1 gears, manual type | ||
22 | Brake | Air brake | ||
23 | Air Conditional | Without, it is selective | ||
24 | Front/rear suspension(mm) | 1120/1805 | ||
25 | Leaf Spring No. | 9/11+7 | ||
26 | Driver cab | FOTON AUMARK S 2060mm single row driver cab | ||
Tipping system | 27 | Box inner dimension(mm) | 4500×2100×800mm | |
28 | Box material | Carbon steel,side 3mm,bottom 4mm | ||
29 | Hydraulic cylinder no.(set) | 2 | ||
30 | Hydraulic cylinder position | At the center of the truck bottom | ||
31 | Discharge type | Rear tipping and rear door open | ||
Remark | 32 | Clients choose to install top mounted hydraulic environmental protection cover. | ||
Details Images
Our Advantages
As a dump truck supplier, in truck brand, we have many dump trucks , such as dongfeng dump truck, sinotruck dump truck, foton dump truck, forland dump truck, faw dump truck, beiben dump truck, iveco dump truck, jac dump truck, jmc dump truck, etc. In dump truck capacity, we have mini 5 cubic meters dump truck, medium 20 cubic meters dump truck, heavy 30 cubic meters dump truck . In drive type, we have 4x2 dump truck, 4x4 mini dump truck, 6x4 dump truck, 8x4 dump truck. In steering wheel, we have right hand drive dump truck, LHD dump truck.
The dump truck is kind of special truck self-discharging goods by hydraulic lifting or mechanism lifting. It is also called
tipper, made up of chassis, hydraulic lifting mechanism, van, PTO, etc. In engineering, the dump truck is always working with digging machine/vehicle, loader, band conveyor, etc. with a production line of loading, transporting, unloading, loading, unloading, and transporting earth, freestone, bulk cargo, etc.
The new dump truck of after mending dump truck must be trial operating, making the van lifting safety and steady. Every part of the dump truck should choose the right lube oil, much more saving discharging time and manpower, the lifting mechanism should be strictly change lube oil. The dump truck cannot be overload, according to the rated mass.
Dump truck types:
1. outlook, single axle dump truck, double axle dump truck, flathead dump truck, long head dump truck, front four and rear eight dump truck, 2 axles tipper semi-trailer, 3 axles tipper semi-trailer, etc.
2. Usage: agricultural dump truck, mining dump truck/tipper, garbage dump truck, coal dump truck/tipper, engineering dump truck, sewer dump truck, etc.
3. Driving type: 6*4, 8*4 dump truck and tipper semi-trailer, etc.
The dump truck is kind of special truck self-discharging goods by hydraulic lifting or mechanism lifting. It is also called
tipper, made up of chassis, hydraulic lifting mechanism, van, PTO, etc. In engineering, the dump truck is always working with digging machine/vehicle, loader, band conveyor, etc. with a production line of loading, transporting, unloading, loading, unloading, and transporting earth, freestone, bulk cargo, etc.
The new dump truck of after mending dump truck must be trial operating, making the van lifting safety and steady. Every part of the dump truck should choose the right lube oil, much more saving discharging time and manpower, the lifting mechanism should be strictly change lube oil. The dump truck cannot be overload, according to the rated mass.
Dump truck types:
1. outlook, single axle dump truck, double axle dump truck, flathead dump truck, long head dump truck, front four and rear eight dump truck, 2 axles tipper semi-trailer, 3 axles tipper semi-trailer, etc.
2. Usage: agricultural dump truck, mining dump truck/tipper, garbage dump truck, coal dump truck/tipper, engineering dump truck, sewer dump truck, etc.
3. Driving type: 6*4, 8*4 dump truck and tipper semi-trailer, etc.
Shipment
FAQ
1. who are we?
We are based in Hubei, China, start from 2013,sell to Southeast Asia(30.00%),South America(25.00%),South Asia(20.00%),Mid
East(15.00%),Eastern Asia(10.00%). There are total about null people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
special-purpose manufacture,construction machinery manufacture,auto spare parts,auto trading,hardware sales
4. why should you buy from us not from other suppliers?
professional special-purpose vehicle with indepedent research and development 30 years experience, 1000 workers, this is how we keep superior quality and competitive offers for global valued customers
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Hubei, China, start from 2013,sell to Southeast Asia(30.00%),South America(25.00%),South Asia(20.00%),Mid
East(15.00%),Eastern Asia(10.00%). There are total about null people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
special-purpose manufacture,construction machinery manufacture,auto spare parts,auto trading,hardware sales
4. why should you buy from us not from other suppliers?
professional special-purpose vehicle with indepedent research and development 30 years experience, 1000 workers, this is how we keep superior quality and competitive offers for global valued customers
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
Company Profile
Hubei Shengda Automobile Co., Ltd. is established in May, 2013. With more than 8 years development, we have more over 100 skilled salesmen and 20 logistics support personnel. We’re locate in Suizhou City, Hubei Province, where is famous for Emperor Yan and Chimes ancient music. At the same time, Suizhou city is famous for special purpose vehicles manufacturers in China.
Hubei Shengda Automobile Co., Ltd. is a leading manufacturer of special purpose vehicles in Suizhou. It can also sell Chusheng brand oil refueler trucks, water tanker trucks, vacuum tanker trucks, concrete mixer trucks, truck with cranes, refrigerated trucks, garbage truck, etc. more than 200 models. We Hubei Shengda Company mainly sell tanker vehicles, dump trucks, van trucks, sanitation trucks, concrete mixer truck, bulk cement tanker trucks, semitrailers, full-trailers, cargo truck with crane, etc. “CHUSHENG BRAND” special purpose vehicles are sold all over China, and also export to so many countries, such as Africa, Asia, South America, Middle East, etc. Our Shengda Company follows the business philosophy “ People-Oriented, Customer First” and adheres to the quality policy “Quality-Oriented, Pay Attention to Improvement, Integrity, Establish Brand”.
We are sincerely with friends at home to join hands in continuous innovation and jointly build the “CHUSHENG” brand. We warmly welcome friends at home and aboard to buy our products. And also we sincerely hope that friends at home to visit the company to discuss investment, cooperation and seek common development.
