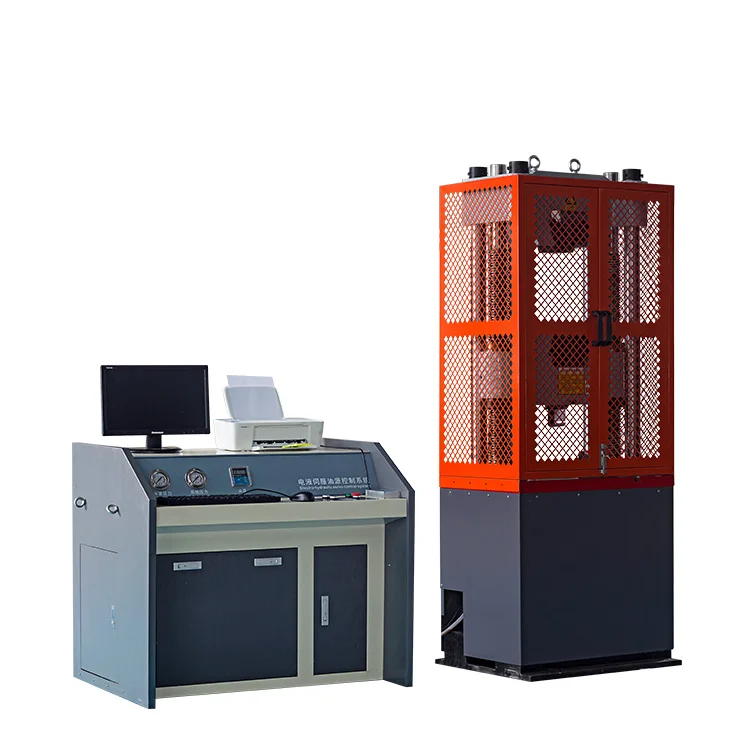

Electro hydraulic Servo Universal Testing Machine/Mechanical Universal Testing Equipment
- Category: >>>
- Supplier: Dongguan Xinbao Instrument Co. Ltd.
Share on (1600720182702):
Product Overview
Description
Products Description
Introduction:

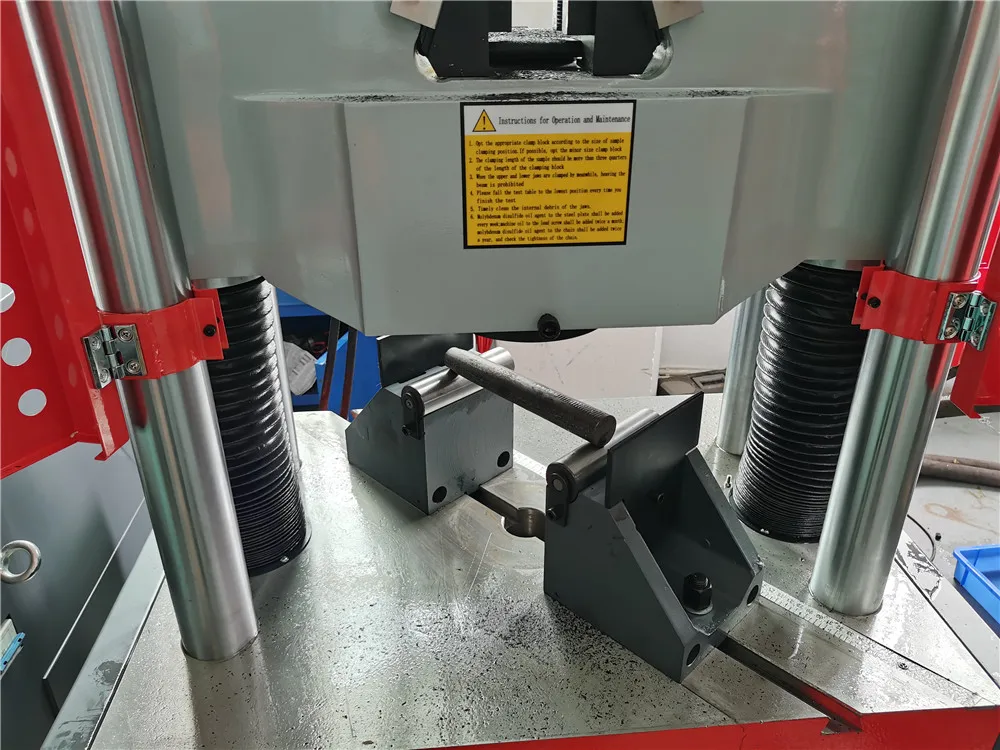

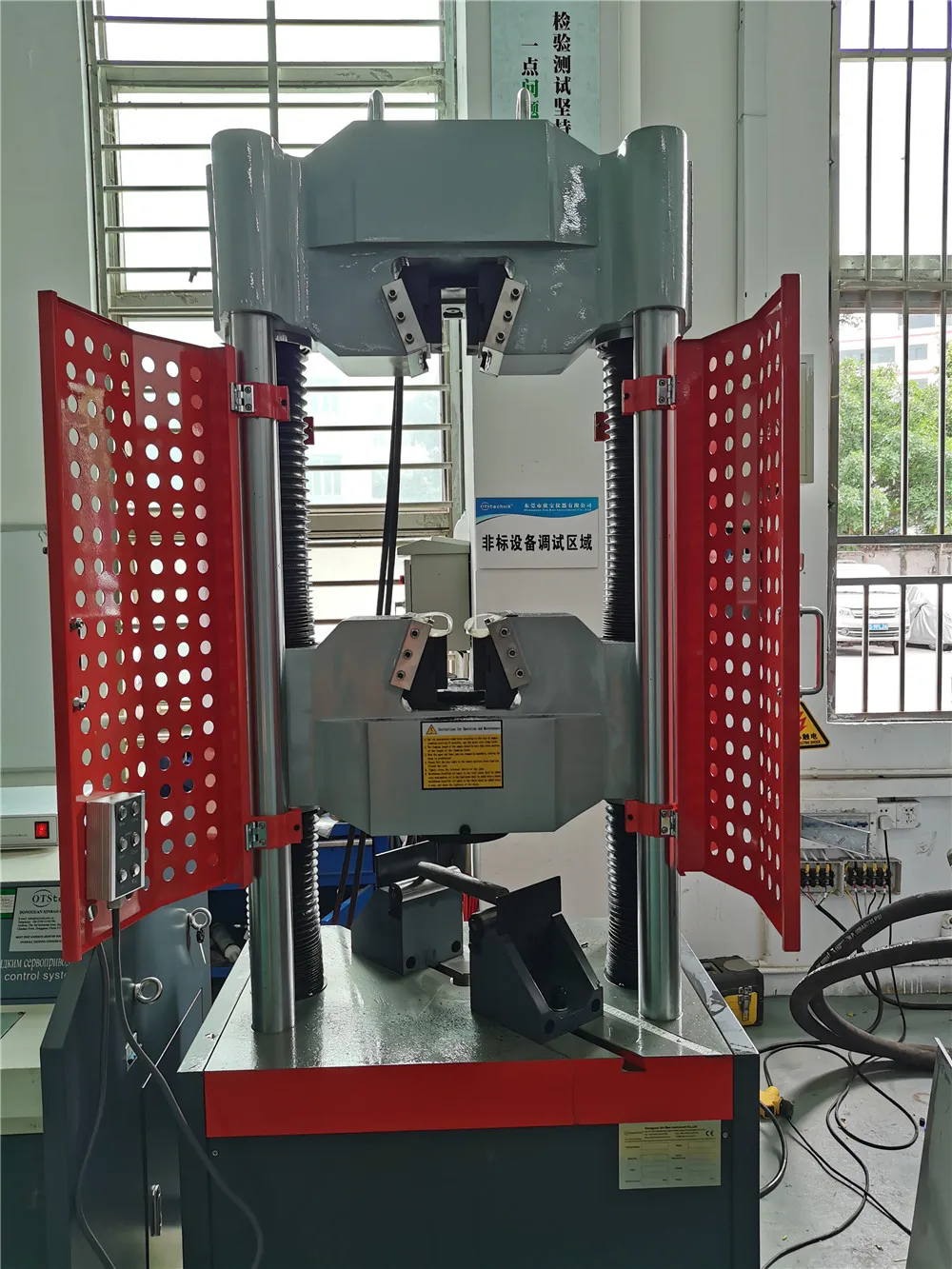

This machine is equipped with four columns, two lead screws and one under cylinder. The testing system adopts a digital control with multiple channels, the stress and strain rate satisfies GB/T228.1-2010 and another tensile test standard of metal material.
Product Paramenters
Model | XB-OTS-600(100T) | ||||
Max capacity | 30Kn~1000Kn, can be setting | ||||
Induction method | Precision load cell (sensor) | ||||
Max. Load Capacity | 1000Kn(100T) | ||||
Force Resolution/Accuracy | ± 0.01Kn | ||||
Accuracy class | 1 class | ||||
Resolution | 1/1000 | ||||
Test width | 400mm(Standard specifications special specifications can be customized) | ||||
Test stroke | 600 mm | ||||
Stroke Resolution | 0.01mm | ||||
Speed range | 0.5-50mm/min | ||||
Machine Dimension (W*D*H) | 940×720×2330mm (L*W*H) | ||||
Power system | Servo drive + servo motor + precision ball screw transmission (Panasonic or Taiwan king serve import) | ||||
Packing | Standard Export plywood case | ||||
Displacement Control | Displacement encoder count with four frequency technology | ||||
So that the displacement of four times | |||||
the resolution can up to 0.0005mm | |||||
Force system: servo drives + Servo motor + precision ball screw drive
Control system:Mechanical transmission + TM2101 + Pulse Command and Control System control
Measurement and Control System : TM2101 and control system; master controller uses the most advanced 32-bit ARM processor in the
21st century, the processing speed of the Pentium-class common computer standards, compared to the traditional 8 yuan SCM control
system overall performance greatly improved, faster operation, control accuracy higher
Obtain data: The key components are used America's most stable and ultra-precision 24 yuan AD, sampling rate of up to 2000 times /
sec, can capture the power of instantaneous change process, the entire file, regardless of the resolution of up to 1,000,000
indexing
Control system:Mechanical transmission + TM2101 + Pulse Command and Control System control
Measurement and Control System : TM2101 and control system; master controller uses the most advanced 32-bit ARM processor in the
21st century, the processing speed of the Pentium-class common computer standards, compared to the traditional 8 yuan SCM control
system overall performance greatly improved, faster operation, control accuracy higher
Obtain data: The key components are used America's most stable and ultra-precision 24 yuan AD, sampling rate of up to 2000 times /
sec, can capture the power of instantaneous change process, the entire file, regardless of the resolution of up to 1,000,000
indexing
Software functions:
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7.With many units of measurement, the metric system and british system can switch;
8.Have automatic calibration function;
9.Have user-defined test method function
10.Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics
Corresponding Standard:
ASTM D903,F2258,GB/T 2790/2791/2792, CNS-11888,JIS K6854,GB/T 6329,BS EN 14410-2003,YY/T 0729,GOST 21751 and other standards.
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7.With many units of measurement, the metric system and british system can switch;
8.Have automatic calibration function;
9.Have user-defined test method function
10.Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics
Corresponding Standard:
ASTM D903,F2258,GB/T 2790/2791/2792, CNS-11888,JIS K6854,GB/T 6329,BS EN 14410-2003,YY/T 0729,GOST 21751 and other standards.
Product packaging
Company Profile
FAQ
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE
maintenance,while considering of sea transportation, we can extend 2 months for our customers.
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE
maintenance,while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or sky video chat if necessary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after
deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after
deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
4. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
