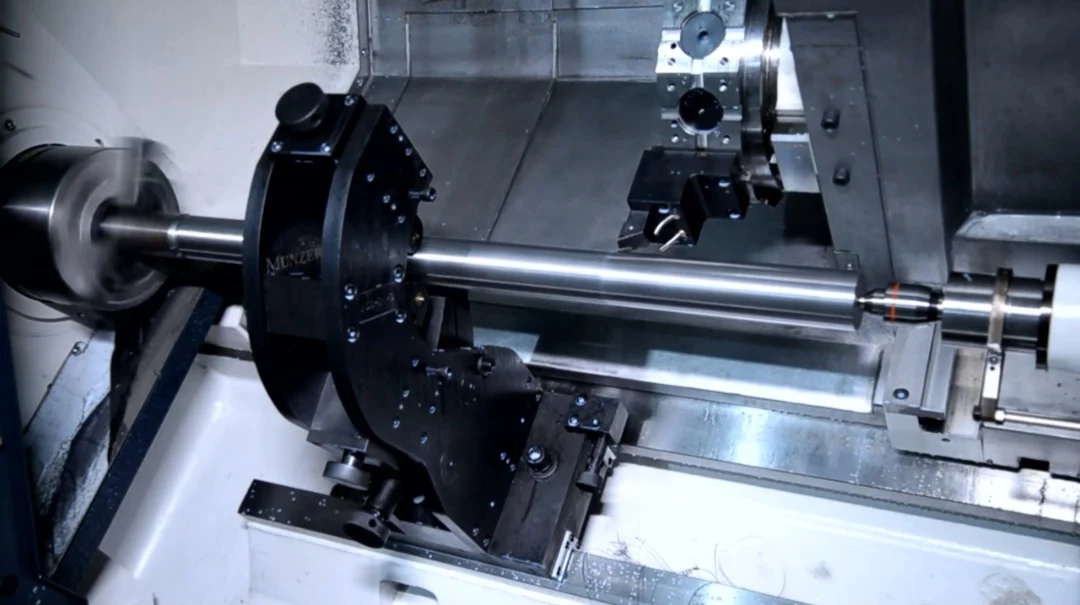

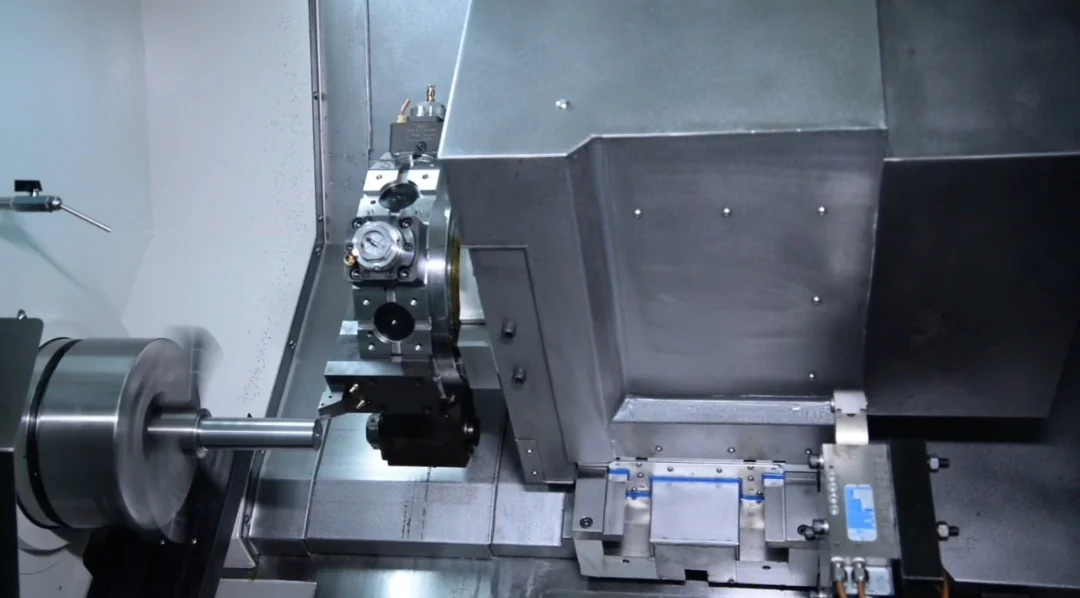

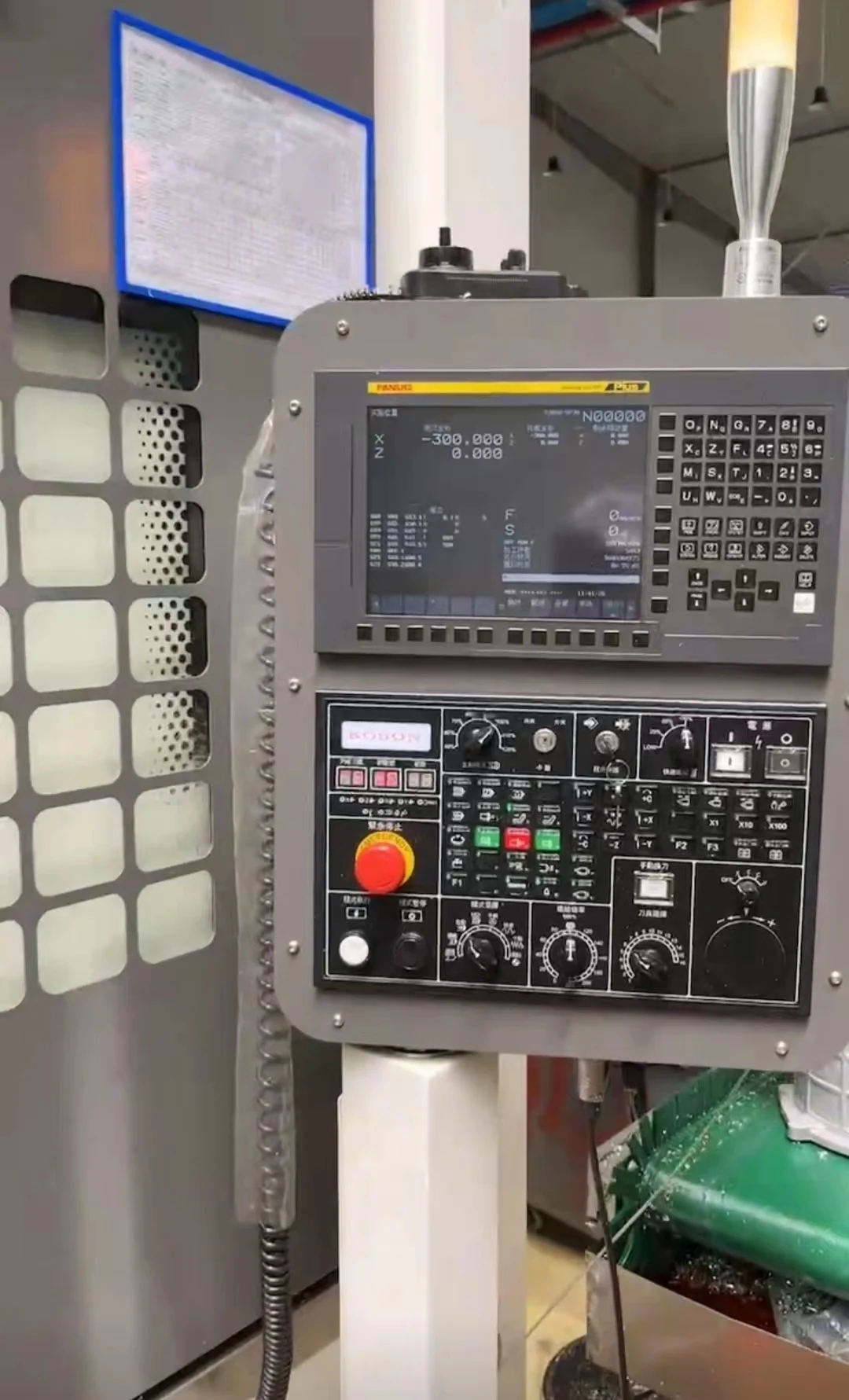

SIEMENS SYNTEC control system Metal torno RB 750M turning machine display racks cnc lathe
- Category: >>>
- Supplier: Munzer Technology Co. Ltd.
Share on (1600720183745):
Product Overview
Description
Video Description

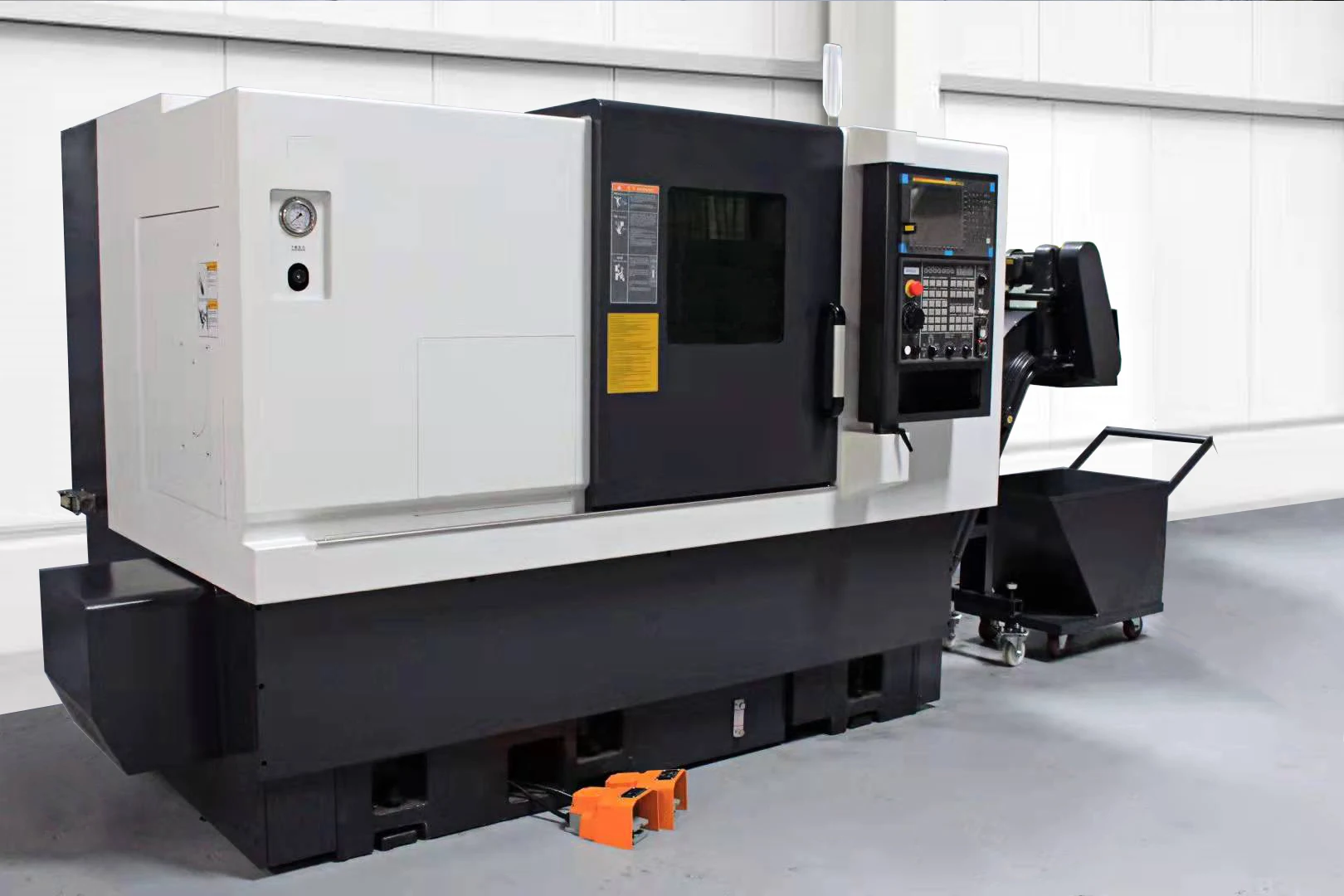

Product Overview
High rigidity construction
All main parts of the machine are made of cast iron with strong damping capacity.
All castings are optimized by finite element analysis (FEA) to reduce distortion and improve damping capacity.
The reinforcing ribs of casting parts of various series of lathes have been strengthened to enhance the rigidity and thermal stability. The rigidity of compact and symmetrical headstock and tailstock castings has been further improved to ensure high positioning accuracy and repeated positioning accuracy.
Products Details
The main machine components are integrated
into a strong foundation. The low center of gravity bed and 30 degree positive inclined bed design provide a stable base for the machine head, turret and tailstock.
into a strong foundation. The low center of gravity bed and 30 degree positive inclined bed design provide a stable base for the machine head, turret and tailstock.
All the contact surfaces between the sliding spindle table, turret and ball guide screw
structure and the base are manualy spaded, which has achieved the maximum assembly accuracy, structural rigidity and balanced load
structure and the base are manualy spaded, which has achieved the maximum assembly accuracy, structural rigidity and balanced load
C3 grade ball guide screw after heat treatment and precision grinding ensures excellent accuracy and durability.
X&Z axis adopts high-performance linear slide rail design, with excellent characteristics such as high precision, fast movement and low wear.
PRODUCT SPECIFICATIONS
Content | Item | Unit | RB-750M | |
Capacity | Max.swing over bed | mm | Φ730 | |
2 | Swing over cross slide | mm | Φ450 | |
3 | Max.turning length | mm | 740 | |
4 | Bar hole | mm | Φ75 | |
5 | Max.turning diameter | mm | Φ630 | |
Spindle | Chuck size | inch | 10" | |
7 | Spindle nose | ASA | A2-8 | |
8 | Spindle hole | mm | 87 | |
Spindle speed | rpm | 2800 | ||
Spindle motor | kw | 15/18.5 | ||
Axis travel | x/z/y axis travel | mm | 325/760 | |
x/y/z axis rapid traverse | m/min | 24/24 | ||
positioning accuracy | mm | ±0.008 | ||
repeat accuracy | mm | ±0.005 | ||
Turret | Tool Turret type | - | BMT55-12T | |
O.D. tool holder | mm | 25*25 | ||
I.D. tool holder | mm | Φ40 | ||
Tailstock | Quill diameter | mm | Φ100 | |
Quill travel | mm | 80 | ||
Tailstock spindle taper | - | MT#5 | ||
Machine dimensions | weight | kg | 7500 | |
L*W*H | mm | 2940*1503*1554 | ||

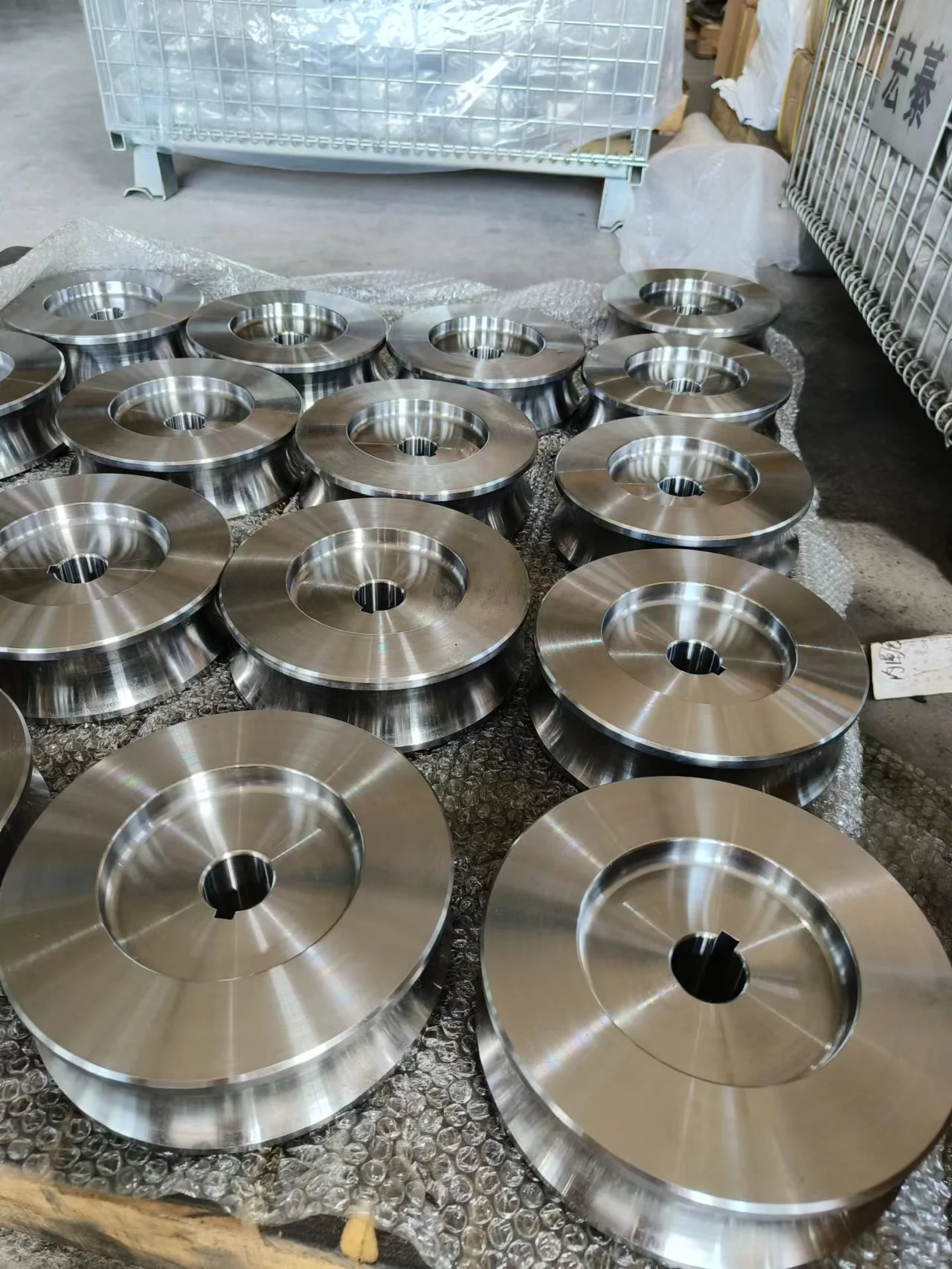

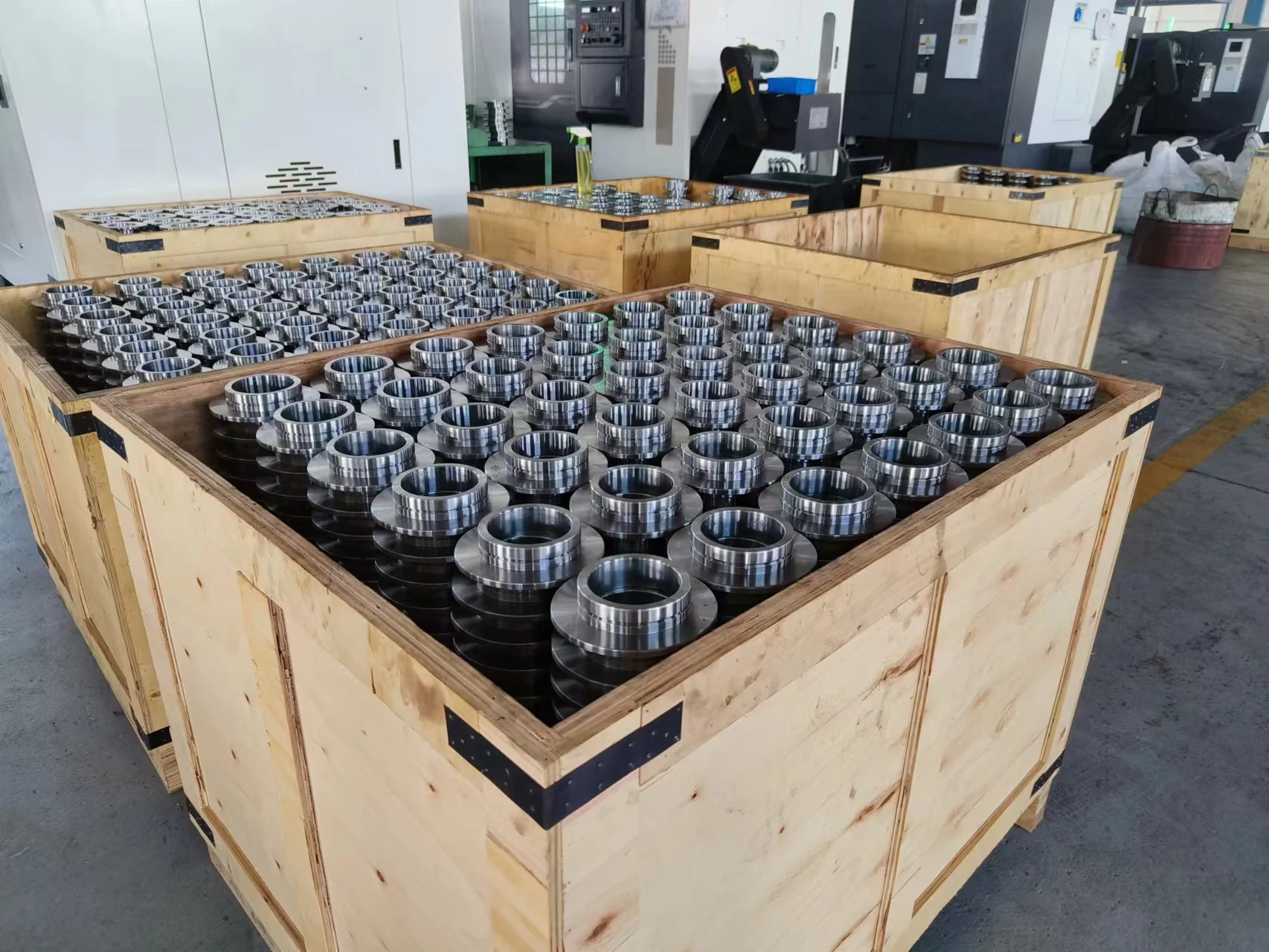

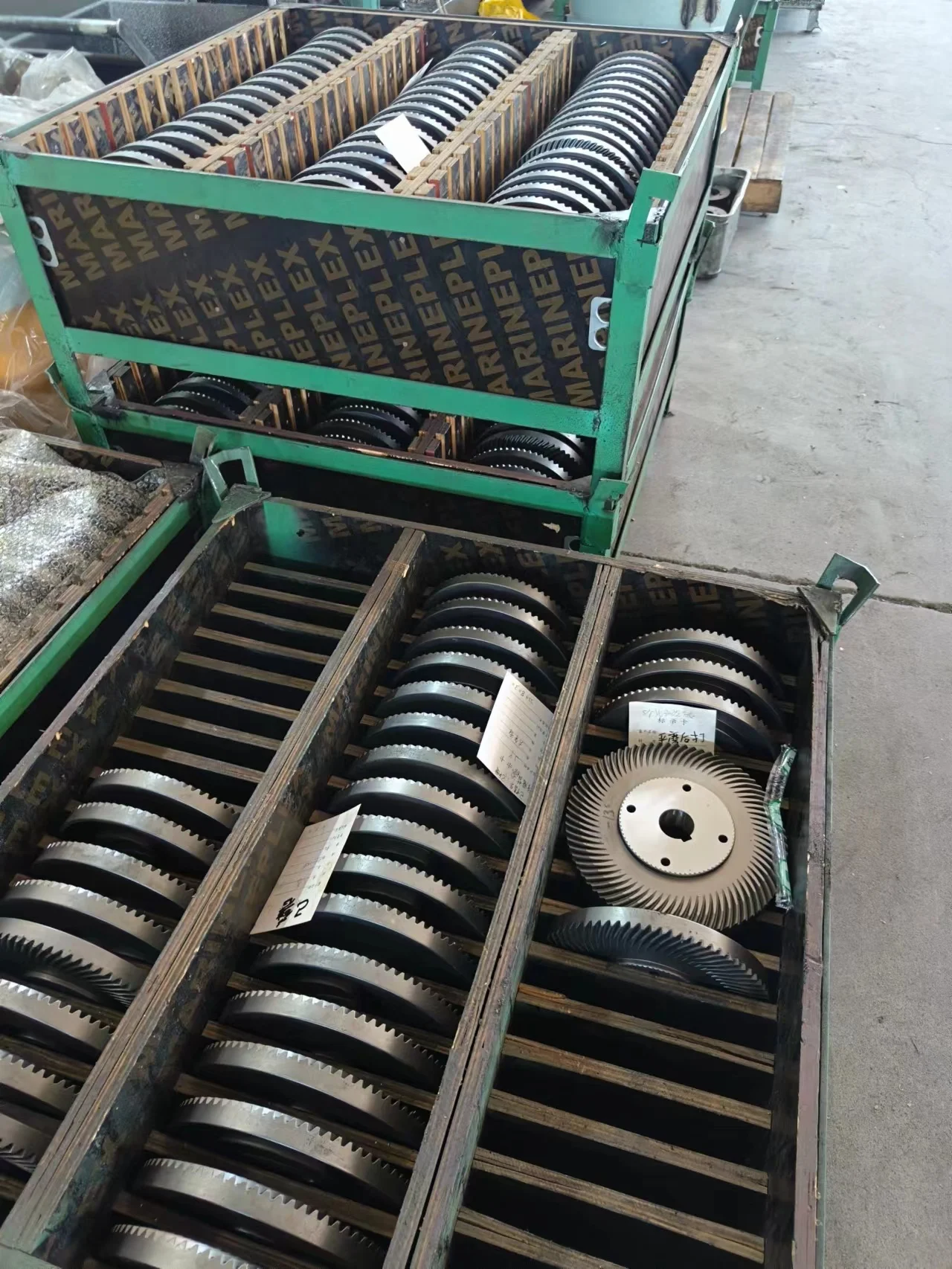

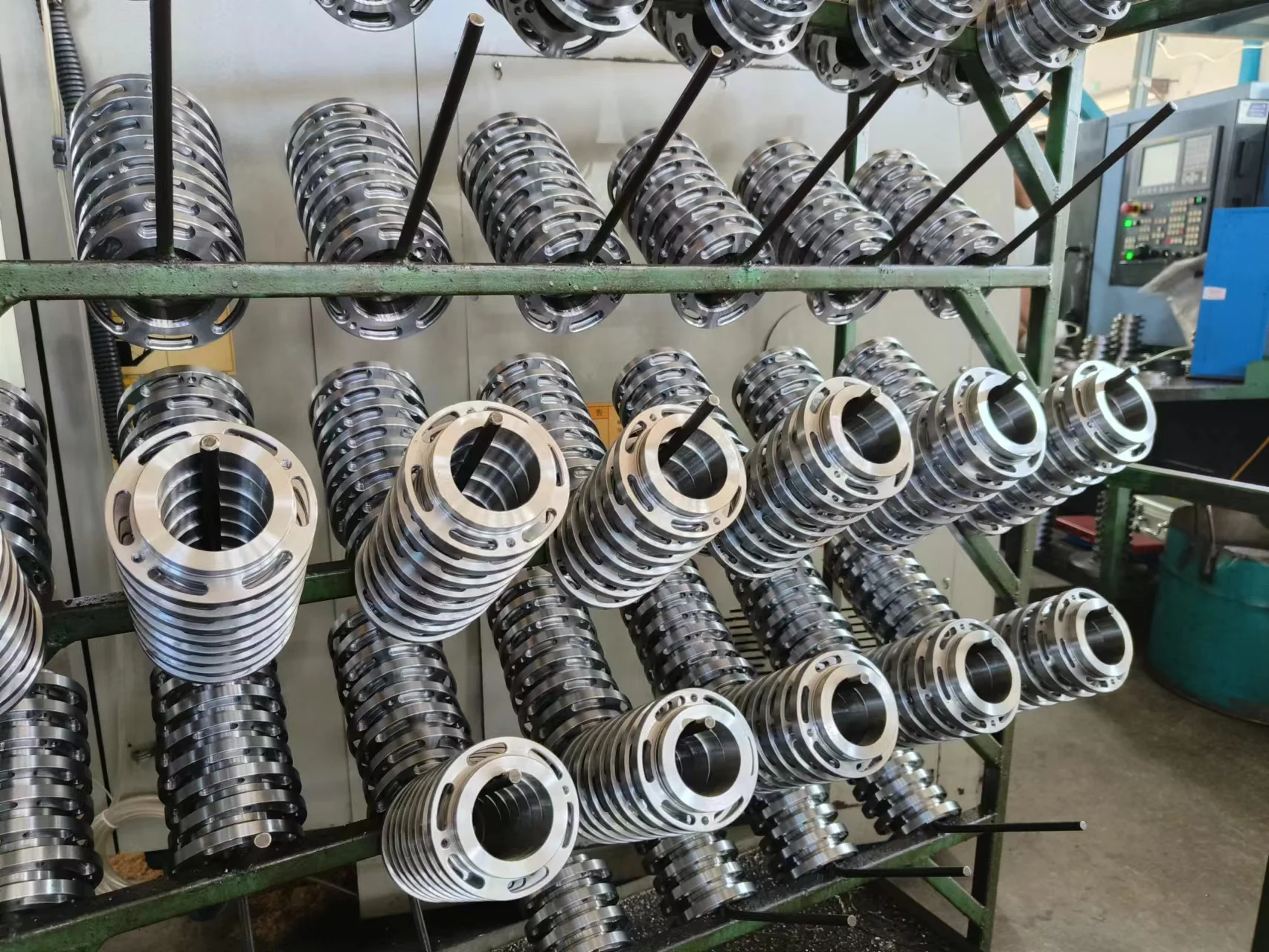

Display of finished metal works
Main Product Categories
Company Profile

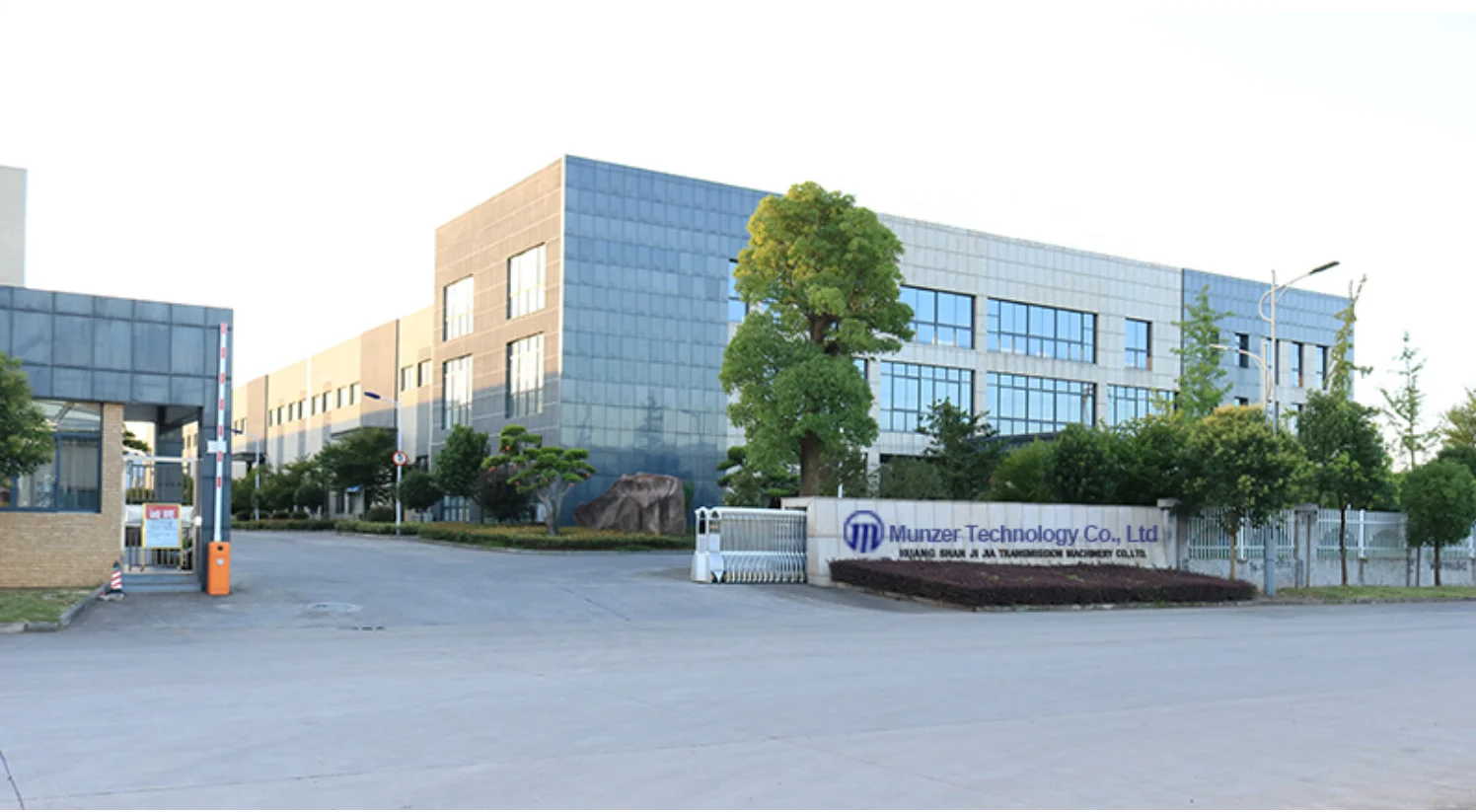

Munzer Technology Co.,Ltd.
Munzer focus one design, manufacturer and distribution of advanced metal-cutting machine tool solutions. As manufacturing demands,
we bring innovation and expand our CNC machine and workholding options to many demanding applications.
we bring innovation and expand our CNC machine and workholding options to many demanding applications.

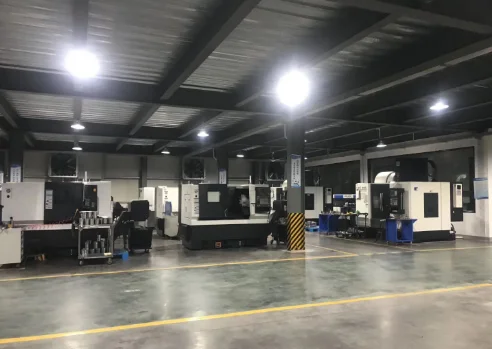

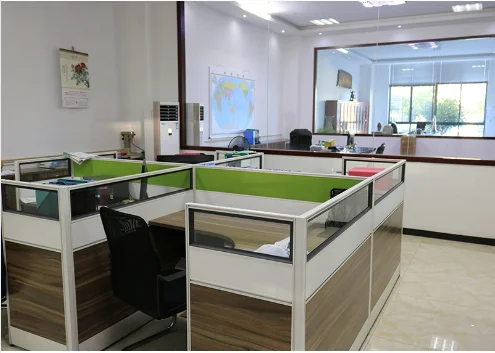

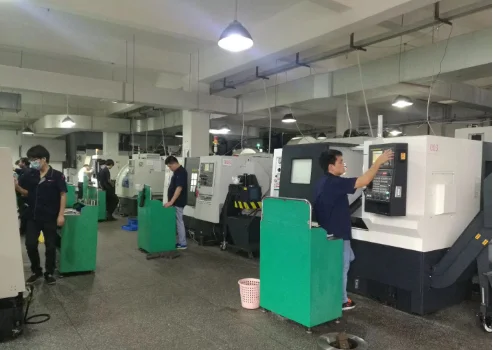

Our work and production environmennt

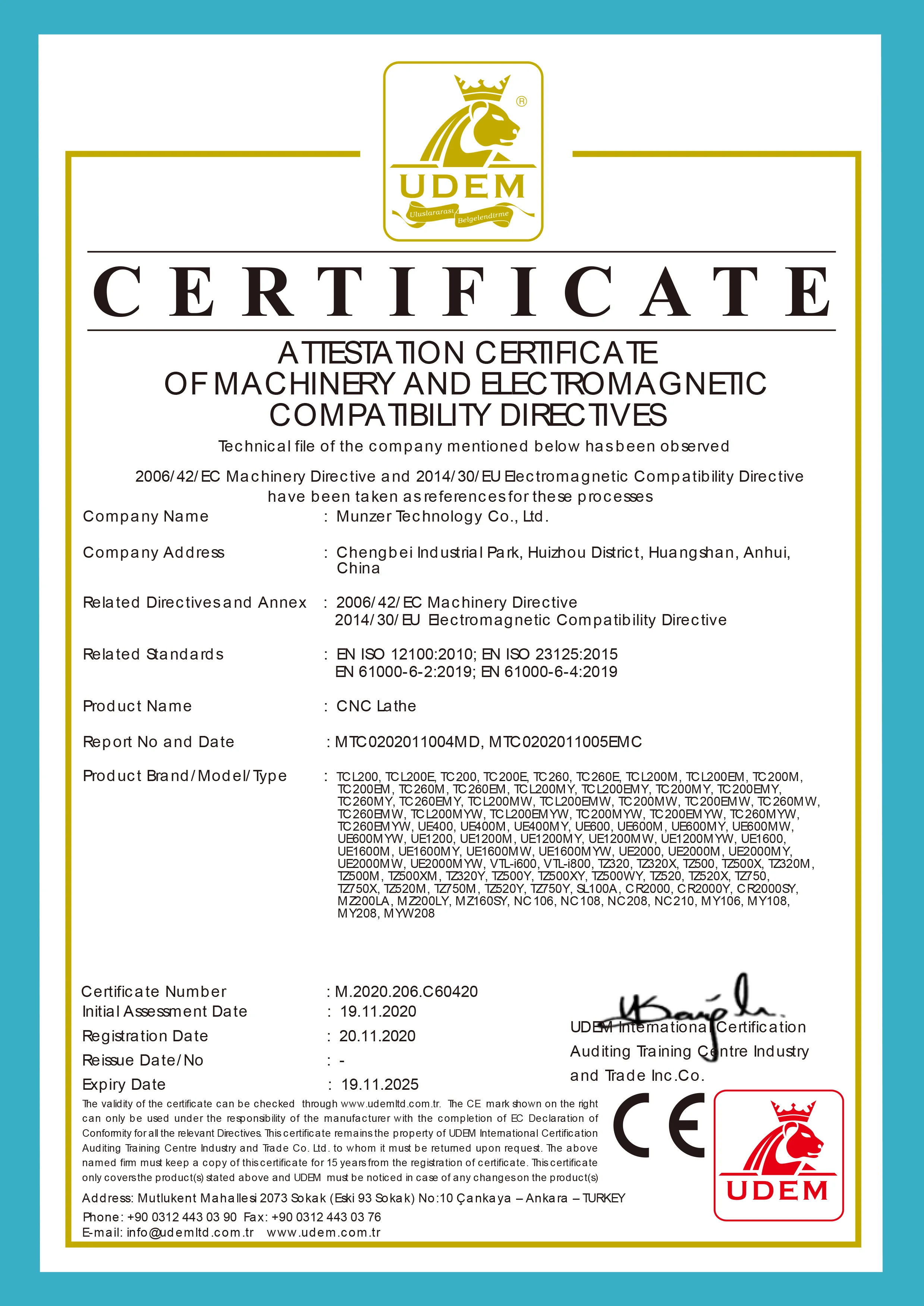

Certifications
We are Taiwan manufacture of CNC lathe and VMC which focus on this field more than 20 years. Chinese factory was established in 2008. Munzer sends around 95% components from Taiwan to our China factory to assembly the complete machine in order to supply the more competitive price with the same quality as original in Taiwan.
FAQ
Q1：What is the advantage about your company?
A1：Our company has professional team and professional production line.
Q2: The logo and the color can be customized?
A2: Yes, we welcome you to sample custom.
Q3:Any other good service your company can provide?
A3: Yes,we can provide good after-sale and fast delivery
Q4: What is your minimum order quantity and warranty?
A4: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
A4: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
Q5: What is the package of the machines?
A5: The machines standard will be packed in plywood case.
A5: The machines standard will be packed in plywood case.
