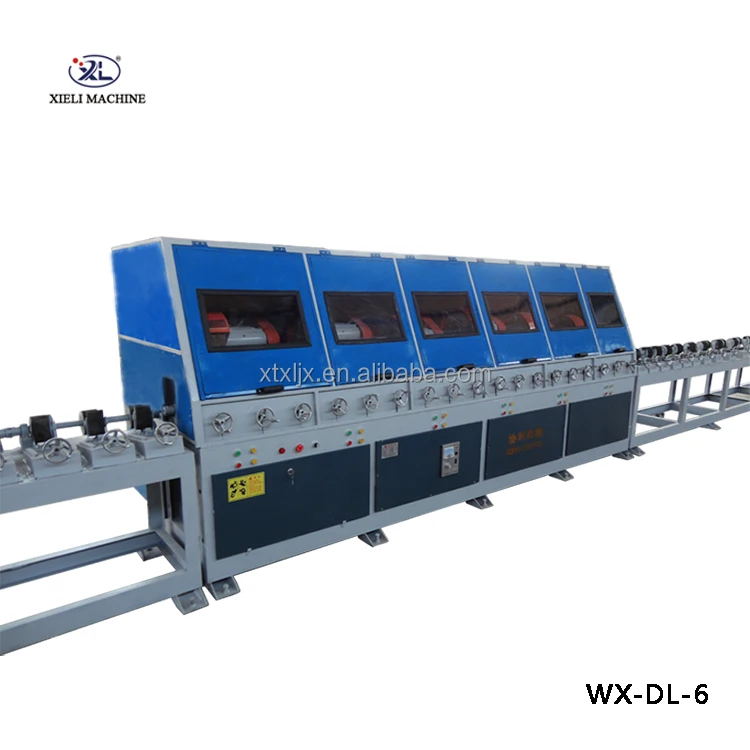

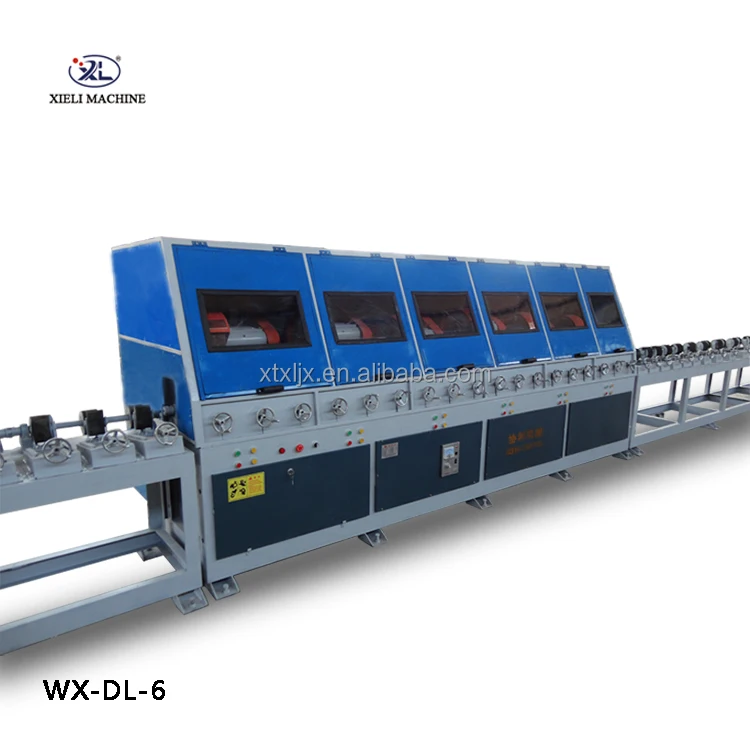

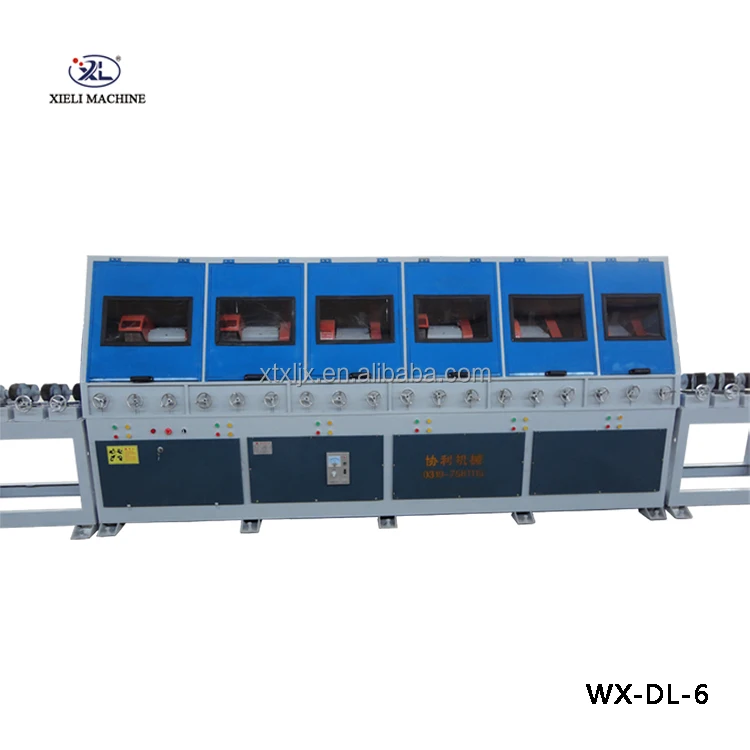

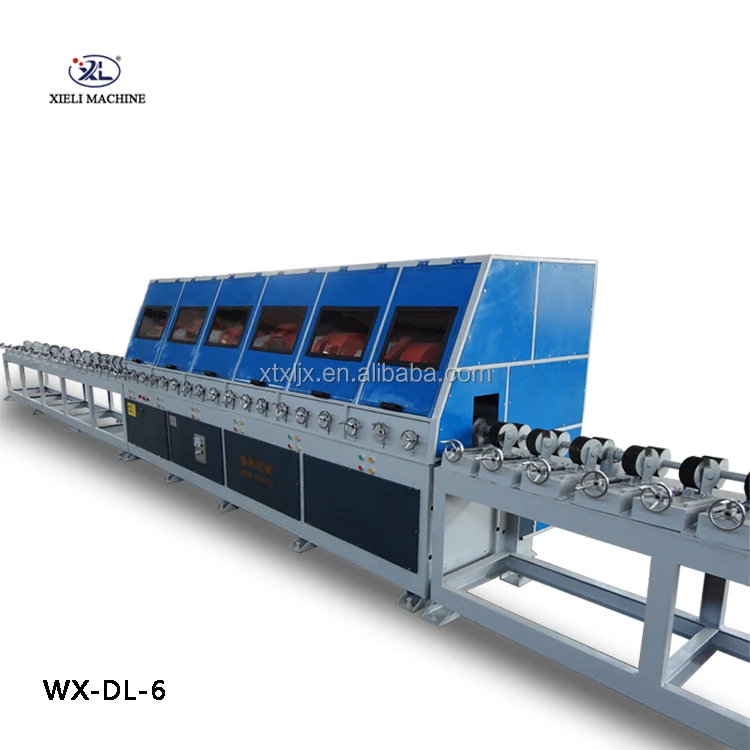

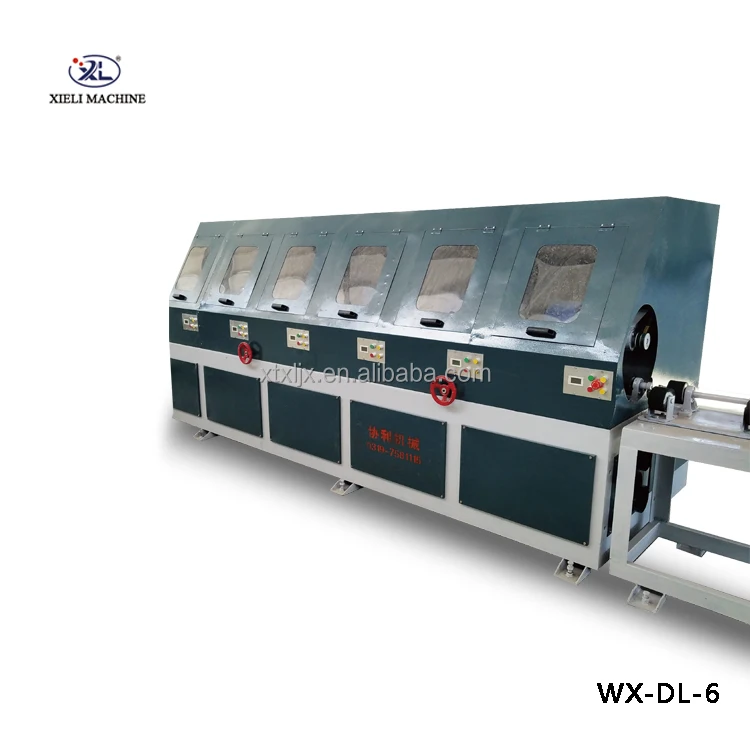

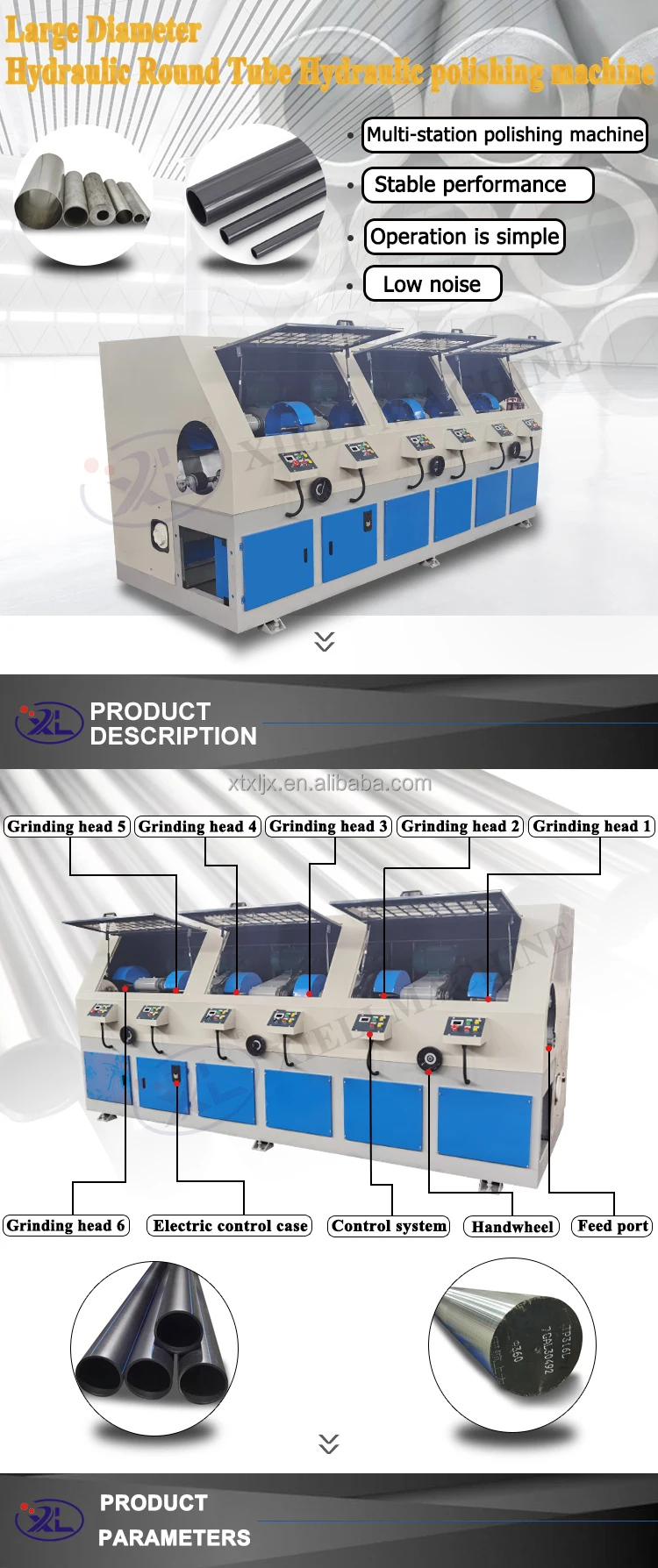

Xieli Machinery Hydraulic cylinder polishing machine piston rod polishing machine round tube polishing equipment

Project   /  Model

WX-DL-2

WX-DL-4

WX-DL-6

WX-DL-8

WX-DL-10

Input voltage(v)

380V(Three phase four wire)

Input power(kw)

13.2

22.2

30.7

38.7

46.7

Polishing wheel specification(mm)

250/300*40/50*32(Width can be assembled)

Guide wheel specification(mm)

110

Polishing wheel speed(r/min)

3000

Guide wheel speed(r/min)

Stepless speed regulation

Machining diameter(mm)

20-360

Processing efficiency(m/min)

0-8

Surface roughness (um)

Ra 0.02

Processing length(mm)

Determined by bracket length (0.3-12)

Dry fan dust removal

optional

Wet water cycle dust removal

optional

Grinding head feeding mode

Digital display electromagnetic hydraulic control

Passive guide wheel adjustment method

Manual/electric/automatic      optional

Machine tool total weight about(kg)

2000

3000

4000

5000

6000

Equipment dimension(m)

1.3*1.2*1.5

2.6*1.2*1.5

3.9*1.2*1.5

5.2*1.2*1.5

6.5*1.2*1.5
