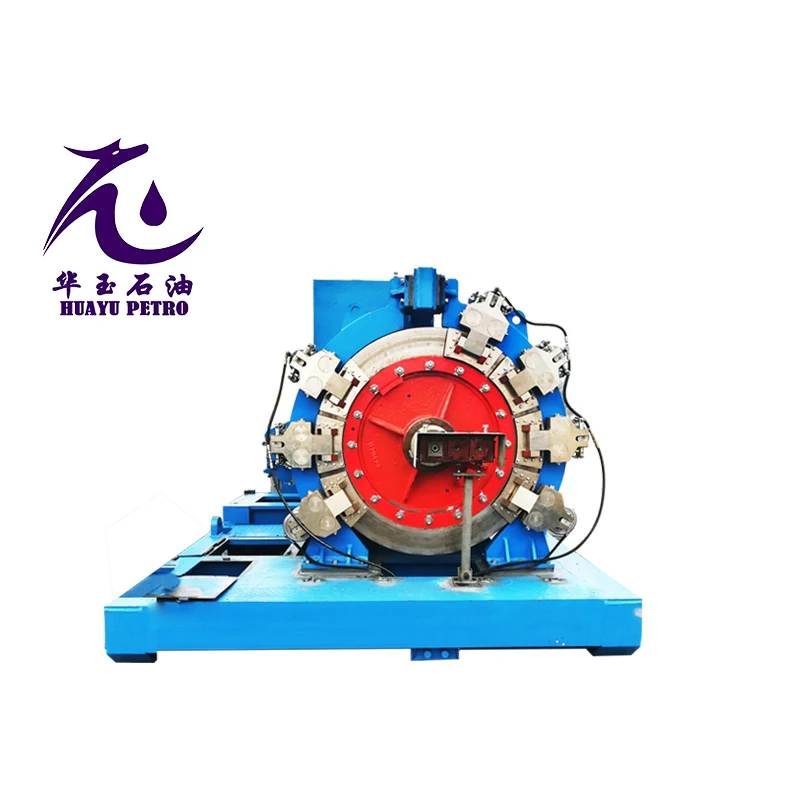

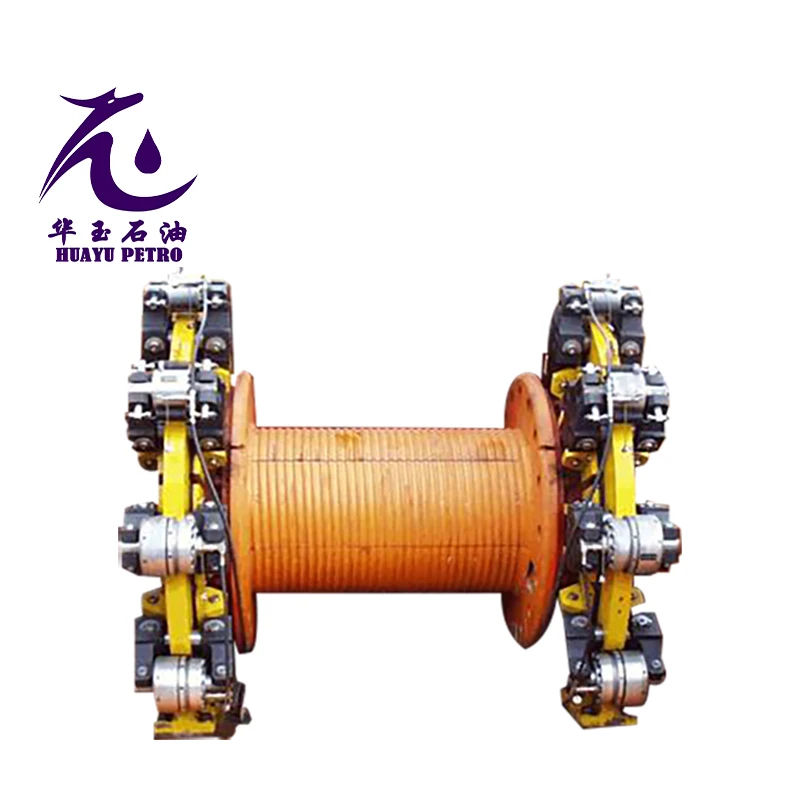

PZ series Drawworks device Hydraulic Disc Brake for drilling and workover rig
- Category: >>>
- Supplier: Huayu Petro Machinery Co. Ltd.
Share on (1600720246537):
Product Overview
Description
Product Description

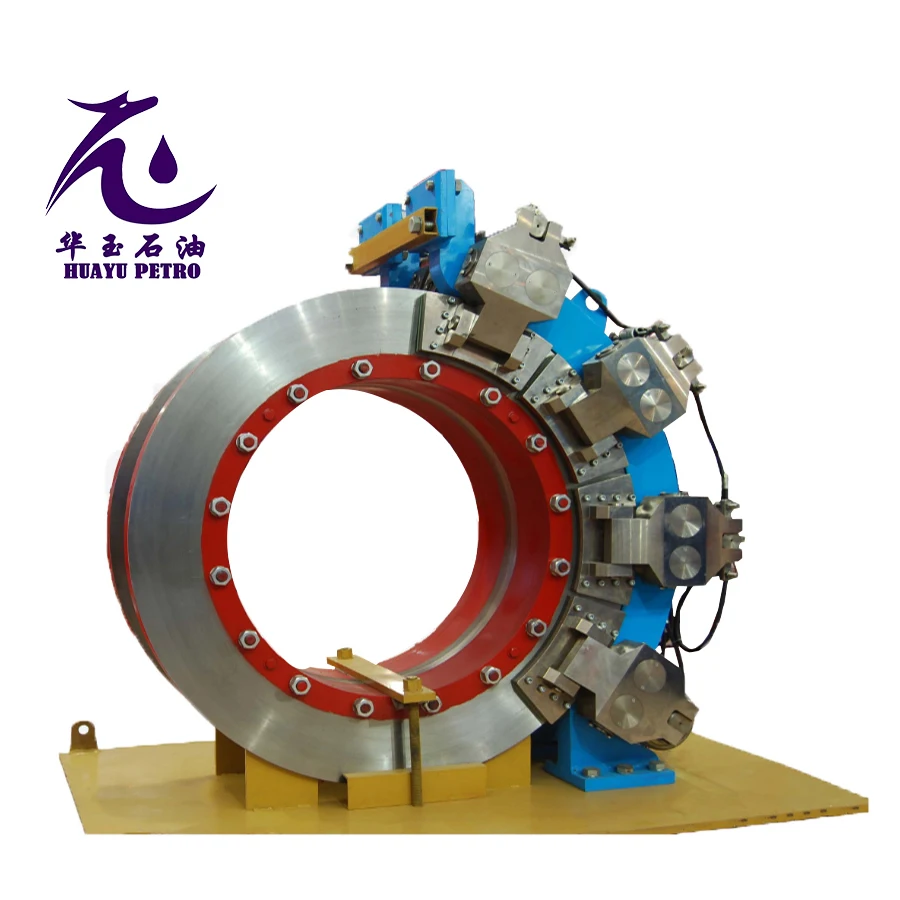

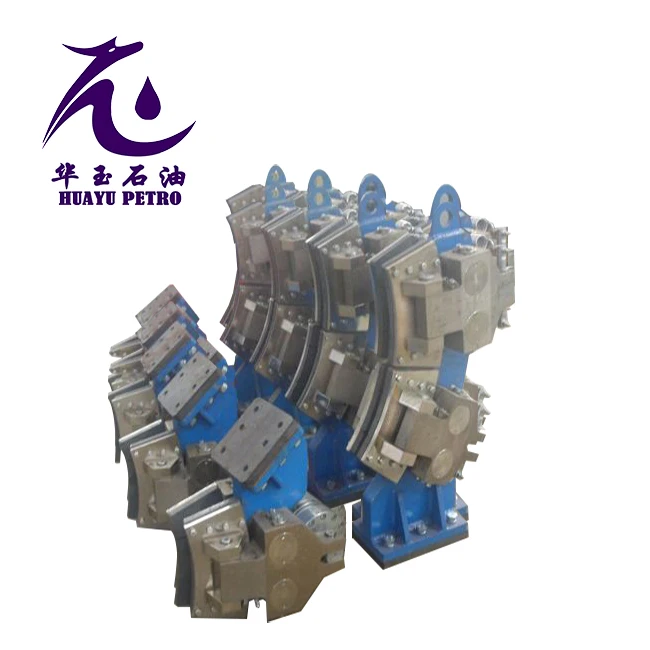

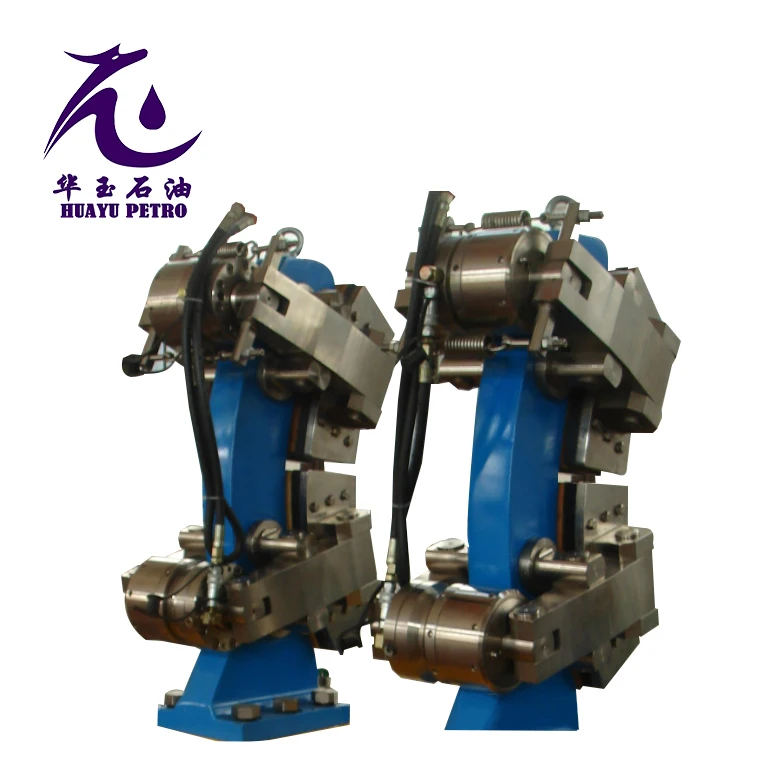

Hydraulic Disc Brake
1.The brake caliper has sufficient brake reserve coefficient and reliable braking.
2.Various clearance adjustment methods can adjust the brake clearance conveniently, quickly and accurately.
3.The brake caliper is small in size, easy to install and maintain, and convenient to replace the brake pad.
4.High precision of brake control curve; Remote and automatic control can be realized.
5.The brake caliper meet the requirements of all kinds of drilling RIGS and workover RIGS under various working conditions such as land, ocean, desert and low temperature.
6.Air - cooled, water - cooled brake disc and strong - cooled brake disc are suitable for different drilling conditions
7.The special brake pad has good friction performance and easy replacement.
2.Various clearance adjustment methods can adjust the brake clearance conveniently, quickly and accurately.
3.The brake caliper is small in size, easy to install and maintain, and convenient to replace the brake pad.
4.High precision of brake control curve; Remote and automatic control can be realized.
5.The brake caliper meet the requirements of all kinds of drilling RIGS and workover RIGS under various working conditions such as land, ocean, desert and low temperature.
6.Air - cooled, water - cooled brake disc and strong - cooled brake disc are suitable for different drilling conditions
7.The special brake pad has good friction performance and easy replacement.
Category | Name | PS30 | PS40 | PS50 | PS70 | |||||
Maximum positive pressure on one side lbf | 11240.45 | 16860.67 | 20232.8 | |||||||
Effective stroke in | 1.18 | |||||||||
Permissible minimum working thickness of brake pad in | 0.47 | |||||||||
Overall dimension in | Φ5.90×9.52 | Φ7.08×11.41 | ||||||||
Weight lbs | 39.68 | 55.11 | ||||||||
Maximum positive pressure on one side lbf | 11240.45 | 20232.8 | ||||||||
Maximum working clearance of brake pad in | 0.04 | |||||||||
Permissible minimum working thickness of brake pad in | 0.47 | |||||||||
Overall dimension in | Φ7.48×12.99 | Φ8.26×13.97 | ||||||||
Weight lbs | 77.16 | 105.82 | ||||||||
Rated pressure psi | 870 | 1160 | ||||||||
Working medium | Summer | L-HM46 antiwear hydraulic oil | ||||||||
Winter | L-HV32 low temperature antiwear hydraulic oil | |||||||||
Hydraulic system | Rated flow rate of single pump L/min | 4.75 | ||||||||
Oil tank volume L | 39.62 | |||||||||
Motor power hp | 2.95 | |||||||||
Accumulator capacity gal | 4×1.66 | |||||||||
Heater power hp | 1.34 | |||||||||
Cooling water flow rate gal /h | 528.34 | |||||||||
Overall dimension ft | 3.93×3.44×4.21 | |||||||||
weight lbs | 1675.51 | |||||||||
