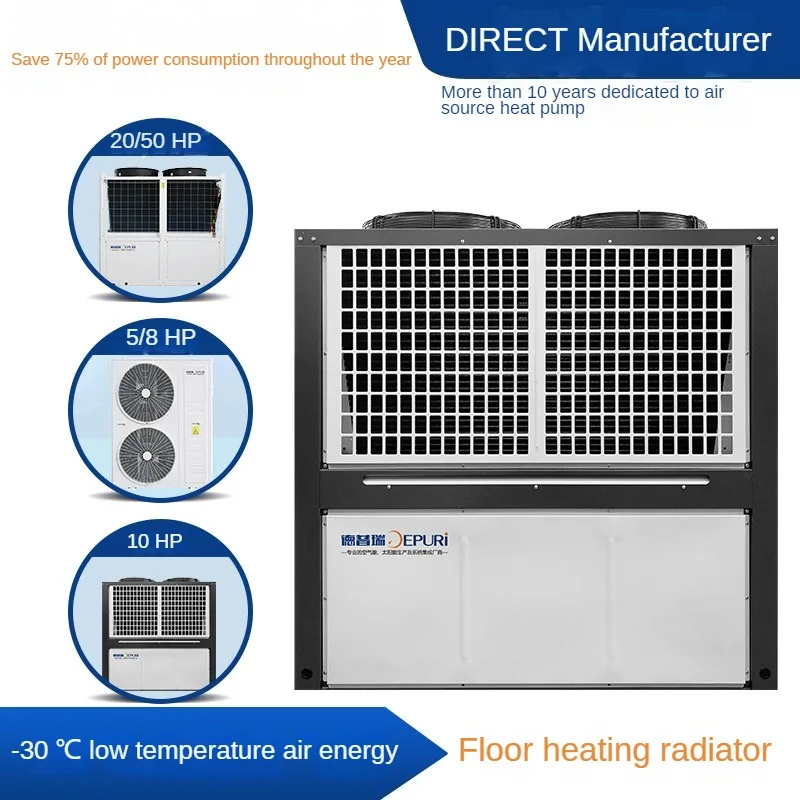

Depuri Cold Climate High COP EVI Monoblock R32 commercial Air Source air conditioning Heat Pump
Air energy heat pump uses heat from air to generate heat energy.It can suffice household need of heating and cooling around-the-clock by consuming the least energy.
Advantages:
1.Using the ultra-low temperature air jet enthalpy increasing technology, it still operates stably at -30℃.
2.Fully automated, unattended, plug and play, intelligent operation.
3.Imported grain wheel compressor, energy-saving and efficient, heating efficiency up to 300% under rated working conditions.
4.The end is directly connected with radiator, floor heating and wind disc, heating in winter and cooling in summer.
Production Introduction:
Air energy heat pump uses heat from air to generate heat energy.It can suffice household need of heating and cooling around-the-clock by consuming the least energy.
Advantages:
2.Fully automated, unattended, plug and play, intelligent operation.
3.Imported grain wheel compressor, energy-saving and efficient, heating efficiency up to 300% under rated working conditions.
4.The end is directly connected with radiator, floor heating and wind disc, heating in winter and cooling in summer.
Item No. | DPR-DKFRS-40II/CDLN | ||||||
Input power | 9.1KW | ||||||
Rated heating | 32KW | ||||||
Range of application | About 200 square meters | ||||||
Number of host matches | 10 HP | ||||||
Our Services | 1. We are direct factory, we accept customized production 2. We have professional team to solve all your problem, and produce as your requirements 3. We can supply the certifications requested 4. Fast Delivery 5. After-sale services. | ||||||
Product Paramenters
Model | DPR-DKFRS-40II/CDLN | ||
Rated voltage/frequency | 380V～50Hz | ||
Nominal Heating Capacity (A-12 ℃, W41 ℃) | 24.3kW | ||
Nominal Heating input power/current | 9.1kW/15.8 | ||
Rated Heating Capacity（A7℃，W45℃） | 36KW | ||
Rated thermal input power/current | 11.4KW/19.4 | ||
Low-temperature Heating Capacity（A-20℃，W41℃） | 21KW | ||
Rated Refrigeration（A35℃，W7℃） | 25KW | ||
Rated Cooling input power/current | 7.9KW/13.5 | ||
Maximum Input Power/Current | 13.1kW/22.5 | ||
Maximum Water Outlet temperature | 60℃ | ||
Circulating Water Flow | 4.3m³/h | ||
Nominal Heating Capacity/low temperature heating/Rated Refrigeration/COP | 2.67/2.1/3.17 | ||
IPLV(H)/IPLV(C) | 2.9/2.9 | ||
Refrigerant/injection quantity | R410a/4500g*2 | ||
High/low-voltage Maximum allowable pressure | 4.2MPa | ||
The maximum work pressure of the heat exchanger | 4.5MPa | ||
Exhaust/inhalation side allows work over pressure | 4.2/2.6MPa | ||
Water side rated work pressure | 0.7MPa | ||
Water side pressure loss | ≤65kPa | ||
Take-over dimensions | DN40 | ||
Outdoor unit noise | ≤61dB(A) | ||
Category of anti -electric shock protection category | I | ||
Waterproof Level | IPX4 | ||
Size | Length | 1500mm | |
Width | 900mm | ||
Height | 1350mm | ||
Environmental temperature range | -25-43℃ | ||
