Products Description

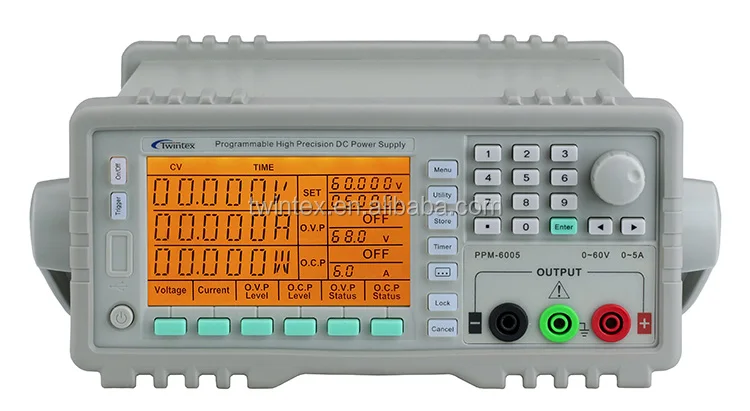

PPM series are high precision programmable linear DC power supply with single output, output power rated from 90W to 375W with various model numbers. The output voltage is available from 18V 30V 36V 60V 75V 120V 150V 300V 500V.

The high precision programmable linear DC power supply features low regulation 0.01%, low ripple and noise 1mVrms.  RS232 interface is configured for each programmable linear DC power supply, supporting SCPI commands.

A special feature of the high precision programmable linear DC power supply is lithium battery curved charge mode. It allow users to set high and low charging voltage/current during different charging stages.

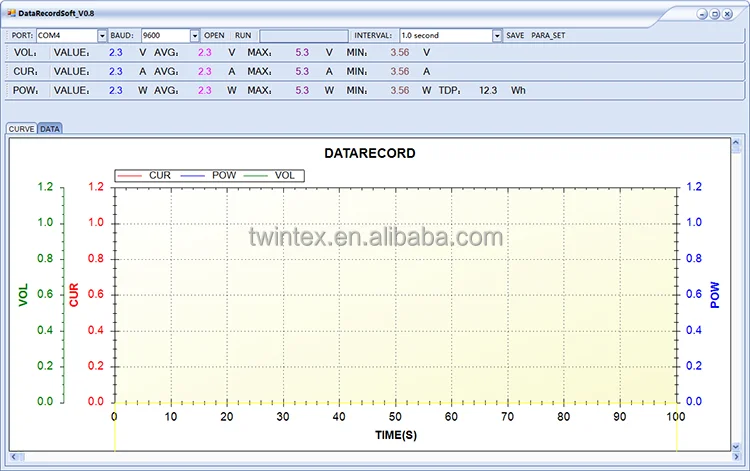

The high precision programmable linear DC power supply has been upgraded to have data record function through software, as well as RAMP output.

Features
>>> 01% low regulation, high accuracy and high resolution
>>> Over load, over voltage, over current, over temperature and reverse polarity protections
>>> Constant voltage and constant current operations, auto CV and CC switch
>>> Automatic continuous or dynamic load change
>>> 1mVrms low ripple & noise
>>> 3-inch backlit Segment LCD display
>>> High speed rotary dial and keypad input
>>> Built-in beeper alarm
>>> Panel lock and output ON/OFF function
>>> List mode function, 300 sets save & recall for voltage, current and time setups, easy use in auto test
>>> Remote sense function (except PPM-3H12, PPM-5H07)
>>>Display load resistance value
>>> Battery charge mode
>>> Standard RS-232 interface, Support SCPI & ModBus commands, support Labview
>>> Data record software
>>> Optional functions:
>>> 0-5V analog control (except PPM-3H12, PPM-5H07)


Selection Guide

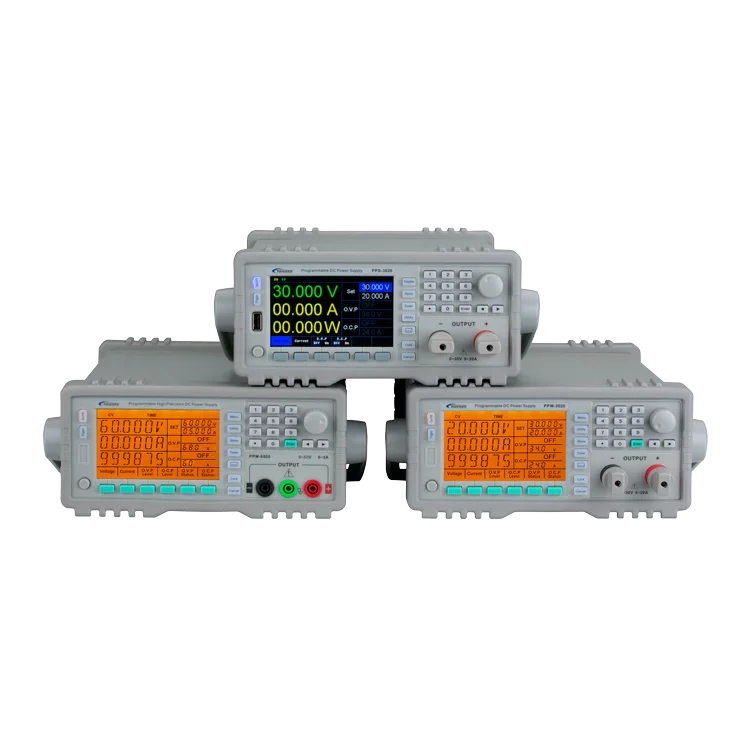

We have different series of laboratory programmable power supplies. Each of them has their own remarkable features.
PPA
PPS
PPW
PPM
Display
4.3-inch TFT
LCD
4.3-inch TFT
LCD
4.3-inch LCD
4.3-inch LCD
Working mode
Switching
Switching
Switching
Linear
Rated Power
 400W
 850W
1500W
 300W
 600W
900W
 300W
 600W
900W
90W~375W
Voltage Ripplec
50mVpp
30mVpp
30mVpp
1mVrms
Ramp output
√
√
×
×
USB Host
√
√
×
×
USB Device
×
×
×
×
RS232
√
√
√
√
RS485
√
√
Optional
Optional
Analog Control 0-5V
×
√
Optional
Optiona
Remote Sensing
√
√
√
√
Battery Charge Mode
√
√
√
√
Low resistance measurement
√
√
√
√
List Mode
√
√
√
√
19-Inch Rack Compatible
√
√
√
√
Data logger
Optional
Optional
Optional
×



Specifications (90W～180W)
Model
PPM-3003
PPM-3005
PPM-3603
PPM-3605
PPM-6003
PPM-6005
Rated output (0℃~40℃)
Voltage
0~32V
0~32V
0~40V
0~40V
0~64V
0~64V
Current
0~3.2A
0~5.5A
0~3.2A
0~5.5A
0~3.2A
0~5.5A
O.V.P
0.1~36V
0.1~36V
0.1~42V
0.1~42V
0.1~68V
0.1~68V
O.C.P
0.1~3.6A
0.1~6.0A
0.1~3.6A
0.1~6.0A
0.1~3.6A
0.1~6.0A
Constant Voltage Operation
Line regulation
≤0.01%+3mV
Load regulation
≤0.01%+3mV (I≤3A); ≤0.02%+5mV (I>3A)
Ripple & Noise
≤1mVrms (I≤3A); ≤2mVrms (I>3A) (5Hz~1MHz)
Recovery time
≤100us (50% load change, minimum load 0.5A)
Constant Current Operation
Line regulation
≤0.1%+3mA
Load regulation
≤0.1%+3mA (I≤3A); ≤0.1%+5mA (I>3A)
Ripple & Noise
≤3mArms (I≤3A), ≤6mArms (I>3A)
Display
Voltmeter
5 digits LCD display
Ammeter
5 digits LCD display
Setting resolution
1mV/0.1mA
Reading resolution
1mV/0.1mA
Setting accuracy
Voltage
±(0.03% of reading + 10mV) (25±5℃)
Current
±(0.1% of reading + 0.1% of FS) (25±5℃)
Reading accuracy
Voltage
±(0.02% of reading +5mV) (25±5℃)
Current
±(0.1% of reading + 0.1% of FS) (25±5℃)
General
Protection
Over load, over voltage, over current, over temperature and reverse polarity protections
Panel lock
Provided
Remote sense function
Maximum compensation voltage 5% of FS
Battery charge
Lithium battery curve charge
Interface
RS232 interface, Support SCPI & ModBus commands
Optional RS485 interface
Optional RS232 to USB cable
Optional 0-5V analog control
Memory
300 sets
Insulation
 Between base and terminals: ≥20MΩ/500VDC
Between base and AC power cord: ≥30MΩ/500VDC
Operating environment
Indoor use                             Altitude: ≤2000m            Ambient temperature: 0~40℃
Relative humidity: ≤80%     Installation category: II   Pollution degree: 2
Storage environment
-10℃~70℃, ≤70%RH
Power source
AC110V/220V±10% selectable, 50/60Hz
Accessories
Power cord x1, Operation manual x1, RS232 cable x1, Software CD x1
Dimension
215Wx89Hx352D mm
Weight
6.8kg
6.8kg
6.8kg
8kg
8kg
8kg


 Specifications (120W～375W)
Model
PPM-2010
PPM-3010
PPM-7503
PPM-7505
PPM-12001
PPM-12002
PPM-15H15
Rated output (0℃~40℃)
Voltage
0~22V
0~32V
0~80V
0~80V
0~128V
0~128V
0~160V
Current
0~11A
0~11A
0~3.2A
0~5.5A
0~1.1A
0~2.2A
0~1.6A
O.V.P
0.1~24V
0.1~36V
0.1~84V
0.1~84V
0.1~134V
0.1~134V
0.1~180V
O.C.P
0.1~12A
0.1~12A
0.1~3.6A
0.1~6.0A
0.1~1.2A
0.1~2.4A
0.1~1.8A
Constant Voltage Operation
Line regulation
≤0.01%+3mV
Load regulation
≤0.01%+3mV (I≤3A); ≤0.02%+5mV (I>3A)
Ripple & Noise
≤1mVrms (I≤3A); ≤2mVrms (I>3A); ≤3mVrms (V≥75V) (5Hz~1MHz)
Recovery time
≤100us (50% load change, minimum load 0.5A)
Constant Current Operation
Line regulation
≤0.1%+3mA
Load regulation
≤0.1%+3mA (I≤3A); ≤0.1%+5mA (I>3A)
Ripple & Noise
≤3mArms (I≤3A), ≤6mArms (I>3A)
Display
Voltmeter
5 digits LCD display
Ammeter
5 digits LCD display
Setting resolution
1mV/1mA
2mV/0.1mA
10mV/0.1mA
Reading resolution
1mV/1mA
1mV/0.1mA
10mV/0.1mA
Setting accuracy
Voltage
±(0.03% of reading + 10mV) (25±5℃)
Current
±(0.1% of reading + 0.1% of FS) (25±5℃)
Reading accuracy
Voltage
±(0.02% of reading +5mV) (25±5℃)
Current
±(0.1% of reading + 0.1% of FS) (25±5℃)
General
Protection
Over load, over voltage, over current, over temperature and reverse polarity protections
Panel lock
Provided
Remote sense function
Maximum compensation voltage 5% of FS
Battery charge
Lithium battery curve charge
Interface
RS232 interface, Support SCPI & ModBus commands
Optional RS485 interface
Optional RS232 to USB cable
Optional 0-5V analog control
Memory
300 sets
Insulation
 Between base and terminals: ≥20MΩ/500VDC
Between base and AC power cord: ≥30MΩ/500VDC
Operating environment
Indoor use                               Altitude: ≤2000m         Ambient temperature: 0~40℃
Relative humidity: ≤80%        Installation category: II Pollution degree: 2
Storage environment
-10℃~70℃, ≤70%RH
Power source
AC110V/220V±10% selectable, 50/60Hz
Accessories
Power cord x1, Operation manual x1, RS232 cable x1, Software CD x1
Dimension
215Wx89Hx352D mm
Weight
8kg
8.5kg
8kg
8kg
8.5kg
6.8kg
8kg



Specifications (240W～360W)
Model

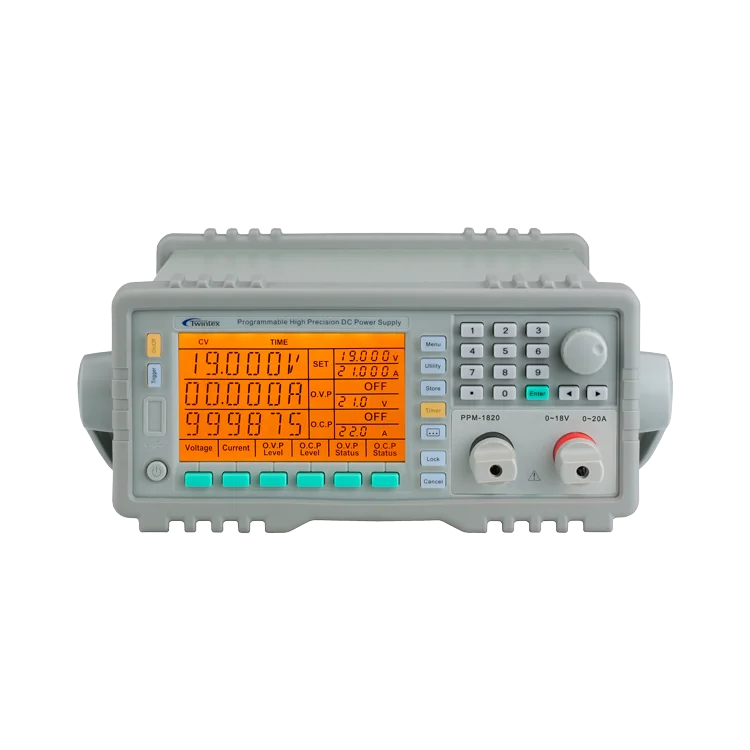

PPM-1820
PPM-12003
PPM-3H12
PPM-5H07
Rated output (0℃~40℃)
Voltage
0~19V
0~128V
0~330V
0~500V
Current
0~21A
0~3.2A
0~1.2A
0~0.7A
O.V.P
0.1~21V
0.1~134V
0.1~360V
0.1~550V
O.C.P
0.1~22A
0.1~3.6A
0.01~1.32A
0.01~0.8A
Constant Voltage Operation
Line regulation
≤0.01%+3mV
Load regulation
≤0.01%+3mV (I≤3A); ≤0.02%+5mV (I>3A)
Ripple & Noise (5Hz~1MHz)
≤1mVrms
≤2.5mVrms
≤10mVrms
≤10mVrms
Recovery time
≤100us (50% load change, minimum load 0.5A)
Constant Current Operation
Line regulation
≤0.1%+3mA
Load regulation
≤0.05%+3mA (I≤3A); ≤0.05%+5mA (I>3A)
Ripple & Noise
≤5mAms
≤1mAms
≤1mAms
≤1mAms
Display
Voltmeter
5 digits LCD display
Ammeter
5 digits LCD display
Setting resolution
1mV/1mA
10mV/0.1mA
10mV/0.1mA
10mV/0.1mA
Reading resolution
1mV/1mA
10mV/0.1mA
10mV/0.1mA
10mV/0.1mA
 Setting accuracy
(25±5℃)
Voltage
±(0.03% of reading + 10mV)
±(0.03% of reading + 30mV)
Current
±(0.1% of reading + 0.1% of FS)
 Reading accuracy
(25±5℃)
Voltage
±(0.02% of reading +5mV)
±(0.02% of reading +30mV)
Current
±(0.1% of reading + 0.1% of FS)
General
Protection
Over load, over voltage, over current, over temperature and reverse polarity protections
Panel lock
Provided
Remote sense function
Max. compensation voltage 0.5 of FS
X
X
Battery charge
Lithium battery curve charge
Interface
RS232 interface, Support SCPI & ModBus commands
Optional RS485 interface
Optional RS232 to USB cable
Optional 0-5V analog control
X
X
Memory
100 sets
Insulation
 Between base and terminals: ≥20MΩ/500VDC
Between base and AC power cord: ≥30MΩ/500VDC
Operating environment
Indoor use               Altitude: ≤2000m             Ambient temperature: 0~40℃
Relative humidity: ≤80%   Installation category: II  Pollution degree: 2
Storage environment
-10℃~70℃, ≤70%RH
Power source
AC110V/220V±10% selectable, 50/60Hz
Accessories
Power cord x1, Operation manual x1, RS232 cable x1, Software CD x1
Dimension
215Wx89Hx412D mm
Weight
9.8kg
9.8kg
10.2kg
10.2kg
