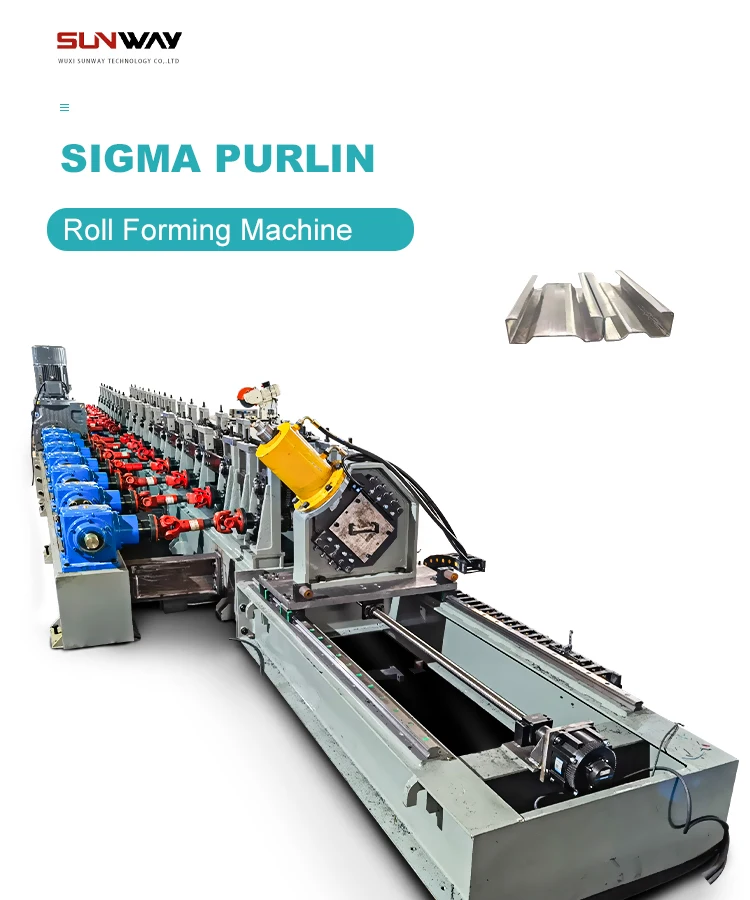

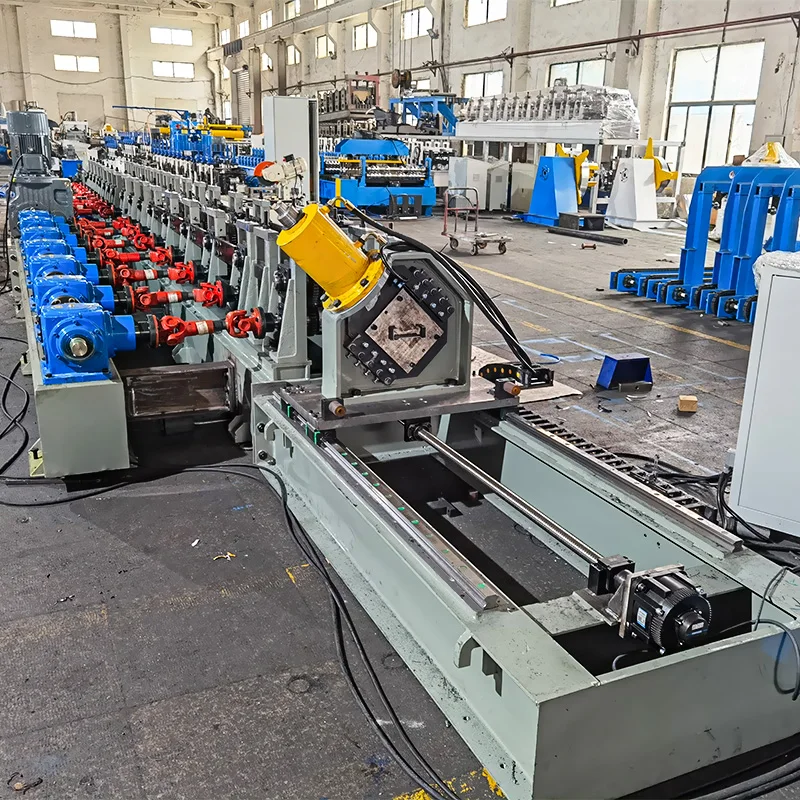

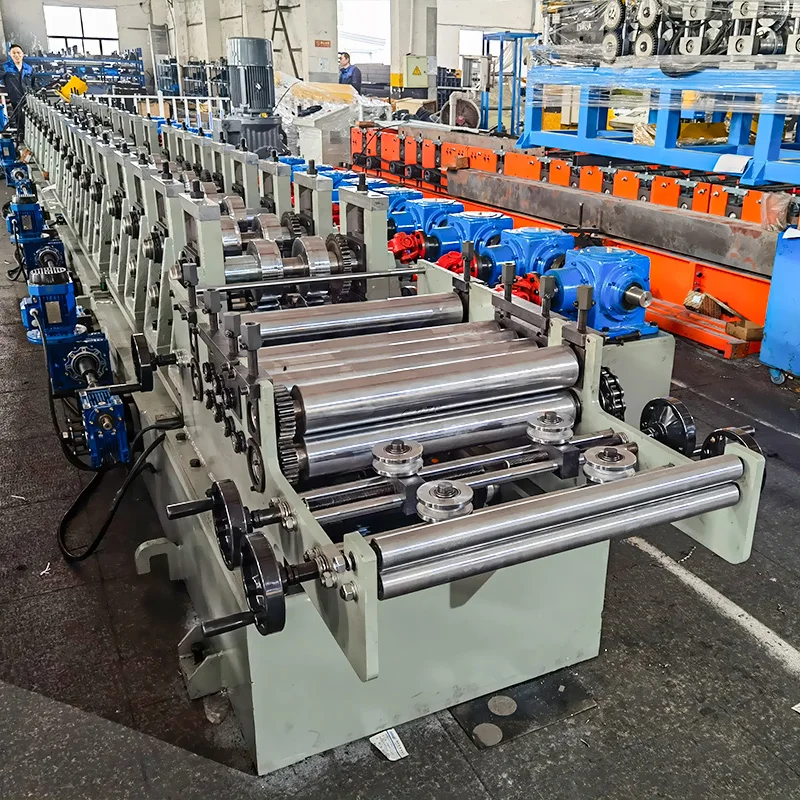

Sigma Purlin Making Roll Forming Machine Building Material Sigma Purlin Roll Forming Machine
- Category: >>>
- Supplier: Wuxi Sunway Machinery Co. Ltd.Wuxi Ltd.
Share on (1600720641006):
Product Overview
Description
Product Description
This Sigma purlin roll forming machine also named M Purlin Roll Forming Machine is used to produce M shape purlins from 80-300mm of width, normally its material thickness is 1.5-3mm, also Maximum thickness can be formed at 4.0-6.0mm according to customer requirement.
SUNWAY design this machine to work with any size of the purlin, automatically adjustable sizes by PLC or manually adjust handle wheel to change the sheet width to get different width and height. This is much more easily than adjust the spacers and can save more time. Regarding the punching unit, we can design pre punching, post punching according to your requirement. For cutting unit, you can choose the pre-cut or post-cut which is universal cutting. The driving system we adopt the chain and mostly with gimbal /gearbox for transmission if the raw material is thicker than 2.5mm,this is much more strong driving power and more stable when forming the purlins.
SUNWAY design this machine to work with any size of the purlin, automatically adjustable sizes by PLC or manually adjust handle wheel to change the sheet width to get different width and height. This is much more easily than adjust the spacers and can save more time. Regarding the punching unit, we can design pre punching, post punching according to your requirement. For cutting unit, you can choose the pre-cut or post-cut which is universal cutting. The driving system we adopt the chain and mostly with gimbal /gearbox for transmission if the raw material is thicker than 2.5mm,this is much more strong driving power and more stable when forming the purlins.
Purlin roll forming machine is the most popular and has an extensive use in Metal Building Systems, Huge Roofing Solutions, Construction and Renovation Projects etc. Our Purlin roll forming machine could produce C purlin, U purlin, Z purlin. According to your section profile, size range, thickness range we could provide you different solutions of purlin roll forming machine to manufacture a complete range of structual purlins (height and width change using automatic system by motors): If you only need to produce few sizes, we also suggest manually change sleeves, it’s more affordable.
We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your all requirements. Whichever line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly functional profiles.
We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your all requirements. Whichever line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly functional profiles.

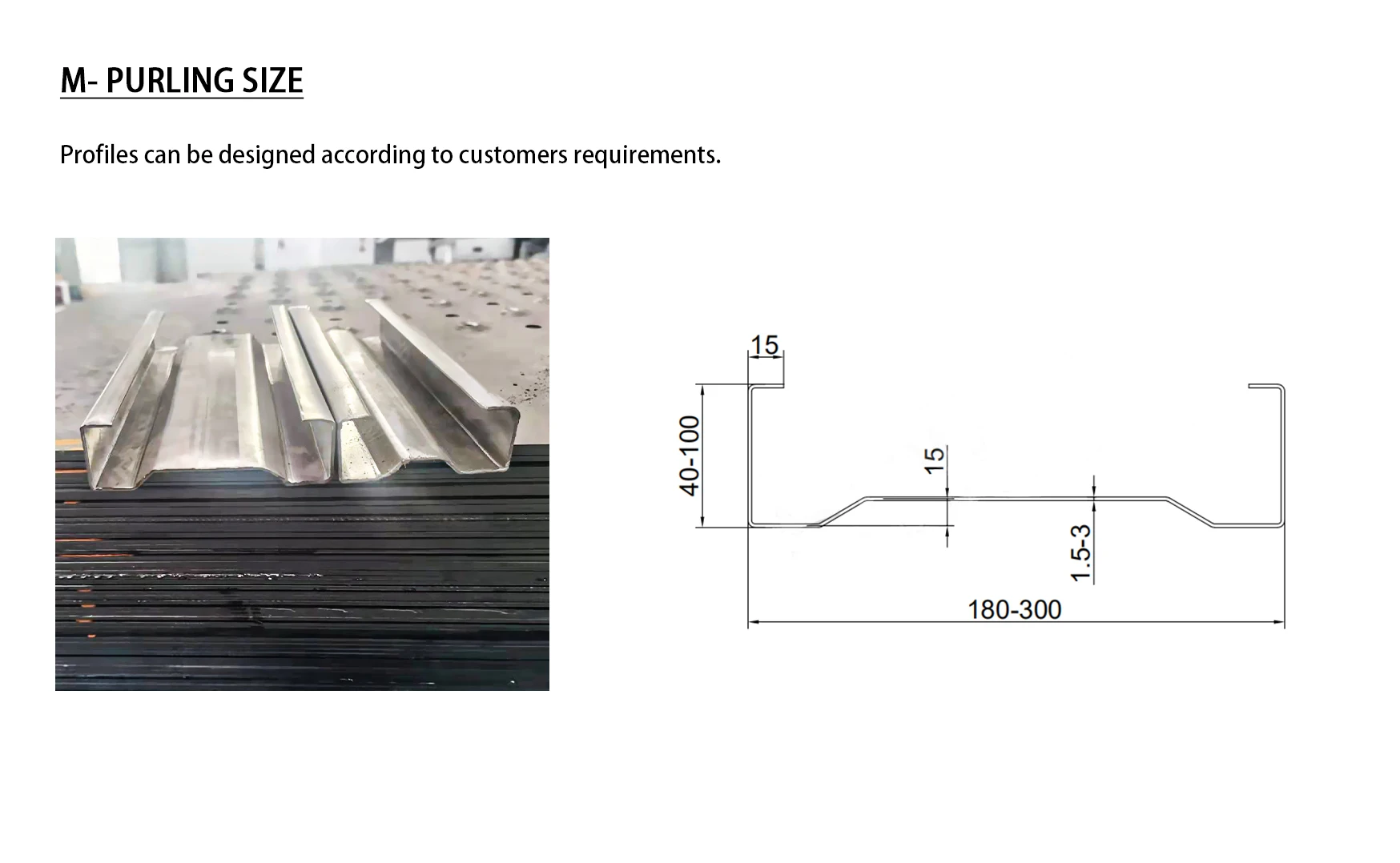

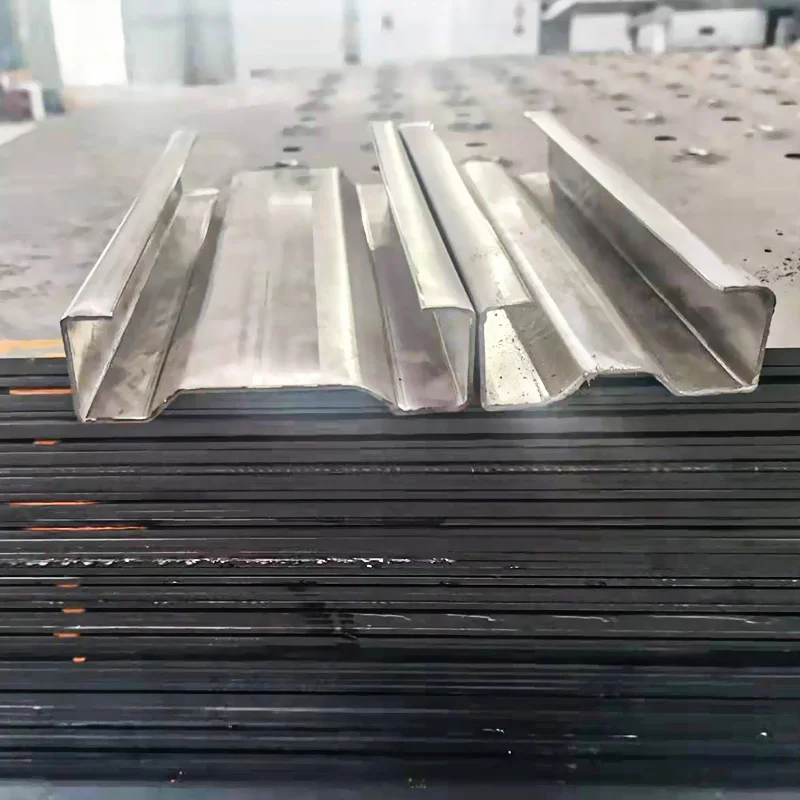

Profile Drawings

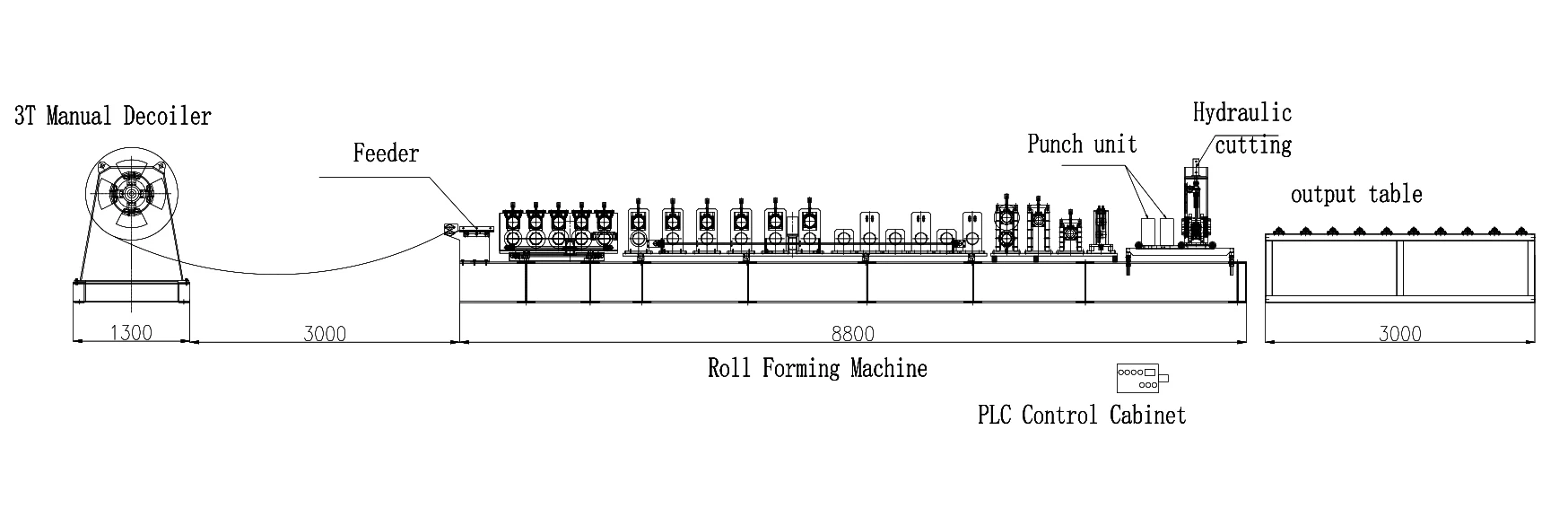

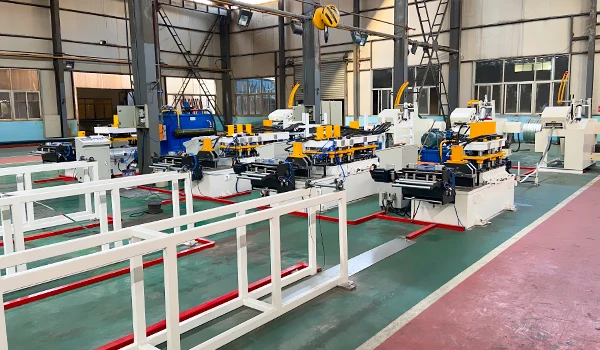

Production Line
Product Details

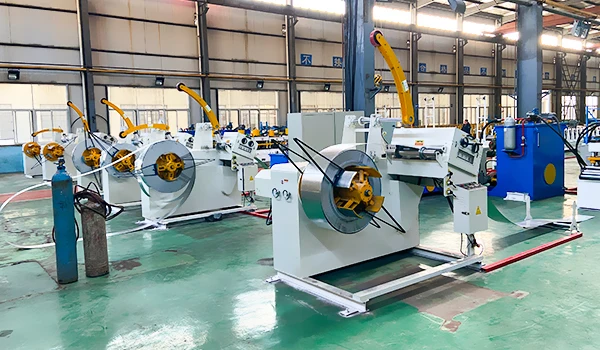

Manual Decoiler
Hydraulic Decoiler
Pre Punching Unit
Post Punching Unit

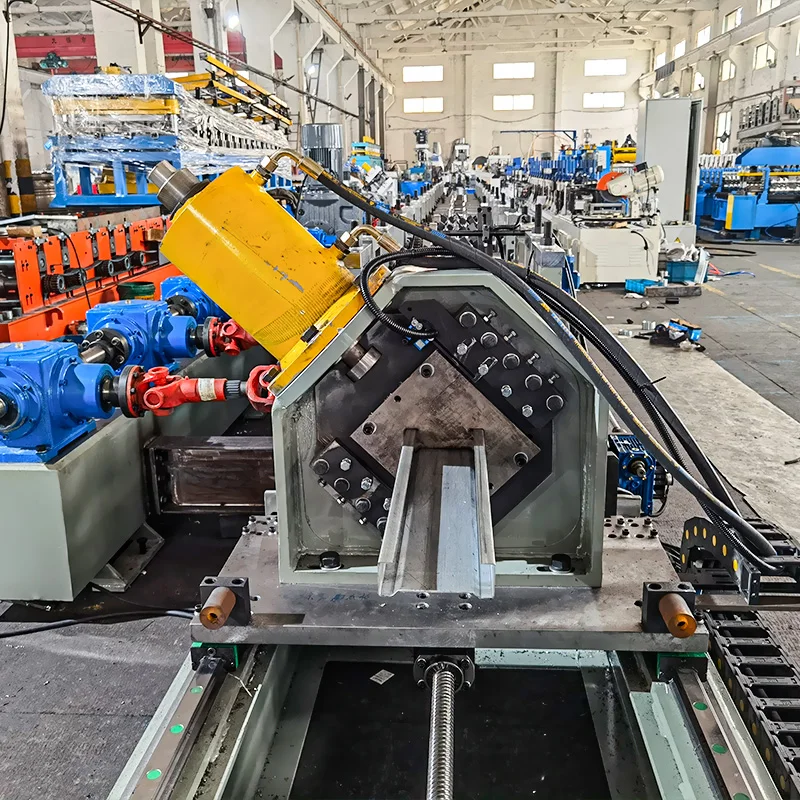

Pre-Cutter

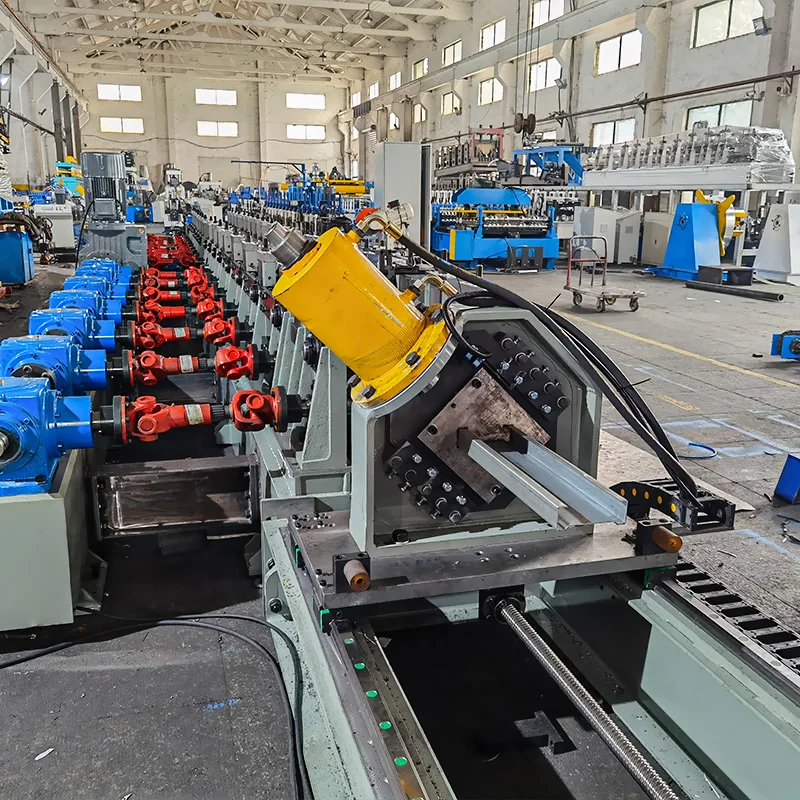

Post Cutter

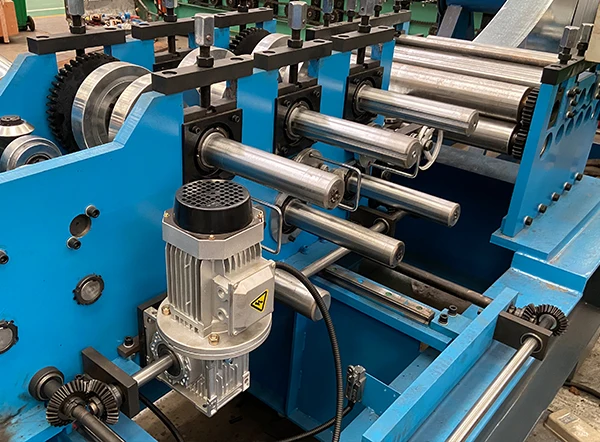

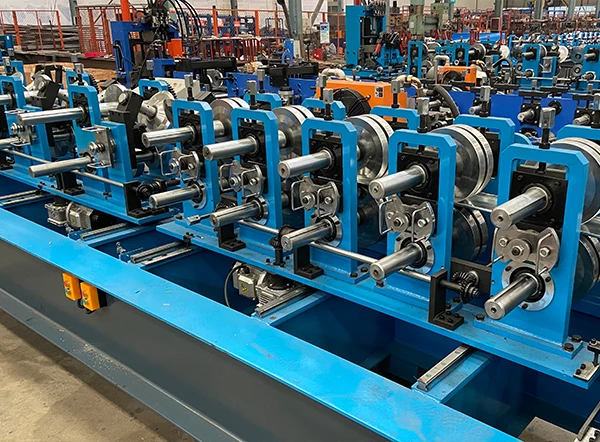

Sizes Automatic Changeable Roll Former
Product Paramenters
Auto Size Changeable Sigma Purlin Roll Forming Machine | ||||
Machinable Material | A) Galvanized Coil | Thickness(MM): 1.5-3 or as per customer | ||
B) Carbon Steel Coil | ||||
Yield Strength | 250 - 550 Mpa | |||
Tensil Stress | G350 Mpa-G550 Mpa | |||
Decoiler | Manual Decoiler | * Hydraulic Decoiler (Optional) | ||
Punching System | Hydraulic Punching Station | * Pre-punch / Post Punch (Optional) | ||
Forming Station | About 16 Stations | |||
Driving System | Chain Drive | * Gearbox Drive (Optional) | ||
Machine Structure | Wall Panel Station | * Forged Iron Station (Optional) | ||
Forming Speed | 10-20 (M/MIN) | * Or According To Your Requirment | ||
Rollers’ Material | GCr 15 | * Cr12Mov (Optional) | ||
Cutting System | Pre-cutting | * Post- universal Cutting (Optional) | ||
Frequency Changer Brand | Yaskawa | * Siemens (Optional) | ||
PLC Brand | Panasonic | * Siemens (Optional) | ||
Power Supply | 380V 50Hz | * Or According To Your Requirment | ||
Machine Color | Industrial Blue | * Or According To Your Requirment | ||

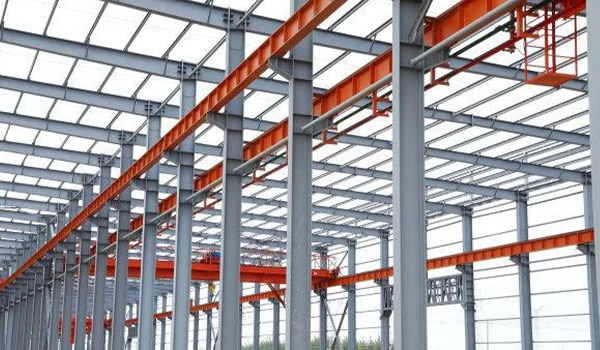

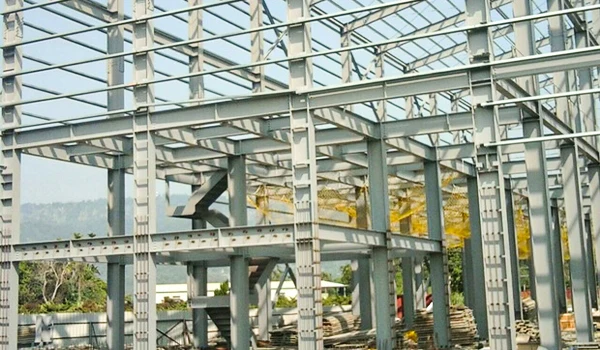

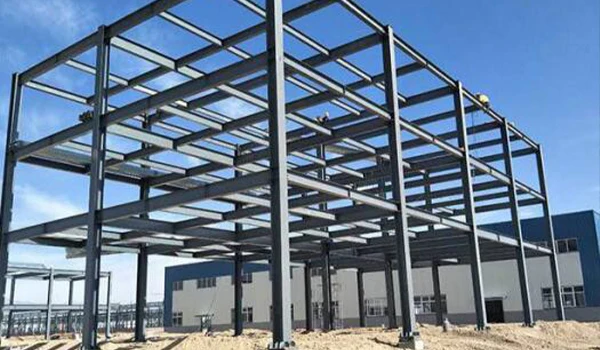

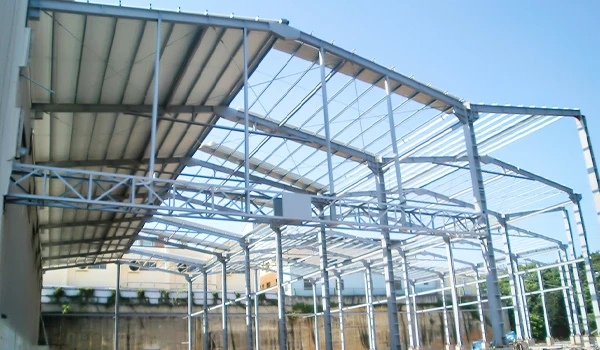

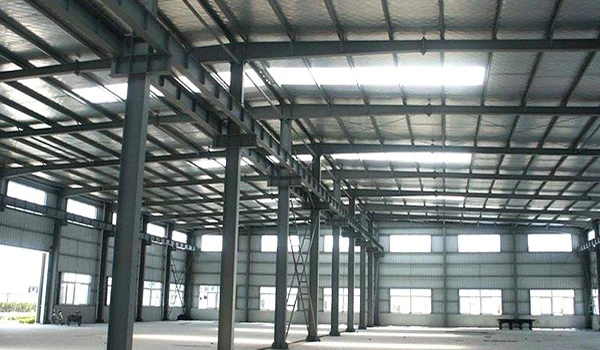

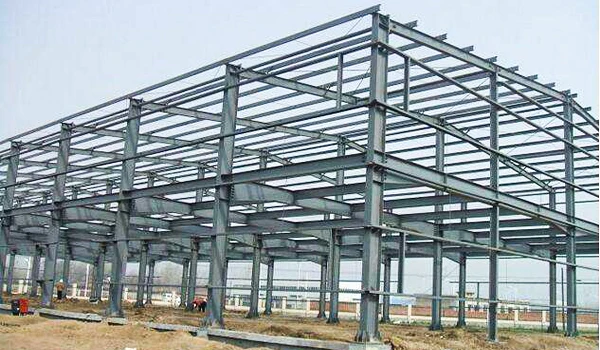

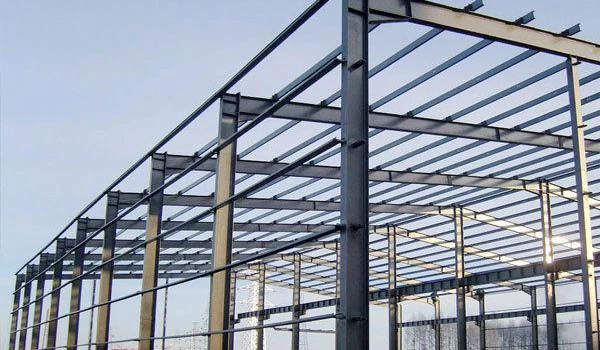

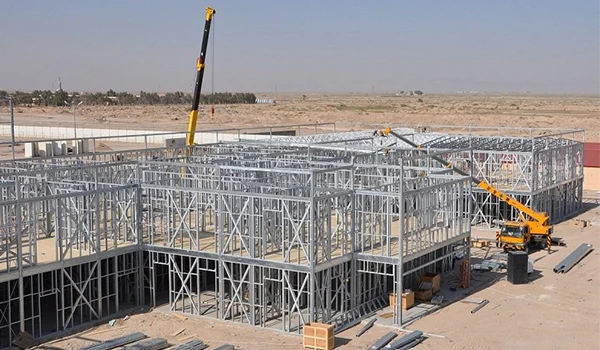

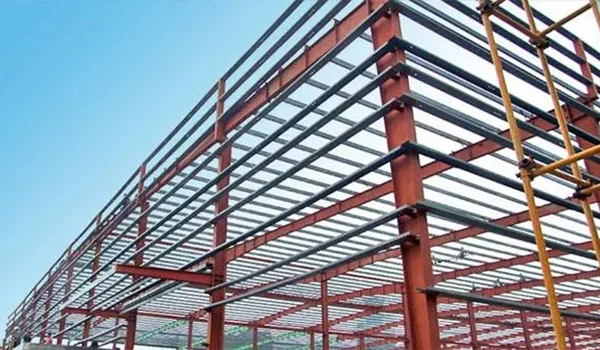

Application

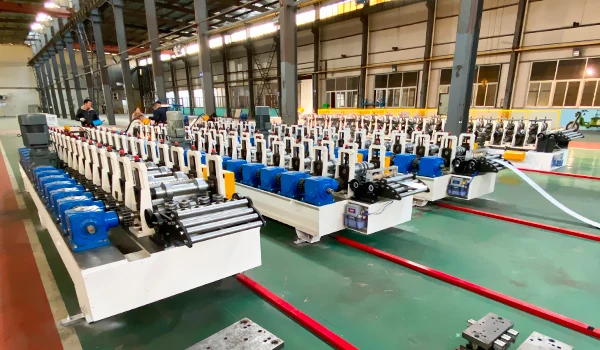

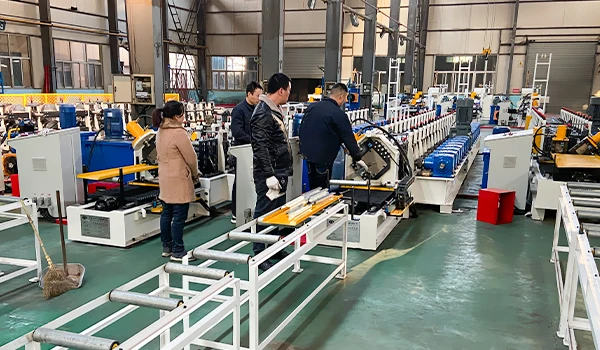

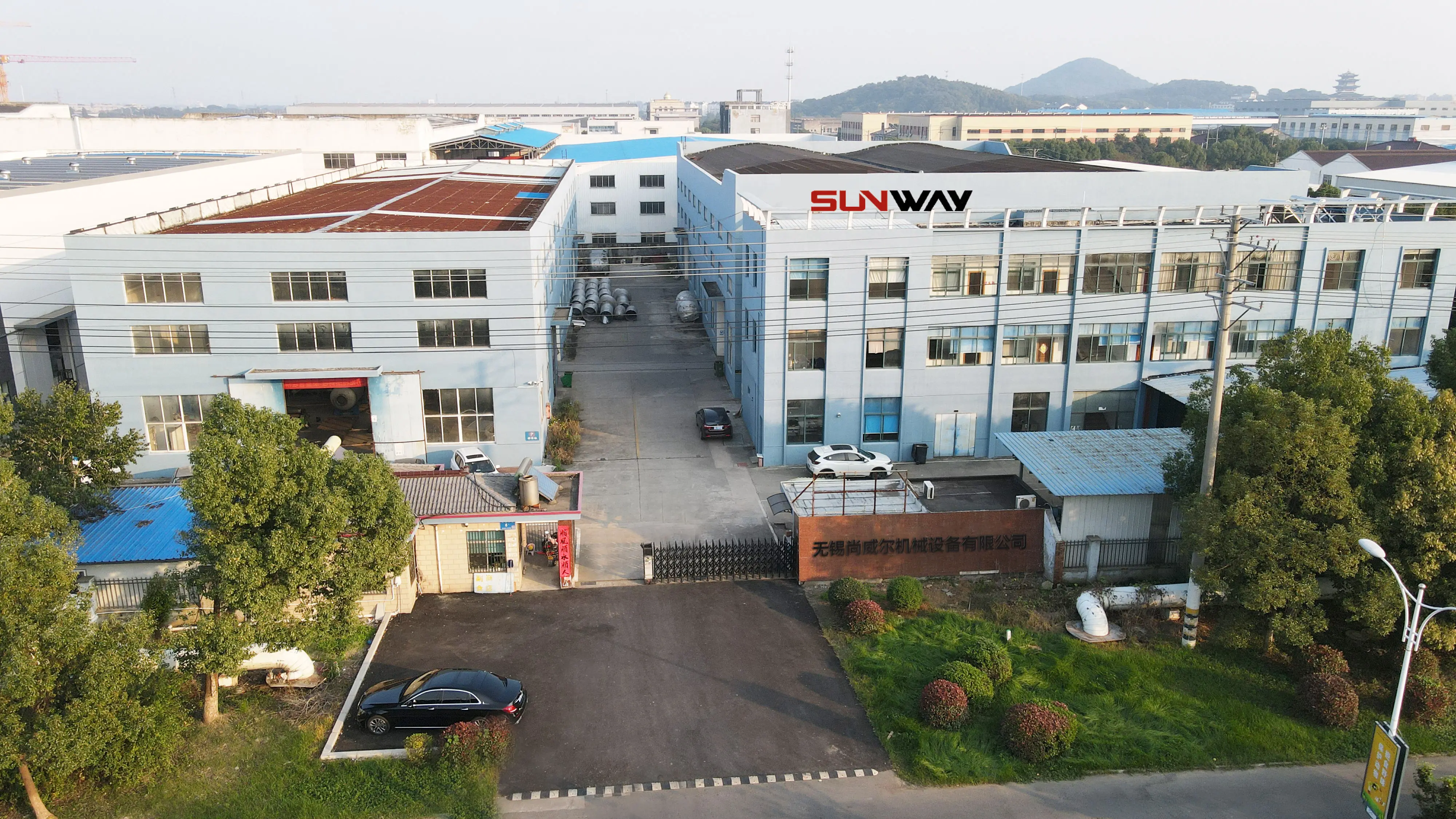

Company Profile
WUXI SUNWAY MACHINERY CO.,LTD is a professional manufacturer and exporter that are concerned with the design, development and production of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on. It has gained a global sales network.
Our machines feature beautiful appearance, long service life, good performance, simple operation, reasonable price, good quality and so on. Strong technical resources are the most stable guarantee for our products' quality. Our company is specialized in manufacturing different kinds of cold roll forming machines, such as color steel sheet forming machines for roof & wall, C and Z purling machines for steel structure, steel profiles forming machines for professional applications, slitting machines for processing raw material, especially in manufacturing Solar Mounting Bracket Machines which are widely used in Photovoltaic field.
SUNWAY always adhere to Dedication, Unity, Innovation, Win-win situation, as spirit of enterprise. In accordance with High Quality Assurance and Valued Credibility, we provide customers high qualified and reliable products with complete after-sales service. Our company is looking forward to establishing successful and long-term business relationships with all clients around the world in the near future.
FAQ
Q: Are you a manufacturer or trading company?
A:We are factory with professional production team and service consciousness just for exporting various types of roll forming machine.
Q: Do you have after sales support?

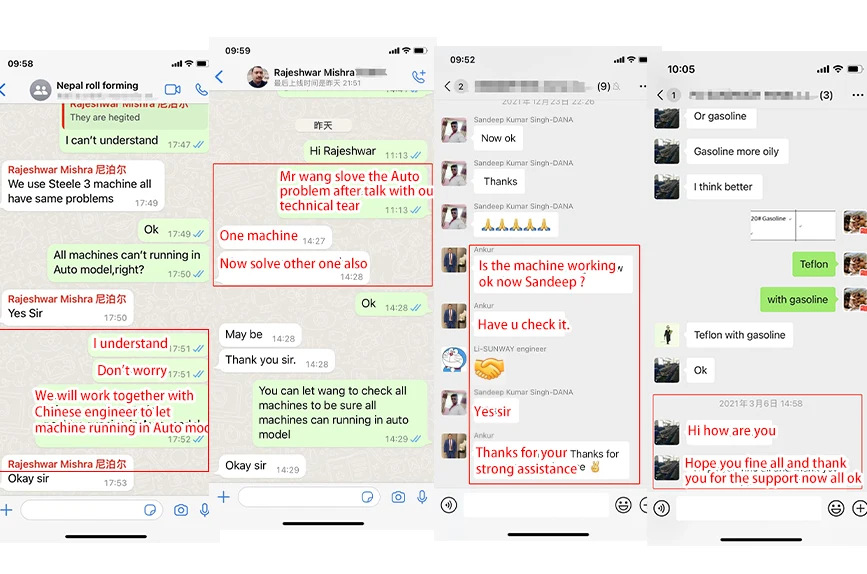

A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.
Q: What's your payment terms?
A: 30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
Q: What can you do if the machine broken?
A: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBABA’s Gold supplier with BV assessment and CE certificate.
Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers’ specifications, using famous brand components.
Q: How to visit our company?
A: Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
A:We are factory with professional production team and service consciousness just for exporting various types of roll forming machine.
Q: Do you have after sales support?
A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.
Q: What's your payment terms?
A: 30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
Q: What can you do if the machine broken?
A: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBABA’s Gold supplier with BV assessment and CE certificate.
Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers’ specifications, using famous brand components.
Q: How to visit our company?
A: Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
