2022 New CNC Controller 3/4 Axis DDCS V4.1 With 1474MPG Pendant CNC Motion Controller For CNC Wood Milling Machine
- Category: >>>
- Supplier: Shenzhen Digital Dream Numerical Technology Co. Ltd.
Share on (1600720670487):
Product Overview
Description
Professional original CNC controller manufacturer and has a warehouse in the USA
Products Description
The DDCS V4.1 3~4 axes standalone motion controller for stepper and servo systems, is upgraded from DDCS V3.1 on software and hardware. DDCS V4.1 Brief technical features as following:
1) 18 photoelectric isolated digital inputs, 3 photoelectric isolated digital outputs;
2) The spindle can be configurated as Analog spindle(0~10V) and also Servo spindle;
3) 3-4 axes motor Control. Differential Mode and Double Pulse Mode output signal for optional, Maximum interpolation pulse output frequency is 500Khz/Axis, 2-4 Axis linear interpolation, any 2 axis circular interpolation;
4) ARM9 main control chip, FPGA core algorithm chip;

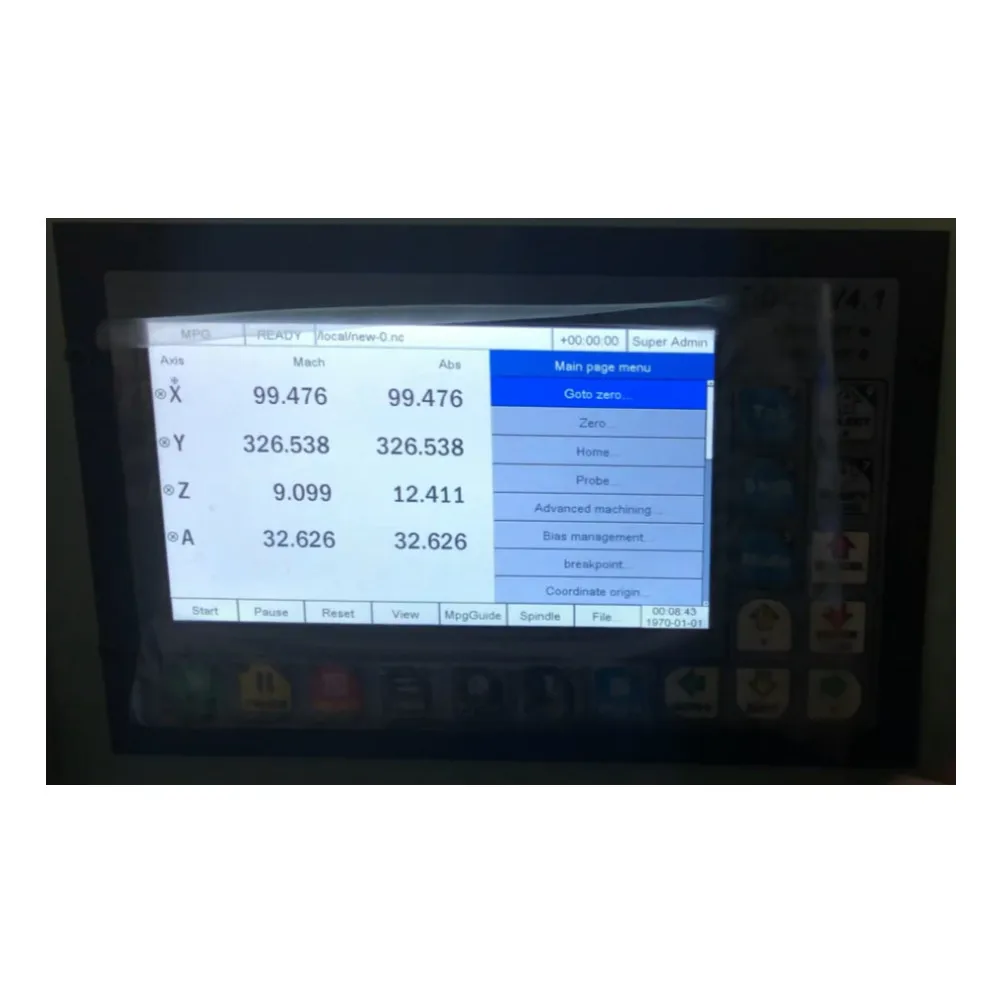

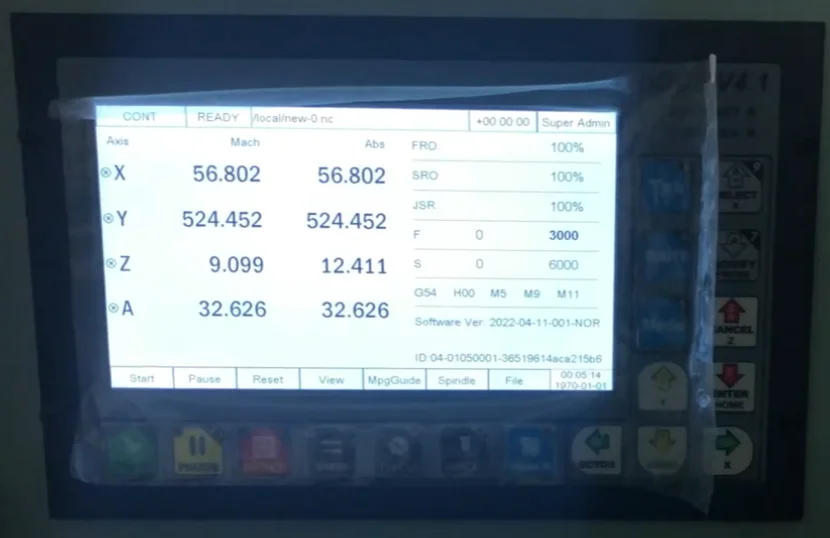

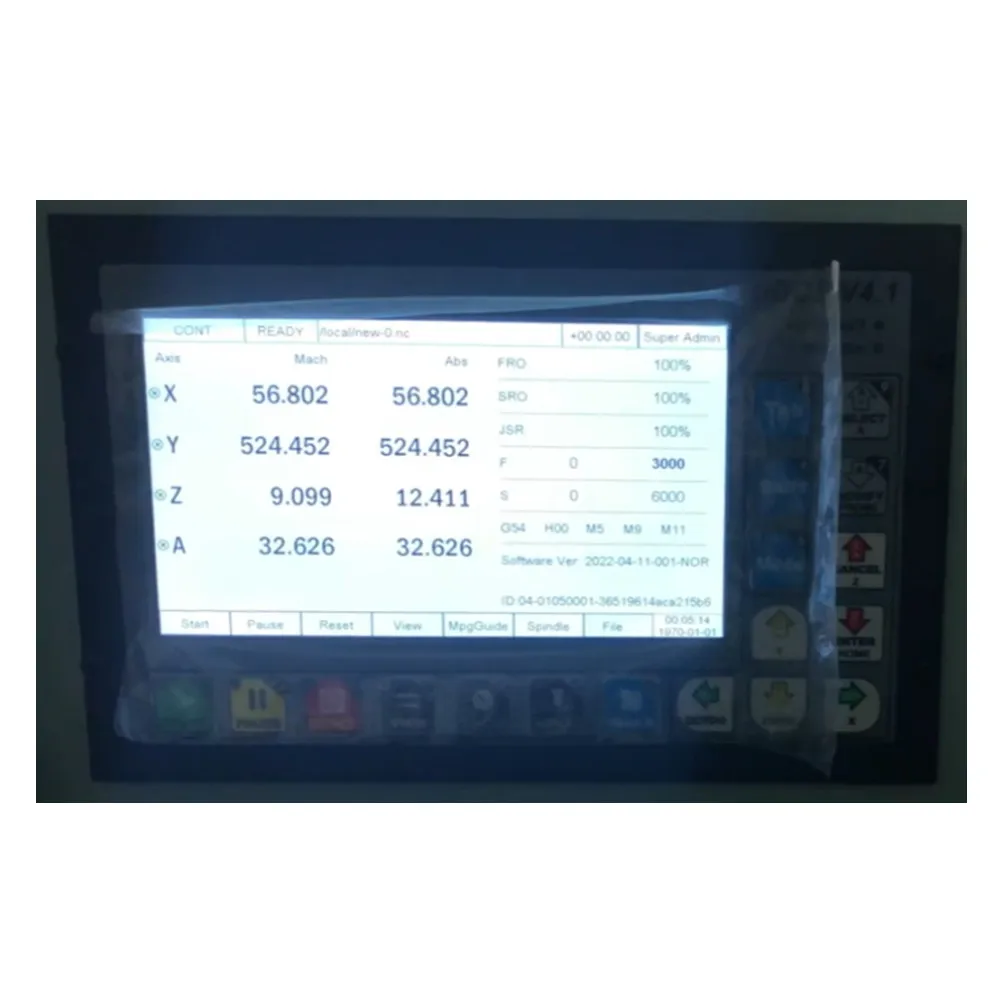

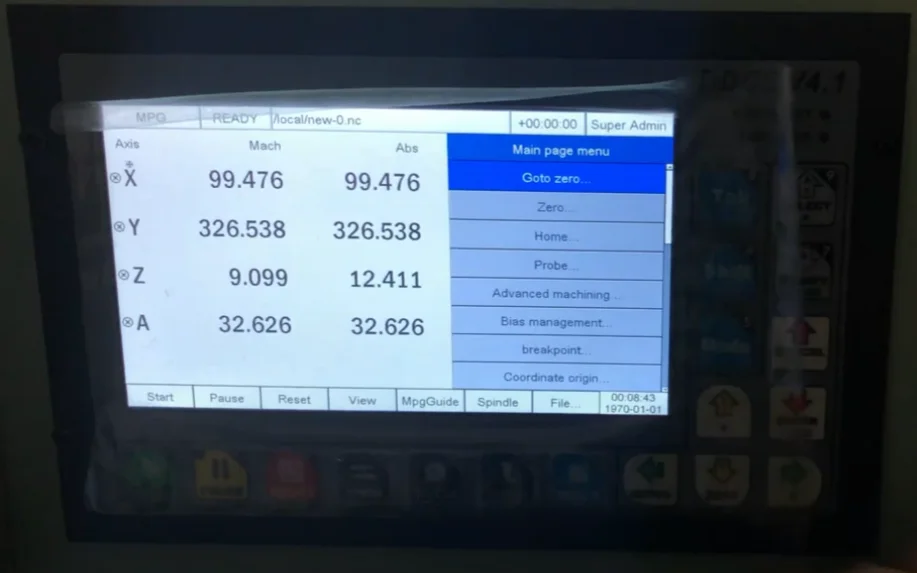

5) 7 inches TFT screen, Size 1024x600 Pixels, Resolution：72 Pixels/Inch, 17 operation keys;
6) The Power Supply for IO Port is 24VDC, minimum current is 0.5A, the Power Supply for Controller system is also 24VDC, minimum current is 0.5A. Controller needs both power to work properly;
7) USB flash disk support for G code file input; Can transfer the files by Ethernet communication between the computer and DDCS V4.1 controller, No size limited of the G-code file;
8) Compatible with standard G-code, support popular CAD/CAM software, such as ArtCam, MasterCam, ProE, JDSoft SurfMill, Aspire, Fusion 360 and so on;

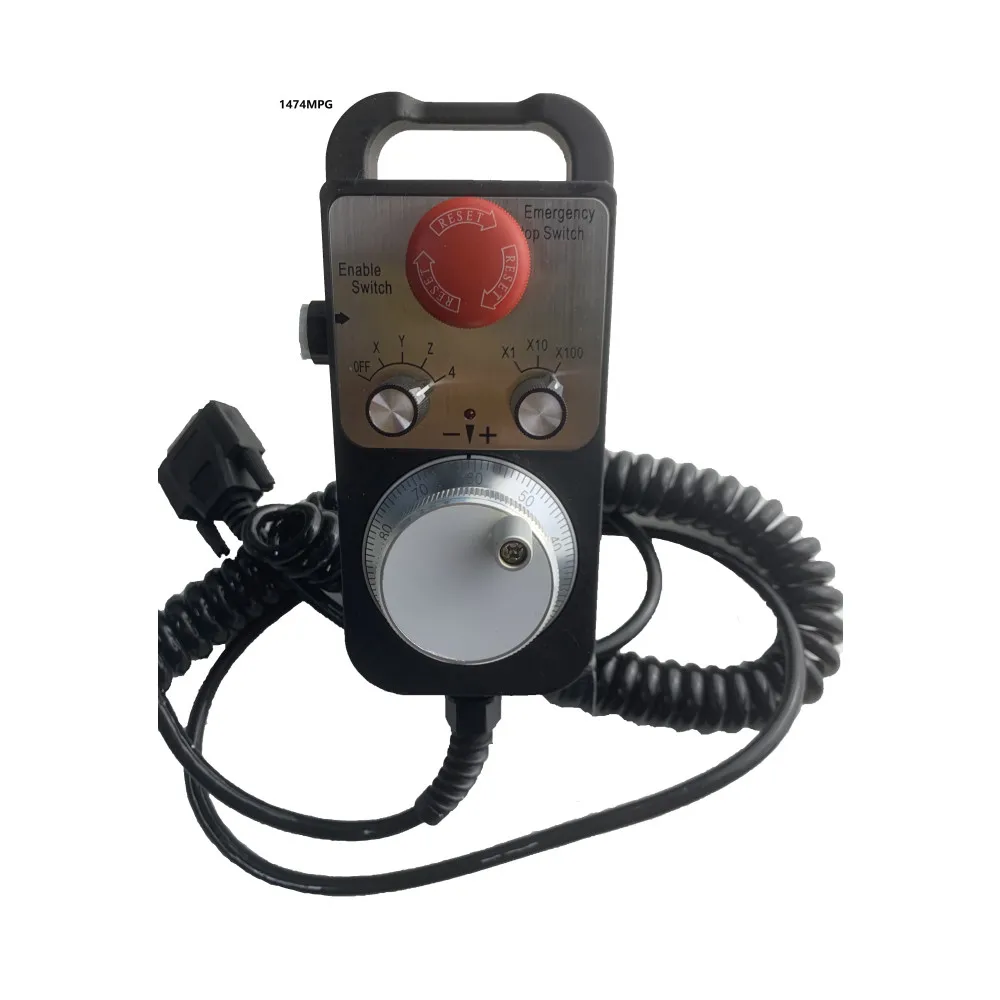

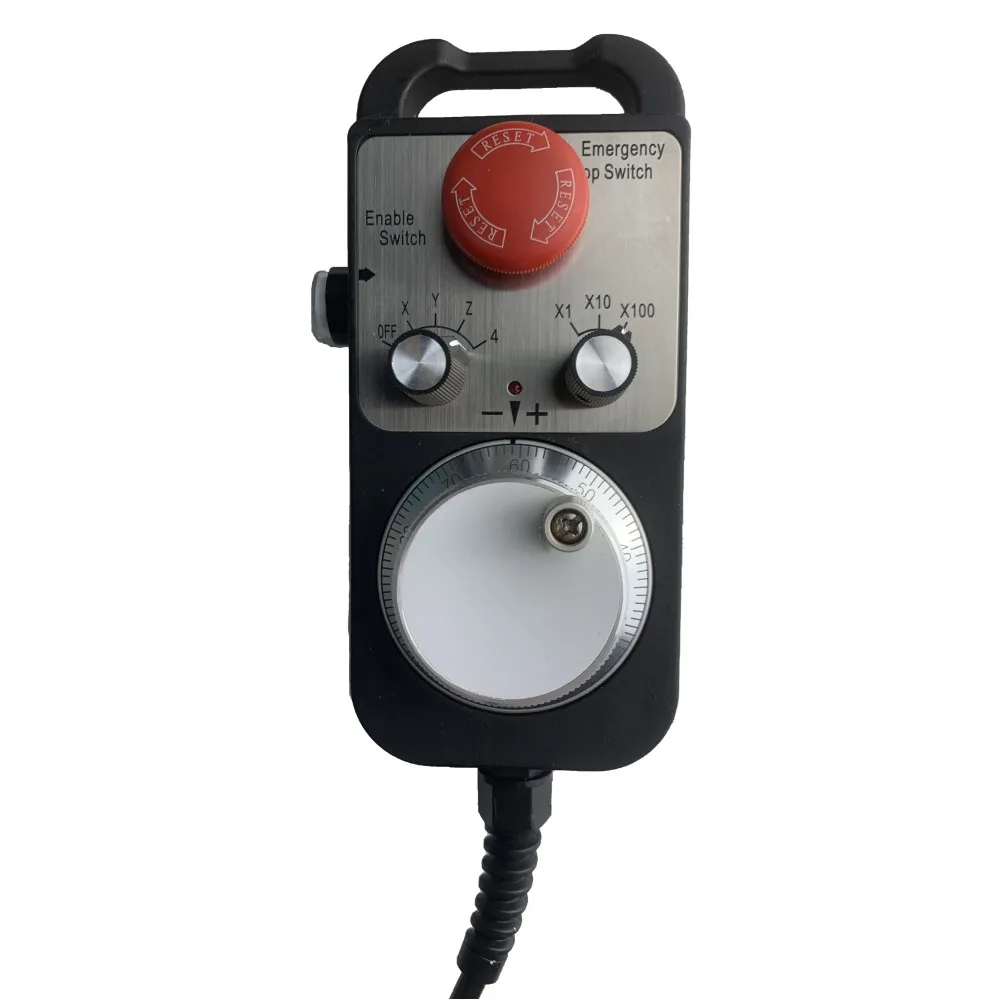

9) Support standard MPG;
10) Support function of “Try cutting” (handwheel guiding) function;
2) The spindle can be configurated as Analog spindle(0~10V) and also Servo spindle;
3) 3-4 axes motor Control. Differential Mode and Double Pulse Mode output signal for optional, Maximum interpolation pulse output frequency is 500Khz/Axis, 2-4 Axis linear interpolation, any 2 axis circular interpolation;
4) ARM9 main control chip, FPGA core algorithm chip;
5) 7 inches TFT screen, Size 1024x600 Pixels, Resolution：72 Pixels/Inch, 17 operation keys;
6) The Power Supply for IO Port is 24VDC, minimum current is 0.5A, the Power Supply for Controller system is also 24VDC, minimum current is 0.5A. Controller needs both power to work properly;
7) USB flash disk support for G code file input; Can transfer the files by Ethernet communication between the computer and DDCS V4.1 controller, No size limited of the G-code file;
8) Compatible with standard G-code, support popular CAD/CAM software, such as ArtCam, MasterCam, ProE, JDSoft SurfMill, Aspire, Fusion 360 and so on;
9) Support standard MPG;
10) Support function of “Try cutting” (handwheel guiding) function;
11）Support Jog function for each axis (continuous, step, defined distance), Customer can define the distance;
12）Support Float Probe, Fix Probe, Vertex Probe and Tool Length Measurement;
13) Support the operation of quickly go to specify line and closest position;
12）Support Float Probe, Fix Probe, Vertex Probe and Tool Length Measurement;
13) Support the operation of quickly go to specify line and closest position;
14) Support Array Machining, Sequence Machining, Milling Plane Machining, and Milling cylindrical machining;
15) Support Bias for XYZA axis, and can define the Bias distance;
16) Support Pause breakpoint, Power-Cut Recovery Breakpoint and loaded breakpoint; And Support Start from the specific line and closest line;
17) Support Multiple origin points operation, the users can create an origin point and load it;
18) Support Find Middle for X and Y axis;
19) Improved the simulation function. During the simulation, you can adjust the FRO and observe whether the programming path meets the expectations and check the soft limits. During the simulation, it can be paused, and when press the Start key again, the system will continue to simulate from the pause breakpoint;
20) Slave X, Slave Y Or Slave Z, for Gantry machine with two independent motors on main axes;
15) Support Bias for XYZA axis, and can define the Bias distance;
16) Support Pause breakpoint, Power-Cut Recovery Breakpoint and loaded breakpoint; And Support Start from the specific line and closest line;
17) Support Multiple origin points operation, the users can create an origin point and load it;
18) Support Find Middle for X and Y axis;
19) Improved the simulation function. During the simulation, you can adjust the FRO and observe whether the programming path meets the expectations and check the soft limits. During the simulation, it can be paused, and when press the Start key again, the system will continue to simulate from the pause breakpoint;
20) Slave X, Slave Y Or Slave Z, for Gantry machine with two independent motors on main axes;
21) Now English and Chinese language are available; System also support International coding, almost support all languages, the users can add their own language to the control system;
22) DDCS V4.1 Only Supports NPN Type Limited Switch;
22) DDCS V4.1 Only Supports NPN Type Limited Switch;

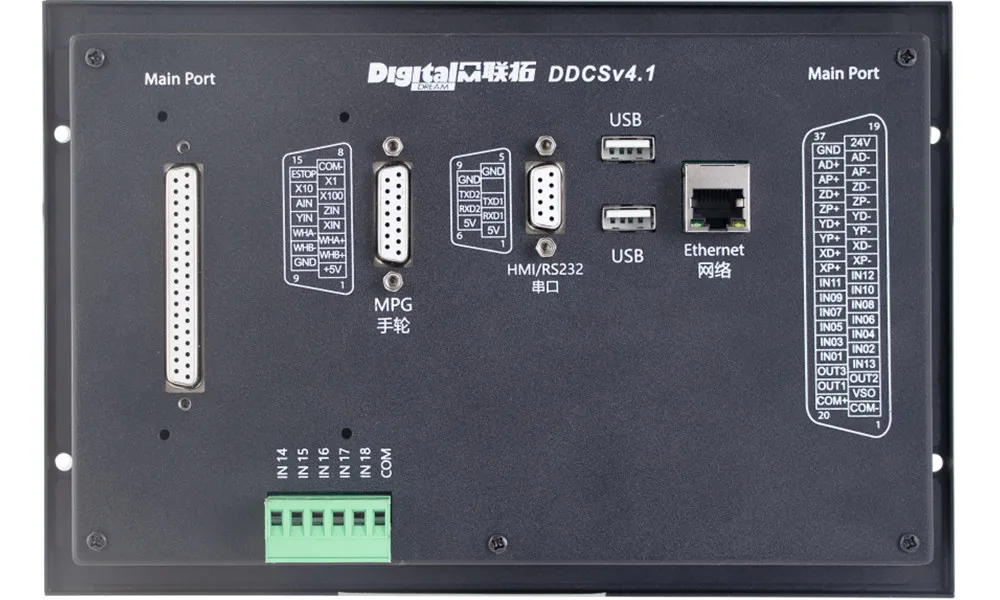

23) With 2 USB ports and 1 Ethernet port
24) Added Polar coordinate programming commands, Rotation commands, and completed Radius compensation commands on DDCS V4.1 controller;
25) Upgrades the motion algorithm, by Machining profile accuracy configuration, makes a long g-code program with short line segments running smoother;
26) No matter how big program file it is, system can quickly active the function of Start from specified line and Start from closest point in few seconds;
27) Added driver alarm input ports, and can configurate the ports number.as you want (Same as DDCS-Expert);
28) Added cycle encoder for A axis, which is good for unlimited rotation for A axis;
29) Added the window for analysis prompt;
30) Increased the Parameters about the acceleration when E-stop, to avoid collision by Stop when E-stop the machine in high speed, edit the related parameters and system can give a smooth stop, this means there is no position loss;
27) Added driver alarm input ports, and can configurate the ports number.as you want (Same as DDCS-Expert);
28) Added cycle encoder for A axis, which is good for unlimited rotation for A axis;
29) Added the window for analysis prompt;
30) Increased the Parameters about the acceleration when E-stop, to avoid collision by Stop when E-stop the machine in high speed, edit the related parameters and system can give a smooth stop, this means there is no position loss;
31) System FPGA cited 32-bit speed generator, with higher resolution for the speed / acceleration, it means higher positioning accuracy;
32) Support 4 kinds operation rights: visitor, operator, admin, super admin.
Brand: | Digital Dream | Warranty: | 1Year | ||
Model: | DDCS V4.1 + 1474MPG | Axis Optional: | 3Axis / 4Axis | ||
MOQ: | 1pc | Stock: | Rich | ||

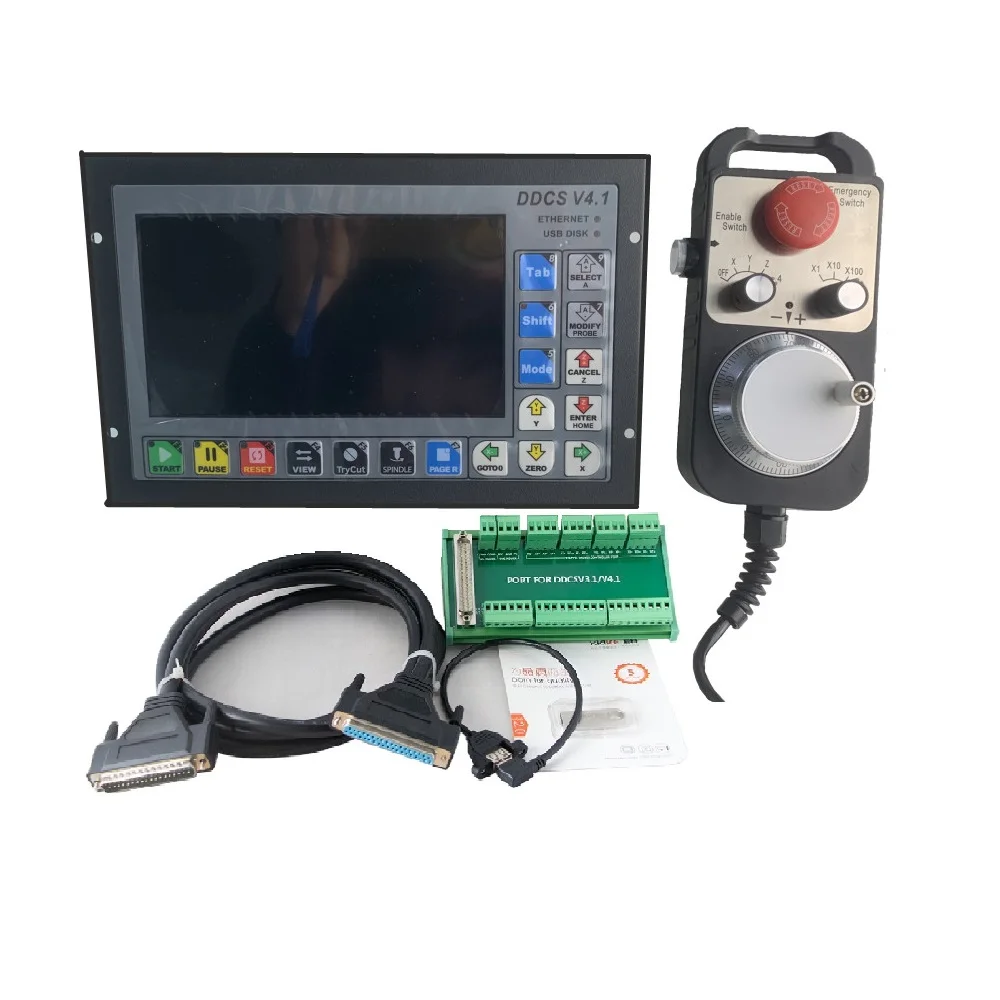

1Package Includes: | 1 × DDCSV4.1 CNC offline controller (3/4 axis optional) 1 x1474MPG handwheel 1 x DB37 Cable 2meters, ( for the wiring between the board and controller) 1 x Wiring terminal board (for DDCS V4.1 and DDCS V3.1) 1 x 4GB USB flash drive and USB extension cable 29cm 1 x DB-15 Male plug for MPG connection 1 x star/pause/stop/com terminal 1 x other small accessories | ||||

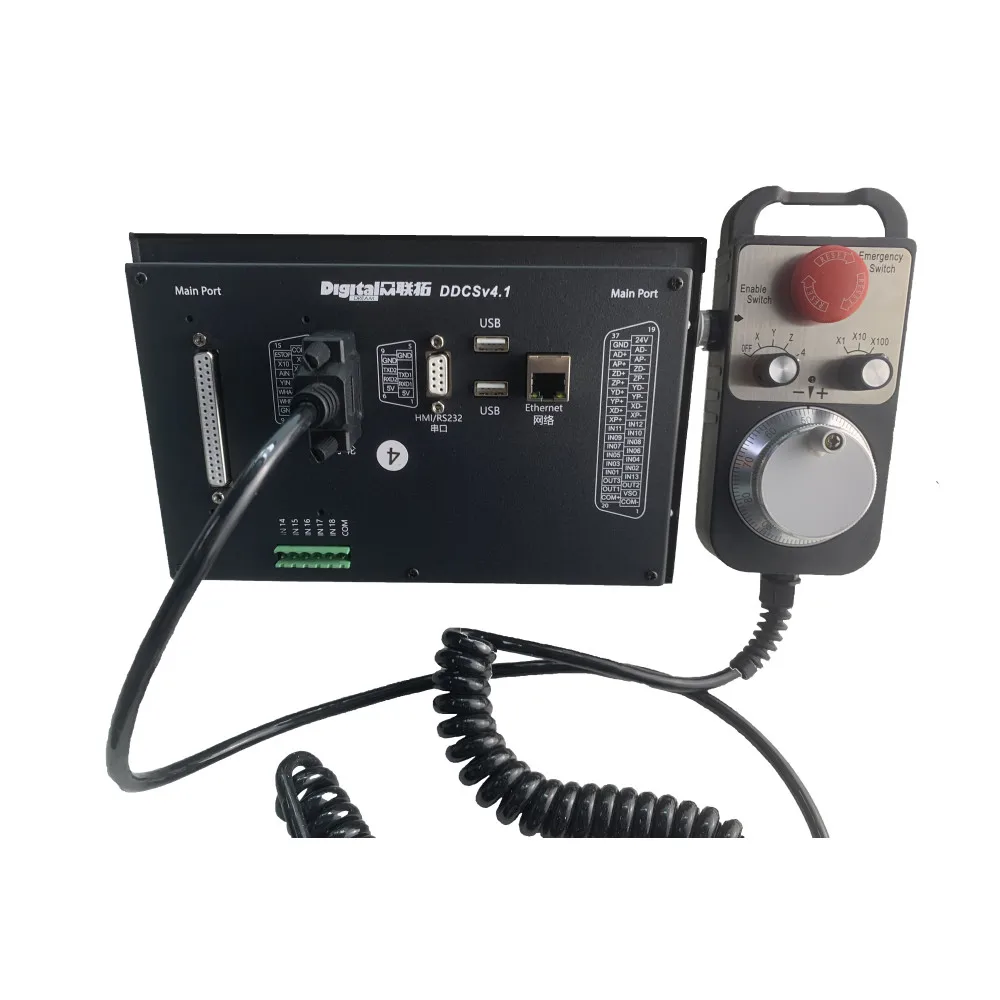

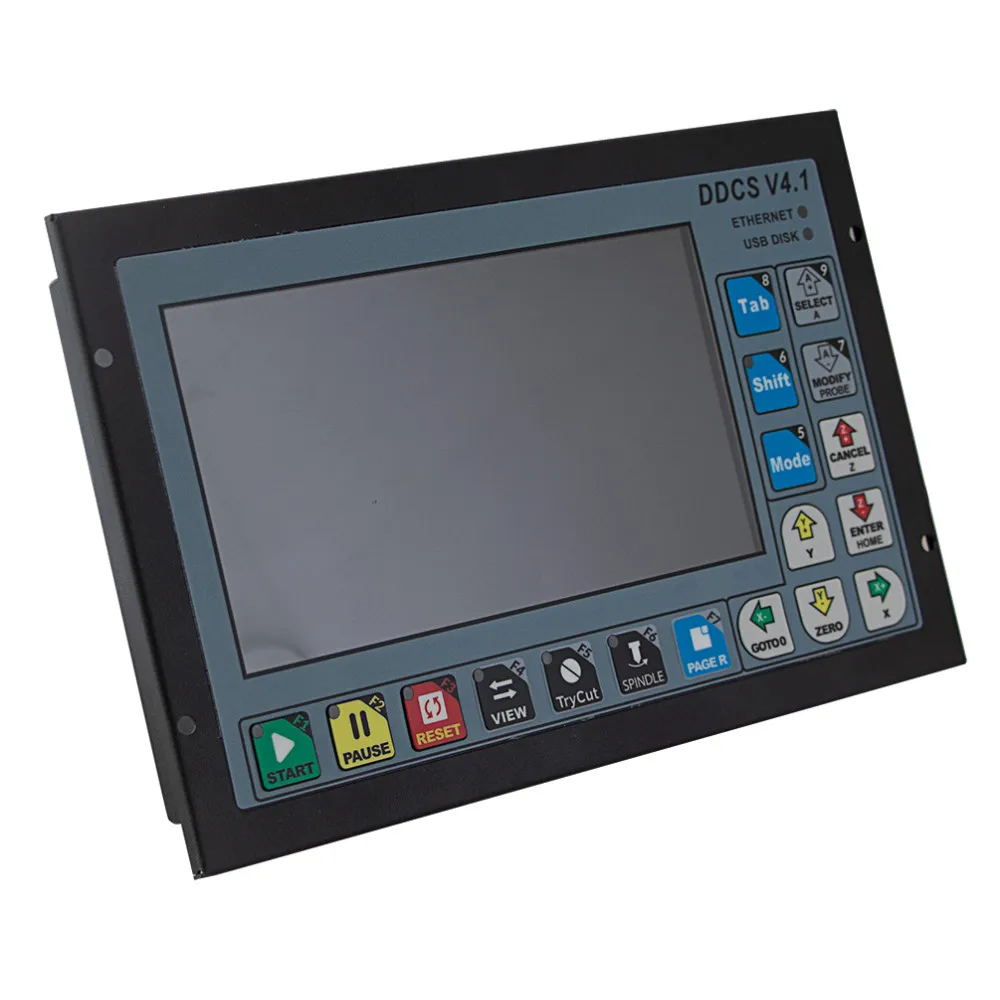

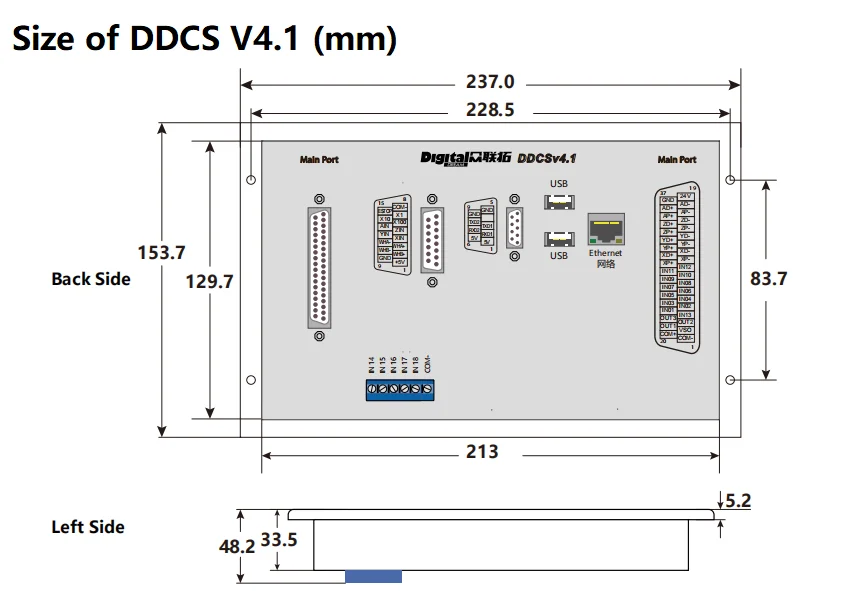

The DDCS V4.1 is a small box that can fit in a window of a small control box or control cabinet. Four locking hooks fix this controller from the frame.7" TFT screen and 17 operation keys, DDCS V4.1 dimension as following:

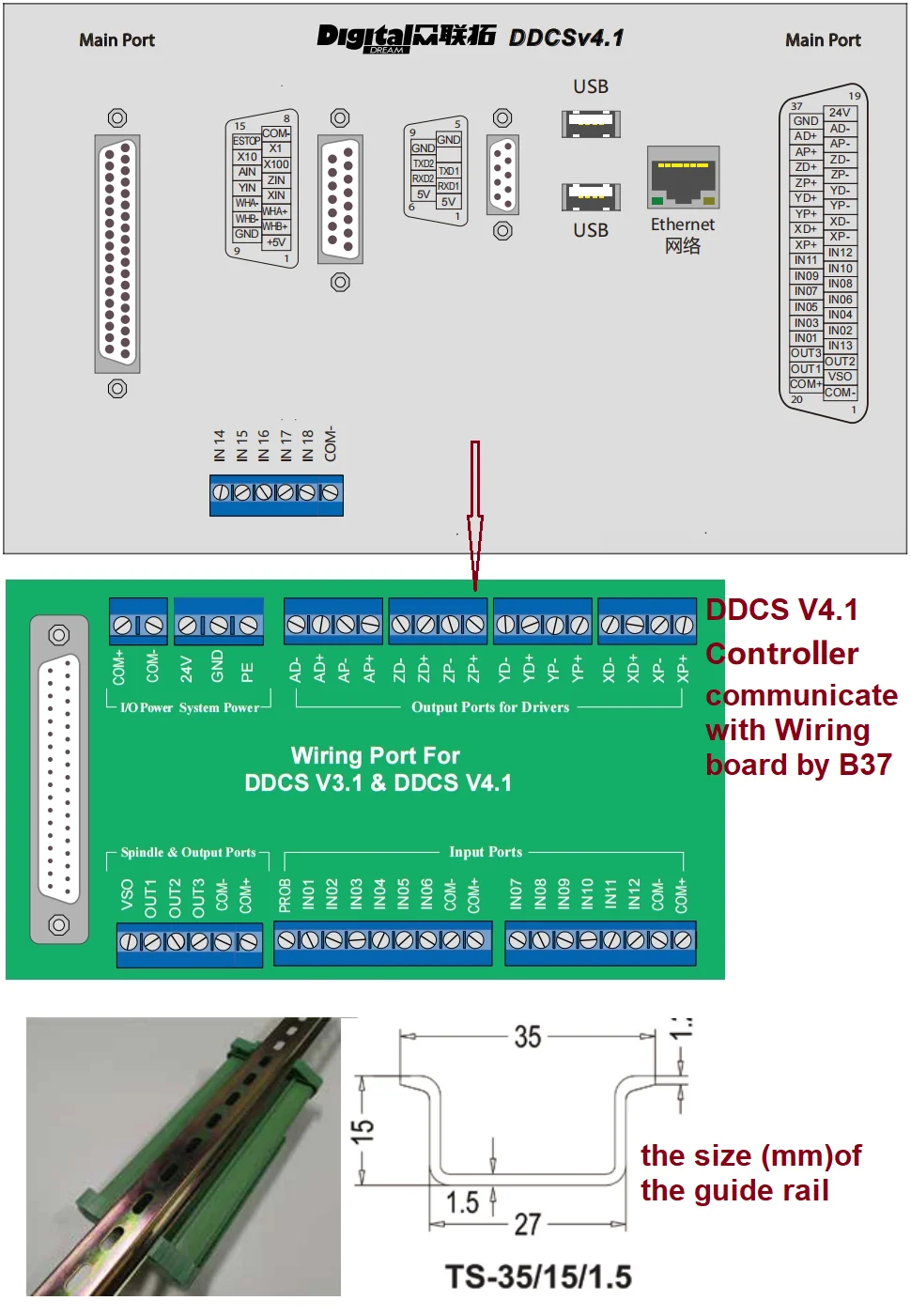

Wiring Board:
The users can configurate all the input and output ports (go to the Parameter page and find "Output signal parameters" and "Input signal parameters" to configurate the ports number as needed)
In order to facilitate engineers to install controller into the control cabinet, DDCS V4.1 provides a wiring terminal board. The wiring board is connected to the controller host through DB37 shielded cable. There are screw fittings at the interface, which is very firm and reliable. The user can install the wiring board in the control cabinet with the matching C45 guide rail, the size of the guide rail is shown in the following

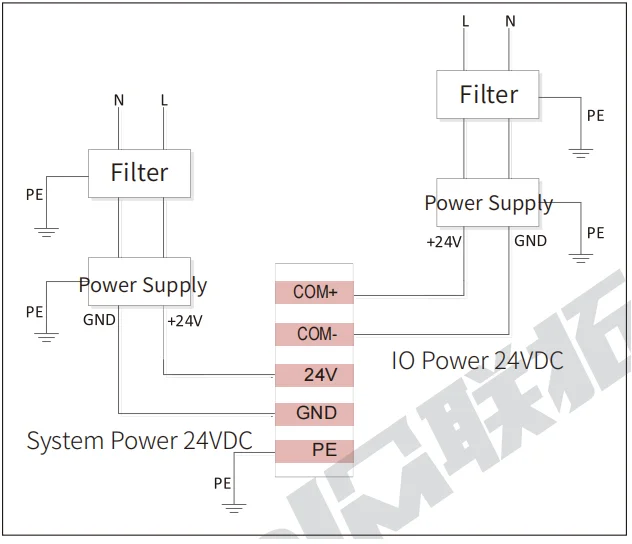

Power Supply
The Controller needs two power supplies: COM+ and COM- is the power input ports for Input/Output Port and MPG， 24V and GND is the power input ports for controller system. Please keep in mind,only when the two power supplies are
connected correctly the controller can be work properly.
connected correctly the controller can be work properly.

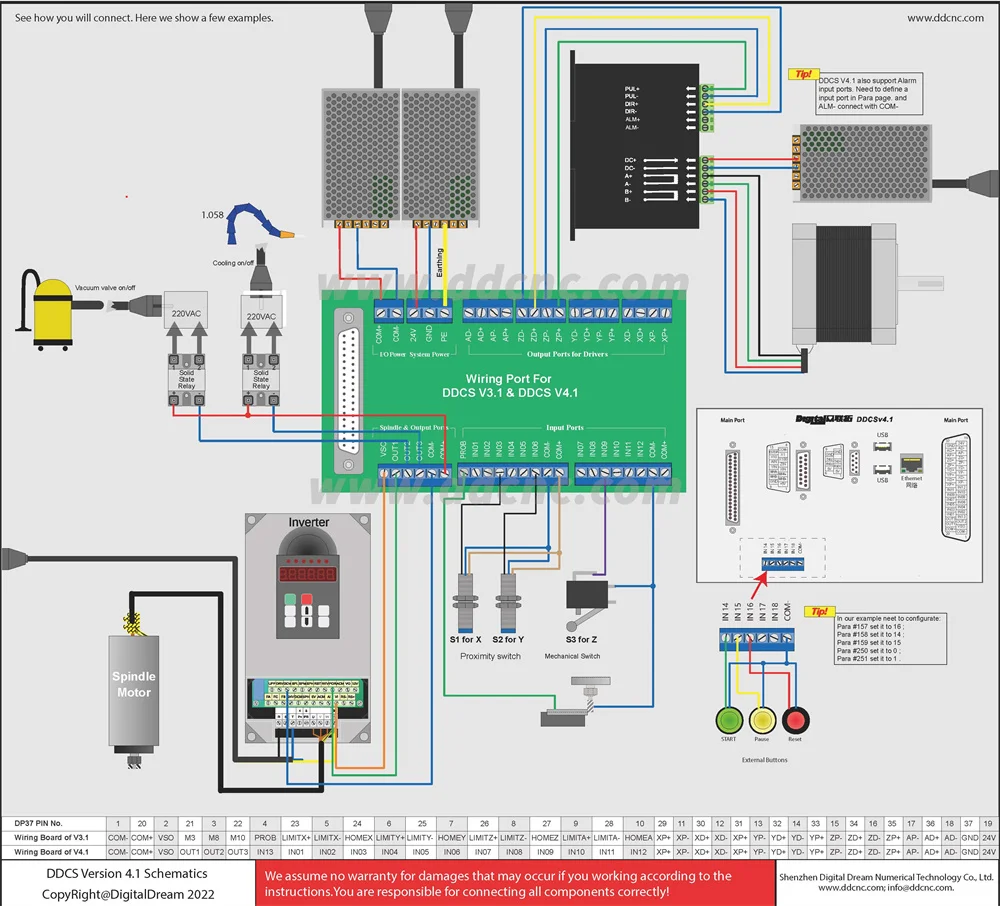

Wiring instructions
More details please check from our Manual, please contact us for getting manual after placed the order.
