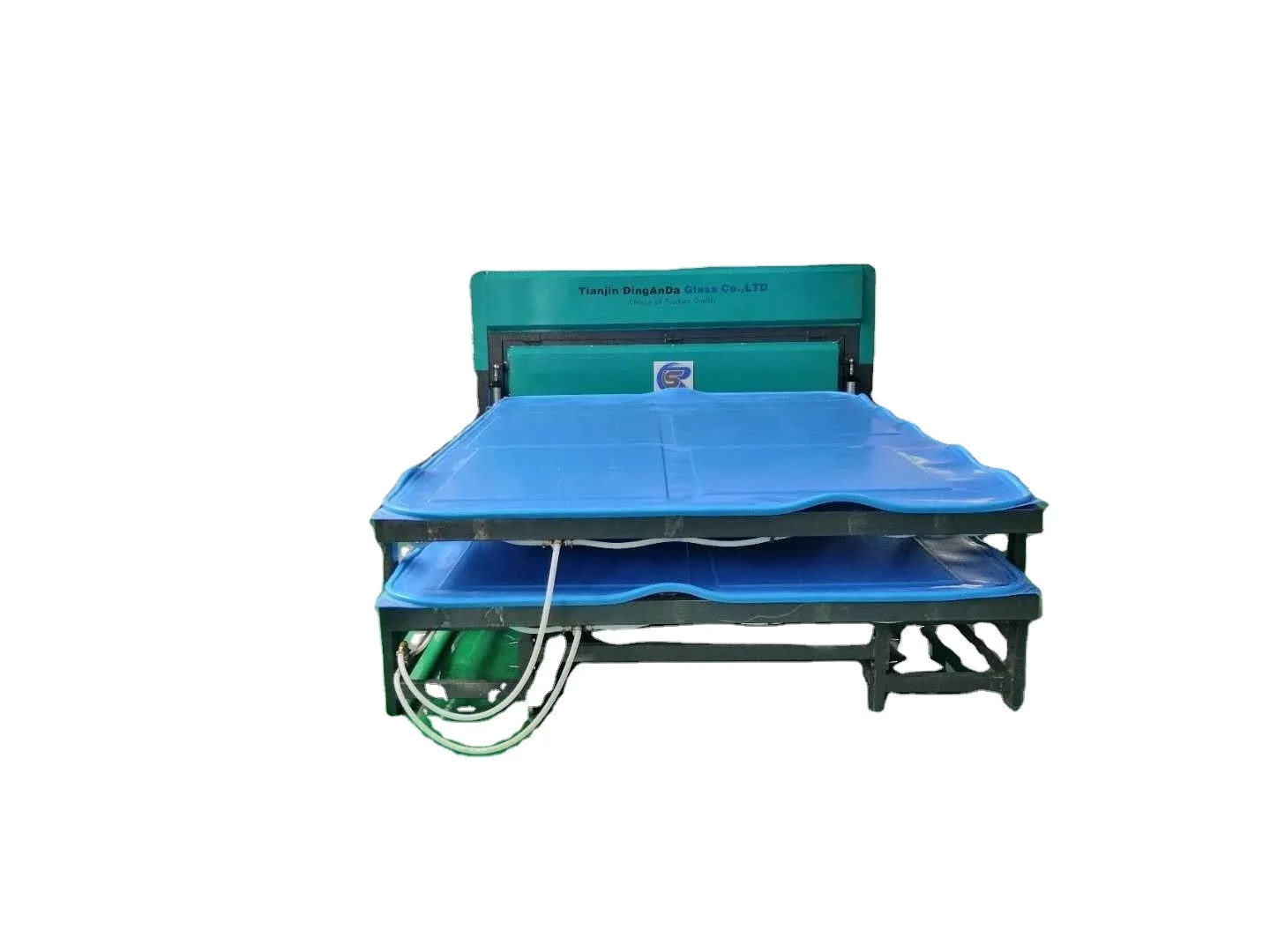

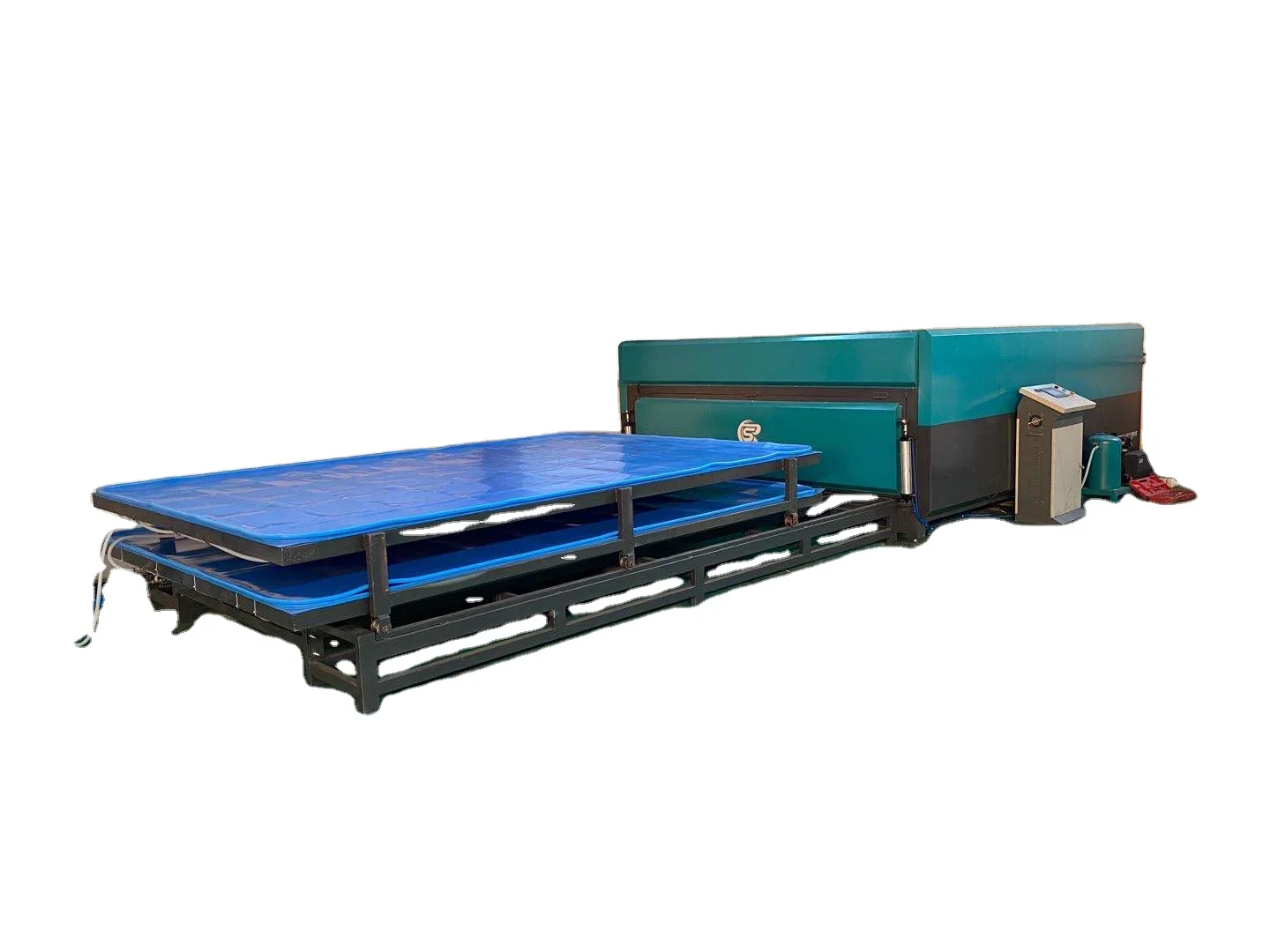

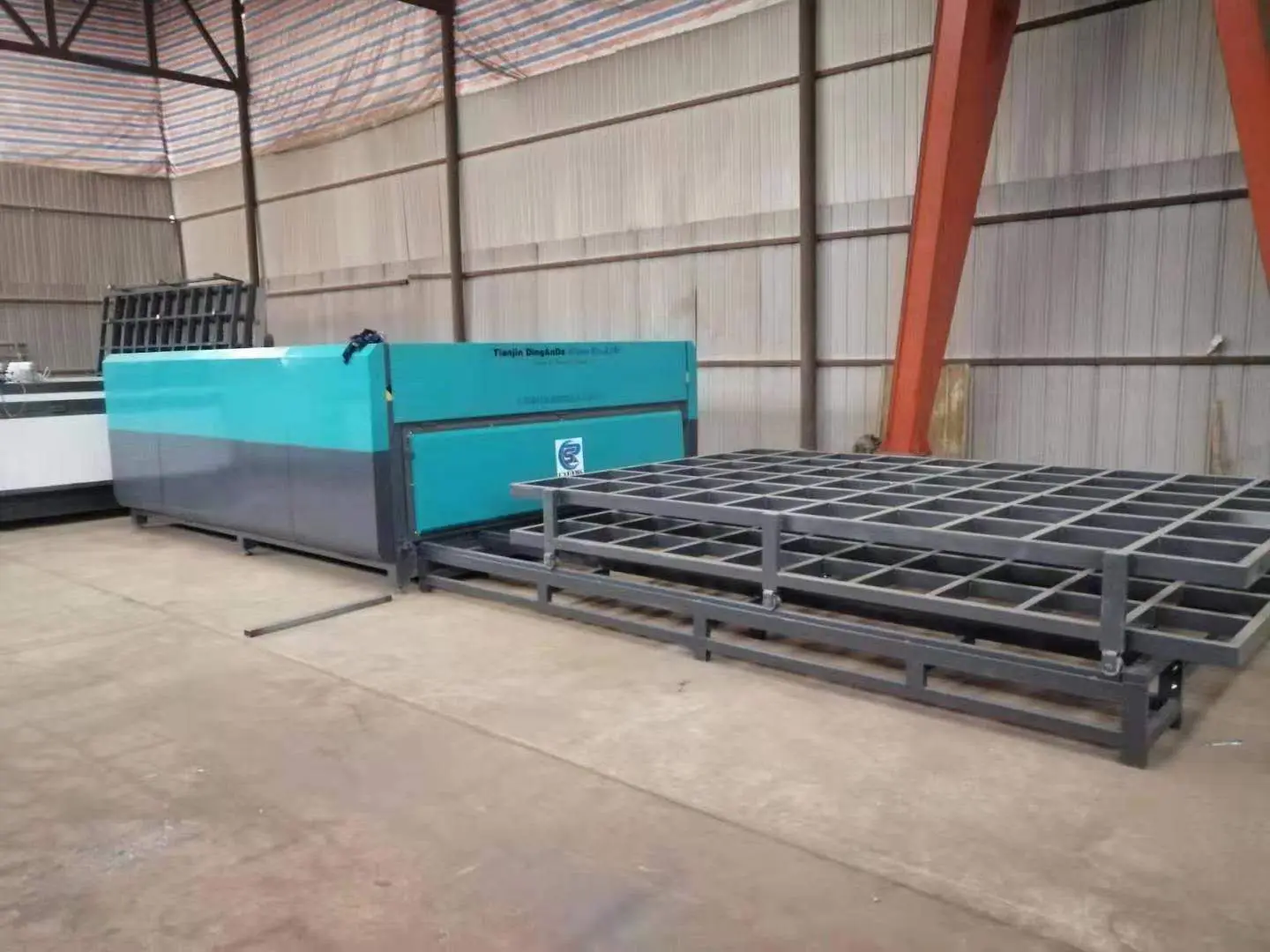

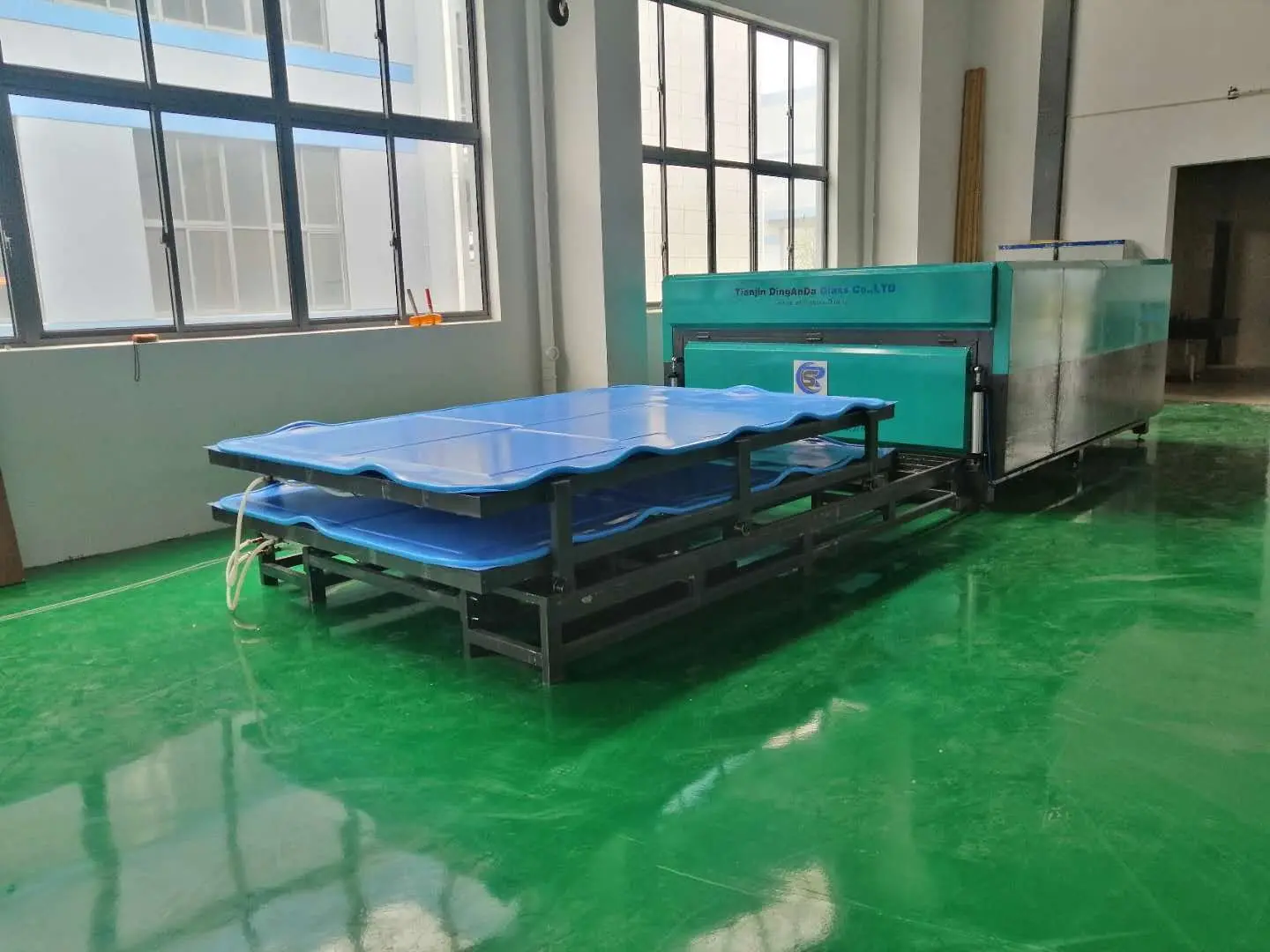

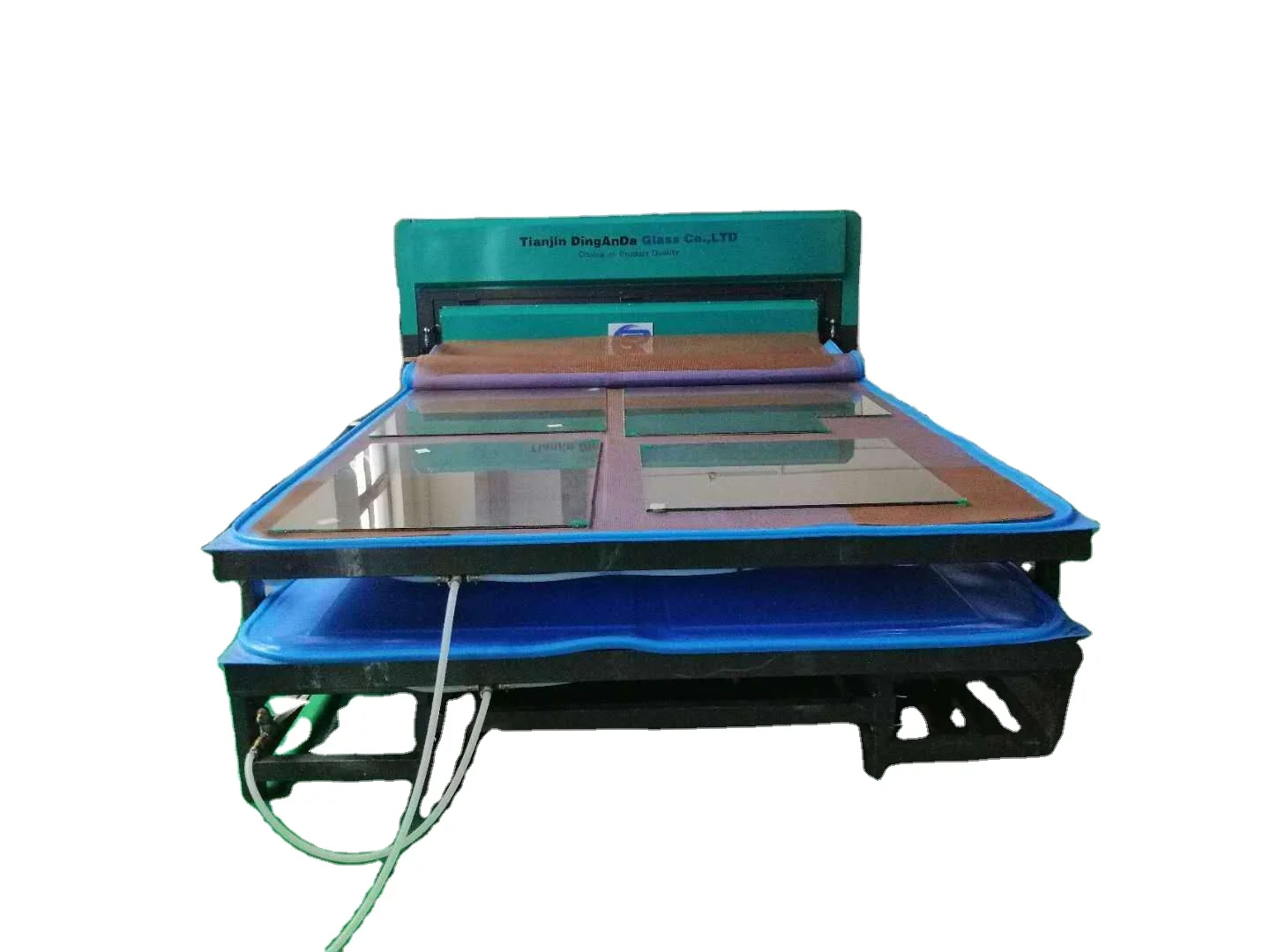

Mini glass tempering furnace glass laminating furnace

Product Overview

Description

Glass laminating furnace EVA glass laminate machine

Equipment features:Adopt the circulating air heating mode,the temiperature is balanced,so as to improve the productquality.PLC frequency conversion control system,accurate temerature control,preset multi-stage temperature control,according to different processes can be arbitrary selection of temperature segment,control segment,prevent glue overflow.Large output,low energy consumption,mall footprint,is an ideal choice for processing customers.

Equipment can be produced:ordinary float laminated glass,tempered laminated glass,curved laminated glass,colored aminated glass,LED glass,dimming glass,bulletproof glass,mult-layer aminated glass,wired glass,slidingdoor reinforcement Photo glass,crystal steel door glass,home appliance panel glass,glass corner,photo studio crystalphoto glass,background wall and video wall glass,coffee table glass,partition screen,frameless painting and otherpersonalized photo glass etc.

This machine use the way of circulating air heating which made the temperature equalized.

Using PLC control system make the temperature control more precise.

Customer can choose any temperature according to different processing requirements.

This equipment can process float laminated glass, tempered laminated glass, curved laminated glass, wired glass, and so on.

Model	One layer single station	Double layers single station	Three layers single station	Four layers single station
Power	21.3KW	46.7KW	49.7KW	55.7KW
Machine size	3000*2250*1200mm	4200*2800*1590mm	4200*2800*1750mm	4200*2800*1910mm
Weight	980KGS	2400KGS	3050KGS	3300KGS
Vacuum bed sets	ONE	TWO	THREE	FOUR
Maximum processing size	1900*2500mm	3440*3660mm	2440*3660mm	2440*3660mm
