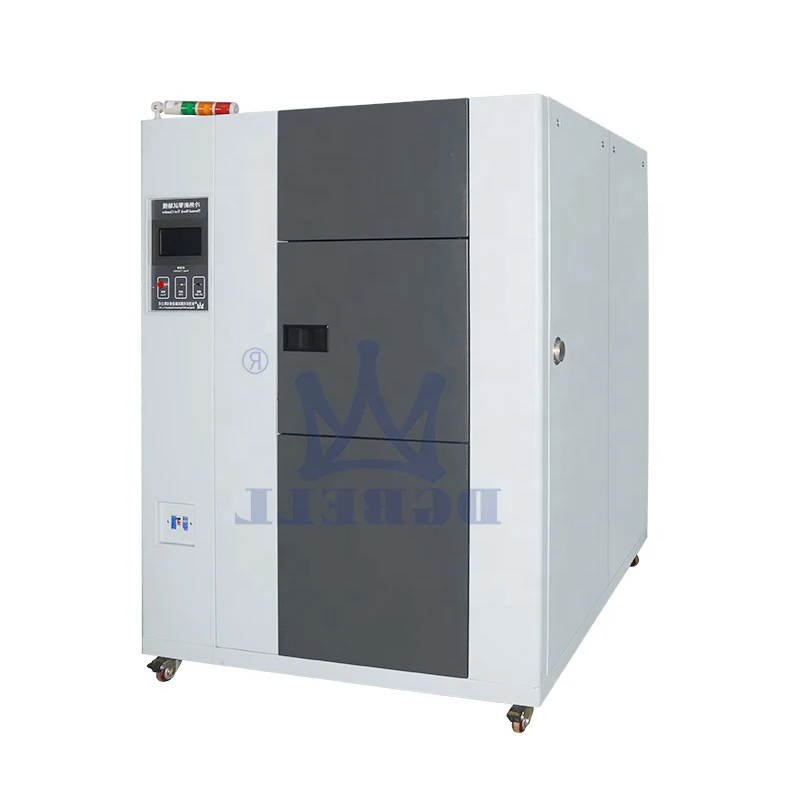

Tester Air To Air High Low Thermal Shock Test 2 Zone Two Position Climate Chamber
- Category: >>>
- Supplier: Guangdong Bell Experiment Equipment Co. Ltd.
Share on (1600720708781):
Product Overview
Description
DGBELL Two Zones High Low Heating Thermal Shock Test Chamber
Product Description
Application:
Bell’s Laboratory Equipment Three Zones Heat Shock Climate Cabinet Supplies consist of the Test Zone, Heat Storage Zone and Cold Storage Zone. The specimen stay in test zone, hot and cold air will be blew from the storage zones to achieve rapid temperature change for thermal shock.
Bell’s Laboratory Equipment Three Zones Heat Shock Climate Cabinet Supplies consist of the Test Zone, Heat Storage Zone and Cold Storage Zone. The specimen stay in test zone, hot and cold air will be blew from the storage zones to achieve rapid temperature change for thermal shock.
Feature:
1. Faster temperature change rate.
2. Quick temperature recovery, available for faster shock cycle.
3. Cable port available for data acquisition.
4. RS485 communication, Ethernet, available for computer remote control
5. Programmable
1. Faster temperature change rate.
2. Quick temperature recovery, available for faster shock cycle.
3. Cable port available for data acquisition.
4. RS485 communication, Ethernet, available for computer remote control
5. Programmable
Standard Compliance:
1. IEC68-2-1 (GB2423.1-2008) Environmental testing - Part 2: Test methods - Tests A: Cold
2. IEC68-2-2 (GB2423.2-2008) Environmental testing for electric and electronic products Test methods - Tests B:Dry Heat
3. GB/T2423.22-2008 Environmental testing for electric and electronic products-Part 2:Test methods-Test N:Change of temperature
4. MIL-STD-810D (GJ8150.3A-2009) Environmental test methods and engineering guidelines
5. MIL-STD-810D (GJ8150.4A-2009) Environmental test methods and engineering guidelines
6. GJB/150.5-2009 Temperature Shock Test
1. IEC68-2-1 (GB2423.1-2008) Environmental testing - Part 2: Test methods - Tests A: Cold
2. IEC68-2-2 (GB2423.2-2008) Environmental testing for electric and electronic products Test methods - Tests B:Dry Heat
3. GB/T2423.22-2008 Environmental testing for electric and electronic products-Part 2:Test methods-Test N:Change of temperature
4. MIL-STD-810D (GJ8150.3A-2009) Environmental test methods and engineering guidelines
5. MIL-STD-810D (GJ8150.4A-2009) Environmental test methods and engineering guidelines
6. GJB/150.5-2009 Temperature Shock Test
Product specification:
| Model | BTS2-50 | BTS2-80 | BTS-150 | BTS2-250 | BTS2-330 |
Test Space W x H x D(mm) | 350x400x360 | 400x500x400 | 500x600x500 | 600x700x600 | 700x800x600 |
External Dimension W x H x D(mm) | 1280x1920x1160 | 1320x2000x1520 | 1500x2100x1700 | 1600x2200x1900 | 1700x2300x1900 |
Performance parameters:
| Pre-cooling Zone Temp. | -10~-75℃ |
| Pre-heating Zone Temp. | +50~+220℃ |
| Pre-cooling Zone Cooling Rate | -10~-40℃<30mins -10~-60℃<50mins -10~-75℃<65mins |
| Pre-heating Zone Heating Rate | +50~150℃<30 mins +50~180℃<50 mins +50~220℃<60 mins |
| Temp. Shock Range | B Type :-40~150℃ C Type:-55~150℃ D Type:-65~150℃ |
| Temp. Recovery Time | ≤5mins |
| Temp. Fluctuation | ≤±0.5℃ |
| Temp. Deviation | ≤±2℃ |
| Temp. Uniformity | ≤±2℃ |
| Internal Material | 1.0mm thick SUS#304 high &low temperature resistance stainless steel. |
| External Material | Touch screen programmable PLC, with USB interface, with RJ485 interface can be connected to computer controlling, special networkcontrol software, convenient remote monitoring, data acquisition. |
| Compressor | Tecumseh (France)-fully air-cooled double-fall cooling compressor. Or Bock / Bitzer (Germany) semi-enclosed air-cooledrefrigeration. |
Product Description
Company Information
GuangDong Bell Experiment Equipment Co., Ltd is located in Dong Cheng District, Dong Guan City Guangdong Province, with register capital of RMB16.8 million. The factory covers an areas of 20,000 square meters with a building area of over 12,000 square meters. We are a high-tech enterprise specialized in manufacturing Battery Safety Test Equipment, Environmental Test Equipment and Mechanical Test Equipment, with more than 10 years’ experience of R&D.
Bell boost a team that consists of more than 120 employees and 60 of them with college educated background and 15 of them with senior engineer qualification. Enable us to provide excellent equipment and service to satisfy various customers, especially the customized non-standard equipment. Our experienced and well trained engineer team provides installation and after-sales service, making Bell to be the leading manufacturer of test equipment in China.
Packaging & Shipping
Packing:
1. Fully packed with PE film;
2. Wooden box;
3. Machine is fastened to the corners of the containers;
4. If export to European countries, the wooden box will be fumigated;
5. Customized package is available.CI
Certifications
FAQ
FAQ:
1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
-Yes, we are manufacturer of Shock Tester. Every machine from our factory has a 12 months product warranty.If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
-If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
-Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine
4. what about the products' quality?
-Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency.
5.what about the packing of equipment?
-We use Standard Export Plywood Case to Protect it from rust during the long time shipping with the plastic film and protect its corners with the foam.
