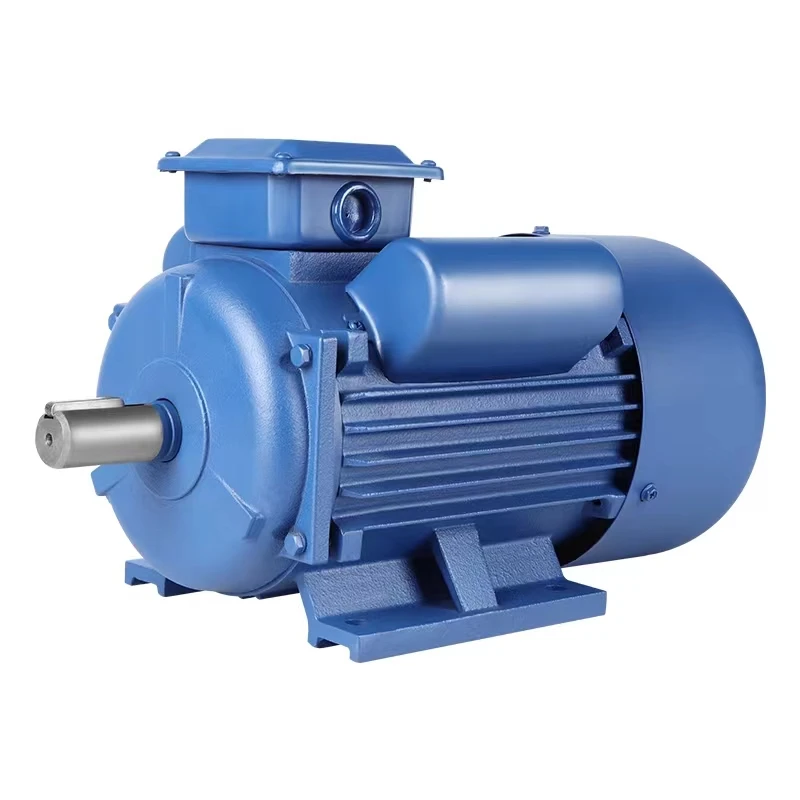

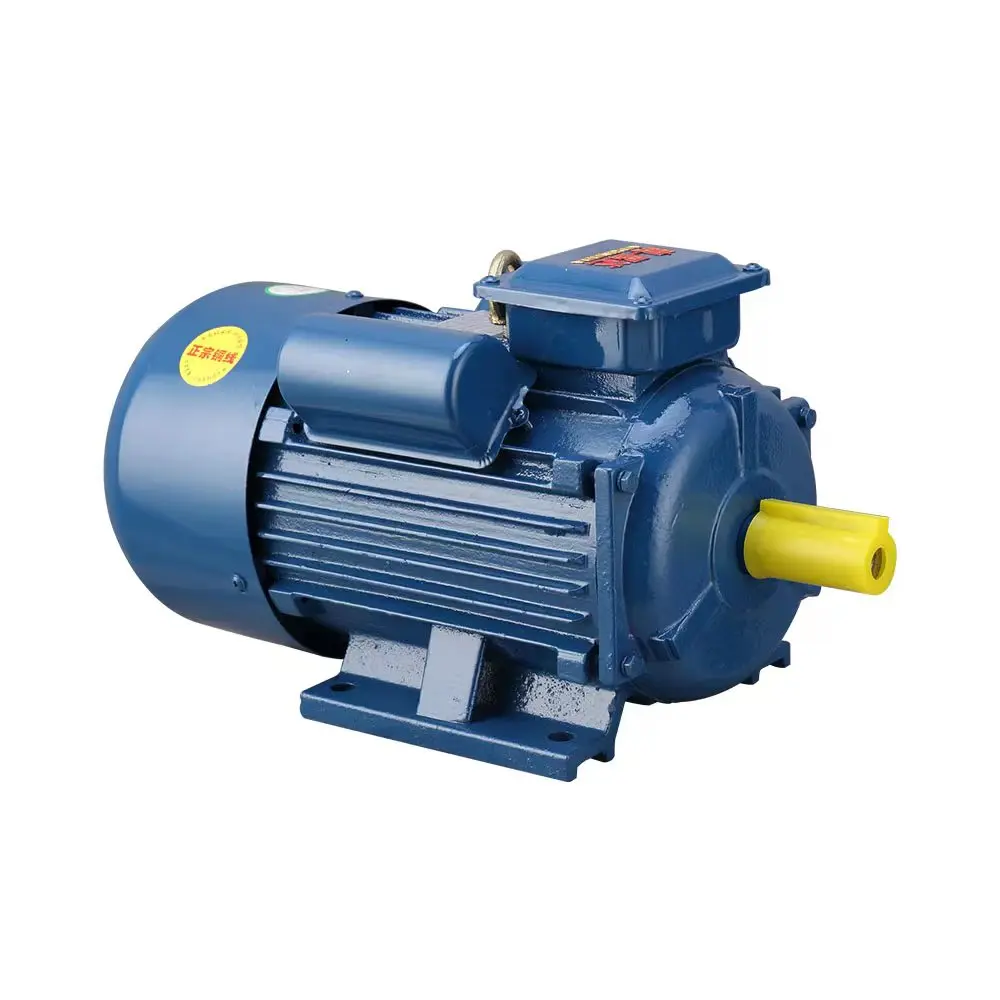

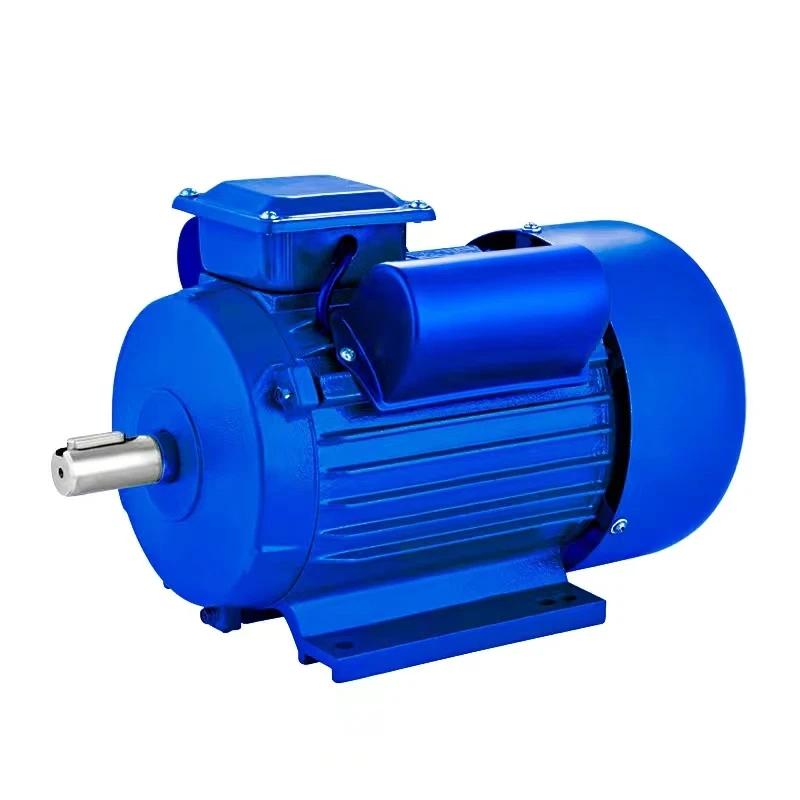

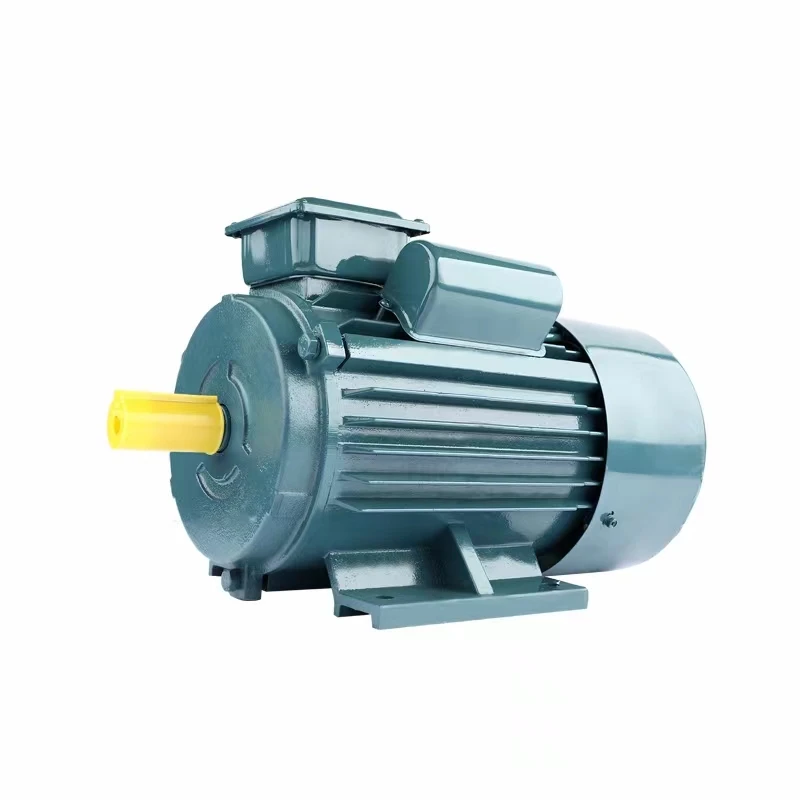

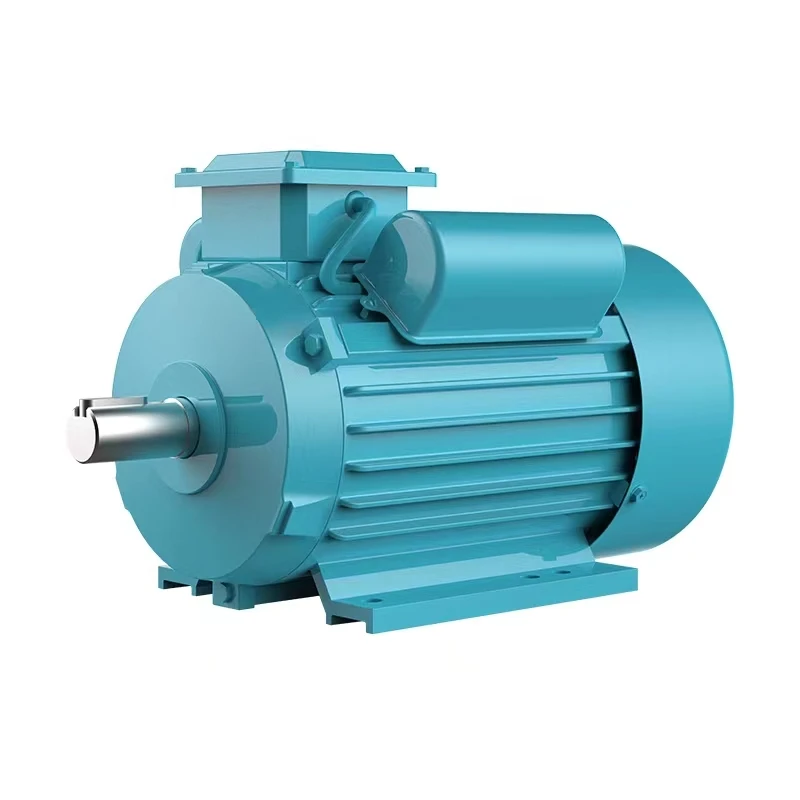

1hp 2hp 3hp 4hp 5.5hp 220V/380V AC capacitor motor, Single Phase Motor Monofasico
1hp 2hp 3hp 4hp 5.5hp 220V/380V AC capacitor motor, Single Phase Motor Monofasico
1hp 2hp 3hp 4hp 5.5hp 220V/380V AC capacitor motor, Single Phase Motor Monofasico
1hp 2hp 3hp 4hp 5.5hp 220V/380V AC capacitor motor, Single Phase Motor Monofasico
1hp 2hp 3hp 4hp 5.5hp 220V/380V AC capacitor motor, Single Phase Motor Monofasico
1hp 2hp 3hp 4hp 5.5hp 220V/380V AC capacitor motor, Single Phase Motor Monofasico
1hp 2hp 3hp 4hp 5.5hp 220V/380V AC capacitor motor, Single Phase Motor Monofasico

1hp 2hp 3hp 4hp 5.5hp 220V/380V AC capacitor motor, Single Phase Motor Monofasico

Share on (1600720713041):


Price:

Quantity:


Product Overview

Description



Product Description




Product Introduction
YE2 series motors with the mounting dimension in accordance with standard IEC 60034, it has good features like, optimum structure, attractive appearance, low noise, high efficiency, high protection class as well as high insulation class. YE2 series motors can be widely used in various kinds of general use machineries like fans, pumps, machine tools, compressors, transportation and so on,
and can also be used in the hazardous areas with oil and chemical, steel plants, mining industry.


Features:

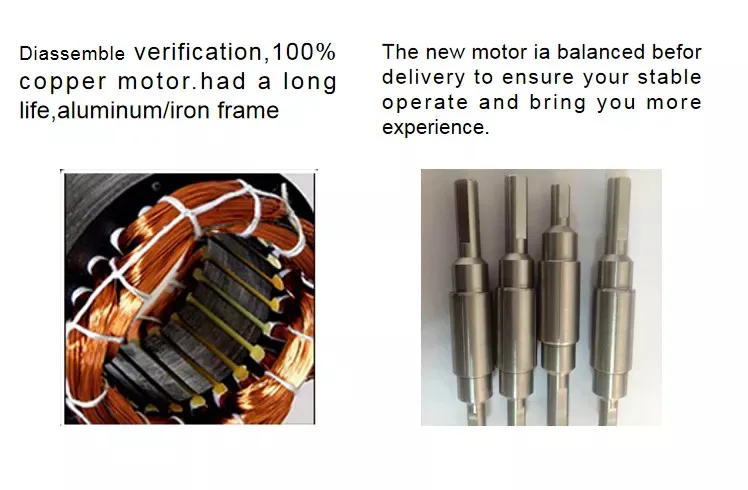

1.THE COPPER COILS
The coil adopts the new national standard copper wire to ensure the high efficiency, stability and safe operation of the motor.
2.SEIKO BEARING
Ensure Motor Service life, high strength carbon steel quality, with good dust-proof effect.

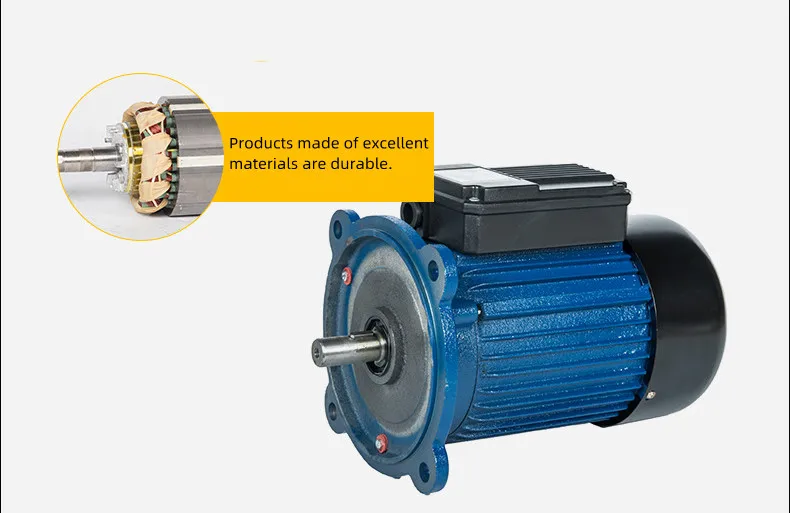

3.HIGH PRECISION ROTOR
New national standard rotor, multi-precision processing, through rigorous dynamic and static balance test, to ensure smooth operation and low noise.






Specification


Model
Power
(kw)
Rated Current
Speed
Power
(Eff%)
Power Factor
Y80M1-2
0.75
1.8
2825
75.0
0.84
Y80M2-2
1.1
2.5
2825
77.0
0.86
Y90S-2
1.5
3.4
2840
78.0
0.85
Y90L-2
2.2
4.8
2842
80.5
0.8
Y100L-2
3
6.4
2880
82.0
0.87
Y112M-2
4
8.2
2890
85.5
0.87
Y132S1-2
5.5
11.1
2900
85.5
0.88
Y132S2-2
7.5
15
2900
86.2
0.88
Y136M1-2
11
21.8
2930
87.2
0.88
Y160M2-2
15
29.4
2930
88.2
0.88
Y160L-2
18.5
35.5
2930
89.0
0.89
Y180M-2
22
42.2
2940
89.0
0.89
Y200L1-2
30
56.9
2950
90.0
0.89
Y80M1-4
0.55
1.5
1390
73.0
0.76
Y80M2-4
0.75
2.0
1390
74.5
0.76
Y90S-4
1.1
2.7
1400
78.0
0.78
Y90L-4
1.5
3.7
1400
79.0
0.79
Y100L1-4
2.2
5.0
1420
81.0
0.82
Y100L2-4
3
6.8
1420
82.5
0.81
Y112M-4
4
8.8
1440
84.5
0.82
Y132S-4
5.5
11.6
1440
85.5
0.84
Y132M-4
7.5
15.4
1440
87.0
0.85
Y160K-4
11
22.6
1460
88.7
0.84
Y160L-4
15
30.3
1460
88.5
0.85
Y180M-4
18.5
35.9
1470
61.0
0.86
Y180L-4
22
42.5
1470
91.5
0.86
Y200L-4
30
56.8
1470
92.2
0.87


◆Site conditions
YE2 series motors are suitable for almost all applications and operate satisfactorily at temperature from -15° C to +40° C and the altitude is not more than 1000 meters.
◆Temperature and insulation
155(F) class insulation system and temperature rise class B (80K) are adopted to the motor, which increase the motor useful life and reliability.
◆Cooling and ventilation
The standard cooling method is Totally Enclosed Fan Cooled (TEFC) in accordance with IC 411 of IEC 60034- 6. Standard motors are equipped with centrifuge plastic fans.
◆Protection class
The standard protection degree of motor is IP55, which make moist and dusty condition is also allowable. Higher degree of protection is also available according to customer’s requirement. .
◆Motor protection
The protection and measurement equipment to Winding and bearing such as PTC, PT100 are available on request.
◆Voltage and frequency
Standard voltage and frequency is 380V/ 50HZ, 200-660V special value on voltage and frequency is available on request. The motors will operate satisfactorily with variations of ±5% from the rated voltage.
◆Terminal box location
Terminal box at the top or right of frame is the standard YE3 motor.
◆Quality assurance
Stringent quality procedures are observed from first design to finished products in accordance with ISO9001 documented quality systems.


Details










To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Packing and Shipping




Company Profile




Qingdao Peng Sheng Electrical Appliance Co., Ltd. is the source manufacturer and exporter of Axial Flow Fan,Greenhouse Fan,Exhaust Fan,Garden Greenhouse,Roof Fan etc. we keep exporting fans for more than eight years.We have products ranges include centrifugal fans, axial fans, roof fans，misting fans.，And fan accessories. We are not only specialized in standard & bulk fans & blowers manufacture but also the project solution and fan type selection.Meanwhile we provide custom, semi-custom, OEM fans. We have advanced processing equipments (Laser cuttings, CNC lathers & bendings, Rolling. Dynamic balance) and experienced workers,they ensure the fans with high quality. And the fans be test by airway system so their technical parameters are truth & reliable.
