New product Car Parts Ultrasonic cleaning machine From China Suppliers Factory Direct Sale
- Category: >>>
- Supplier: Yuhuan Clangsonic Ultrasonic Co. Ltd.
Share on (1600720719393):
Product Overview
Description
Product Description

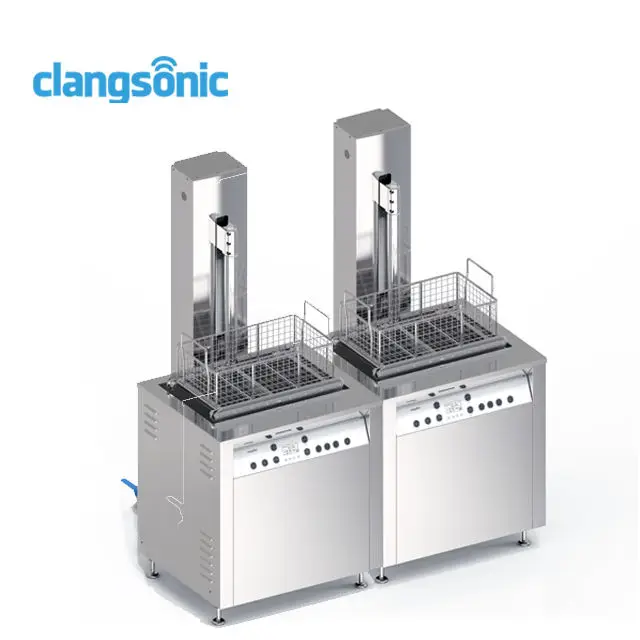

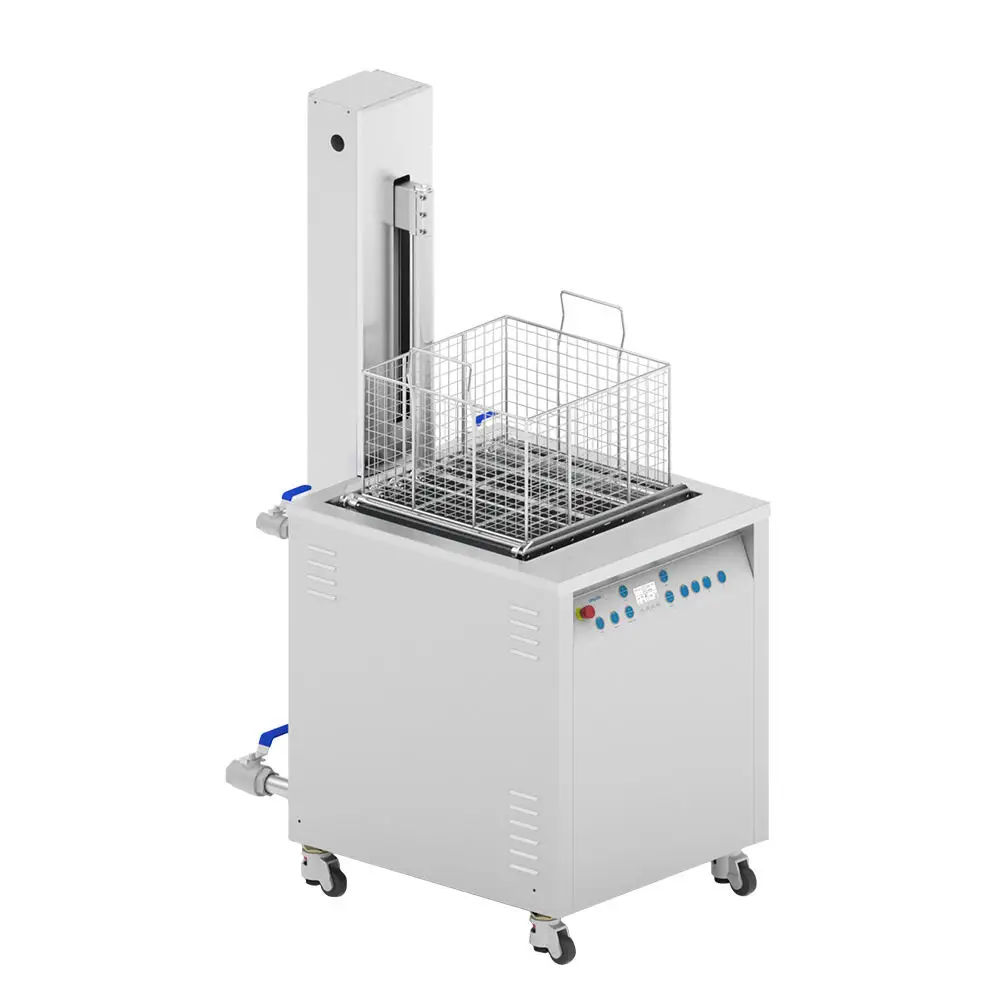

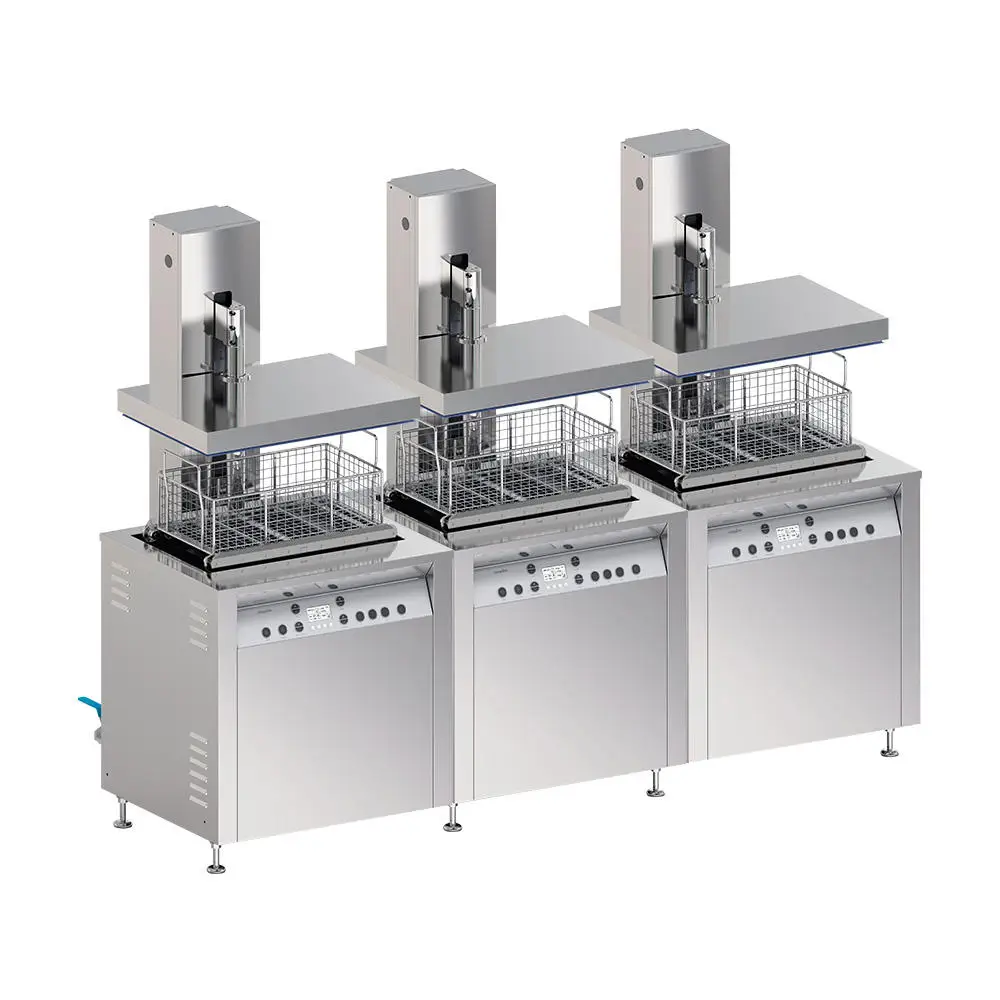

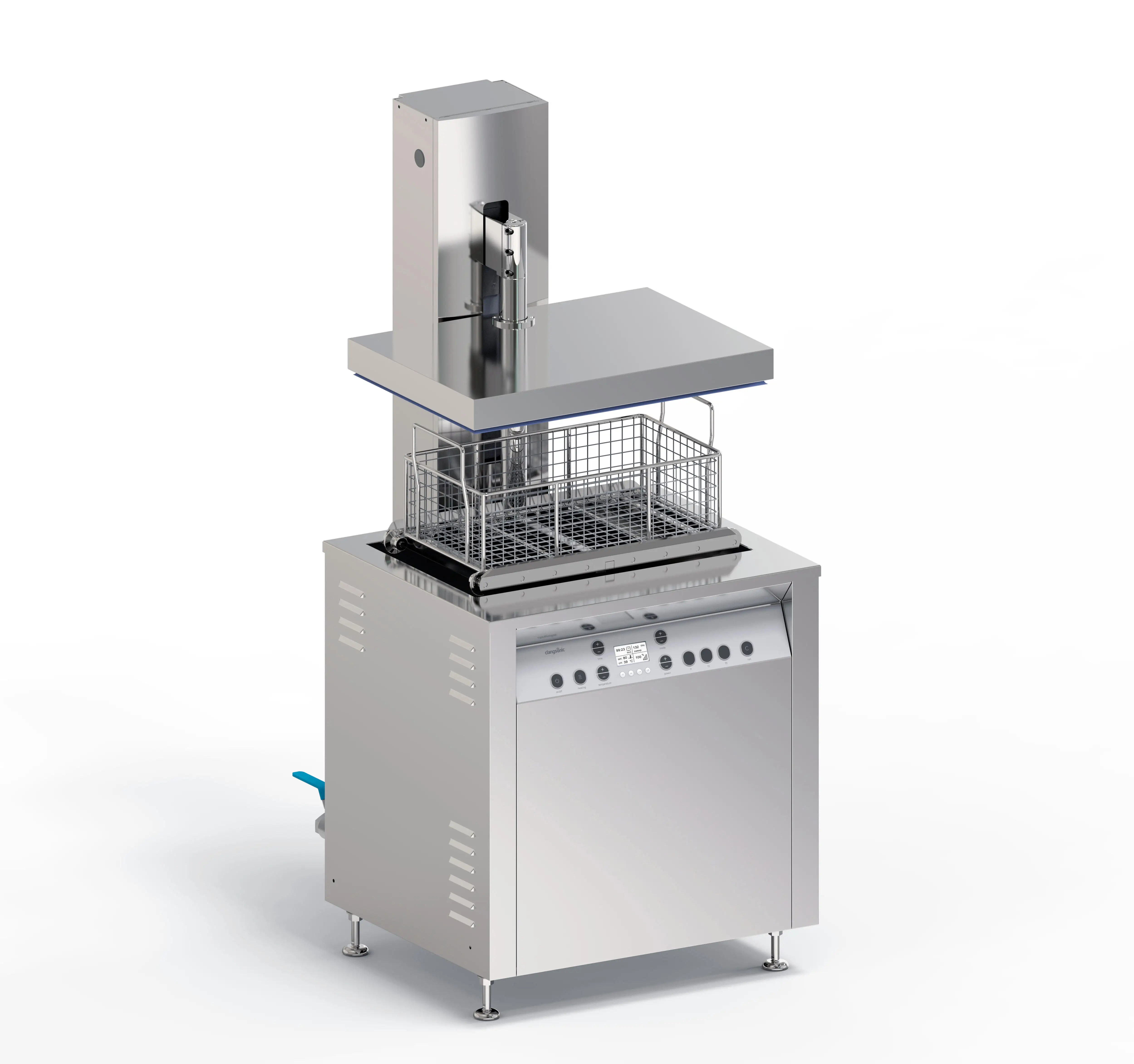

Industrial single frequency 28/40/80/130kHz adjustable power digital LCD display ultrasonic cleaner with hydraulic lift without cover
Features
1. One Button Start
Press “Start” button to complete the functions of basket lift in, basket oscillation, ultrasonic cleaning and basket lift out etc.
2. Oscillation System
The basket with workpiece will be moved up and down automatically during cleaning, that will avoid dirt accumulating on surface or holes of workpiece and improve cleanliness.
3. Single Or Dual Frequency
2 frequencies can be switched easily as you need. For different cleaning process, you can choose different frequency, and it is also very suitable for workpiece which needs both coarse and fine cleaning.
4. Automatic Sweep
Sweep can eliminate the standing waves effectively. That’s helpful to improve ultrasonic distribution in the tank and make cleaning more uniformly.
5. 2 Times Peak Power
2 times peak power excitation can act on stubborn stains and semi-aqueous solvents, ultrasonic performance is improved obviously.
6. Linearly Adjustable Power
Ultrasonic power can be adjusted 10-100% linearly, which is more precisely for different cleaning requests.
7. Load Self-Adaption
It will adjust itself to fit to different working conditions (Liquid Temperature, Liquid Level and Workpiece) automatically, and maintain the optimal working frequency and constant power output.
8. High Definition Industrial Level LCD Display
User-friendly LCD display allows user to monitor working status and set parameters.
9. Efficient Cleaning
Adopting peak modulation technology which can breakdown the bubbles more quickly and remove the stubborn stains easily.Under same conditions, the breakdown speed of foil is significantly improved.
10. Stable Output
Self-adaption technology can ensure the machine to fit to load changing perfectly, such as different liquid level, liquid temperature changing and workpiece movement. Ultrasonic performance will keep still.
11. High Conversion Efficiency
The conversion efficiency of ultrasonic and electric energy is more than 90%. The energy conservation is more than others at same ultrasonic power output.
12. Extended Function
Circulation System, Oil Separator, Bubbling Tank, Rinsing
Press “Start” button to complete the functions of basket lift in, basket oscillation, ultrasonic cleaning and basket lift out etc.
2. Oscillation System
The basket with workpiece will be moved up and down automatically during cleaning, that will avoid dirt accumulating on surface or holes of workpiece and improve cleanliness.
3. Single Or Dual Frequency
2 frequencies can be switched easily as you need. For different cleaning process, you can choose different frequency, and it is also very suitable for workpiece which needs both coarse and fine cleaning.
4. Automatic Sweep
Sweep can eliminate the standing waves effectively. That’s helpful to improve ultrasonic distribution in the tank and make cleaning more uniformly.
5. 2 Times Peak Power
2 times peak power excitation can act on stubborn stains and semi-aqueous solvents, ultrasonic performance is improved obviously.
6. Linearly Adjustable Power
Ultrasonic power can be adjusted 10-100% linearly, which is more precisely for different cleaning requests.
7. Load Self-Adaption
It will adjust itself to fit to different working conditions (Liquid Temperature, Liquid Level and Workpiece) automatically, and maintain the optimal working frequency and constant power output.
8. High Definition Industrial Level LCD Display
User-friendly LCD display allows user to monitor working status and set parameters.
9. Efficient Cleaning
Adopting peak modulation technology which can breakdown the bubbles more quickly and remove the stubborn stains easily.Under same conditions, the breakdown speed of foil is significantly improved.
10. Stable Output
Self-adaption technology can ensure the machine to fit to load changing perfectly, such as different liquid level, liquid temperature changing and workpiece movement. Ultrasonic performance will keep still.
11. High Conversion Efficiency
The conversion efficiency of ultrasonic and electric energy is more than 90%. The energy conservation is more than others at same ultrasonic power output.
12. Extended Function
Circulation System, Oil Separator, Bubbling Tank, Rinsing
Specification
Name | Ultrasonic Cleaner |
Model | RA85 |
Ultrasonic Frequency | 28kHz, 40kHz, 80kHz, 130kHz |
Ultrasonic Power | 1500Watts |
Ultrasonic Power Adjustable | 10-100% |
Inner Tank Size | 600x400x350mm |
Basket Size | 520x300x150mm |
Overall Size | 720x850x1600mm |
Heating Power | 5000Watts |
Heating Temperature | 30-80°C |
Timing | 0-60min. or Normally Open |
Power Supply | 380V/50Hz, 3 Phase 5 Wire |
Power Supply Cable Length | 3m |
SUS Cover | Optional |
Circulation System | Optional |
Oil Skimmer | Optional |
Details Images

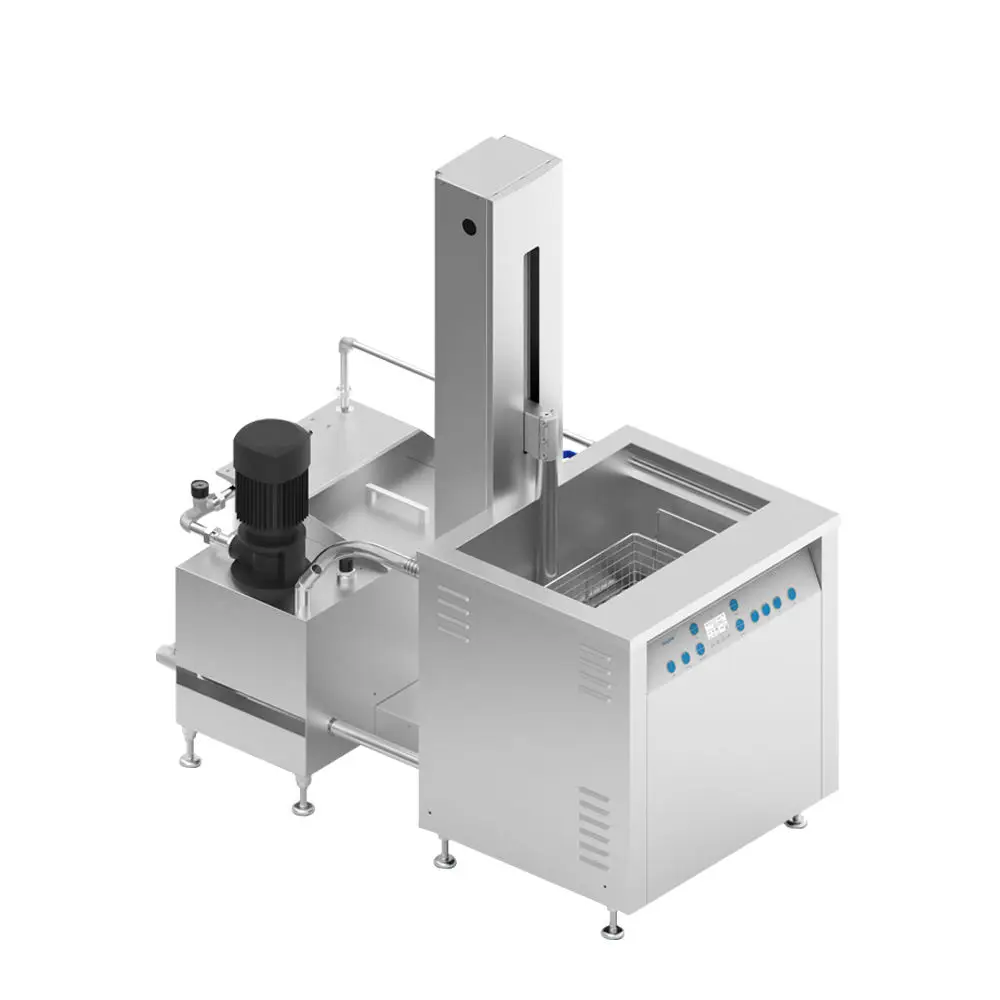

Optional Circulation System With Oil Skimmer
Equipped With Circulation System And Oil Skimmer
