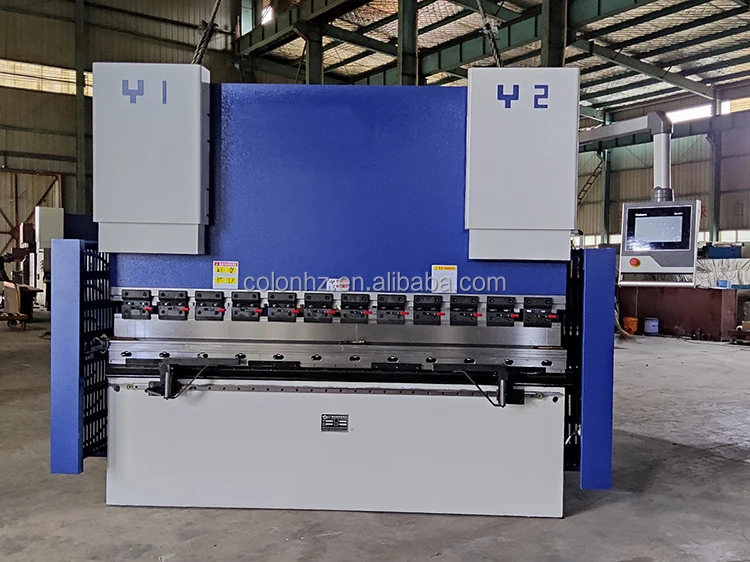

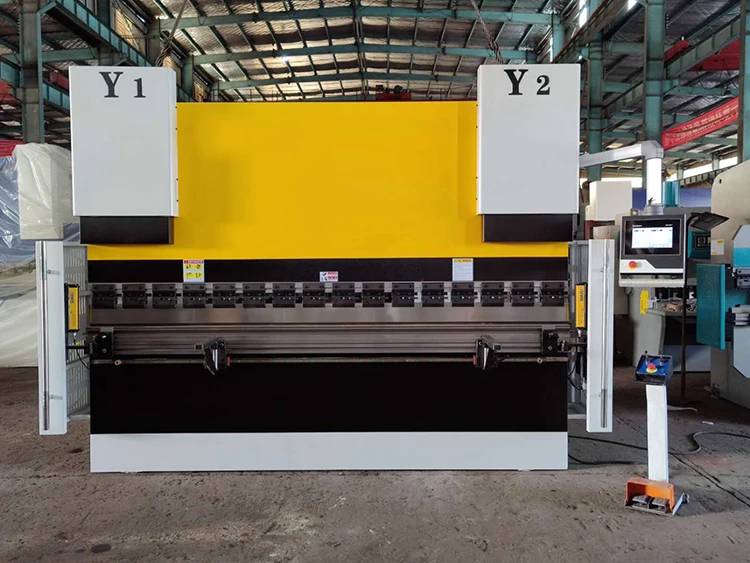

High precision 100 ton 3200mm 6axis CNC electro hydraulic Press Brake With DELEM DA 66t CNC system
- Category: >>>
- Supplier: Hangzhou Colon Digital Technology Co. Ltd.
Share on (1600720740271):
Product Overview
Description
High precision 100 ton 3200mm 6axis CNC electro hydraulic Press Brake With DELEM DA 66t CNC system
Product Description
The machine body is in an overall welded and overall processed structure , and ANSYS finlte element analysis software is applied to main parts of the machine body for analysis , which has ensured the reliability of machine tool and the precision of entire machine .
The numeric control system adopt Netherland DELEM, Swiss CYBELEC or Italian ESA companies and so. able to achieve the functions of graphic programming for bending angle,compensation for angle amendment,automatic calculation and adjustment of bending pressure, automatic calculation of compensation for workbench distortion. Extending length of work-pieces, bending pressure for sole pressing, open distance, and automatic withdrawal of rear stopper,etc.
The numeric control system adopt Netherland DELEM, Swiss CYBELEC or Italian ESA companies and so. able to achieve the functions of graphic programming for bending angle,compensation for angle amendment,automatic calculation and adjustment of bending pressure, automatic calculation of compensation for workbench distortion. Extending length of work-pieces, bending pressure for sole pressing, open distance, and automatic withdrawal of rear stopper,etc.
Specification
Model | 63T/2500 | 80T/3200 | 100T/3200 | 160T/3200 | 200T/3200 | 250T/3200 | 320T/3200 |
Nominal Force | 630KN | 800KN | 1000KN | 1600KN | 2000KN | 2500KN | 3200KN |
Bending Length | 2500MM | 3200MM | 3200MM | 3200MM | 3200MM | 3200MM | 3200MM |
Poles Distance | 1900MM | 2600MM | 2600MM | 2600MM | 2600MM | 2600MM | 2600MM |
Throat Depth | 350MM | 350MM | 400MM | 400MM | 400MM | 400MM | 400MM |
Slider Travel | 150MM | 200MM | 200MM | 200MM | 200MM | 200MM | 200MM |
Workable Height | 800MM | 800MM | 850MM | 920MM | 200MM | 200MM | 950MM |
Die Loading Height | 380MM | 380MM | 420MM | 420MM | 420MM | 420MM | 420MM |
Main Motor | 7.5KW | 7.5KW | 7.5KW | 11KW | 11KW | 18.5KW | 18.5KW |
Back Gauge Axis Stroke | 600MM | 600MM | 600MM | 600MM | 600MM | 600MM | 600MM |
Back Gauge Axis Speed | 100MM/S | 100MM/S | 100MM/S | 100MM/S | 100MM/S | 100MM/S | 100MM/S |
Dimension (L*W*H)MM | 3100*1450*2050 | 3500*1550*2100 | 3500*1580*2400 | 3500*1650*2500 | 3500*1680*2550 | 3500*1700*2600 | 3500*1800*2730 |
Machines Details
Features
1. Imported configuration,stable and reliable2. high strength frame with thick plate and sufficient material
3.high precision rear retaining system
4.Standard 4+1 axis NC(Y1, Y2, X, R+W)
5.Closed loop control of automatic mechanical deflection compensation for worktable

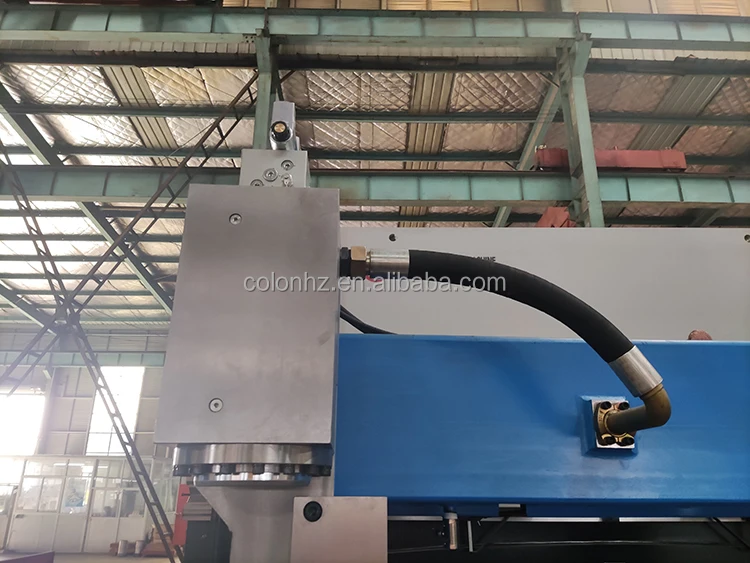

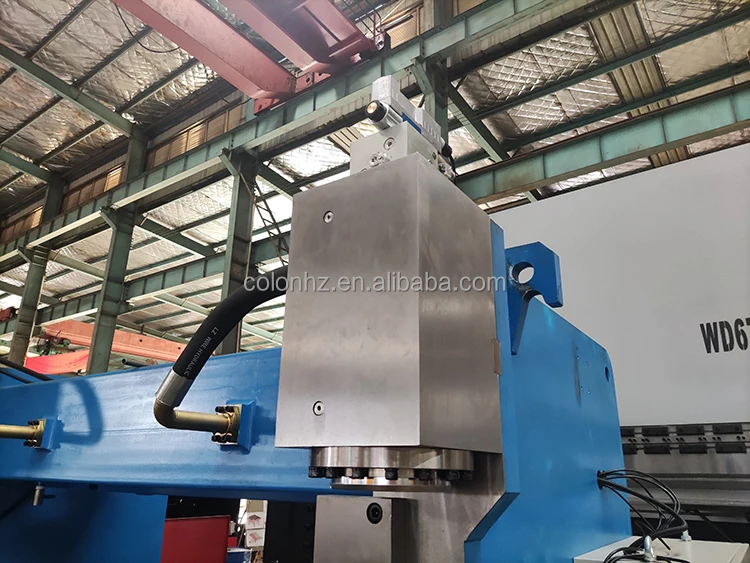

Dual hydraulic cylinders
The strength and rigidity of the hydraulic cylinders located on both sides of column directly determine the operation accuracy,service life of the machine tool and the accuracy of the workpiece.

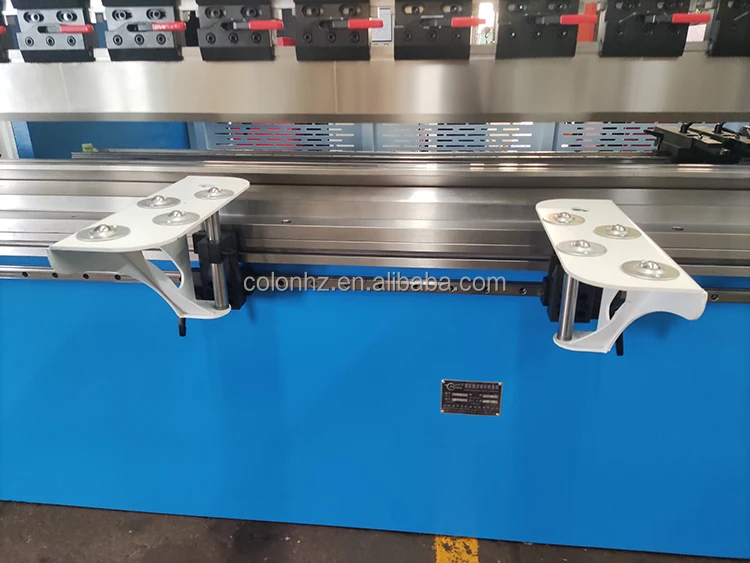

Front material supporting frame
Movable front support(Fixed front support also available), which moving along the linear guide rail,can be parked at any position, with rotation and height adjustment functions to help you yo bend.
Quickly clamping
it is convenient to quickly clamp the upper die, reduce labor intensity and improve production efficiency. The utility model has the advantage of high precision, easy clamping, no loosening, no tool dropping
CNC control system(accept customized)
Auto crowing
Auto backgauge

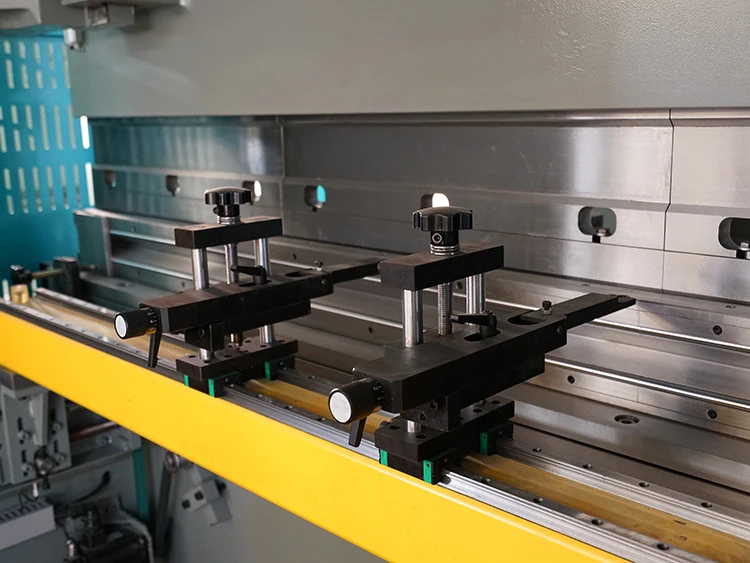

stopper finger

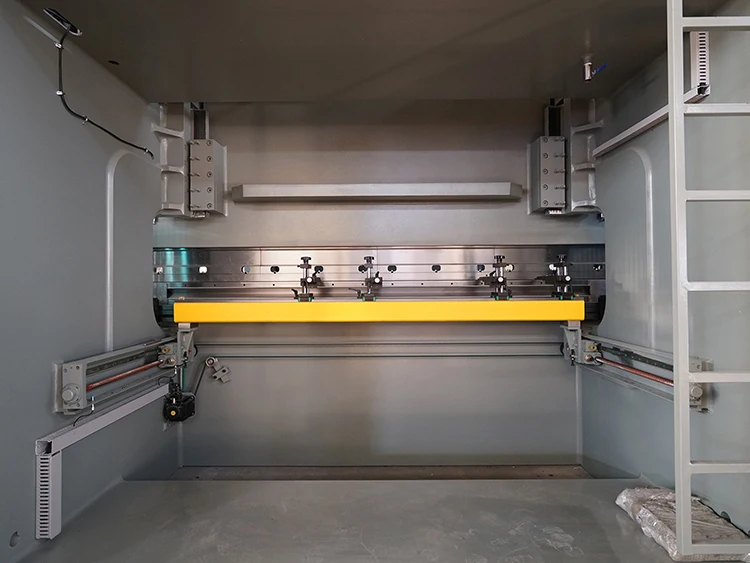

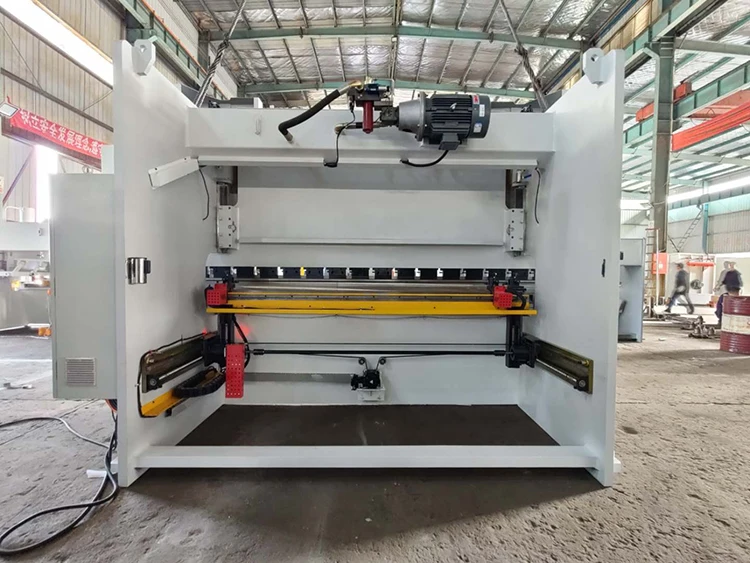

Stable and reliable back gauge
Imported ball screw drive, linear guide rail guide, double linear guide construction, to ensure the positioning accuracy. Multistage stops to increase the positioning range, make the bending more convenient.Siemens motor
Hydraulic system
Press brake tooling
After forging and quenching, it is durable. High precision , high straightness and high repeatability, and finally obtain theideal bending effect.
the pictures shows 2 kinds of installing of mold.
servo motor
Electric box
Foot pedal
Sample
Company Profile
Hangzhou Colon Digital Technology Co.,LTD covers an area of 5,000 square meters and has more than 150 employees.We have several production lines,from laser cutting machine,shearing machine,CNC press brake,auto duct line and punch press.According to different machines,we have different branch factories.Each branch factory has professional engineers and R&D departments.
We also have a professional after sale team to provide you with high quality after sale service.Engineers can come to our factory to help you debug your machine and provide free training.Our engineer have been debugging machines for customers all year round abroad.Our factory also cooperated with French and German companies,we often communicate and learn from each other,it ensures the quality of the machine and our technology is also far ahead in China.Because we provide high quality machines and excellent services,they are favored by developed countries,such as the United States,Japan,the United Kingdom,France,German and so on.
We also have a professional after sale team to provide you with high quality after sale service.Engineers can come to our factory to help you debug your machine and provide free training.Our engineer have been debugging machines for customers all year round abroad.Our factory also cooperated with French and German companies,we often communicate and learn from each other,it ensures the quality of the machine and our technology is also far ahead in China.Because we provide high quality machines and excellent services,they are favored by developed countries,such as the United States,Japan,the United Kingdom,France,German and so on.
Packing & Delivery
FAQ
1. Q: How does your factory do regarding quality control?
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
2. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
3. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
2. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
3. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
