Factory dual band gigabit wifi6 openwrt rj45 wireless wifi modem 5g modem 4g lte outdoor router
- Category: >>>
- Supplier: Shenzhen Zhibotong Electronics Co. Ltd.
Share on (1600720760190):
Product Overview
Description
Factory dual band gigabit wifi6 openwrt rj45 wireless wifi modem 4g lte outdoor router
Specification
Please note:
This product have 3 versions:
①WiFi 6 Mesh Router;
②WiFi 6 Mesh + 4G Router;
③WiFi 6 Mesh + 5G Router,
price is just for ① , if you need other two version, kindly contact us, thanks
①WiFi 6 Mesh Router;
②WiFi 6 Mesh + 4G Router;
③WiFi 6 Mesh + 5G Router,
price is just for ① , if you need other two version, kindly contact us, thanks
Features:
1. Adopt IPQ6000 chipset, with Quad Core ARM Cortex A53s CPU, main frequency up to 1.2 GHz; 2. Independent WiFi chip , QCN5022 for 2.4G, QCN5052 for 5.8G;
3.2.4G rate up to 573.5mbps, 5.8G rate up to 1201mbps, collectively referred to as 1800 Mbps;
4. Support MU-MIMO, and WiFi modulation mode supports 1024-QAM and OFDMA;
5. Each WiFi channel is independently equipped with high-power FEM, which is combined with high gain antenna to achieve super WiFi coverage;
6. High speed 256MB DDR3 with 128MB NAND Flash storage;
7. Full gigabit adaptive network interface of 1Wan and 3Lan, supporting auto MDI / MDIX;
7. Full gigabit adaptive network interface of 1Wan and 3Lan, supporting auto MDI / MDIX;
8. Built-in M.2/PCIE interface for add 4G/5G module, and module power supply is independently controlled by GPIO;
9. External standard SIM card interface, supporting SIM/ USIM card;
10.IPQ6000 chip with watchdog function, which automatically restarts in case of crash;
11. When multiple products are used at the same time, mesh automatic networking is supported;
Processor | IPQ6000, Quad-Core ARM Cortex A53s CPU, 1.2GHZ Main Frequency |
2.4GWIFI chipset | QCN5022, IEEE 802.11ax/n/g/b,Speed up to 573.5Mbps,2T2R |
5.8GWIFI chipset | QCN5052 IEEE 802.11ax/ac/a,Speed up 1201Mbps,2T2R |
Ram | DDR3 256MB(One DDR matches 32bit firmware） |
Flash | 128MB NAND FLASH |
Ethernet Port | WAN*1, 1000Mbps(Auto MDI/MDIX), IEEE 802.3/802.3u/802.ab |
LAN*3, 1000Mbps(Auto MDI/MDIX, IEEE 802.3/802.3u/802.ab | |
Power Port | DC5.5*2.1MM |
Buttons | Reset Button* 1, MESH Button*1 |
SIM Card | Standard SIM card Slot *1, Support SIM/USIM |

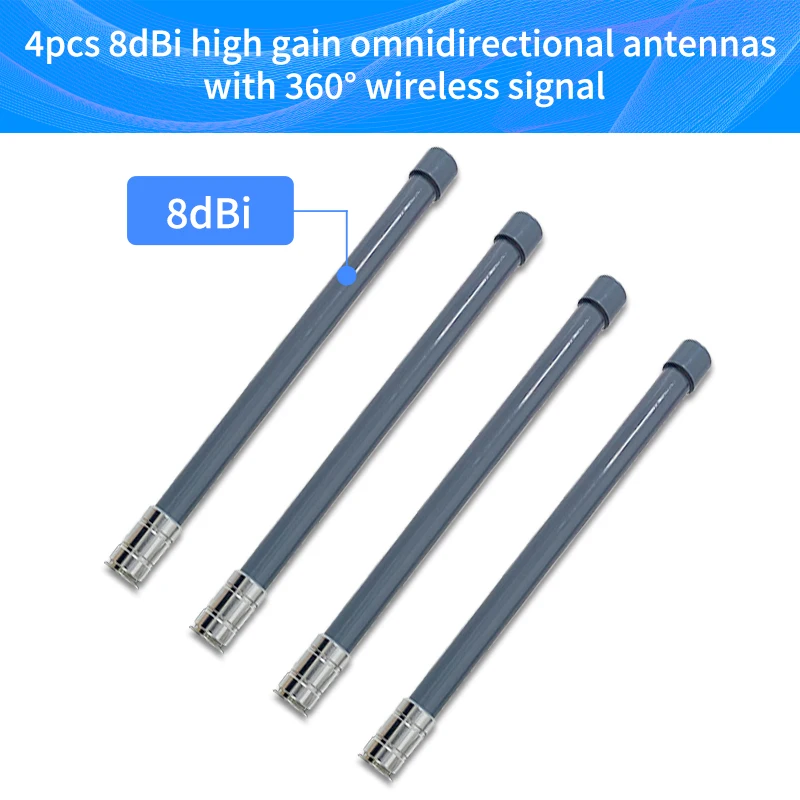

Antennas | Omnidirectional 5dbi 2.4G antenna*2 |
Omnidirectional 5dbi 5.8G antenna*2 | |
Omnidirectional 5dbi 5Gantennas*4(5G antennas* 4, 4G antennas*2) | |
M.2 Slot | Built-in M.2/PCIE*1, Support USB3.0 and PCIE Bus, support 4G/5G module |
Default IP | 192.168.1.1 |
username/password | root/admin |
2.4G SSID | WIFI6-XXXXXX (x is the last 6 bits of MAC address), default no password |
5.8G SSID | WIFI6-5G-XXXXXX (x is the last 6 bits of MAC address), default no password |
Product Description

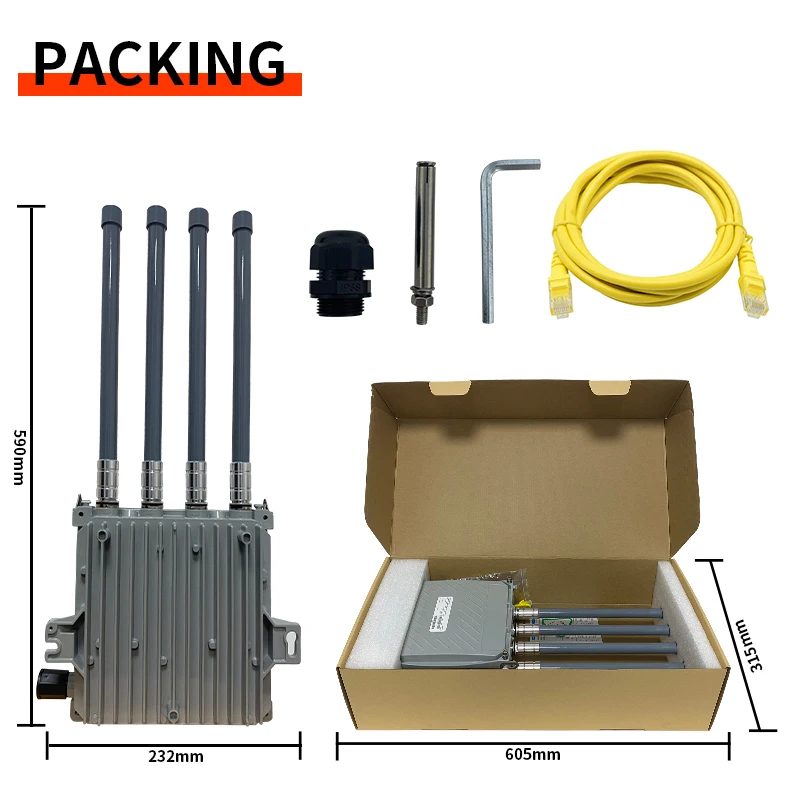

Product packaging
1*2022 New Arrival ZBT Z6001AX-T Dual Band AX1800 Gigabit LTE 4G 5G Modem Enterprise Sim Card Wifi 6 Router in a box
20*2022 New Arrival ZBT Z6001AX-T Dual Band AX1800 Gigabit LTE 4G 5G Modem Enterprise Sim Card Wifi 6 Router in a box
20*2022 New Arrival ZBT Z6001AX-T Dual Band AX1800 Gigabit LTE 4G 5G Modem Enterprise Sim Card Wifi 6 Router in a box
Company Profile
Welcome to Shenzhen Zhibotong Electronics Co., Ltd.established in 2010, located at Longhua District, Shenzhen, China. ZBT is a manufacturer which is consist of 500 staffs, with a 50-person R & D team, 10,000 Square meters production scale. Professional in R&D and producing network devices, specially for processing OEM/ODM. Products include openwrt wifi router, 3G/4G router, Vehicles router,AP,Outdoor CPE and LTE CPE.ZBT is also a Wi-Fi coverage service provider, provides the solution for hotel, school, hospital, enterprise, airport and vehicle field. We have built a long term cooperation with Mediatek, Broadcom and Qualcomm, capably offering good quality products and fast after-sale service to our clients.Till now, ZBT's products have exported to over 30 countries and regions. Our main customers are China Mobile, Vivacom in Bulgaria, Sprint, T-Mobile, AT&T in USA and Smart in Philippine. We also take part in different Communication Fairs, such as MWCA in USA,Gitex in Dubai, Cebit in Germany and Computex in Taipei. Each year, ZBT will take out more than 35% of the annual turnover as R&D funds to develop new products, so as to satisfy clients' new coming requests. Customers' satisfaction is ZBT's continuously pursues. ZBT warmly welcome everybody joining in and build win-win cooperation.
Certifications
Exhibition
FAQ
Can you printing Customer logo on products?
Yes, we can printing your logo on products.
Do you provide PCBA board order only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
Can you desin products as per customer's requirements?
Yes, of course. We have our own R&D department, we have ability to design and produce at same time.
Do you....?
Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
Yes, we can printing your logo on products.
Do you provide PCBA board order only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
Can you desin products as per customer's requirements?
Yes, of course. We have our own R&D department, we have ability to design and produce at same time.
Do you....?
Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
