AZ 7310 Waterproof Microswitch Horizontal Limit Switches
- Category: >>>
- Supplier: Wenzhou Kunling Electric Co. Ltd.
Share on (1600720783549):
Product Overview
Description
Product Description

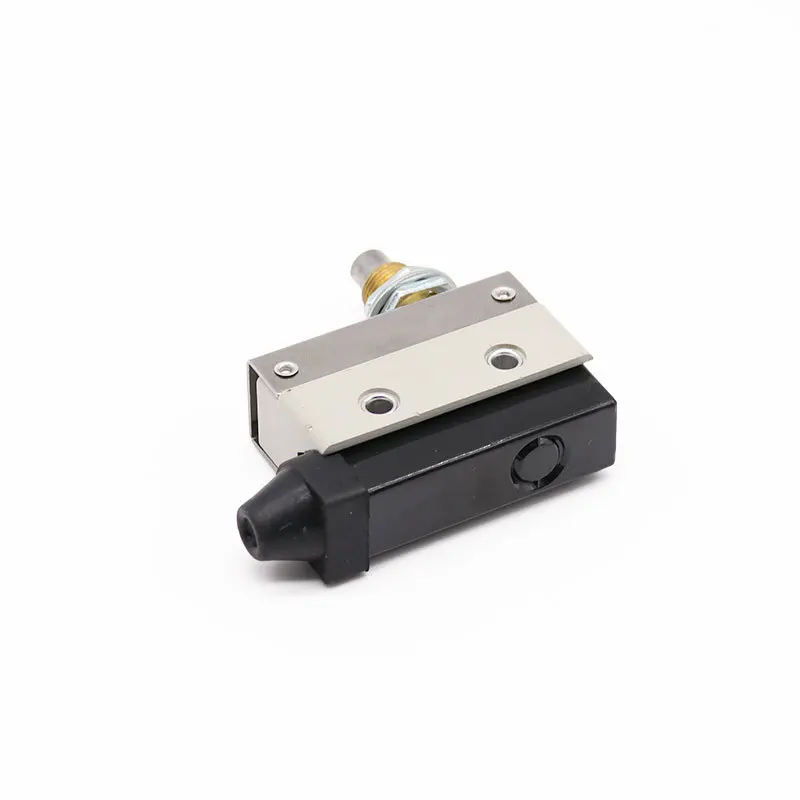

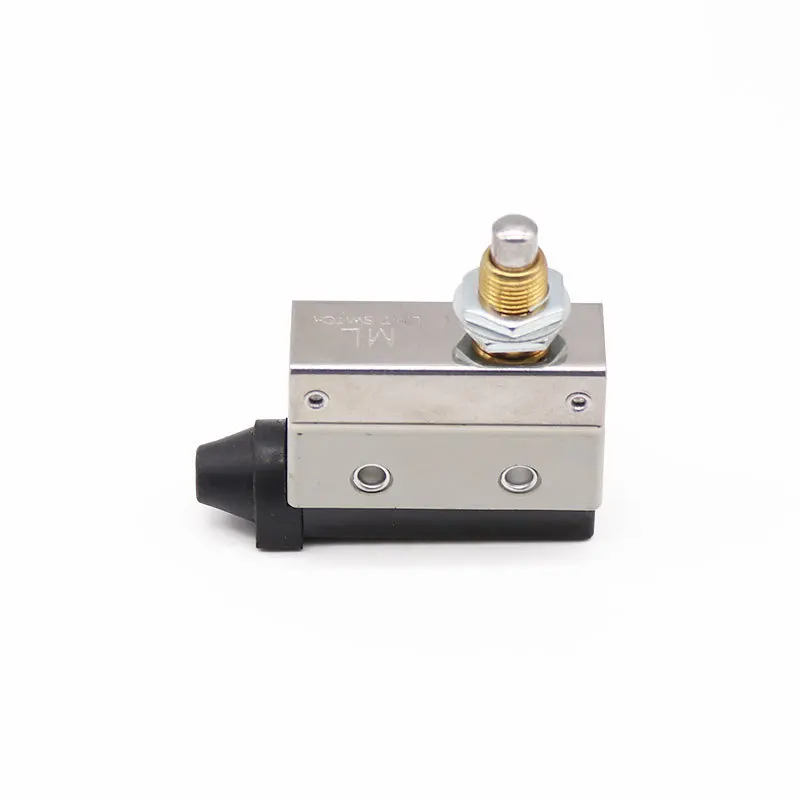

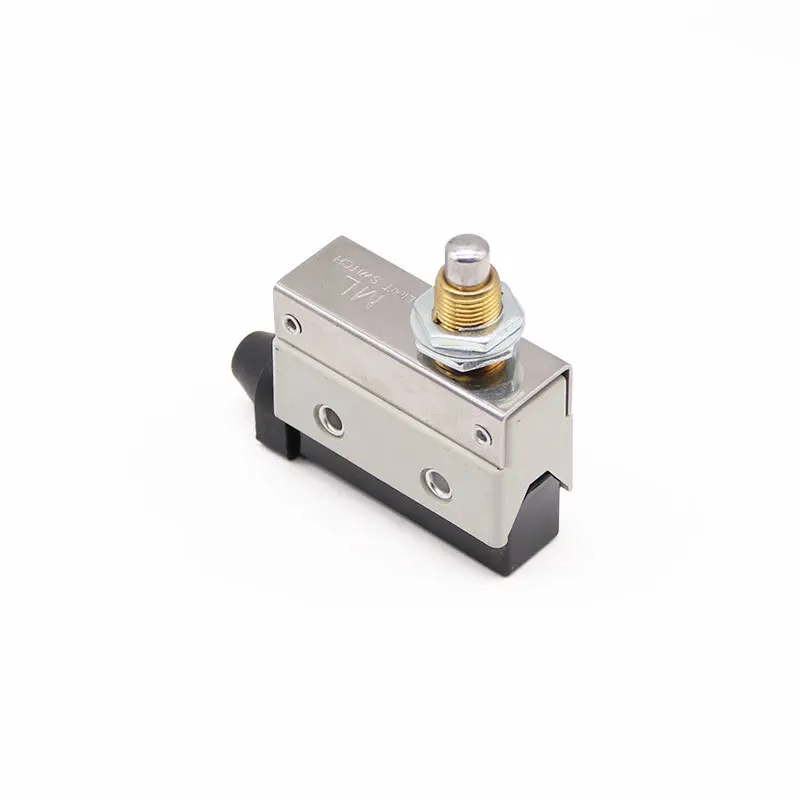

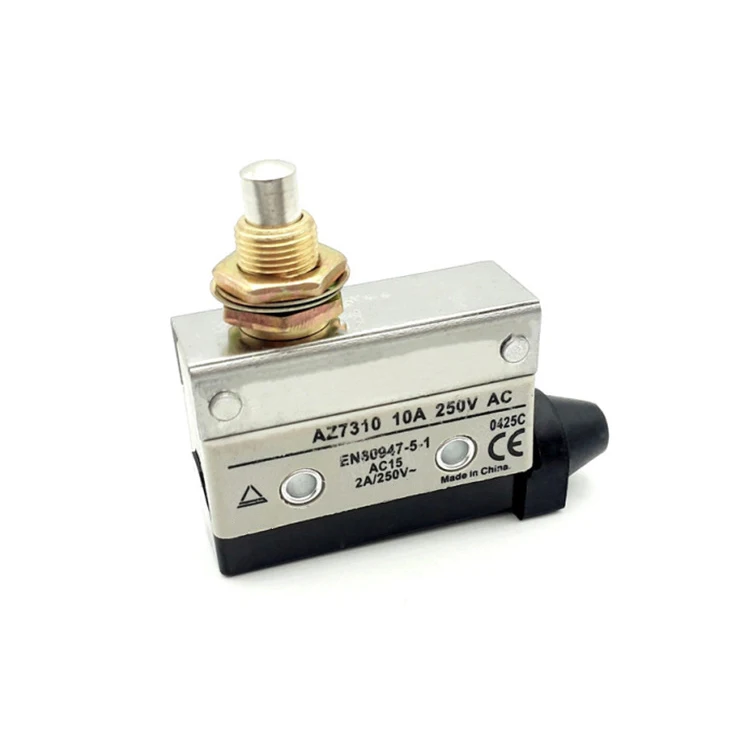

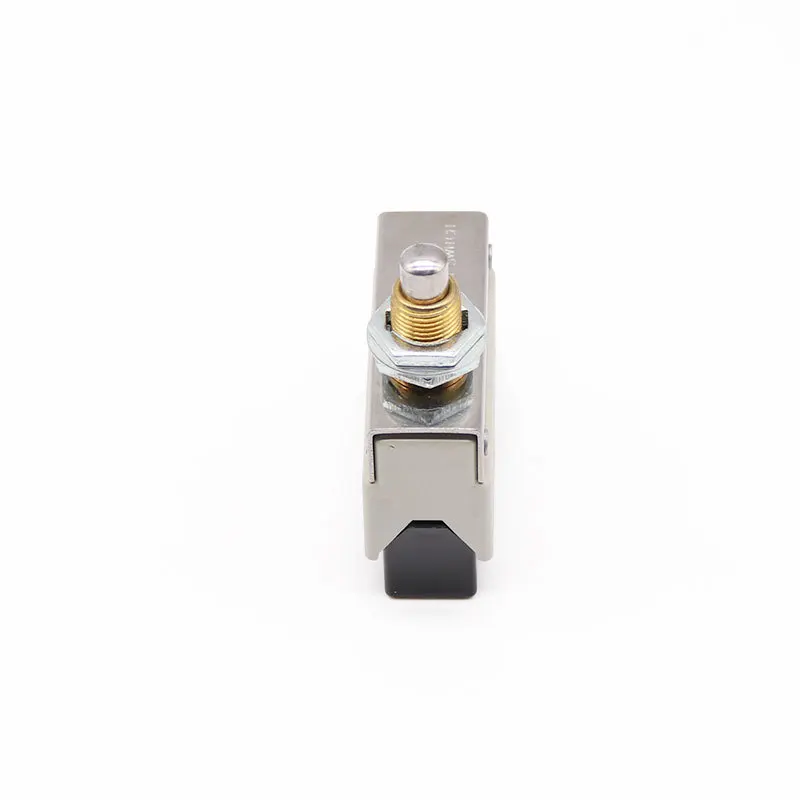

AZ-7310 Waterproof Microswitch Horizontal Limit Switches
Specification
Function | ON-OFF |
Rated operating characteristics | Inductive load:AC15.B300(Ue=240V.le=1.5A)-DC-13,R300(Ue-250V.le-0.1A) Resistive load: 250V,5A |
Rated insulation voltage | Ui-500V.class of pollution is 3. comply with IEC 60947-1Ui=300V,comply with UL508,CSA C22-2n” 14 |
Insulation resistance | 100MΩ above (megohmmeter of 500VDC) |
Operating frequency | Mechanical: maximum 240 times/min.: electrical: maximum 20 times/min. |
Electrical life | 500.000 times |
Contact resistance | Less than 15MΩ(initial value) |
Ambient temperature | Operation:-10~+80C |
Vibration resistance | 10-55Hz complex amplitude 1.5mmmisoperationwithin 1ms (in state of FpTTP) |
Shock resistance | Maximum 300m/s2 ,misoperatior within 1ms (in state of FP. TTP) |
Degree ofprotection | IP54 |
Mechanical life | 10.000.000 times |
Operation speed | 0.01mm to 1m/sec (lock plug type) |
Model and Size
Details Images
Packaging & Shipping
Company Profile
After Sales Service
Customer's Good Comment
Any question,please feel free to tell me,our sales group will reply as soon as possible.
FAQ
Q1:Are you a manufacturer?
A:We have our own factory,all products are inspected before leaving the factory to ensure good quality.
Q2:What's your MOQ?
A:The moq of different products will be different,pls confirm with our sales before ordering.
Q3:What's your time of making samples and what's the sample charge?
A:Usually we will take 3-7days to make the samples,we can provide free samples for products with a value of less than 5 US dollars, but you need to pay the shipping cost.
Q4:What's price term and payment term?
A:We accept EXW,FOB,CNF,CFR,DDU and so on,the payment can be 100%T/T;30% advance,70% before shipment,L/C at sight,we recommend Alibaba Trade Assurance Order, which is convenient for payment and guarantees the rights of buyers and sellers.
Q5:What's your delivery time?
A:Honestly,it depends on the order quantity and the season you place the order.
