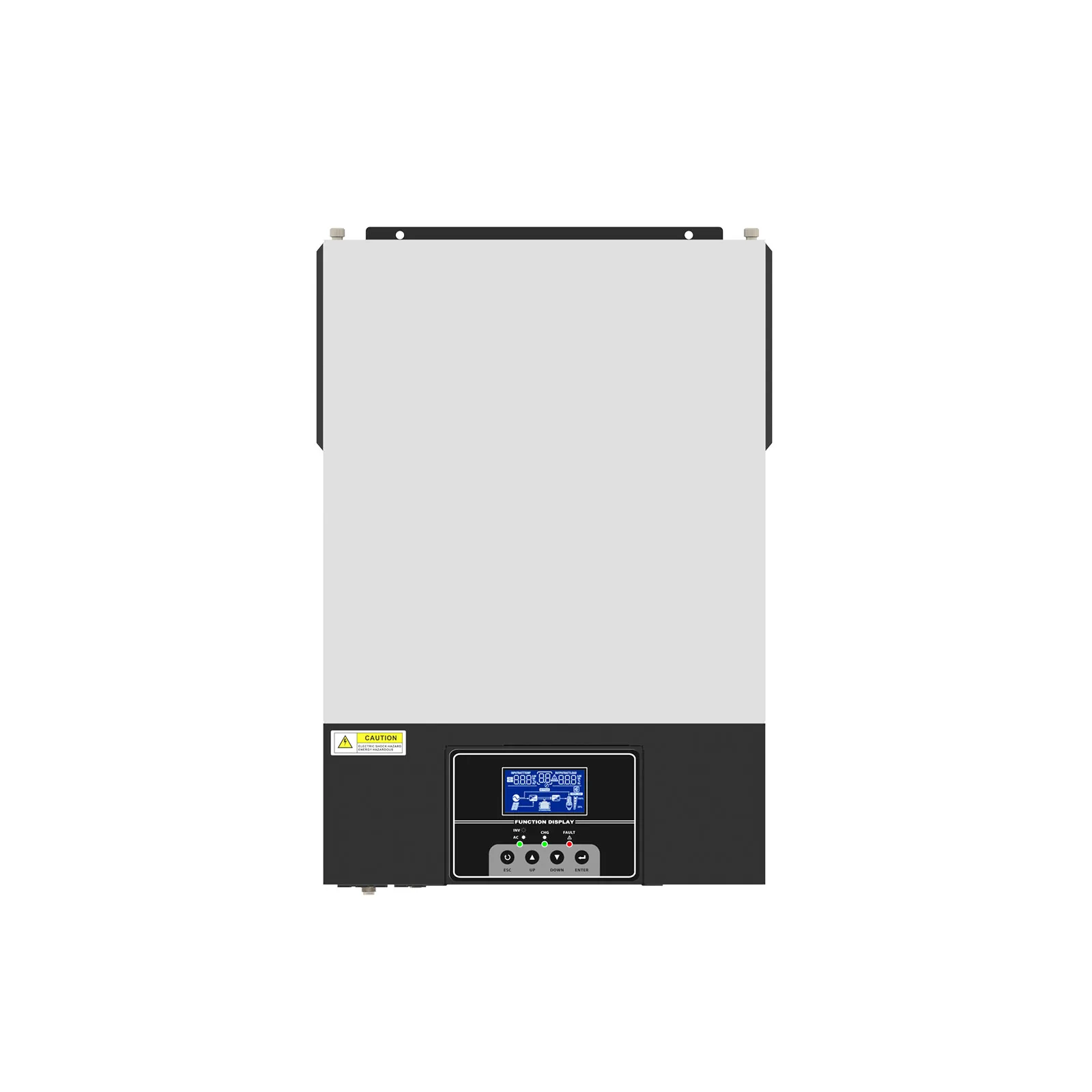

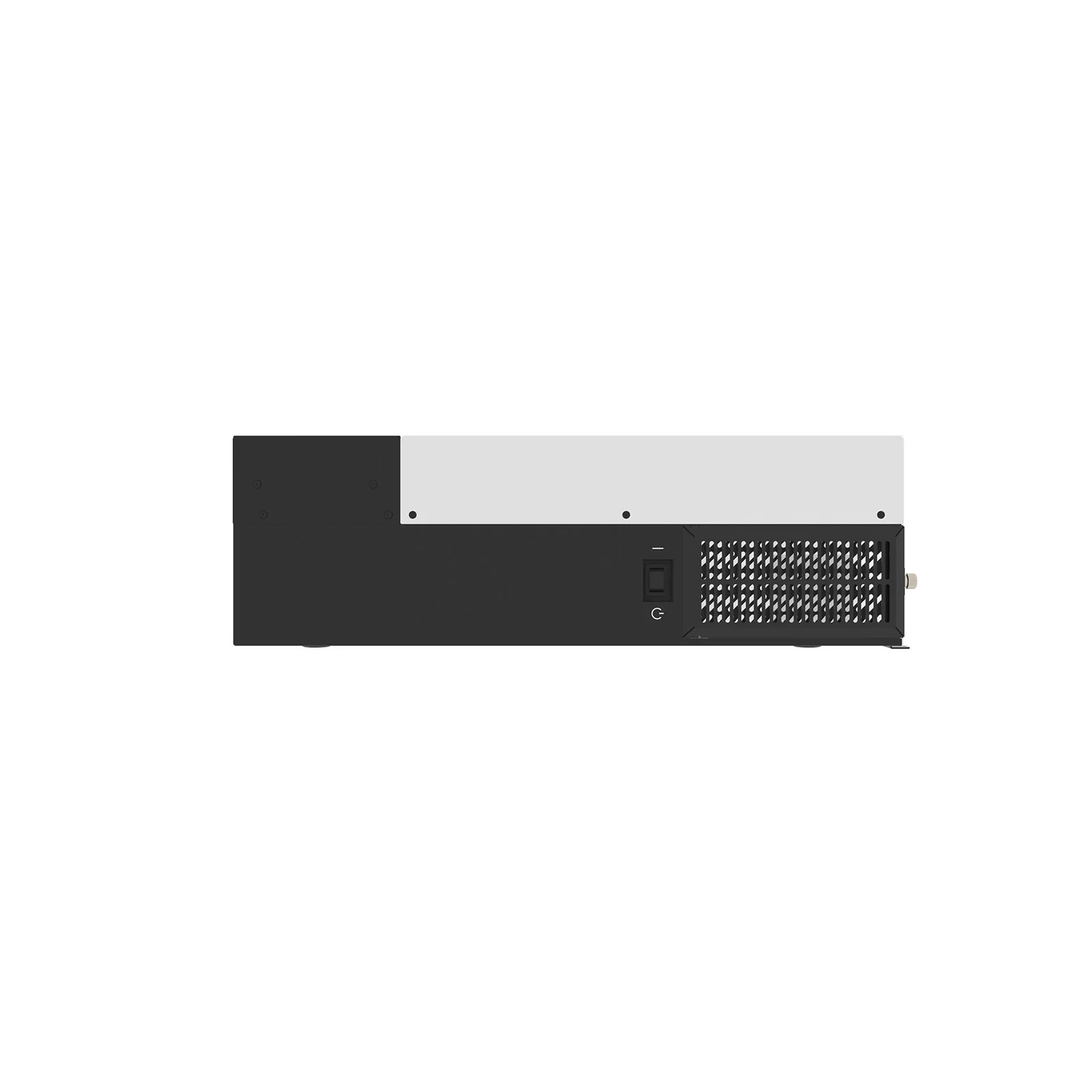

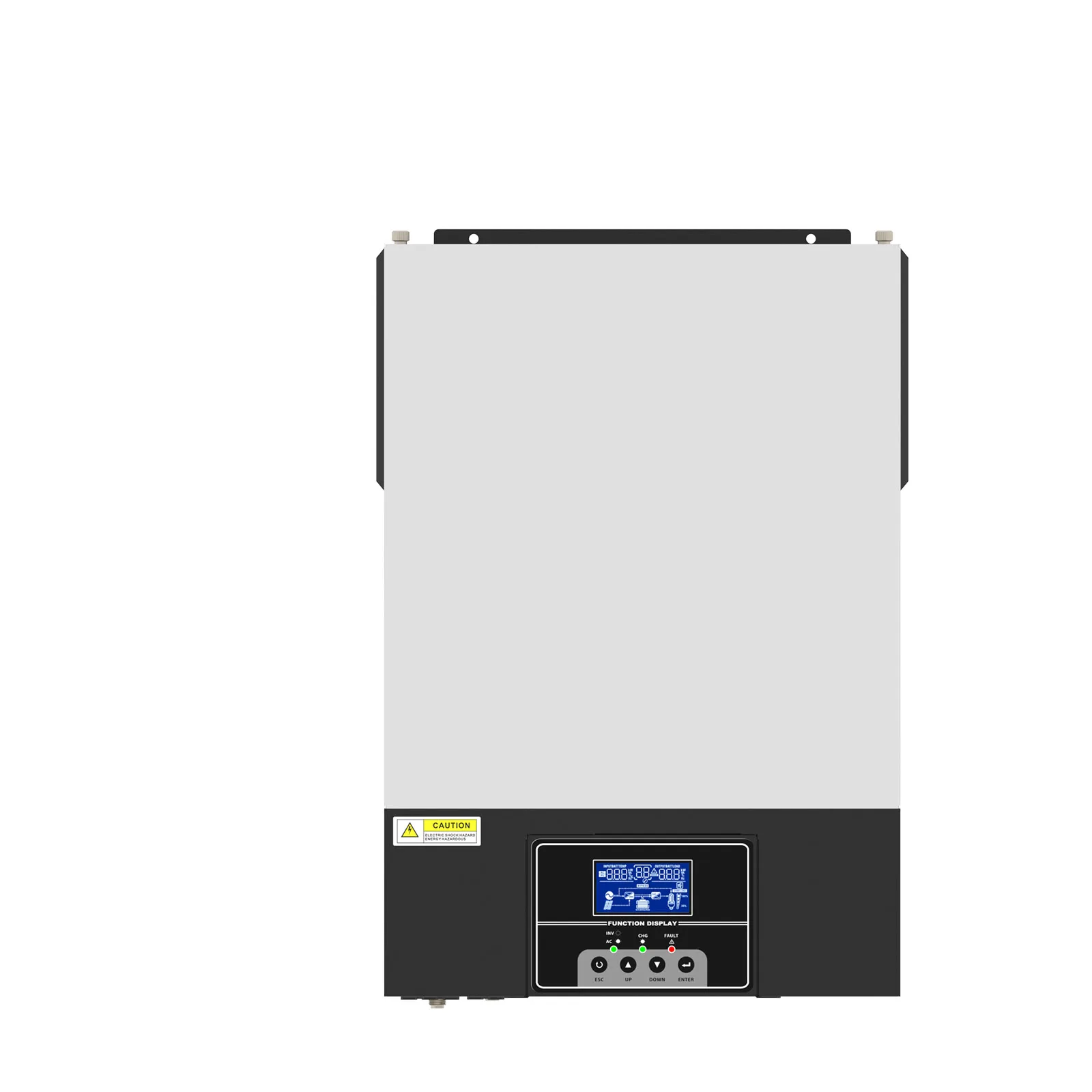

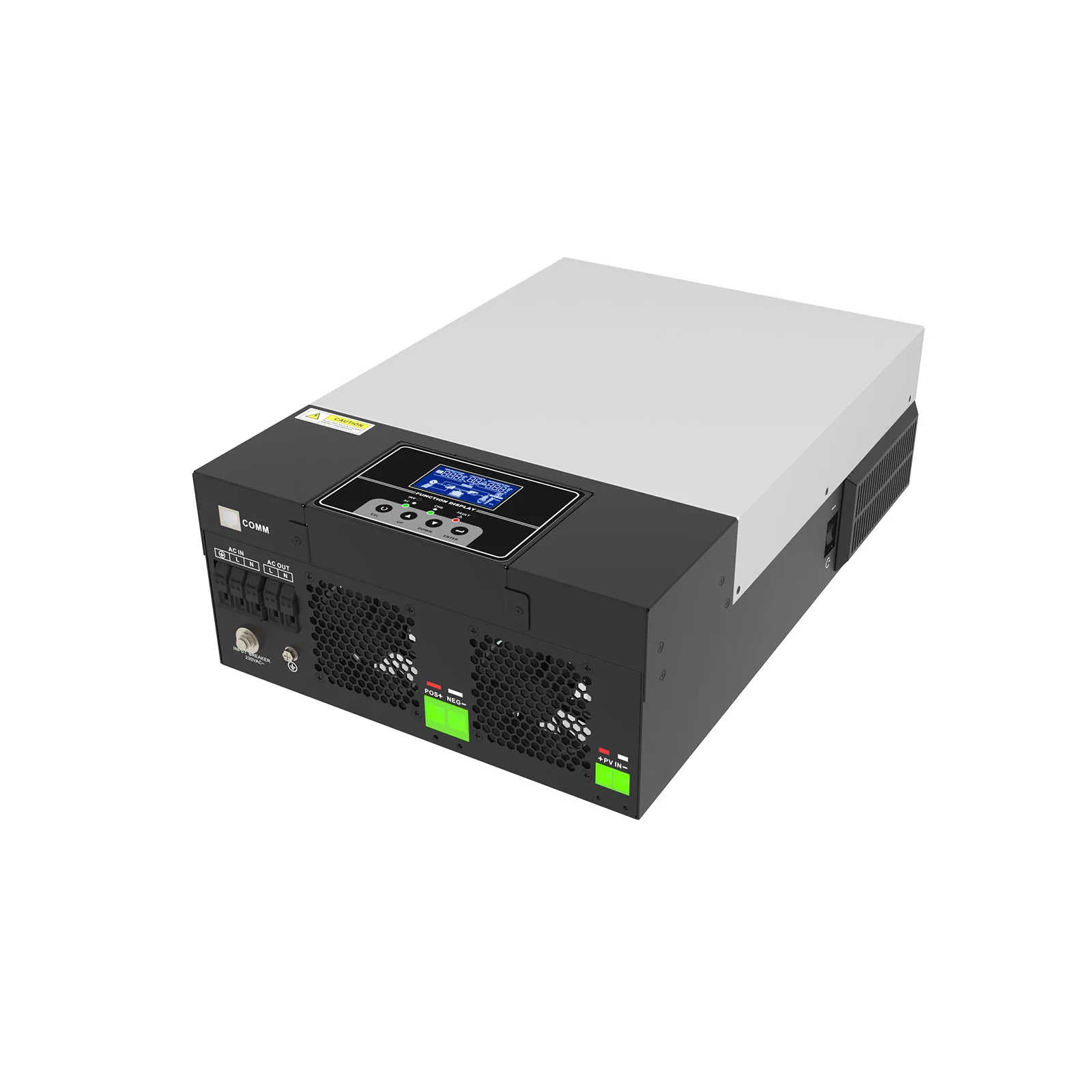

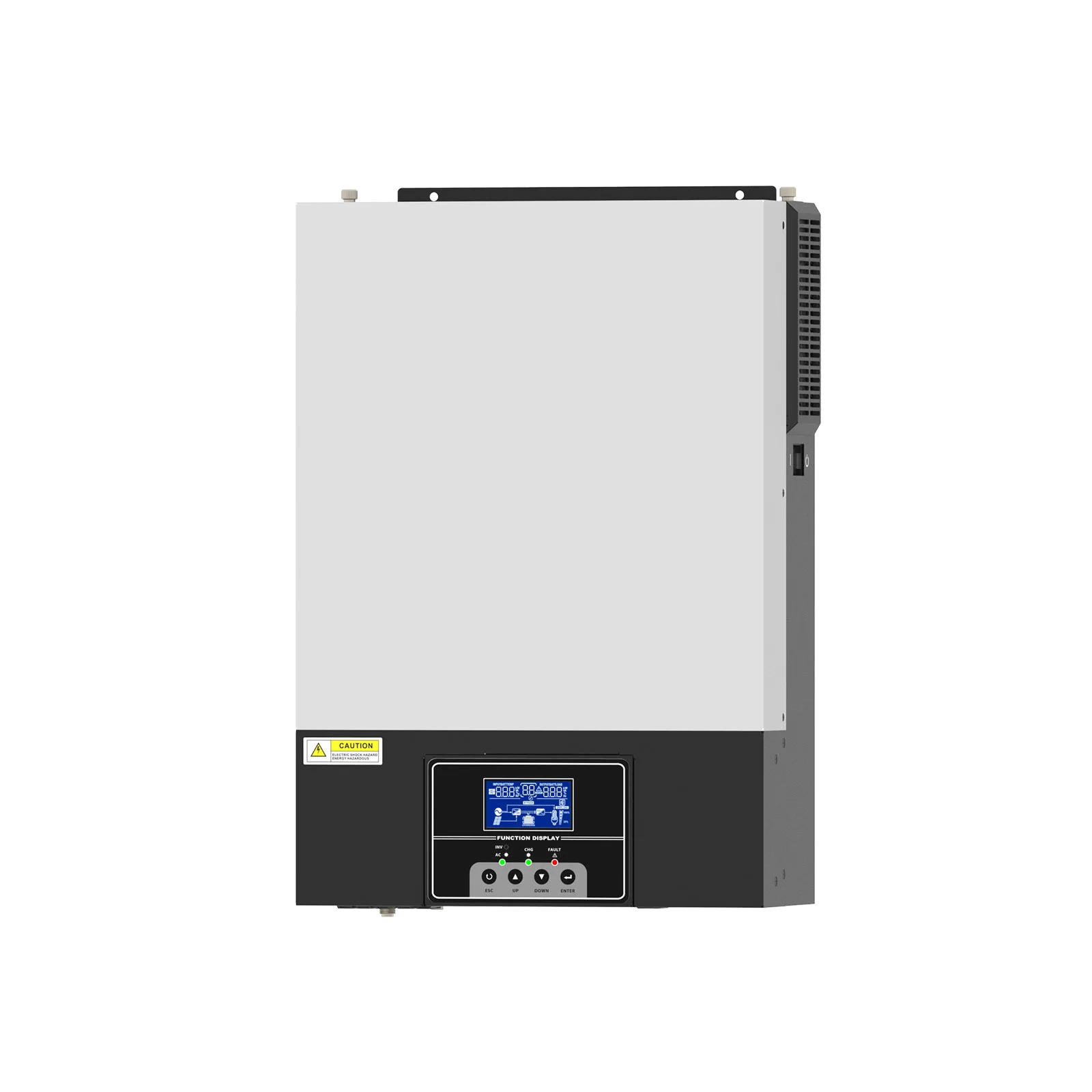

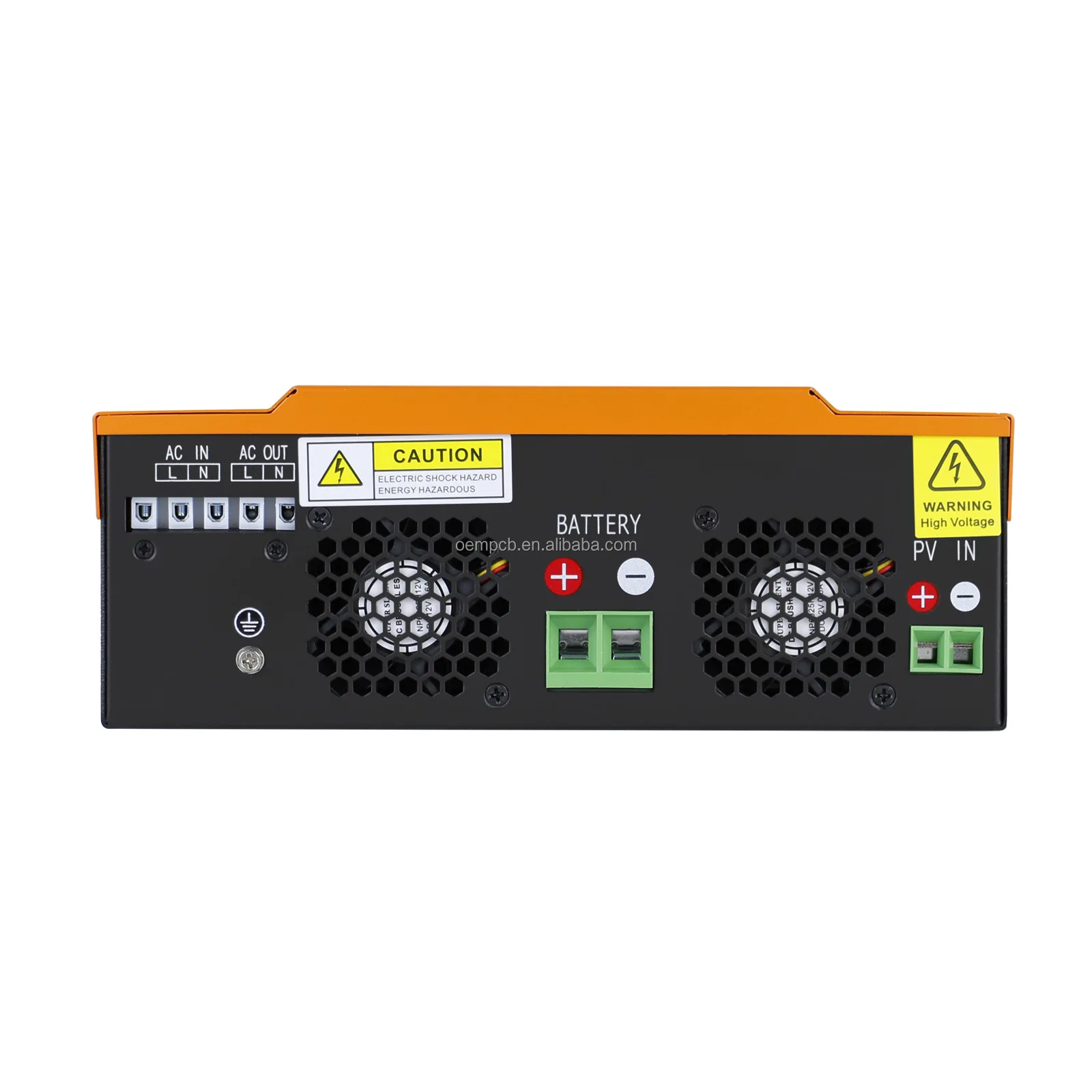

Hybrid inverter MPPT 5.5KW Solar Inverter 100A 500VDC PV input 220VAC 48VDC Solar charger Support
- Category: >>>
- Supplier: Shenzhen Pengzexiang Technology Co. Ltd.
Share on (1600720848835):
Product Overview
Description
Specification
Model | Victor NM III-3500W | Victor NM III-5500W | ||
RATED POWER | 3500VA/3500W | 5500VA/5500W | ||
INPUT | ||||
Voltage | 230 VAC | |||
Selectable Voltage Range | 170-280 VAC (For Personal Computers) | |||
90-280 VAC (For Home Appliances) | ||||
Frequency Range | 50 Hz/60 Hz (Auto sensing) | |||
OUTPUT | ||||
AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | |||
Surge Power | 7000VA | 11000VA | ||
Efficiency (Peak) PV to INV. | 97% | |||
Efficiency (Peak) Battery to INV. | 94% | |||
Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) | |||
BATTERY & AC CHARGER | ||||
Battery Voltage | 24 VDC | 48 VDC | ||
Floating Charge Voltage | 27 VDC | 54 VDC | ||
Overcharge Protection | 33 VDC | 63 VDC | ||
Maximum Charging Current | 80 A | 80 A | ||
SOLAR CHARGER | ||||
Maximum PV Array Power | 5000W | 6000W | ||
MPPT Range @ Operating Voltage | 120 ~ 450 VDC | |||
Maximum PV Array Open Circuit Voltage | 500 VDC | |||
Maximum Charging Current | 100100A | 100A | ||
Maximum Efficiency | 98% | |||
PHYSICAL | ||||
Dimension, D x W x H (mm) | 452*303*138 | |||
Net Weight (kgs) | 11.1 | 12.3 | ||
Communication interface | REMOVE LCD/RS232/GPRS/WIFI | |||
OPERATING ENVIRONMENT | ||||
Mumidity | 5% to 95% Relative Humidity(Non-condensing) | |||
Operating Temperature | 0°C - 55°C | |||
Storage Temperature | –15°C - 60°C | |||
Products Description
Company Profile
Sunsoar Power
Shenzhen Pengze Xiang Technology Co, Ltd. It is specializing in inverter and a professional FFC and FPC factory, located in the Second Industrial Park of Nanchang Huafeng, Baoan District, Shenzhen, Guangzhou, China. With many years of experience in OEM printed circuit boards (PCBS) and PCB assembly and manufacturing, as well as superior quality, advanced service and competitive prices, Sunsoar has won the trust and support of many customers. Shenzhen Rixiang Circuit is a professional manufacturer of printed circuit boards. since 2008, after years of continuous innovation and development, now it has set up PCB Division and FPC Board Division. We have the ability to create PCB design, PCB manufacturing, PCB SMT assembly one stop source of goods.
Certificate

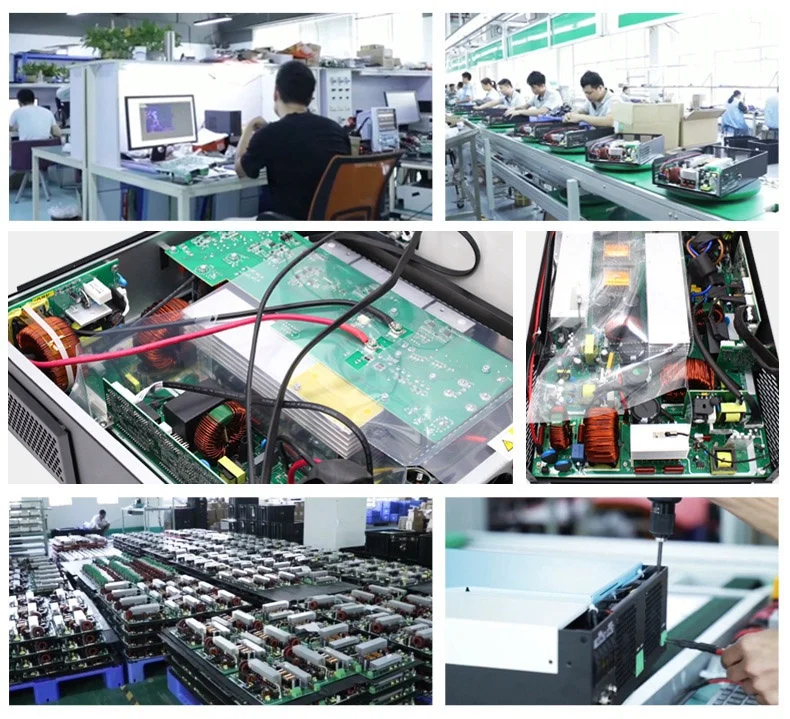

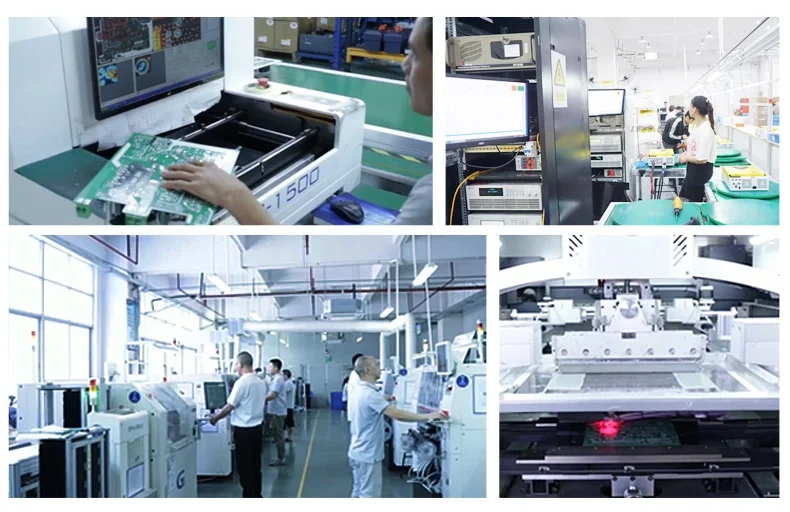

Our production line
Product Application
Our service
FAQ
A: Yes, our factory and sales department are located in Shenzhen and we would be pleased to welcome you in our factory at any time
when you are in Shenzhen
Q:What is the warranty for this inverter?
A:, All products are at least 1 year warranty.
Q: What is the shipping way?
A: DHL,UPS,TNT,EMS,FedEx, Ship by sea.
Q:What is the payment method?
A:We normally require a T/T advance payment. 30% deposit and 70% before shipping.
Q:Can we design packaing?
A:YES.We can do customer's own packing
Q:Can we customize product?
A:YES.OEM&ODM.
