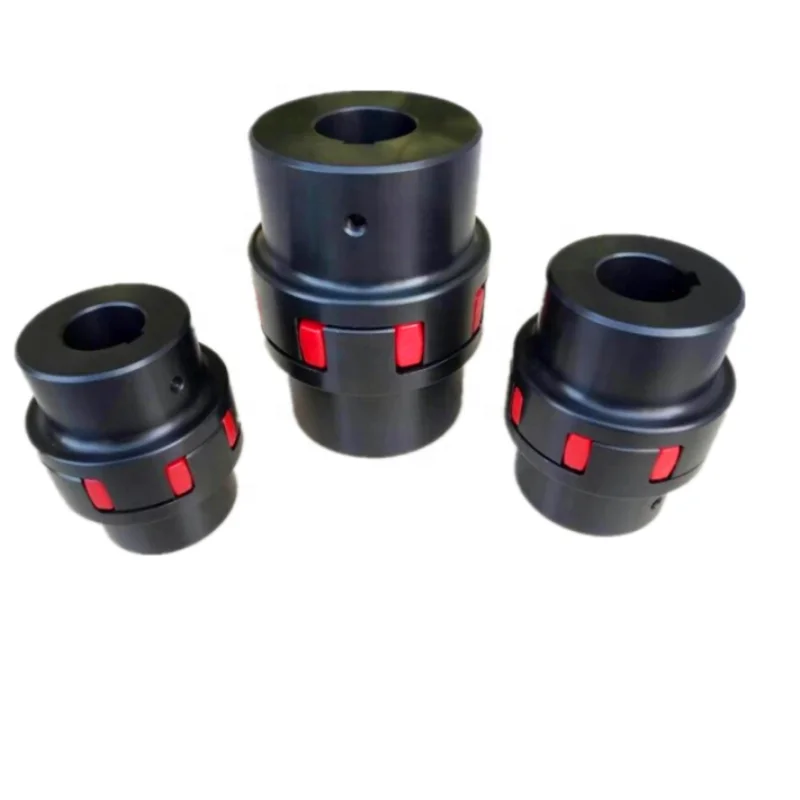

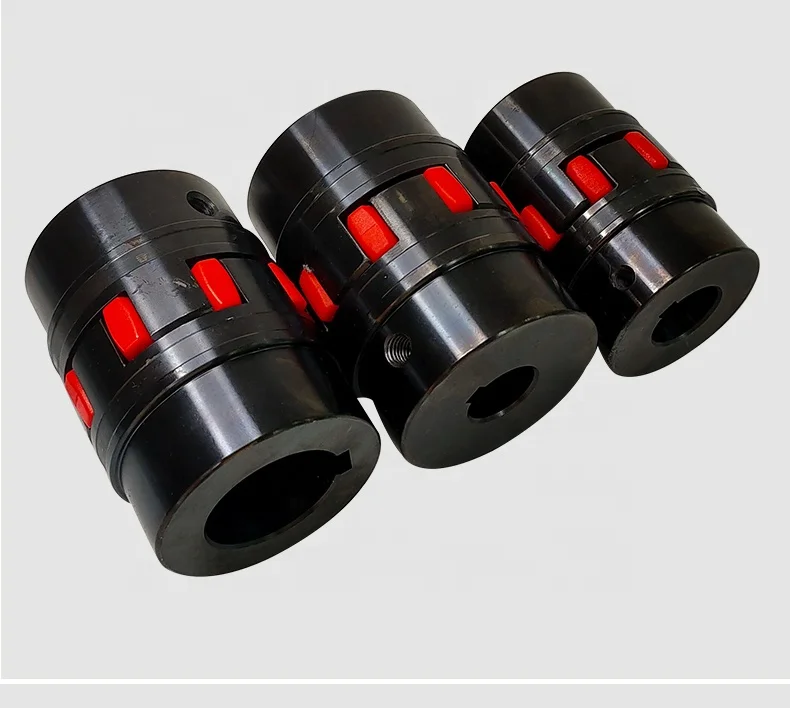

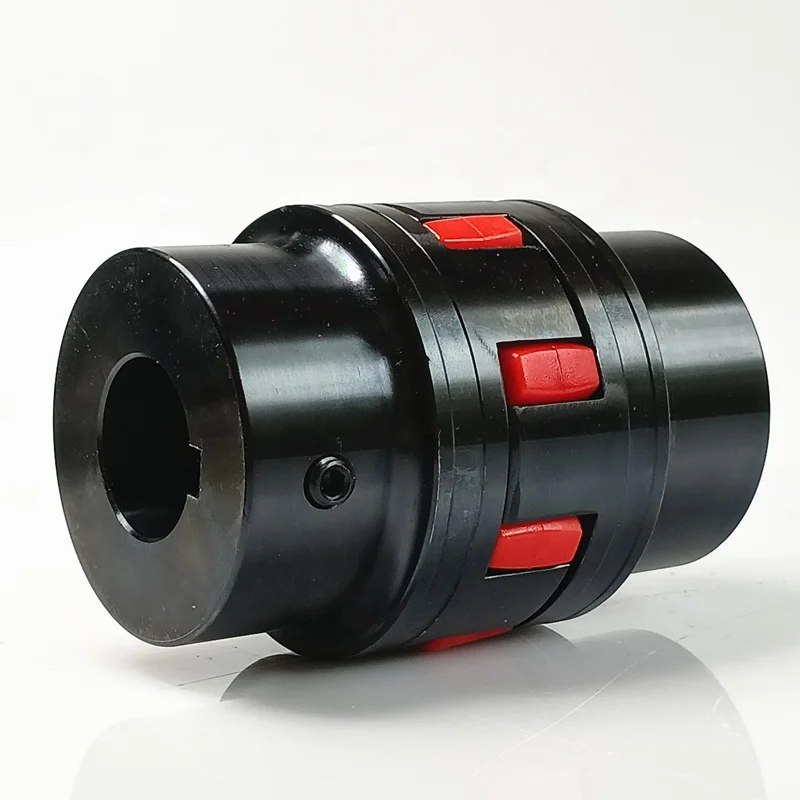

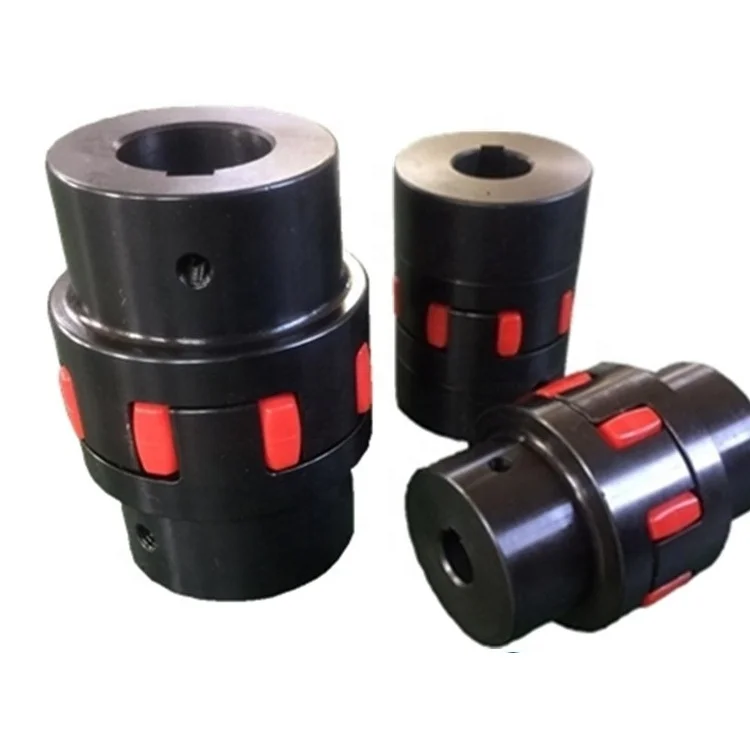

Line Shaft Coupling Universal Coupling For Printing Machine Servo Shaft Coupling Electric Motor
- Category: >>>
- Supplier: Dongguan Mingxin Machinery Hardware Co. Ltd.
Share on (1600720850185):
Product Overview
Description

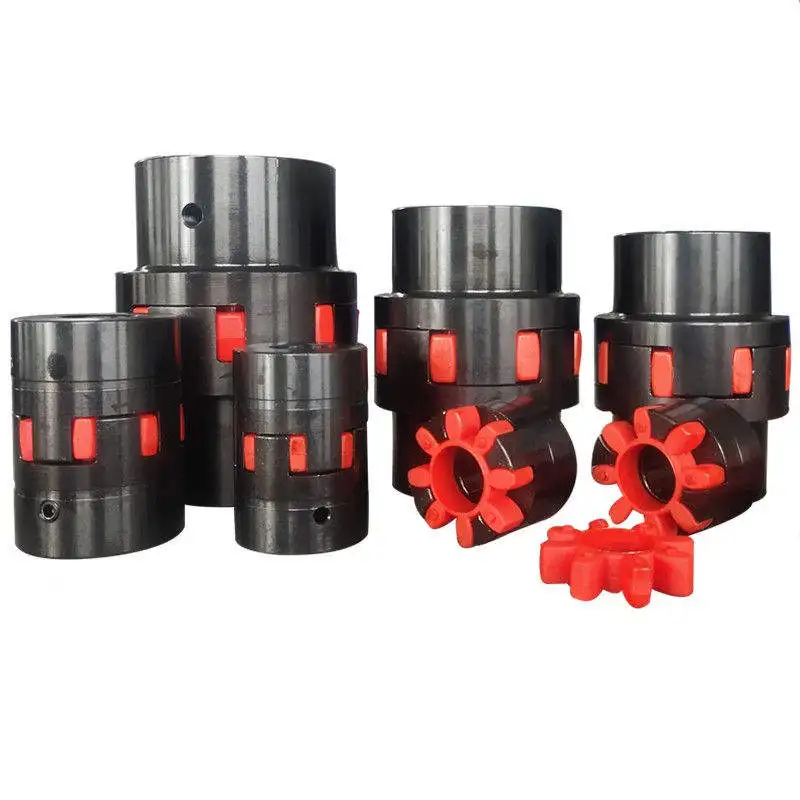

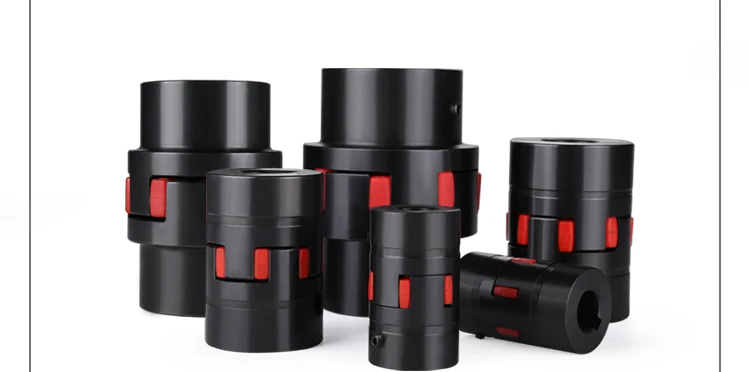

LXS/XLS Star Type Shaft Couplings Double steps coupler Flexible Coupling for pump
Application field:
Metallurgy. Mining. Petroleum. Chemical industry. Compressors. Lifting. Transportation. Light industry. Textiles. Water pump, fan,etc.
Mainly applicable to the environment:
Start frequently. Reverse turn. High and low speed, medium torque and high reliability requirements.
Characteristic:
Polyurethane elastomer is restricted by convex claw block, which can avoid internal deformation caused by impact and external deformation caused by centrifugal force.
The large concave surface of the jaw reduces the surface pressure on the involute teeth.
It has the properties of compensating two axis relative offset, cushioning, shock absorption and wear resistance.
Suitable for connecting two coaxial axis drive shaft system, suitable for common occasions.
Way to install:
Keyway fastening screw installation: rely on keyway transmission, through key and keyway with the realization of torque transfer,set screw prevent key sliding in the keyway, can achieve greater torque transfer. The allowable torque depends on the allowable pressure on the keyway surface. It should be noted that this structure is not suitable for heavy load positive and negative rotation where no backlash is required.

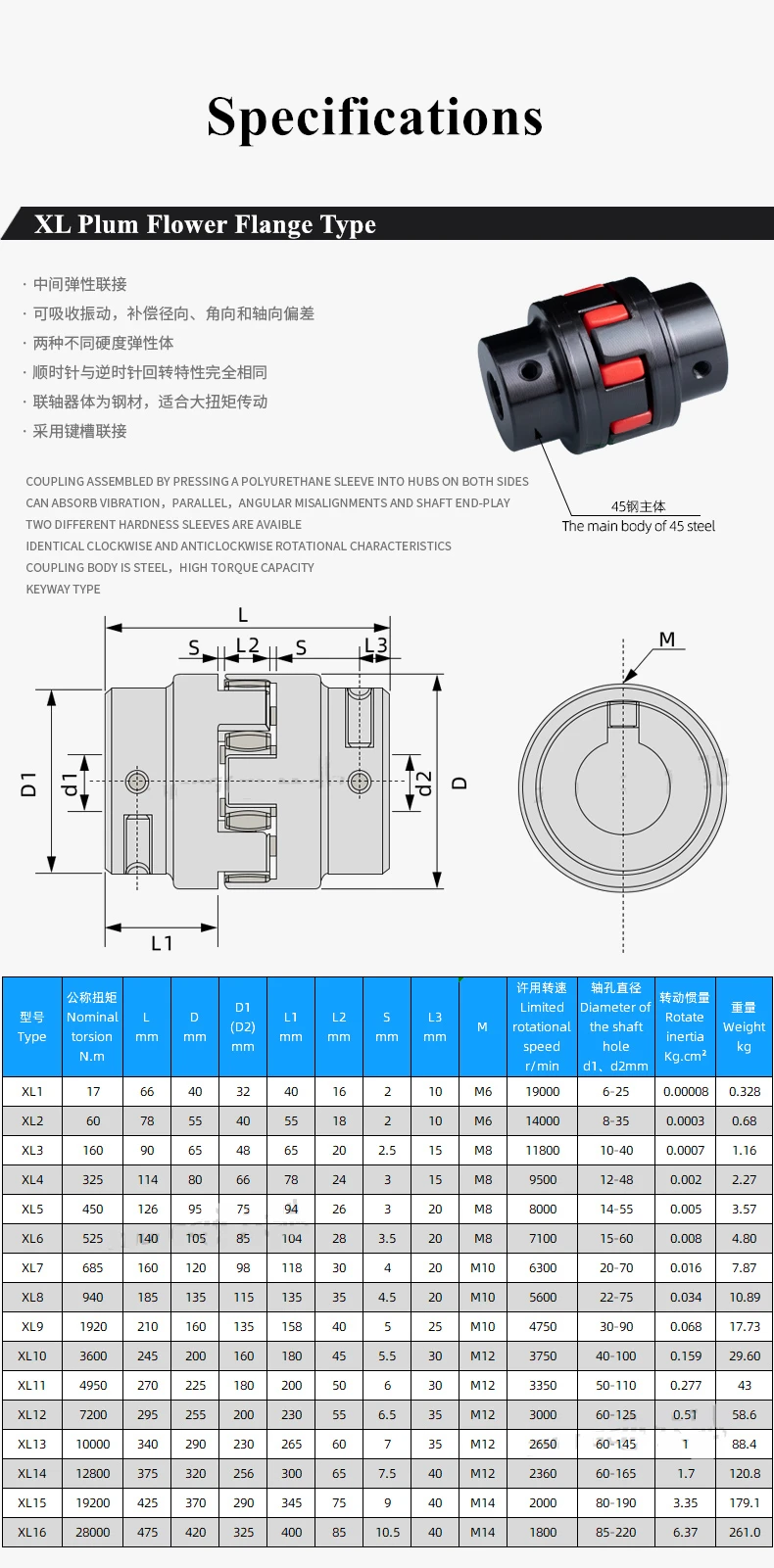

| product information | |

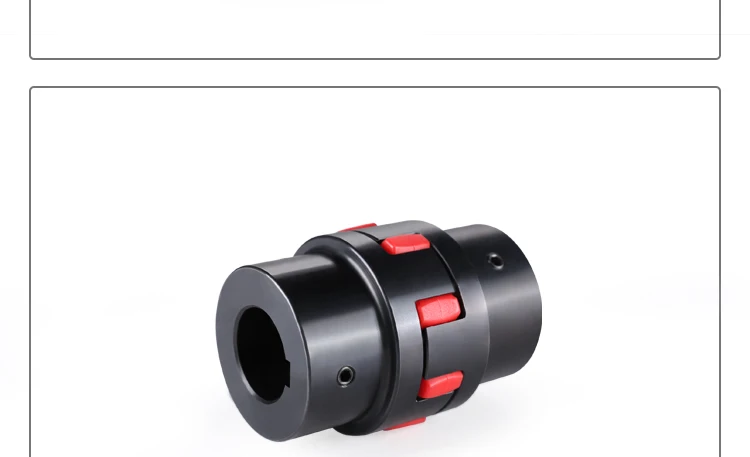

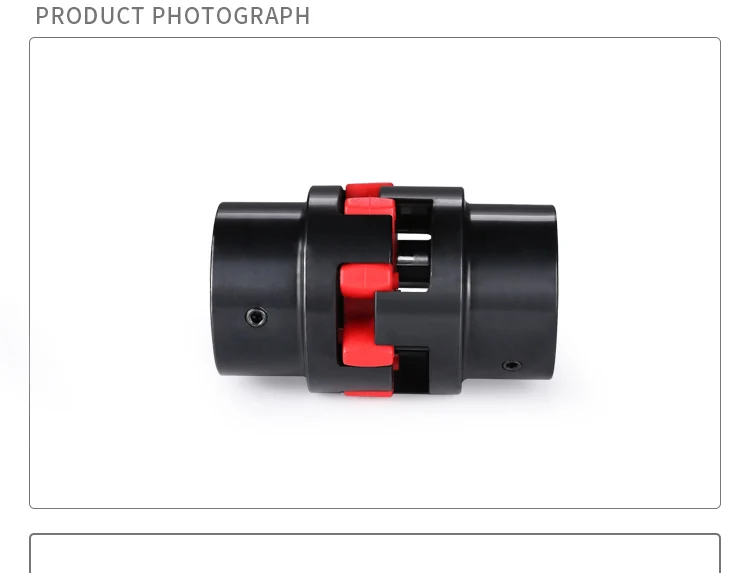

| Product name | Star Elastic Coupling |
| Material | Main:45# Steel ; Diaphragm:PU |
| Surface treatment | Blackened |
| Customized service | Support light customization and logo customization |
| A fixed way | Keyway plus jackscrew |
| Connection method | Elastic connection |

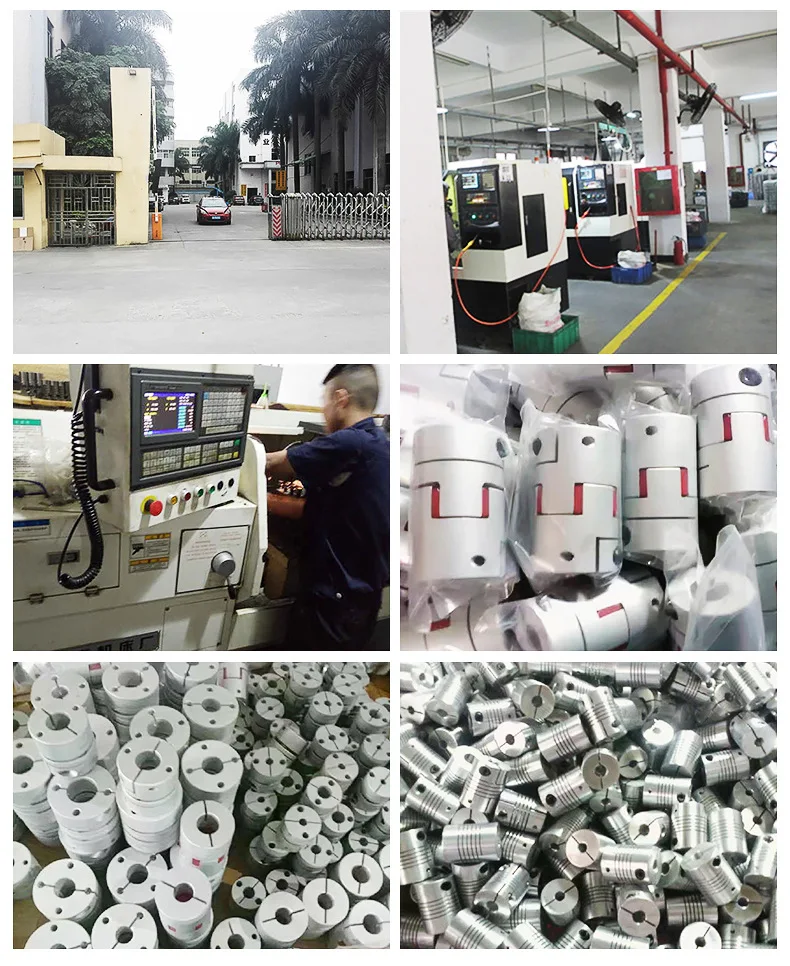

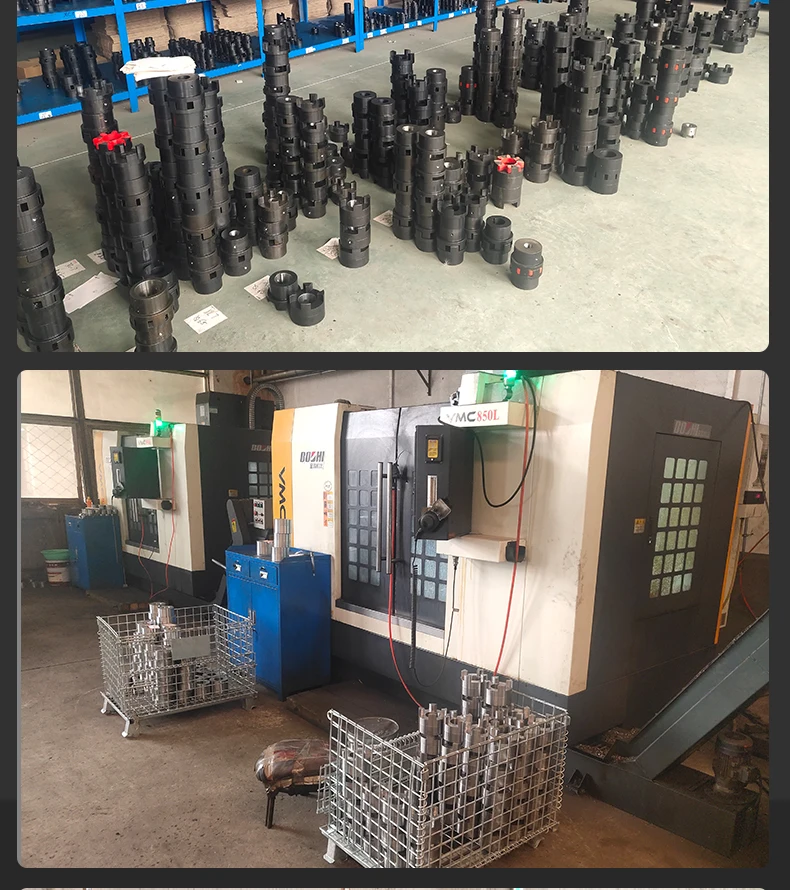

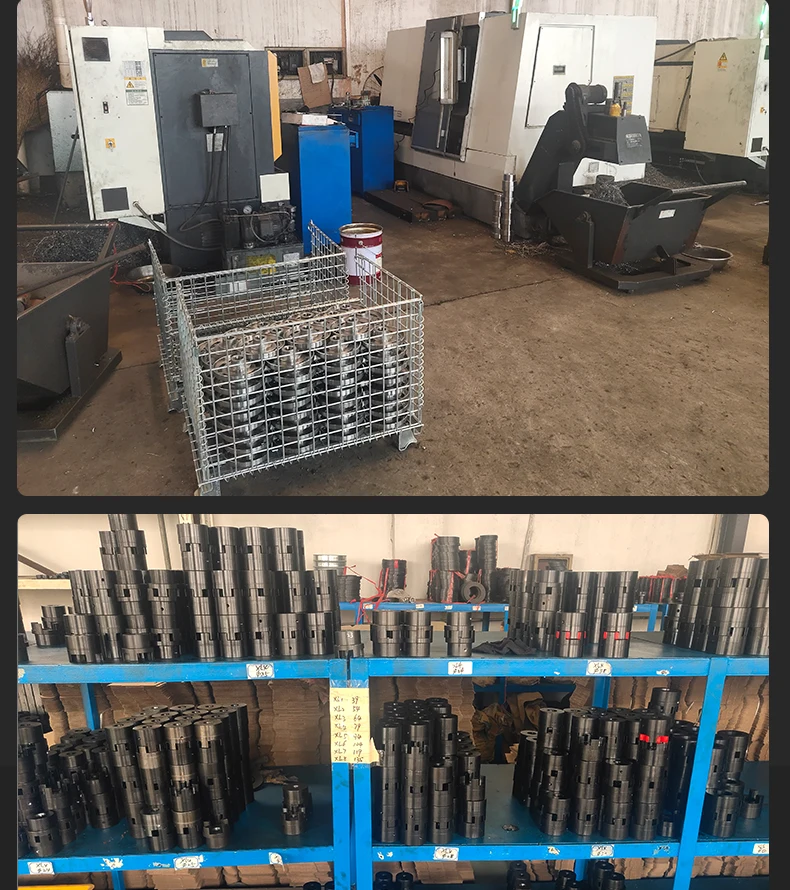

The factory to show
Packaging & Shipping
