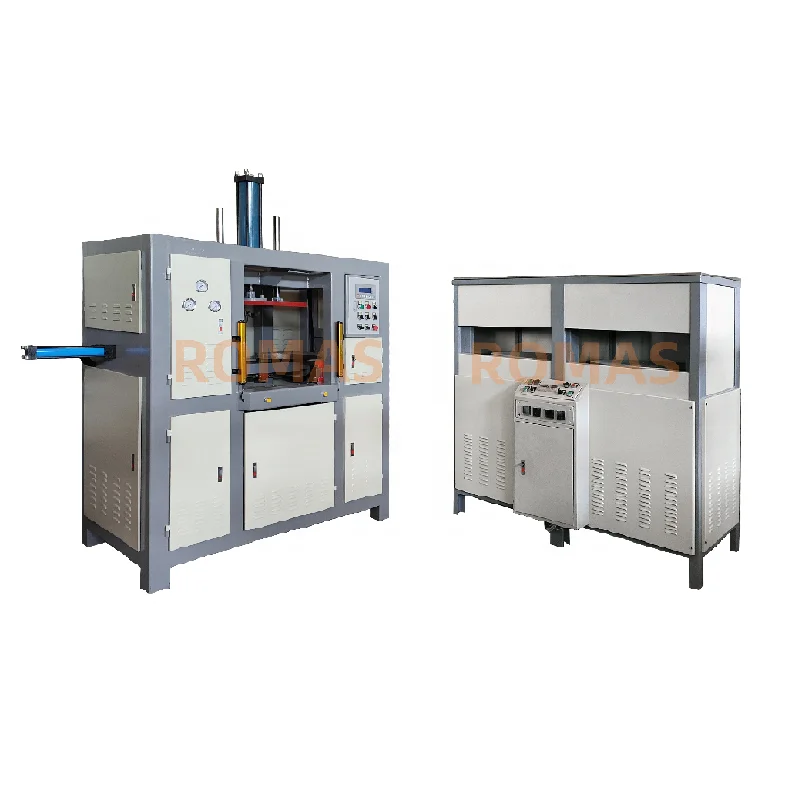

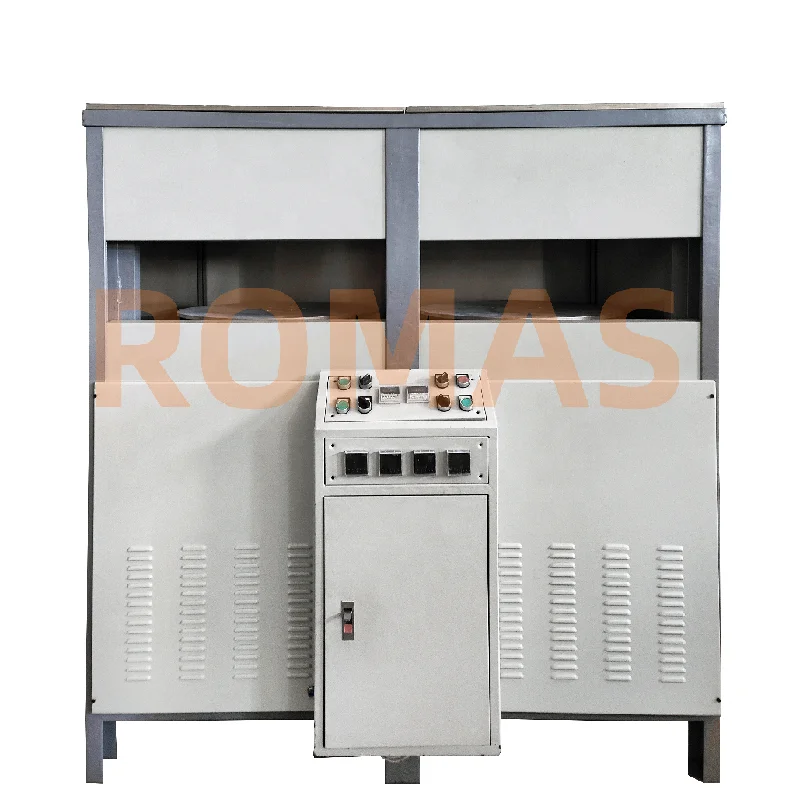

semi automatic Acrylic/ PMMA/ PC LED ceiling lampshade cover blow molding machine
- Category: >>>
- Supplier: Romas Lighting Technology Co. Limited
Share on (1600720869736):
Product Overview
Description
Product Overview
Semi automatic Acrylic/ PMMA/ PC LED ceiling lampshade cover blow molding machine
* This machine is based on infrared radiation heating, positive pressure blow molding equipment
* Through professional design, carefully crafted
* Make your operation simple and easy to use
* It is a simple chimney or light box production equipment.
* Through professional design, carefully crafted
* Make your operation simple and easy to use
* It is a simple chimney or light box production equipment.
FEATURES AT A GLANCE
Equipment installation
The equipment single-phase 220V power supply, suggests using 2.5 mm2 cable wiring, airframe to grounding.
The equipment adopts a pneumatic drive, gas supply pressure 0.6-0.8 Mpa, flow does not less than 1m3 / min, and clean, dry air
pressure requires small ripple. The machine needs to put on smooth and solid ground, the installation environment request
ventilated, dry, far from flammable objects. Avoid installing in more dust, moisture, and vibration environment.
The equipment adopts a pneumatic drive, gas supply pressure 0.6-0.8 Mpa, flow does not less than 1m3 / min, and clean, dry air
pressure requires small ripple. The machine needs to put on smooth and solid ground, the installation environment request
ventilated, dry, far from flammable objects. Avoid installing in more dust, moisture, and vibration environment.
Main component: PLC: “MITSUISHI” Japan.
Right elevation
Left elevation

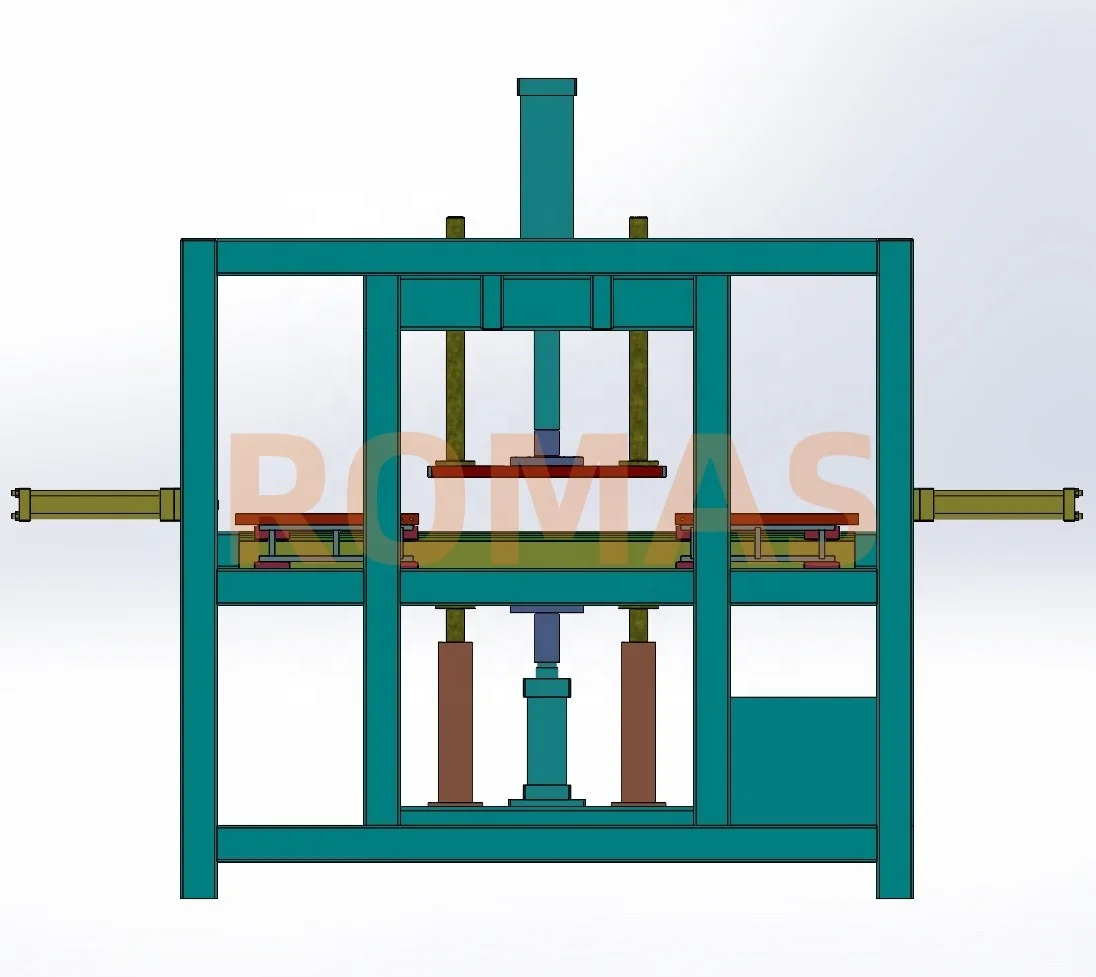

Front elevation
PRODUCT SPECIFICATIONS
Model | RLS-A800 |
Forming Dimensions. | ≤250~800mm for the lampshade |
Forming Height | ≤200mm |
Forming Thickness | 1-3.5mm |
Power supply | 380VAC/3phase/50HZ |
Upper mold | Hydraulic pressure + Hinge |
Air pressure | 0.5-0.8Mpa |
Suggest air compressor | 10~15HP |
PLC | “Mitsubishi” Japan |
Touch screen | “WeinView” Taiwan |
Safety device | Safety curtain |
Material moving | Servo motor |
Switch | “DELIXI” or “CHNT” China |
Air Cylinder | “Zhicheng” China or “Airtac” Taiwan |
Electromagnetic Valve | “Airtac” Taiwan |
Consumption | 30KW |
Machine size(L×W×H) | 2400*1600*2200mm |
Machine weight | About 2500KG |
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
SALES AND SERVICE NETWORK

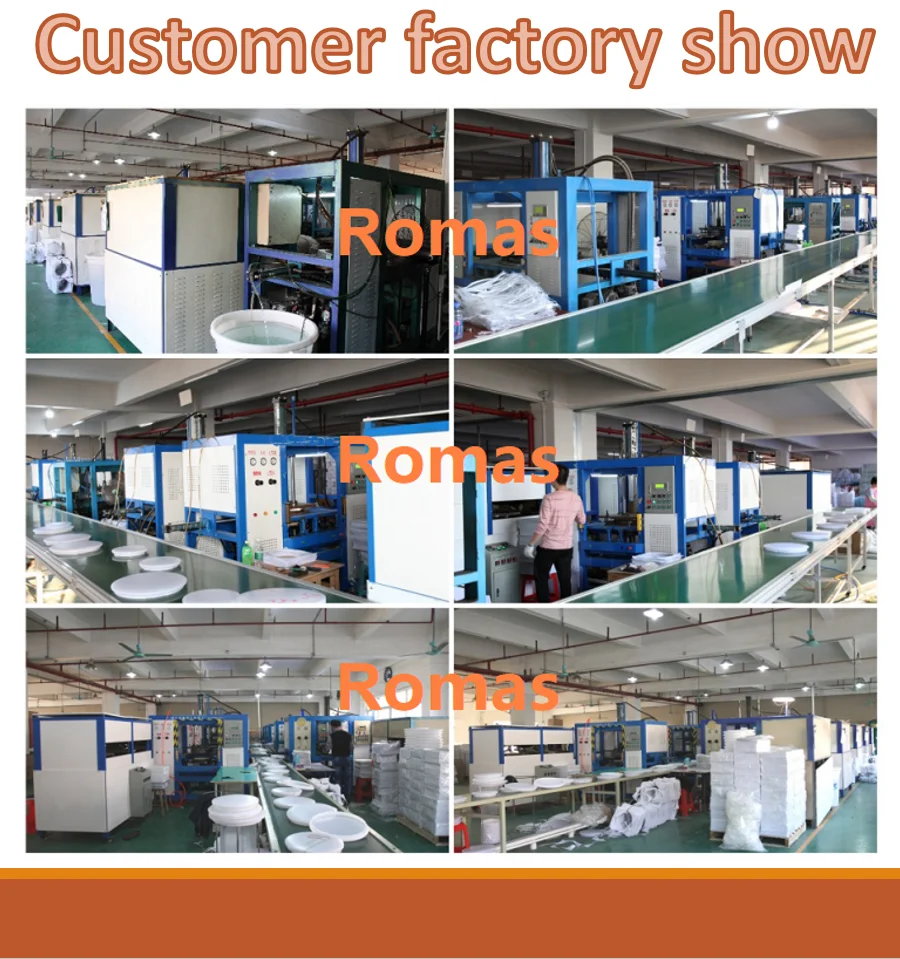

Successful Project
Project in Thailand
Project in India
Project in Russia
