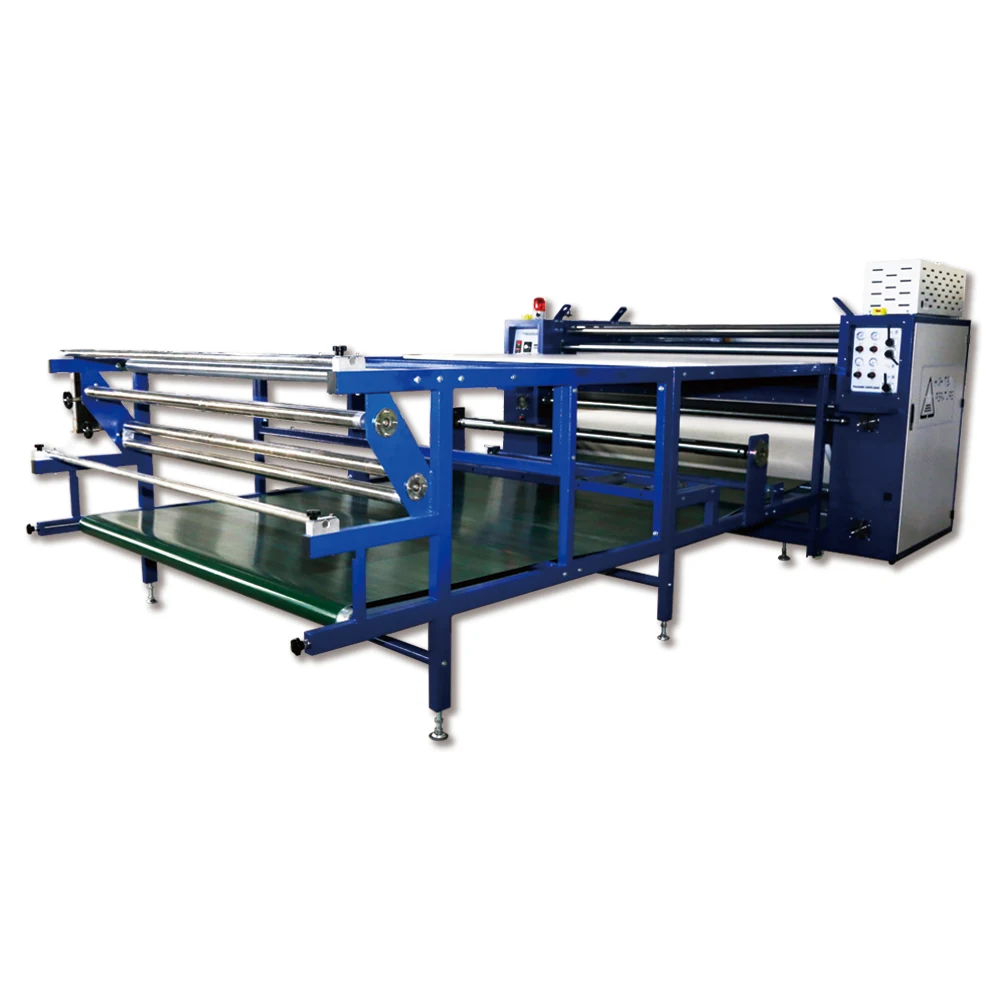

HJD Factory Direct Sublimation Roller Heat Transfer Machine Press Oil Rotary Roller Sublimation Printing Machine For Fabric
- Category: >>>
- Supplier: Qingdao Hengjinding Precision Machinery Co. Ltd.
Share on (1600720871937):
Product Overview
Description

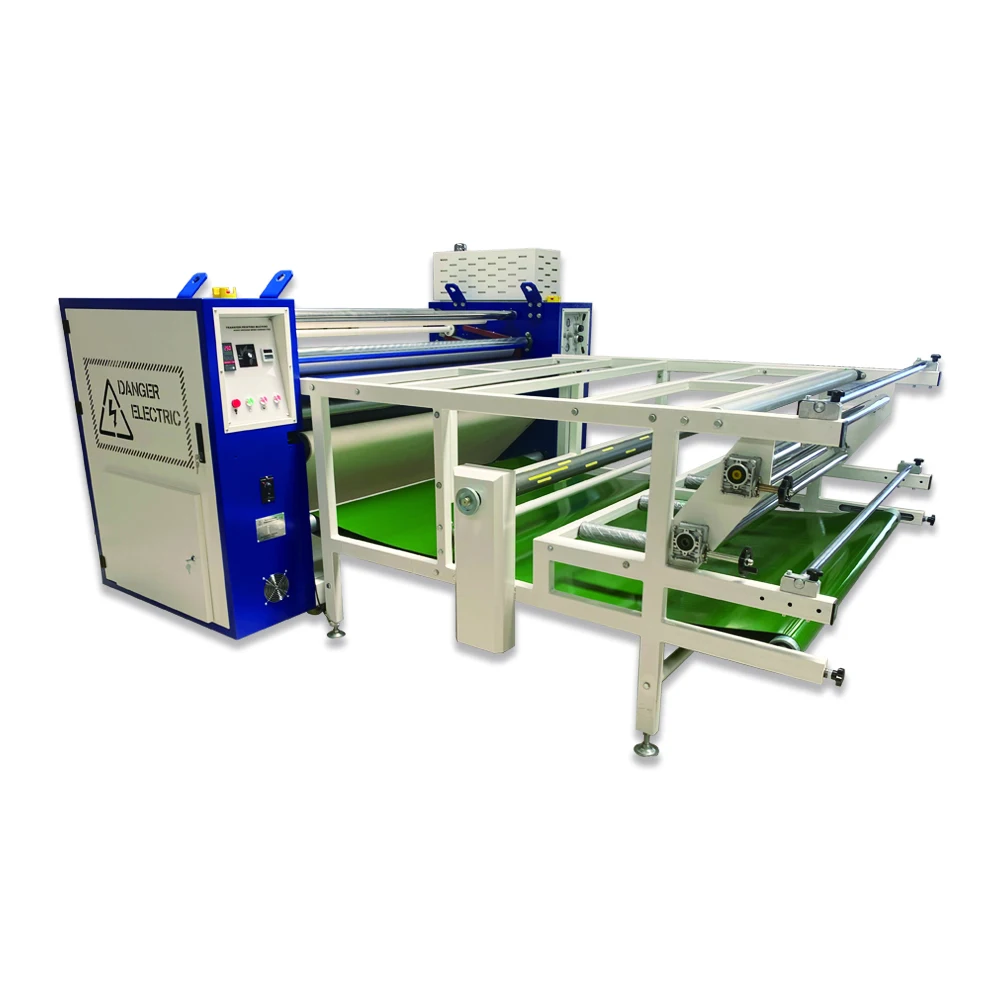

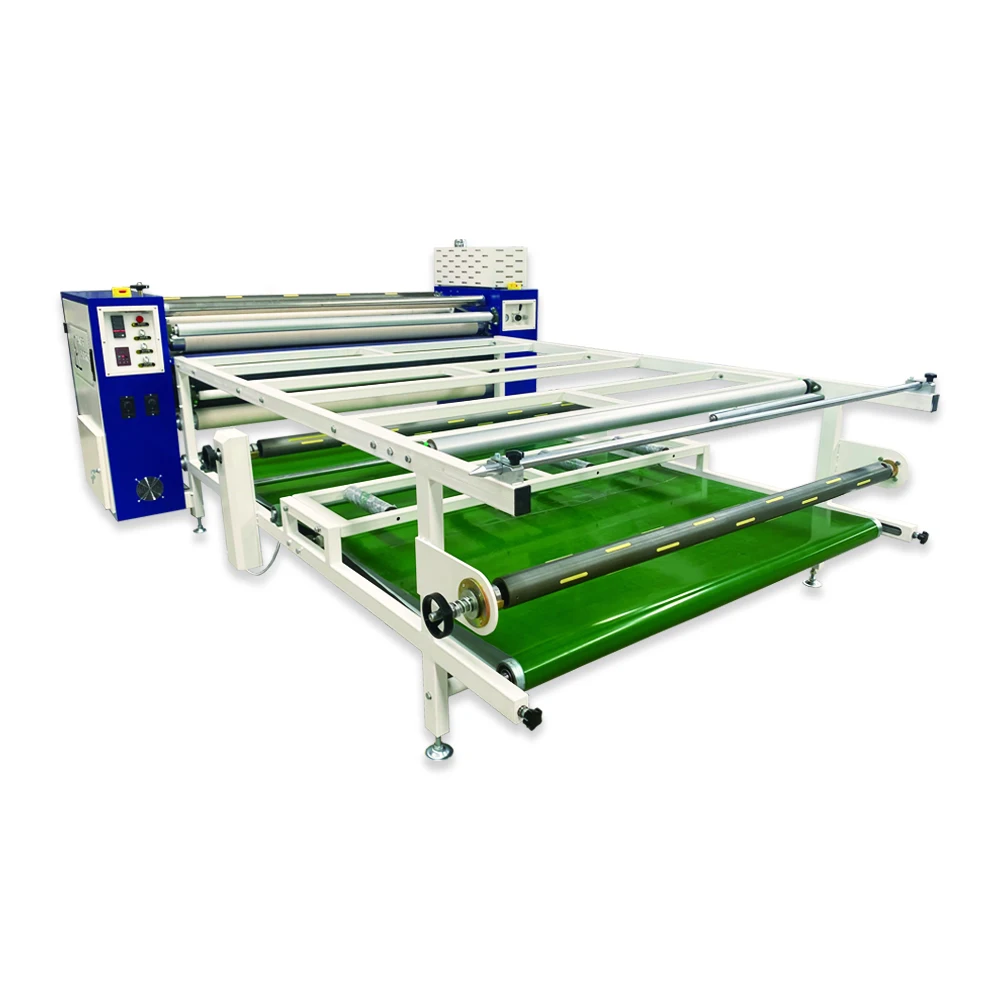

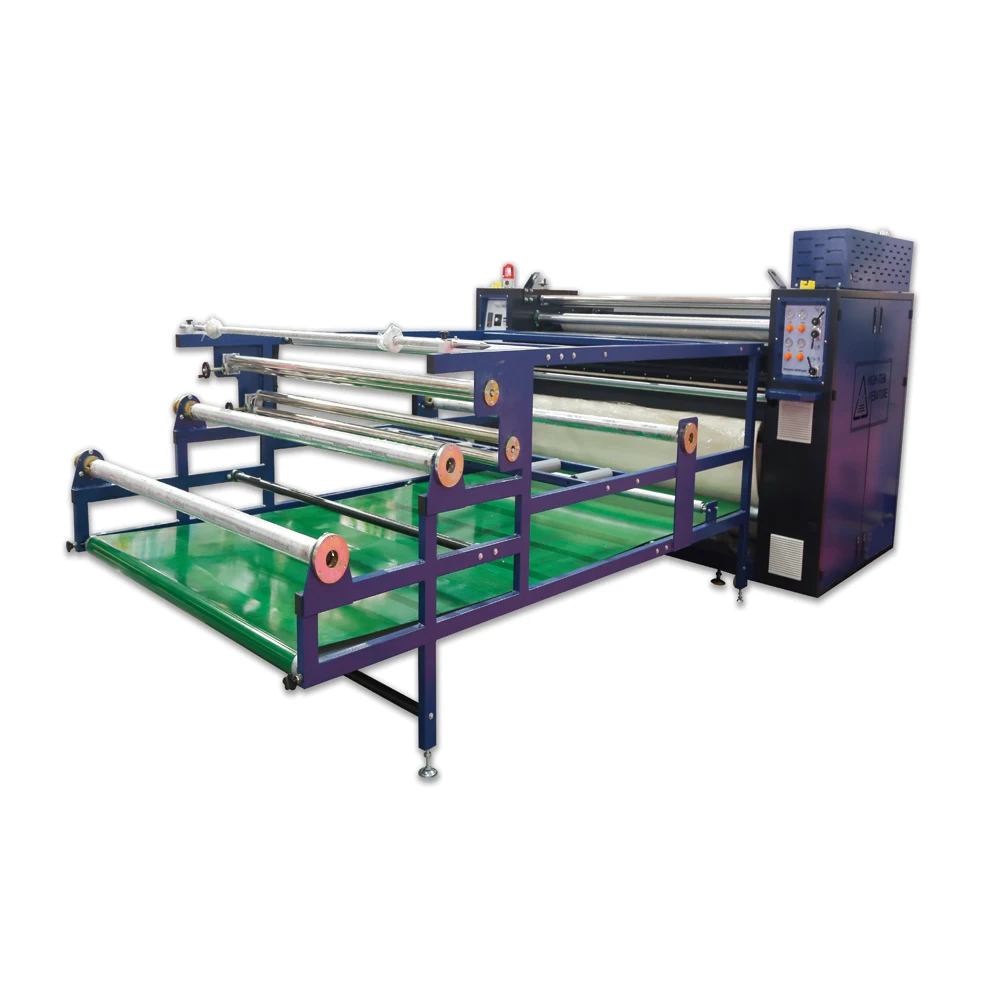

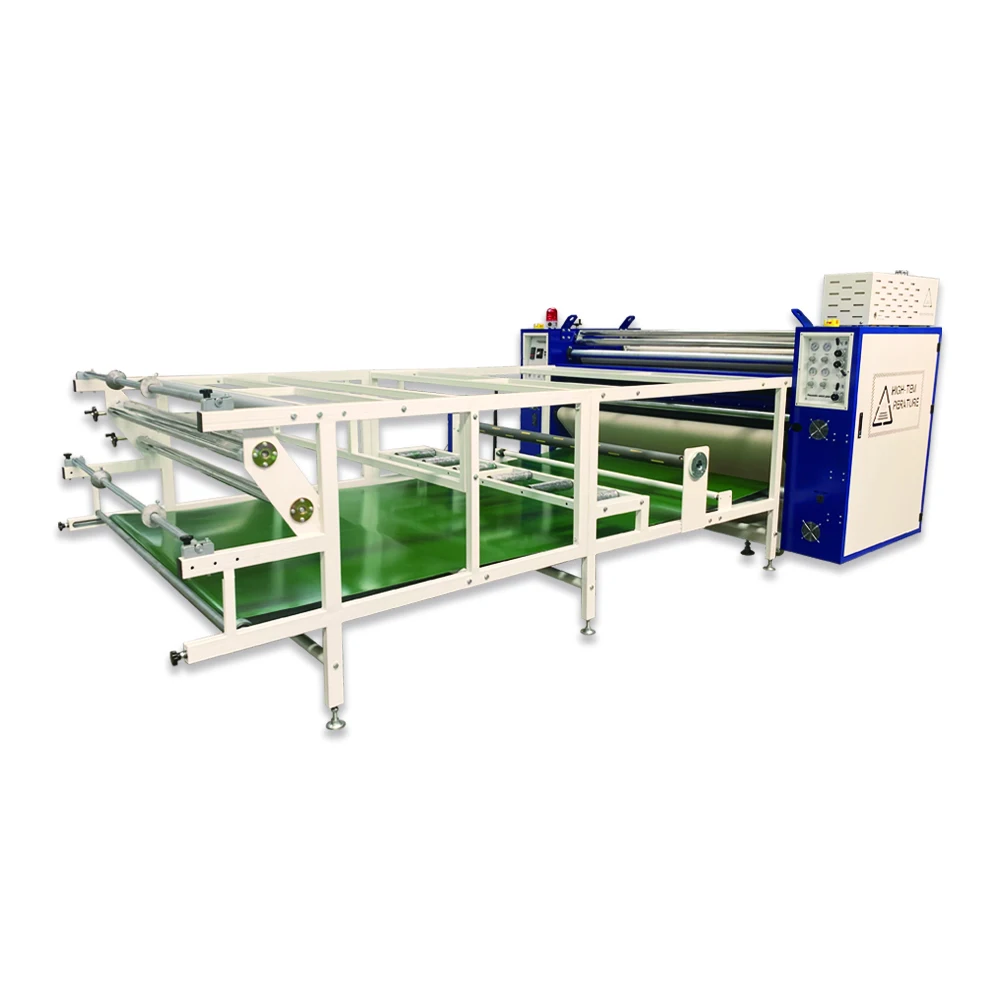

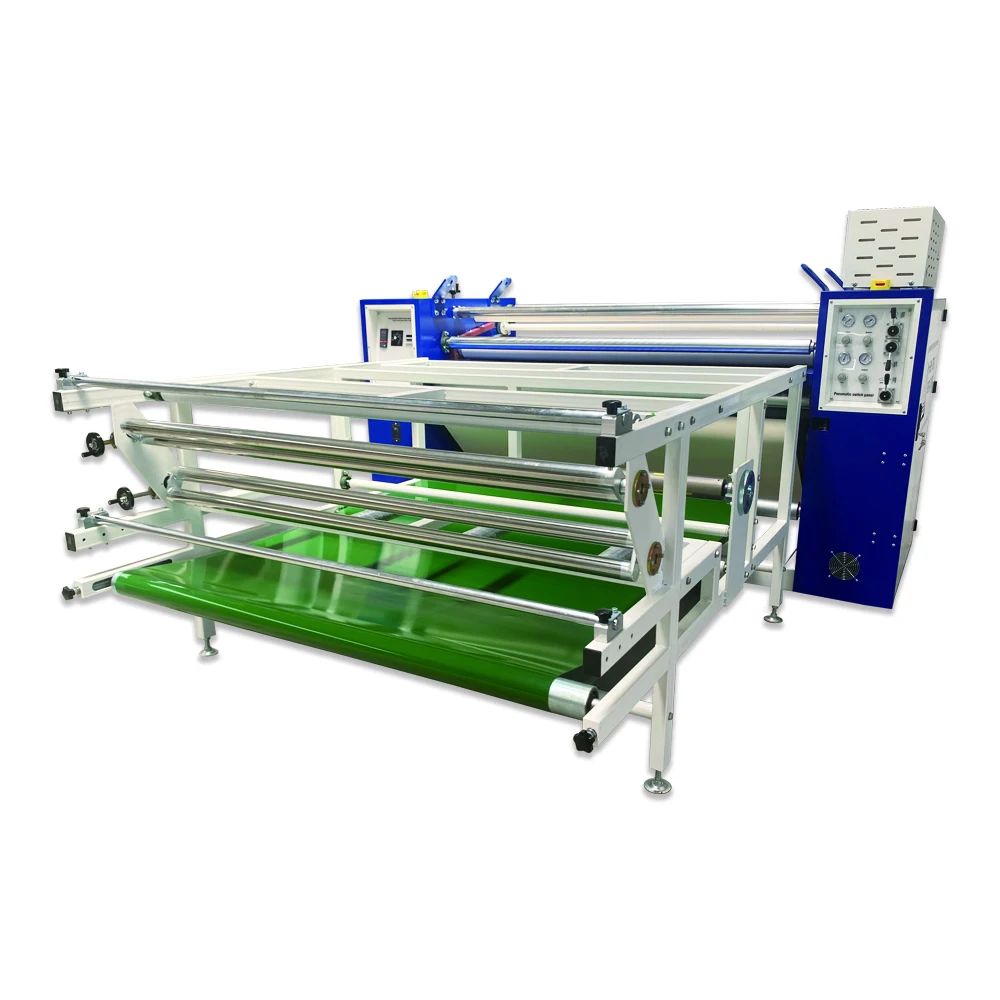

Machine Apperance
Features
1. The special structure of the heating roller ensures that the temperature difference between the left, middle and right is ± 1.5 ℃.
2. Felt automatic deviation correction function.
3. Felt covering area reaches 75%.
4. High grade Felt comes with long service life and good effect.
5. Digital display timing shutdown, abnormal shutdown audible and visual alarm.
6. It can be used for roll to roll, film to film and film to roll printing, one machine can be used for multiple purposes.
7. The speed-regulating motor drives air swelling shaft to furl roll, which is simple and fast to operate and improves product efficiency.
8. The heating function will be automatically stopped when the frequency converter fails.
9. If the heating roller does not rotate, the system will give an alarm (if there is an automatic blanket belt separation device, the system will perform blanket belt separation).
3. Felt covering area reaches 75%.
4. High grade Felt comes with long service life and good effect.
5. Digital display timing shutdown, abnormal shutdown audible and visual alarm.
6. It can be used for roll to roll, film to film and film to roll printing, one machine can be used for multiple purposes.
7. The speed-regulating motor drives air swelling shaft to furl roll, which is simple and fast to operate and improves product efficiency.
8. The heating function will be automatically stopped when the frequency converter fails.
9. If the heating roller does not rotate, the system will give an alarm (if there is an automatic blanket belt separation device, the system will perform blanket belt separation).
Product Specifications
Model | Voltage V | Frequency Hz | Power kw | Roller Diameter mm | Roller Width mm | Felt Width mm | Max Transfer Printing Width mm | Max Running Speed m/h | General Transfer Printing Speed m/h |
type 270 | 380 | 50 | 16 | 270 | 1860 | 1730 | 1700 | 100 | 60 |
type 420 | 380 | 50 | 23 | 420 | 1860 | 1730 | 1700 | 180 | 120 |
type 600 | 380 | 50 | 50 | 600 | 1860 | 1730 | 1700 | 230 | 150 |
type 800 | 380 | 50 | 65 | 800 | 2080 | 1950 | 1900 | 500 | 300 |

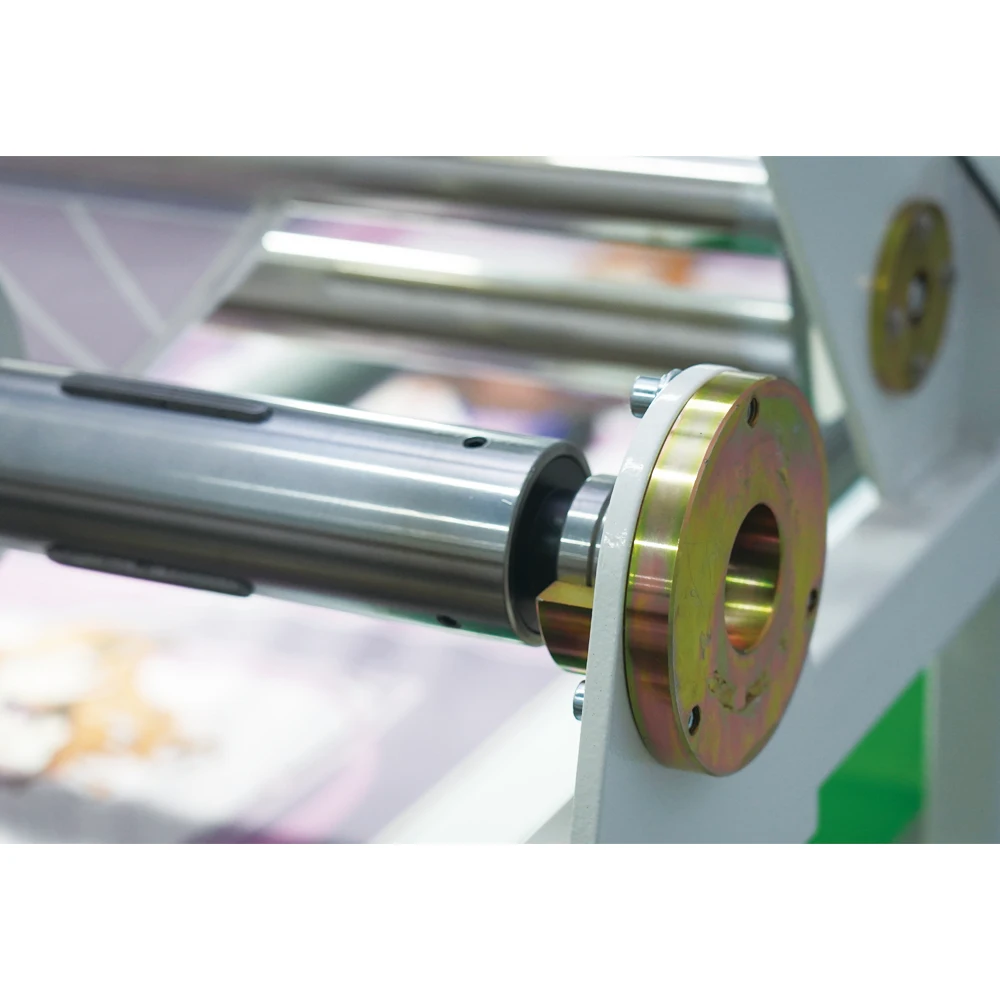

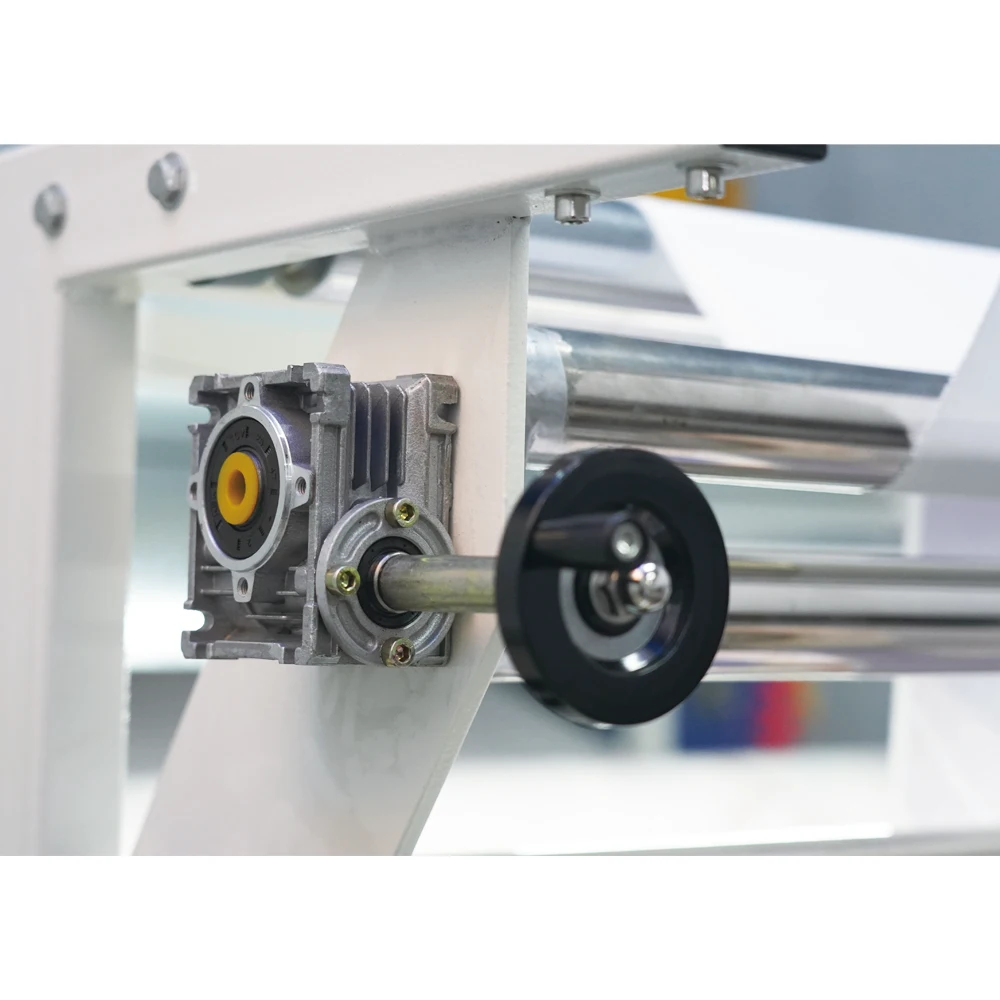

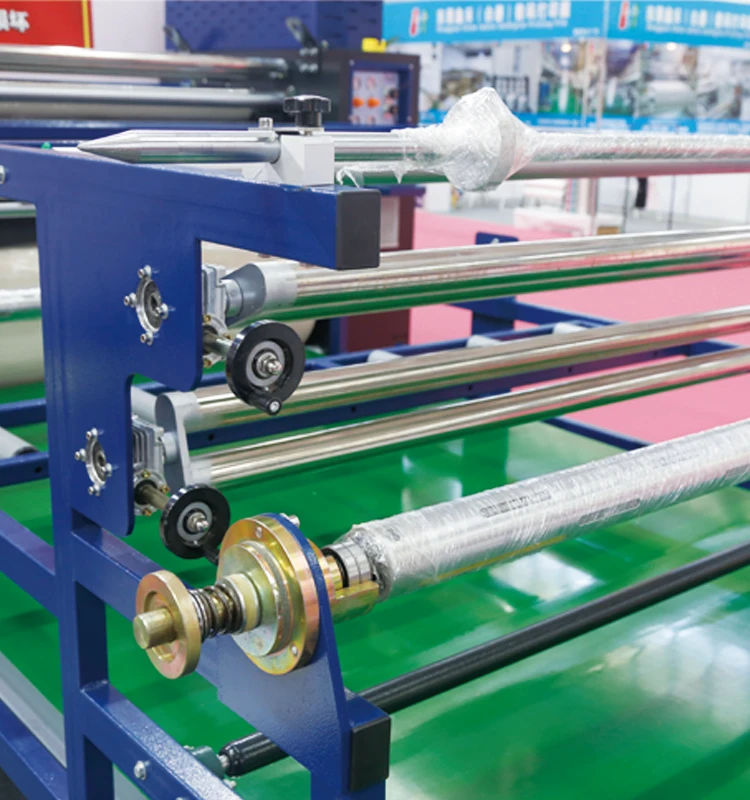

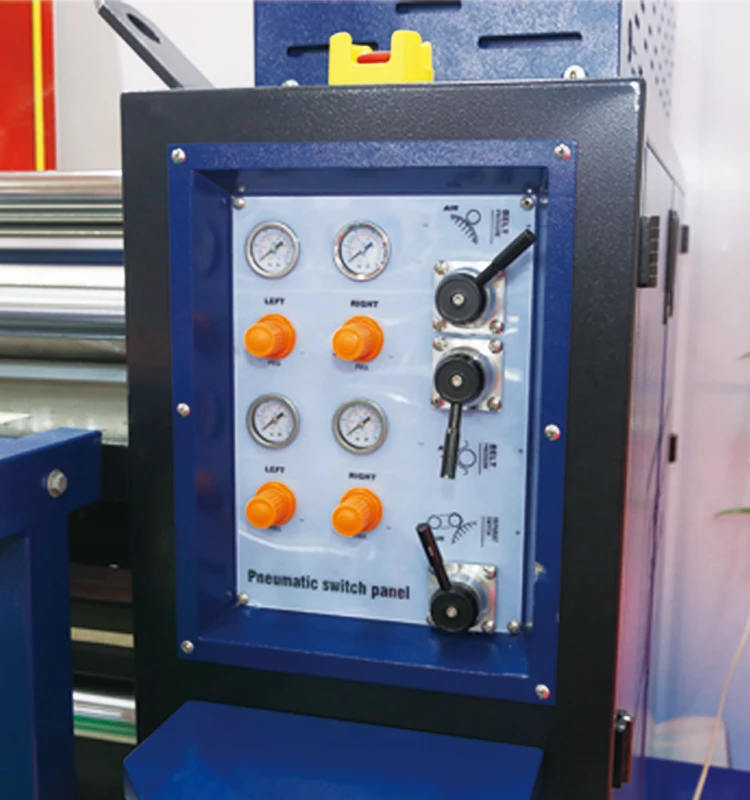

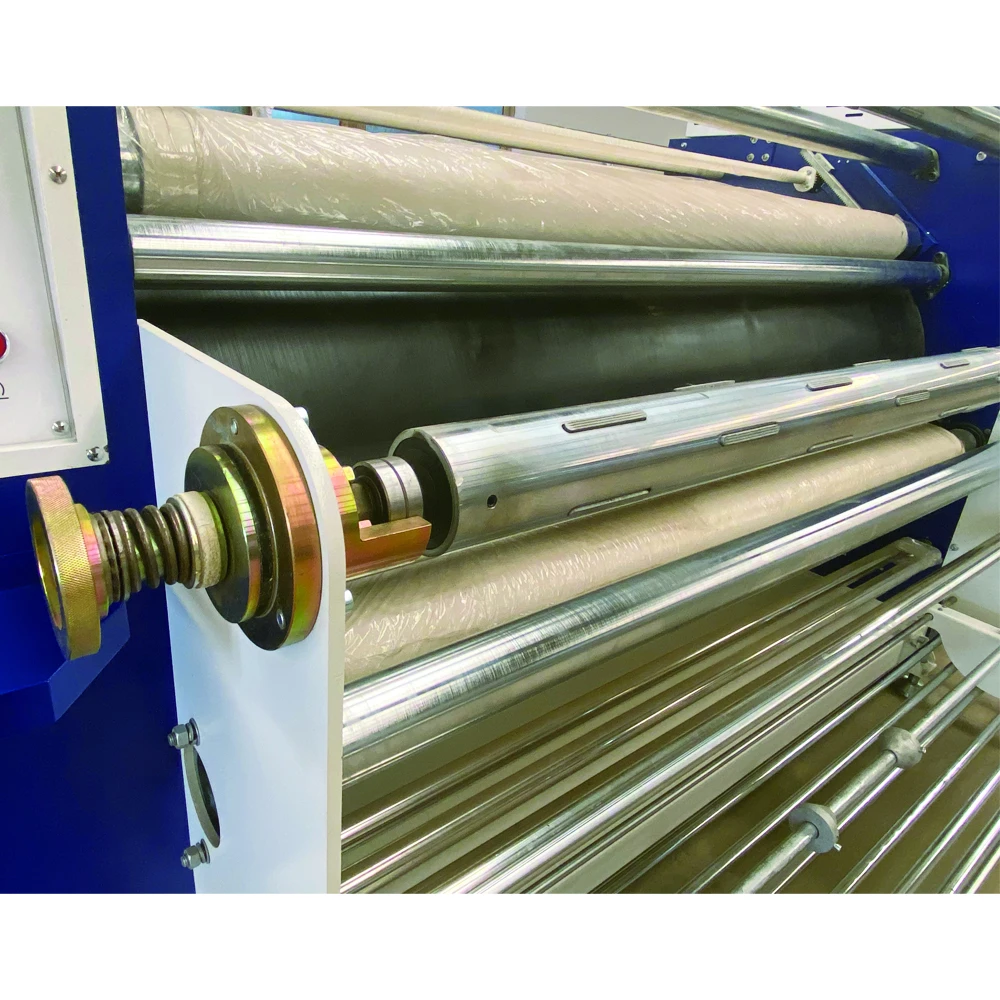

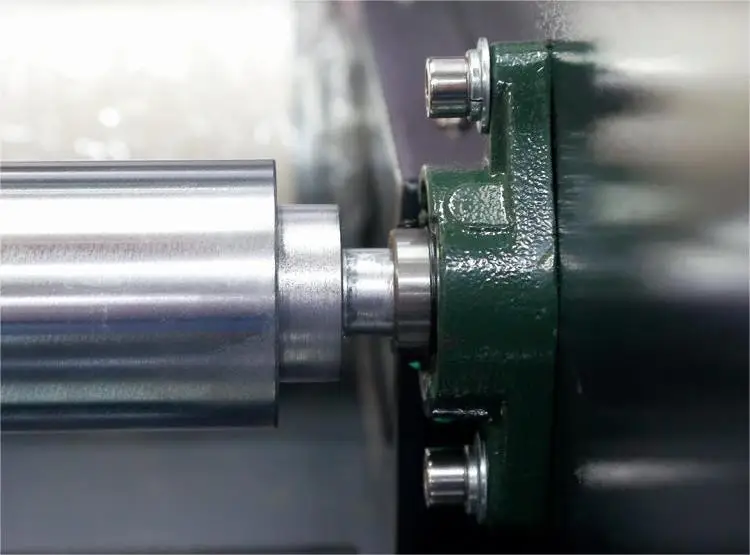

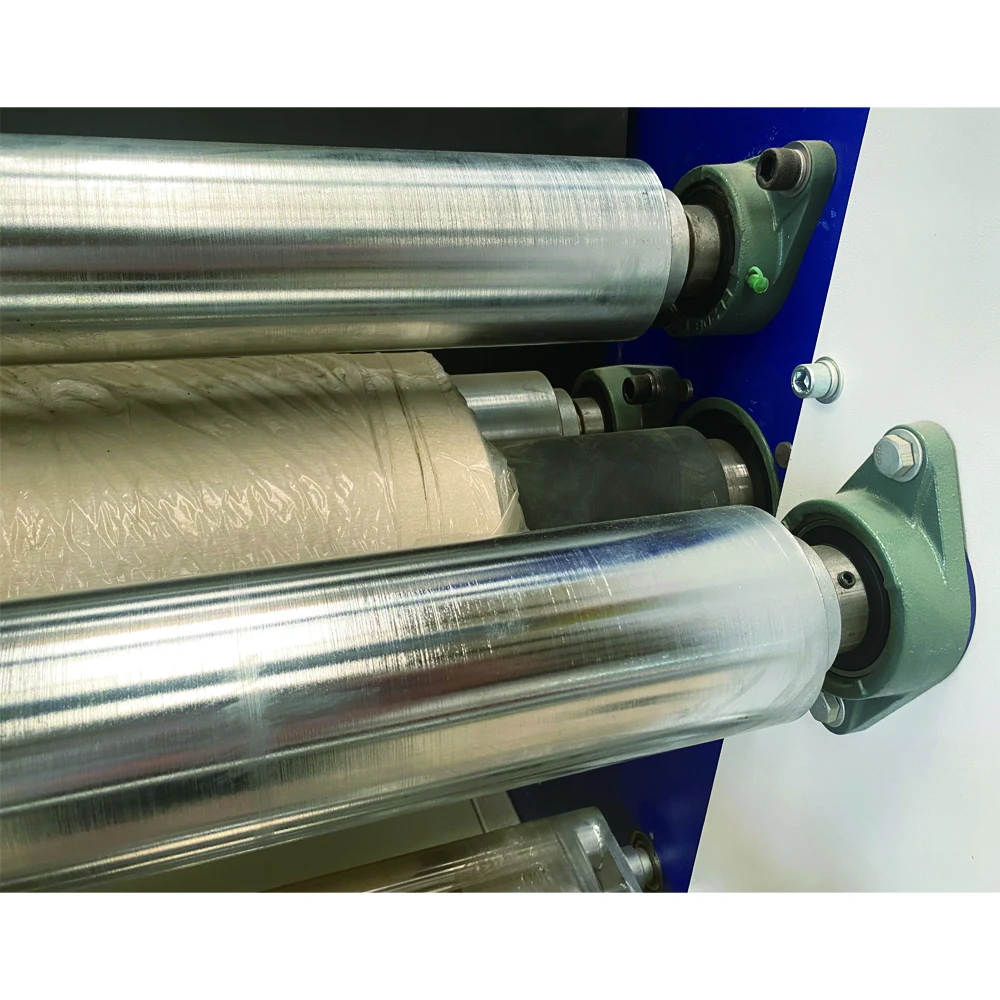

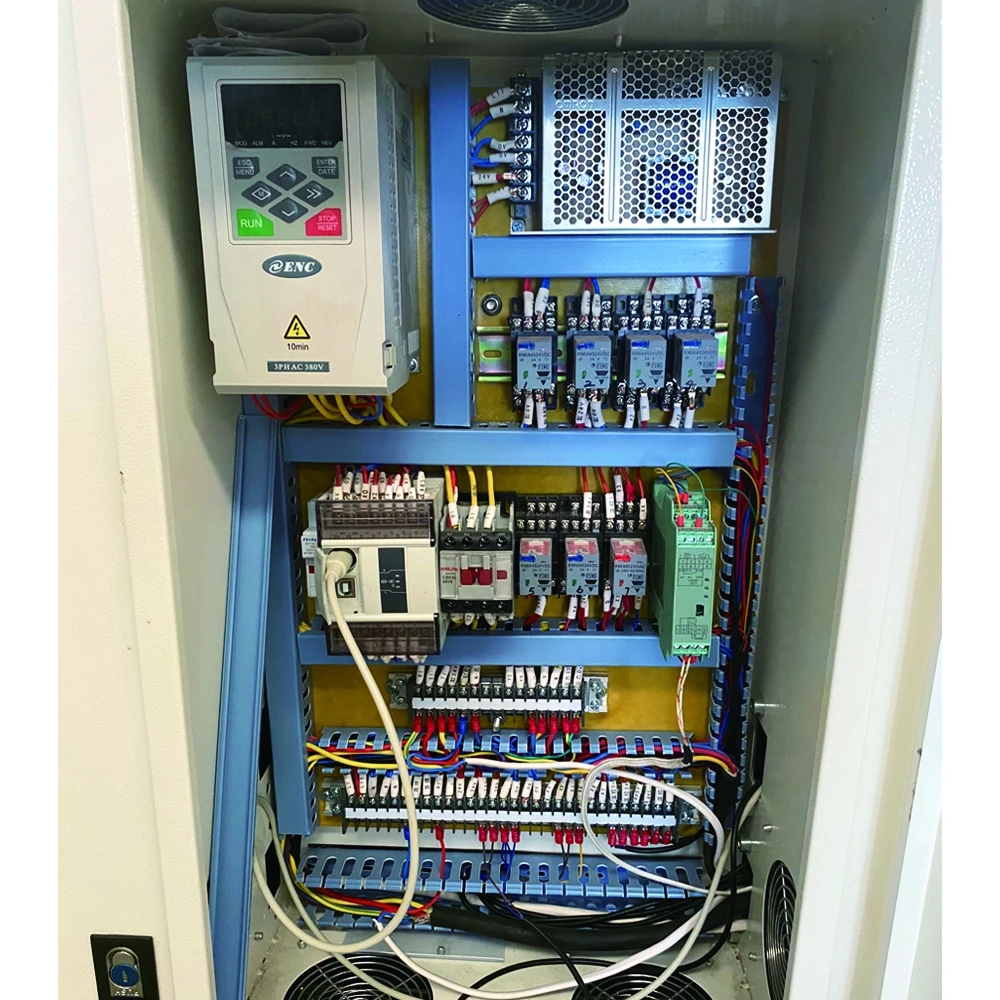

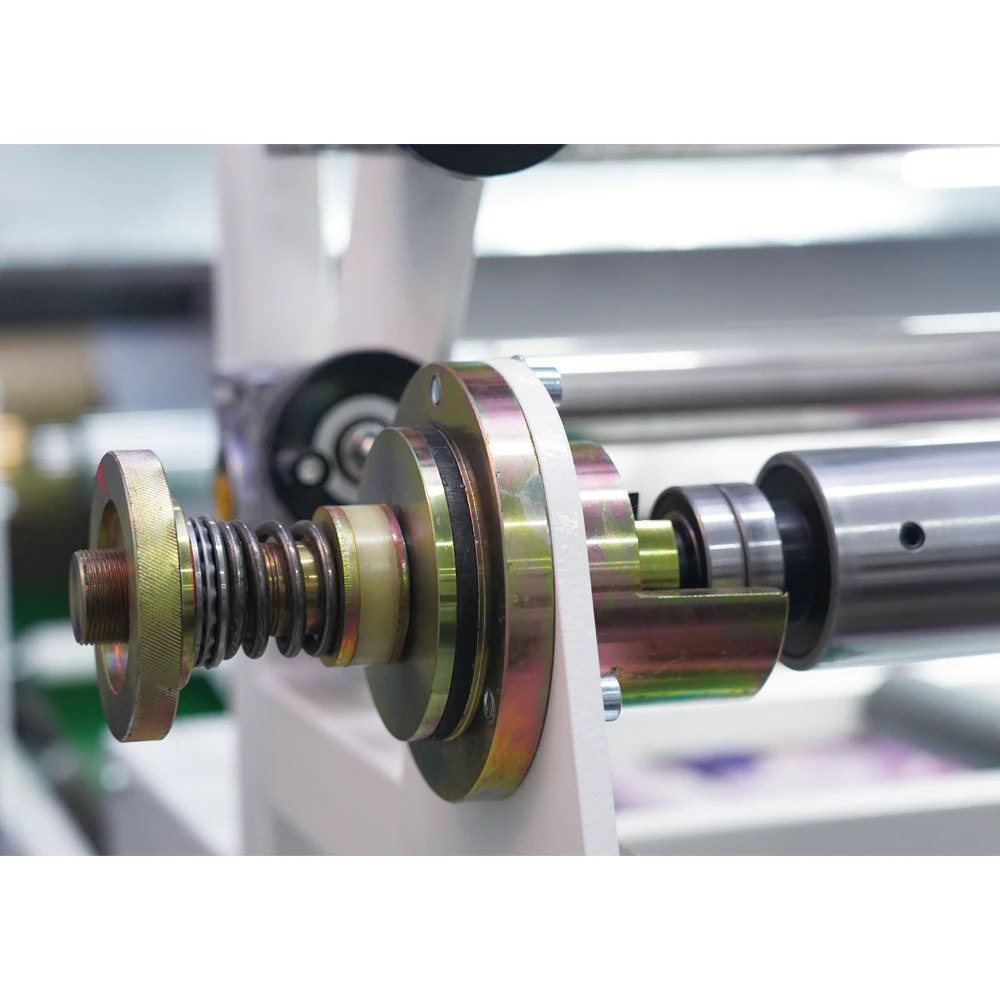

Details Images

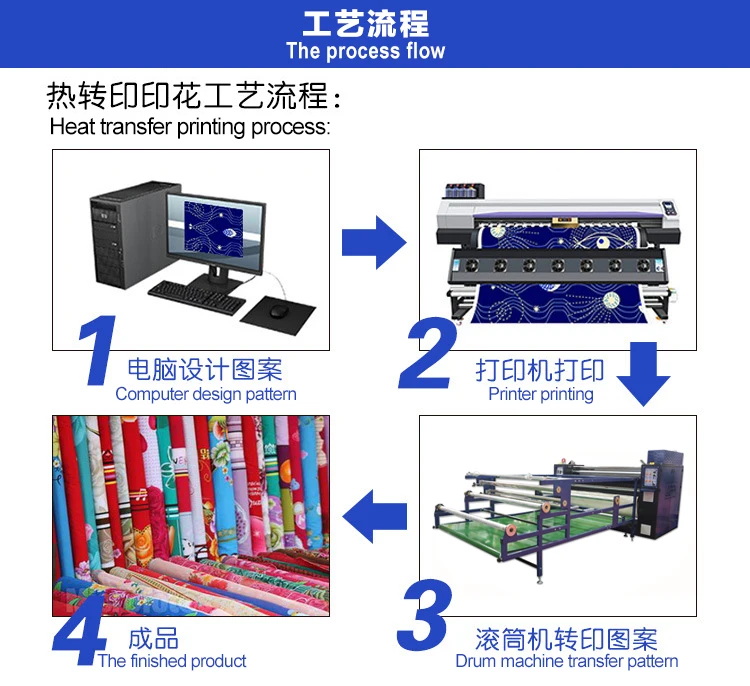

Process
Printing Samples

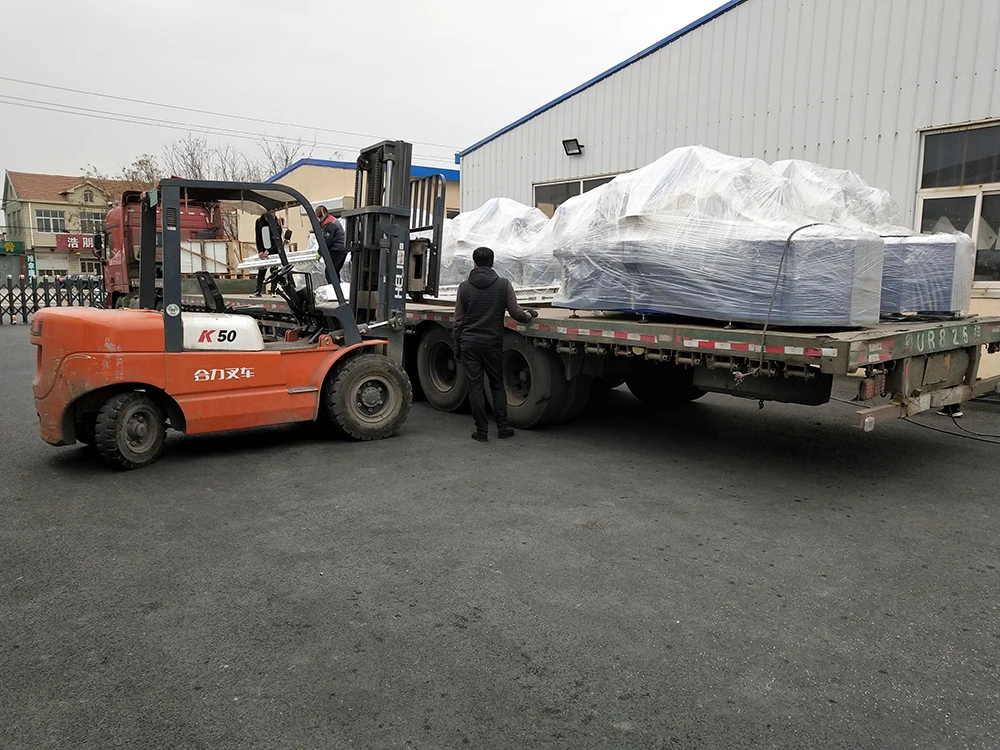

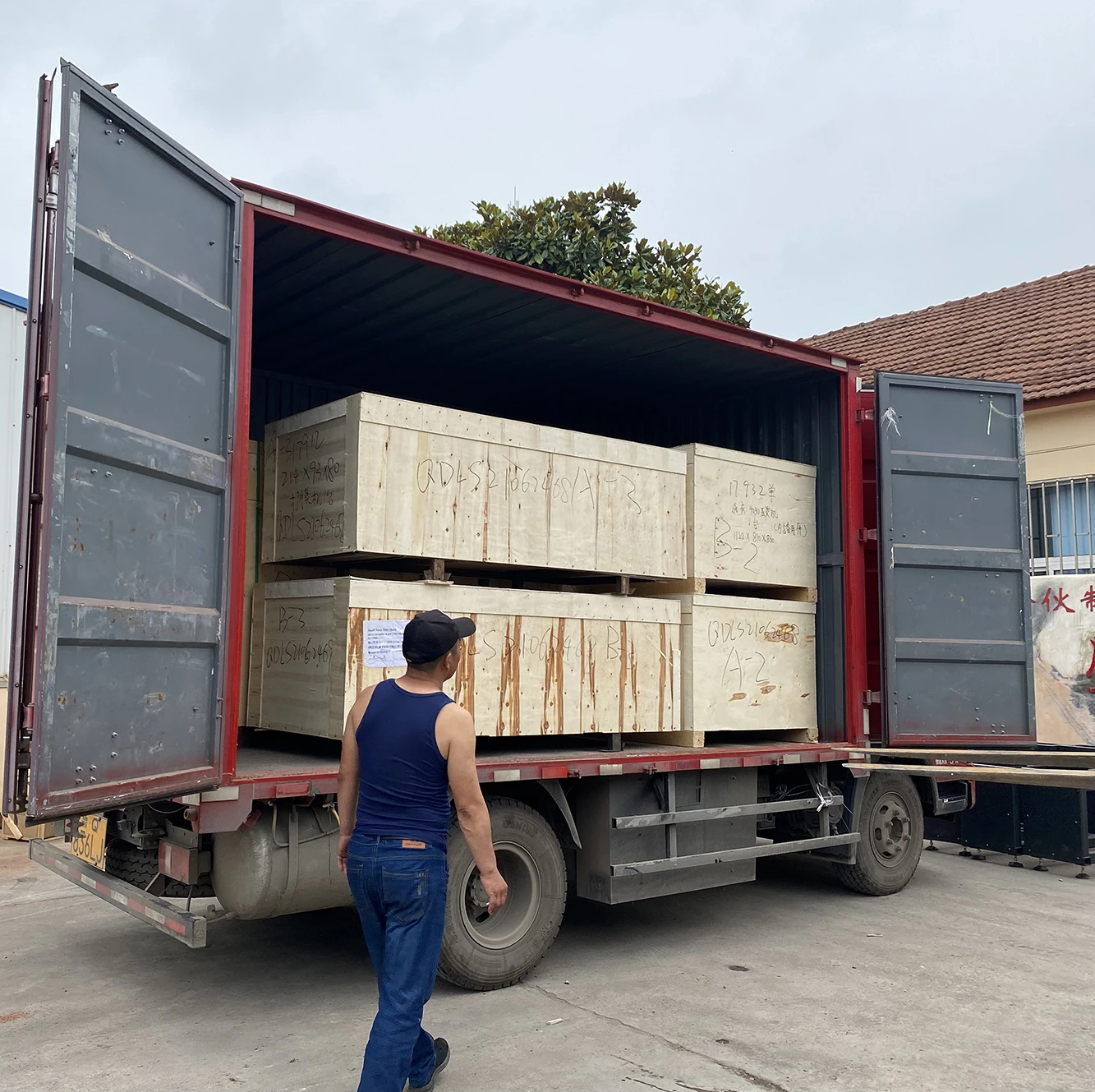

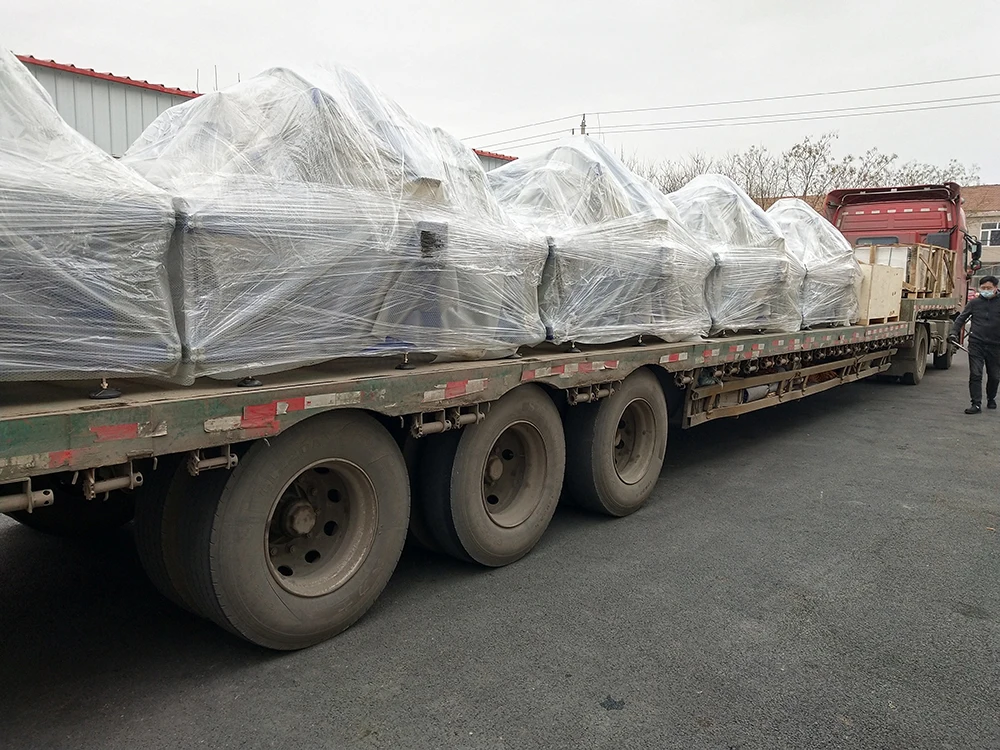

Packing And Delivery
After-sales Service
For more information, welcome to contact with Noah on WhatsApp
