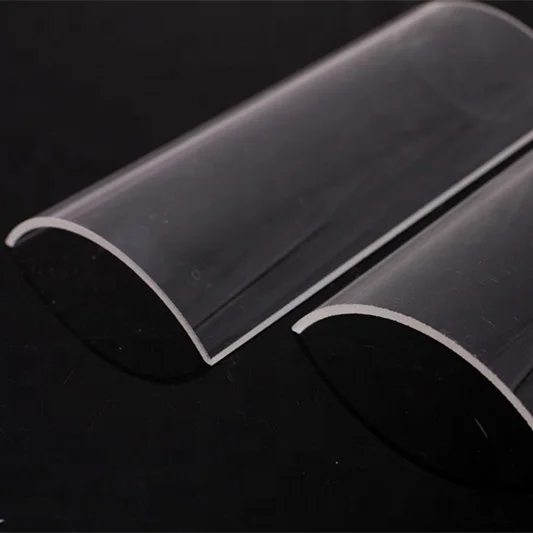

SUCCESS Transparent Curved Fused Quartz Glass Pane UV Curing Half Quartz Tubes
- Category: >>>
- Supplier: Jinzhou City Success Quartz Glass Factory
Share on (1600720873705):
Product Overview
Description
Product Description
Advantage of Curved Quartz Plate :
1) High Temperature Resistance.
2) Good Thermal Stability.
3) Corrosion Resistance.
4)High purity :SiO2> 99.9%.
5) Strong Insulation.
6) High Transmittance> 85%.
7)Size can be customized.
1) High Temperature Resistance.
2) Good Thermal Stability.
3) Corrosion Resistance.
4)High purity :SiO2> 99.9%.
5) Strong Insulation.
6) High Transmittance> 85%.
7)Size can be customized.
Product Name | SUCCESS Customized Transparent Fused Silica Curved Quartz Plate |
Material | 99.99% Pure Quartz Crystal |
Size | 1. Diameter: 1-1500mm. 2. Thickness: 0.5-100mm. 3. All different sizes can be done according to customer's demand. |
Aplication | Widely used in electric light source, electrical appliances (electric), semiconductor, Solar, optical communications, military industry, metallurgy, building materials, chemical, machinery, electricity, environmental protection and other. |
Physical Property
Property | Value | Noted |
Density | 2.2g/cm3 | Thermal stability: Put the quartz material from 1100 °C to 20 ℃ three times, will not cracks. It will be not changed color under 1100 degree for three hours. |
Hardness | 570KHN100 | |
Tensile strength | 4.8×107Pa(N/m2) | |
Compression strength | >1.1×109 Pa | |
Coefficient of thermal expansion (20℃-300℃) | 5.5×10-7cm/cm℃ | |
Thermal conductivity (20℃) | 1.4W/m℃ | |
Specific heat(20℃) | 660J/kg℃ | |
Softening point | 1730℃ | |
Annealing point | 1250℃ |

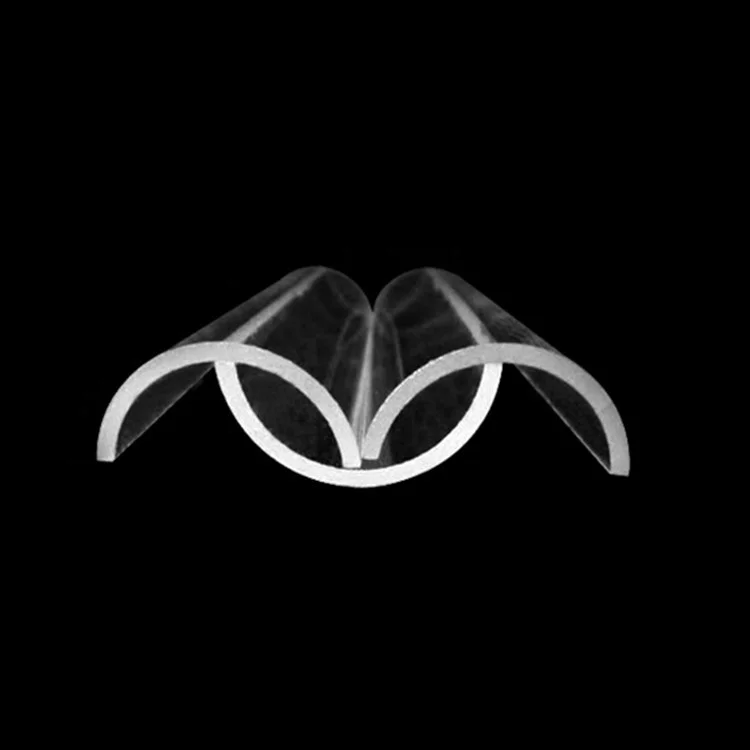

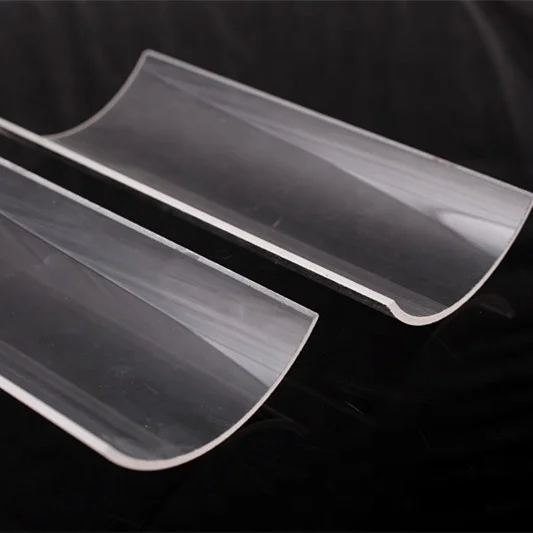

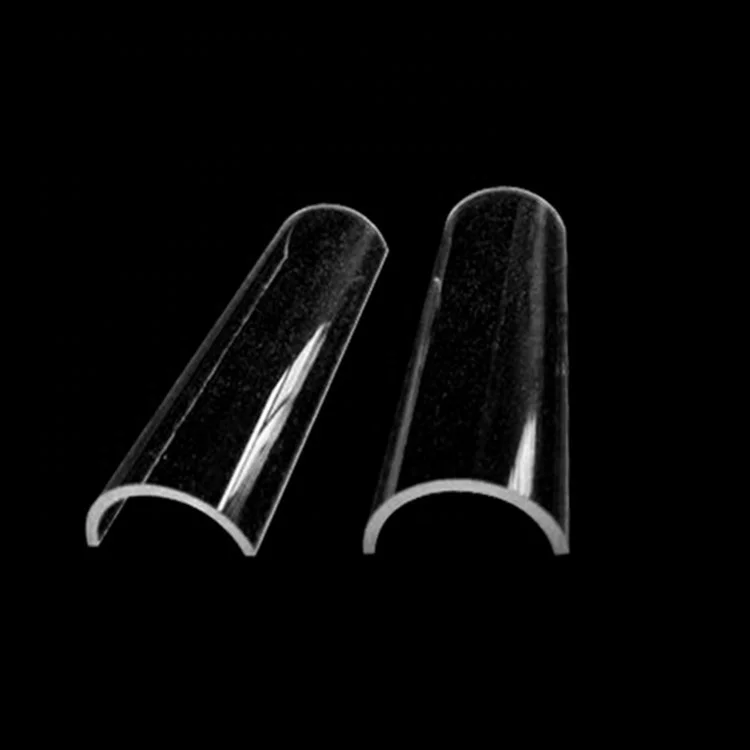

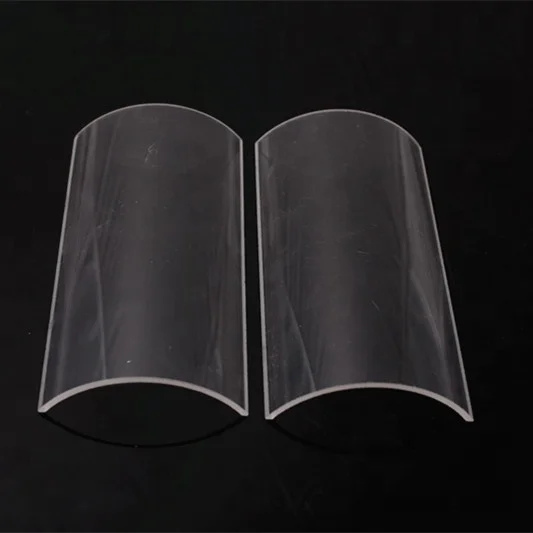

Details Images
High Temperature Resistance:
The softening point temperature of quartz glass is about 1730℃, which can be used at 1200℃ for a long time. The short time use temperature can reach 1450℃.Good Thermal Stability:
Quartz glass coefficient of thermal expansion is small, can withstand drastic temperature changes, the quartz glass heated to about 1200 ℃, put room temperature water will not blow up.
Quartz glass coefficient of thermal expansion is small, can withstand drastic temperature changes, the quartz glass heated to about 1200 ℃, put room temperature water will not blow up.
Corrosion Resistance:
Except for hydrofluoric acid, quartz glass almost does not react chemically with other acids, and its acid resistance is 30 times that of ceramics and 150 times that of stainless steel.
Except for hydrofluoric acid, quartz glass almost does not react chemically with other acids, and its acid resistance is 30 times that of ceramics and 150 times that of stainless steel.
Strong Insulation:
The resistance value of quartz glass is equivalent to 10,000 times that of ordinary glass, which is a very good electrical insulation material and has good insulation performance at room temperature.
The resistance value of quartz glass is equivalent to 10,000 times that of ordinary glass, which is a very good electrical insulation material and has good insulation performance at room temperature.
Good Light Transmittance:
In the entire spectrum of ultraviolet to infrared wavelengths have good light transmission, visible light transmission rate of 93% or more in the ultraviolet spectrum region, the transmission rate of 80 or more.
In the entire spectrum of ultraviolet to infrared wavelengths have good light transmission, visible light transmission rate of 93% or more in the ultraviolet spectrum region, the transmission rate of 80 or more.
Related Products
Why Choose Us
1. Timely response
Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.
2.Sample evaluation
Provide sample and trial order are accepted for the quality evaluation.
3. Strict quality control
Arrange production on time and control quality strictly.
4. Short delivery time
Book the earliest vessel or plane to guarantee the delivery time.
5. Warm and considerable after-sale service
Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.
2.Sample evaluation
Provide sample and trial order are accepted for the quality evaluation.
3. Strict quality control
Arrange production on time and control quality strictly.
4. Short delivery time
Book the earliest vessel or plane to guarantee the delivery time.
5. Warm and considerable after-sale service
Our Company
FAQ
Q: Are you a Factory or Trading company?
A: We are a professional factory,We have our own right to export. Welcome to visit us!
Q: How long shall I wait for quotation?
A: Usually we will quote you the best price within 24 hours after your inquiry.
Q: How about the delivery time?
A: It depends on the order quantity and the season you place the order.
Q: Can it be customized according to my drawing?
A: Yes.All different sizes can be done according to customer's demand.
Q: How long shall I wait for quotation?
A: Usually we will quote you the best price within 24 hours after your inquiry.
Q: How about the delivery time?
A: It depends on the order quantity and the season you place the order.
Q: Can it be customized according to my drawing?
A: Yes.All different sizes can be done according to customer's demand.
