Newest Bluetooth audio ptt adapter dongle for walkie talkies two way radios Customized Bluetooth adapters for motorola hytera

Product Overview

Description

Feature of BTA-002 Bluetooth audio adapter dongle for walkie talkie two way radios :



Technical Specifications:

Bluetooth Module: CSR BC8

Bluetooth Version: Bluetooth 4.0

Bluetooth Profiles: AGHSP,SPP

Bluetooth RF Spec: Class 2

RF Power: 6dB

RF Sensitivity: -90db

Operation Range: 20M with DellKing SpeakerMic, 10M with Bt headset and Remote PTT controller

RF Frequency: 2.4~2.4835GHz

Audio Output Bandwidth: 20Hz~20kHz

Average Talking Current:30mA

Average Standby:5mA

Embeded Battery Capacity: 200mAh

Working Time With Embeded Batt(80%Talking Time,20%Standby Time):8 H

Standby Time With Embeded Battery: 40 hours

Can drain power from portable radio range 5~12V

Operating temperature: -15℃ ~50℃

Storage Temperature: -25℃ ~60℃





Products detail:

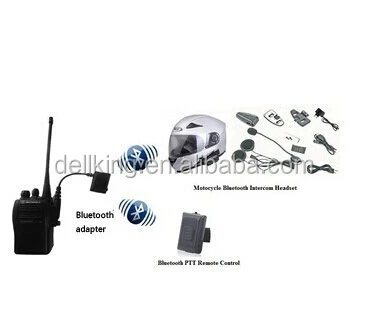

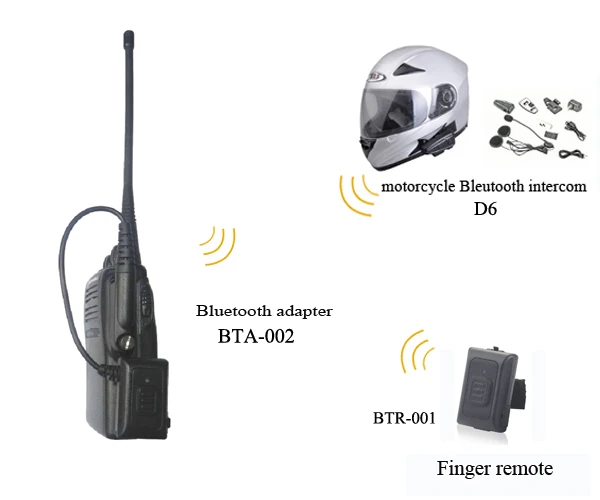

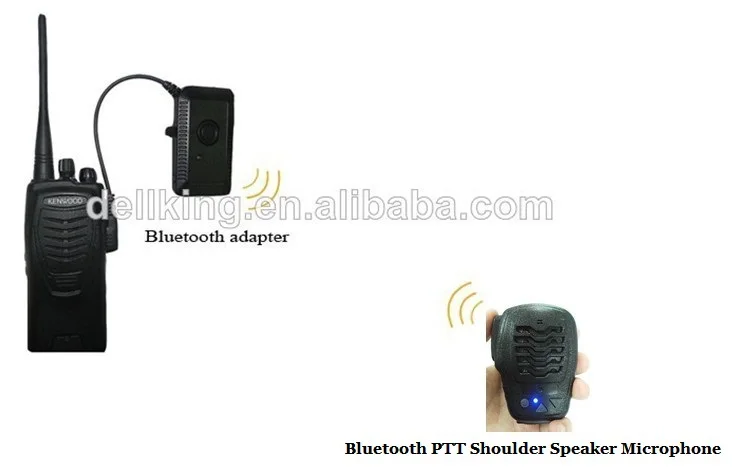

Products solution:

Products application:



About company:



We are a professional manufacturer and supplier for wireless Bluetooth communication products,mainly line in motorcycle bluetooth intercom and radio wireless Bluetooth adapter by BT 3.0 tech,have own R&D team and factory,provide OEM/ODM and design services.
