Broadcast Studio Equipment ASI Video 3G SDI with Ethernet to Optical Fiber Converter
- Category: >>>
- Supplier: Beijing Yukuan Science & Technology Co. Ltd.
Share on (1600720883121):
Product Overview
Description
YUK100-04HD-IP
Broadcast Studio Equipment ASI Video 3G SDI with Ethernet to Optical Fiber Converter

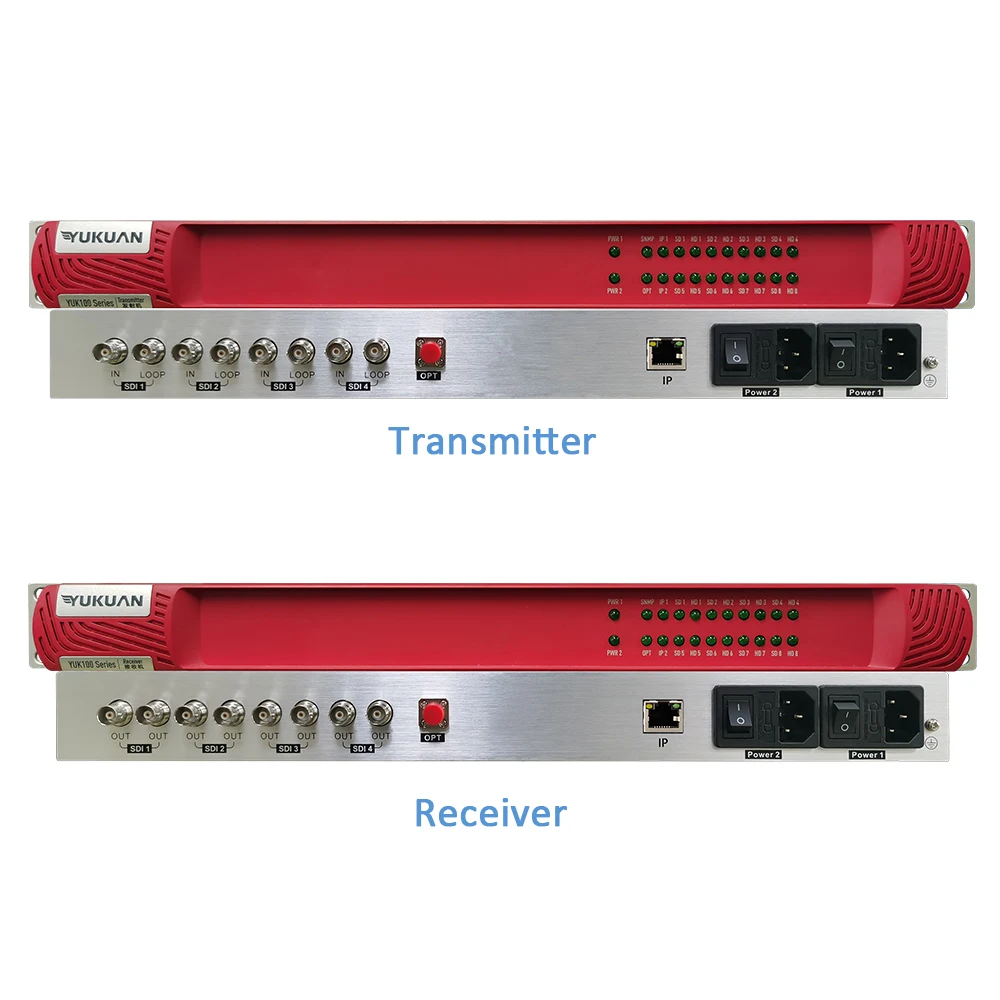

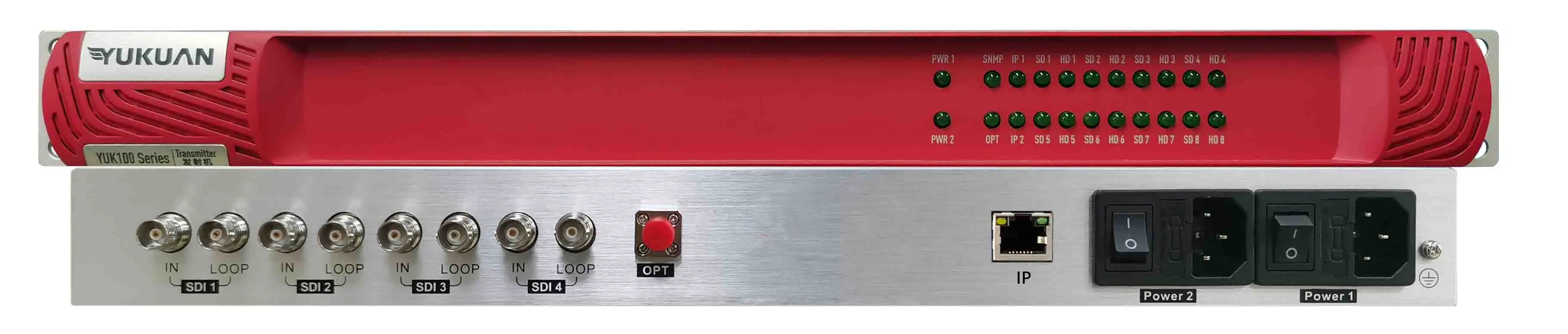

Transmitter

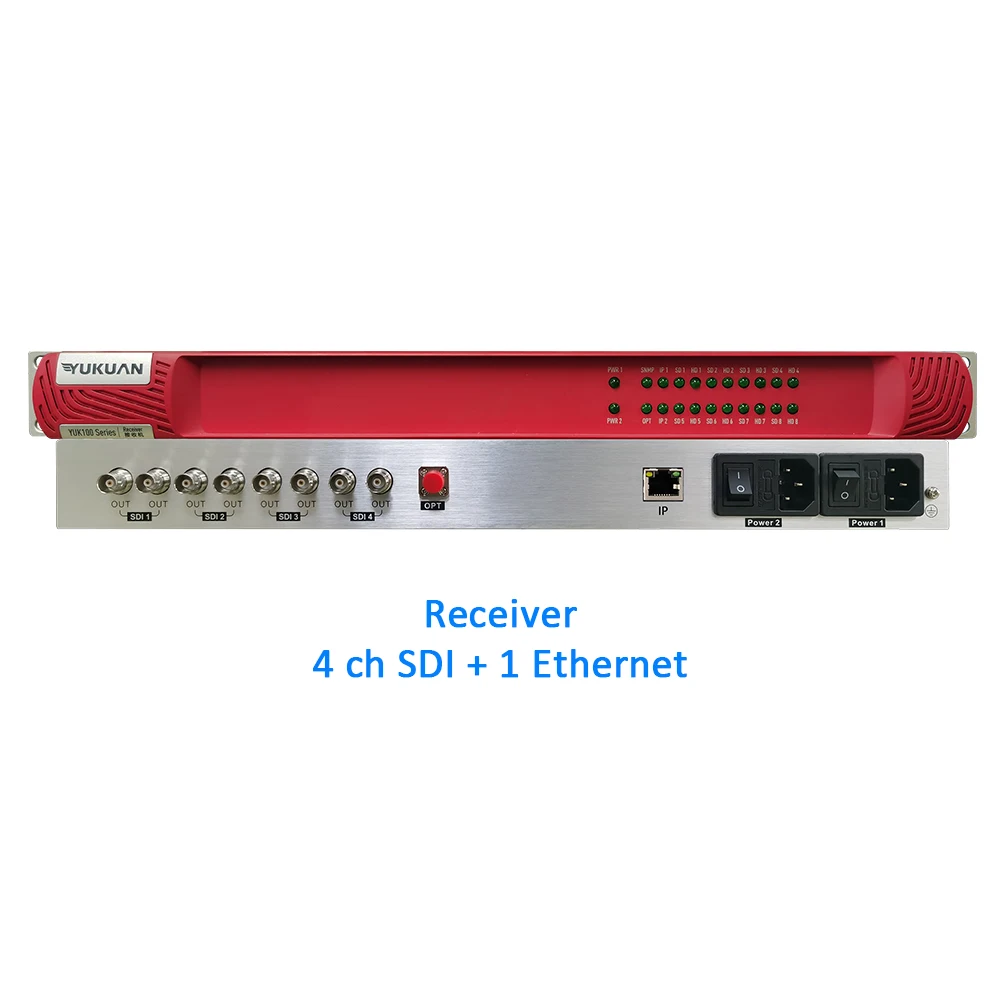

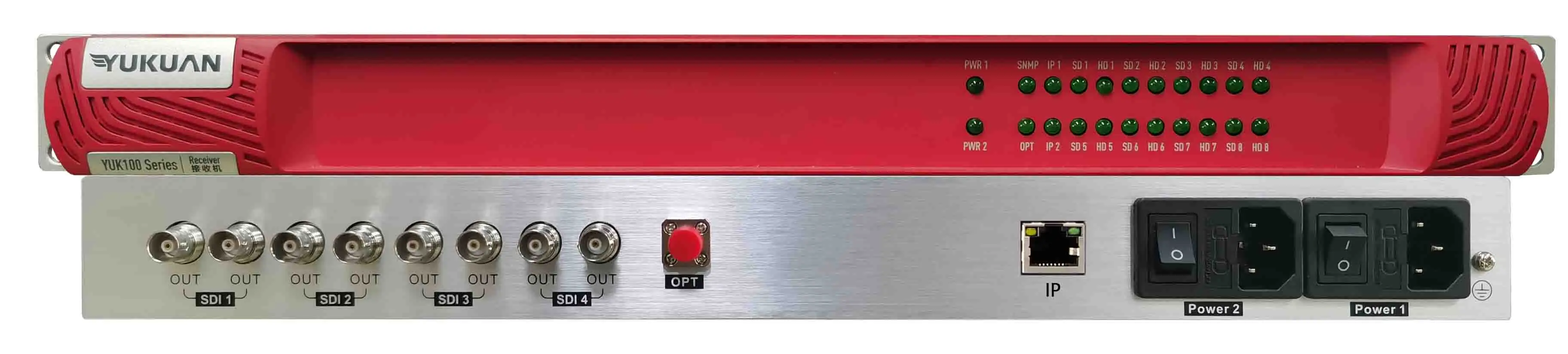

Receiver
Product Overview
YUK100-HD-IP series is a high-reliability, high-performance digital optical transmission equipment suitable for the broadcast and television industry, with broadcast-level transmission quality, full real-time transmission, no delay, and downward compatible with HD/SD-SDI and ASI. The signal format is from 19.4Mbps to 1485Mbps, the system supports DVB-ASI (EN50083-9) and other digital TV format signals, and meets the requirements of industrial grade and related standards of radio and television products.
It (1U rack) can transmit 1 to 7 channel of 3G-SDI and 1 channel bidirectional Gigabit IP signals through single fiber. Each
channel has SDI loop out on transmitter, and each channel has dual output on receiver. It can provide reliable high-quality
transmission with dual-wide switching power supply redundant hot backup.
It (1U rack) can transmit 1 to 7 channel of 3G-SDI and 1 channel bidirectional Gigabit IP signals through single fiber. Each
channel has SDI loop out on transmitter, and each channel has dual output on receiver. It can provide reliable high-quality
transmission with dual-wide switching power supply redundant hot backup.
Product Feature
* Bi-directional or uni-directional transmission of independent 3G-SDI or TS stream signals based on DVB-ASI interface and ethernet in the same 1-core fiber
* Compatible with HD/SD-SDI and ASI, adaptive signals 3G-SDI, HD-SDI,SD-SDI,ASI
* Each input channel has loop-out, and each output chanel has two outputs
* High definition TV signal format: HDI 143,177,270,360,540,1485Mbps
* Comply with SMPTE259M,SMPTE297M,SMPTE310,SMPTE305(SDTI),SMPTE344, SMPTE292M,SMPTE424M
* SDI input has cable equalization and can compensate the loss of cable transmission
* Transmission distance 0-100km (according to actual needs)
* Pass the SDI pathology code test(optional)
* Redundant two power supplies
Specification
Parameter | Typical Value | |
Video Input | ||
Input | 1 to 7 channel 3G-SDI ASI+1 channel bidirectional Gigabit ethernet (IP1000/100/10M adaptive) | |
Input Automatic Cable Equalization | >250m(270Mbps)(BELDEN8281 cable) >150m(1485Mbps)(BELDEN828 cable) | |
Data Rate | 19.4M~1485Mbps | |
Impedance | 75Ω | |
Return Loss | >15dB@1485Mbps | |
Input Level | 800mVP-P ±10% | |
Video Impedance | 75Ω | |
Video connector | BNC | |
IP Network Management | RJ45 | |
Video Output | ||
Output | 1 to 7 channel 3G-SDI ASI+1 channel bidirectional Gigabit ethernet (IP1000/100/10M adaptive) | |
Output Level | 800mVP-P ±10% | |
Rise/Fall time | <270ps@1485Mbps <0.65ns@270Mbps | |
Calibration Jitter | ＜0.1UI@270Mbps ＜0.2UI@1485Mbps | |
Impedance | 75Ω | |
Connector | BNC | |
Optic and physical characteristics | ||
Wavelength | From 1310nm to 1610 nm | |
TX power/RX sensitivity | -5dBm~0dBm/-30dBm~-12dBm | |
Power supply | AC 220V, <20W | |
Temperature Range | -30°C~+70°C(operation), -20°C~+80°C(storage) | |
Transmission distance | 0~100KM(Actual distance is determined by customer’s requirement) | |
Optical connector | FC/PC or FC/APC | |
Dimension | 19 inch 1U Rack, 485×320×44mm | |

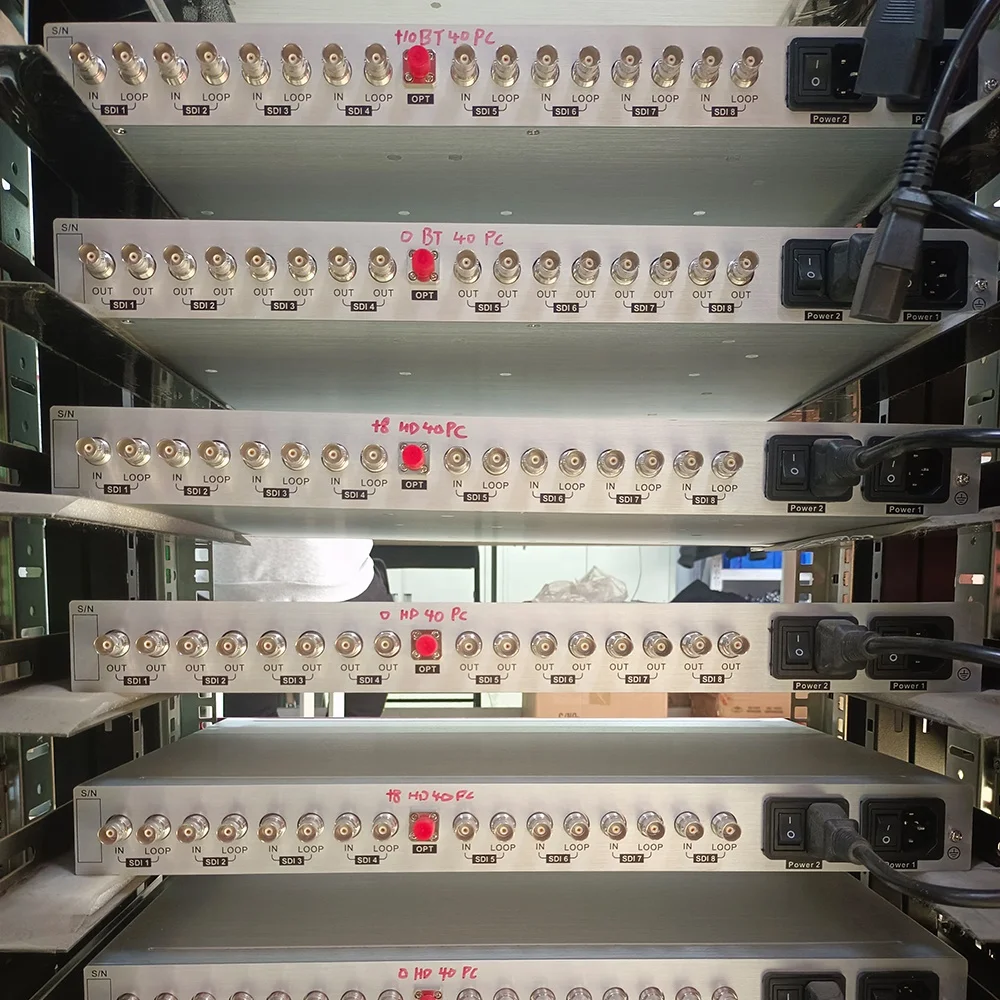

Application
Notes:
1.Transmission distance 0-40KM,40-80KM, 80-100KM.
2.Optical interface FC/PC, FC/APC. Fiber patch cable is available for other interface.
1.Transmission distance 0-40KM,40-80KM, 80-100KM.
2.Optical interface FC/PC, FC/APC. Fiber patch cable is available for other interface.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
