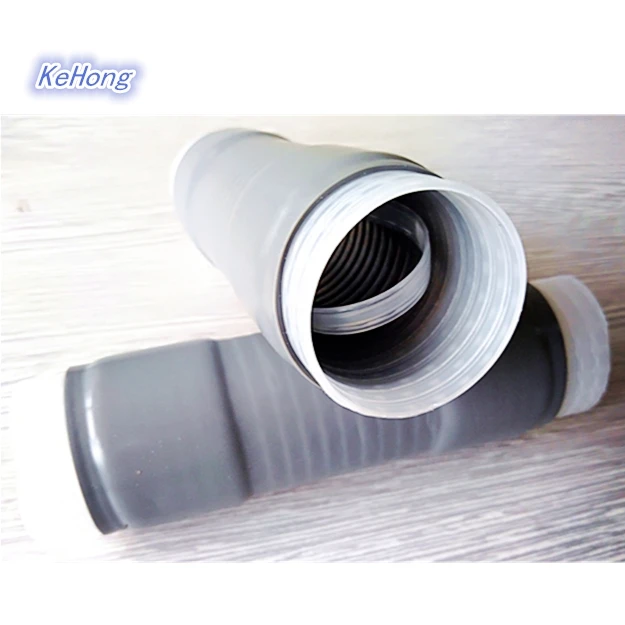

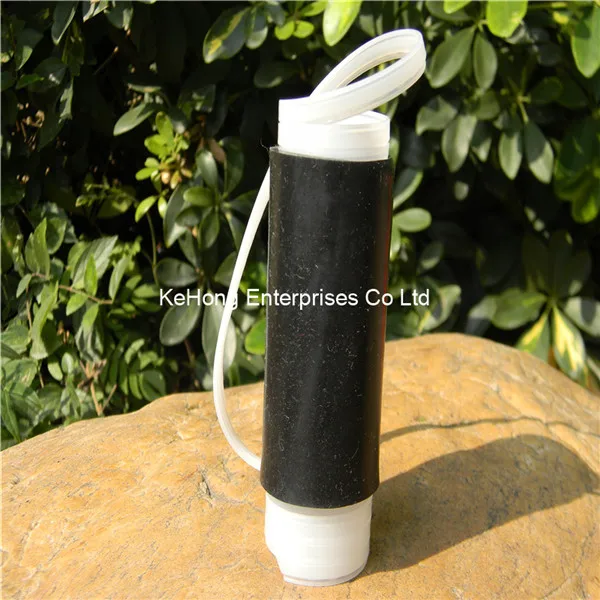

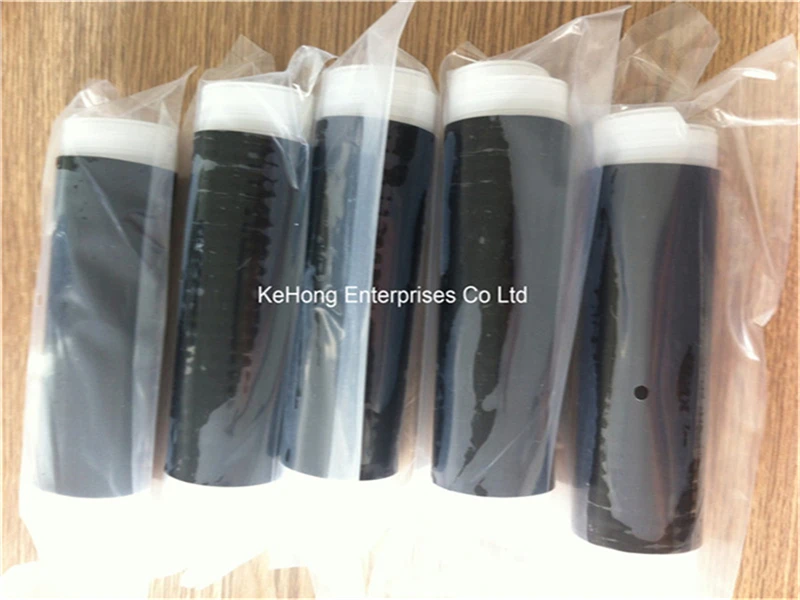

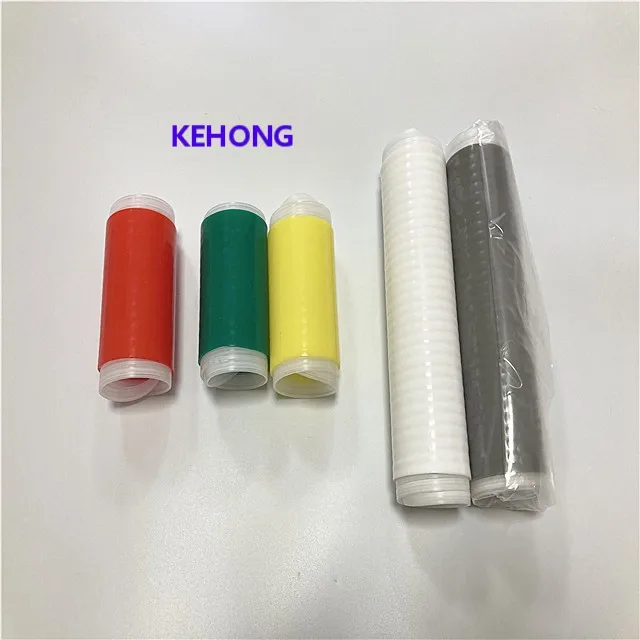

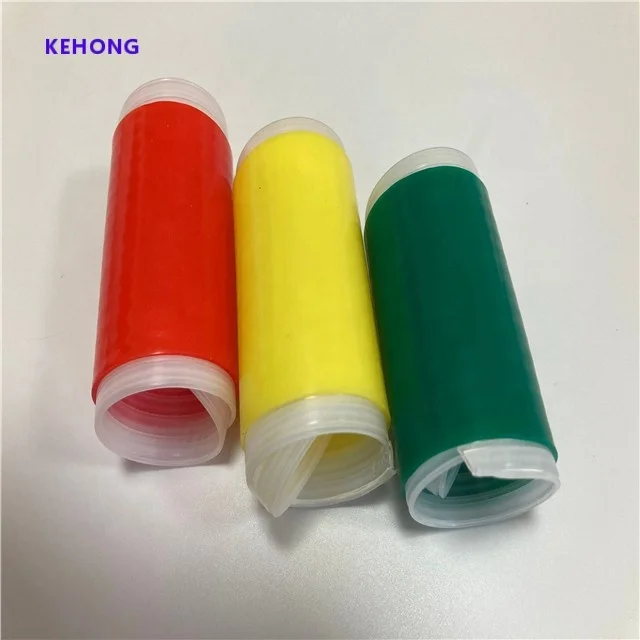

SRCST Made of liquid silicone rubber Cold shrink insulation sleeve
- Category: >>>
- Supplier: Guangzhou Kehong Electric Co. Ltd.
Share on (1600720890246):
Product Overview
Description

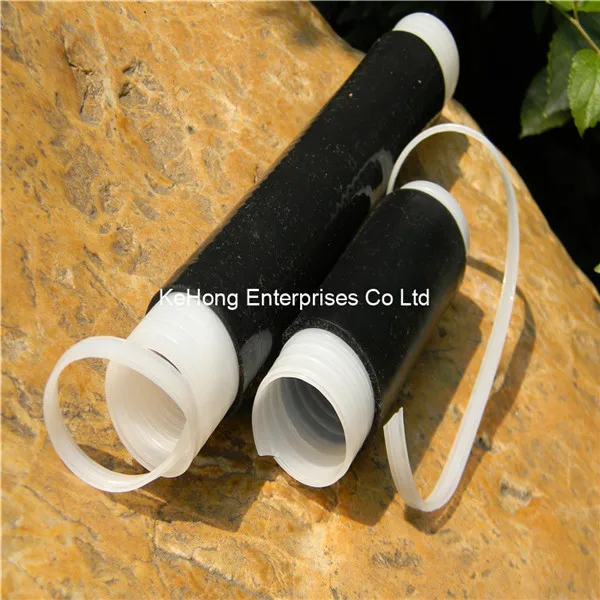

Cold shrink insulation sleeve
Silicone Rubber Cold Shrink Tube
SRCST
Features

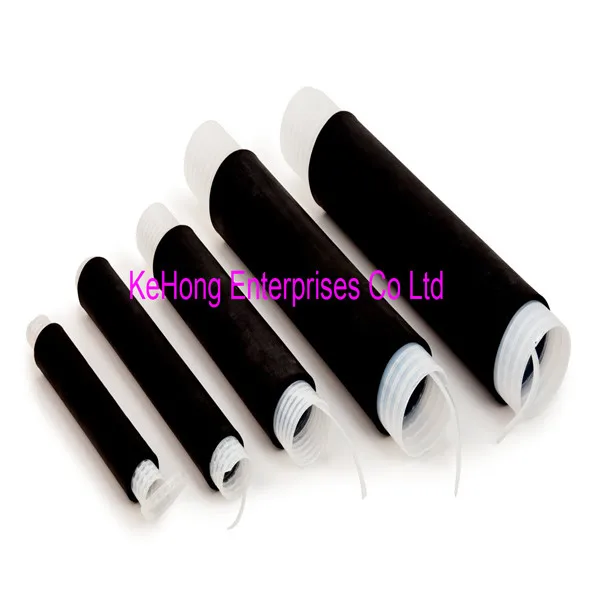

1. Made of liquid silicone rubber
2. Offering good mechanical, insulation and sealing protection
3. Fit for wide range of cable sizes
4. For indoor and outdoor applications
5. Simple and fast installation
Technical Data
Property | Test Method | Unit | Typical value |
Color | Gray/Black | ||
Density | GB/T1033-2008 | g/cm3 | 1.11 |
Shore A Hardness | ASTM D2240 | 43 | |
Tensile strength(single) | ASTM D412 | Mpa | 8.5 min. |
Elongation at Break | ASTM D412 | % | 670 |
Tear Strength | ASTM D624 | Kn/mm | 25 |
Volume resistivity | IEC 60093 | Ω.cm | 9*1015 |
Protection performance | IEC60529 | IP 67 | |
Ozone Aging | ISO 1431 | No crack | |
Fungus Resistance | IEC60068 | Grade 0 |

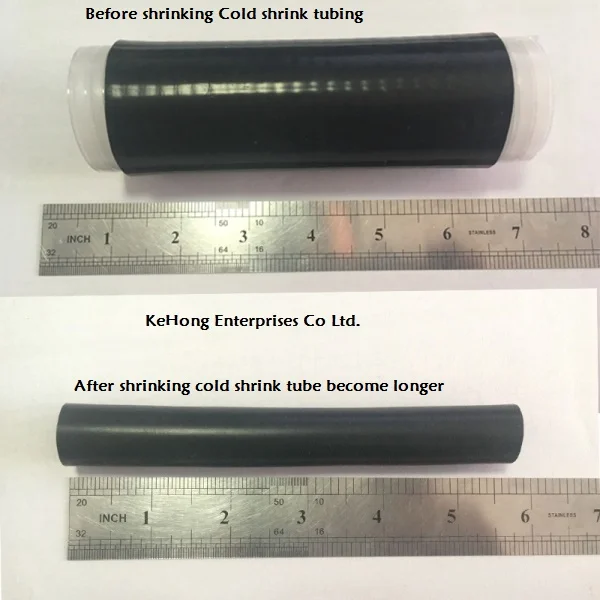

Dimensions
| Tyco Model | Size | Fit for Cable OD(mm) | After full recovery Length(mm) |
| 825-3.2 | 25 | 7.3-21 | 81.3 |
| 825-7 | 25 | 7.3-21 | 178 |
| 825-8 | 25 | 7.3-21 | 203 |
| 828**-5 | 28 | 6/25 | 125 |
| 828**-5.9 | 28 | 6/25 | 150 |
| 835-7 | 35 | 10.5-30 | 178 |
| 835-9 | 35 | 10.5-30 | 229 |
| 835-10 | 35 | 10.5-30 | 254 |
| 835-12 | 35 | 10.5-30 | 305 |
| 840-5.5 | 40 | 11.9-34 | 140 |
| 840-8 | 40 | 11.9-34 | 203 |
| 840-9 | 40 | 11.9-34 | 230 |
| 840-10 | 40 | 11.9-34 | 254 |
| 840-12 | 40 | 11.9-34 | 305 |
| 845-6 | 45 | 13.5-39 | 152 |
| 845-7 | 45 | 13.5-39 | 178 |
| 845-8 | 45 | 13.5-39 | 203 |
| 845-10 | 45 | 13.5-39 | 254 |
| 845-12 | 45 | 13.5-39 | 305 |
| 853-6 | 53 | 18.2-45 | 152 |
| 853-10 | 53 | 18.2-45 | 254 |
| 853-12 | 53 | 18.2-45 | 305 |
| 853-18 | 53 | 18.2-45 | 457 |
| 870-5 | 70 | 22.4-63 | 125 |
| 870-6 | 70 | 22.4-63 | 152 |
| 870-10 | 70 | 22.4-63 | 254 |
| 870-14 | 70 | 22.4-63 | 355 |
| 870-18 | 70 | 22.4-63 | 457 |
| 870-20 | 70 | 22.4-63 | 508 |
