Product Overview
Description
Product Overview

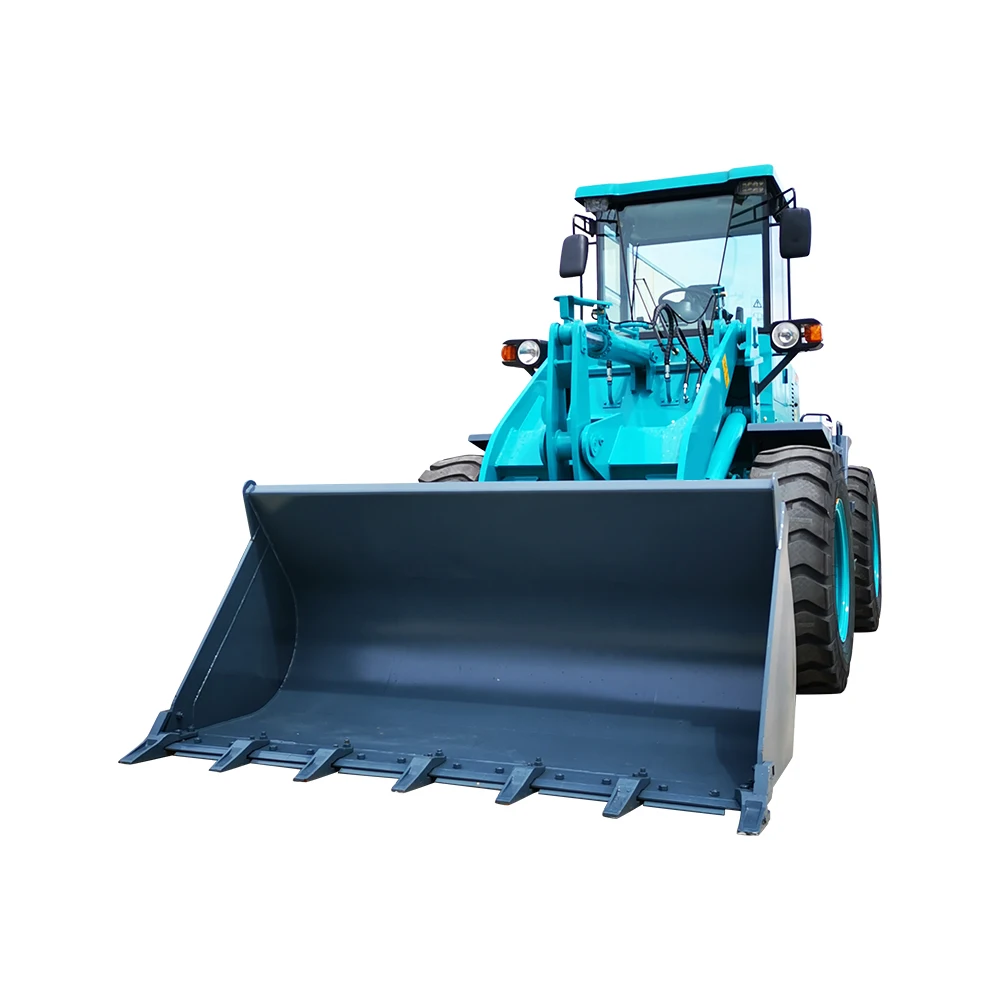

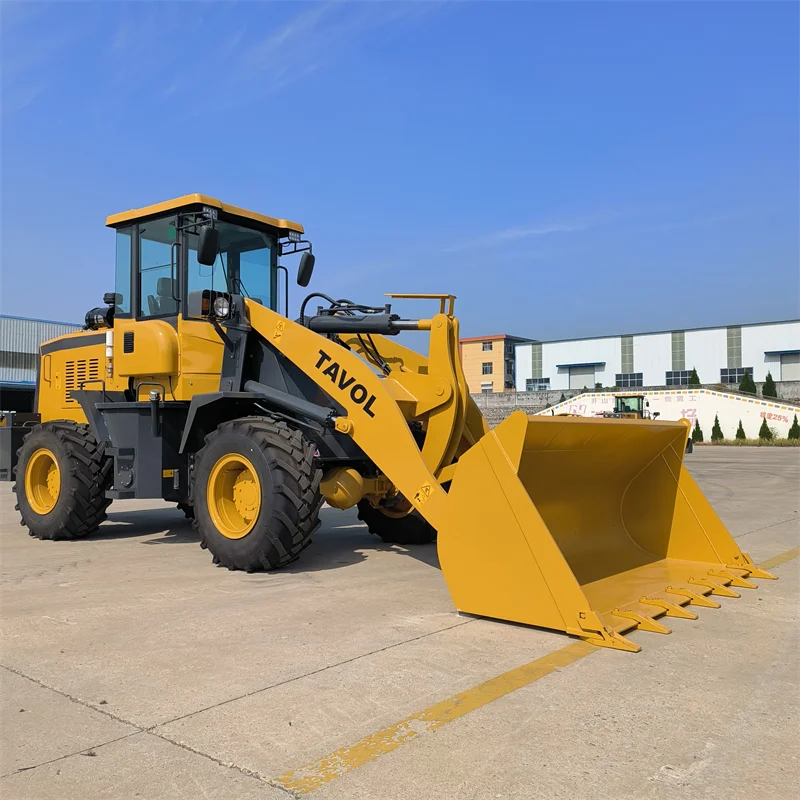

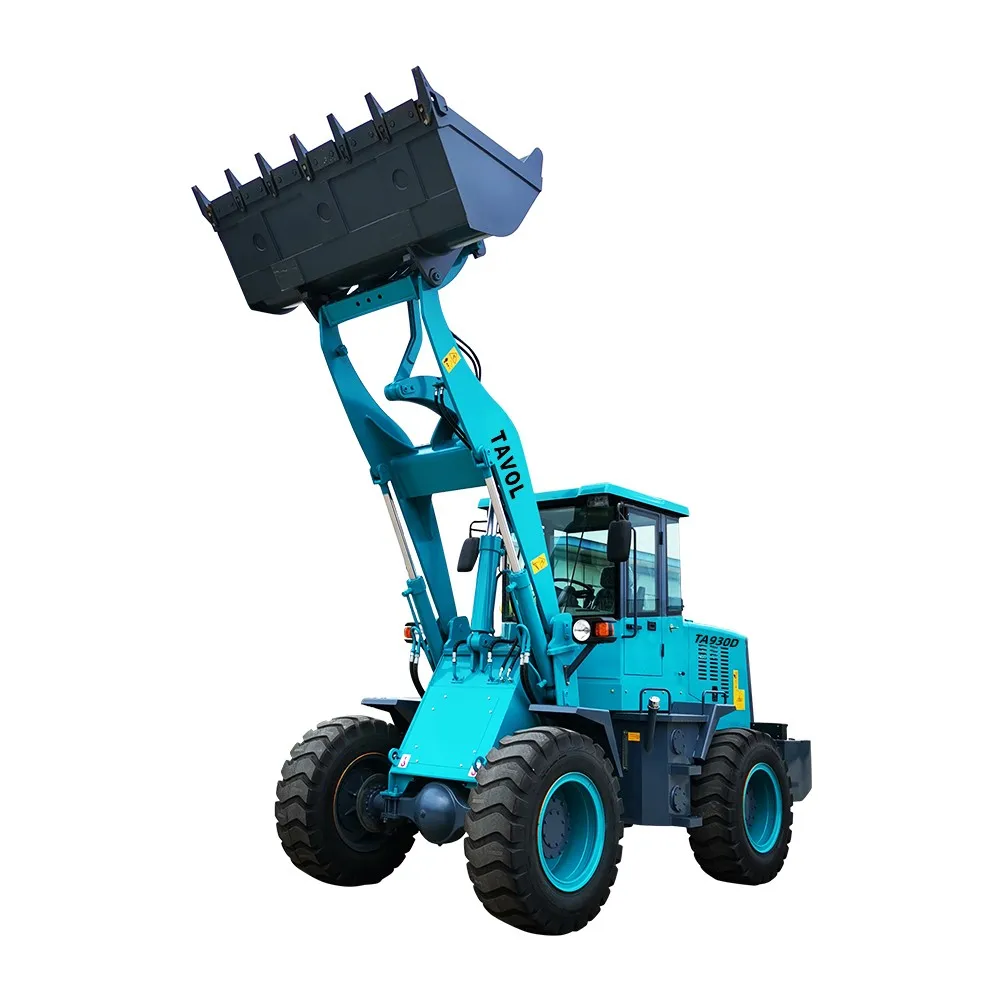

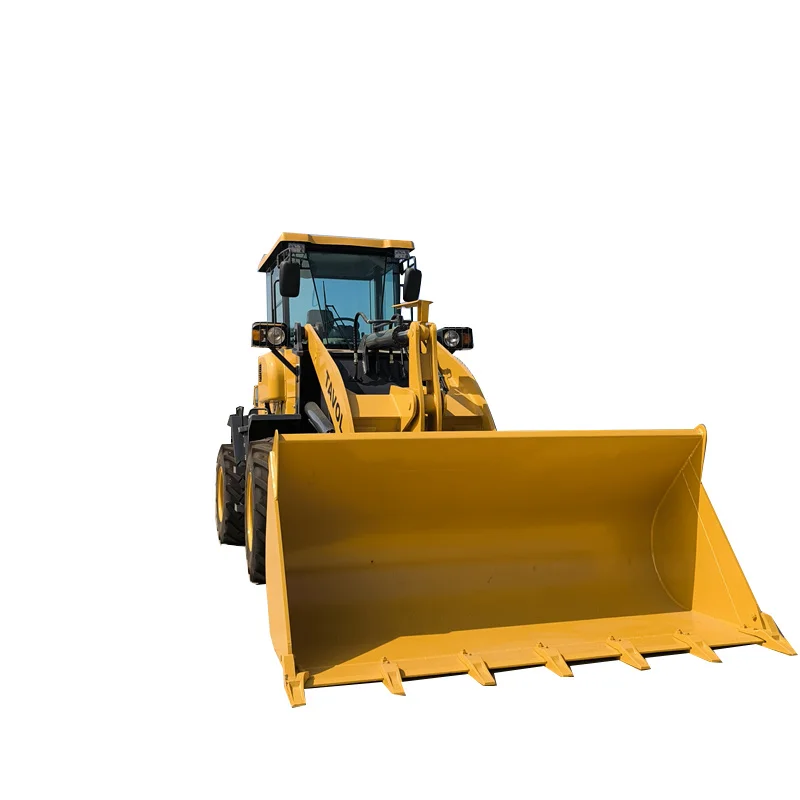

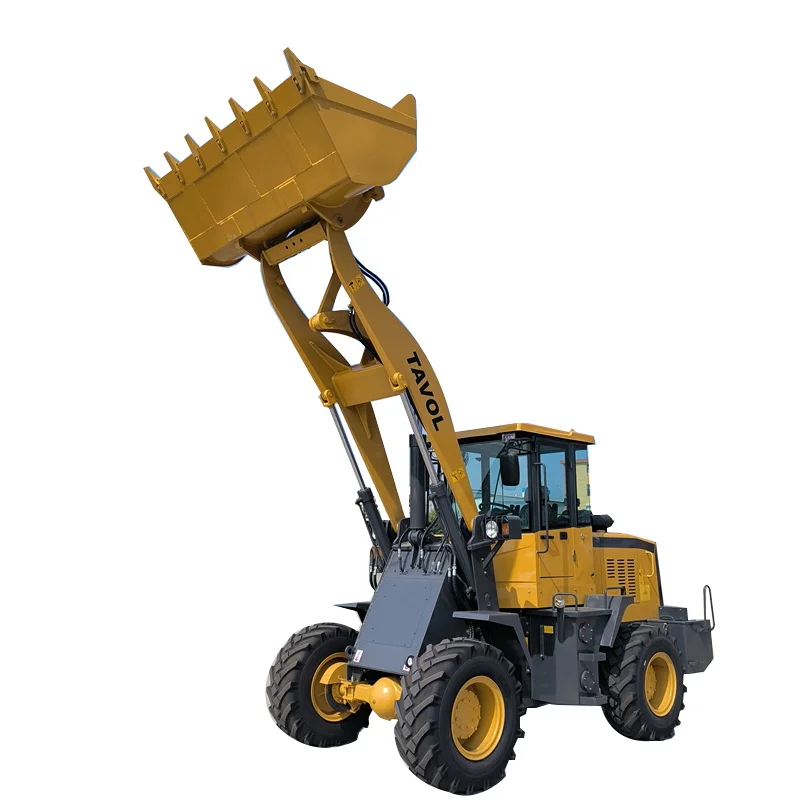

TA930D 3TON WHEEL LOADER
Wheel Loader is a kind of earth and stone construction machinery widely used in highway, railway, construction, hydro power, port,mine and other construction projects. , hard soil, etc. for light shovel excavation. It can also carry out bulldozing,lifting and loading and unloading of other materials such as wood by changing different attachments.
FEATURES AT A GLANCE
*Electro-hydraulic control, 4 forward and 3 reverse.
*Single lever pilot control system makes operation easy and comfortable.
*Large space articulated frame makes operation and traveling stable.
*Working device with automatically leveling ability at high position.
*Single lever pilot control system makes operation easy and comfortable.
*Large space articulated frame makes operation and traveling stable.
*Working device with automatically leveling ability at high position.
* Shangchai Caterpillar tech SC11CB240.1G2B1 engine is adopted, large torque backup and strong power. *Liuzhou Advance Gear Group
4W200 torque converter and fix-shaft gearbox, with ZF technology.
4W200 torque converter and fix-shaft gearbox, with ZF technology.
Left elevation
Right elevation
Left elevation
PRODUCT SPECIFICATIONS
NO | Item | Specification | No | Item | Specification |
1 | Bucket Capacity | 1.1 m³ | 10 | Min.Turning Radius(Outside of read wheel) | 4950 mm |
2 | Rated Load | 2000 Kg | 11 | Steering Angle | 36° |
3 | Dumping Height | 3200mm | 12 | Min.Ground Clearance | 360 mm |
4 | Dumping Reach | 960 mm | 13 | Wheel Base | 2580 mm |
5 | Boom Lifting Time | 4.5 S | 14 | Wheel Tread | 1620 mm |
6 | Max Working Speed | 22 km/h | 15 | Rated Power | 60 KW/2400 rpm |
7 | Max.Breakout Force | 63kN | 16 | Tyre | 16/70-24 |
8 | Max. Drawing Force | 52 kN | 17 | Overall Dimensions | 6410*2100*2960mm |
9 | Max.Grade Ability | 25° | 18 | Operating Weight | 6700 Kg |
PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK

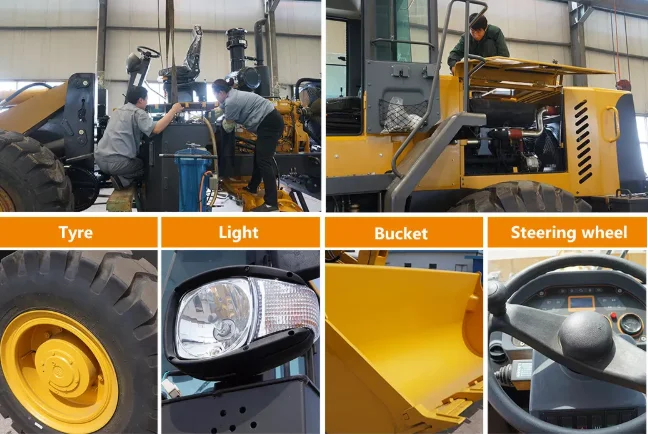

Details Images
Company Profile
Tavol Group
Tavol Company was established in 2012, A Chinese Construction Machinery Manufacturing Brand that Provides Customized Services.
Mainly Produces More Than 20 Models of Wheel Loaders with a Load Capacity Ranging From 0.5 tons to 6 tons. and Other Related
Construction and Agricultural Machinery, Such as Forklifts, Excavators, Cranes and Tractors etc.
Mainly Produces More Than 20 Models of Wheel Loaders with a Load Capacity Ranging From 0.5 tons to 6 tons. and Other Related
Construction and Agricultural Machinery, Such as Forklifts, Excavators, Cranes and Tractors etc.
Tavol Group
Whether you're an Agricultural Farmer, a Mine Owner, or a Contractor on a Construction Site, There will always be one Machine that
is Right for you. As long as you can Drive, You will Operate these Machine Easily, It will Definitely be your good Partner to Make
a Fortune.
is Right for you. As long as you can Drive, You will Operate these Machine Easily, It will Definitely be your good Partner to Make
a Fortune.
Project in India
Project in Thailand
Project in Russia
FAQ
Q: Are you a manufacturer ，Trader or agent?
A: We are manufacturer,mainly make the wheel loaders from 1Ton-6 Ton.
Q: Can you dosome changes according to our requests?

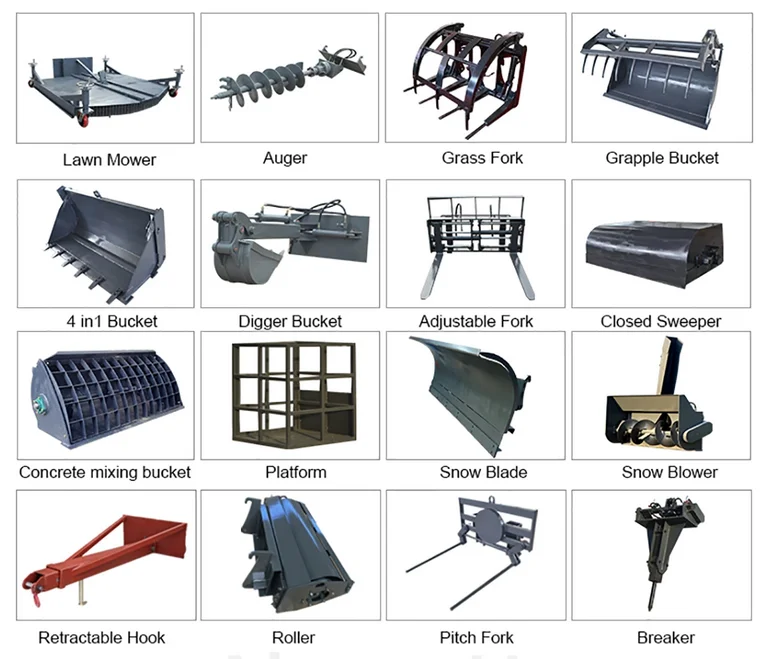

A: Sure. We can do some changes according to your uses. We provide many options, like A/C,
Cabin heater, Forklift, Pallet fork,log grapple, grass fork etc.
Cabin heater, Forklift, Pallet fork,log grapple, grass fork etc.
Q: Where is your main market?
A: Southeast Asia, Russia, Africa and the whole China.
Q:What is the payment item?
A: Payment item is negotiable and there will be favorable payment terms for long-term customers. TT or L/C depends on the cooperation time, country and contract value.
