800KW Alternative Energy Generators Horizontal wind turbine wind power plant water power turbine hydro generator
- Category: >>>
- Supplier: Helios Technology Co. Ltd.Helios Ltd.
Share on (1600720912141):
Product Overview
Description

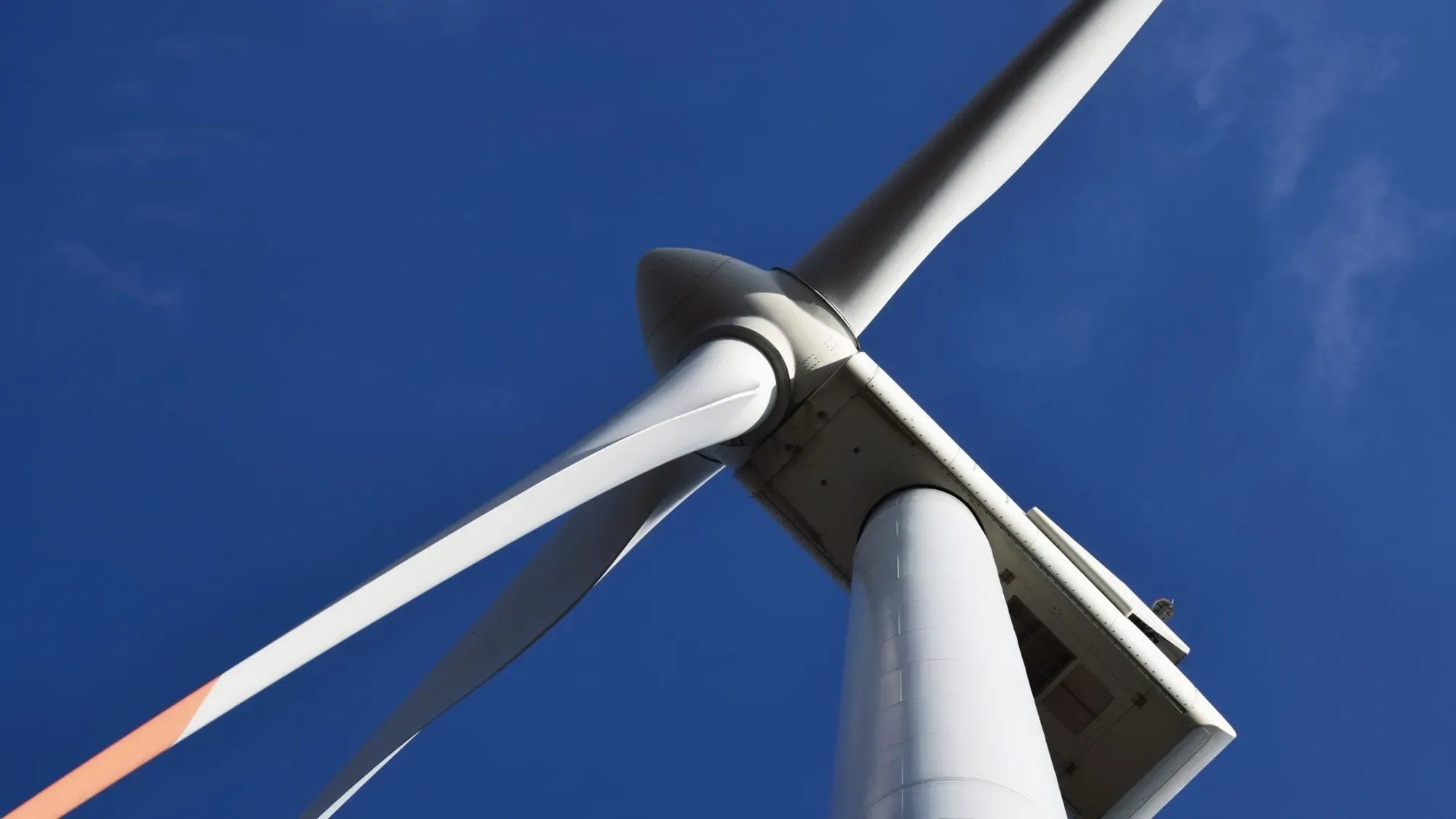

Horizontal Axis Wind Turbine HF - 800KW | ||||||
Model | HF-800KW | Blade Material | 3 pcs | |||
Rated power | 800KW | Rated Voltage | 690V | |||
Wind Wheel Diameter | 56m | Start-up Wind speed | 3.0m/s | |||
Rated wind speed | 11m/s | Survival wind speed | 59m/s | |||
Blade Length | 27.5m | Height of Tower | 60 | |||

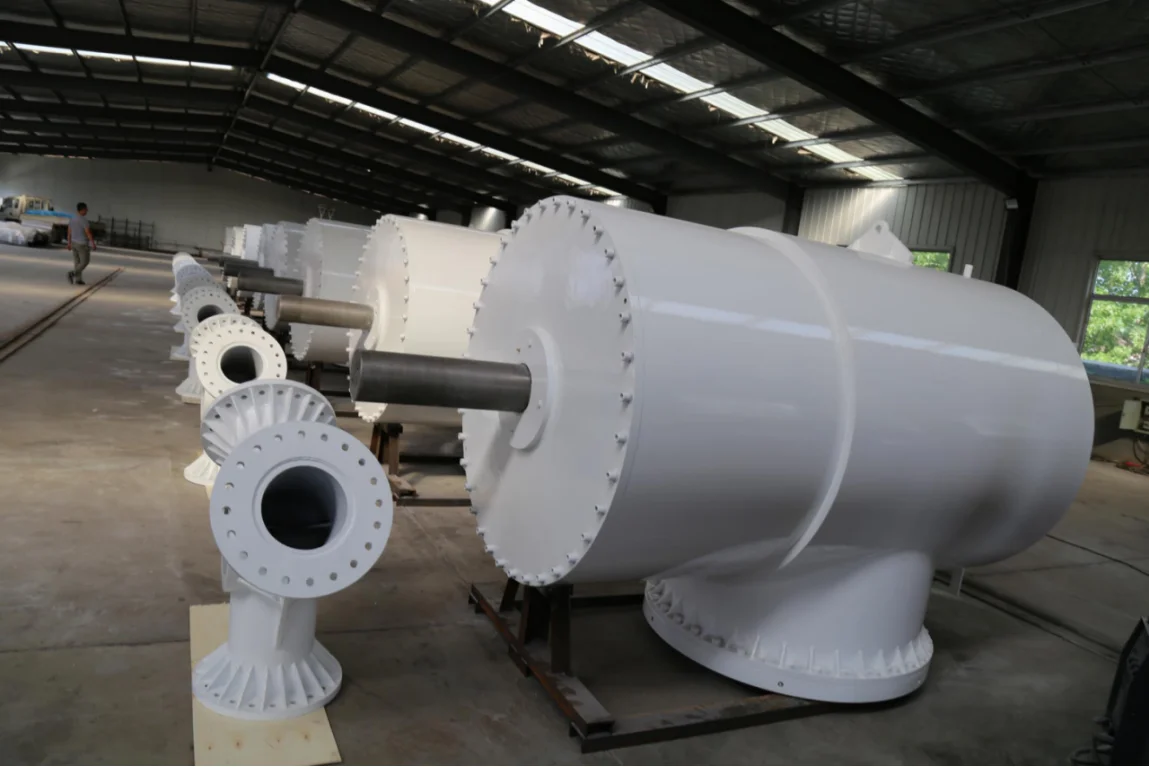

Generator shell material | Pressure Cast Iron | Tower Segments Number | 3 | |||

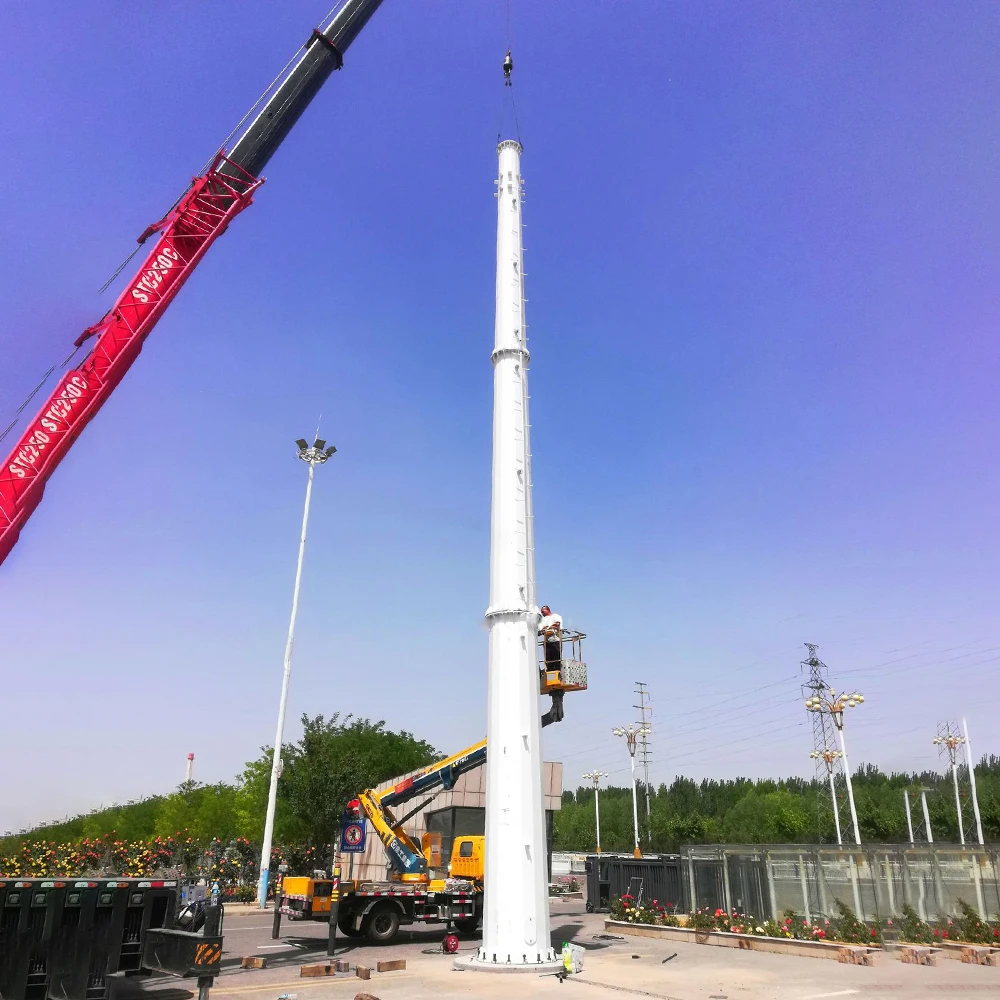

Tower material | S355 free stand tower with painting against decaying | |||||

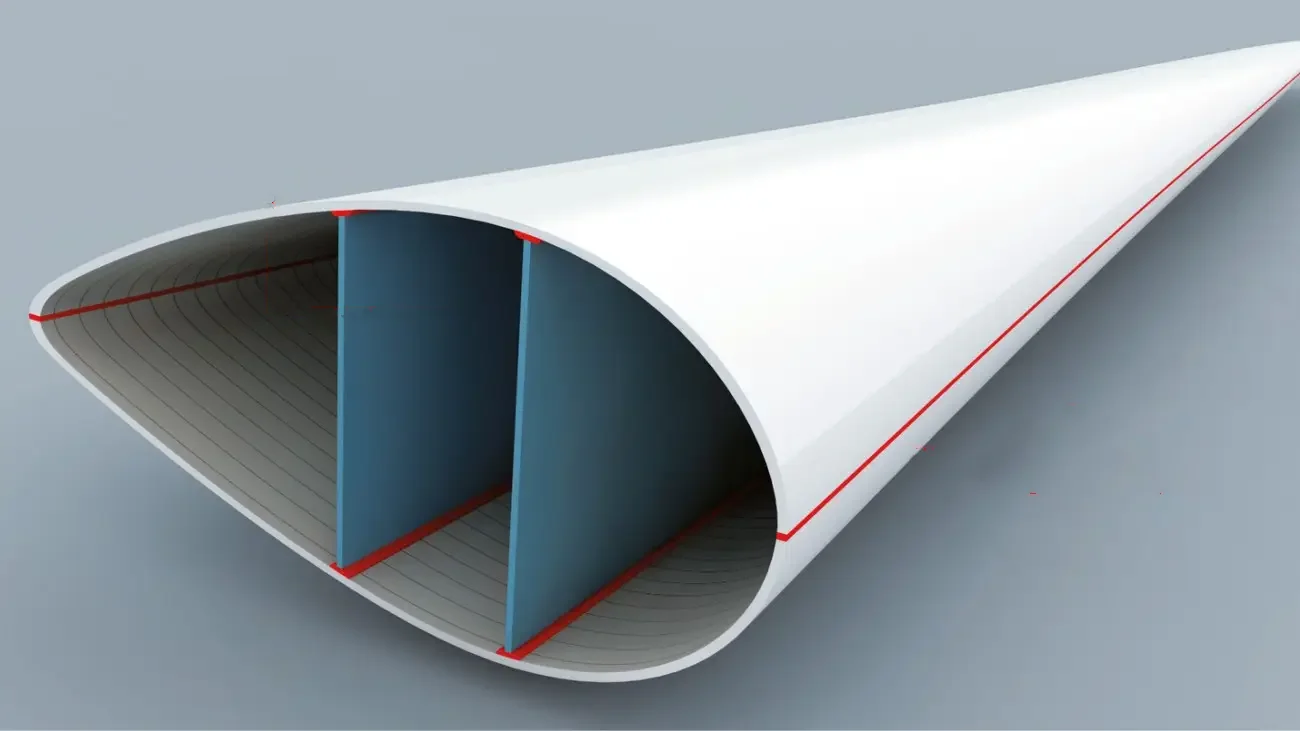

Blade Material | High efficiency FRP material, unidirectional high strength glass fiber | |||||

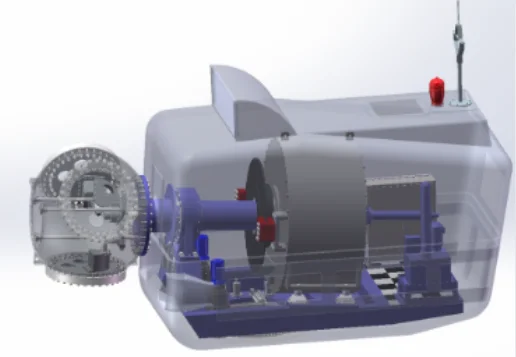

Type of Generator | Permanent magnet synchronous engine | |||||
Control System | SCADA Remote monitoring | |||||
The Wind Adjustment | Automatic Windward Adjustment | |||||
Brake System | 3 blade pneumatic brake & Principal axis tong disc brake | |||||
Lightning Protection System | Blade tip lightning protection | |||||
Working Temperature | -30℃～50℃ | |||||
Degree of Protection | IP54 | |||||
Design Life | 20 Years | |||||
Enjoy convenient & efficient clean energy!
1. Start at low wind speed, maximize the utilization of wind energy, and operate stably at super wind speed；
2. The wind farm for unit construction is easy to install, with small floor area and small working space radius;

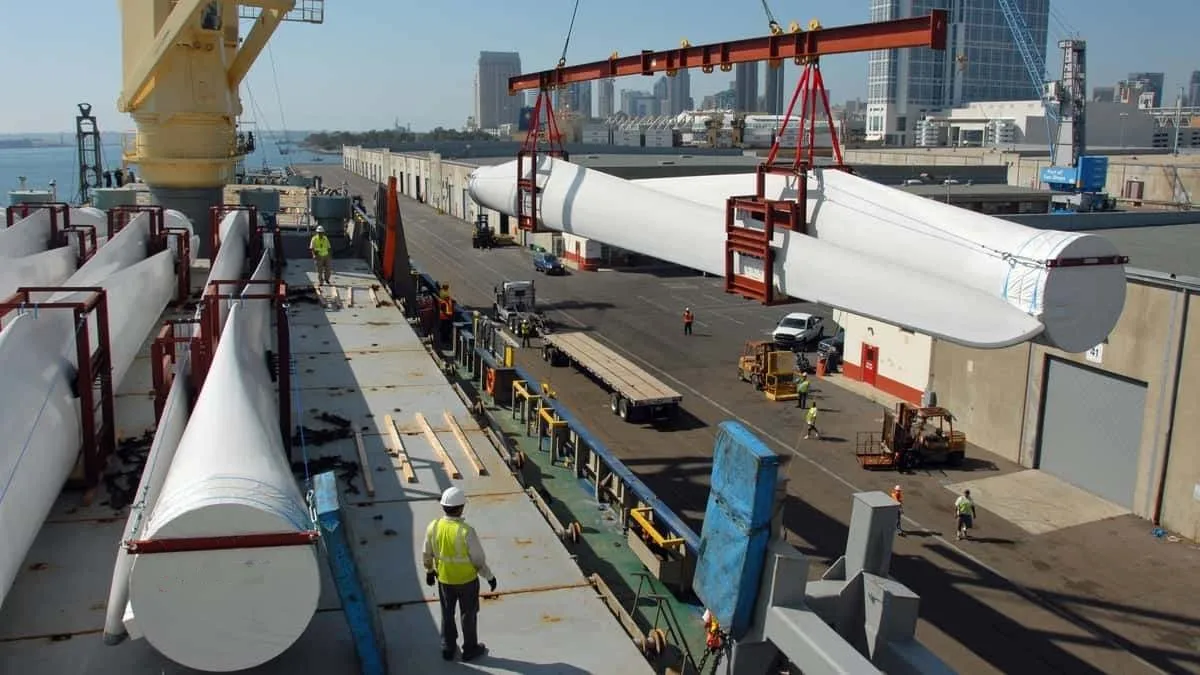

3. The unit is small, light and convenient for transportation;
4. Superior power quality, easy to control by the energy center, and good affinity for micro grid projects;
5. The total cost of a single unit is low, which is convenient for the company and individual investment income;
6. It has the technical characteristics of megawatt wind turbine such as active yaw, pitch, full power inverter, low voltage ride through, SCADA, etc.
Q1. How can we guarantee quality?
Always a pre-production sample before mass production and final Inspection before shipment. Also can provide sample for quality inspection and market testing.

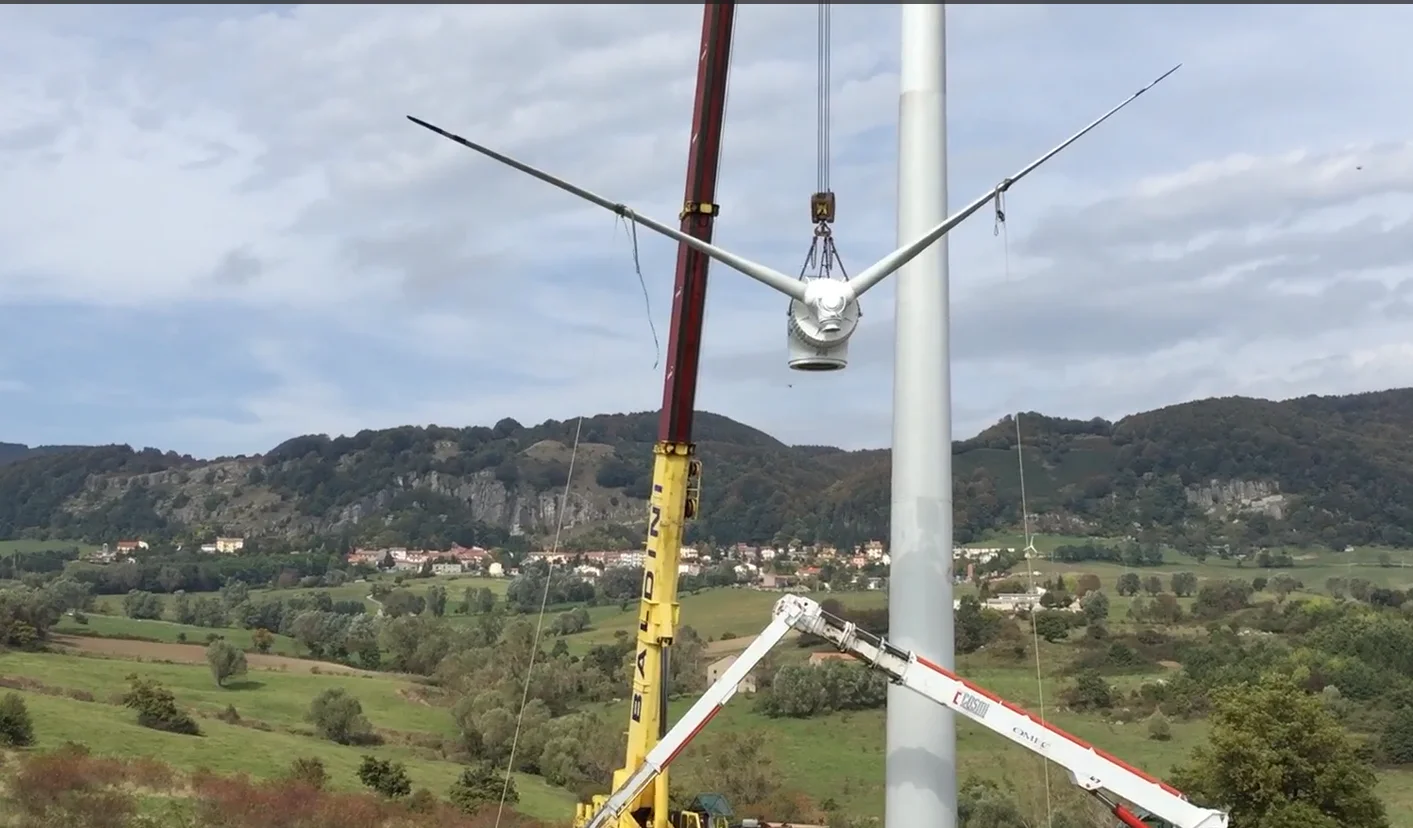

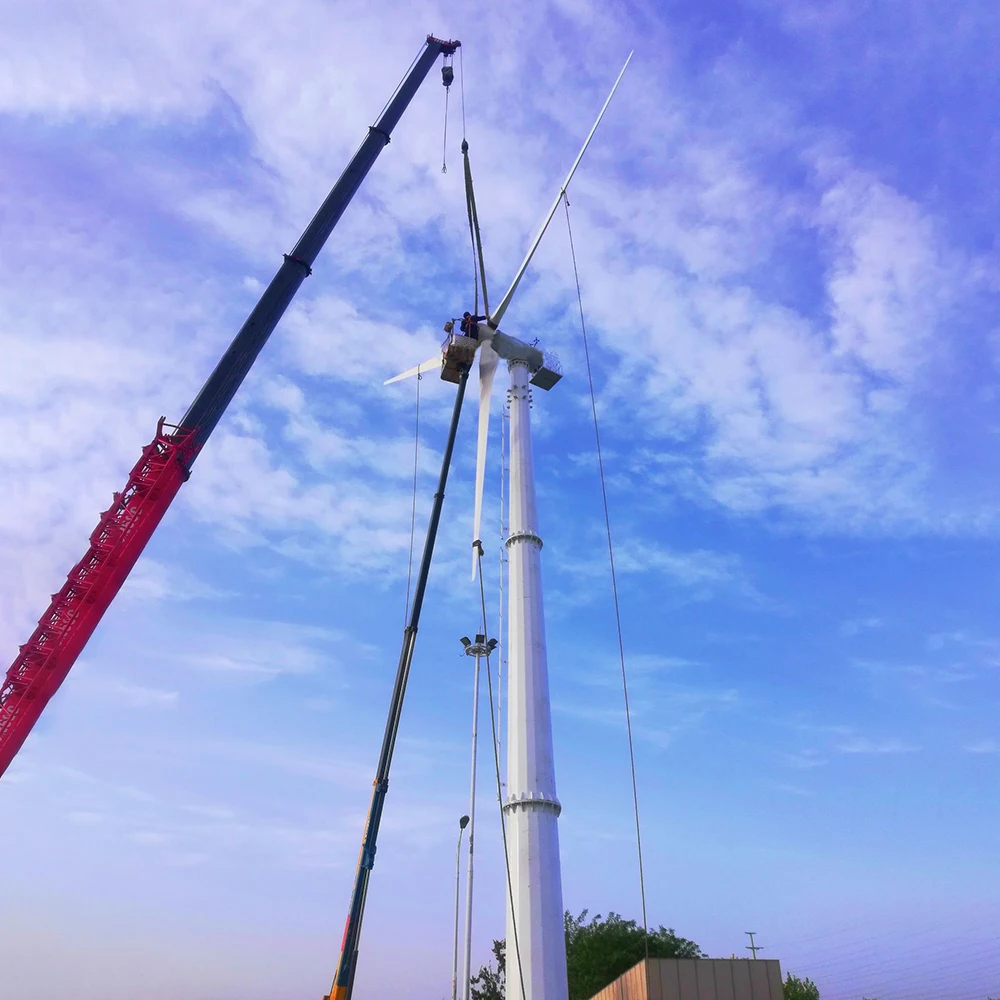

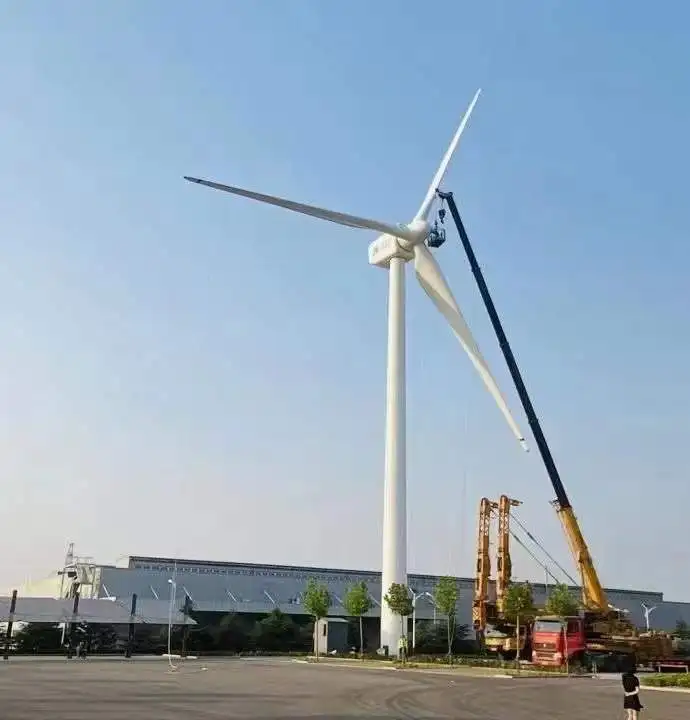

Q2. Are these products easy to be installed?
Yes, It is easy to be installed, we provide installation manual for reference. Our sales manager and engineer can also guide the installation by video if any query.
Q3: What of the capacity can you supply?
A1: From 100W to 1000KW wind turbine, can supply parts or whole unit, both on grid & off grid.
Q4. For horizontal axis wind turbines & vertical axis wind turbines, which of type efficiency is better?
(1). For same watts at same wind speed, the output efficient of horizontal axis wind turbines is better than that vertical axis wind turbines.
(2). Low wind speed, we suggest to use vertical HLS series.
(3). Wind speed is over 8m/s, the generation efficiency of vertical wind turbine is around 80-90%. No noise & most popular.

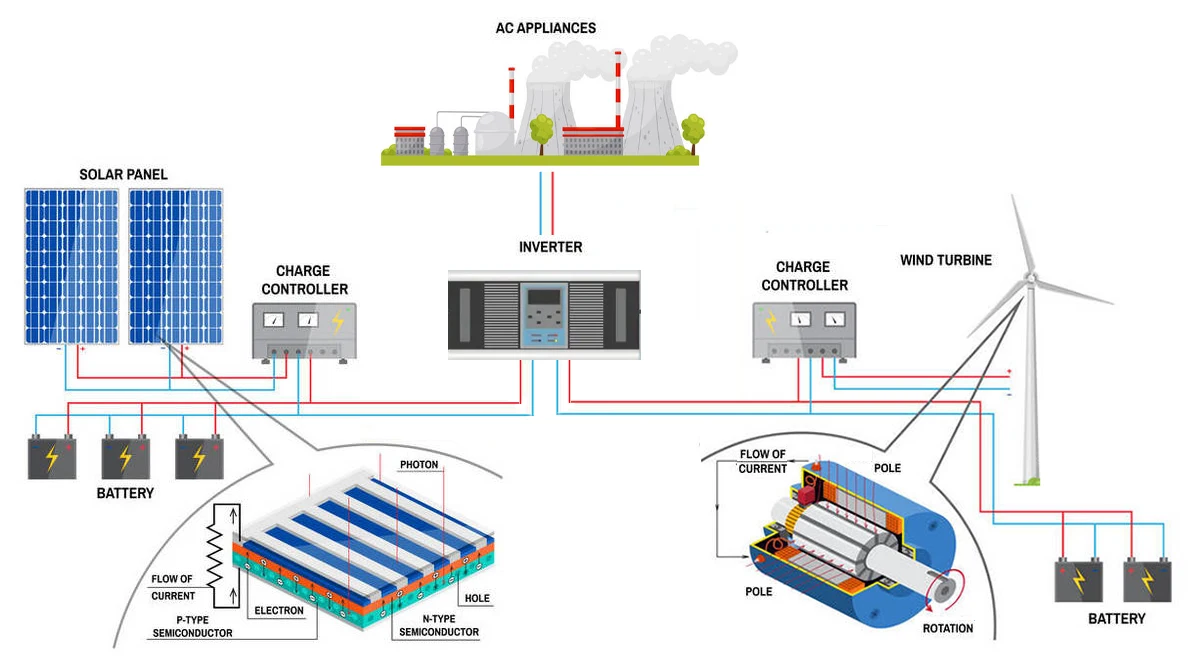

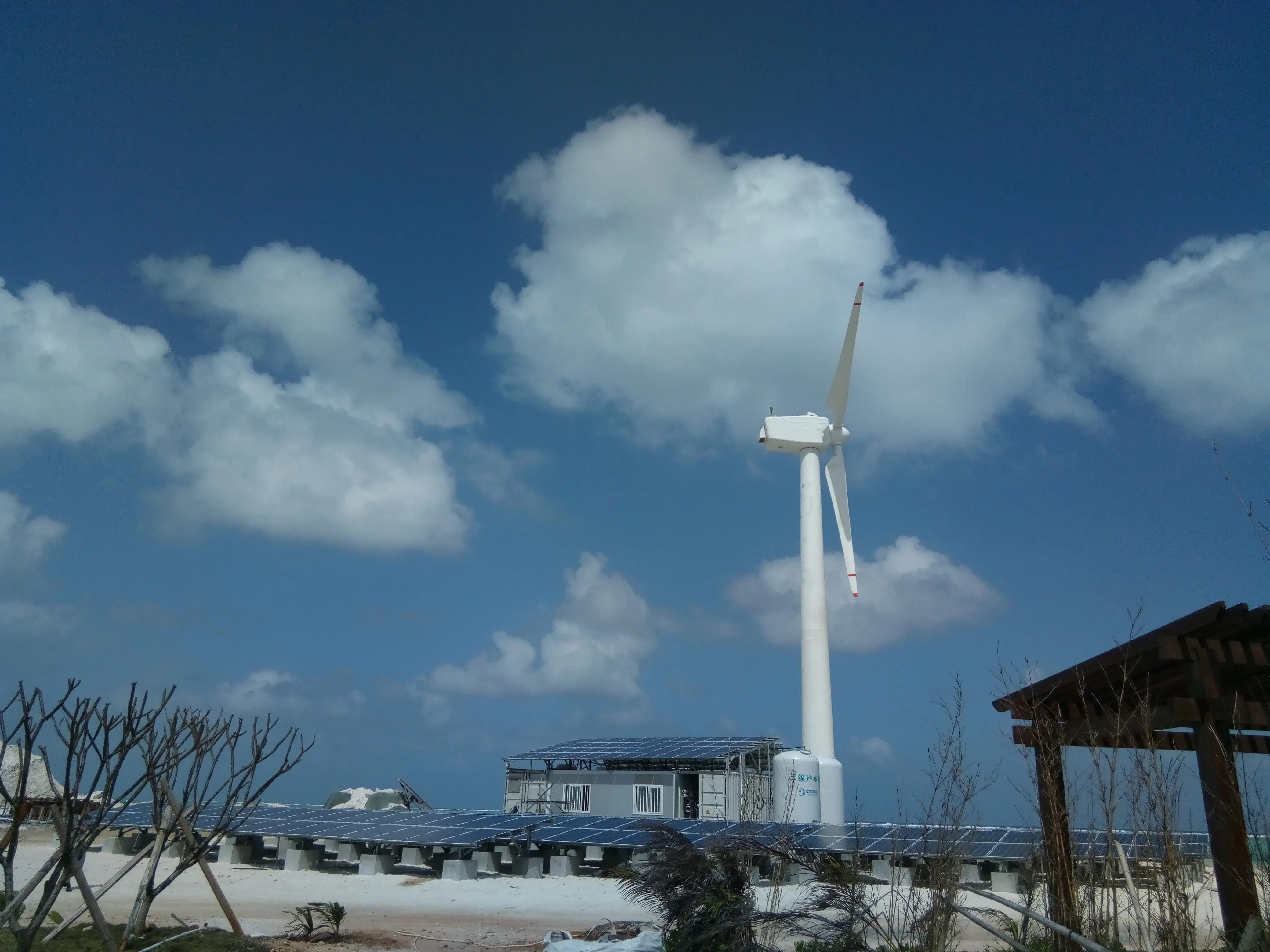

Q5. Can you also provide the full sets of wind & solar system?
Yes, of course! We are a one-stop energy solution provider. we have qualified technician team to design for your system, including wind turbine,solar panel system and Energy storage system, also provide detailed installation instruction.
Q6. What kind of certificates your products have?
Our products have acquired CE, ISO & TUV certificates.
Q7. What are your terms of payment?
Often like T/T & L/C, others can be negotiated;
Alibaba Trade Assurance are available, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount.
