GSK System VMC 640 CNC Milling Machine CNC Vertical Machining Center VMC650
- Category: >>>
- Supplier: Taian Yuzhuo Machinery Co. Ltd.
Share on (1600720913331):
Product Overview
Description
Product Description

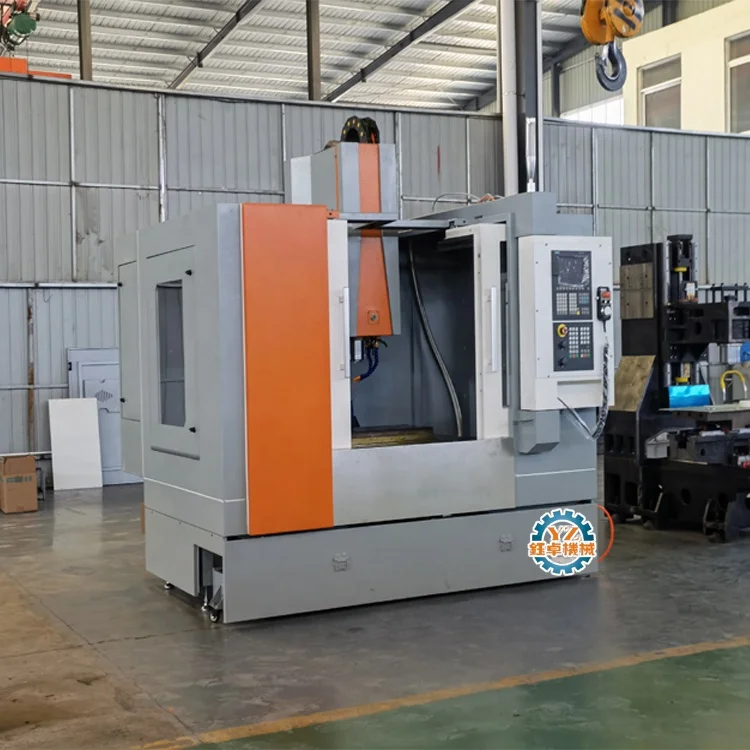

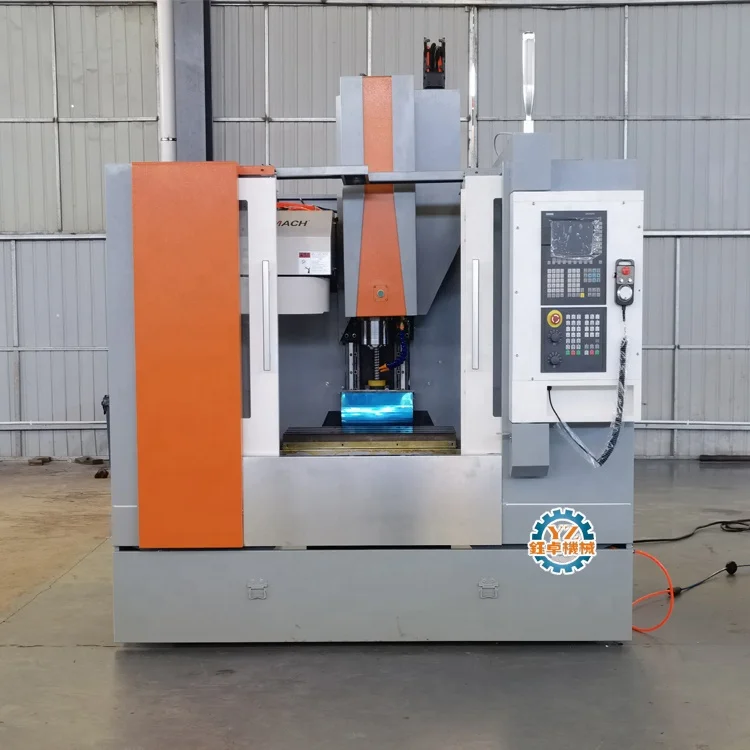

VMC 640 CNC Machining Center
Item | Unit | VMC640 |
X-axis | mm | 650 |
Y-axis | mm | 400 |
Z-axis | mm | 450 |
Spindle nose to table | mm | 80-530 |

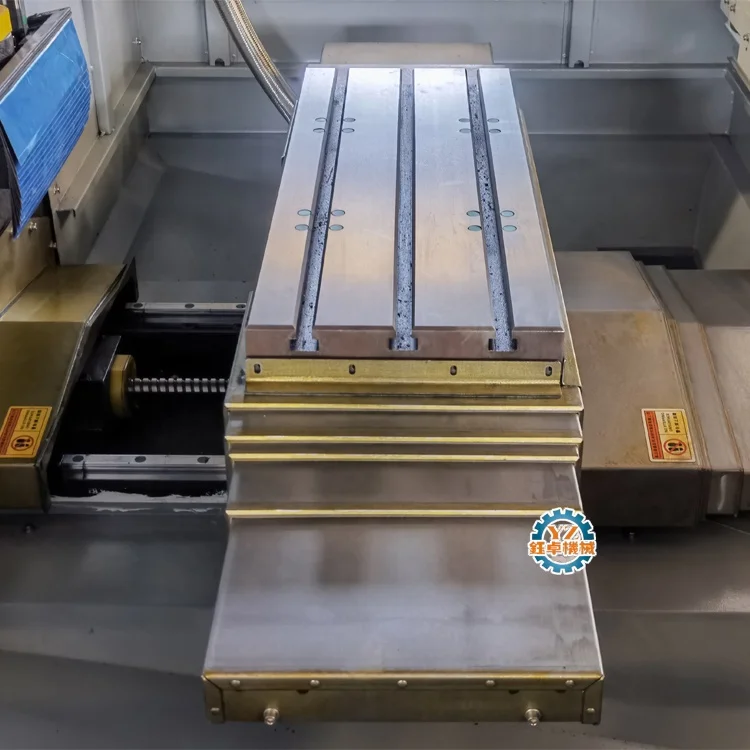

Workbench Size (L*W) | mm | 800*320 |
T-slot(size*quantity) | mm | 16*3 |
Workbench Max Load | kg | 400 |
Spindle Speed | rpm | 8000 |
Spindle Taper | BT | BT40 |
Spindle Power | kw | 5.5/7.5 |
Cutting Speed | mm/min | 1-6000 |
X/Y/Z Fast Speed | m/min | 20 |
Machine Weight | kg | 2500 |
Dimensions(L*W*H) | mm | 2200*2190*2500 |
Standard Configurations:
1. GSK980MDI CNC Controller.

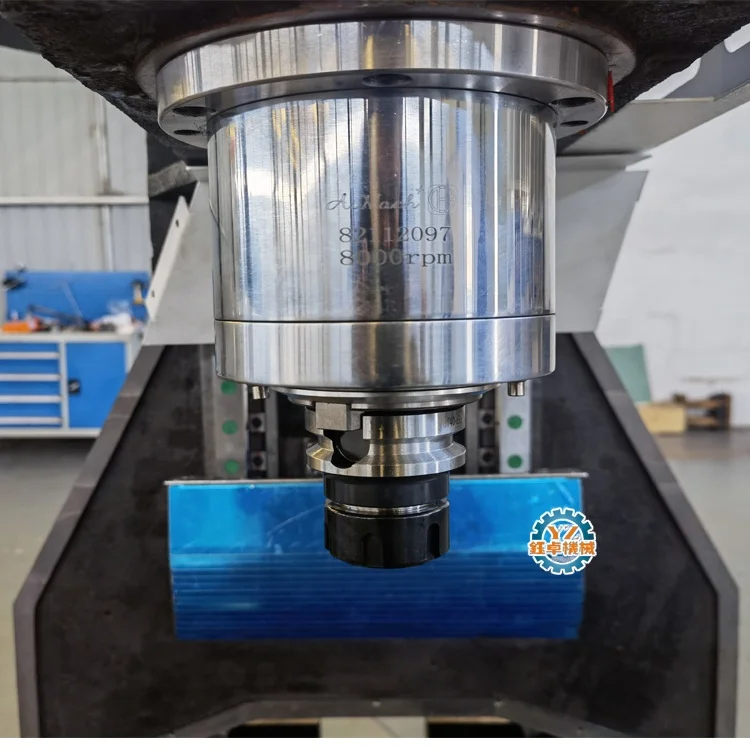

2. Taiwan BT40-120-8000 spindle.

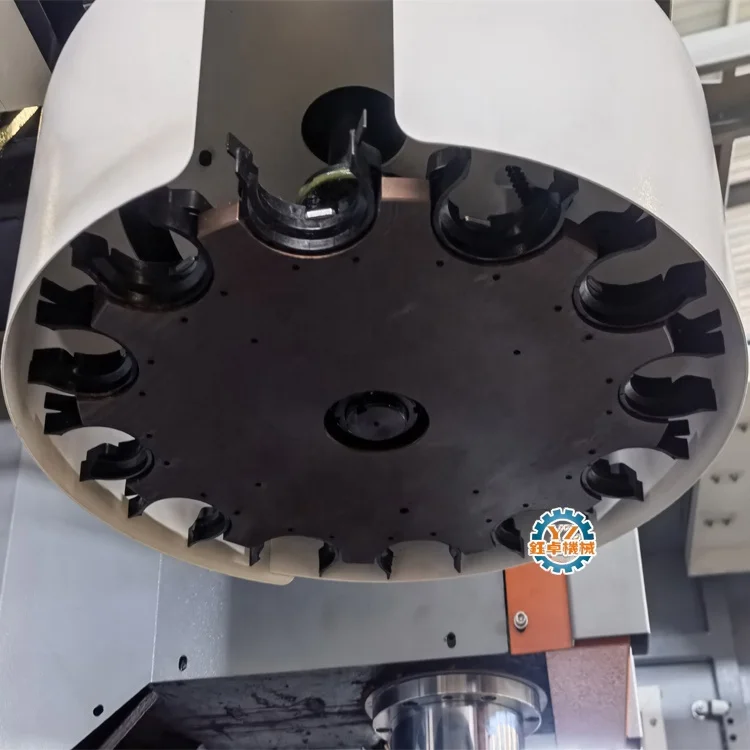

3. 12T funnel type tool changer.4. Taiwan Hiwin linear guideway.
5. Taiwan Hiwin ball screw.a. Automatic Lubrication System.
2. Taiwan BT40-120-8000 spindle.
3. 12T funnel type tool changer.4. Taiwan Hiwin linear guideway.
5. Taiwan Hiwin ball screw.a. Automatic Lubrication System.
7. Work Lamp.
8. Full Enclosure Machine Guard.
8. Full Enclosure Machine Guard.
Optional Configurations:
1. Siemens Fanuc Syntec KND Mitusbishi GUNT.
2. 16T funnel/arm type tool changer.
3. Chain type chip conveyor.
4. 4th axis and 5th axis.
5. Spindle oil cooler.6. Coolant through spindle.
7. Renishaw probe for workpiece and tool.
8. 10000RPM/ 12000RPM spindle.
2. 16T funnel/arm type tool changer.
3. Chain type chip conveyor.
4. 4th axis and 5th axis.
5. Spindle oil cooler.6. Coolant through spindle.
7. Renishaw probe for workpiece and tool.
8. 10000RPM/ 12000RPM spindle.
Details Images
Our Services
Pre-Sales Service:
1.Customers provide the detailed workpiece size or drawing, our professional engineer will check and recommend suitable machine model for you.
2.Customers can also send us samples by courier, we can machining some samples for your checking.
3.All of our machines can be customized according to the requirements.
4.Welcome to come to our Taian Yuzhuo factoy for visiting and checking machine.
2.Customers can also send us samples by courier, we can machining some samples for your checking.
3.All of our machines can be customized according to the requirements.
4.Welcome to come to our Taian Yuzhuo factoy for visiting and checking machine.
After-Sales Service:
1.Our experienced engineers can offer answers to your technical questions, and in many cases, solve your problems effectively over the phone.
2.Engineers are available to service machines or to train how to use machine overseas. 3. Warranty period is one year, with lifelong after sale service.
3.We would provide parts for free during warranty period if it's caused by quality problem.
2.Engineers are available to service machines or to train how to use machine overseas. 3. Warranty period is one year, with lifelong after sale service.
3.We would provide parts for free during warranty period if it's caused by quality problem.
FAQ
Q1. How can I choose the most suitable machines ?
A: Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
Q2. What's the main products of your company?
A: We specialized in many kinds of CNC machines, such as Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal
CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center and so on.
Q3. Where is the factory located? How can I visit there?
A: Our factory is located in Tai’an City, Shandong Province, China. With very convenient transportation access, you can come by airplane or by high speed railway. And warmly welcome you to visit us.
Q4. What is the Trade Terms?
A: FOB, CFR and CIF all acceptable.
Q5. What's the Payment Terms ?
A: 30% T/T initial payment as deposit, 70% T/T balance payment before shipment.
Q6. What's the MOQ?
A: MOQ is 1 set.
A: Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
Q2. What's the main products of your company?
A: We specialized in many kinds of CNC machines, such as Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal
CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center and so on.
Q3. Where is the factory located? How can I visit there?
A: Our factory is located in Tai’an City, Shandong Province, China. With very convenient transportation access, you can come by airplane or by high speed railway. And warmly welcome you to visit us.
Q4. What is the Trade Terms?
A: FOB, CFR and CIF all acceptable.
Q5. What's the Payment Terms ?
A: 30% T/T initial payment as deposit, 70% T/T balance payment before shipment.
Q6. What's the MOQ?
A: MOQ is 1 set.
