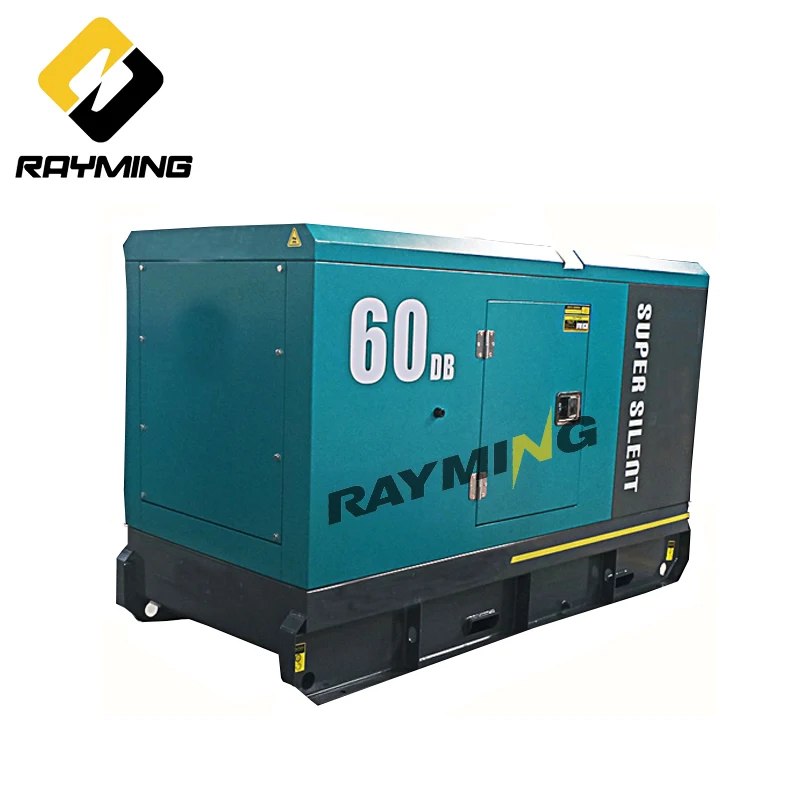

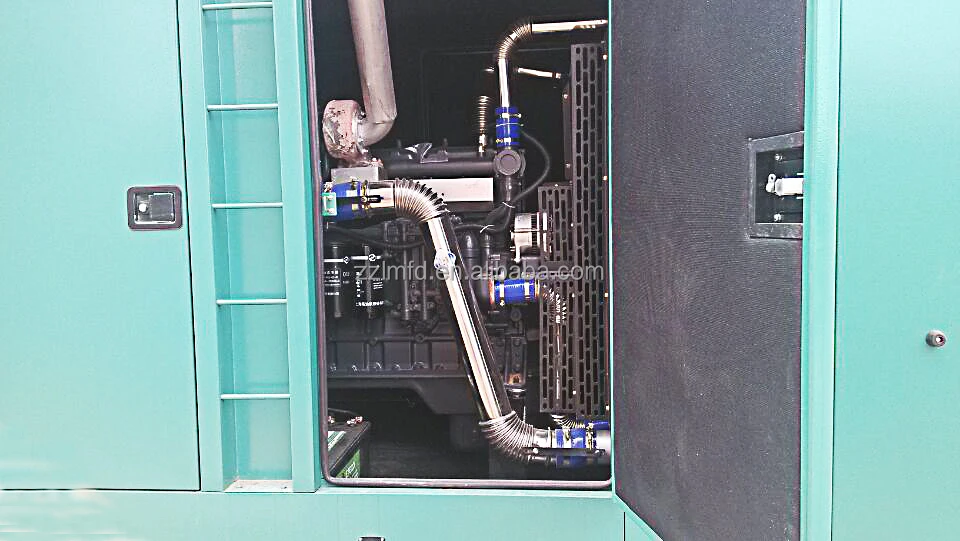

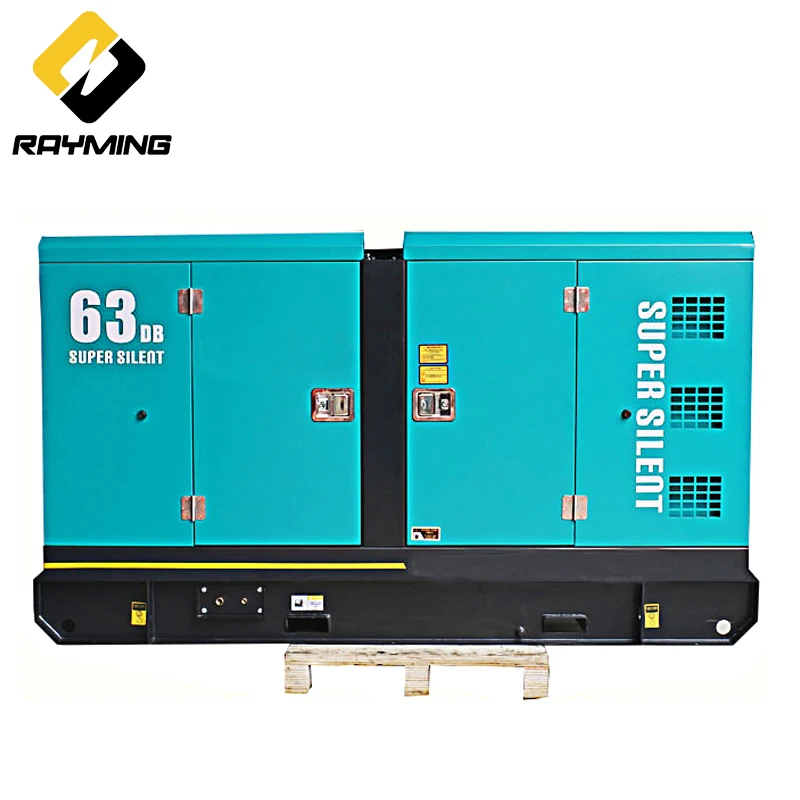

China OEM 100kw electric soundproof 3 phase generators set power plant 125 kva diesel generator with brand engine for sale

100KW DIESEL GENERATOR

Generator model: LMGF-100

Steady state voltage regulation(%): ≤±0.5

Output powder:100kw/125kva

Voltage fluctuation rate(%):≤0.5

Powder factor: COSΦ=0.8 in three phase

Transient voltage regulation(%):-15~+20

Output voltage:110/220v/230v/400v/415v

Voltage steady state time(s):≤0.5

Output current:181Amp

Steady state frequency adjustment rate(%):0~5 adjustable

Rated frequency:60Hz/50Hz

Frequency fluctuation rate(%):≤0.5

Rated speed: 1800rpm/1500rpm

Transient frequency modulation rate(%):≤±10

Fuel brand: ( standard) 0# light diesel oil( room temperature)

Frequency recovery time(s): :≤5

Fuel consumption:228g/kw.h

Gross size

1850*850*1150mm

Gross weight

1250kg

Diesel Engine Technical Parameters

Brand/origin: With Deutz Engine

Cooling mode: Air Cooled

Engine type: BF6L913C

Oil supply: direct injection

Rated power:100kw/125kva

Speed adjustment: Electronic

Standby power:114kw/142kva

Qty of cylinders/cylinder structure: 6 cylinder on line

Air inlet: Turbo Charging

Bore by stroke: 102*125mm

Overload capacity: 110%

Engine oil capacity: 20L

Discharge :6.128L

Compression ratio: 18:1

Rated speed:  1800rpm/1500rpm

Startup mode: DC 24V electric start

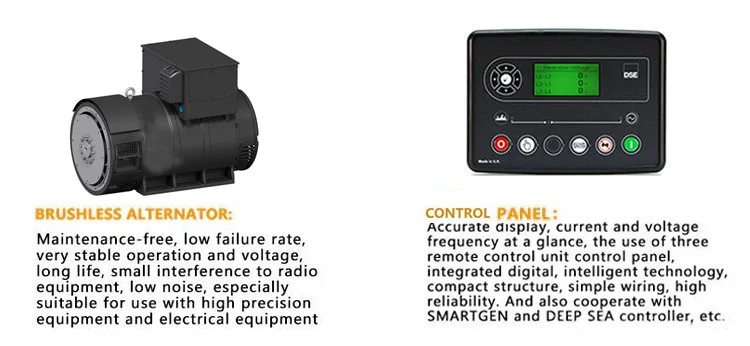

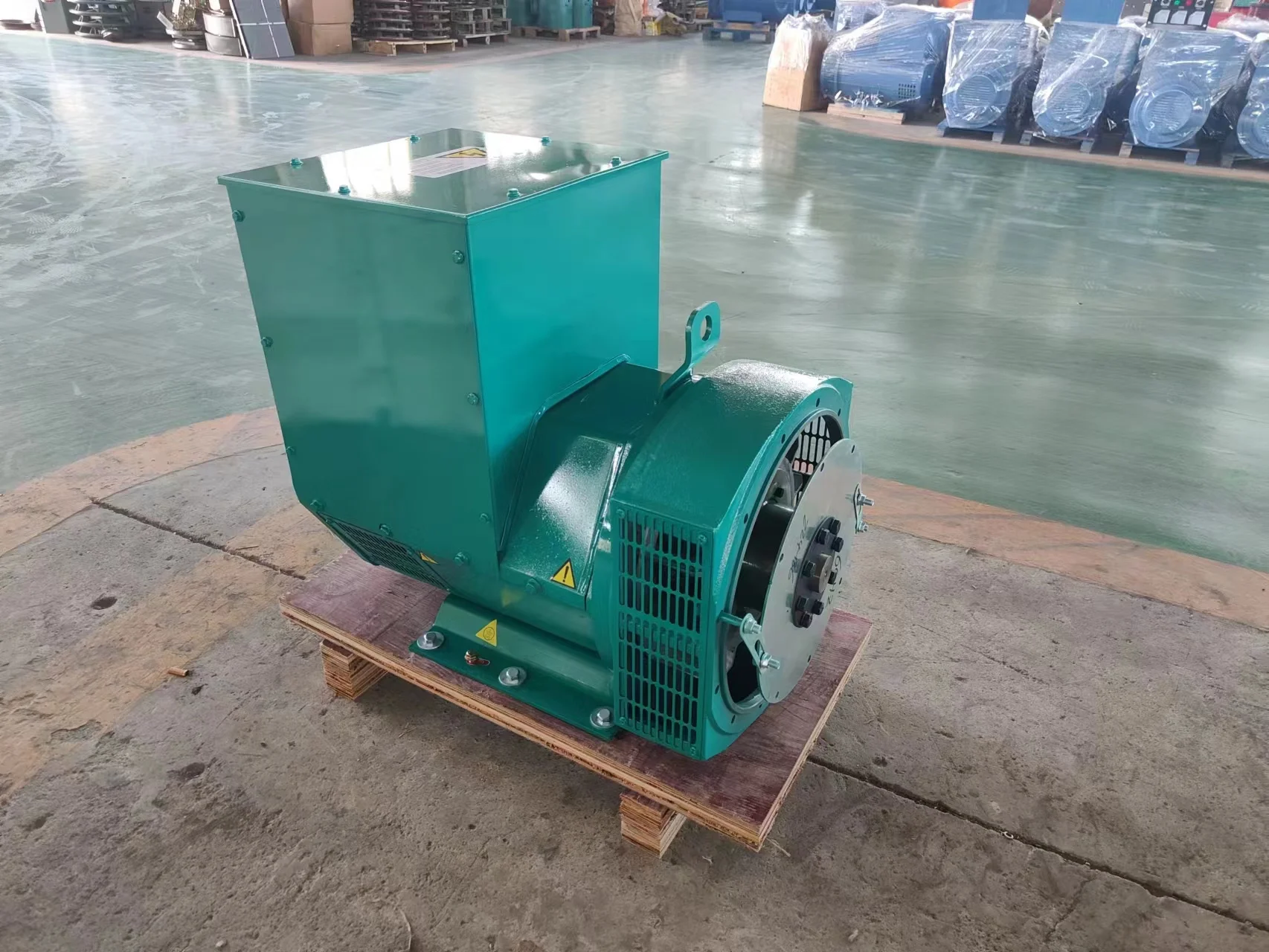

Brushless synchronous Alternator

Brand:  RAYMING

Insulation class: H

Model:RMD274D

Connection mode: three phase four wire, Y type

Rated powder: 100kw/125kva

Adjust way: AVR( automatic voltage regulator)

Output frequency: 60Hz/50Hz

Output factor: COS Φ=0.8

Rated speed:

1800rpm/1500rpm

Battery

2*105A

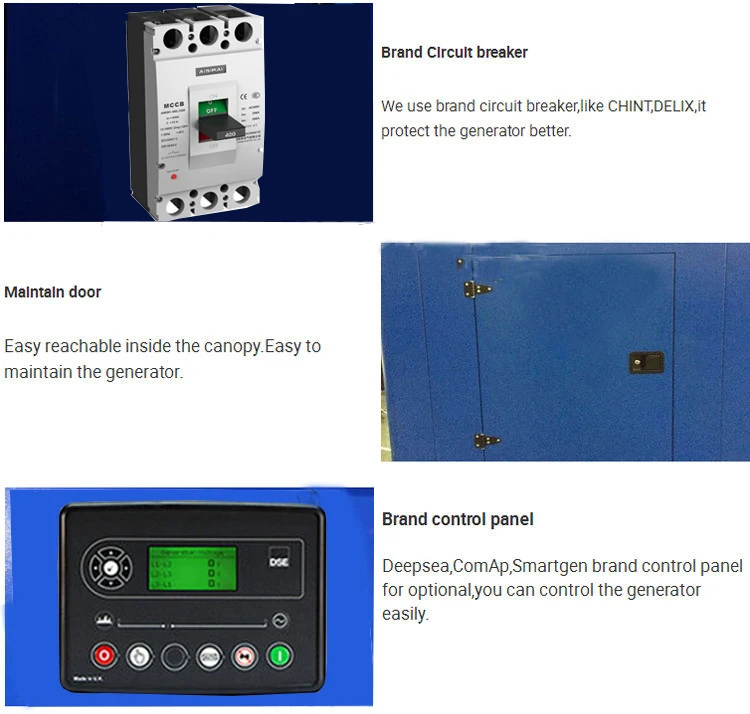

Control panel

Model

Smartgen/Deepsea/ComAp
