SIMCOM SIM33EAU performance GNSS module accompany with GNSS antenna SIM33EAU Support GPS/GLONASS/Galileo/QZSS SBAS ranging
- Category: >>>
- Supplier: Shenzhen Dewangan Technology Co. Ltd.
Share on (1600720965037):
Product Overview
Description
Product Description

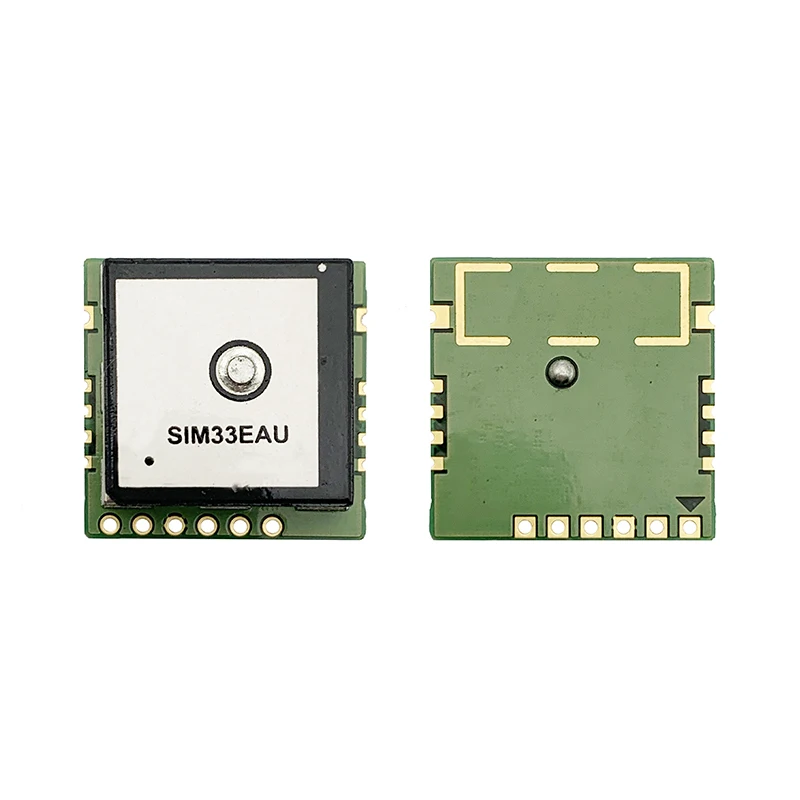

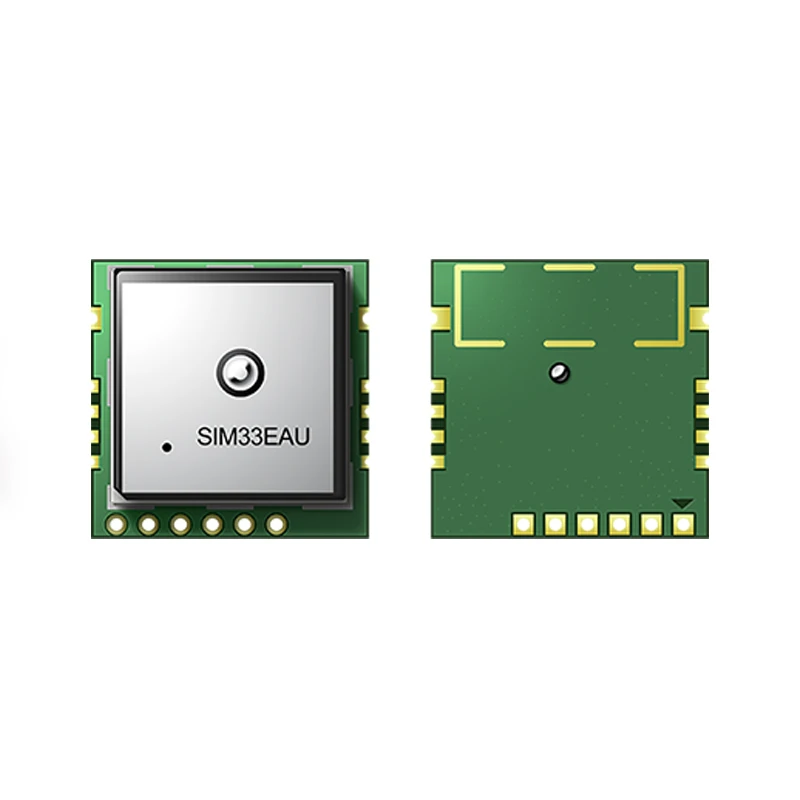

SIM33EAU
GNSS Antenna Module
SIMCom presents a high performance GNSS module accompany with GNSS antenna-SIM33EAU. This is a standalone GNSS module include an embedded patch antenna on it. Designed with MTK’s high sensitivity navigation engine, it allows you to achieves the industry’s highest levels of sensitivity, accuracy, and Time-to- First-Fix (TTFF) with lowest power consumption. And with embedded antenna in SMT type, it is very easy to
embed into customer’s application.
Product details
Mechanical data •Dimensions: 22*22*7.5mm •Weight: 8.5g Features •Support GPS/GLONASS/Galileo/QZSS •Support EASYTM self-generated orbit prediction •Support EPOTM orbit prediction •Support AGPS •Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS) •Support Jamming Removing •Low-noise amplifier has been integrated Performance data •Receiver type 33 tracking/99 acquisition- channel GNSS receiver •Max. update rate 10Hz •Sensitivity1 Tracking:-165 dBm Cold starts: -146 dBm Hot starts: -160 dBm •Time-To-First-Fix2 Cold starts: 31 s (typical) Warm starts: 26s Hot starts: <1s EPO Assist: 13s(CTTFF) • Accuracy Automatic Position3: 2.5m CEP Speed4: 0.1m/s •Operation temperature: -40℃~+85 ℃ | Interfaces •Serial interfaces UART •Digital I/O TIMEMARK (PPS) 3D-FIX •Protocols NMEA PMTK Support product •SIM68 EVB KIT with USB V2.0 full speed interface Electrical data •Power supply 2.8~4.3V •Backup power: 2.3V~4.3V •Power consumption2: 3.3V(typical) Acquisition: 38mA Tracking: 32mA Standby 520uA Backup 14uA |
Packaging & Shipping
company information
DEWANGAN LIMITED is a worldwide leading distributor that provides one-stop supply chain solutions to meet all kind of demanding in electronic components and 2G 3G 4G GPS/GSM Moudles.
Our abundant inventory availability is supplemented through a global network of domestic and overseas suppliers, which ensuring our customers the best possible pricing on materials as well as confident access to obsolete, shortage, urgent and hard-to-find components.
We believe we can slove your all problems on electronic components! Please do not hesitate in Contacting us.You can be assured of our best attention!!!
