12VDC 400A Magnetic Latching Contactor/ Kontaktor Dc Winch Relay ASW400 2Z Reversing Contactor*

Product Overview

Description

JW series 100A, 200A, 250A, 400A Magnetic Latching DC Contactor are suitable for air conditioner, the battery or the rectification power and suppliers power,using for handling drawing,the pump motor and other electronic vehicle.

Type	Magnetic Latching DC Contactor
Model	JW100C	JW200C	JW250C	JW400C
Main Rated Load Current Of Contact Circuit	100A	200A	250A	400A
Rated Voltage Of Contact	6-80V DC
Rated Voltage Of Coil	12V, 24V, 48V, 72V, 110V, 220VDC
Coil Power	14-17W
Dielectric(Volt) Strength	50HZ 1000V AC 1Min
Rated Load Current Of Contact Circuit	Not Above 80mv
Operating Time	Pickup(Contact makes): less than 30 ms Release(Contact breaks):  less than 30 ms
Action Characteristic	Pickup(Contact makes): less than 66%us Release(Contact breaks): less than 30%us, more than 5%us
Mechanical Life	100 Thouand times
Electric Life	20 Thousand Times

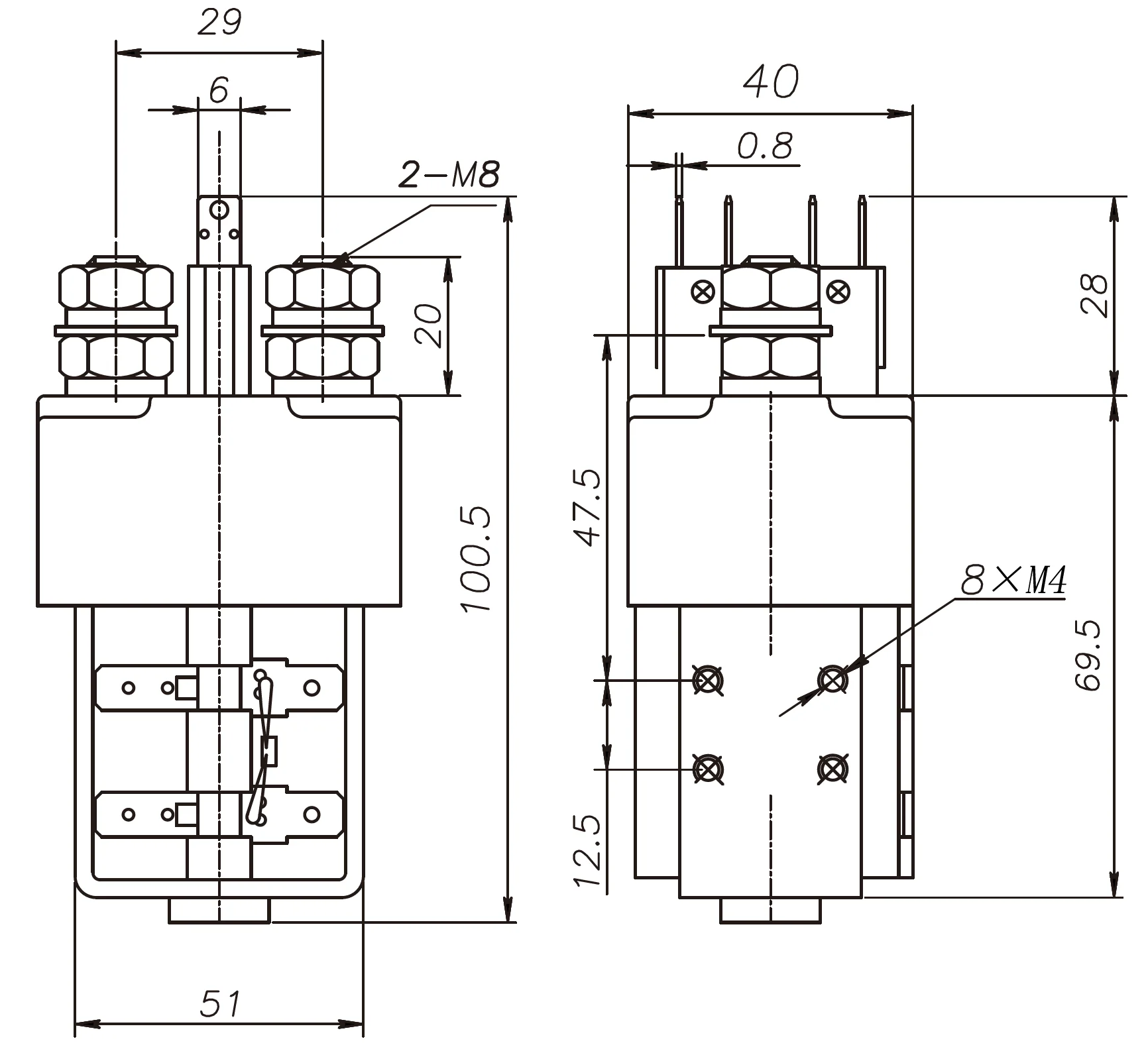

JW100C 100A Magnetic Latching DC Contactor Dimension:

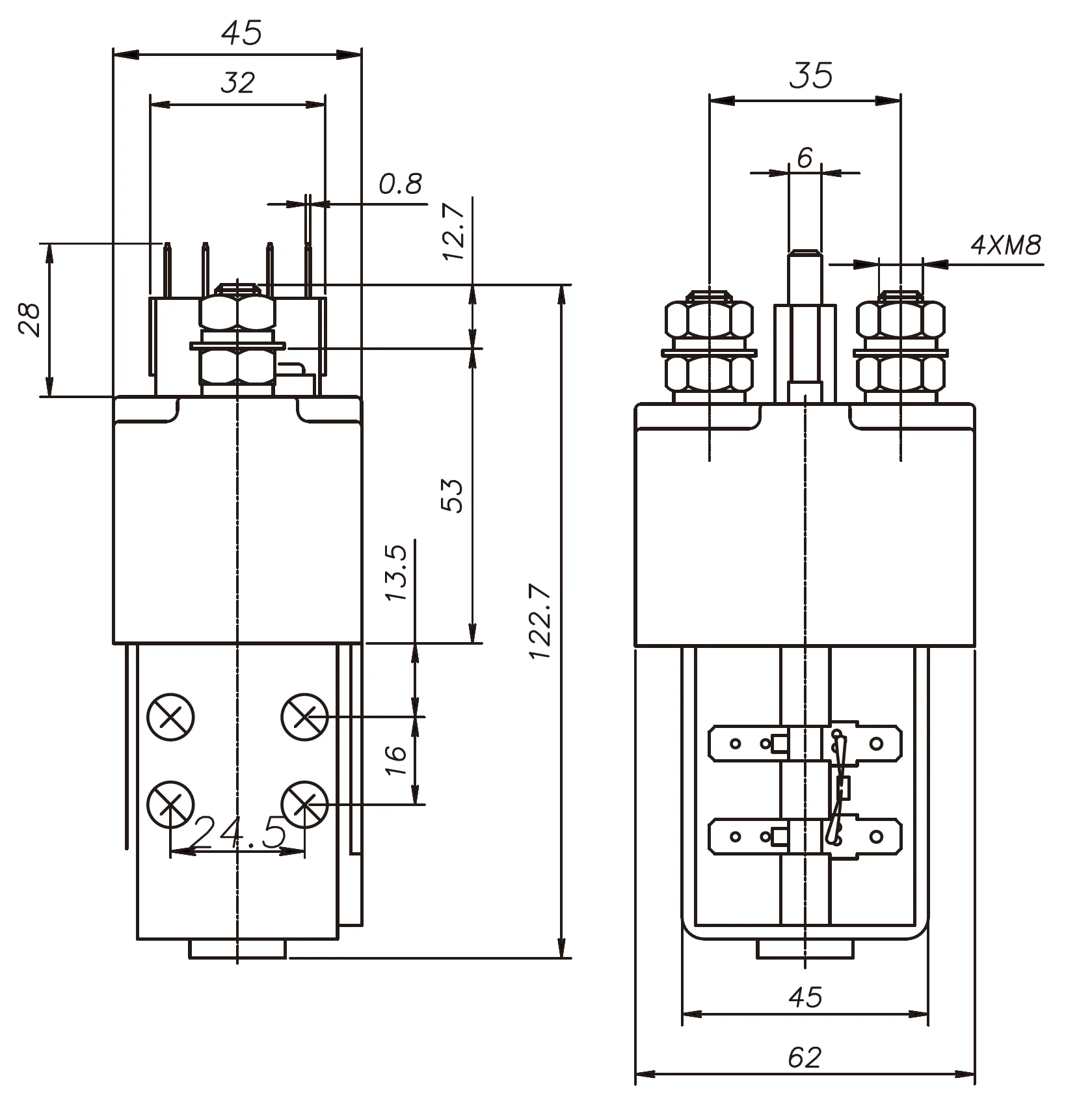

JW200C 200A Magnetic Latching DC Contactor Dimension:

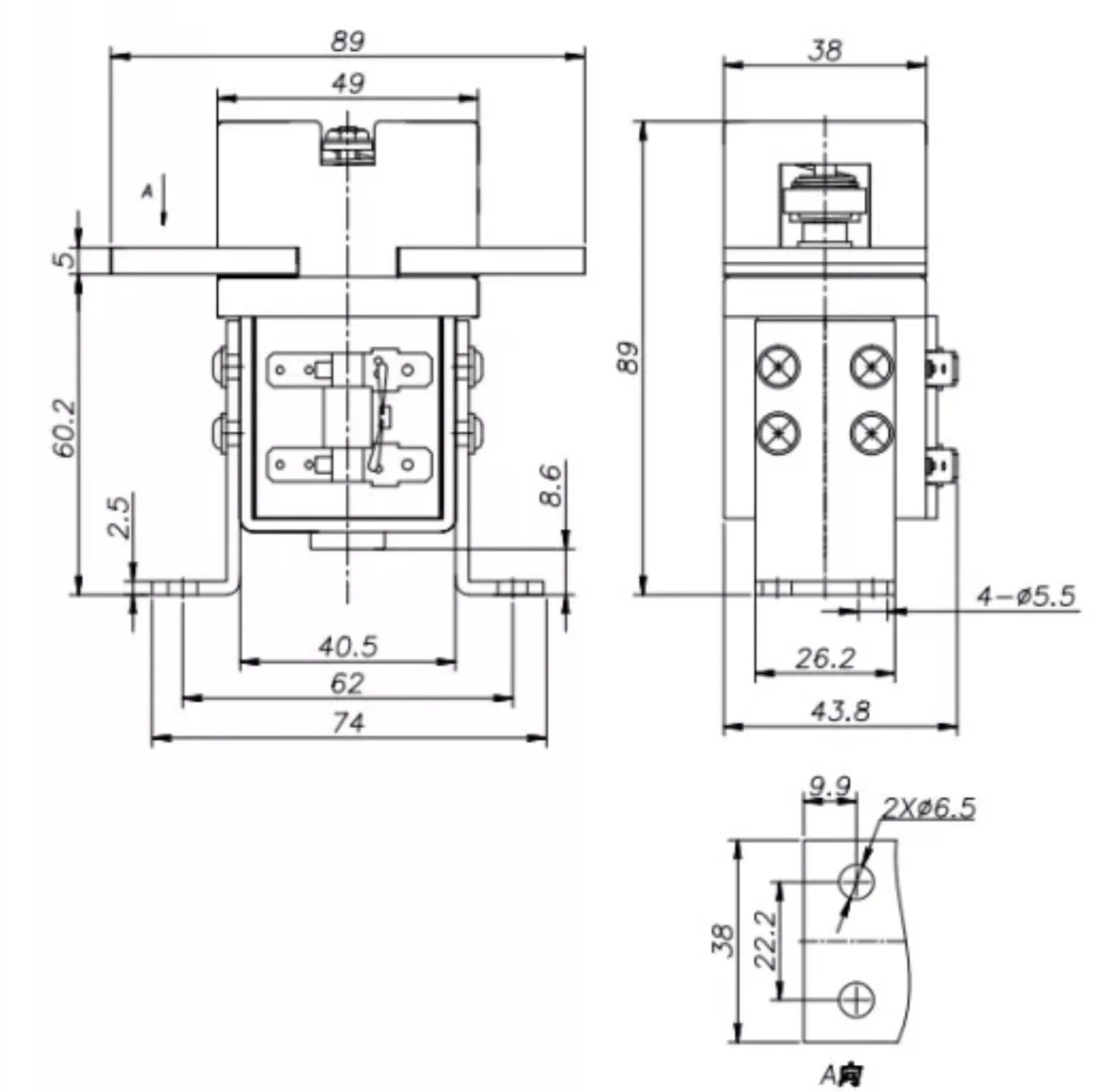

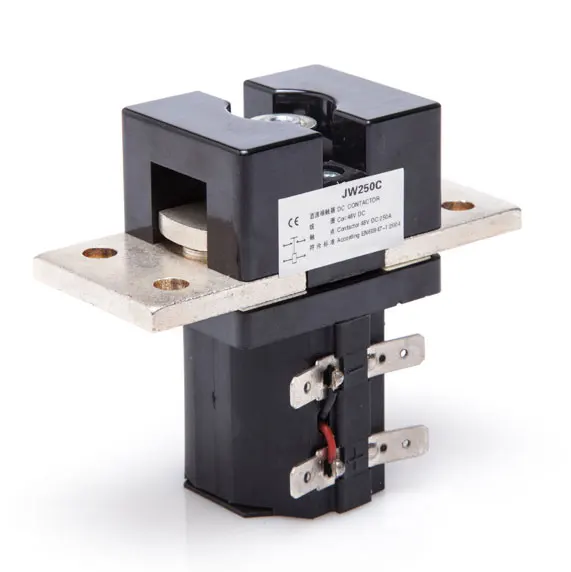

JW250C 250A Magnetic Latching DC Contactor Dimension:

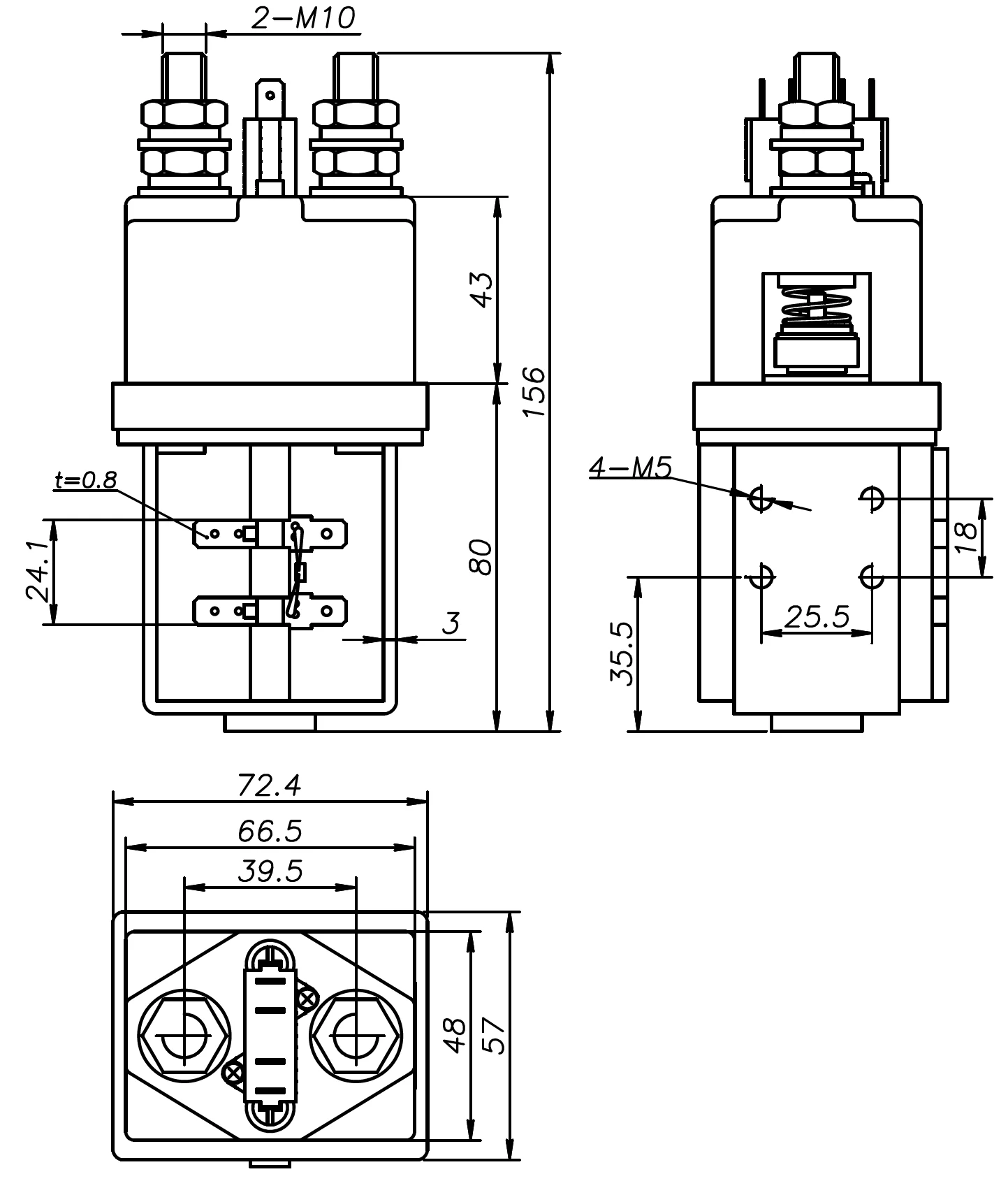

JW400C 400A Magnetic Latching DC Contactor Dimension:
