Glass Bipv Modules Frameless Solar Panel Cladding 540W 545W 550W Solar Transparente Panels
- Category: >>>
- Supplier: Sunpal,Solar,Co.,Ltd.
Share on:

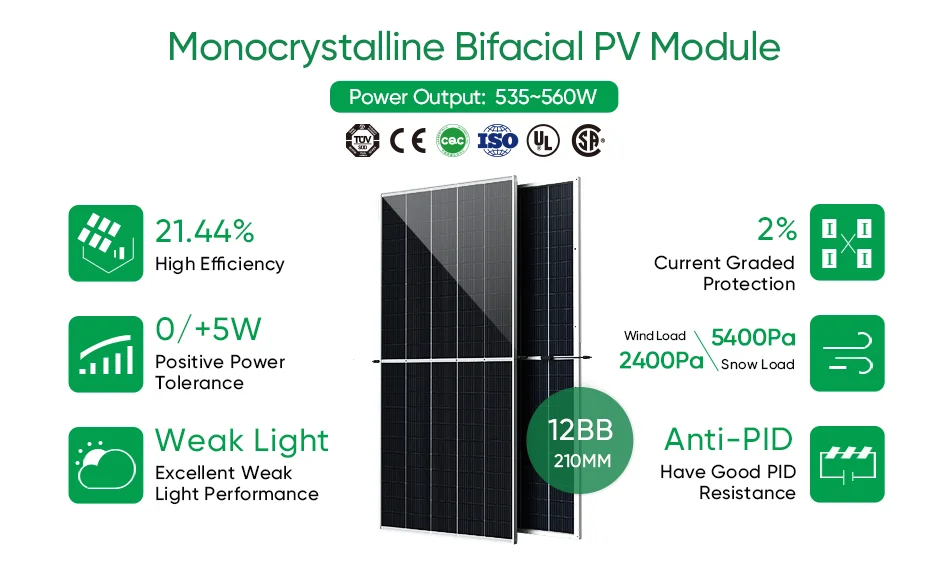

Product Overview
Description
Product Description
Electrical Characteristics:
Cell Orientation | 110（5*22） |
Glass | Double/Single Glass |
Frame | Anodized aluminum alloy |
Weight | 32.3kg + 3% |
Power Output Tolerance | 0~+5W |
Max. System Voltage | DC1500V(IEC/UL) |
Model Number | SP535M-55HG/HT | SP540M-55HG/HT | SP545M-55HG/HT | ||||||||
Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT | |||||
Maximum Power (Pmax/W) | 535 | 405 | 540 | 409 | 545 | 413 | |||||
Open Circuit Voltage (Voc/V) | 37.3 | 35.1 | 37.5 | 35.3 | 37.7 | 35.5 | |||||
Short Circuit Current (Isc/A) | 18.36 | 14.8 | 18.41 | 14.84 | 18.46 | 14.88 | |||||
Voltage at Max Power (Vmp/V) | 31 | 28.8 | 31.2 | 29 | 31.4 | 29.2 | |||||
Current at Max Power (Imp/A) | 17.26 | 14.07 | 17.31 | 14.11 | 17.36 | 14.15 | |||||
Module Efficiency(%) | 20.48 | 20.67 | 21.86 | ||||||||
Temp Coefficient of Isc | +0.04%/°C | ||||||||||
Temp Coefficient of Voc | -0.25%/°C | ||||||||||
Temp Coefficient of Pmax | -0.34%/°C | ||||||||||
Model Number | SP550M-55HG/HT | SP555M-55HG/HT | SP560M-55HG/HT | ||||||||
Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT | |||||
Maximum Power (Pmax/W) | 550 | 417 | 555 | 421 | 560 | 425 | |||||
Open Circuit Voltage (Voc/V) | 37.9 | 35.7 | 38.1 | 35.9 | 38.3 | 36.1 | |||||
Short Circuit Current (Isc/A) | 18.51 | 14.92 | 18.56 | 14.96 | 1518.61 | 36.136.1 | |||||
Voltage at Max Power (Vmp/V) | 31.6 | 29.4 | 31.8 | 29.6 | 32 | 29.8 | |||||
Current at Max Power (Imp/A) | 17.41 | 14.79 | 17.46 | 14.23 | 17.5 | 14.27 | |||||
Module Efficiency(%) | 21.05 | 21.25 | 21.44 | ||||||||
Temp Coefficient of Isc | +0.04%/°C | ||||||||||
Temp Coefficient of Voc | -0.25%/°C | ||||||||||
Temp Coefficient of Pmax | -0.34%/°C | ||||||||||
Market Certificate:

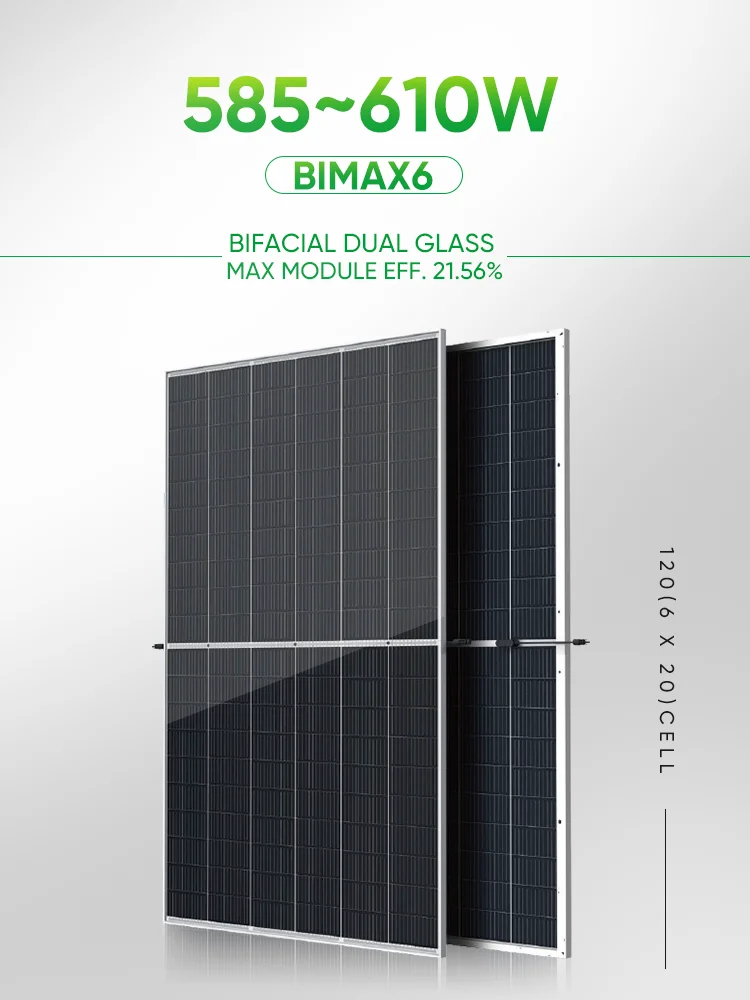

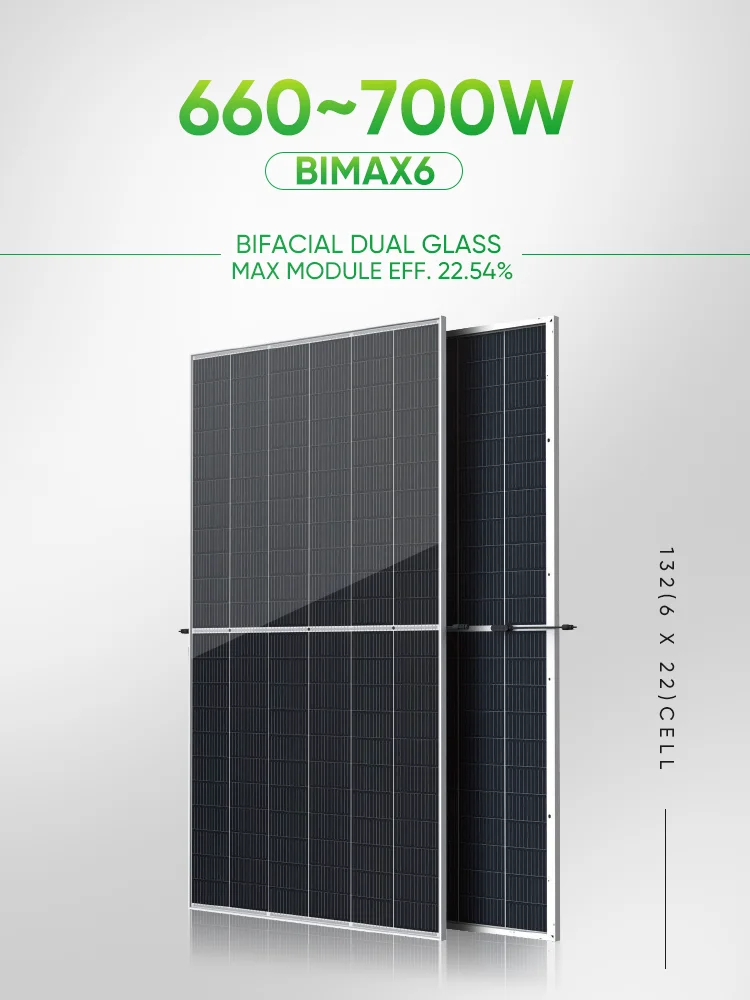

Related Products:

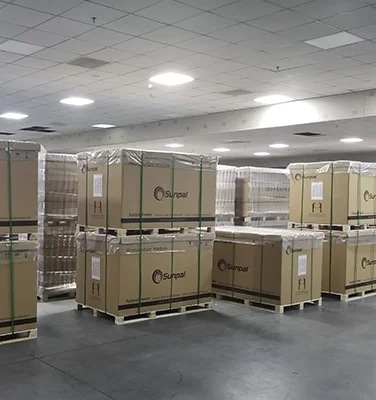

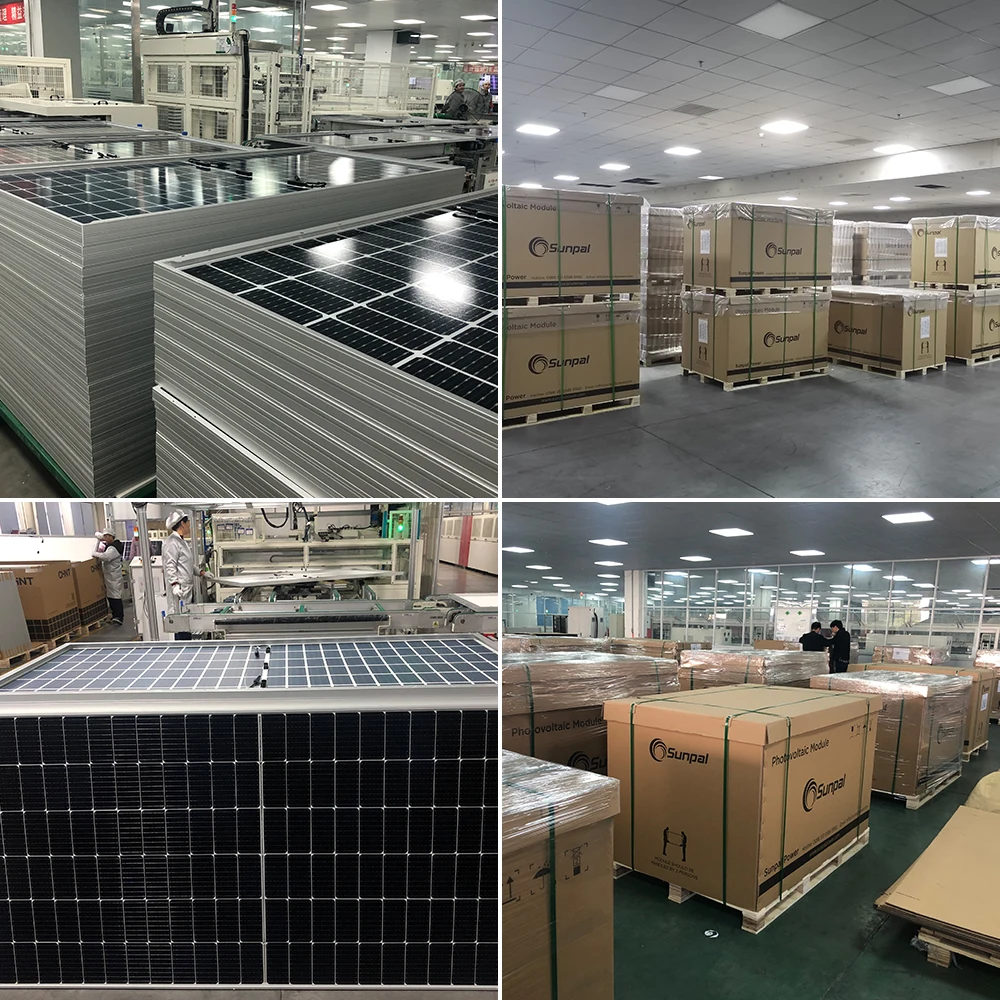

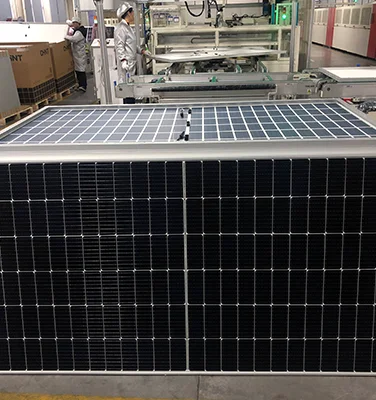

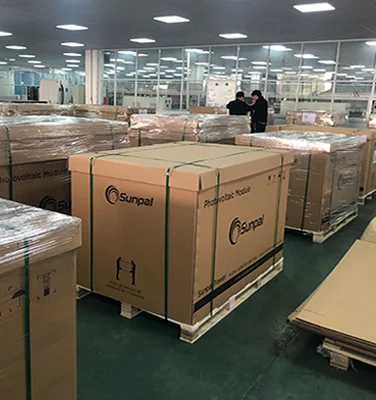

Product packaging

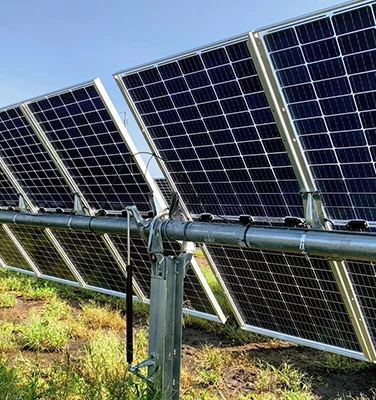

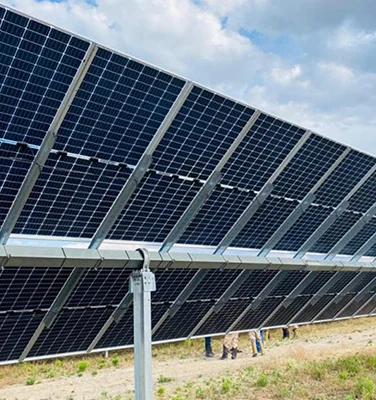

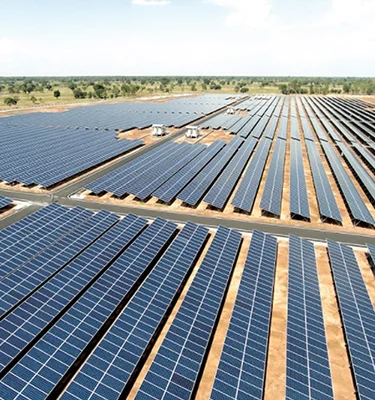

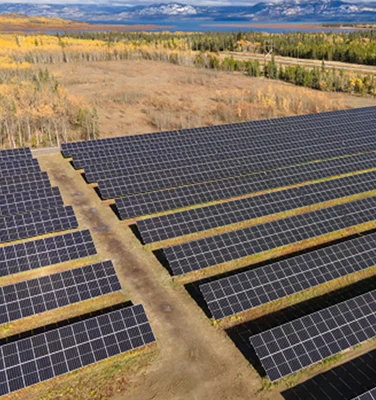

Sunpal Project Case
Company Profile

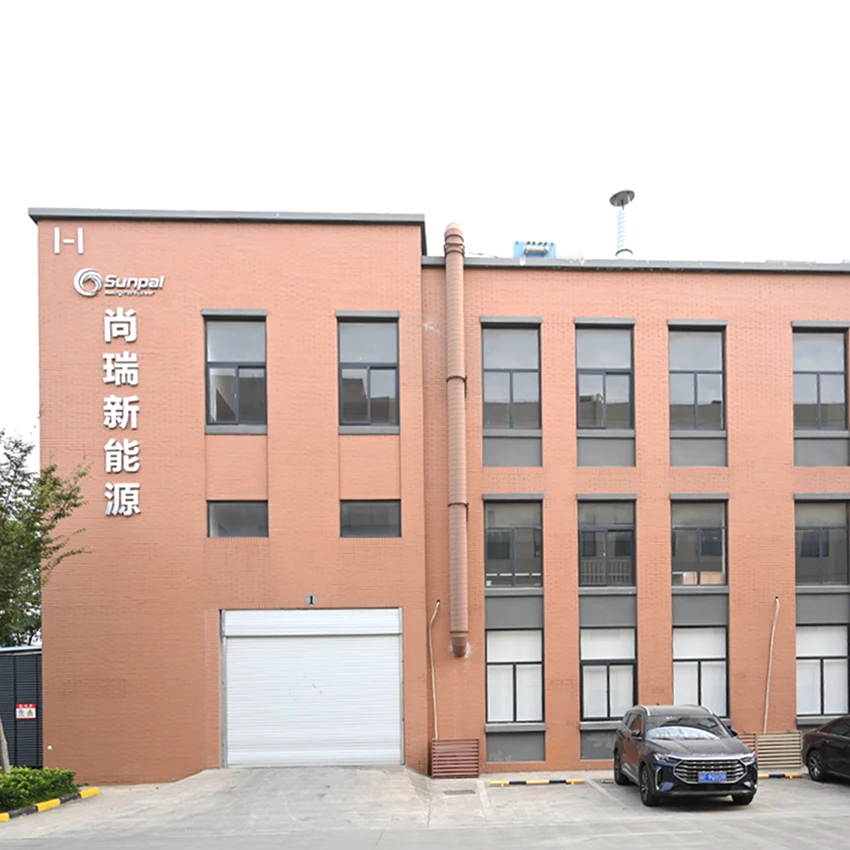

Company Overview
As a world-class solar products manufacturer, Sunpal specializes in the research, development, production, and sales of solar PV products and solar panels.
Sunpal is accredited as Batch I Smart Manufacturing Plant by Jiangsu Government, the Witness Laboratory Accreditation Certificate (WMTC) by CSA、DEKRA, and CTF Laboratory Certificate by TUV SUD. Sunpal focused on research and manufacture of all-black solar panels since the year 1998, we have exported our various kinds of full-black solar panels to 86 countries and won a good reputation in quality. With over 10 years of development, Sunpal now has factory area covering 150,000 square meters, with 600 experienced employees.
Sunpal Marketing Department

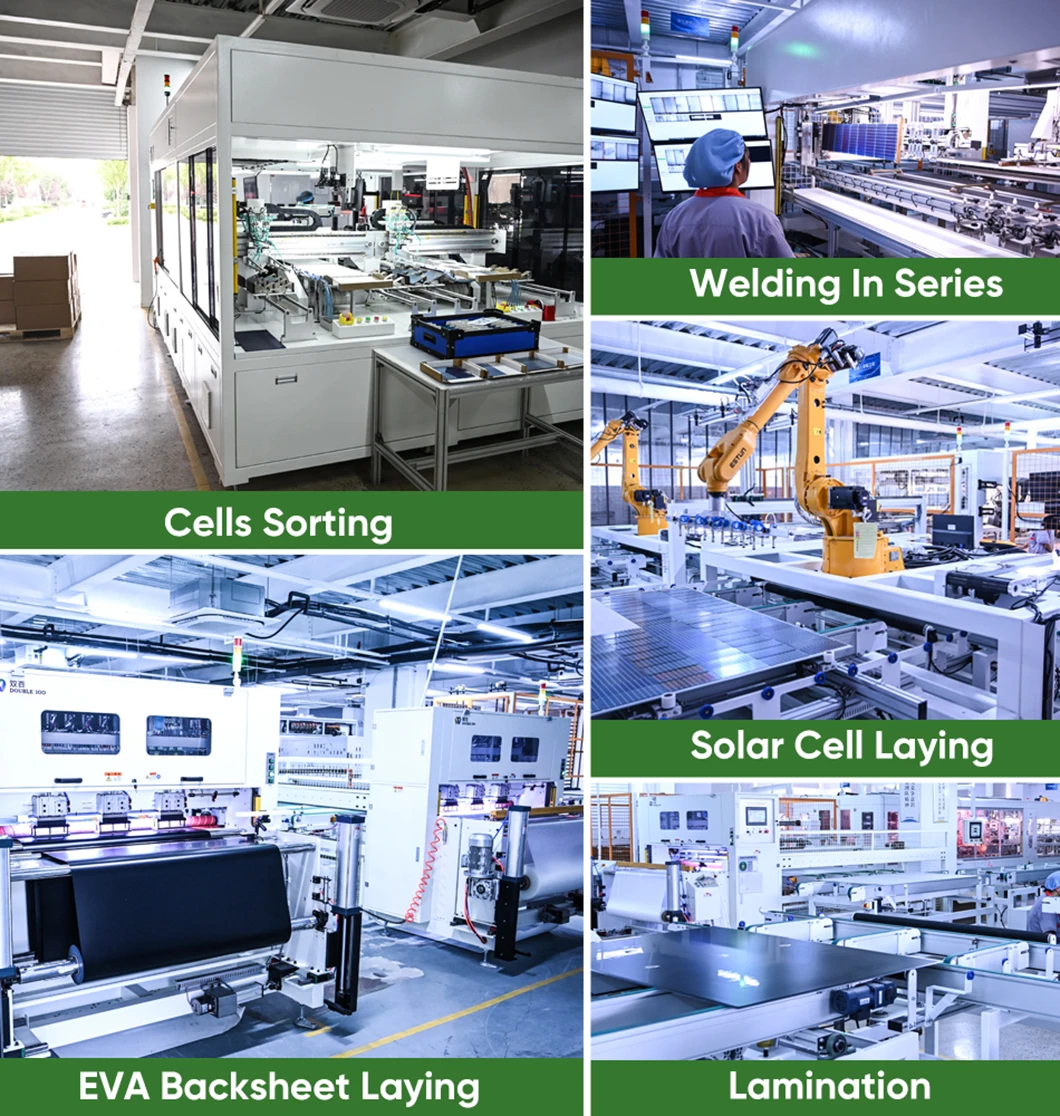

Sunpal Quality Control
Customer Photos
