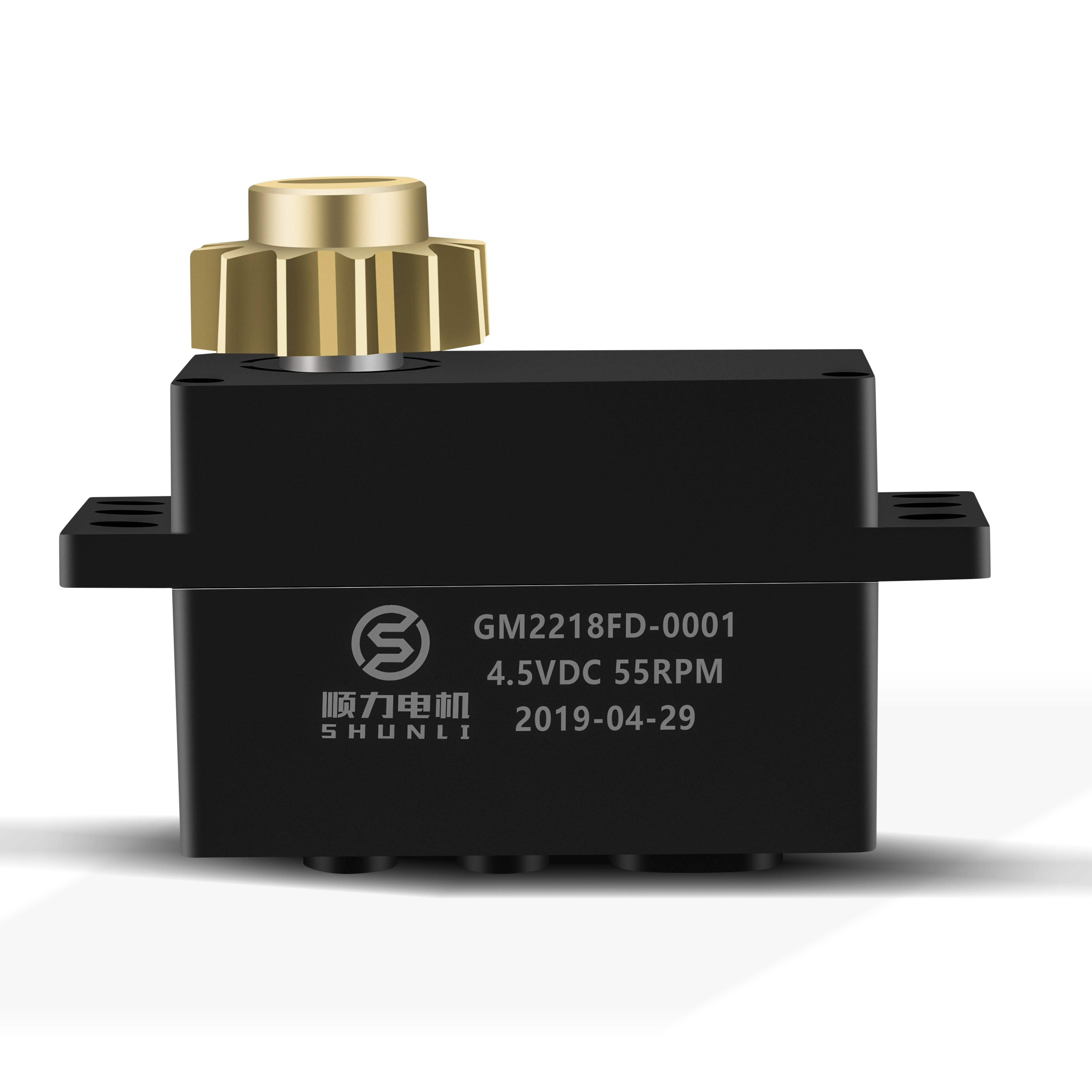

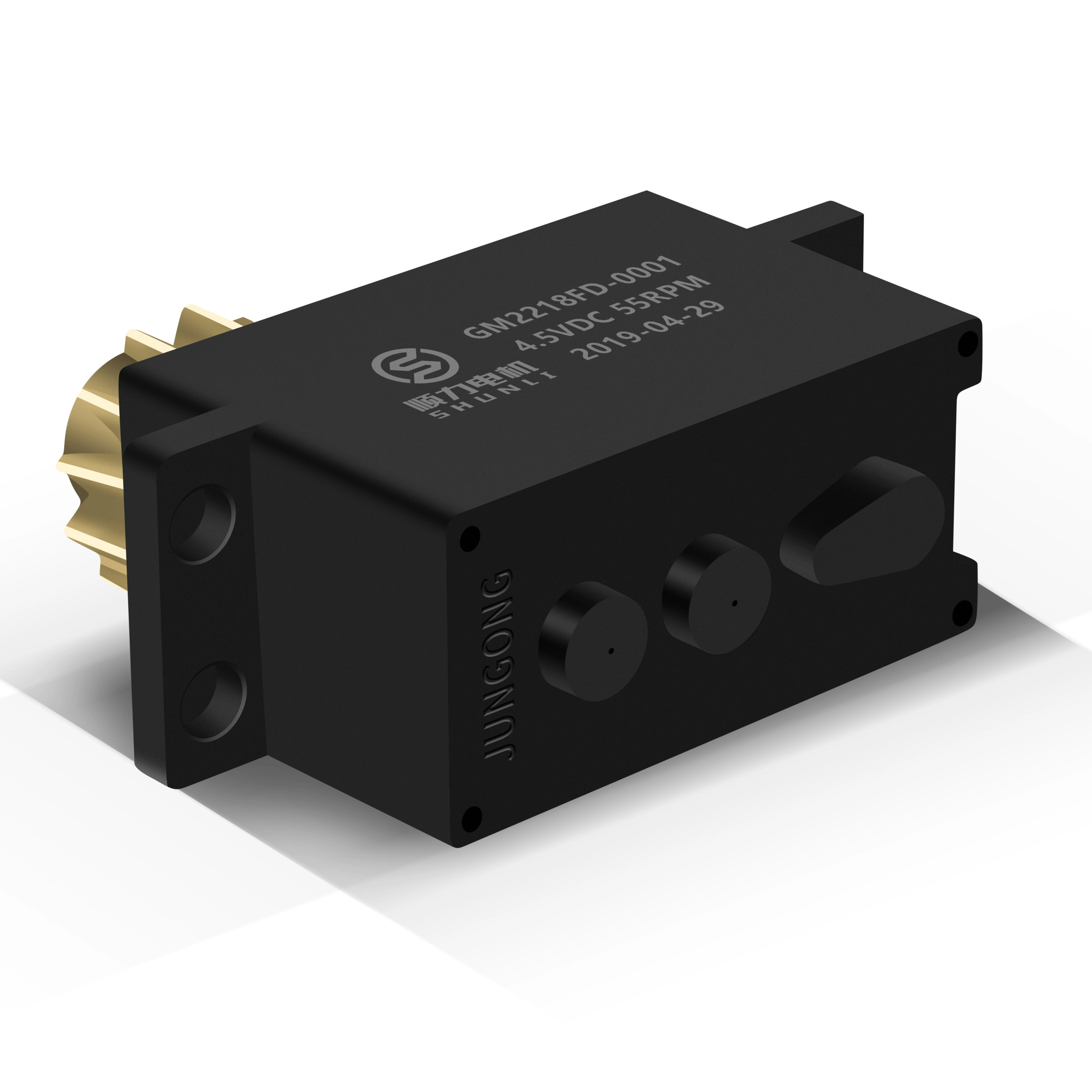

Shunli Custom pm 9v 20v Mini Electric Metal Dc Motor For Smart Lock
- Category: >>>
- Supplier: Shenzhen,Shunli,Motor,Co.,Ltd.
Share on:
Product Overview
Description

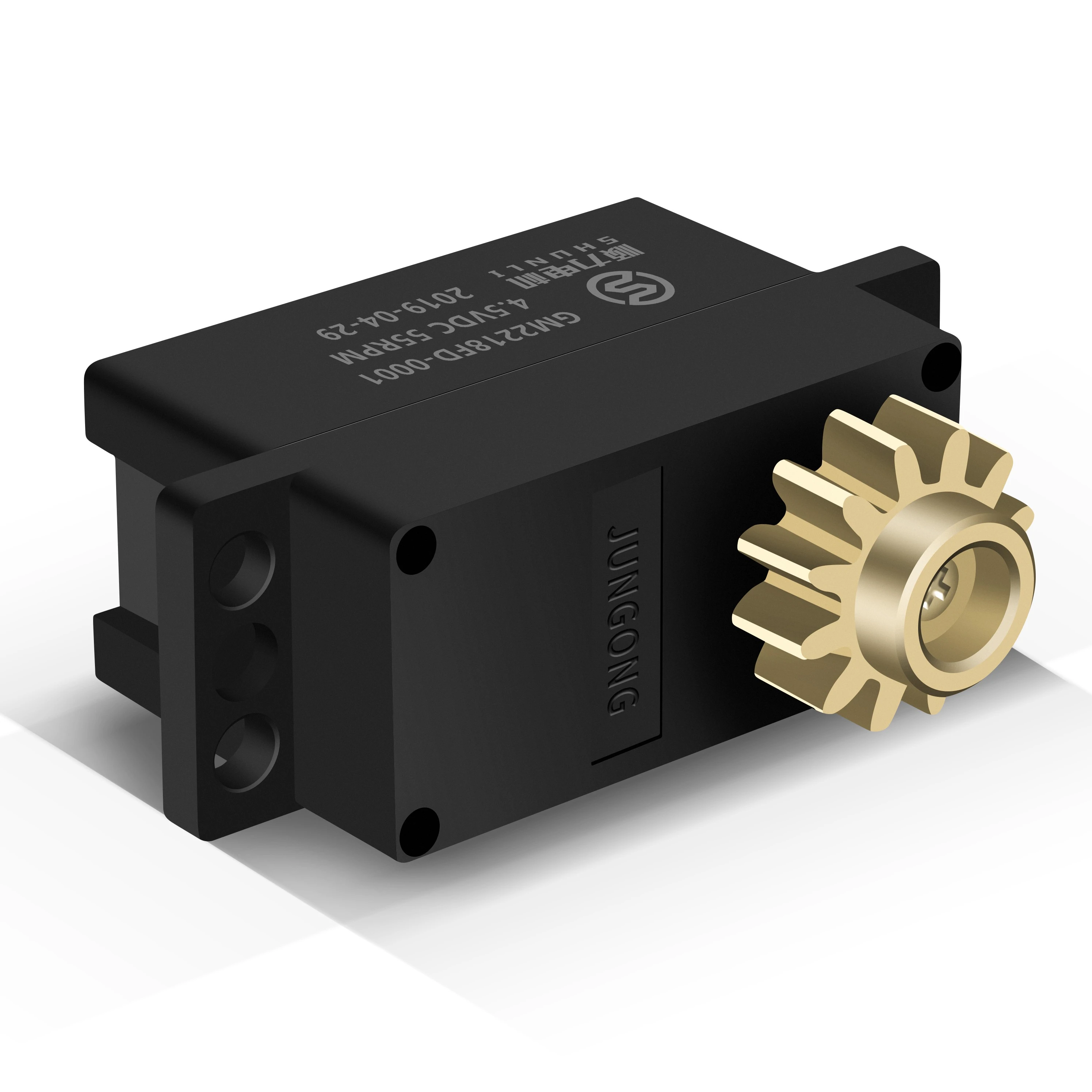

Shunli mini dc gear motor 3v 6v 12v dc gear motor for door lock
Promotion
Product Description
Product Details

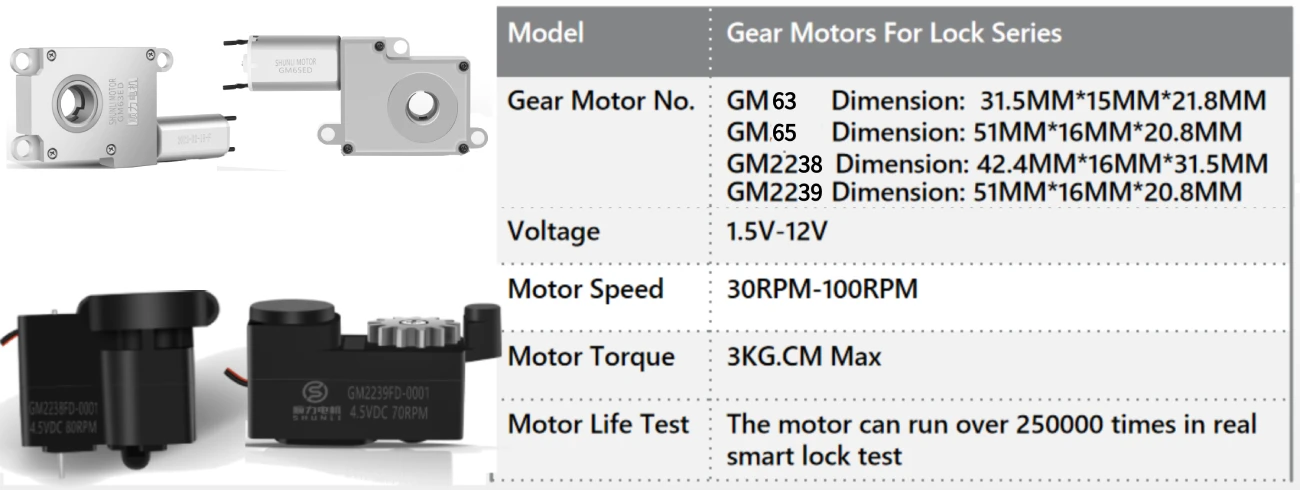

Specification
Gearbox Technical Date
| Ratio | 199K / 241K / 265K | ||||||||
| Max. Rated Torque | 1.5~2.5 Kgf.cm | ||||||||
| Max. Gear Breaked Torque | 4~5 Kgf.cm | ||||||||
| Gearbox Efficiency | 45%~60% | ||||||||
Gearmotor Technical Date
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | N.m / Kgf.cm | |||
| GM2215FMN20-199K | 1 : 199 | 4.5 VDC | 52 | ≤ 50 | 40 | ≤ 120 | 18 / 180 | ≤ 350 | 0.18 / 1.8 |
| GM2222FMN20-230K | 1 : 230 | 58 | ≤ 78 | 49 | ≤ 135 | 24 / 240 | ≤ 450 | 0.2 / 2.0 | |
| GM2219FMN20-265K | 1 : 241 | 58 | ≤ 65 | 50 | ≤ 130 | 24 / 240 | ≤ 680 | 0.2 / 2.0 | |
| 62 | ≤ 75 | 51 | ≤ 140 | 35 / 350 | ≤ 750 | 0.22 / 2.2 | |||

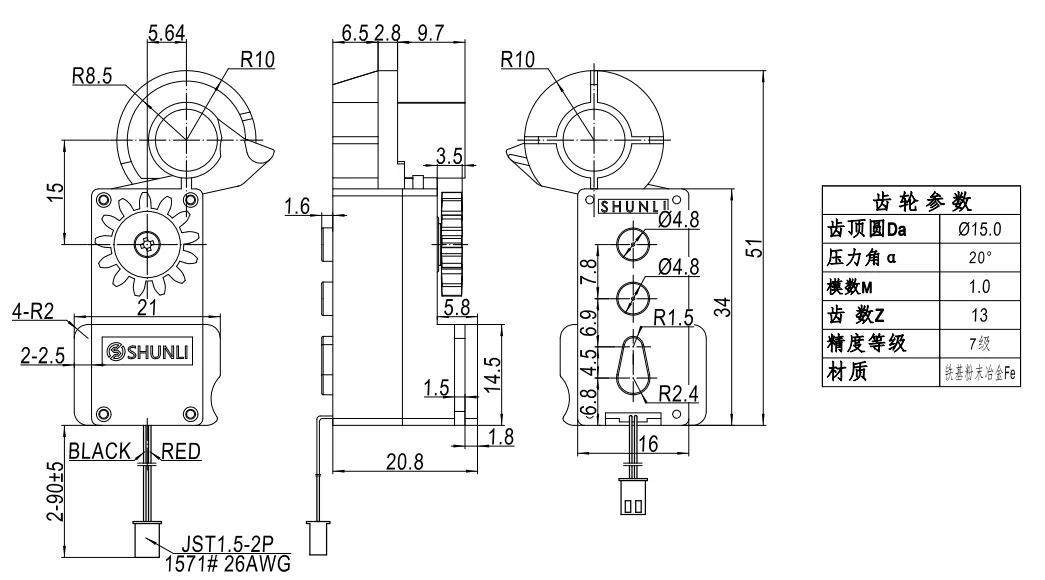

Outline Drawing
GM2215
GM2219
GM2222
