Wood Furniture Cutting Machine Optimizing Cross Cut Saw
The drive of the main machine adopts the lower active roller- press type for feeding, and the feeding is smooth. Even the curved or twisted wood can also realize high-speed feeding and accurate positioning. Pneumatic control and actuators use the world's top brands, with good reliability and high-speed motion stability. The main shaft and feed roller are driven by synchronous toothed
belt, with less power loss and high transmission accuracy.
belt, with less power loss and high transmission accuracy.
High security:risk away from the blade completely avoid injuries.
Low maintenance cost: equipment USES the international first-class quality appliances,pneumatic
components, low fault rate and almost no maintenance.
components, low fault rate and almost no maintenance.
Stable and efficient: lift saw adopt servo motor control, good stability, high efficiency can achieve the efficiency of manual cut saw four times.
High precision: using high precision sensors and pneumatic components to ensure the world's best sawing not bad, can save material.
Optimizing selection: The use of advanced control system, through the high-speed calculation of the wood working requirements to optimize sawing, not only to enhance the level of wood has increased the material yield.

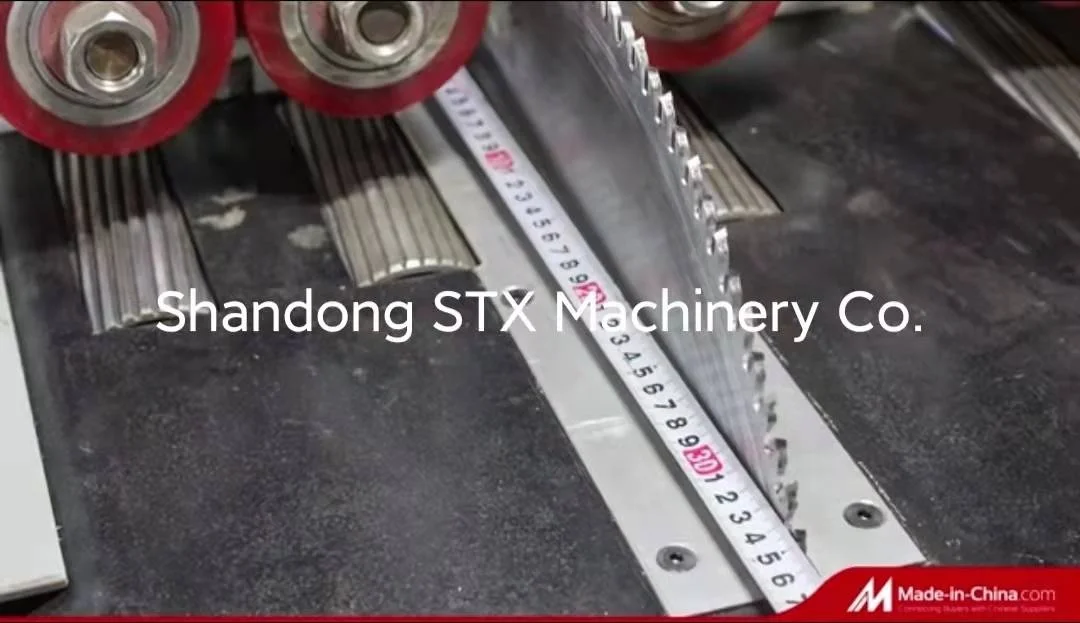

Measurement station
Measure the incoming timber's length
Can also measure the wood timber's width and thickness according to different customer's requirement
Conveyor Belt
Long service life
Wearpoof material

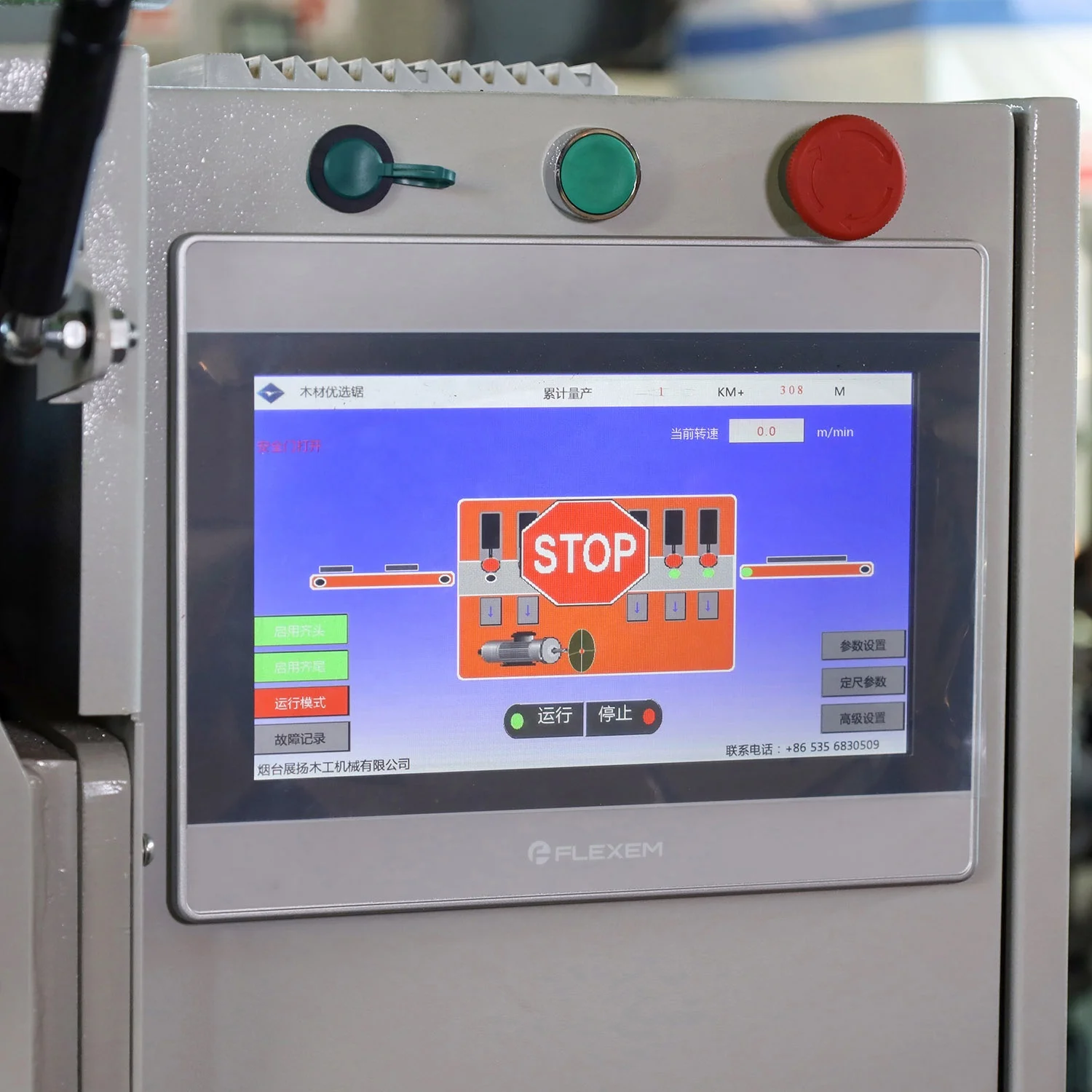

10" Touch Screen
Double language
Can load cutting list directly through a USD key, can also input cutting list on this screen
Easy operation
Model | MJD244 | MJD245 |
Spindle moter power | 5.5kW | 5.5kW |
Saw blade diameter | Φ405mm | Φ505mm |
Rotate speed | 4000 r/min | 4000 r/min |
Max cutting section | 75*125mm / 50*180mm | 75*125mm / 50*300mm |
Max cutting thickness | 75mm | 75mm |
Workpiece length | ≥250mm | ≥250mm |
Serve feeding motor | 4.5kW * 2 Sets | 4.5kW * 2 Sets |
Max feeding speed | 100 m/min | 100 m/min |
Max processing speed | 25-30 m/min | 25-30 m/min |

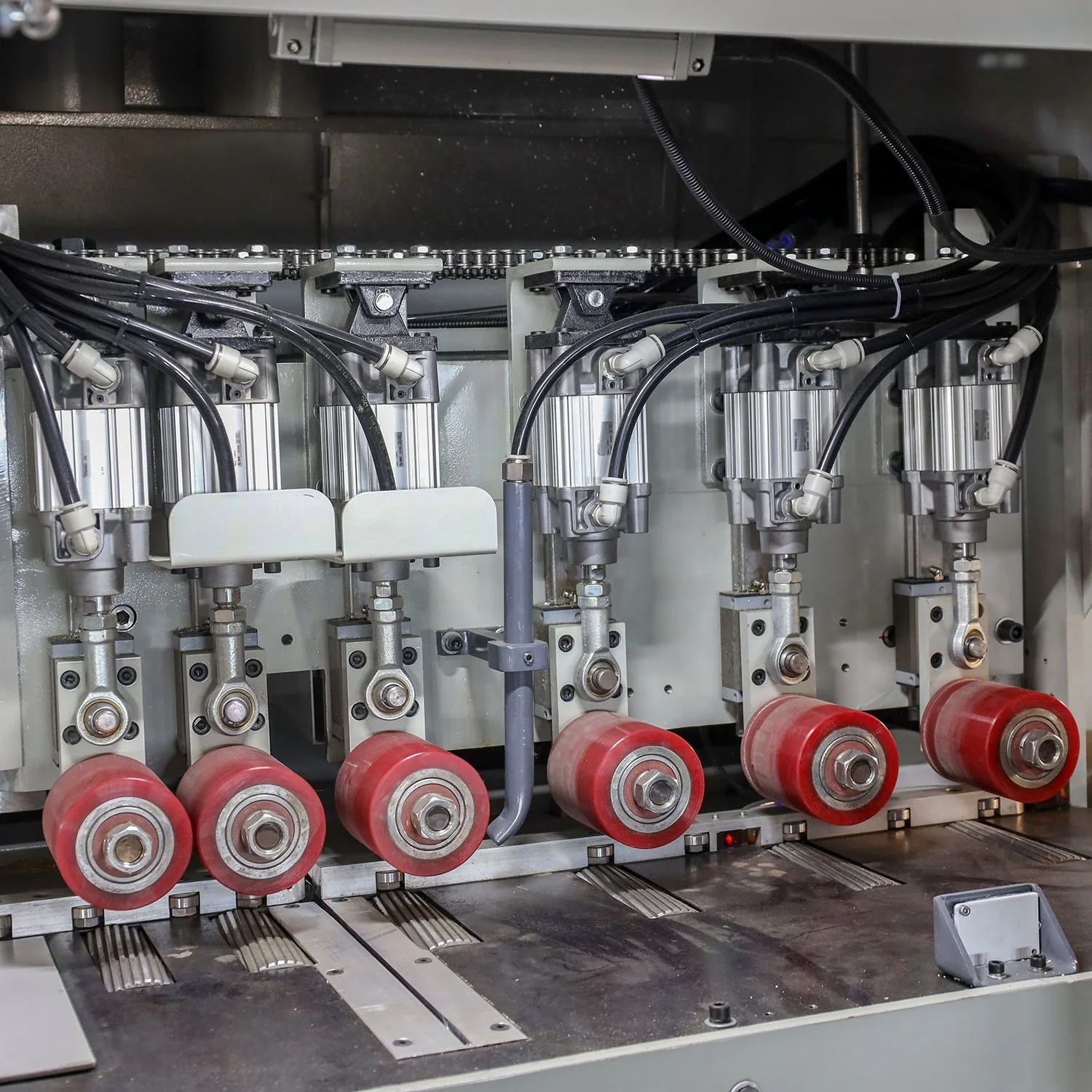

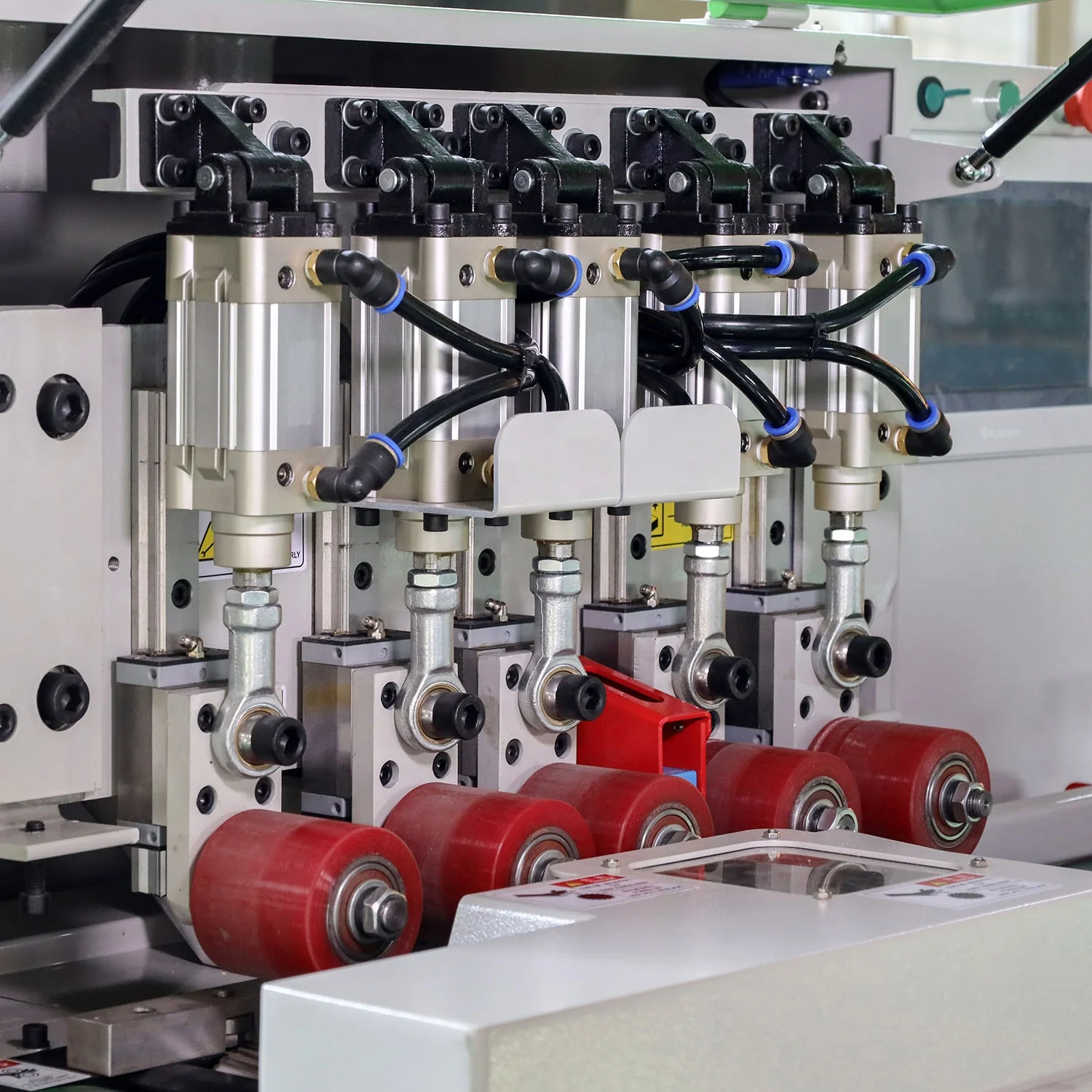

Upper press wheel | 6 pieces | 6 pieces |
Lower press wheel | 6 pieces | 6 pieces |
Width of feeding conveyor | 200mm | 280mm |
Overall size | 6000*1400*1550mm | 6000*1400*1550mm |
Weight | 1600kg | 1800kg |
Scanner
Scanning unit is the eyes of machine to tell the main system how length the matrial or where is the defect need to be cut
Heavy duty machine body
GB standard thick plate welded

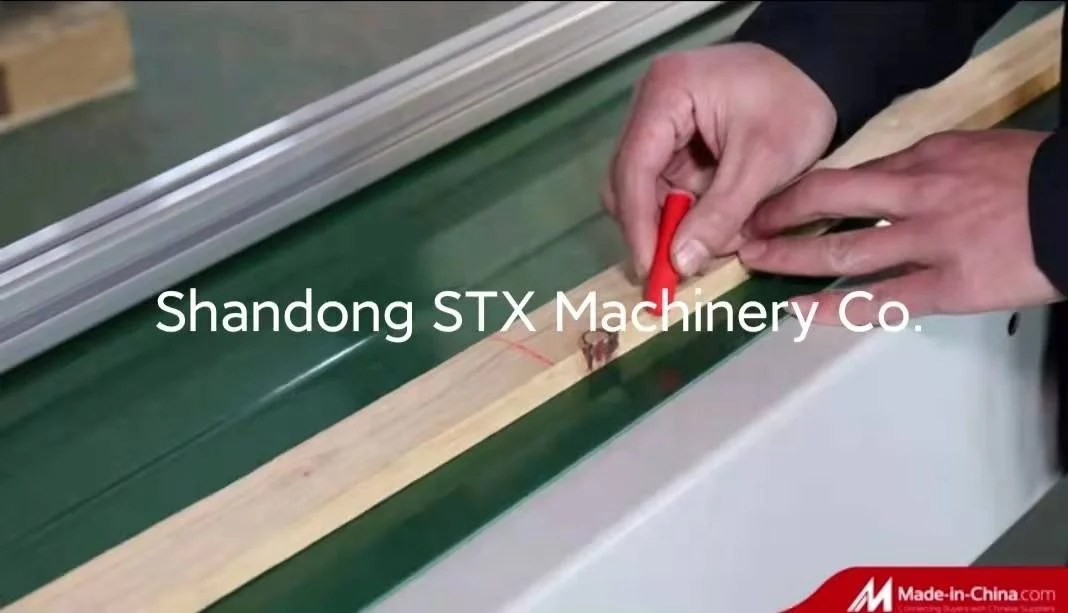

Knots removal
Using a Marker pen
Product Description
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
