Electronic equipment m12 3 pin waterproof male female metal led connector
- Category: Connectors >>>
- Supplier: Shenzhen,Aohua,Electric,Corporation,Limited
Share on:
Product Overview
Description
Product Description

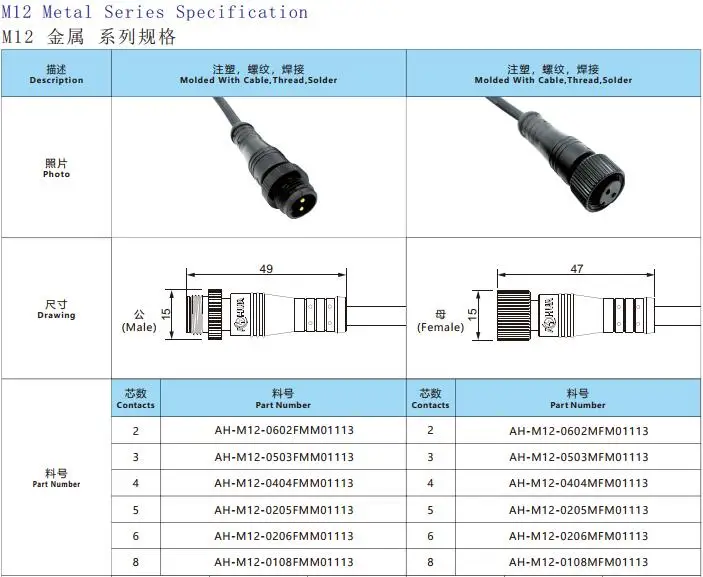

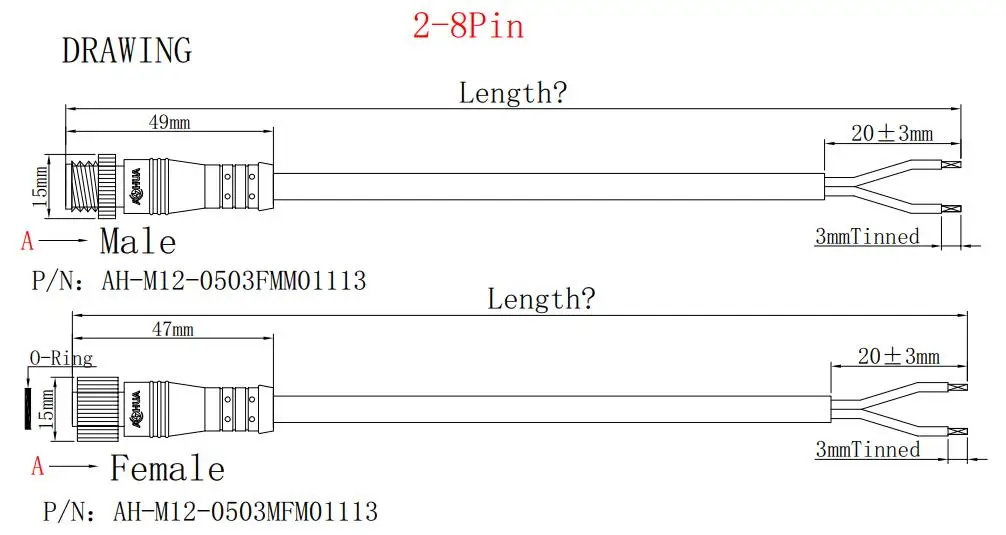

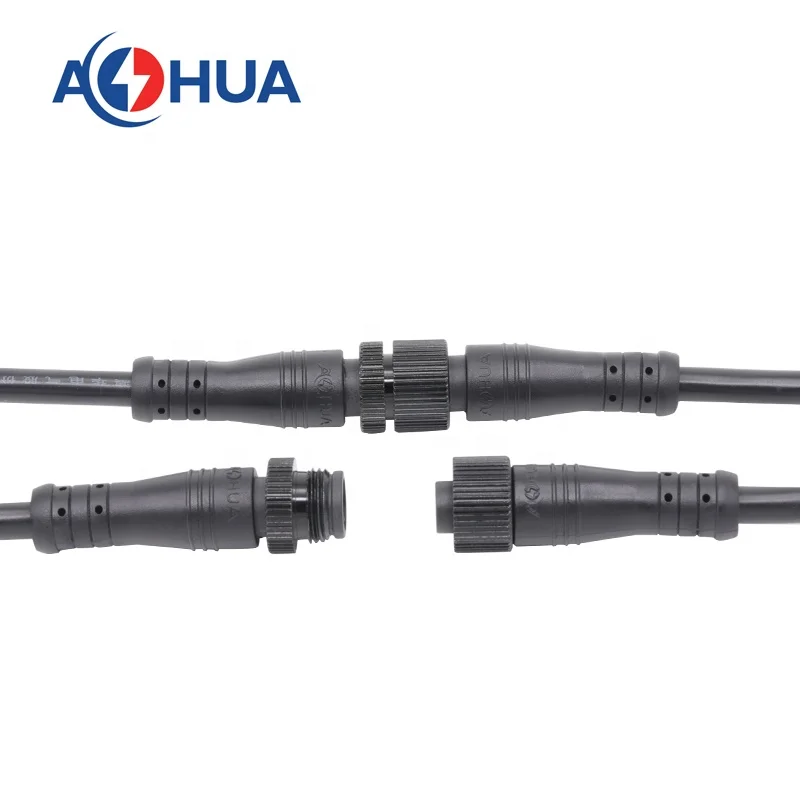

AOHUA Metal Waterproof Cable Connector
Pins | Wire Gauge | Cable OD | Voltage | Current | IP Level | Operating Rating |
2 | ≤1.0mm² | 110V | 6A | IP65 | ||
3 | ≤0.75mm² | 110V | 5A | |||
4 | ≤0.5mm² | 110V | 4A | |||
5 | ≤0.3mm² | 60V | 2A | |||
6 | ≤0.3mm² | 60V | 2A | |||
8 | ≤0.2mm² | 60V | 1A |
1. M12 metal nut type docking assembly, more exquisite and more durable.
2. Integrating current and signal transmission in one of the multi-functional comprehensive waterproof plug.
3. Metal nut locking makes a better tensile performance and better waterproof performance.
2. Integrating current and signal transmission in one of the multi-functional comprehensive waterproof plug.
3. Metal nut locking makes a better tensile performance and better waterproof performance.
4. The male and female pins of gold-plated ensure the conducting performance's stability, safe and reliable.
5. Mainly used for upscale lighting accessories lines and other upscale products.
6. Usually, the wire size is 2*1.0mm², 2*0.75mm², 2*0.5mm², 3*0.75mm², 3*0.5mm², 4*0.5mm², 5*22AWG, 6*22AWG, 8*24AWG, which the cable length customize on the requirement from clients.
1. Current rating, such as: 5A...
2. Pins, such as : 2pin, 3pin...
3. Wire size, such as: 3*0.5mm²...
4. Cable Length, such as: 300mm.
2. Pins, such as : 2pin, 3pin...
3. Wire size, such as: 3*0.5mm²...
4. Cable Length, such as: 300mm.
Details Pictures

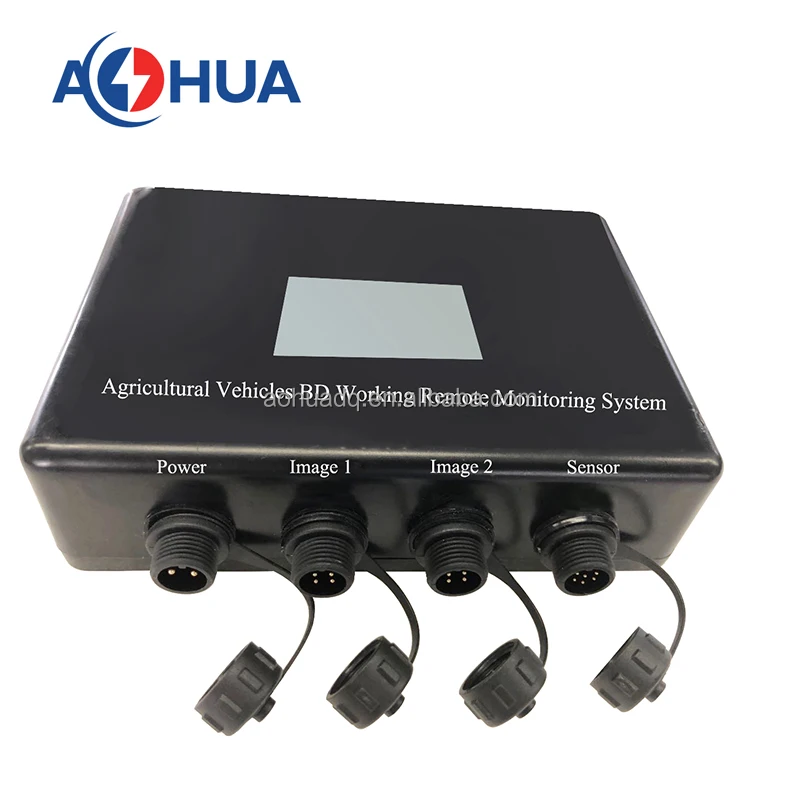

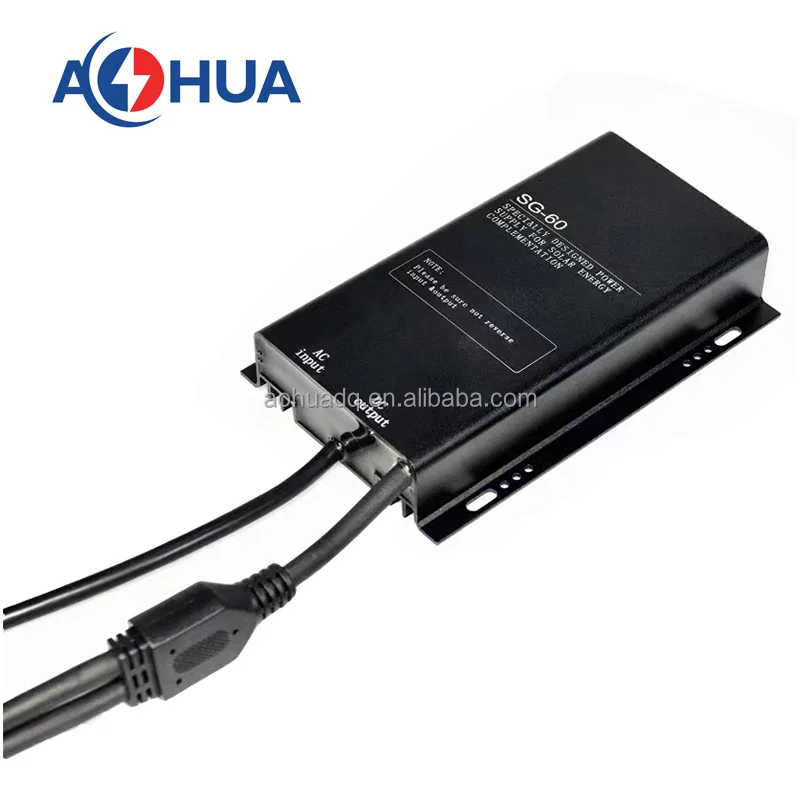

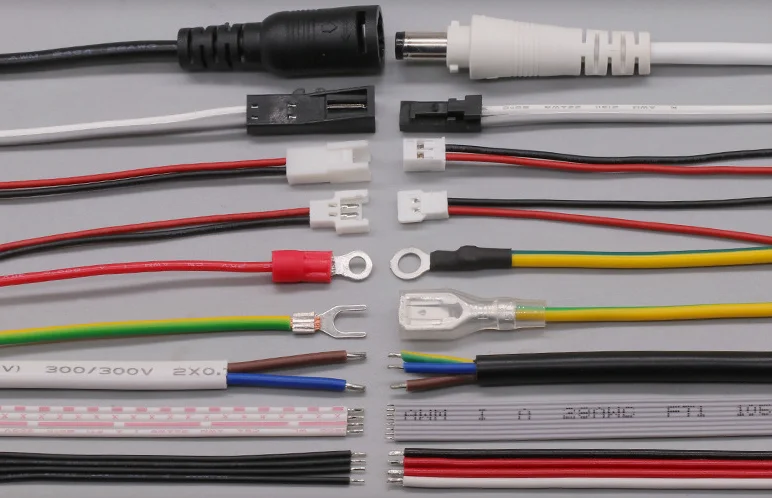

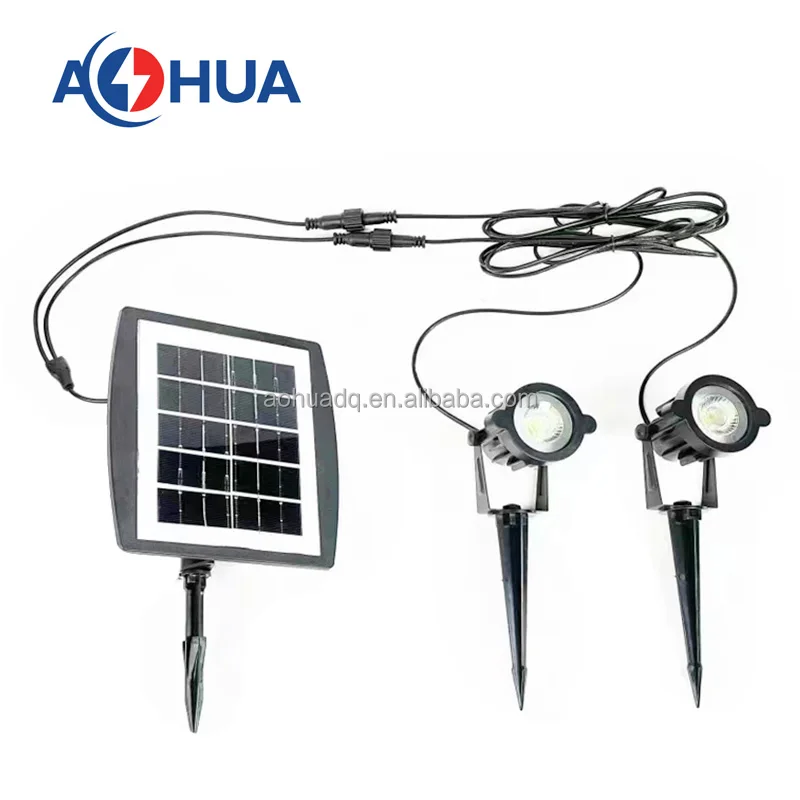

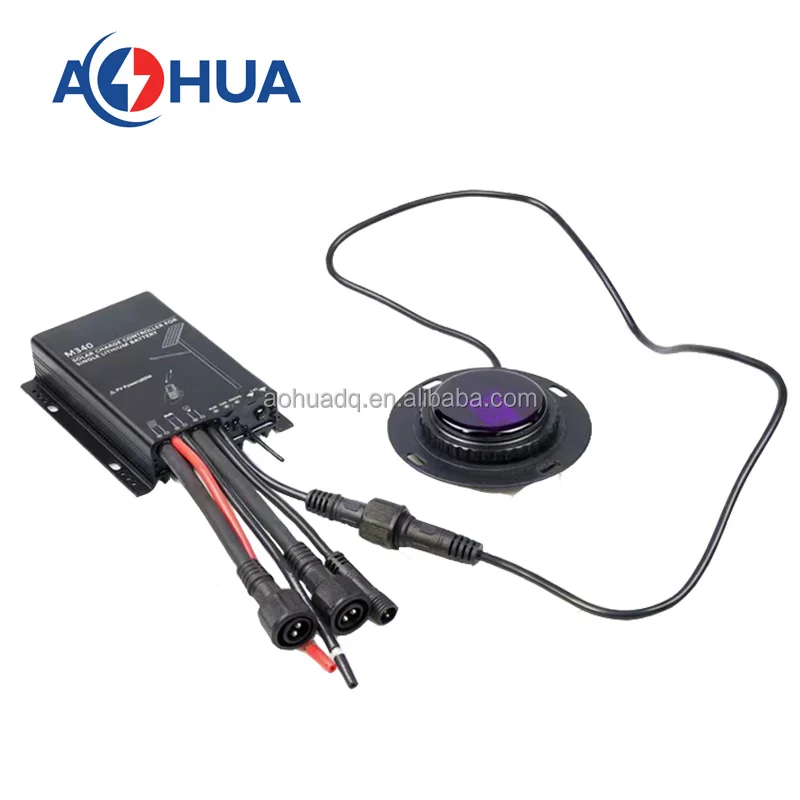

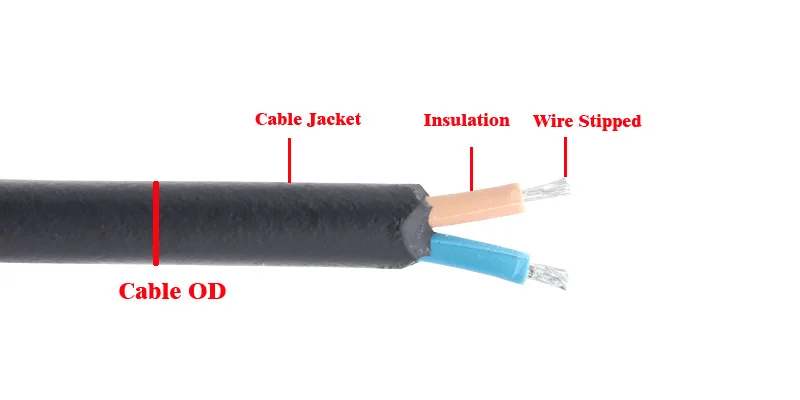

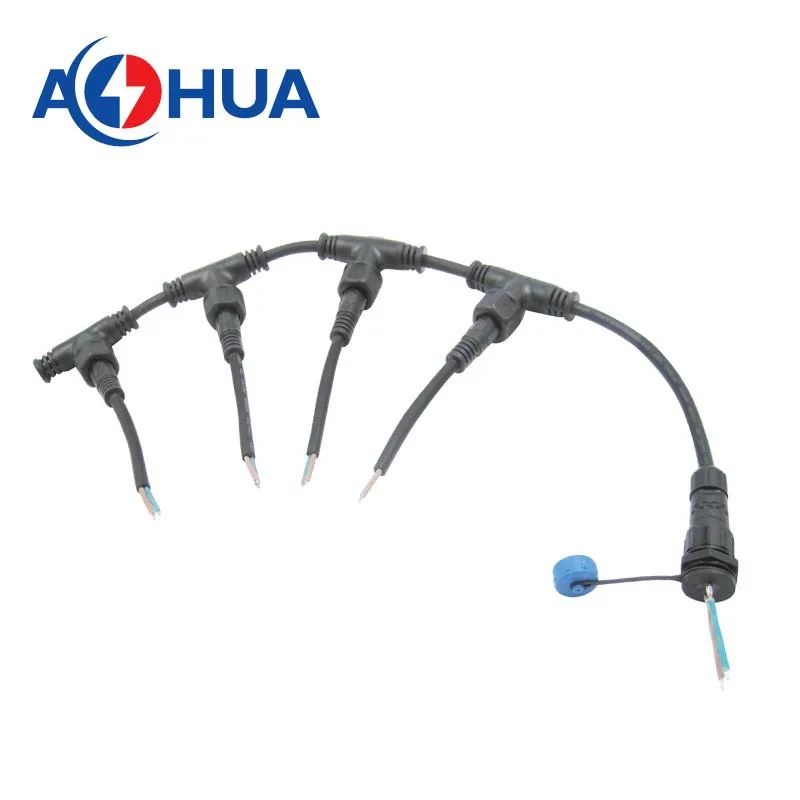

Customer cable tail treatment cases

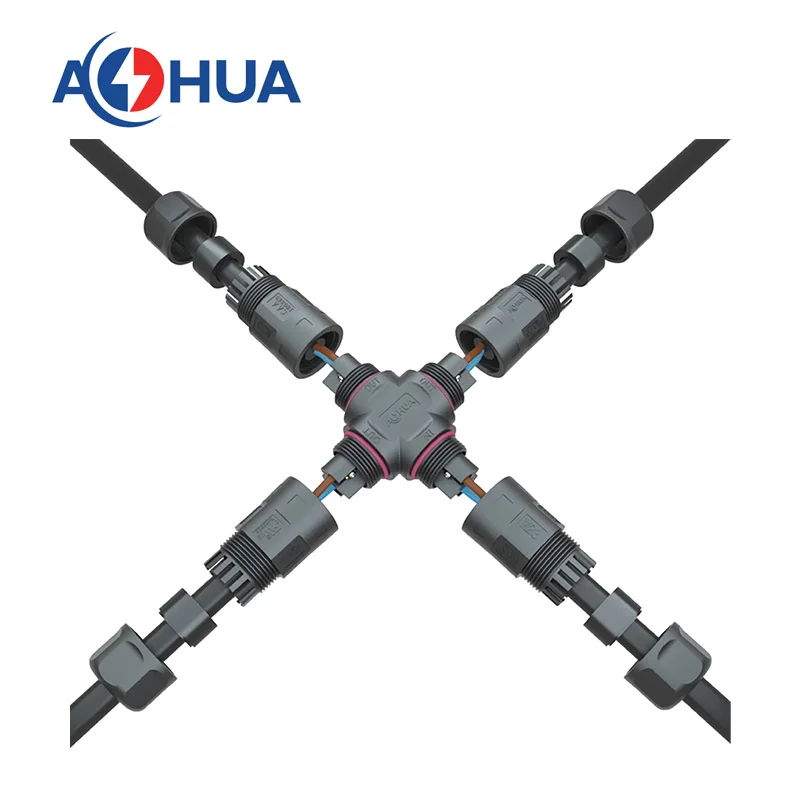

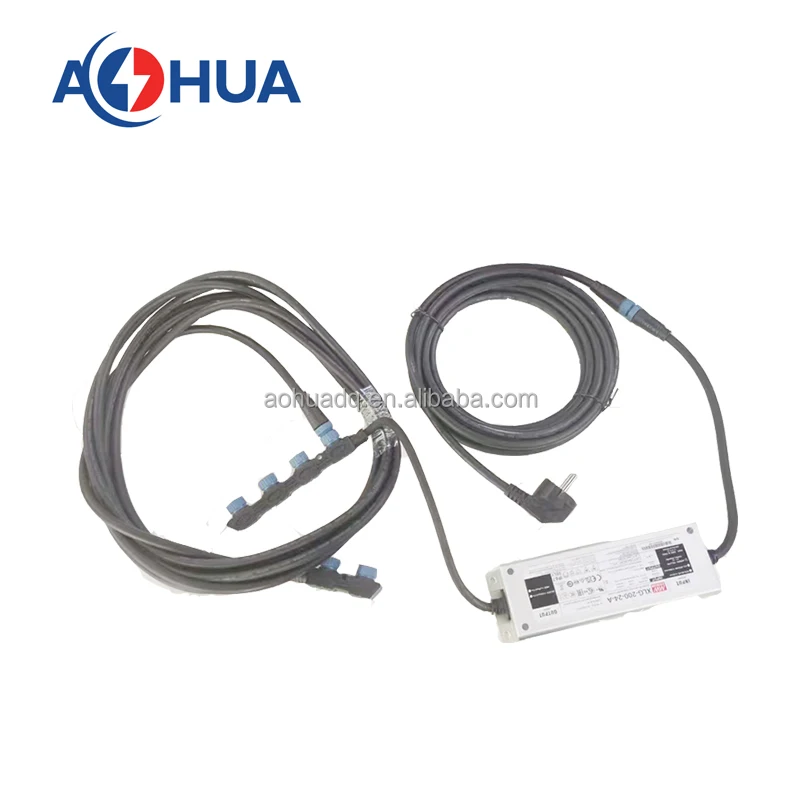

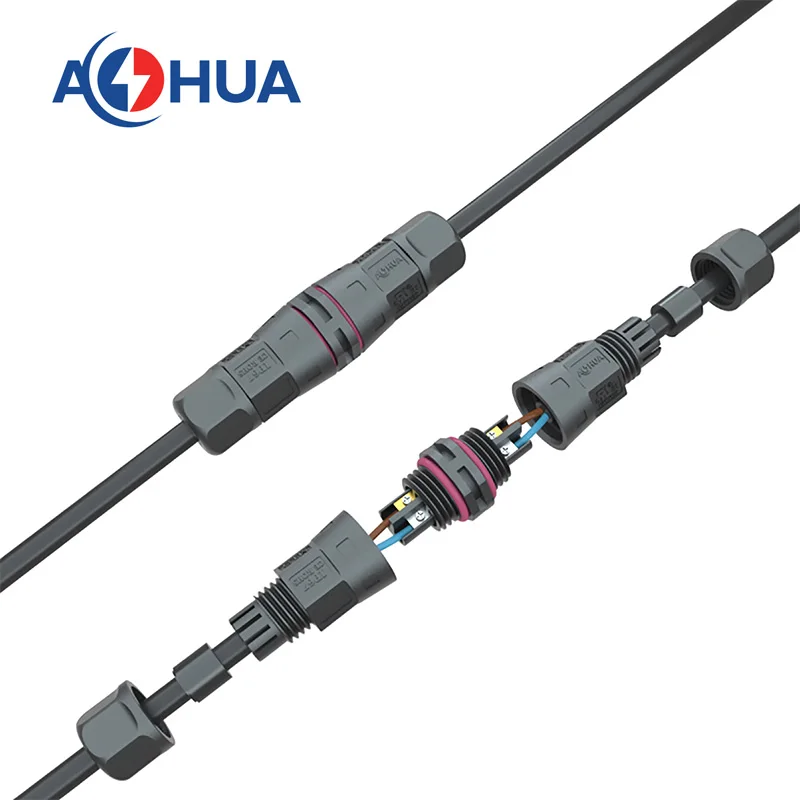

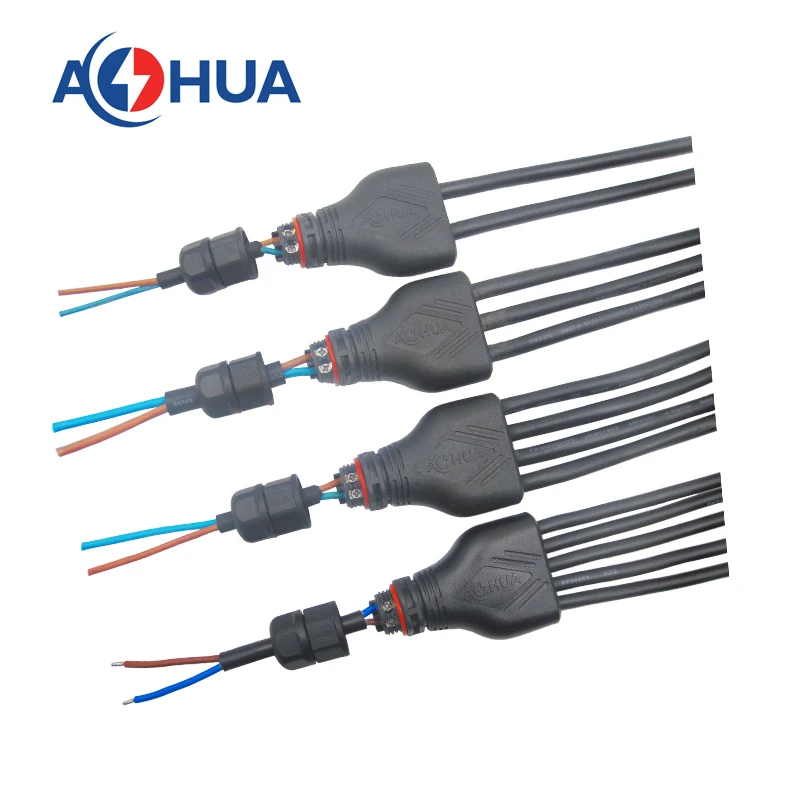

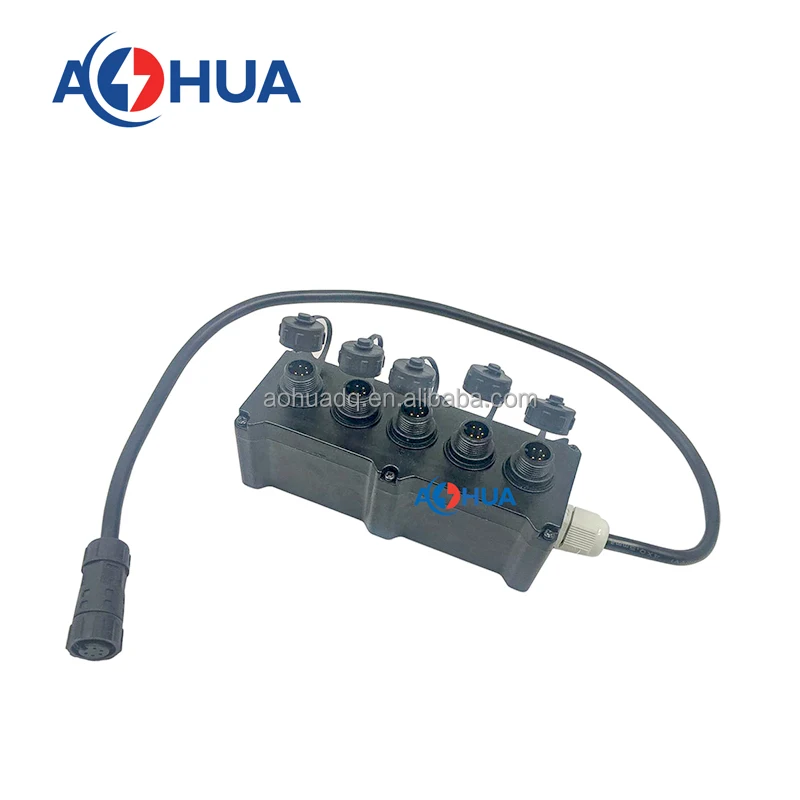

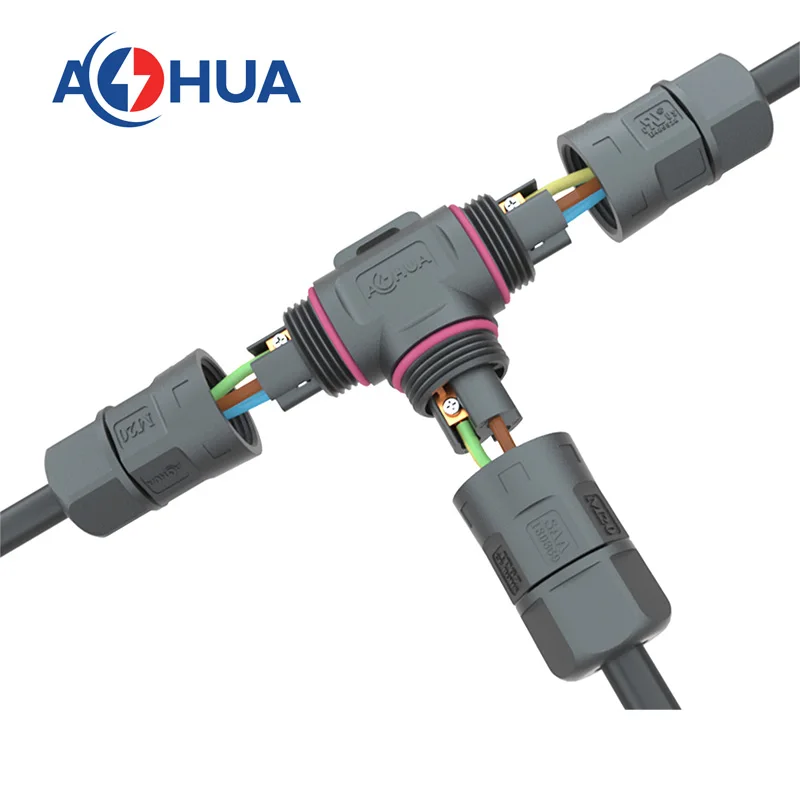

Related Products
